A New Level of Power Dominance
It’s been over 20 years, two generations of guitarists and several musical trend-cycles since the Dual Rectifier® first unleashed its crushing wall of gain on radio. The Triple Rectifier® takes the world famous platform to a new level of power dominance.
A decade ago both of our famous Recto®amplifiers underwent a massive facelift that greatly expanded their versatility, moving from 2-Channel amps aimed squarely at high gain only to 3-Channel amps capable of roaming any style confidently. Still delivering the widest, deepest footprint in heavy music, both the Recto® amps now serve a long list of chart-topping devotees both in and outside the world of heavy.
MULTI-WATT™ - CHANNEL SELECTABLE, 50 OR 150 WATTS OF POWER FOR ANY VENUE
Each channel on the Triple Rectifier features independent wattage controls quickly accessed via the second two-position mini toggle on each of the amp’s three channels. The Recto®’s Multi-Watt™, channel-assignable power amp (Patent 7,602,927) allows each channel to be independently set at 50 or a crushing 150 watts of power. Essentially, you now have the power to harness either 2 or all 6 power tubes to each channel for power ratings of 50 or 150 Watts of class A/B power via the independent 50/150 Watt Power Switches.

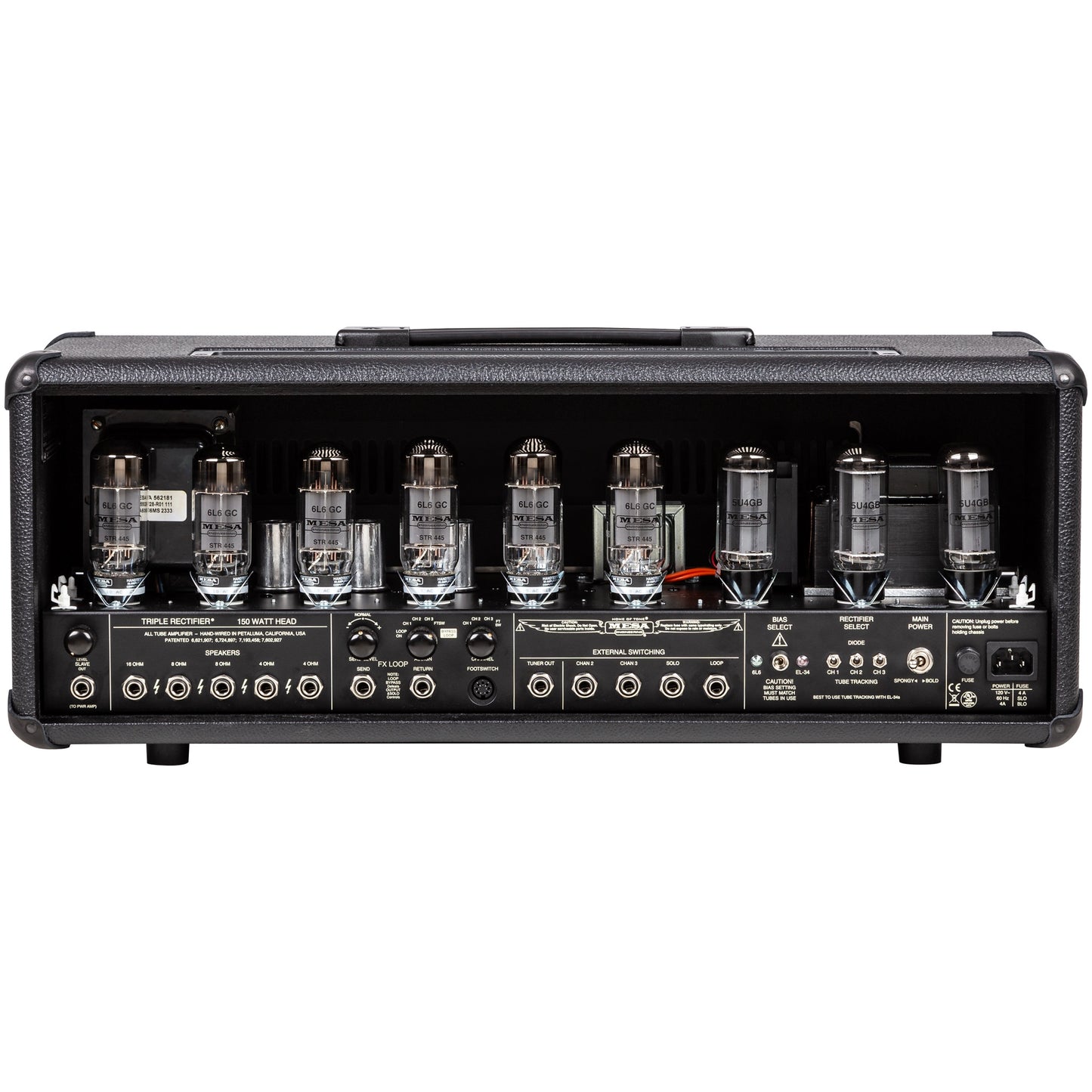

Tube complements include 6x6L6 (or 6xEL-34), 5x12AX7 and 3x5U4. Our Bias Select switch (6L6/EL34) offers Fixed Bias for consistent, maintenance-free performance.
SOULFUL EARTHINESS TO LIQUID GAIN AND BEYOND
We’ve unearthed a lot of secrets in the last two decades, and we’ve used them all in this latest rendering of the Triple Rectifier®. 8 sound modes across 3 channels are now on tap. The improved CLEAN and PUSHED sounds found in the Triple Rectifier's Channel 1 are based on the popular Lone Star® and Mark V® and offer a full-bodied, well-balanced clean signal, a perfect starting point for shaping your ideal clean tone.
MESA/Boogie®’s contribution to modern heavy rock and metal cannot be denied. On the lower end of gain, in both Channels 2 and 3, RAW mode offers an excellent classic-rock style sound. A smooth, progressive transition away from the higher end of RAW, VINTAGE takes over offering a fluid tonal transition headed straight toward metal mayhem. Channel 3 delivers a wish list of what heavy aficionados might expect from the original engineers of cascading gain. Switching from VINTAGE to MODERN fuels an inferno with increased low end, a boost in the high Mids and an aggressive bite unlike any other.
SOLO AND OUTPUT DELIVER CONTROL OVER ALL
The SOLO and OUTPUT knobs on the Triple Rectifier are only active when the FX Loop is engaged. The SOLO knob adds extra boost for lead work, and it can be activated quickly via the SOLO button on the footswitch. The OUTPUT knob controls the overall amp volume, and it’s ready for action after you have balanced every channel’s GAIN and MASTER volumes to meet your taste.
RECTO® TUBE TRACKING
Each Channel features Multi-Watt Power Switch (50/150 Watt), Independent Gain, Treble, Mid, Bass, Presence, Master, Channel Assignable Dual Rectification with Recto Tracking™ (Diode or Tube Tracking Patents 5,168,438 & 7,193,458). Tube Tracking further compresses sound in a very clean, subtle manner. If more headroom is needed, Diode rectification is an alternative option for tighter low-end tracking.
FULLY BUFFERED FX LOOP
Our footswitchable, fully-buffered FX Loop features two jacks (Send and Return), a Send Level knob, and a five-position rotary Assign control (for bypassing the loop or assigning it to any or all channels), allowing seamless integration with outboard effects processors from the Recto’s footswitch.
Product Name | Mesa Boogie Triple Rectifier Head Amplifier |
---|---|
Brand | Mesa Boogie |
MPN | 2.TR.1.A.LC |
What's in the Box?
- Mesa Boogie Triple Rectifier Head Amplifier
- Footswitch
- Slip Cover
Wattage | Multi-Watt™ 50 or 150 (Channel Assignable) |
Channels & Modes | 3 Channels / 8 Modes |
Mode Voicings Styles |
Ch. 1 = Clean or Pushed
Ch. 2 = Raw, Vintage High Gain or Modern High Gain Ch. 3 = Raw, Vintage High Gain or Modern High Gain |
Graphic Eq Reverb Fx Solo | FX Loop, Solo |
Footswitchable Functions | Ch. 1, 2, 3, Mute, FX Loop & Solo |
Speakers Impedance | n/a |
Weight | 48 Lbs. |
Dimensions | 10" H x 25 1/2" W x 9 7/8" D |
Available Formats | Head |
Footswitch | Included - 3x3 - 6 Button Footswitch (Bottom Row: Ch. 1, Ch. 2 & Ch. 3 - Top Row: Tuner Mute, FX Loop & Solo) |
Slip Cover | Included - Fitted Slip Cover |
Mesa Boogie Triple Rectifier Head Amplifier
A New Level of Power Dominance
It’s been over 20 years, two generations of guitarists and several musical trend-cycles since the Dual Rectifier® first unleashed its crushing wall of gain on radio. The Triple Rectifier® takes the world famous platform to a new level of power dominance.
A decade ago both of our famous Recto®amplifiers underwent a massive facelift that greatly expanded their versatility, moving from 2-Channel amps aimed squarely at high gain only to 3-Channel amps capable of roaming any style confidently. Still delivering the widest, deepest footprint in heavy music, both the Recto® amps now serve a long list of chart-topping devotees both in and outside the world of heavy.
MULTI-WATT™ - CHANNEL SELECTABLE, 50 OR 150 WATTS OF POWER FOR ANY VENUE
Each channel on the Triple Rectifier features independent wattage controls quickly accessed via the second two-position mini toggle on each of the amp’s three channels. The Recto®’s Multi-Watt™, channel-assignable power amp (Patent 7,602,927) allows each channel to be independently set at 50 or a crushing 150 watts of power. Essentially, you now have the power to harness either 2 or all 6 power tubes to each channel for power ratings of 50 or 150 Watts of class A/B power via the independent 50/150 Watt Power Switches.
Tube complements include 6x6L6 (or 6xEL-34), 5x12AX7 and 3x5U4. Our Bias Select switch (6L6/EL34) offers Fixed Bias for consistent, maintenance-free performance.
SOULFUL EARTHINESS TO LIQUID GAIN AND BEYOND
We’ve unearthed a lot of secrets in the last two decades, and we’ve used them all in this latest rendering of the Triple Rectifier®. 8 sound modes across 3 channels are now on tap. The improved CLEAN and PUSHED sounds found in the Triple Rectifier's Channel 1 are based on the popular Lone Star® and Mark V® and offer a full-bodied, well-balanced clean signal, a perfect starting point for shaping your ideal clean tone.
MESA/Boogie®’s contribution to modern heavy rock and metal cannot be denied. On the lower end of gain, in both Channels 2 and 3, RAW mode offers an excellent classic-rock style sound. A smooth, progressive transition away from the higher end of RAW, VINTAGE takes over offering a fluid tonal transition headed straight toward metal mayhem. Channel 3 delivers a wish list of what heavy aficionados might expect from the original engineers of cascading gain. Switching from VINTAGE to MODERN fuels an inferno with increased low end, a boost in the high Mids and an aggressive bite unlike any other.
SOLO AND OUTPUT DELIVER CONTROL OVER ALL
The SOLO and OUTPUT knobs on the Triple Rectifier are only active when the FX Loop is engaged. The SOLO knob adds extra boost for lead work, and it can be activated quickly via the SOLO button on the footswitch. The OUTPUT knob controls the overall amp volume, and it’s ready for action after you have balanced every channel’s GAIN and MASTER volumes to meet your taste.
RECTO® TUBE TRACKING
Each Channel features Multi-Watt Power Switch (50/150 Watt), Independent Gain, Treble, Mid, Bass, Presence, Master, Channel Assignable Dual Rectification with Recto Tracking™ (Diode or Tube Tracking Patents 5,168,438 & 7,193,458). Tube Tracking further compresses sound in a very clean, subtle manner. If more headroom is needed, Diode rectification is an alternative option for tighter low-end tracking.
FULLY BUFFERED FX LOOP
Our footswitchable, fully-buffered FX Loop features two jacks (Send and Return), a Send Level knob, and a five-position rotary Assign control (for bypassing the loop or assigning it to any or all channels), allowing seamless integration with outboard effects processors from the Recto’s footswitch.
Product Name | Mesa Boogie Triple Rectifier Head Amplifier |
---|---|
Brand | Mesa Boogie |
MPN | 2.TR.1.A.LC |
What's in the Box?
- Mesa Boogie Triple Rectifier Head Amplifier
- Footswitch
- Slip Cover
Wattage | Multi-Watt™ 50 or 150 (Channel Assignable) |
Channels & Modes | 3 Channels / 8 Modes |
Mode Voicings Styles |
Ch. 1 = Clean or Pushed
Ch. 2 = Raw, Vintage High Gain or Modern High Gain Ch. 3 = Raw, Vintage High Gain or Modern High Gain |
Graphic Eq Reverb Fx Solo | FX Loop, Solo |
Footswitchable Functions | Ch. 1, 2, 3, Mute, FX Loop & Solo |
Speakers Impedance | n/a |
Weight | 48 Lbs. |
Dimensions | 10" H x 25 1/2" W x 9 7/8" D |
Available Formats | Head |
Footswitch | Included - 3x3 - 6 Button Footswitch (Bottom Row: Ch. 1, Ch. 2 & Ch. 3 - Top Row: Tuner Mute, FX Loop & Solo) |
Slip Cover | Included - Fitted Slip Cover |
