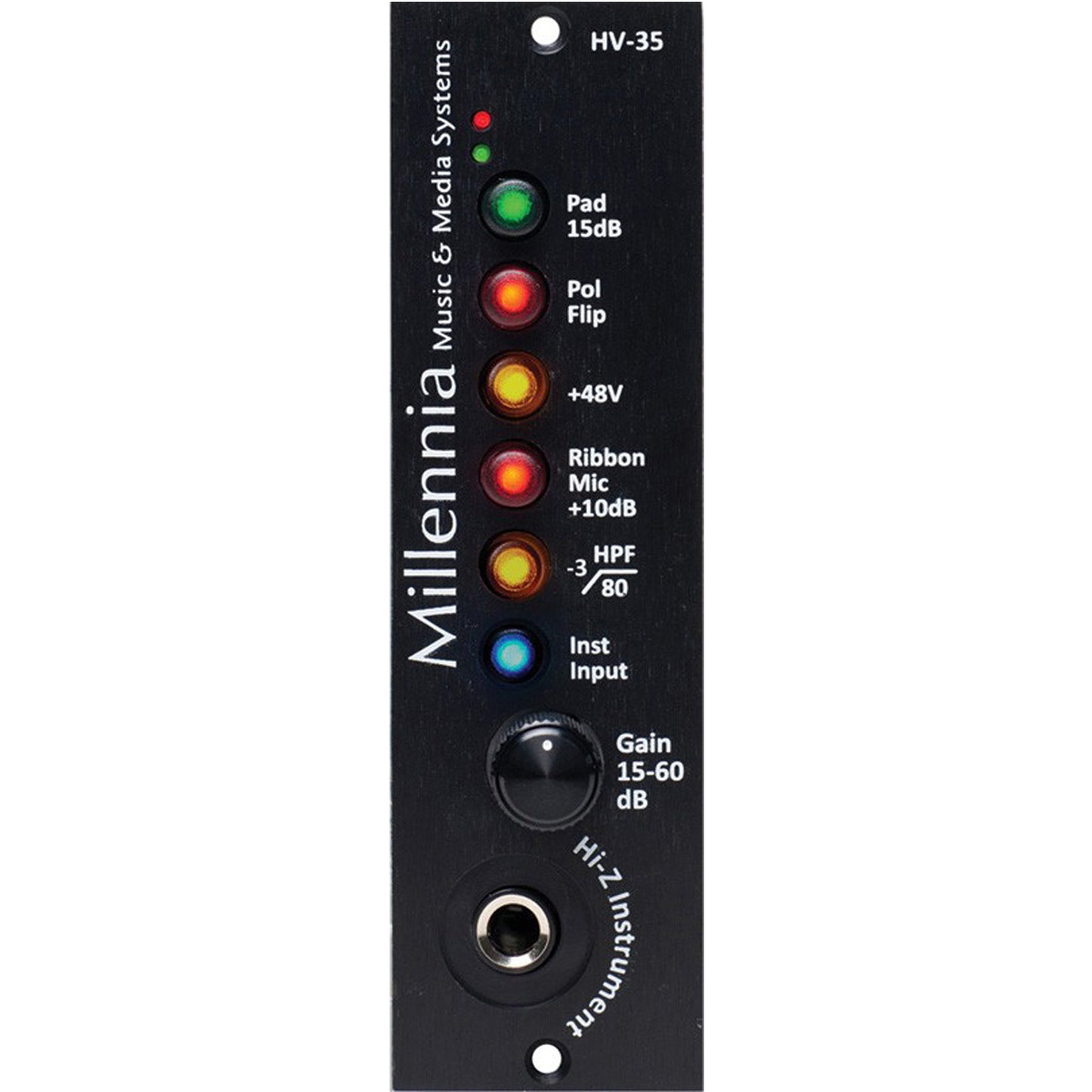

Millennia HV-35 500 Series Mic and Instrument Pre Amp

• Authentic Transparency for Unrestricted Creativity
• Continuously variable gain control
• Front panel instrument input
• DC coupled ribbon mic with 10dB gain boost setting
• 80 Hz rolloff filter
• 48V phantom power
• 15 dB Pad
• Polarity flip
• API 500 series compatible format

Specifications:

• Minimum Gain 8.5 dB
• Maximum Gain (continuously variable) 60 dB (70 dB in Ribbon Mode)
• Frequency Response +0 / -3 dB sub 3 Hz to beyond 300 kHz
• Noise 60 dB Gain, 10 Hz - 30 kHz, Inputs common -133 dB EIN
• Total Harmonic Distortion + Noise 35 dB Gain, 10 Hz - 20 kHz bandwidth, +27 dBu Out < .001%, Typ. < .0005% (< 5 ppm)
• Intermodulation Distortion (50 Hz & 7 kHz) 35 dB Gain, +27 dBu Out < .0009%
• Phase Response 35 dB Gain, 50 Hz - 20 kHz bandwidth, +27 dBu Out < 2 degrees deviation
• Common Mode Rejection Ratio 35 dB Gain, 10 Hz - 20 kHz bandwidth, 100 mV C.M. > 65 dB, Typ > 85 dB
• Slew Rate 35 dB Gain, +27 dBu Out > 25 Volts per microsecond
• Maximum Input Level 20 Hz - 40 kHz +20 dBu (no attenuator pads required)
• Maximum Output Level 20 Hz - 40 kHz +28 dBu
• Phantom Input Impedance 1 kHz 6,750 ohms
• Output Impedance 24.3 Ohms (x2)
• Phantom Powering +48 V dc, +/- 2 V dc
• Dimensions/Shipping Weight 1.5” W x 5.25” H x 6” D, 3 lbs
