Moog Grandmother 32-Key Semi-Modular Analog Synth

Moog Grandmother 32-Key Semi-Modular Analog Synth

On order with the manufacturer!

Grandmother is a semi-modular analog synthesizer with a built-in arpeggiator, sequencer and spring reverb tank. Start playing immediately with “no patching required” then explore an infinite sonic playground with Grandmother’s endlessly reconfigurable front panel.
View full details
  • Details
  • Features
  • Tech Specs
  • Reviews

Grandmother is a sonic playground that harkens back to Moog’s modular roots, where synthesis is not only about the end result, but the journey of discovery and experimentation. While capable of highly complex sounds and modulation, Grandmother's semi-modular design requires absolutely no patching, ensuring that human beings of any skill-level can easily explore and experience the joys and magic of analog synthesis.

Inspired by the classic Moog modular synthesizers that came before it, Grandmother's sound engine, modulation engine and onboard spring reverb tank are completely analog, resulting in an unrestricted sonic vocabulary of immeasurable beauty and power. In addition, Grandmother also features an easy to use Arpeggiator and Sequencer for added enjoyment and programmable syncopation.

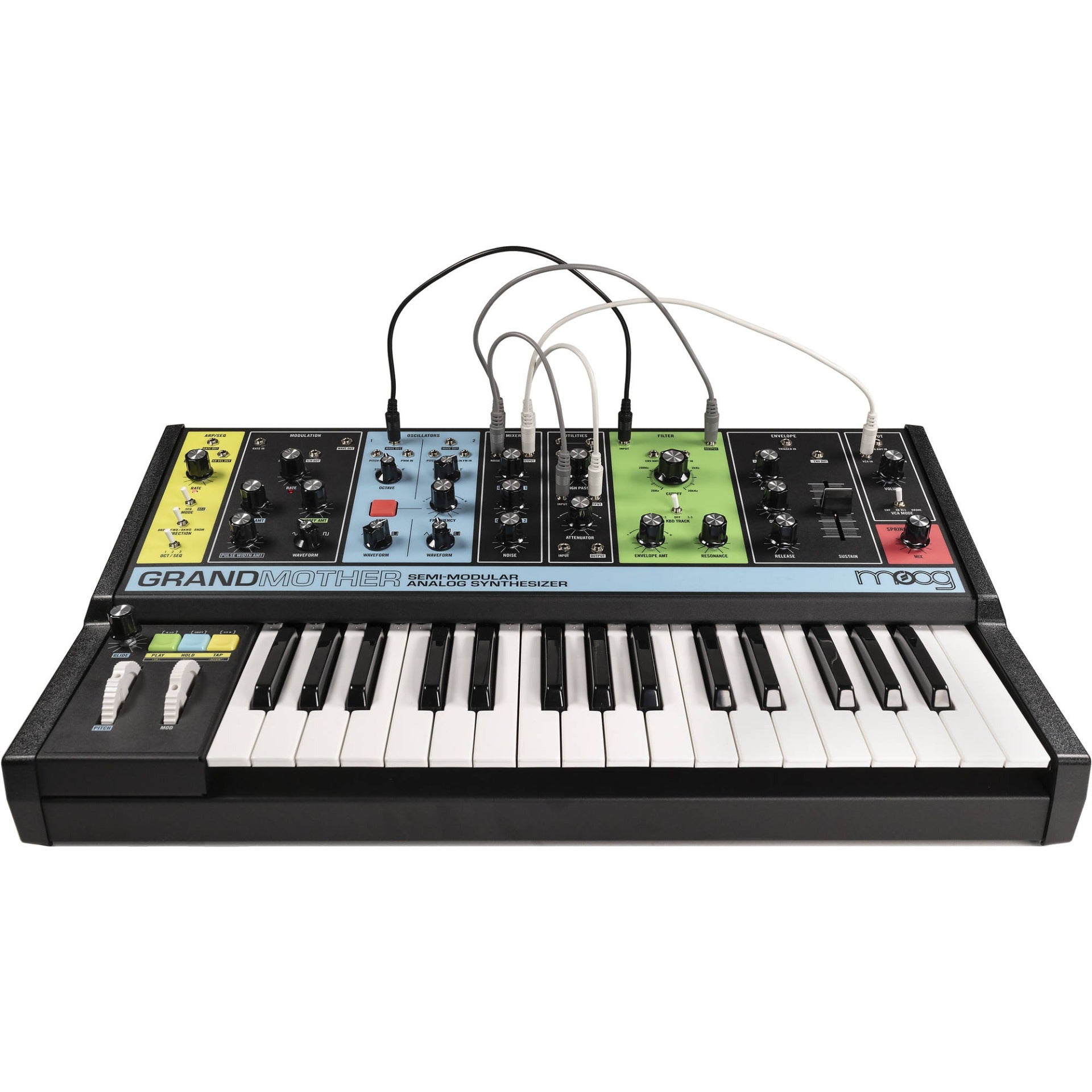

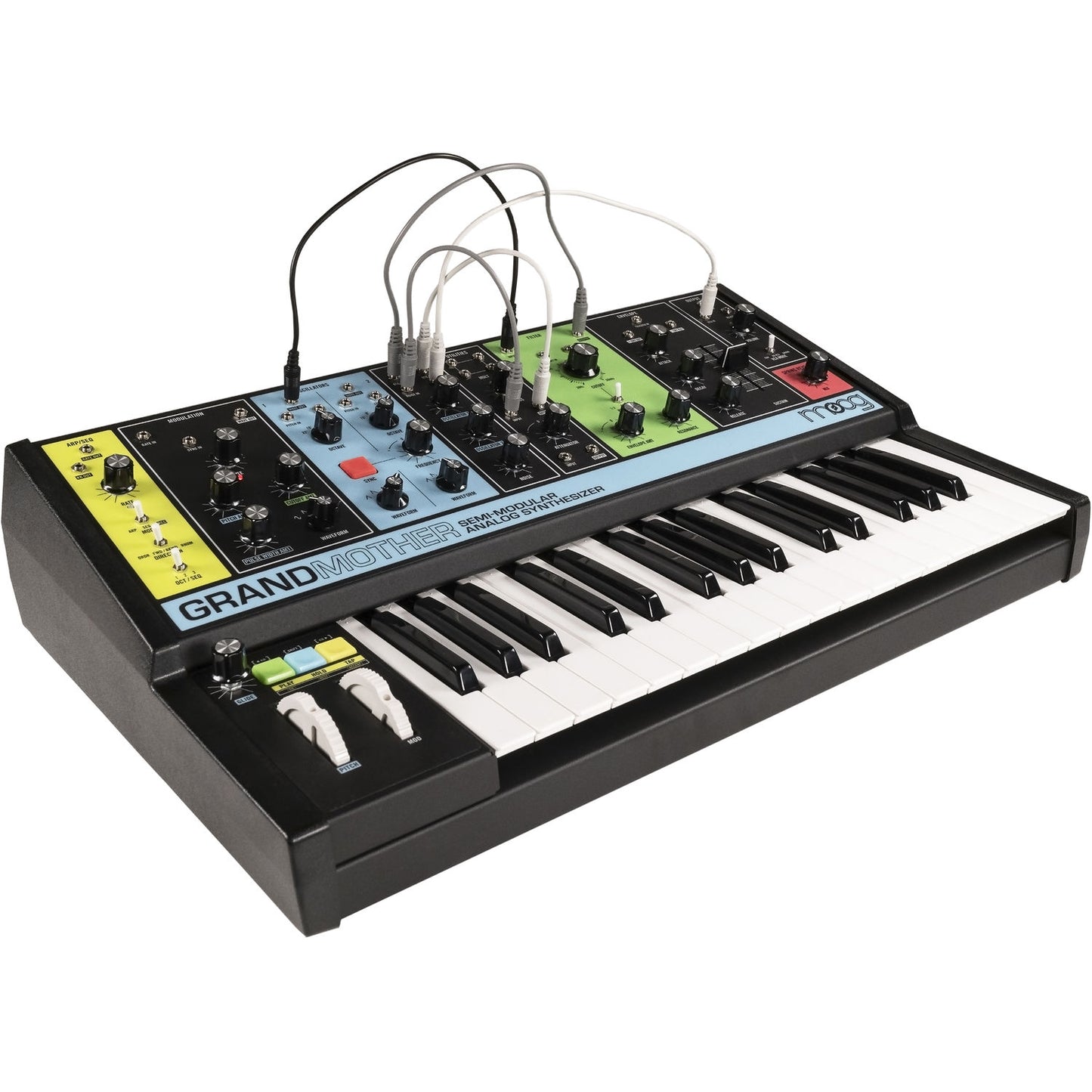

Though not required, creative patching and exploration are the keys to discovering exciting new relationships between modules and to truly unlocking Grandmother’s infinite expanse of auditory inspiration. Patching can also be used to override internal connections, allowing each section to function just as an independent module would.

In addition to its standalone function, Grandmother is also an ideal analog audio processor for external sound sources, and a powerful keyboard front end for expanding a Mother-32, DFAM or Eurorack modular system.

More Information
Product Name Moog Grandmother 32-Key Semi-Modular Analog Synth
Brand Moog
Condition New
MPN MOD-GRAND-01
UPC 040232613395
Shipping Option Free Shipping to the Continental U.S.
  • Hardware Spring Reverb can be used to process external sounds
  • ¼” External audio input for guitars, drum machines, and more.
  • Semi-modular - no patching is required
  • Easy to use Arpeggiator and Sequencer
  • Store up to 3 sequences with up to 256 notes each
  • 2 Analog Oscillators with selectable waveshape and hard sync
  • Classic 4-Pole 10Hz-20kHz Ladder filter
  • Patchable 1-Pole High Pass filter
  • Analog ADSR Envelope Generator
  • Analog LFO with audio-rate capabilities
  • 32-note Fatar keyboard with velocity
  • All normalized connections can be interrupted for full modularity
  • DIN MIDI In/Out/Thru and USB MIDI
  • Patchable bipolar attenuator
  • Works with Mother-32, DFAM, Eurorack modular systems and more
  • 41 patch points with 21 inputs, 16 outputs and a Parallel-Wired 4-jack Mult
TYPE Semi-Modular Analog Synthesizer
SOUND ENGINE Analog
NUMBER OF KEYS 32 Full-Size Keys
TYPE OF KEYS Velocity-sensing (Velocity signal is not hard-wired – available via MIDI and KBD VEL OUT jack)
OTHER CONTROLLERS Pitch Bend, Mod Wheel, Variable Glide
POLYPHONY Monophonic
SOUND SOURCES 2 Oscillators with selectable Waveforms (Oscillator 2 supports Sync to Oscillator 1 plus linear FM), 1 White Noise Generator, External Input jack
VCF FILTER (LOW PASS) -24dB/Octave Moog Ladder Filter with Resonance (Self-Oscillating)
STATIC FILTER (HIGH PASS) -6dB/Octave
MOD SOURCES Modulation Oscillator (Sine, Sawtooth, Ramp, Square), S/H Output, plus Envelope and Key Tracking
ENVELOPE Four-Stage (ADSR)
ATTENUATOR Bipolar
MULT Four Parallel-wired Non-buffered Patch Points
EFFECTS Spring Reverb
ARPEGGIATOR / STEP SEQUENCER (256 Steps; three Sequence Files)
PATCH POINTS 41 x 3.5mm front and rear panels, 21 Inputs, 16 Outputs, 4 Parallel-wired Mults.
AUDIO INPUT One 1/4” TS jack (Rear Panel)
AUDIO OUTPUT One 1/4” TRS jack for headphones or line level output (Rear Panel)
MIDI I/O 5-pin DIN In, Out, Thru; plus MIDI over USB (Rear Panel)
DIMENSIONS 23” (58.42cm) Wide x 14 1/4” (36.19cm) Deep x 5 1/2” (13.97cm) High
POWER Included Power Adapter 12V DC (positive tip), 2A, 100 to 240 Volts AC, 50/60Hz
WEIGHT 16lbs. / 7.25kg

Moog Grandmother 32-Key Semi-Modular Analog Synth

Details

Grandmother is a sonic playground that harkens back to Moog’s modular roots, where synthesis is not only about the end result, but the journey of discovery and experimentation. While capable of highly complex sounds and modulation, Grandmother's semi-modular design requires absolutely no patching, ensuring that human beings of any skill-level can easily explore and experience the joys and magic of analog synthesis.

Inspired by the classic Moog modular synthesizers that came before it, Grandmother's sound engine, modulation engine and onboard spring reverb tank are completely analog, resulting in an unrestricted sonic vocabulary of immeasurable beauty and power. In addition, Grandmother also features an easy to use Arpeggiator and Sequencer for added enjoyment and programmable syncopation.

Though not required, creative patching and exploration are the keys to discovering exciting new relationships between modules and to truly unlocking Grandmother’s infinite expanse of auditory inspiration. Patching can also be used to override internal connections, allowing each section to function just as an independent module would.

In addition to its standalone function, Grandmother is also an ideal analog audio processor for external sound sources, and a powerful keyboard front end for expanding a Mother-32, DFAM or Eurorack modular system.

More Information
Product Name Moog Grandmother 32-Key Semi-Modular Analog Synth
Brand Moog
Condition New
MPN MOD-GRAND-01
UPC 040232613395
Shipping Option Free Shipping to the Continental U.S.
Features
  • Hardware Spring Reverb can be used to process external sounds
  • ¼” External audio input for guitars, drum machines, and more.
  • Semi-modular - no patching is required
  • Easy to use Arpeggiator and Sequencer
  • Store up to 3 sequences with up to 256 notes each
  • 2 Analog Oscillators with selectable waveshape and hard sync
  • Classic 4-Pole 10Hz-20kHz Ladder filter
  • Patchable 1-Pole High Pass filter
  • Analog ADSR Envelope Generator
  • Analog LFO with audio-rate capabilities
  • 32-note Fatar keyboard with velocity
  • All normalized connections can be interrupted for full modularity
  • DIN MIDI In/Out/Thru and USB MIDI
  • Patchable bipolar attenuator
  • Works with Mother-32, DFAM, Eurorack modular systems and more
  • 41 patch points with 21 inputs, 16 outputs and a Parallel-Wired 4-jack Mult
Tech Specs
TYPE Semi-Modular Analog Synthesizer
SOUND ENGINE Analog
NUMBER OF KEYS 32 Full-Size Keys
TYPE OF KEYS Velocity-sensing (Velocity signal is not hard-wired – available via MIDI and KBD VEL OUT jack)
OTHER CONTROLLERS Pitch Bend, Mod Wheel, Variable Glide
POLYPHONY Monophonic
SOUND SOURCES 2 Oscillators with selectable Waveforms (Oscillator 2 supports Sync to Oscillator 1 plus linear FM), 1 White Noise Generator, External Input jack
VCF FILTER (LOW PASS) -24dB/Octave Moog Ladder Filter with Resonance (Self-Oscillating)
STATIC FILTER (HIGH PASS) -6dB/Octave
MOD SOURCES Modulation Oscillator (Sine, Sawtooth, Ramp, Square), S/H Output, plus Envelope and Key Tracking
ENVELOPE Four-Stage (ADSR)
ATTENUATOR Bipolar
MULT Four Parallel-wired Non-buffered Patch Points
EFFECTS Spring Reverb
ARPEGGIATOR / STEP SEQUENCER (256 Steps; three Sequence Files)
PATCH POINTS 41 x 3.5mm front and rear panels, 21 Inputs, 16 Outputs, 4 Parallel-wired Mults.
AUDIO INPUT One 1/4” TS jack (Rear Panel)
AUDIO OUTPUT One 1/4” TRS jack for headphones or line level output (Rear Panel)
MIDI I/O 5-pin DIN In, Out, Thru; plus MIDI over USB (Rear Panel)
DIMENSIONS 23” (58.42cm) Wide x 14 1/4” (36.19cm) Deep x 5 1/2” (13.97cm) High
POWER Included Power Adapter 12V DC (positive tip), 2A, 100 to 240 Volts AC, 50/60Hz
WEIGHT 16lbs. / 7.25kg
