*Please note -- This pre-owned item may show signs of use. Please see photos for details of the product.

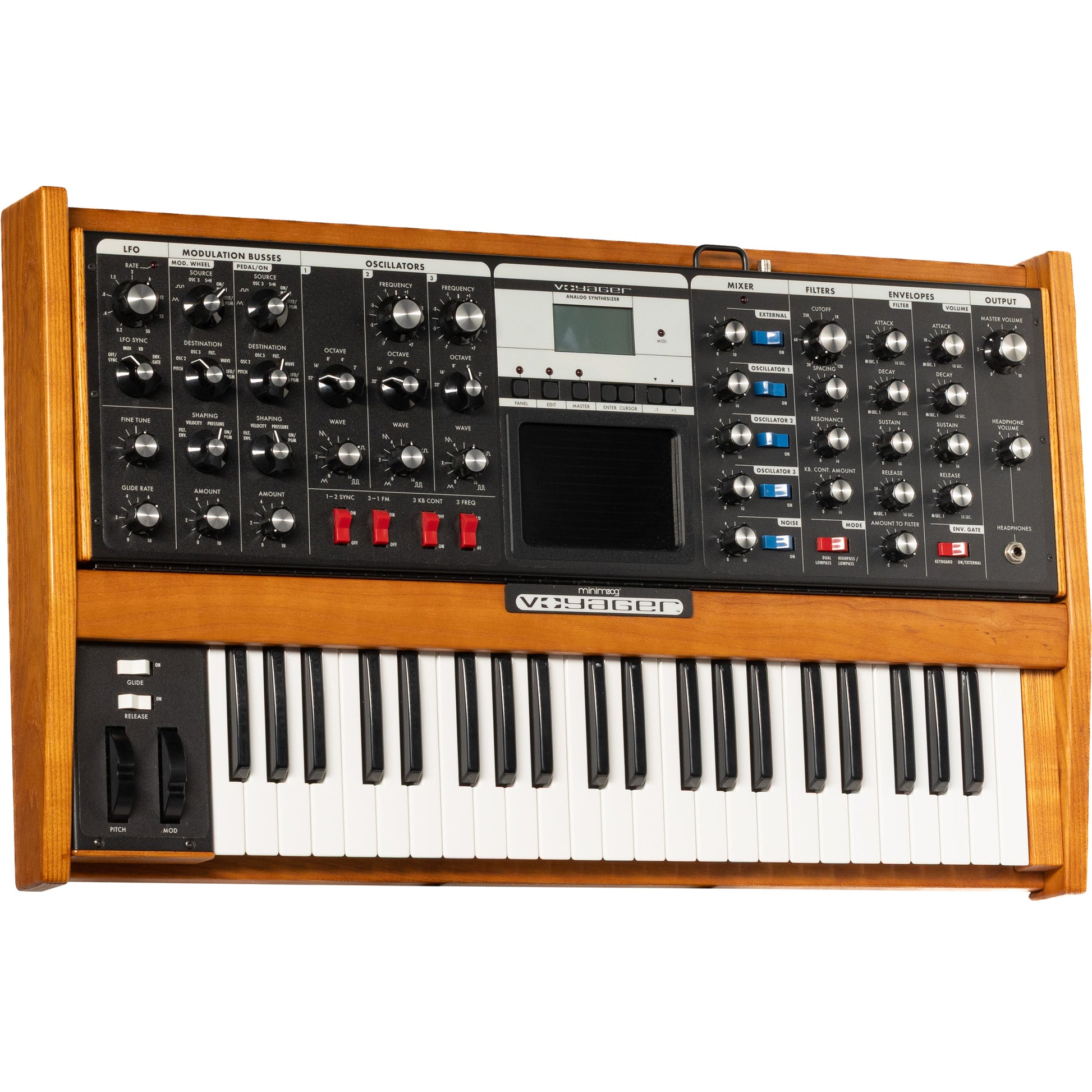

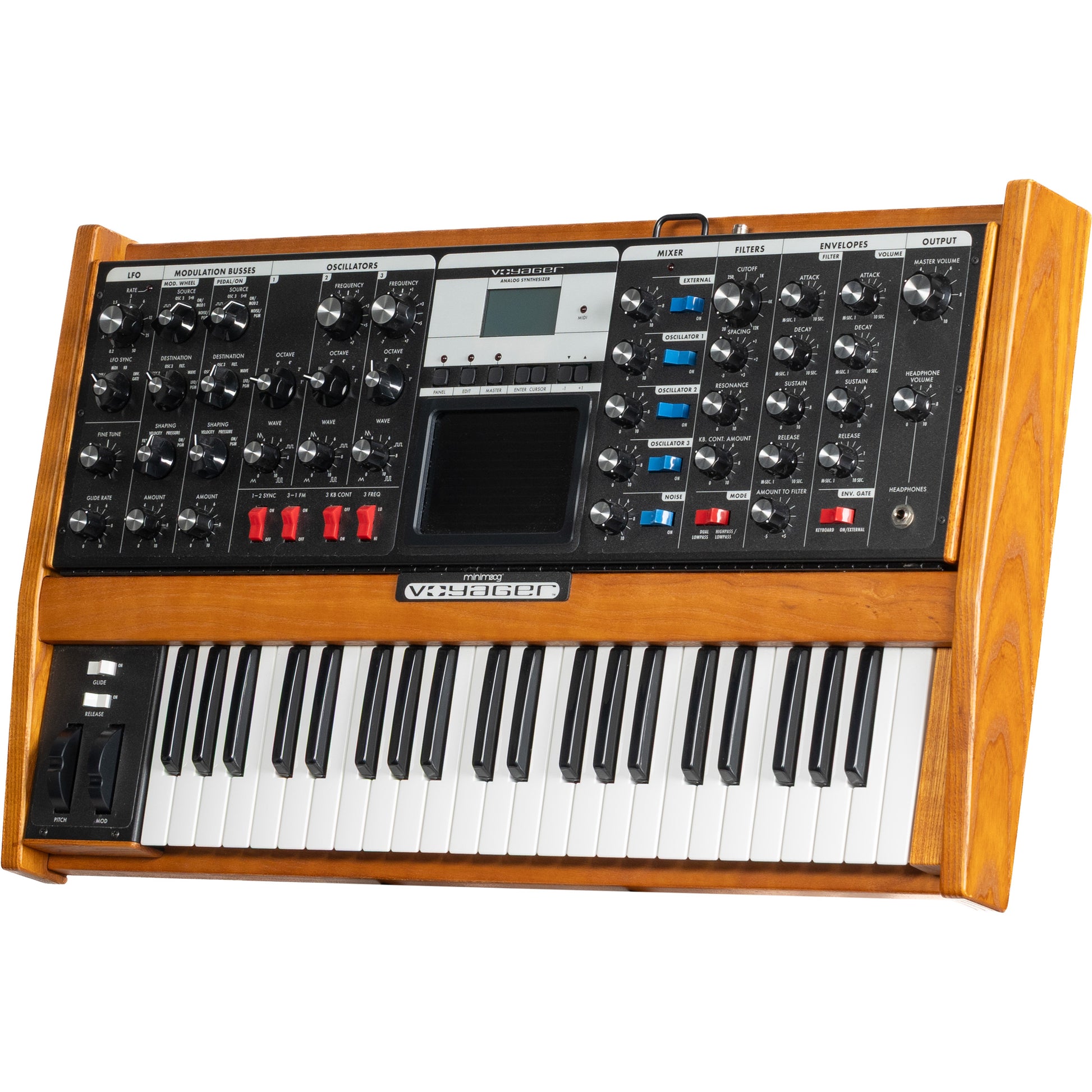

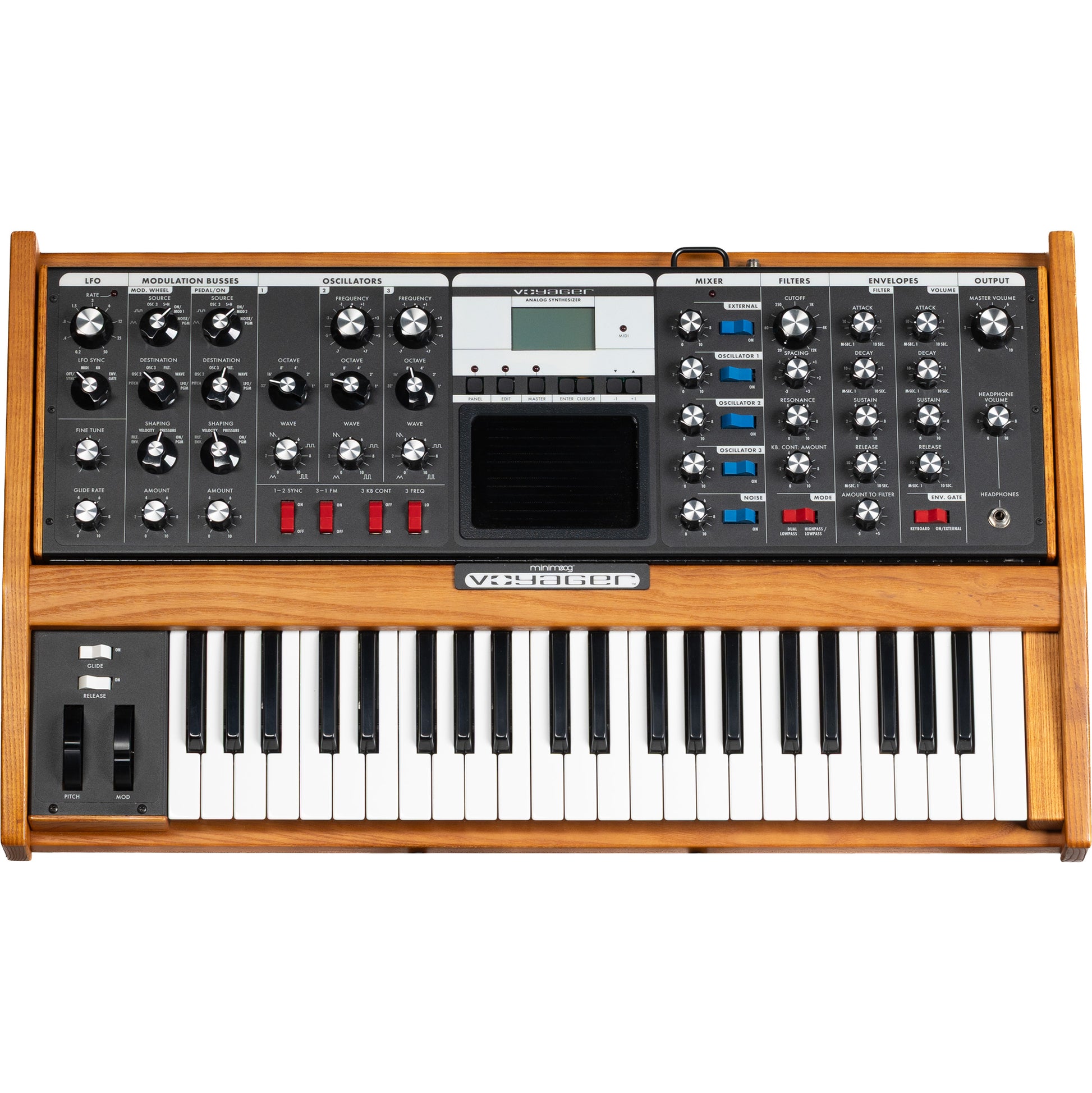

The Performer Edition Minimoog Voyager Monophonic Synthesizer from Moog is a 44-key programmable monophonic analog synthesizer incorporating the discontinued Model D Minimoog. It features a Fatar keybed with velocity sensitive keys with aftertouch as well as a programmable, 3-dimensional touch surface assignable to X, Y, and A parameters. The synth has 896 presets that are user-writable.
The Minimoog Voyager's sound engine is driven by 3 voltage controlled oscillators with continuously variable waveforms in addition to a noise source. The tones produced by the oscillators can be manipulated by the two on-board Moog ladder filters, dual envelope generators, modulation module, and LFO. The Voyager's integrated 5 input mixer allows you to combine your audio sources prior to the effects stage.
The synth itself has a steel chassis housed in an ash cabinet. This version of the Performer Edition features gray pitch and mod wheels.
| Product Name | Moog Minimoog Voyager 44-Key Monophonic Synthesizer |
|---|---|
| Brand | Moog |
| Condition | Pre-Owned |
| MPN | MIN-01-0004 |
| UPC | 094922419798 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Moog Minimoog Voyager 44-Key Monophonic Synthesizer

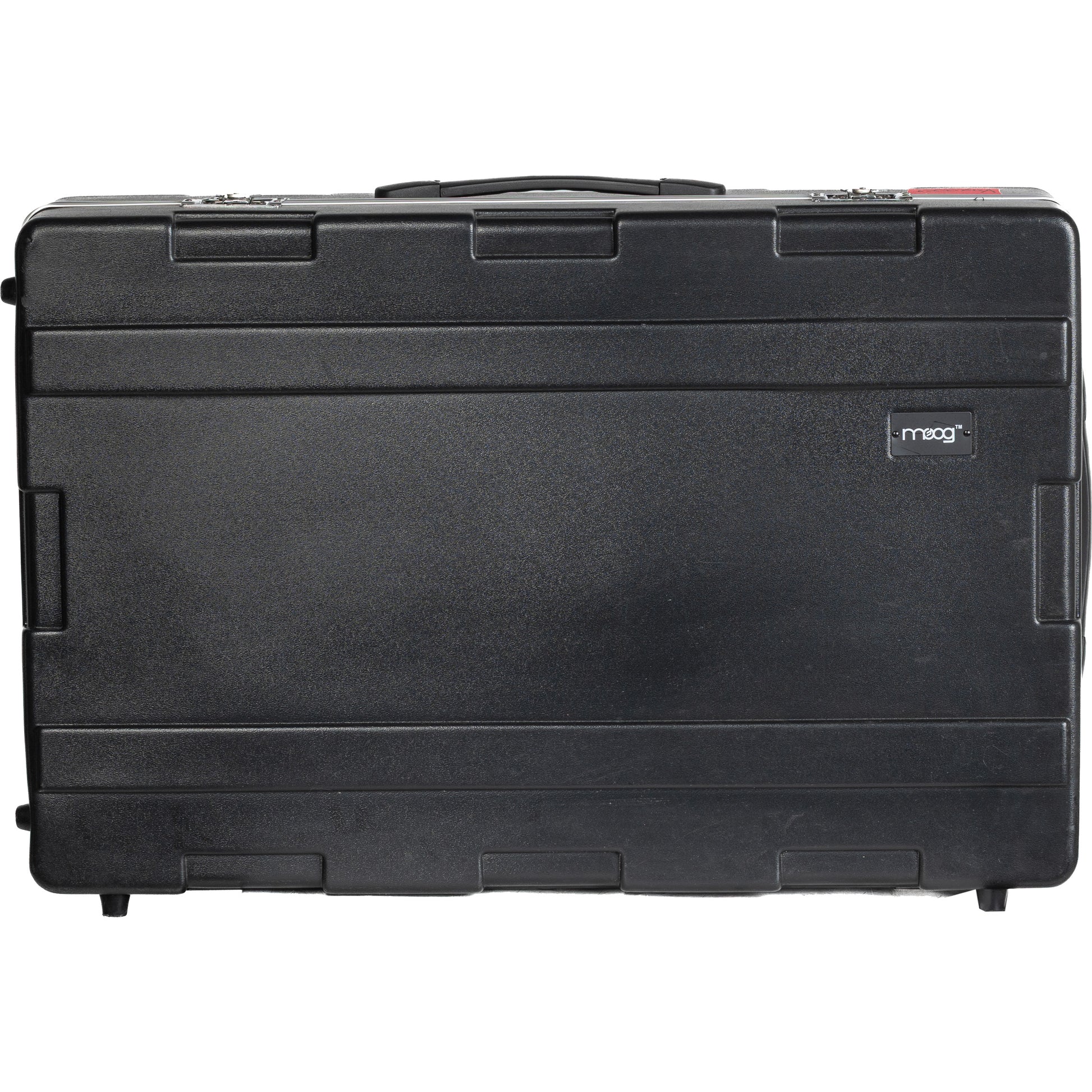

- Hardshell case
- 44-Key Fatar Keybed
- Programmable Monophonic Analog Synth
- Blue Backlit Panel & Pitch/Mod Wheels
- 3 Oscillators with Variable Waveforms
- Dual Moog Ladder Filters
- Assignable Touch Control Surface
- 896 User-Writable Presets
- External Audio Input
- Dual 4-Stage Envelope Generators
| Type | Programmable monophonic analog synthesizer |
| Sound Generator | 3x Oscillators (VCOs) with continuously variable waveform control, 1x Noise source, 5-input Mixer, 2x Filters, 2x Envelope Generators, 1x LFO, 2x Programmable Modulation Sections, Glide and Fine Tune controls |
| Program Memory | 896 Presets in 7 banks, all locations are user rewritable |
| Keyboard | 44 keys (F-C); Transmits polyphonic MIDI Note On/Off messages along with velocity and aftertouch |
| Controls | Pitch Wheel: programmable up to +/- 31 semitones; Modulation Wheel: 0–100%; Glide and Release Switches: On/Off; Touch Surface: programmable 3D control; Master Volume: 0–100%; Frequency controls for Oscillators #2 & #3: +/-7 semitones; Octave selectors: 6 steps; Wave controls: continuous waveform morphing; 1-2 SYNC, 3-1 FM, 3 KB CONT, 3 FREQ switches for modulation and sync functions |
| Mixer | Five-input mixer for combining oscillator, noise, and external signals; 5x Input Level controls; 5x Input switches; External Level LED for proper level setting |
| Filters | Dual-mode filter module: dual low-pass and high-pass/low-pass; Cutoff, Spacing (+/-3 octaves), Resonance, KB CONT Amount, Dual LP/HP-LP mode selection; parallel or series operation options |
| Envelope | Two ADSR Envelopes (Filter and Volume); individual Attack, Decay, Sustain, Release controls; Amount To Filter (inverted/non-inverted); Envelope Gate Switch (keyboard/on/external gate) |
| LFO | Generates triangle, square, Sample & Hold, and smoothed S&H waveforms; Rate 0.2 Hz–50 Hz; Sync selector (keyboard, external gate, or off); Rate LED indicator |
| Modulation | 2x Modulation Busses (Mod Wheel bus and EXT Pedal/ON bus); Sources: LFO, Oscillator #3, S&H, external MOD2, noise; Destinations: oscillators, filters, waveforms, LFO rate; Shaping: key pressure, filter envelope, note-on velocity; 2x Amount controls for modulation intensity |
| Glides | Glide varies keyboard voltage transition speed; Fine Tune adjusts overall tuning |
| Software | Front Panel Storage/Recall for 896 presets; Full MIDI transmission/reception; Preset upload/download via SysEx; OS updates via MIDI (.syx); Panel, Edit, and Master Mode functions include Compare, Quick Mode, Parameter Display, Preset Management, Global Settings, MIDI settings, and System ROM update support |
| Control Input | 10x CV/Expression Inputs: Volume, Pan, Filter Cutoff, Waveform, Pitch, MOD2, MOD1, Sample & Hold In, Envelope Rate, LFO Rate |
| Connections | LFO Sync, Envelopes Gate, Sample & Hold Gate, Release, Mixer Ext In, Mix Out/Filter Audio In (insert loop support) |
| User Interface | Backlit LCD Display with contrast control; Preset/Edit/Master function buttons; Cursor, Enter, -1/+1 navigation |
| Backlight | Variable-intensity panel illumination with dedicated brightness control |

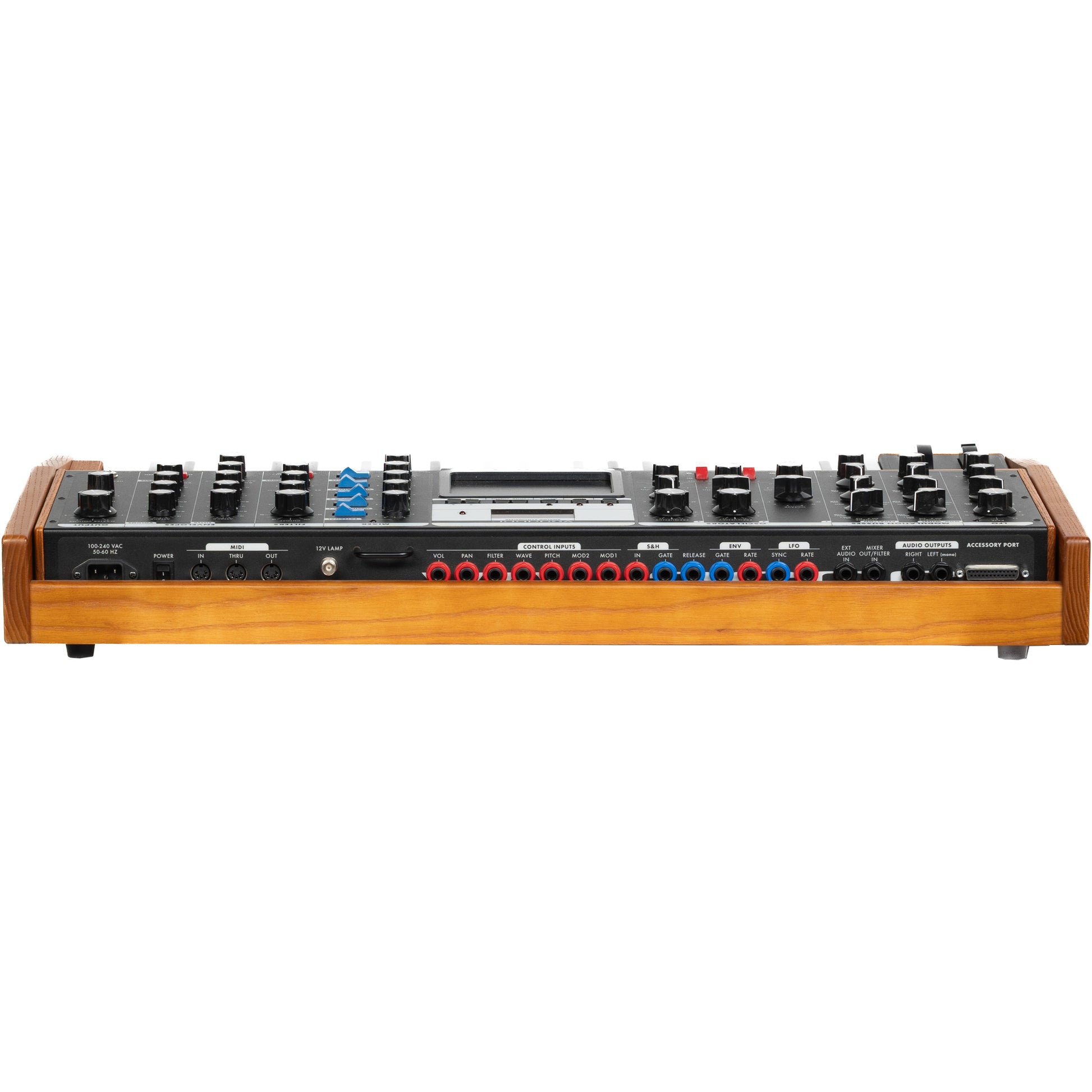

| Back Panel I/O Ports | AC Power Inlet (100–250V AC, 50–60Hz), Power switch, Stereo Audio Outputs (balanced/unbalanced), External Audio In, Mixer Out/Filter In, 14x Pedal/Control Jacks (Voyager Keyboard only), Accessory In/Out, BNC Lamp Socket, MIDI In/Out/Thru |
| Output | 2x 1/4" (6.3 mm) unbalanced jacks (L/R), 1x 1/4" (6.3 mm) TRS headphone jack with dedicated volume |
| MIDI | 1x 5-Pin DIN In, 1x 5-Pin DIN Out, 1x 5-Pin DIN Thru |
| Operating System | Flash upgradeable via MIDI SysEx |
| Power | 100–250 V AC, 50–60 Hz |
| Dimensions | Panel Flat: 30.5 x 18 x 3" (77 x 46 x 8 cm); Panel Upright: 30.5 x 18 x 12" (77 x 46 x 30 cm) |
| Weight | 40 lb (18.2 kg) |
Moog Minimoog Voyager 44-Key Monophonic Synthesizer
*Please note -- This pre-owned item may show signs of use. Please see photos for details of the product.
The Performer Edition Minimoog Voyager Monophonic Synthesizer from Moog is a 44-key programmable monophonic analog synthesizer incorporating the discontinued Model D Minimoog. It features a Fatar keybed with velocity sensitive keys with aftertouch as well as a programmable, 3-dimensional touch surface assignable to X, Y, and A parameters. The synth has 896 presets that are user-writable.
The Minimoog Voyager's sound engine is driven by 3 voltage controlled oscillators with continuously variable waveforms in addition to a noise source. The tones produced by the oscillators can be manipulated by the two on-board Moog ladder filters, dual envelope generators, modulation module, and LFO. The Voyager's integrated 5 input mixer allows you to combine your audio sources prior to the effects stage.
The synth itself has a steel chassis housed in an ash cabinet. This version of the Performer Edition features gray pitch and mod wheels.
| Product Name | Moog Minimoog Voyager 44-Key Monophonic Synthesizer |
|---|---|
| Brand | Moog |
| Condition | Pre-Owned |
| MPN | MIN-01-0004 |
| UPC | 094922419798 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Moog Minimoog Voyager 44-Key Monophonic Synthesizer
- Hardshell case
- 44-Key Fatar Keybed
- Programmable Monophonic Analog Synth
- Blue Backlit Panel & Pitch/Mod Wheels
- 3 Oscillators with Variable Waveforms
- Dual Moog Ladder Filters
- Assignable Touch Control Surface
- 896 User-Writable Presets
- External Audio Input
- Dual 4-Stage Envelope Generators
| Type | Programmable monophonic analog synthesizer |
| Sound Generator | 3x Oscillators (VCOs) with continuously variable waveform control, 1x Noise source, 5-input Mixer, 2x Filters, 2x Envelope Generators, 1x LFO, 2x Programmable Modulation Sections, Glide and Fine Tune controls |
| Program Memory | 896 Presets in 7 banks, all locations are user rewritable |
| Keyboard | 44 keys (F-C); Transmits polyphonic MIDI Note On/Off messages along with velocity and aftertouch |
| Controls | Pitch Wheel: programmable up to +/- 31 semitones; Modulation Wheel: 0–100%; Glide and Release Switches: On/Off; Touch Surface: programmable 3D control; Master Volume: 0–100%; Frequency controls for Oscillators #2 & #3: +/-7 semitones; Octave selectors: 6 steps; Wave controls: continuous waveform morphing; 1-2 SYNC, 3-1 FM, 3 KB CONT, 3 FREQ switches for modulation and sync functions |
| Mixer | Five-input mixer for combining oscillator, noise, and external signals; 5x Input Level controls; 5x Input switches; External Level LED for proper level setting |
| Filters | Dual-mode filter module: dual low-pass and high-pass/low-pass; Cutoff, Spacing (+/-3 octaves), Resonance, KB CONT Amount, Dual LP/HP-LP mode selection; parallel or series operation options |
| Envelope | Two ADSR Envelopes (Filter and Volume); individual Attack, Decay, Sustain, Release controls; Amount To Filter (inverted/non-inverted); Envelope Gate Switch (keyboard/on/external gate) |
| LFO | Generates triangle, square, Sample & Hold, and smoothed S&H waveforms; Rate 0.2 Hz–50 Hz; Sync selector (keyboard, external gate, or off); Rate LED indicator |
| Modulation | 2x Modulation Busses (Mod Wheel bus and EXT Pedal/ON bus); Sources: LFO, Oscillator #3, S&H, external MOD2, noise; Destinations: oscillators, filters, waveforms, LFO rate; Shaping: key pressure, filter envelope, note-on velocity; 2x Amount controls for modulation intensity |
| Glides | Glide varies keyboard voltage transition speed; Fine Tune adjusts overall tuning |
| Software | Front Panel Storage/Recall for 896 presets; Full MIDI transmission/reception; Preset upload/download via SysEx; OS updates via MIDI (.syx); Panel, Edit, and Master Mode functions include Compare, Quick Mode, Parameter Display, Preset Management, Global Settings, MIDI settings, and System ROM update support |
| Control Input | 10x CV/Expression Inputs: Volume, Pan, Filter Cutoff, Waveform, Pitch, MOD2, MOD1, Sample & Hold In, Envelope Rate, LFO Rate |
| Connections | LFO Sync, Envelopes Gate, Sample & Hold Gate, Release, Mixer Ext In, Mix Out/Filter Audio In (insert loop support) |
| User Interface | Backlit LCD Display with contrast control; Preset/Edit/Master function buttons; Cursor, Enter, -1/+1 navigation |
| Backlight | Variable-intensity panel illumination with dedicated brightness control |
| Back Panel I/O Ports | AC Power Inlet (100–250V AC, 50–60Hz), Power switch, Stereo Audio Outputs (balanced/unbalanced), External Audio In, Mixer Out/Filter In, 14x Pedal/Control Jacks (Voyager Keyboard only), Accessory In/Out, BNC Lamp Socket, MIDI In/Out/Thru |
| Output | 2x 1/4" (6.3 mm) unbalanced jacks (L/R), 1x 1/4" (6.3 mm) TRS headphone jack with dedicated volume |
| MIDI | 1x 5-Pin DIN In, 1x 5-Pin DIN Out, 1x 5-Pin DIN Thru |
| Operating System | Flash upgradeable via MIDI SysEx |
| Power | 100–250 V AC, 50–60 Hz |
| Dimensions | Panel Flat: 30.5 x 18 x 3" (77 x 46 x 8 cm); Panel Upright: 30.5 x 18 x 12" (77 x 46 x 30 cm) |
| Weight | 40 lb (18.2 kg) |
