MOTU 16A 32x34 Thunderbolt/USB Audio Interface

MOTU 16A 32x34 Thunderbolt/USB Audio Interface

Limited quantities available!

View full details
  • Details
  • Features
  • Tech Specs
  • Reviews

The completely redesigned 16A delivers everything you need to turn your computer into a powerful 24-bit/192 kHz digital audio workstation.

The 16A connects to a Mac, PC or iOS device with the included 40 Gbps USB-C cable (compatible with Thunderbolt 3/4, USB4, USB3 and USB2) for up to 256 audio channels (128 in and 128 out), depending on the host computer connection. Class-compliant firmware and reputable MOTU drivers work with all your favorite audio apps, delivering industry-leading, ultra-low round trip latency (RTL) performance less than 2 ms at 96 kHz with high-performance DAW hosts. USB audio class-compliant firmware allows connection to your iPad™ or any iOS™ device via USB-C or a standard camera connection kit (Lightning adapter, sold separately).

The 16A is equally well-suited for studio and stage. As an interface or standalone mixer, the 16A provides 32 separate inputs and 34 separate outputs, including 16 balanced 1/4-inch TRS analog (line-level) in/out, two banks of 8-channel optical I/O, and a front-panel headphone output. Renowned ESS Sabre32™ DAC technology delivers superb analog performance.

Connect all of your studio gear, including microphones, guitars, synths, keyboards, drum machines and effects processors. Record, monitor, and process all of these live inputs with no latency and no processor strain on your computer. Powerful 32-bit floating point DSP delivers 64-channel mixing with 64 inputs, 32 busses, and effects processing, including reverb, 4-band EQ, high-pass filter, gate and compression at all sample rates up to 96 kHz.

Use two Gigabit network ports to daisy-chain multiple units using standard network cabling, or add an AVB switch to build a network with multiple interfaces and computers with ultra-low network latency, even over long cable runs (hundreds of meters). Stream hundreds of audio channels among devices and computers on the network. The 16A is compatible with previous-generation MOTU AVB devices.

Take control of your recording sessions with talkback. Connect up to three sets of speakers and check your mixes instantly with A/B/C speaker select switching. Stream your sessions to the web with loopback channels and your customized mix of any 16A inputs.

After recording and mixing in the studio, take the 16A on stage for operation as a stand-alone mixer with effects. Control everything over Wi-Fi from the CueMix Pro™ app running on your laptop, tablet and smartphone.

From studio to stage, the 16A delivers exceptional sound quality, state-of-the-art operation and rock-solid performance.

More Information
Product Name MOTU 16A 32x34 Thunderbolt/USB Audio Interface
Brand Motu
MPN 9321
UPC 839128006287

What's in the Box?

  • MOTU 16A 32x34 Thunderbolt/USB Audio Interface
  • The world’s first Thunderbolt 4 / USB4 audio interface.
  • 32 x 34 full-rack unit with DSP, mixing, effects, and networking.
  • Luxurious metering with two 3.9-inch 24-bit RGB LCD with precision metering for all I/O.
  • Superb analog audio performance driven by ESS Sabre32 Ultra™ DAC Technology.
  • Ultra-low latency and proven, high-performance MOTU drivers (~2 ms RTL with a 32 sample buffer @ 96 kHz).
  • Universal connectivity with included 40 Gbps USB-C cable (compatible with Thunderbolt 3/4, USB4, USB3 and USB2).
  • 66 simultaneous audio channels (32 inputs and 34 outputs).
  • DSP-driven 64-input digital mixer with 32 busses and DSP effects (reverb, 4-band EQ, gate, compressor & HPF).
  • Patchbay routing and splitting with intuitive, virtual patch cords to easily route any source signal to any destination.
  • 2x Gigabit Ethernet ports support AVB daisy-chaining and networking with standard CAT-5/6 cables.
  • 16x 8-channel AVB streams in/out (128 audio channels in/out) with variable stream size (1-8 channels) per stream.
  • Wi-Fi control from CueMix Pro™ app on multiple mobile devices.
  • Network management features (discovery and control for multiple devices on the network).
  • Precision boost for all analog inputs and trim (cut) for all analog outputs in 1 dB increments.
  • Control room features include Talkback and A/B/C monitor select via CueMix Pro™ software.
  • Flexible headphone output with independent volume control and source select knob.
  • 16x balanced, DC-coupled 1/4-inch TRS analog outputs with measured 125 dB dynamic range.
  • 16x balanced 1/4-inch TRS analog inputs with measured 120 dB dynamic range.
  • 2x banks of optical digital I/O (16 ADAT channels at 1x sample rates) with optional stereo TOSLink on Bank A.
  • Word clock in/out/thru.
  • DC-coupled TRS outputs can be used to control modular synthesizers from a host DAW using control voltage (CV).
  • Support for 44.1 to 192 kHz sample rates.
  • 1-rack U form factor built with rugged steel construction.
  • USB audio class compliant for plug-and-play operation on macOS and iOS (no driver required).
  • Loopback for mixing host software output with live 16A inputs for streaming and podcasting.
  • Flexible front-panel metering with meter views for analog I/O only, digital I/O only and all channels.
  • CueMix Pro™ app to control mixing and settings from your Mac, PC or iOS device.
  • MOTU Performer Lite workstation software included.
  • 100+ instruments (in Performer Lite).
  • Over 6 GB of included free loops, samples and one-shots from industry leading libraries.
  • Two-year warranty.

Audio Specifications

Sample rates 44.1, 48, 88.2, 96, 176.4, 192 kHz

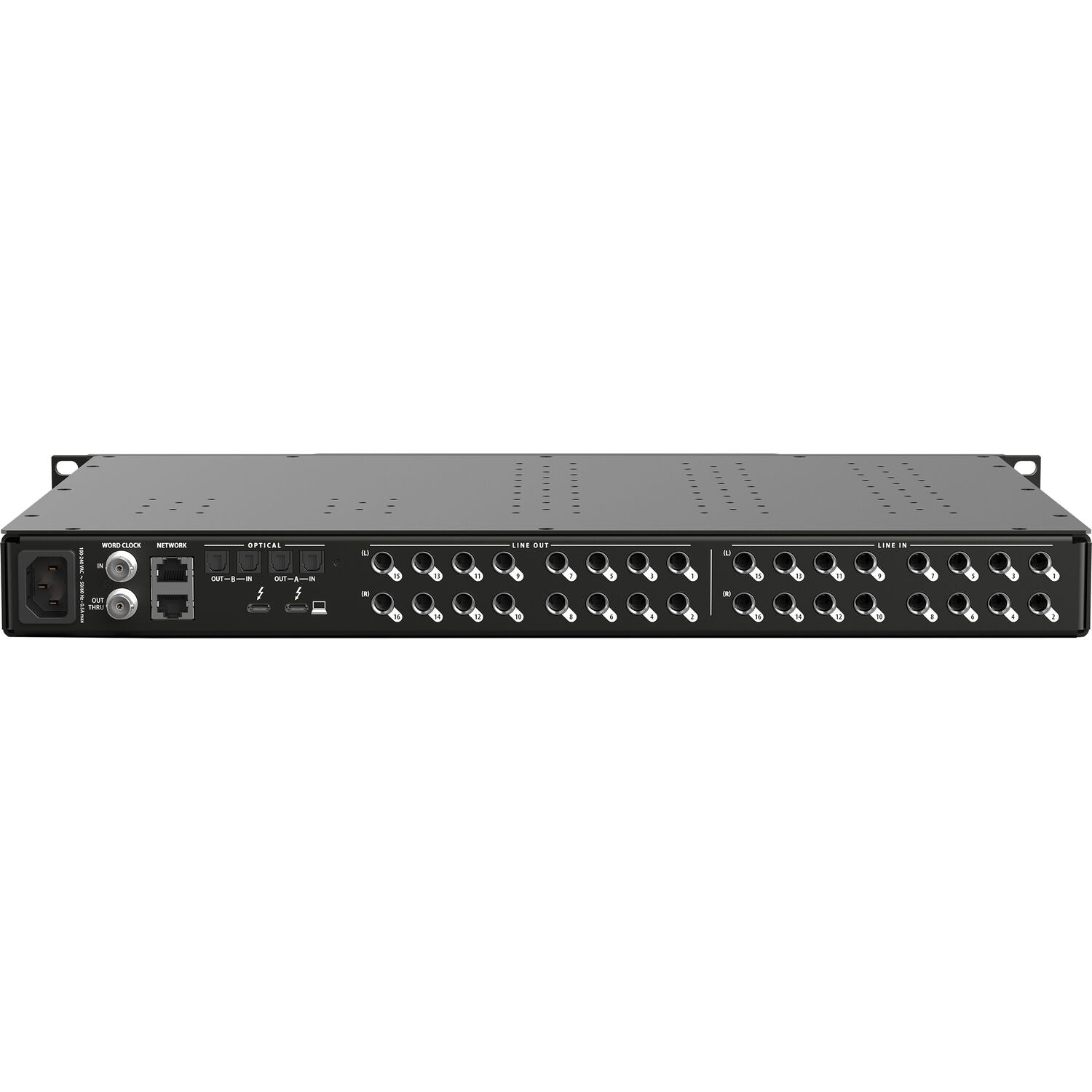

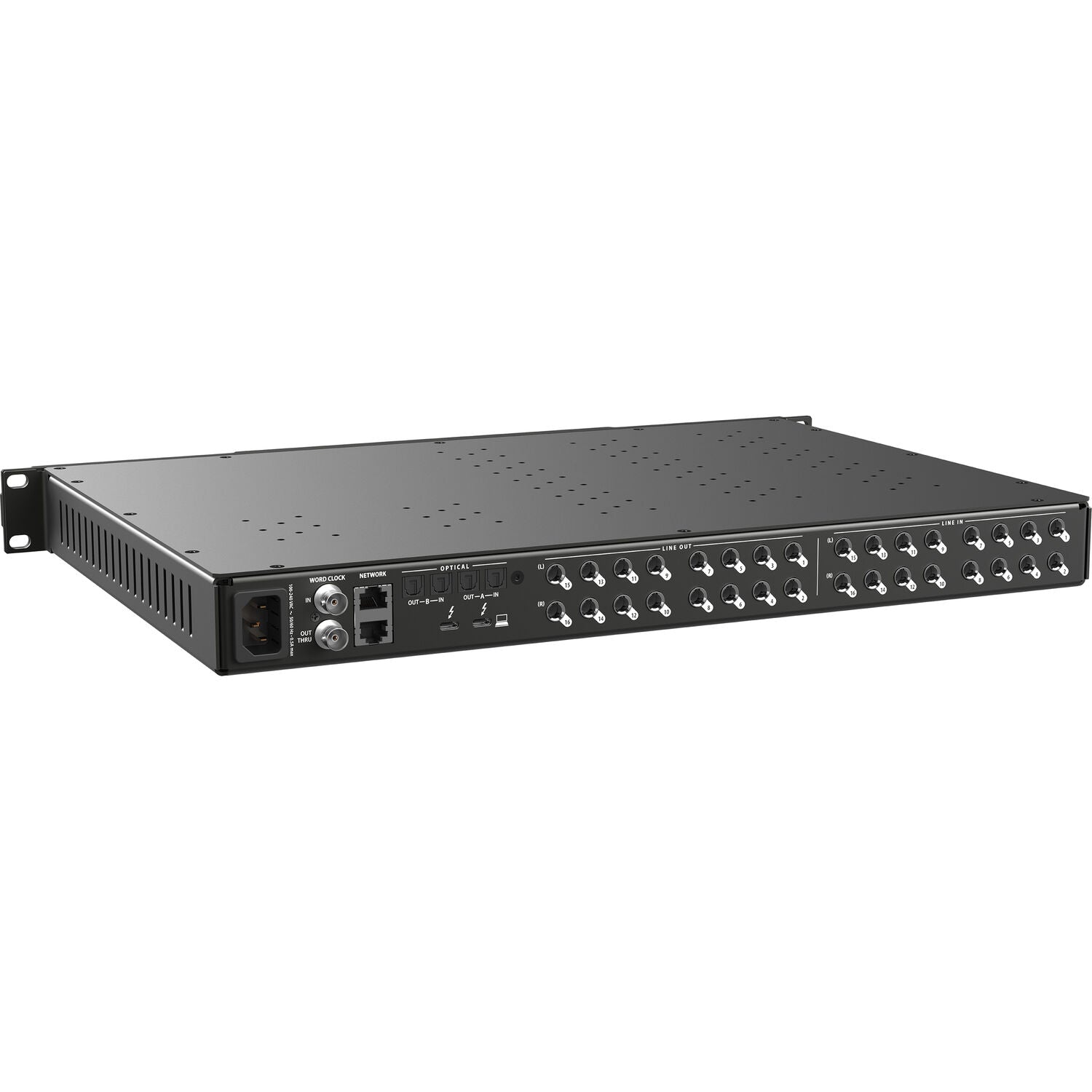

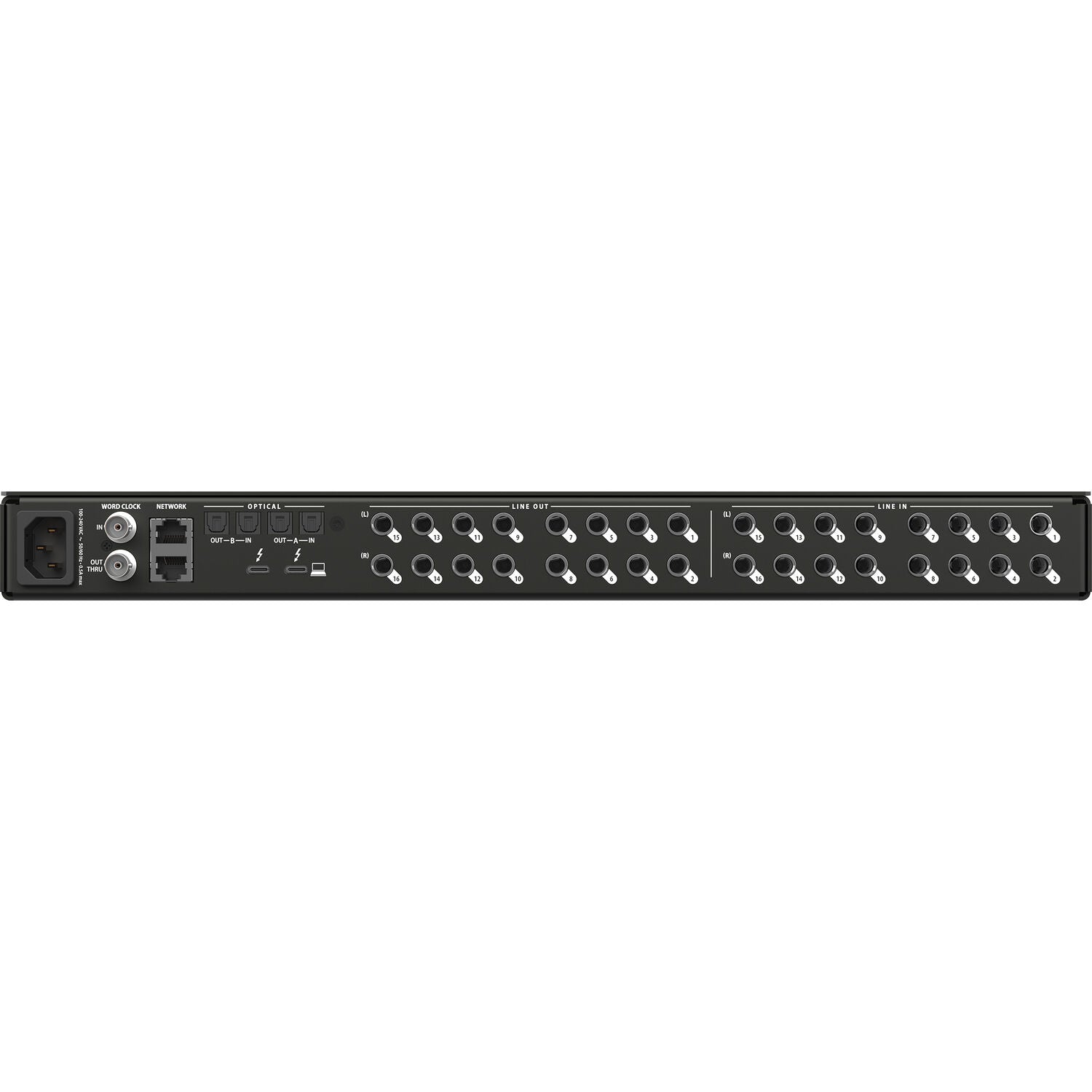

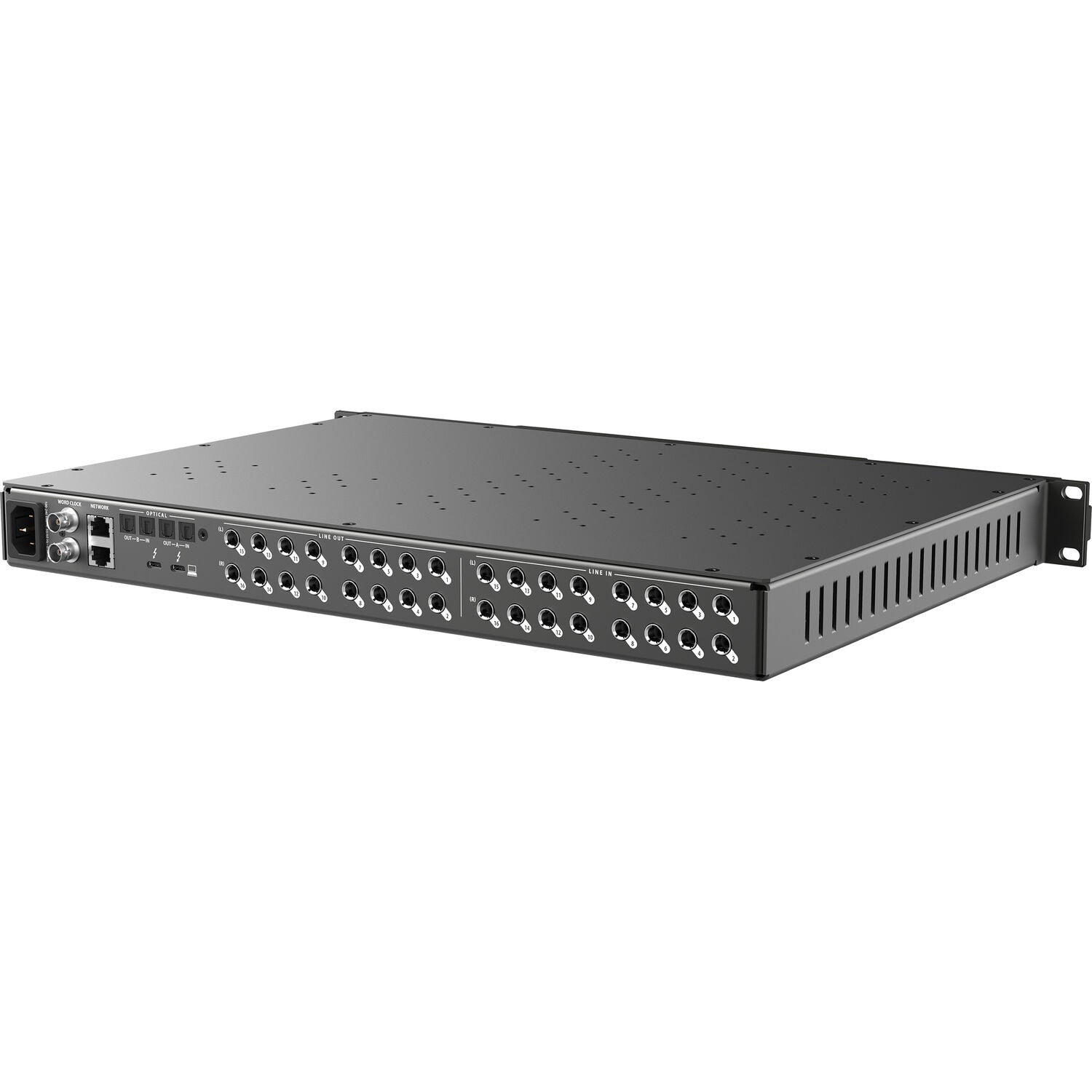

Analog inputs 16 x 1/4-inch TRS line in (balanced/unbalanced)
Max level: +21 dBu
+20 dB digital gain on each input
Analog outputs 16 x 1/4-inch TRS line out (balanced, DC coupled)
Max level: +21 dBu
-99 dB digital trim on each output
1 x 1/4-inch TRS stereo headphone (see below)

Digital I/O

ADAT Optical I/O 2 banks (16 ch) at 1x sample rates
S/MUX Optical I/O 2 banks (8 ch) at 2x sample rates
Bank A Switchable to stereo TOSLink I/O (optical S/PDIF)

Computer I/O

Ports 2 x Thunderbolt 4 / USB 4.1 (40 Gbps) Type C
USB3 / USB2 compatible
USB audio class compliant (no driver needed)
Included Cable 1 x Thunderbolt-compatible / USB4 GEN3 C-to-C cable
40 Gbps / 240W
Length = 2 meters
Provides 15W power downstream / 0W upstream
USB2 Type A Compatibility Compatible with USB2 Type A with a C-to-A cable (sold separately)
Round Trip Latency (RTL) ~1.8 ms (32 sample buffer at 96K)

Total Audio I/O

1x Sample Rates 32 in / 34 out (66 total channels)
2x Sample Rates 24 in / 26 out (50 total channels)
4x Sample Rates 16 in / 18 out (34 total channels)

Headphone

Connection 1 x 1/4-inch TRS stereo headphone with channel select
Output Impedance <1Ω
Max Output 13.3 dBu

Networking

AVB Ports 2x Gigabit Ethernet AVB ports
AVB Streams 16 in/out at up to 96 kHz
8 in/out at 176.4 or 192 kHz
Audio Channels per Stream 1-8 (up to 128 channels in/out)
Supported Protocols 1722.1 for Connection Management and Control
AAF stream formats & legacy AM8-24 format

Sync I/O

Word Clock In 1 x BNC
Word Clock Out/Thru 1 x BNC
Supported Sample Rates 44.1 to 192 kHz

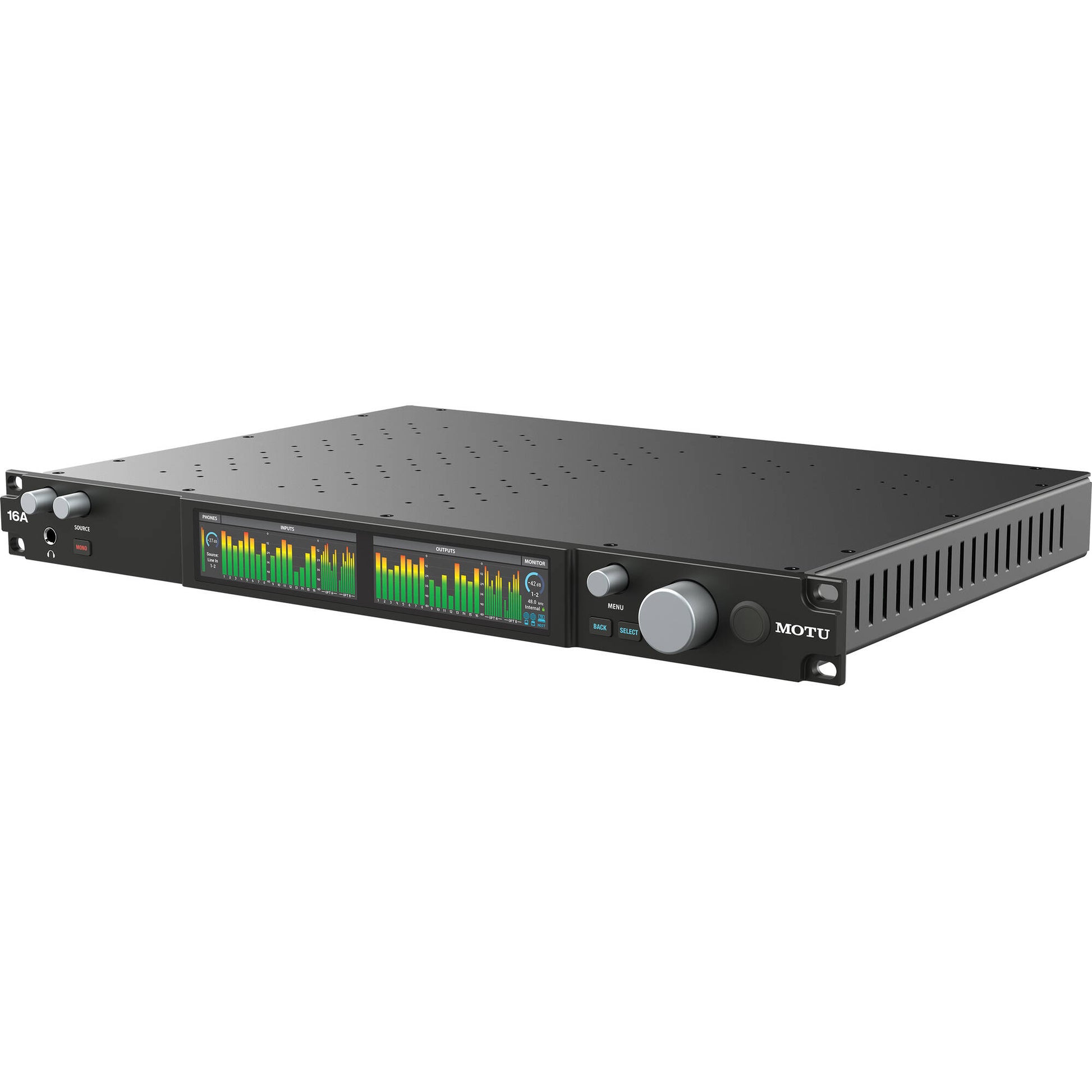

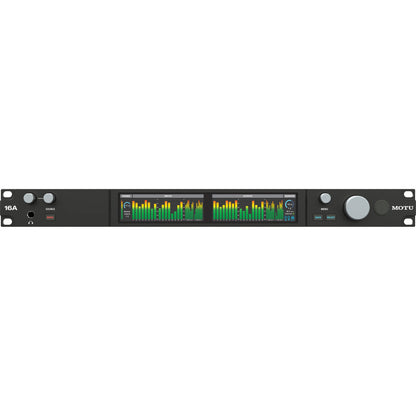

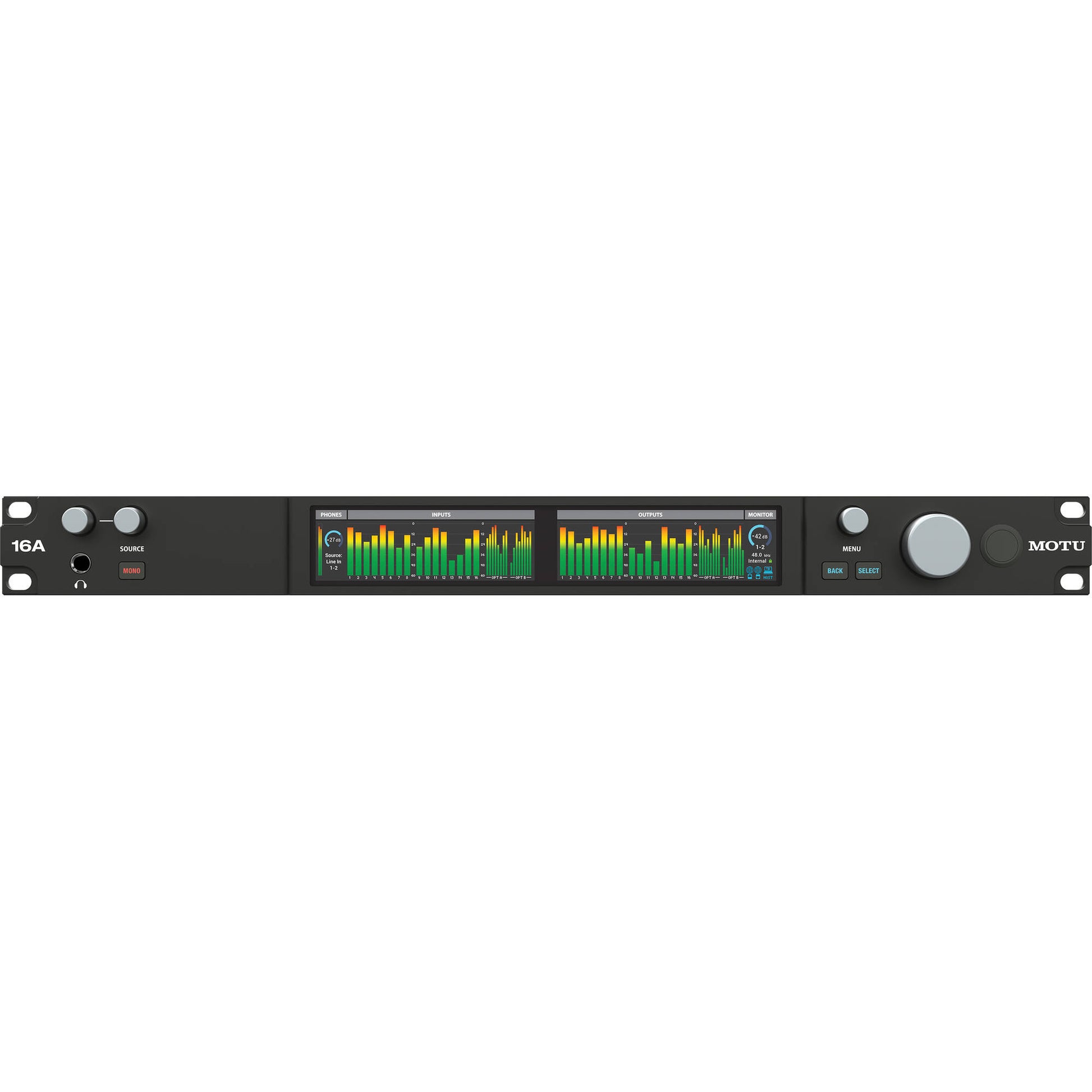

Front Panel

Headphone Output 1 x 1/4" TRS
Encoders 1 x headphone volume
1 x headphone channel select
1 x menu navigation
1 x main volume
Switches 3 x (1) headphone mono, (2) menu nav
Display 2 x 3.9-inch 480 x 128 pixel 24-bit RGB TFT
Power Button 1 x latching

Power

Type Internal 100-240V autoswitching supply
Frequency 50-60 Hz
Max Current 1.0A

Physical

Dimensions (W x D x H) 19 x 12.25 x 1.75 inches / 48.26 x 31.1 x 4.44 cm
Weight 11 lbs / 5 kgs
