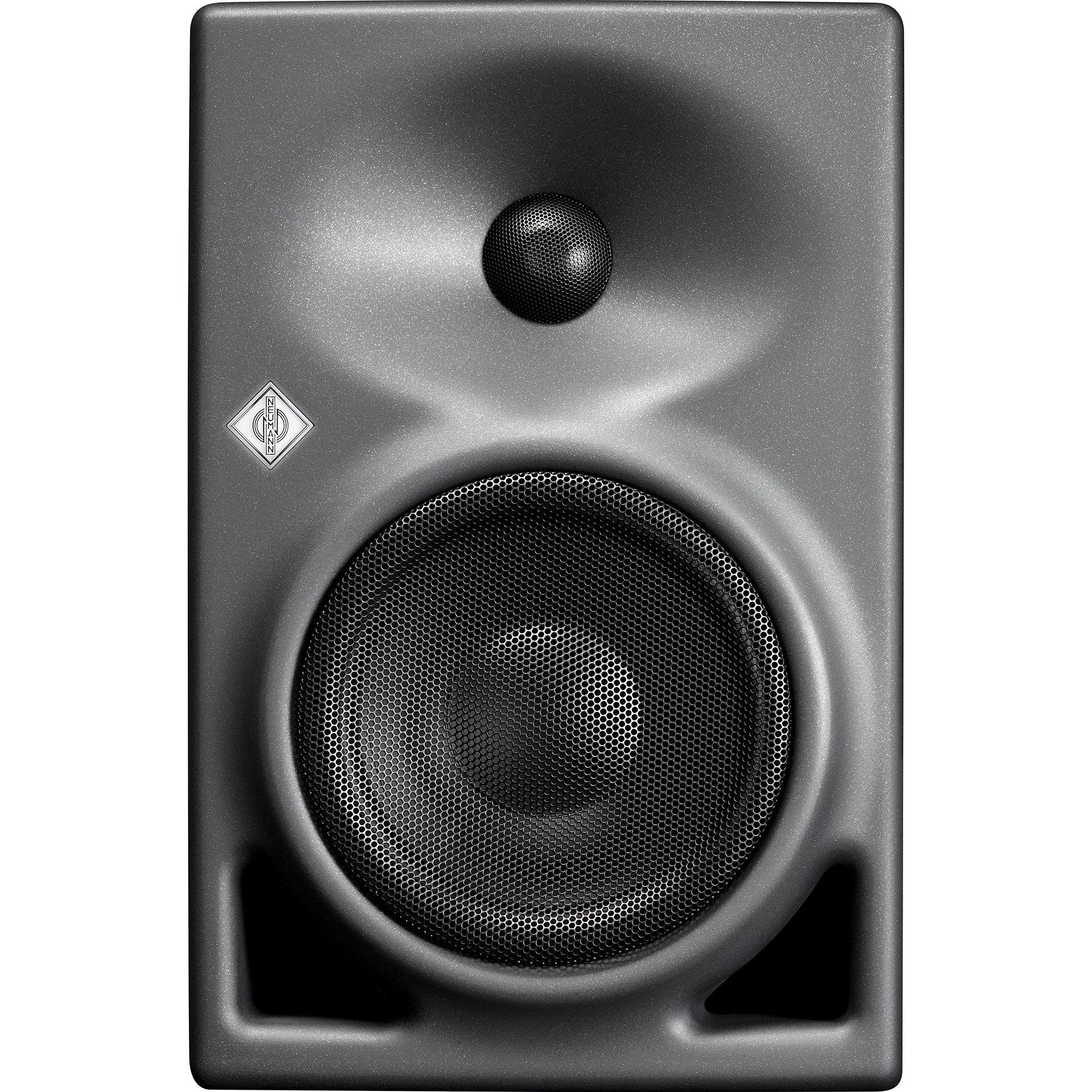

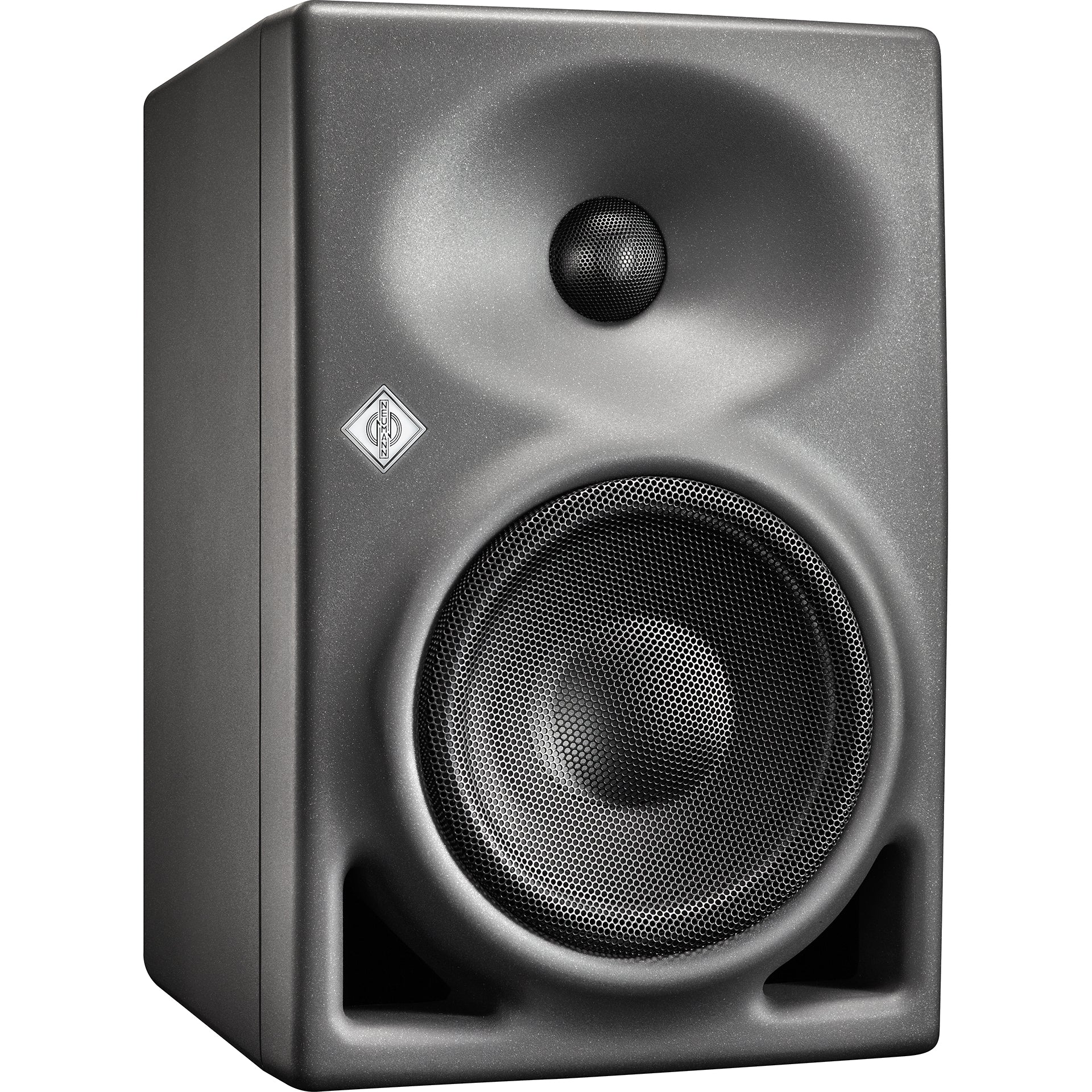

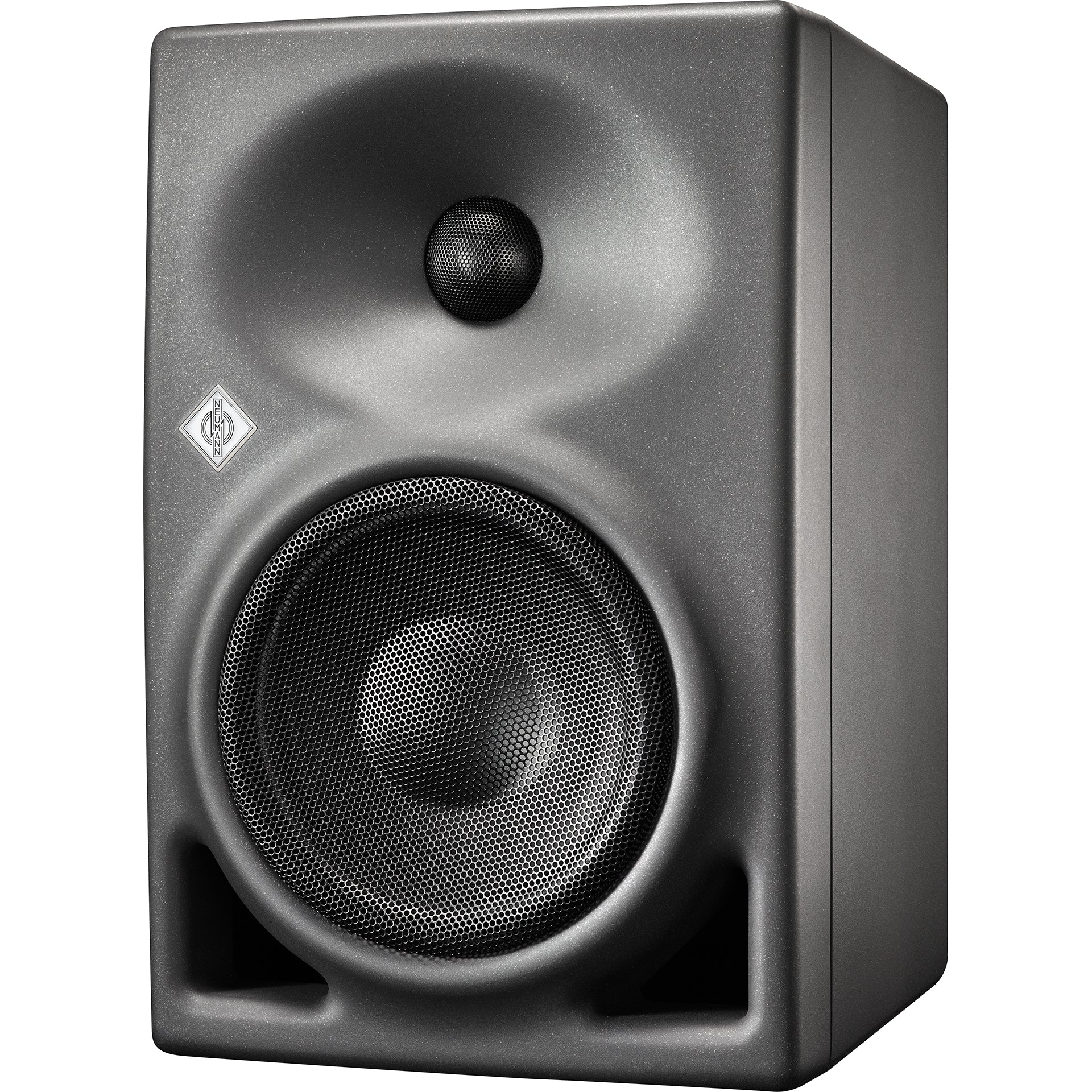

The Neumann KH 120 studio monitor is designed for use as a near-field loudspeaker or as a rear loudspeaker in larger multi-channel systems. It represents the latest in acoustic and electronic simulation and measurement technologies to ensure the most accurate sound reproduction possible. The KH 120 features a Mathematically Modeled Dispersion™ waveguide (MMD™), flexible acoustical controls, analog class-AB amplifiers, various input formats and an extensive mounting hardware range. All this provides you with maximum versatility over a wide variety of acoustic conditions, source equipment and physical locations.
| Product Name | Neumann KH 120-A G US 5.25” Biamplified Studio Monitor |
|---|---|
| Brand | Neumann |
| Condition | New |
| MPN | 506299 |
| UPC | 615104263741 |
| Shipping Option | Free Shipping on orders over $94.72 |
What's in the Box?
- 1 x KH 120 Studio Monitor
- 4 x Self-adhesive feet
- 1 x Mains Cable US
- 1 x Safety Guide
- 1 x Supplement “Getting Started Quickly”
- Low-distortion, high-frequency reproduction
- Elliptical Mathematically Modeled Dispersion (MMD) waveguide offers smoother off-axis response
- Long throw bass driver
- Two-color and dimmable Neumann logo displays operation status and activation of the extensive protection system
- Robust metal grille
- Large front panel ports reduce bass compression and make it easier to mount the monitor in tight spaces
- Compact, durable aluminum cabinet minimizes resonances and offers better heat dissipation
- Wide horizontal dispersion and narrow vertical dispersion for greater control at the mixing console
- Powerful analog amplifiers with large headroom

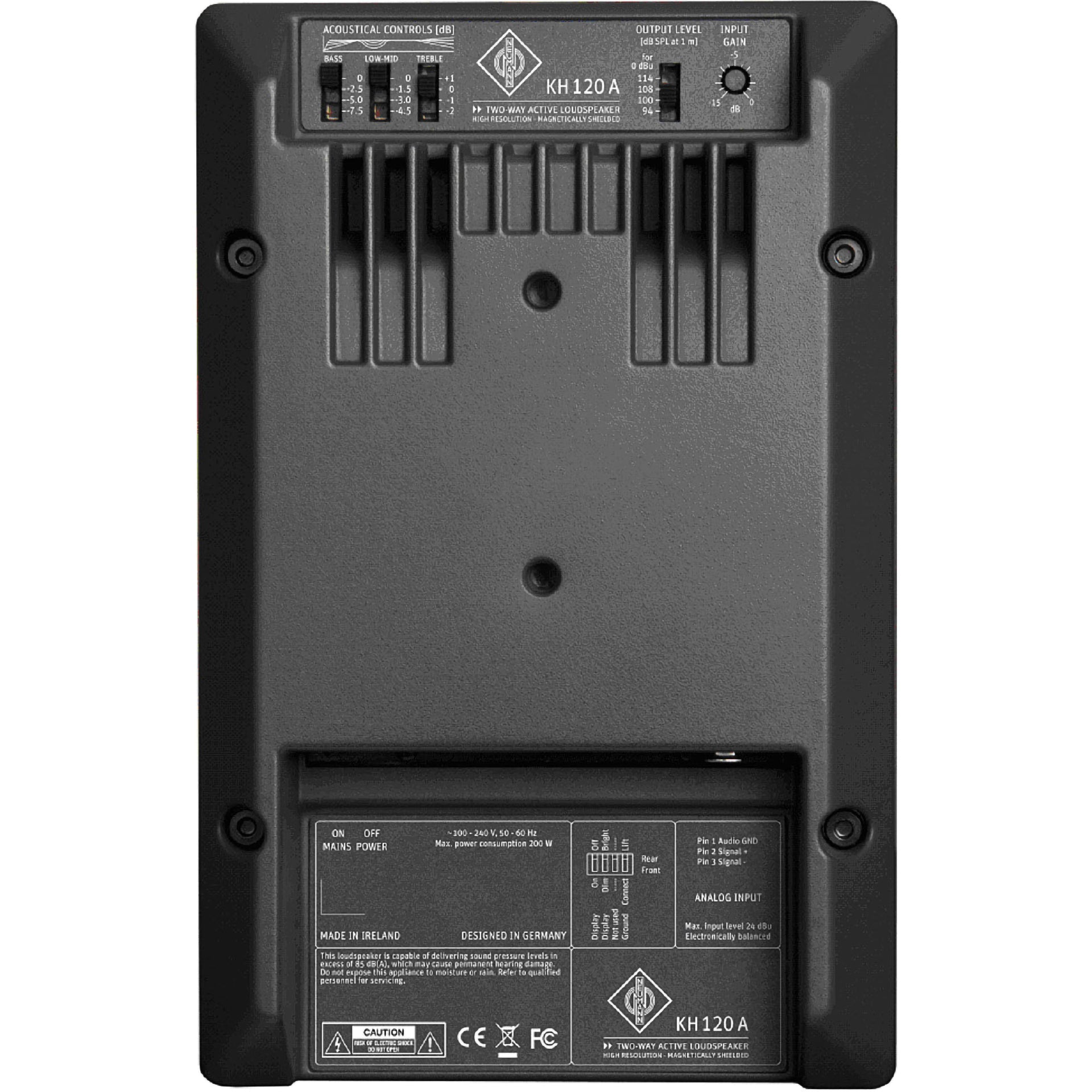

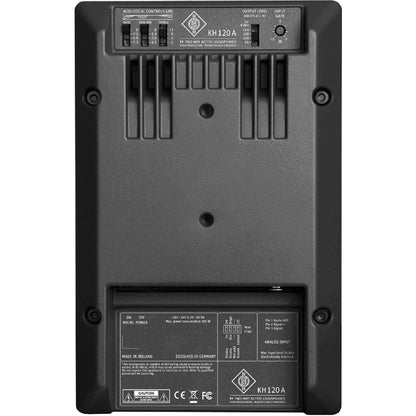

- 4-position bass, low-mid and treble acoustical controls offer more control in diverse acoustical environments
- Wide range input gain and output level controls for easier interfacing with signal sources
Free Field Frequency Response ±6 dB |
|
|---|---|
| Lowest Frequency | 46 Hz |
| Highest Frequency | 24 kHz |
Free Field Frequency Response ±3 dB |
|
| Lowest Frequency | 52 Hz |
| Highest Frequency | 21 kHz |
Free Field Frequency Linearity Deviation (100 Hz - 10 kHz) |
|
| Deviation | ± 1.0 dB |
Self-generated Noise (10 cm) |
|
| Noise Level | < 20 dB(A) SPL |
Sine Wave Output with THD < 0.5% |
|
| Output at 1 m (Half Space) | 95 dB SPL (>120 Hz) |
Max. SPL |
|
| THD 3% at 1 m (Half Space) | 111.1 dB SPL |
| THD 3% at 1 m (Full Space) | 105.1 dB SPL |
| Bass Capability (THD 3% at 1 m) | 104.8 dB SPL (50-100 Hz) |
Max. Short Term SPL |
|
| With IEC-weighted Noise (at 1 m) | 107 dB(C) SPL |
| With Music Material (at 2.3 m) | 97 dB(C) SPL (pair/full range) |
| With Music Material (at 2.3 m, with subwoofer) | 104 dB(C) SPL (pair with subwoofer) |
Max. Long Term SPL |
|
| With Pink Noise (at 2.3 m) | 88 / 93 dB(C) SPL (single/pair full range) |
| With Pink Noise (at 2.3 m, with subwoofer) | 89 / 94 dB(C) SPL (single/pair with subwoofer) |
Display Brightness |
|
| White | On/Dimmed/Off |
| Red | On/Dimmed |
| Bass Extension (Hz, -6 dB) | 46 Hz |
| Maximum Output Level (dB SPL) | 111.1 dB SPL |
| Max. Listening Distance up to (m) | 4 |
| Analog Input(s) | XLR: Analog Electronically Balanced |
| Analog Input Impedance | 10k Ohms in position 94/108 dB SPL at 1 m; 20k Ohms in position 100/114 dB SPL at 1 m |
| Max. Input Level | +24 dBu |
| Common Mode Rejection Ratio (CMRR) | >56 dB @ 15kHz |
| Input Gain Control (Sensitivity) | 0 dB ... -15 dB |
| Output Level Control (Output Level in 1 m based on 0 dBu Input Level) | 94; 100; 108; 114 dB SPL |
| Equalization: Bass | 0; -2.5; -5; -7.5 dB |
| Equalization: Low-Mid | 0; -1.5; -3; -4.5 dB |
| Equalization: Treble | +1; 0; -1; -2 dB |
| Controller Design | Analog; Active |
| Crossover Frequency | 2.0 kHz |
| Crossover Slope | 24 dB/oct; 4th order |
| Protection Circuitry | Independent Thermo Limiters for Woofer, Tweeter. Woofer Soft Clip and Excursion Limiters. Amplifier Overheat. |
| Infrasonic Filter (Frequency; Slope) | 30 Hz; 6 dB/Oct. |
Display |
|
| Normal Operation | Neumann logo "White" |
| Limit/Clip/Errors/Protection/Boot Mute/Shut Down Mute | Neumann logo "Red" |
Output Power (Amplifiers) |
|
| Woofer Amplifier (THD+N with Limiter Deactivated: 10%) | 80 W |
| Tweeter Amplifier (THD+N with Limiter Deactivated: 10%) | 80 W |
| Woofer Amplifier (THD+N with Limiter Deactivated: 0.1%) | 50 W |
| Tweeter Amplifier (THD+N with Limiter Deactivated: 0.1%) | 50 W |
Mains Power Supply |
|
| Input Voltage; Frequency | 100-240V; 50/60 Hz |
| Power Consumption (Idle) | 20 W (230 V / 100 V) |
| Power Consumption (Full Output) | 200 W (230 V / 100 V) |
| In-rush Current (Peak) | 20 A |
| Cabinet Material | Aluminium |
| Cabinet Surface Finish; Color (Front/Back) | Painted; Metallic Anthracite (RAL 7021) |
Operating Conditions |
|
| Temperature | +10° C to +40° C (+50° F to +104° F) |
| Relative Humidity | <75% |
Transport/Storage Conditions |
|
| Temperature | -25° C to +70° C (-13° F to 158° F) |
| Relative Humidity | <90% |
| Woofer | 130 mm (5.25") Magnetically Shielded with Protecting Black Metal Grille |
| Tweeter | 25 mm (1") with Protecting Black Metal Grille |
| Mounting Points | 2 x M8 Threaded Inserts with 70 mm Spacing on Back Panel; Thread Depth 15 mm (5/8”) |
| Product Dimensions (Height x Width x Depth) | 277 x 182 x 220 mm (10 7/8” x 7 1/8” x 8 5/8”) |
| External Net Volume | 9.7 liters |
| Packed Dimensions (Height x Width x Depth) | 415 x 365 x 280 mm (16 3/8” x 14 3/8” x 11”) |
Neumann KH 120-A G US 5.25” Biamplified Studio Monitor
Details
The Neumann KH 120 studio monitor is designed for use as a near-field loudspeaker or as a rear loudspeaker in larger multi-channel systems. It represents the latest in acoustic and electronic simulation and measurement technologies to ensure the most accurate sound reproduction possible. The KH 120 features a Mathematically Modeled Dispersion™ waveguide (MMD™), flexible acoustical controls, analog class-AB amplifiers, various input formats and an extensive mounting hardware range. All this provides you with maximum versatility over a wide variety of acoustic conditions, source equipment and physical locations.
| Product Name | Neumann KH 120-A G US 5.25” Biamplified Studio Monitor |
|---|---|
| Brand | Neumann |
| Condition | New |
| MPN | 506299 |
| UPC | 615104263741 |
| Shipping Option | Free Shipping on orders over $94.72 |
What's in the Box?
- 1 x KH 120 Studio Monitor
- 4 x Self-adhesive feet
- 1 x Mains Cable US
- 1 x Safety Guide
- 1 x Supplement “Getting Started Quickly”
Features
- Low-distortion, high-frequency reproduction
- Elliptical Mathematically Modeled Dispersion (MMD) waveguide offers smoother off-axis response
- Long throw bass driver
- Two-color and dimmable Neumann logo displays operation status and activation of the extensive protection system
- Robust metal grille
- Large front panel ports reduce bass compression and make it easier to mount the monitor in tight spaces
- Compact, durable aluminum cabinet minimizes resonances and offers better heat dissipation
- Wide horizontal dispersion and narrow vertical dispersion for greater control at the mixing console
- Powerful analog amplifiers with large headroom
- 4-position bass, low-mid and treble acoustical controls offer more control in diverse acoustical environments
- Wide range input gain and output level controls for easier interfacing with signal sources
Tech Specs
Free Field Frequency Response ±6 dB |
|
|---|---|
| Lowest Frequency | 46 Hz |
| Highest Frequency | 24 kHz |
Free Field Frequency Response ±3 dB |
|
| Lowest Frequency | 52 Hz |
| Highest Frequency | 21 kHz |
Free Field Frequency Linearity Deviation (100 Hz - 10 kHz) |
|
| Deviation | ± 1.0 dB |
Self-generated Noise (10 cm) |
|
| Noise Level | < 20 dB(A) SPL |
Sine Wave Output with THD < 0.5% |
|
| Output at 1 m (Half Space) | 95 dB SPL (>120 Hz) |
Max. SPL |
|
| THD 3% at 1 m (Half Space) | 111.1 dB SPL |
| THD 3% at 1 m (Full Space) | 105.1 dB SPL |
| Bass Capability (THD 3% at 1 m) | 104.8 dB SPL (50-100 Hz) |
Max. Short Term SPL |
|
| With IEC-weighted Noise (at 1 m) | 107 dB(C) SPL |
| With Music Material (at 2.3 m) | 97 dB(C) SPL (pair/full range) |
| With Music Material (at 2.3 m, with subwoofer) | 104 dB(C) SPL (pair with subwoofer) |
Max. Long Term SPL |
|
| With Pink Noise (at 2.3 m) | 88 / 93 dB(C) SPL (single/pair full range) |
| With Pink Noise (at 2.3 m, with subwoofer) | 89 / 94 dB(C) SPL (single/pair with subwoofer) |
Display Brightness |
|
| White | On/Dimmed/Off |
| Red | On/Dimmed |
| Bass Extension (Hz, -6 dB) | 46 Hz |
| Maximum Output Level (dB SPL) | 111.1 dB SPL |
| Max. Listening Distance up to (m) | 4 |
| Analog Input(s) | XLR: Analog Electronically Balanced |
| Analog Input Impedance | 10k Ohms in position 94/108 dB SPL at 1 m; 20k Ohms in position 100/114 dB SPL at 1 m |
| Max. Input Level | +24 dBu |
| Common Mode Rejection Ratio (CMRR) | >56 dB @ 15kHz |
| Input Gain Control (Sensitivity) | 0 dB ... -15 dB |
| Output Level Control (Output Level in 1 m based on 0 dBu Input Level) | 94; 100; 108; 114 dB SPL |
| Equalization: Bass | 0; -2.5; -5; -7.5 dB |
| Equalization: Low-Mid | 0; -1.5; -3; -4.5 dB |
| Equalization: Treble | +1; 0; -1; -2 dB |
| Controller Design | Analog; Active |
| Crossover Frequency | 2.0 kHz |
| Crossover Slope | 24 dB/oct; 4th order |
| Protection Circuitry | Independent Thermo Limiters for Woofer, Tweeter. Woofer Soft Clip and Excursion Limiters. Amplifier Overheat. |
| Infrasonic Filter (Frequency; Slope) | 30 Hz; 6 dB/Oct. |
Display |
|
| Normal Operation | Neumann logo "White" |
| Limit/Clip/Errors/Protection/Boot Mute/Shut Down Mute | Neumann logo "Red" |
Output Power (Amplifiers) |
|
| Woofer Amplifier (THD+N with Limiter Deactivated: 10%) | 80 W |
| Tweeter Amplifier (THD+N with Limiter Deactivated: 10%) | 80 W |
| Woofer Amplifier (THD+N with Limiter Deactivated: 0.1%) | 50 W |
| Tweeter Amplifier (THD+N with Limiter Deactivated: 0.1%) | 50 W |
Mains Power Supply |
|
| Input Voltage; Frequency | 100-240V; 50/60 Hz |
| Power Consumption (Idle) | 20 W (230 V / 100 V) |
| Power Consumption (Full Output) | 200 W (230 V / 100 V) |
| In-rush Current (Peak) | 20 A |
| Cabinet Material | Aluminium |
| Cabinet Surface Finish; Color (Front/Back) | Painted; Metallic Anthracite (RAL 7021) |
Operating Conditions |
|
| Temperature | +10° C to +40° C (+50° F to +104° F) |
| Relative Humidity | <75% |
Transport/Storage Conditions |
|
| Temperature | -25° C to +70° C (-13° F to 158° F) |
| Relative Humidity | <90% |
| Woofer | 130 mm (5.25") Magnetically Shielded with Protecting Black Metal Grille |
| Tweeter | 25 mm (1") with Protecting Black Metal Grille |
| Mounting Points | 2 x M8 Threaded Inserts with 70 mm Spacing on Back Panel; Thread Depth 15 mm (5/8”) |
| Product Dimensions (Height x Width x Depth) | 277 x 182 x 220 mm (10 7/8” x 7 1/8” x 8 5/8”) |
| External Net Volume | 9.7 liters |
| Packed Dimensions (Height x Width x Depth) | 415 x 365 x 280 mm (16 3/8” x 14 3/8” x 11”) |
