*Please note -- This pre-owned item may show signs of use. Please refer to the photos for details of the product.

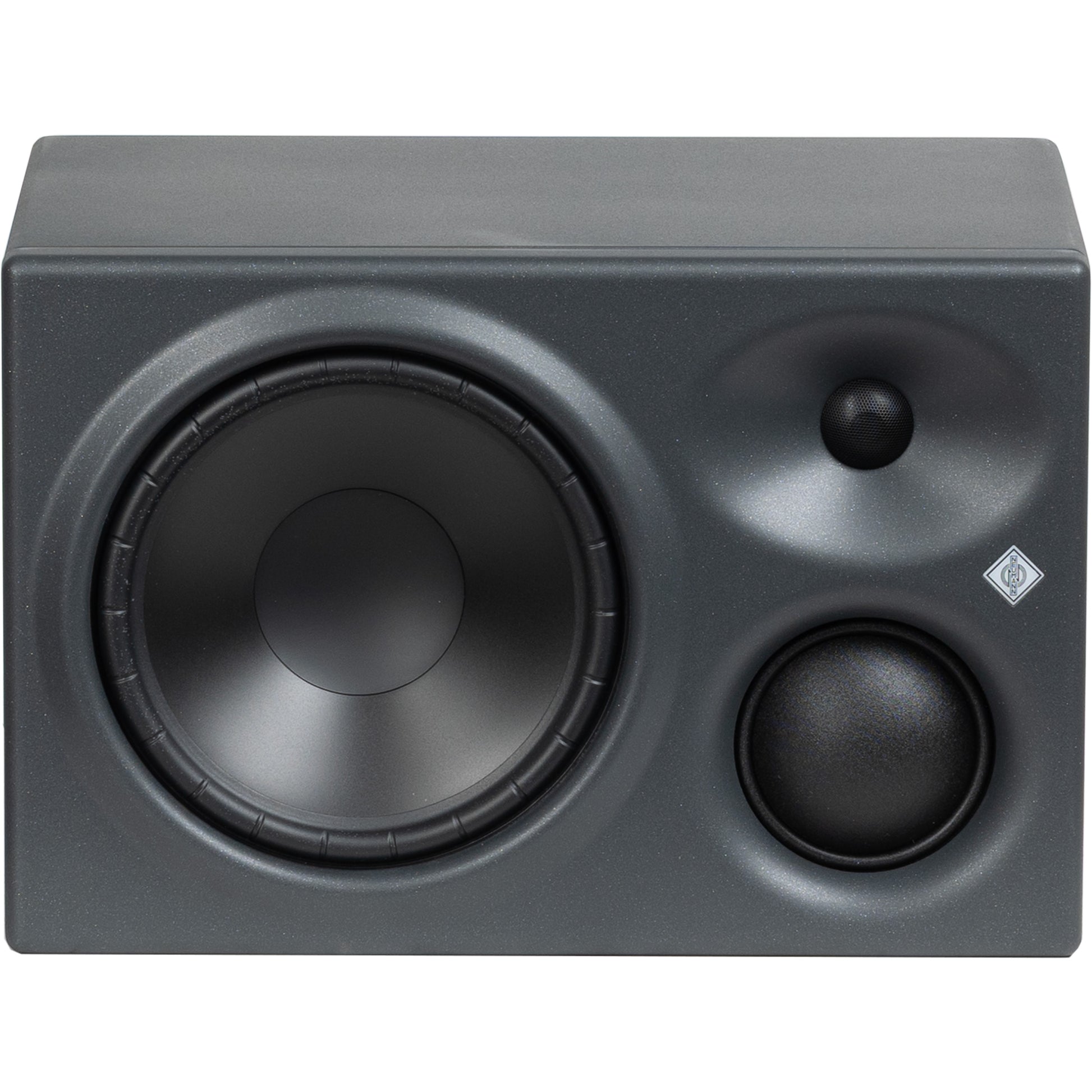

The left channel KH 310 Three-Way Active Studio Monitor from Neumann is a tri-amplified monitor capable of a total of 290-watts of continuous output. It is designed for use as a near-field monitor as well as in multichannel systems as a front or rear loudspeaker, and can be used for tracking, mixing, and mastering applications. The KH 310 features a 8.25" woofer, a 3" midrange driver, and a 1" tweeter that are housed in a sealed, 3-way cabinet designed to reduce standing waves and assist in fast bass transient response.
Neumann's Elliptical Mathematically Modeled Dispersion (MMD) waveguide was implemented with the application of mixing at a large-format console in mind. It provides a smoother off-axis response, essentially widening the KH 310's "sweet spot" and allowing you to move across the console without a decrease in audio quality. Coupled with the 4-position bass, low-mid, and treble acoustic controls, it allows the KH 310 to function ideally in a variety of acoustic environments.
The KH 310 can be mounted in a variety of positions thanks to its integrated mounting points. The included self-adhesive feet help provide stability when mounting on speaker stands.
| Product Name | Neumann KH 310 Active Studio Monitor - Right Side |
|---|---|
| Brand | Neumann |
| Condition | Pre-Owned |
| MPN | KH 310 R |
| UPC | 615104229303 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Neumann KH 310 Active Studio Monitor - Right Side
- Tri-Amplifier Monitor
- Waveguide for Smooth Off-Axis Response
- 290W Total Continuous Output
- Woofer, Midrange Driver & Tweeter
- Sealed 3-Way Cabinet Design
- Built-In Ground Lift
- Near-Field or Multichannel Applications
- Tracking, Mixing, or Mastering Use
- Bass, Low-Mid & Treble EQ Controls
- Versatile Mounting Options
Monitor |
|
|---|---|
| Monitor Type & Configuration | Active 3-Way |
| Number of Included Monitors | Single Monitor (Left Side) |
| Enclosure | Sealed, Shielded |
Amplification |
|
| Total Power Output | 290 W RMS |
| Amplifiers | HF: 70 W RMS / 90 W Peak Class-AB, MF: 70 W RMS / 90 W Peak Class-AB, LF: 150 W RMS / 210 W Peak Class-AB |
Drivers |
|
| Tweeter | 1x 1" / 25.4 mm Dome |
| Midrange | 1x 3" / 7.5 cm Cone |
| Woofer | 1x 8.24" / 21 cm Cone |
Performance |
|
| Frequency Range | 34 Hz to 21 kHz ± 3 dB (-3 dB) |
| Frequency Response | 36 Hz to 20 kHz ± 2 dB |
| Maximum Sound Pressure Level (SPL) | 116.3 dB |
| Total Harmonic Distortion (THD) | 0.5% |
| Maximum Input Level | +24 dBu |
| Analog Input Sensitivity/Gain | 0 to -15 dBu (Continuously Variable) |
| Protections and Limiting | Excursion Limiter, Soft Limiter, and Thermal Limiting |
Signal Processing |
|
| EQ | 1x LF Shelf: -7.5 to 0 dB (2.5 dB Increments), 1x Low-Mid Notch/Peak: -4.5 to 0 dB (1.5 dB Increments), 1x HF Shelf: -2 to +1 dB (1 dB Increments) |
| Filters | High-Pass at 15 Hz, 6 dB/Octave Slope |
| Crossover Frequency | Low-Pass: 650 Hz, 24 dB/Octave Slope; High-Pass: 2 kHz, 24 dB/Octave Slope |
Connectivity |
|
| Audio I/O | 1x XLR 3-Pin Balanced Input (13 Kilohms) |
| Network I/O | No |
| USB | No |
| Wireless | No |
Power |
|
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| Power Consumption | 24 W (Idle), 300 W (Maximum) |
Physical |
|
| Color | Black |
| Monitor Orientation | Horizontal |
| Enclosure Material | Metal Grille |
| Mounting Points | 2x M8 (Side Panels) |
| Dimensions (W x H x D) | 15.1 x 10 x 11.5" / 383 x 253 x 292 mm |
| Weight | 28.6 lb / 13.0 kg |
