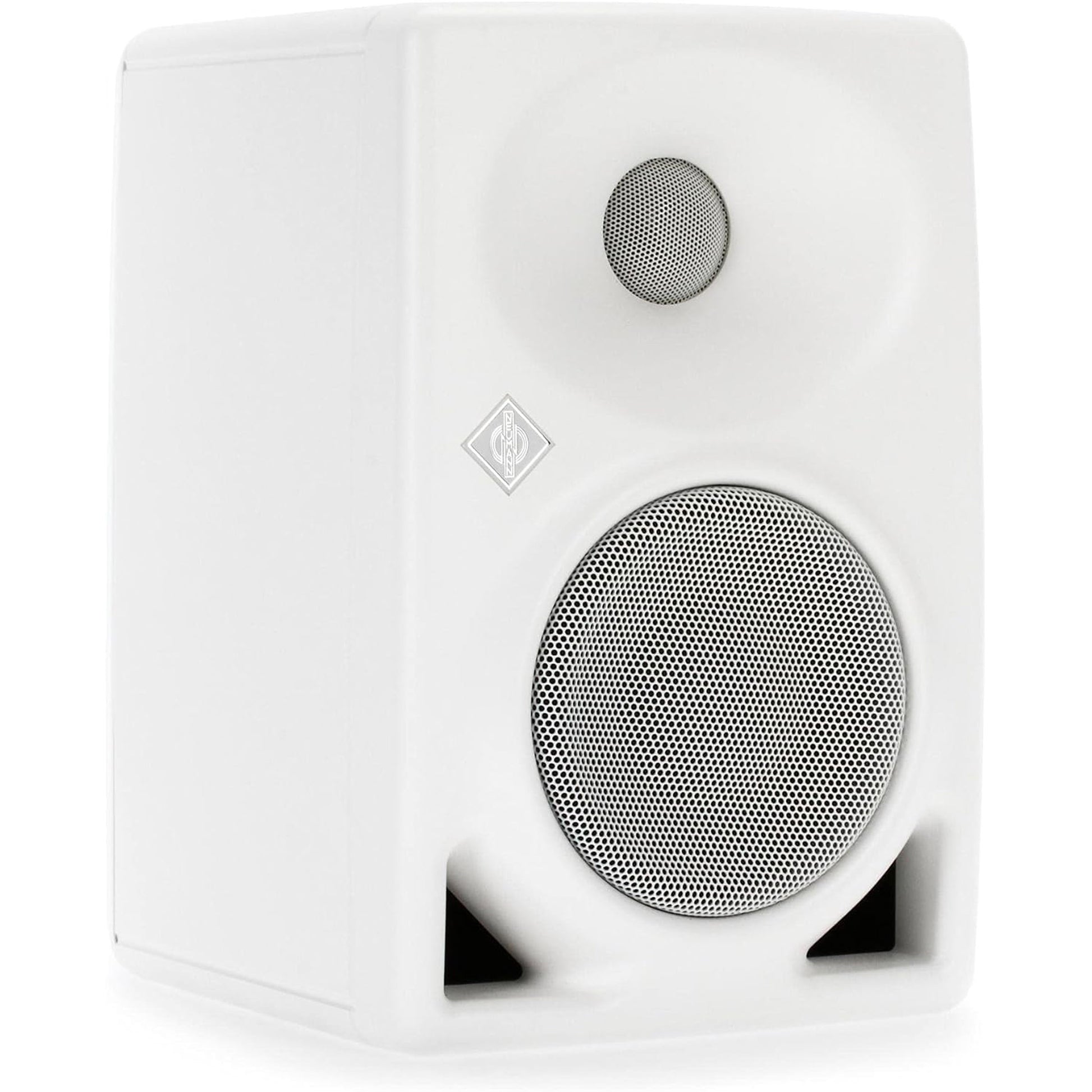

Two-way bi-amplified monitor with thermally protected 120 W (woofer) + 70 W (tweeter) high efficiency amplifiers. Limit and clip indicated by logo LED. 1" alloy fabric dome tweeter and 4" long excursion woofer. Both drivers protected by metal grilles. Compact cabinet molded from low- resonance materials with waveguide and dual ports integrated into the front baffle. 14 kOhm electronic-balanced input with XLR-F and 6.3 mm (¼”) jack. Eighth-order phase linear DSP crossover. Backpanel controls to adjust Low-Mid, input sensitivity/output level, automatic standby. Network connection to control the monitoring system via standard IP network by the iPad software Neumann.Control for room alignment with 8 full-parametric IIR filters plus low / high shelf global balance controls, built-in 70 ms delay for time-of-flight and lip-sync adjustment and logo brightness. Independent soft clip, peak and thermo limiters for woofer and tweeter, and woofer excursion limiter. Maximum SPL is 108.8 dB at 1 m (3% distortion), bass capability is 92.1 dB at 1 m (max SPL at 3% between 50-100 Hz), pass band frequency response 57 Hz - 21 kHz (+/-3 dB). Self-generated noise level <20 dB(A) at 10 cm. Universal switched- mode power supply with adjustable standby time via iPad. Cabinet volume 3.7 liters, dimensions 233 x 154 x 194 mm (9 1/8" x 6" x 7 5/8"), and weight 3.4 kg (7 lbs 8 oz). Two M6 threads on rear panel for attaching versatile mounting hardware. Standard cabinet colors: RAL 7021/9005 (anthracite/black) and RAL 9016 (white).
