- Details
- Features
- Tech Specs
- Reviews
Deep Impact with Power and Precision
The KH 805 II is the perfect subwoofer for medium sized rooms, providing bass extension with Neumann precision. It includes a unique and flexible Bass Manager for stereo systems and can also be used in surround and immersive setups for LFE reproduction or with external bass management. Analog and digital inputs and outputs allow for flexible connectivity.
Next Generation Subwoofer
The KH 805 II improves on its predecessor in acoustic performance and adds new features. Thanks to a novel long-throw 10” woofer with Extremely Linear Force Factor (ELFF™) technology and intelligent protection limiters, the KH 805 II ensures exceptionally low distortion even at maximum SPLs.
The KH 805 II extends low frequency reproduction down to 16 Hz and delivers about twice the output of the KH 750 DSP. This makes the KH 805 II the perfect complement to mid-sized speakers such as the KH 150 and KH 310.
The KH 805 II is DSP-controlled for superior sonic performance and seamless integration via MA 1 Automatic Monitor Alignment (sold separately). When combined with analog Neumann studio monitors such as the KH 120 A (discontinued), KH 310, or KH 420, it offers sufficient DSP-power for aligning the entire stereo system using MA 1, optimizing not only the frequency response but also the phase. The KH 805 II is therefore a massive upgrade for existing systems. Of course, the KH 805 II is also a perfect complement to Neumann’s DSP-equipped studio monitors.
Precision in Every Detail
As subwoofers are typically placed on the floor, a robust grille protects the driver from accidental damage. The rigid cabinet features a highly efficient bass reflex system, which is carefully engineered and tuned for the tightest bass reproduction – with inaudible port noise.

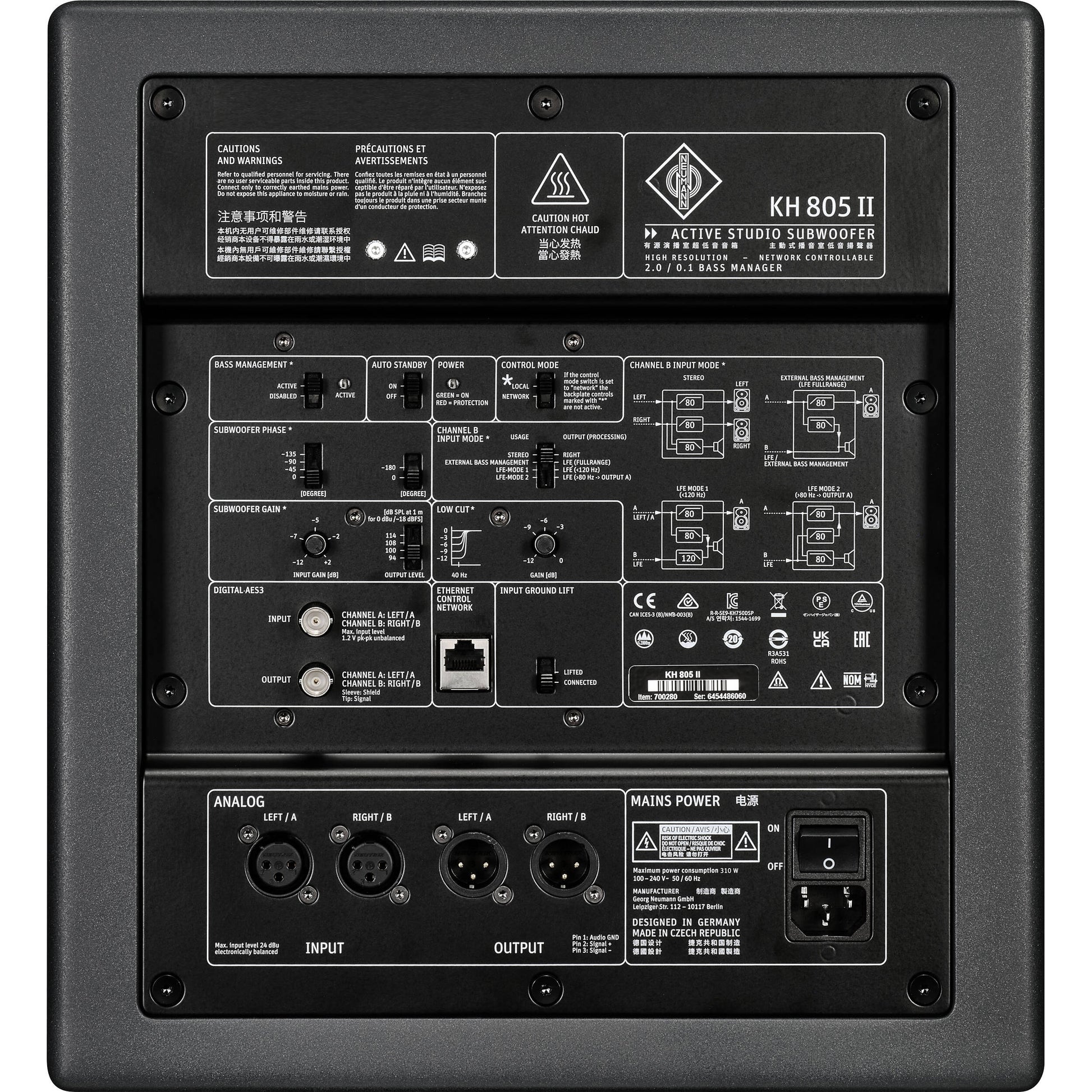

The two analog XLR inputs are electronically balanced, as are the two analog XLR outputs. The up to 192 kHz / 24-bit digital input (BNC) accepts both AES3 and S/P-DIF signals. The subwoofer has an Auto Standby function, which can be deactivated via a backplate switch.
The KH 805 II excels in music, broadcast, and post-production studios for tracking, mixing, and mastering.
| Product Name | Neumann KH 805 II 10" Active Studio Subwoofer |
|---|---|
| Brand | Neumann |
| Condition | New |
| MPN | 700280 |
| UPC | 615104387522 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Neumann KH 805 II 10" Active Studio Subwoofer
- 4 x Mains Cable
- Deep and powerful bass down to 16 Hz
- The perfect complement to mid-size Neumann KH line studio monitors
- DSP-controlled for superior sonics and unparalleled precision
- Room correction via MA 1 Automatic Monitor Alignment (sold separately)
- Supports automatic alignment also for analog KH-line studio monitors (patented)
Acoustics |
|
|---|---|
| Free field frequency response ±6 dB | 16 – 750 Hz |
| Free field frequency response ±3 dB | 18 – 310 Hz |
| Frequency response ripple | 20 – 295 Hz, ±1.5 dB |
| Self-generated noise (10 cm) | <20 dB(A) SPL (input gain = 100 dB SPL for 0 dBu) |
| Sine wave output (THD <0.5% @ 1 m half space) | 95 dB SPL (42 – 200 Hz) |
| Bass capability (Max SPL, 3% THD, 1 m) | 110 dB (50–100 Hz average) |
| Max SPL (Subwoofer placement) | On floor: 110 dB; Against wall: 113 dB; In corner: 116 dB |
| Dolby DARDT Max SPL (bass managed) | 118 dB SPL |
| Acoustical principle | Bass reflex, front ports |
Analog Inputs and Outputs |
|
| Analog inputs | 2 × XLR, electronically balanced |
| Input impedance | >13 kΩ |
| Max input level (100 dB SPL, 0 dB gain) | +24 dBu |
| CMRR (XLR / Sub-D) | >56 dB @ 15 kHz |
| Crosstalk (1 kHz, level matching, XLR / Sub-D) | -90 dB; ±0.1 dB |
| Remote volume control | Via MA 1 software |
| Volume control range / resolution | 0 … -∞ dB; 0.1 dB steps |
| Analog dynamic range / THD+N (A-D-A) | 119 dB(A); <0.003% (-90 dB) |
| Signal routing modes | Right; External Bass Management; 2 × LFE |
| Analog outputs | 2 × XLR, electronically balanced |
Digital Inputs and Outputs |
|
| Digital inputs | BNC (75 Ω): AES3, S/PDIF |
| Digital outputs | BNC (75 Ω): AES3 |
| Converter resolution / design | 16–24 bit DAC; Δ∑ |
| Supported sampling rates | 22.05, 24, 32, 44.1, 48, 64, 88.2, 96, 176.4, 192 kHz |
| Internal / Output sampling rate | 48 kHz / 48 kHz |
| Dynamic range (A-D-A / D-A) | >120 dB(A) / >123 dB(A) |
| Digital sensitivity | -18 dBFS = 100 dB SPL @ 1 m |
| Latency (A-D-A / D-A) | 1.5 ms / 1.2 ms |
| User adjustable delay | 0–100 ms + 2 × 0–20.8 ms Resolution: 20.8 µs; 0.71 mm (0.028") Time-of-flight max: 2 × 7.16 m (23' 5") |
| AV sync delay | 2.5 frames (40 ms); 3 frames (33 ms) |
User Interface |
|
| Status indication | 2 × Status LED (backplate) |
| Input gain control | +2 … -12 dB |
| Output level control | 94, 100, 108, 114 dB SPL @ 1 m (0 dBu input) |
| Input select | Automatic; AES3id priority over analog |
| Ground lift | Yes |
| Control | Local; Network |
| Equalization (Low cut) | 30 Hz; 0 … -12 dB |
| Phase | 0; 45; 90; 135; 0/180° |
| Mains switch | Yes |
| Bass management | Yes |
Electronics – Controller |
|
| Controller design | Digital; active |
| Crossover frequency / slope | 80 Hz fixed / 24 dB per octave, 4th order |
| Automatic room calibration | Supported via MA 1 (Subwoofer & connected analog speakers) |
| FIR phase linearization | For connected analog loudspeakers (with MA 1) |
| Protection circuitry | Peak limiter amplifier, thermal protection (woofer, electronics, PSU, amplifier), overcurrent protection |
Electronics – Amplifiers and Power Supply |
|
| Output power (woofer amp) | 222 W (THD+N with limiter deactivated or activated: 10%) |
| Power supply | SMPS, 100–240 V, 50/60 Hz |
| Power consumption | Standby: <300 mW (auto after 20 min) Idle: 17 W Full output (100 V): 310 W Full output (230/100 V): 310 W Full output (240 V): 285 W |
Mechanics |
|
| Cabinet material | Wood with aluminum electronics panel |
| Cabinet finish / color | Painted; Metallic Anthracite (RAL 7021) / Black (RAL 9005) |
| Operating conditions | +10° C to +40° C (+50° F to +104° F), <75% RH (non-condensing) |
| Transport / storage conditions | -25° C to +60° C (-13° F to +140° F), <90% RH (non-condensing) |
| Woofer | 265 mm (10") with protective black metal grille |
| Product dimensions (H × W × D) | 368 × 330 × 645 mm (14.5" × 13" × 25.4") |
| External net volume | 78 liters |
| Product weight | 25.5 kg (56 lbs 3 oz) |
| Packed dimensions (H × W × D) | 484 × 454 × 749 mm (19.1" × 17.9" × 29.5") |
| Packed weight | 31.3 kg |
| Packaging weight (incl. cables/manuals) | 5.8 kg |
| Packed volume | 0.165 m³ |
| Delivery includes | KH 805 II Subwoofer Mains cables (EU/KC, UK, US, China) Getting Started guide Operating Manual |
| Acoustical axis (horizontal / vertical) | 165 mm / 165 mm (from bottom) |

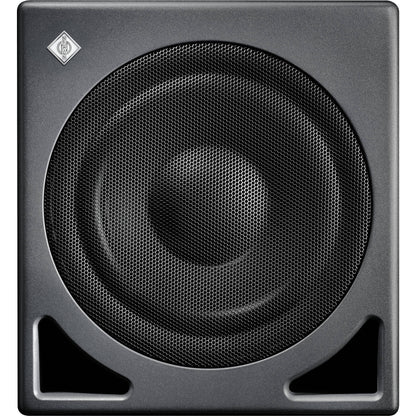

Neumann KH 805 II 10" Active Studio Subwoofer
