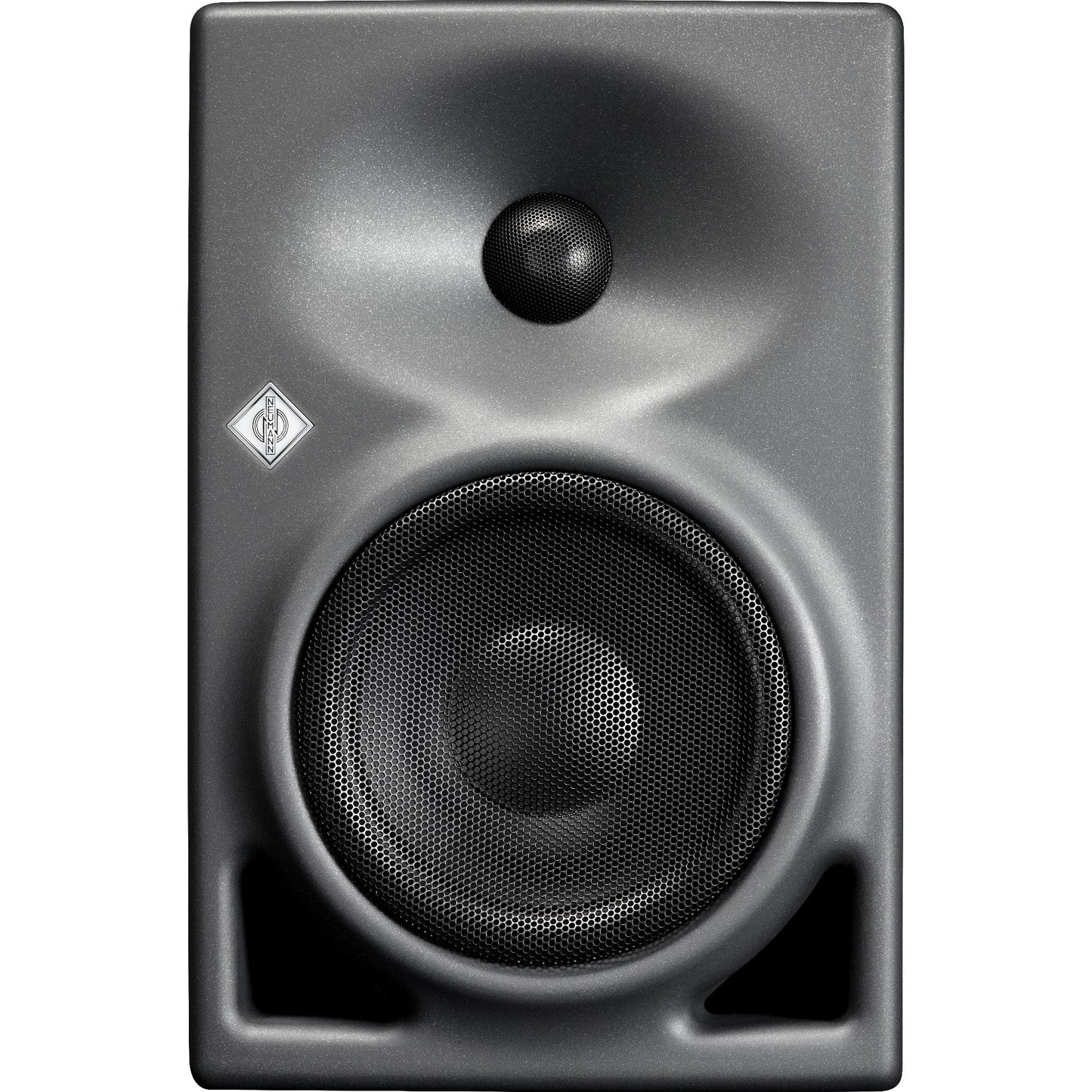

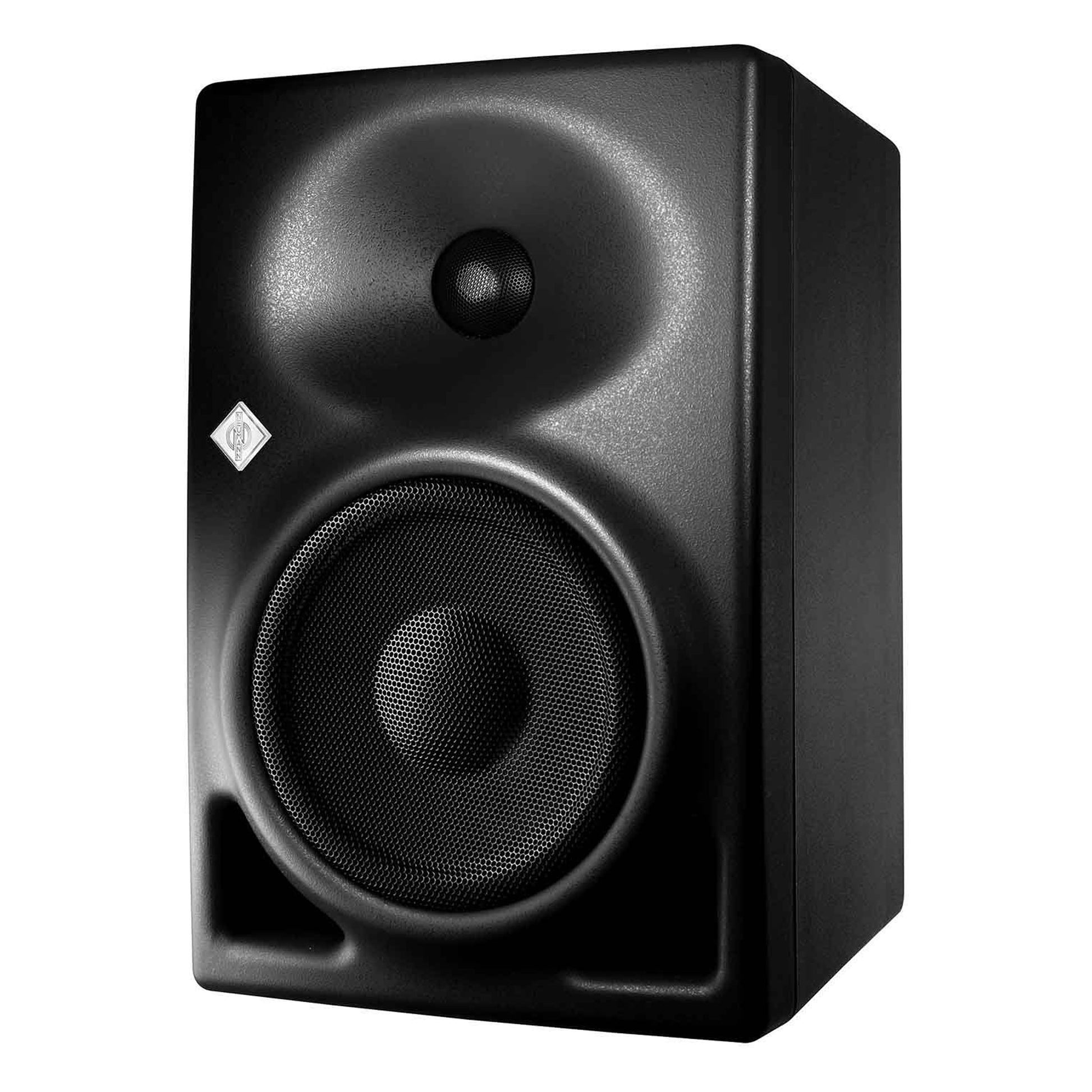

Neumann KH120 5.25" Bi-Amplified Studio Monitor
Neumann KH120 5.25" Bi-Amplified Studio Monitor
Regular price
$749.00
Regular price
Sale price
$749.00
Unit price
per
+ Free Shipping
![Blink Image](https://cdn.shopify.com/s/files/1/0750/9049/3723/files/blink-2020-sq-scaled.png?v=1695807695")
On order with the manufacturer!
Couldn't load pickup availability

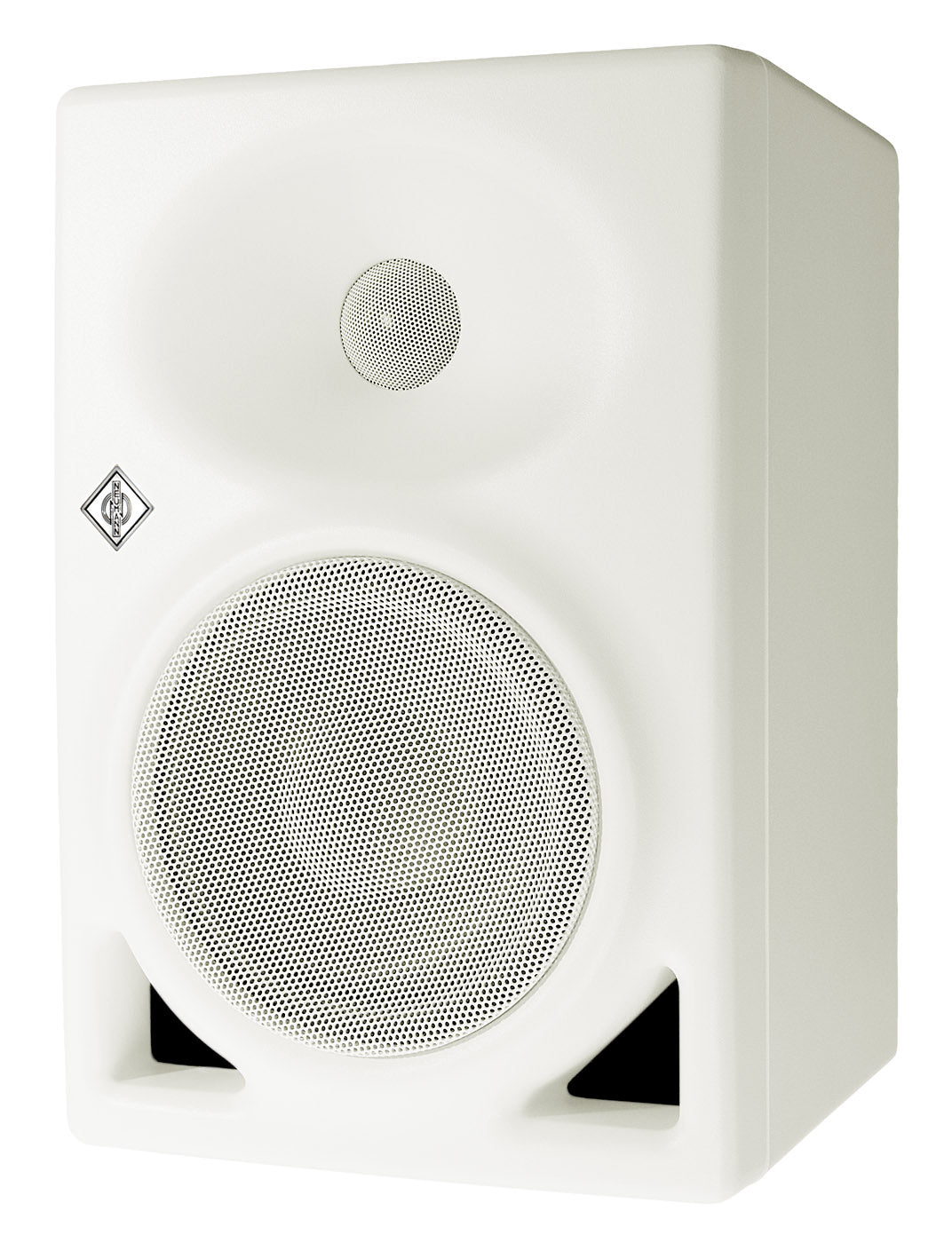

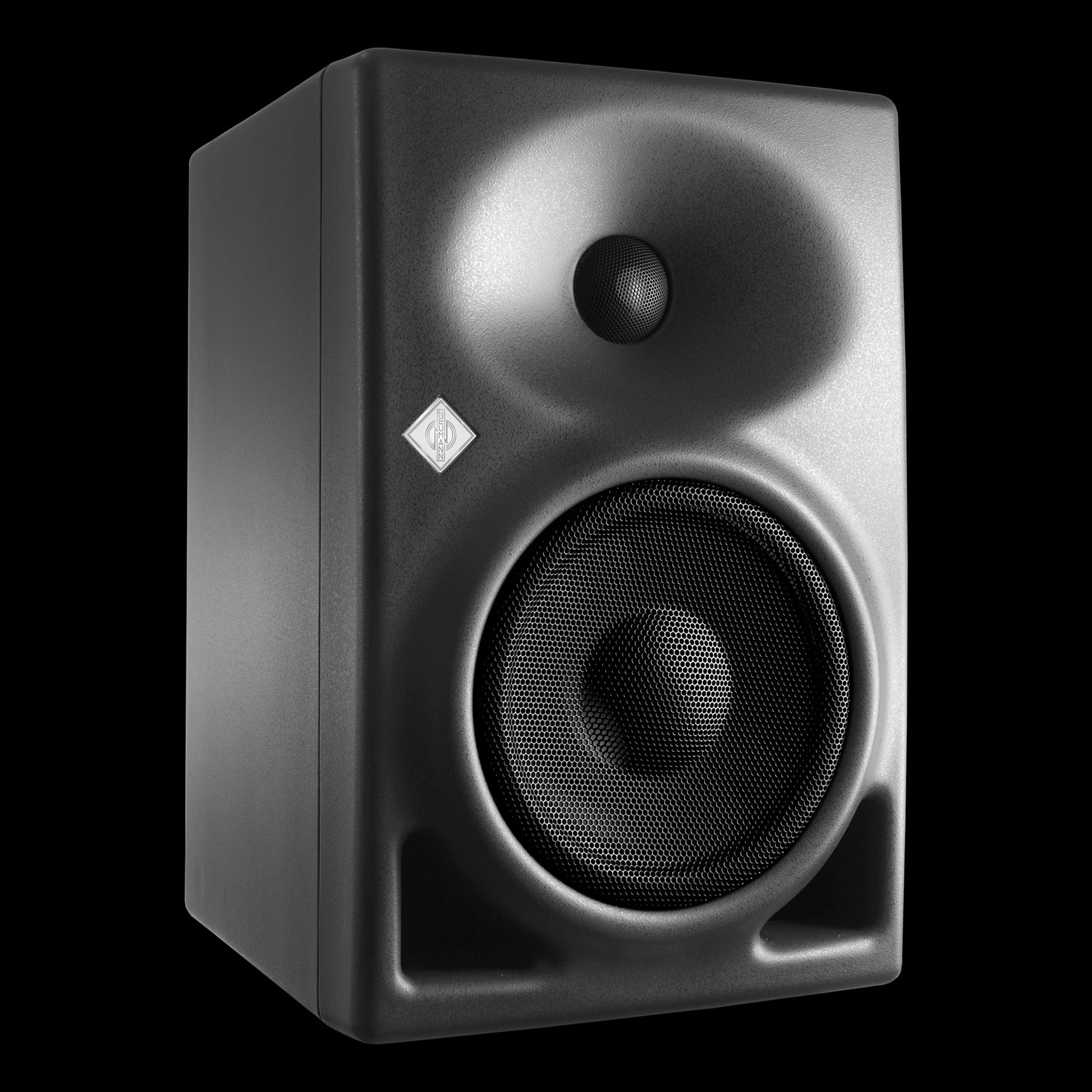

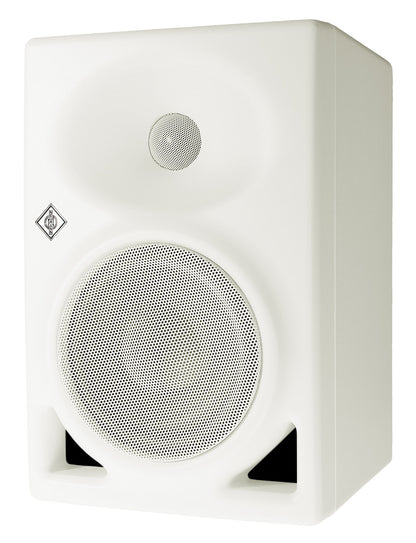

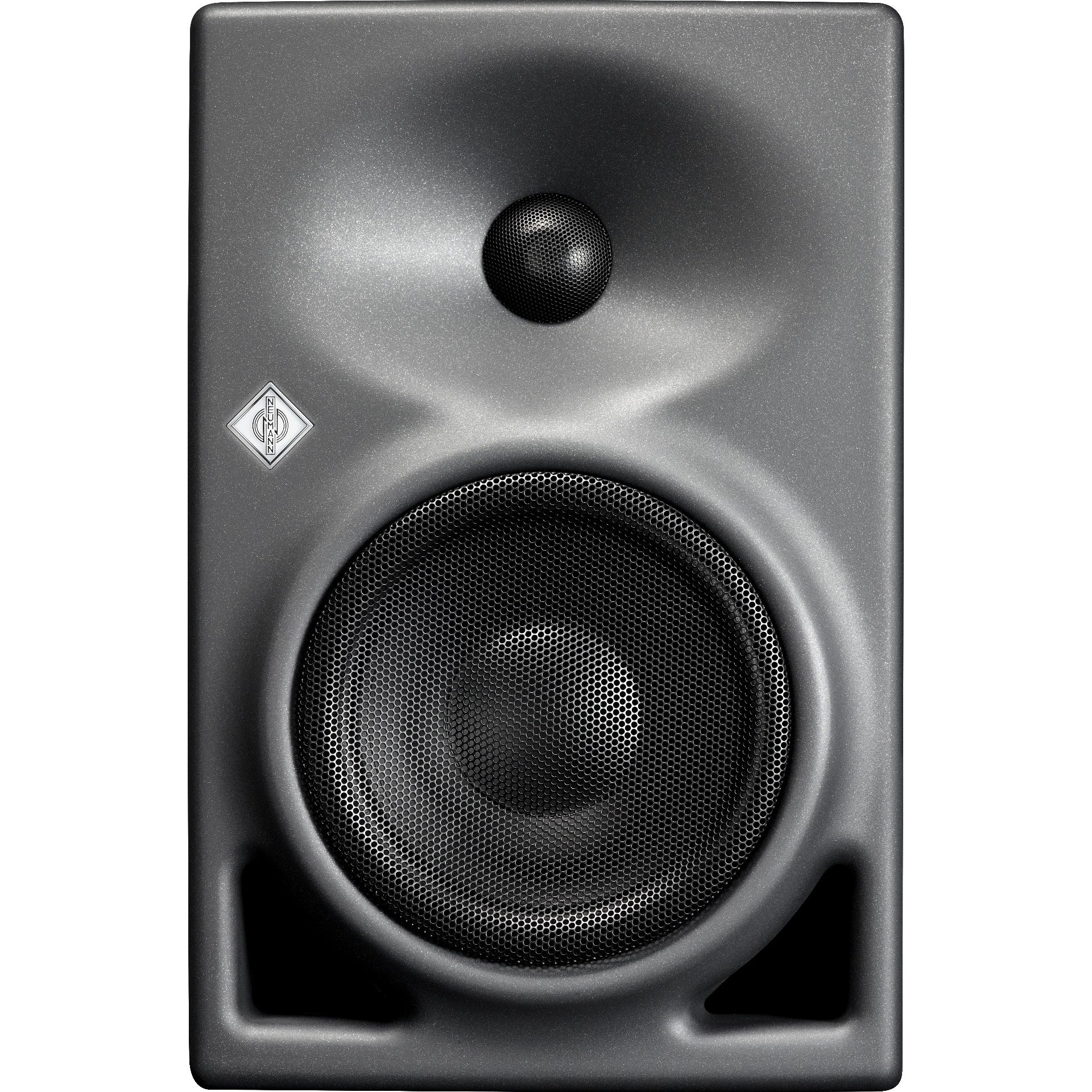

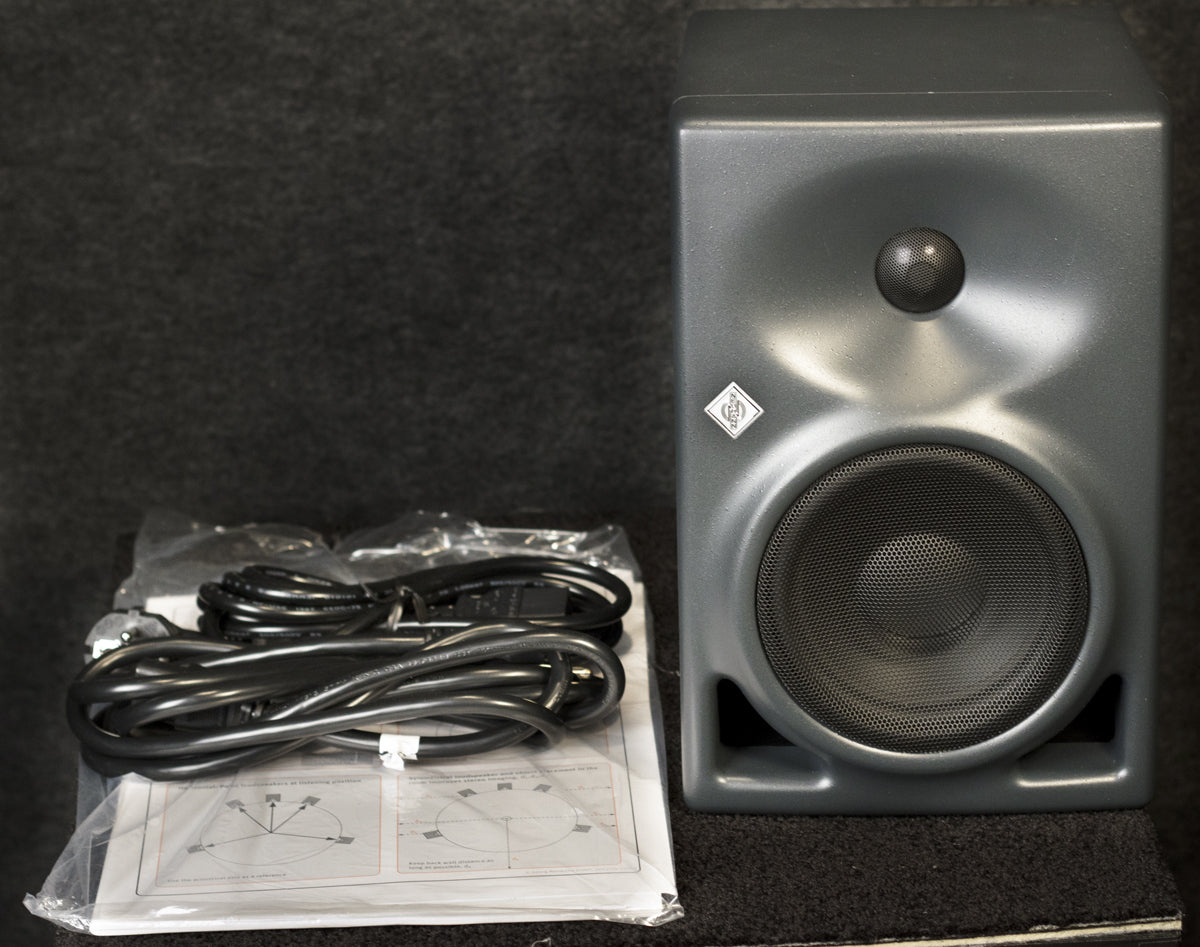

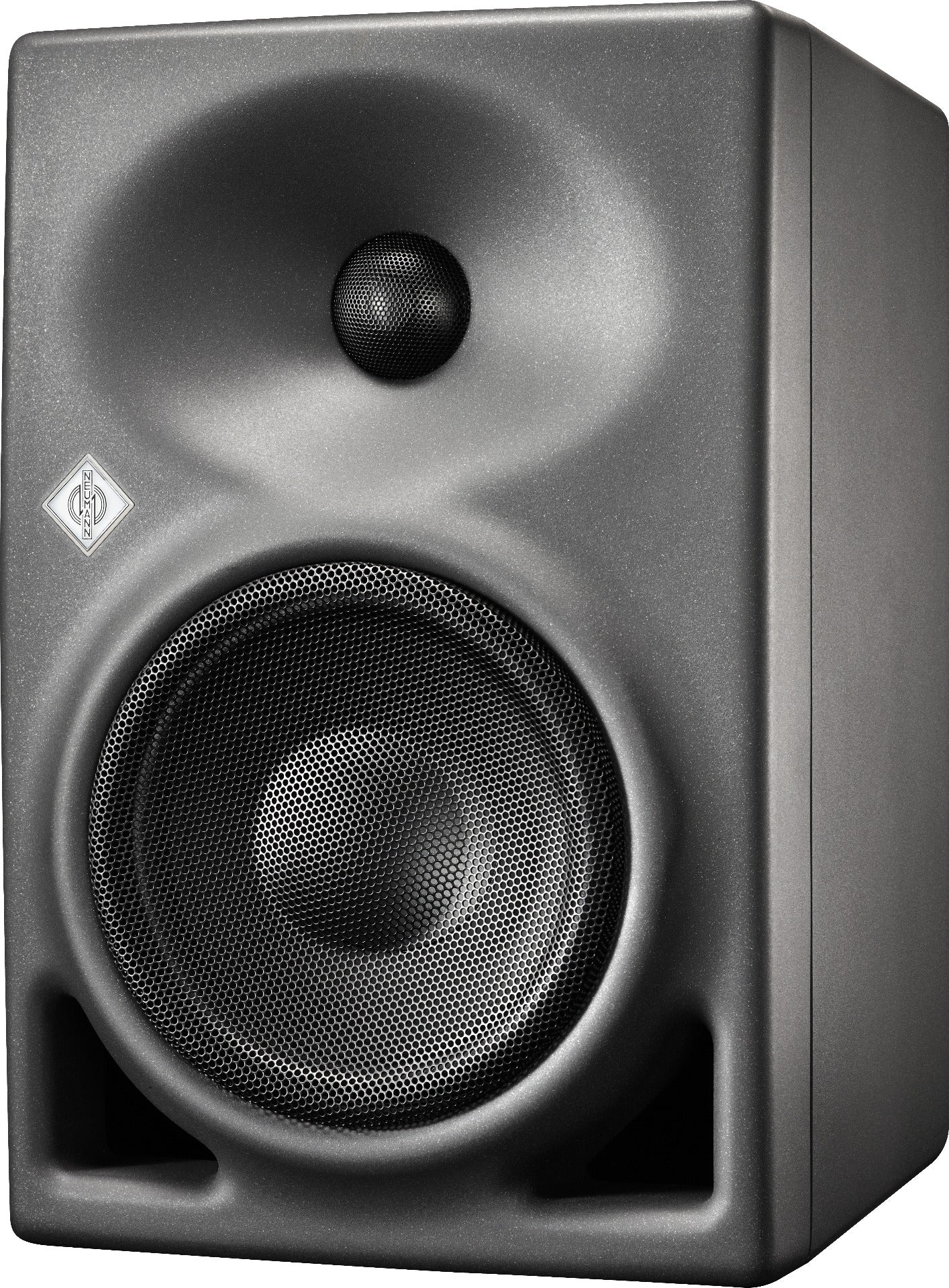

Neumann KH120 5.25 Inch Bi-Amplified Studio Monitor.
The KH 120 2-way monitor speaker packs Neumann's decades of experience in professional audio into a compact design that's ideal for use as a main nearfield monitor
View full details
- Details
- Features
- Reviews
Neumann KH120 5.25 Inch Bi-Amplified Studio Monitor
The KH 120 2-way monitor speaker packs Neumann's decades of experience in professional audio into a compact design that's ideal for use as a main nearfield monitor, or as a rear monitor in larger systems. The speaker features a 5.25" composite sandwich cone woofer and a 1" titanium fabric dome tweeter to provide clear, natural audio with a wide frequency response. Large ports on the cabinet help to extend bass response, while an elliptical MMD waveguide on the tweeter provides a wide sweet spot.
The cabinet is made from durable painted aluminum. It has non-parallel walls to reduce internal standing waves and a single-piece front panel for reduced diffraction and smoother frequency response. A robust metal grille protects the speaker elements from damage. The cabinet is also magnetically shielded for safe use near video monitors and other electronics.
The speaker has an XLR input for wide compatibility with professional audio systems and devices. Acoustic controls let you adjust bass, low-mid, and treble frequencies, allowing you to modify the speaker's performance to match your environment. Powerful analog amplifiers provide a combined peak power of 180W to provide a strong performance with ample headroom and excellent transient response. The speaker has integrated mounting points for versatile installation. It also features a universal power supply for convenient international use.
Compact Design
The speaker's compact design is ideal for use as a primary nearfield monitor or as a rear monitor in larger systems
Premium Drivers
A 5.25" composite sandwich cone woofer and a 1" titanium fabric dome tweeter provide clear, natural audio with a wide frequency response. Separate electronic peak limiters and thermal protection circuitry are built-in
Bass Ports
A pair of large ports on the front of the cabinet help to extend low frequency response and reduce bass compression
Elliptical Waveguide
The elliptical mathematically modeled dispersion (MMD) waveguide around the tweeter provides a smooth off-axis response, providing a wide horizontal dispersion and narrow vertical dispersion to create a wide sweet spot while reducing reflections
Aluminum Cabinet
The painted aluminum cabinet minimized resonances and offers excellent heat dissipation for a long lifespan. The cabinet has non-parallel walls to minimize internal standing waves and a single-piece front panel with no discontinuities to reduce diffraction and offer a smooth frequency response
Metal Grille
A robust metal grille protects the speaker elements from damage
Magnetically Shielded
The speaker is magnetically shielded for safe use near video monitors and other electronics
Standard Input
The standard XLR input offers wide compatibility with professional audio systems and devices
Acoustic Controls
4-way acoustic controls let you adjust bass, low-mid, and treble frequencies, allowing you to modify the speaker's performance to match your environment
Analog Amplifiers
Powerful analog amplifiers provide a combined peak power of 180W to provide a strong performance with ample headroom and excellent transient response
Production Consistency
Each speaker is made to exacting specifications so that any KH 120 can be paired with another KH 120 with excellent results
2-Color Logo
The 2-color Neumann logo displays operation status and indicates activation of the internal protection system. The logo is also dimmable for low-light environments
Input and Output Controls
Input gain and output level controls provide versatile interfacing with signal sources
Ground-Lift Switch
A ground-lift switch allows you to eliminate hum caused by ground loops
Mounting Options

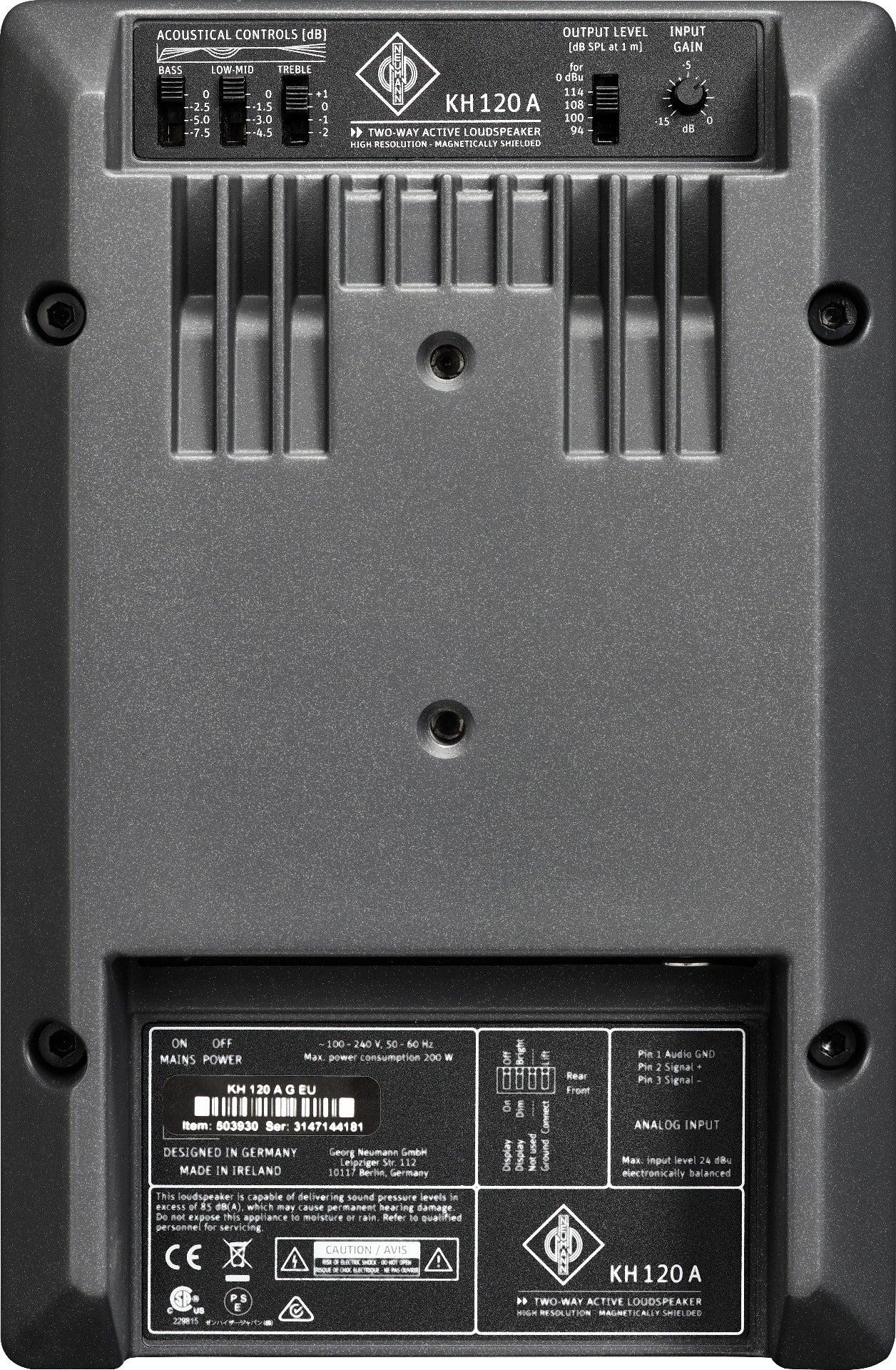

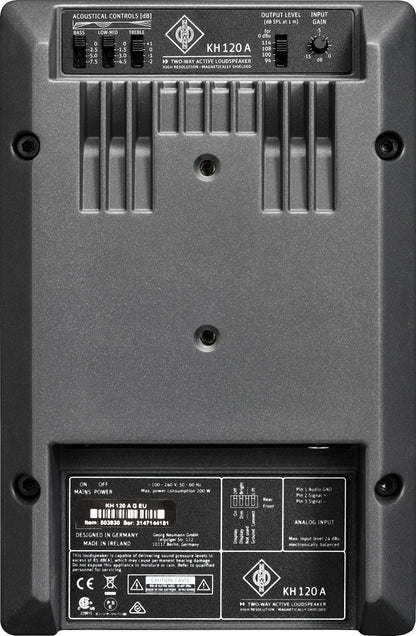

The speaker has a pair of M8 mounting points on the rear panel. A number of other mounting accessories are available separately
Universal Power
The universal switch-mode power supply allows convenient international use
Specification:
Low Frequency Driver 5.25" (133mm) Composite Sandwich Woofer
High Frequency Driver 1" (25mm) Titanium Fabric Dome Tweeter
Amplifier Bass: 50W, 80W Peak
Treble: 50W, 80W Peak
Crossover 2kHz, 24dB/Oct, 4th Order
Frequency Range 52Hz - 21kHz ±3dB
Maximum Sound Pressure Level (SPL) 111.1dB
Input Impedance 10 kOhms
Input Gain 0 to -15dBu
Output Level 94, 100, 108, and 114dB
CMRR > 56dB @ 15kHz
Equalization 4-Position Switches for High, Mid, and Bass
Connectors 1 x XLR Input
1 x Power Input
Cabinet Painted Aluminum
Indicators Red/White Illuminated Neumann Logo
Shielded Yes
Protection Low and High Limiters, Overheating
Mounting 2 x M8 Mounting Points
Power Requirements 100-240VAC, 50/60Hz
Power Consumption Idle: 20W
Full Output: 200W
Operating Temperature 50 to 104°F (10 to 40°C)
< 90% Relative Humidity
Dimensions (HxWxD) 10.9 x 7.1 x 8.6" (277 x 182 x 220mm)
Weight 13.7 lbs (6.2kg)
| Product Name | Neumann KH120 5.25" Bi-Amplified Studio Monitor |
|---|---|
| Brand | Neumann |
| Condition | New |
| MPN | KH120 |
| UPC | 615104189287 |
| Shipping Option | Free Shipping to the Continental U.S. |
