*Please note -- This pre-owned item may show signs of use. Please see the photos for details.

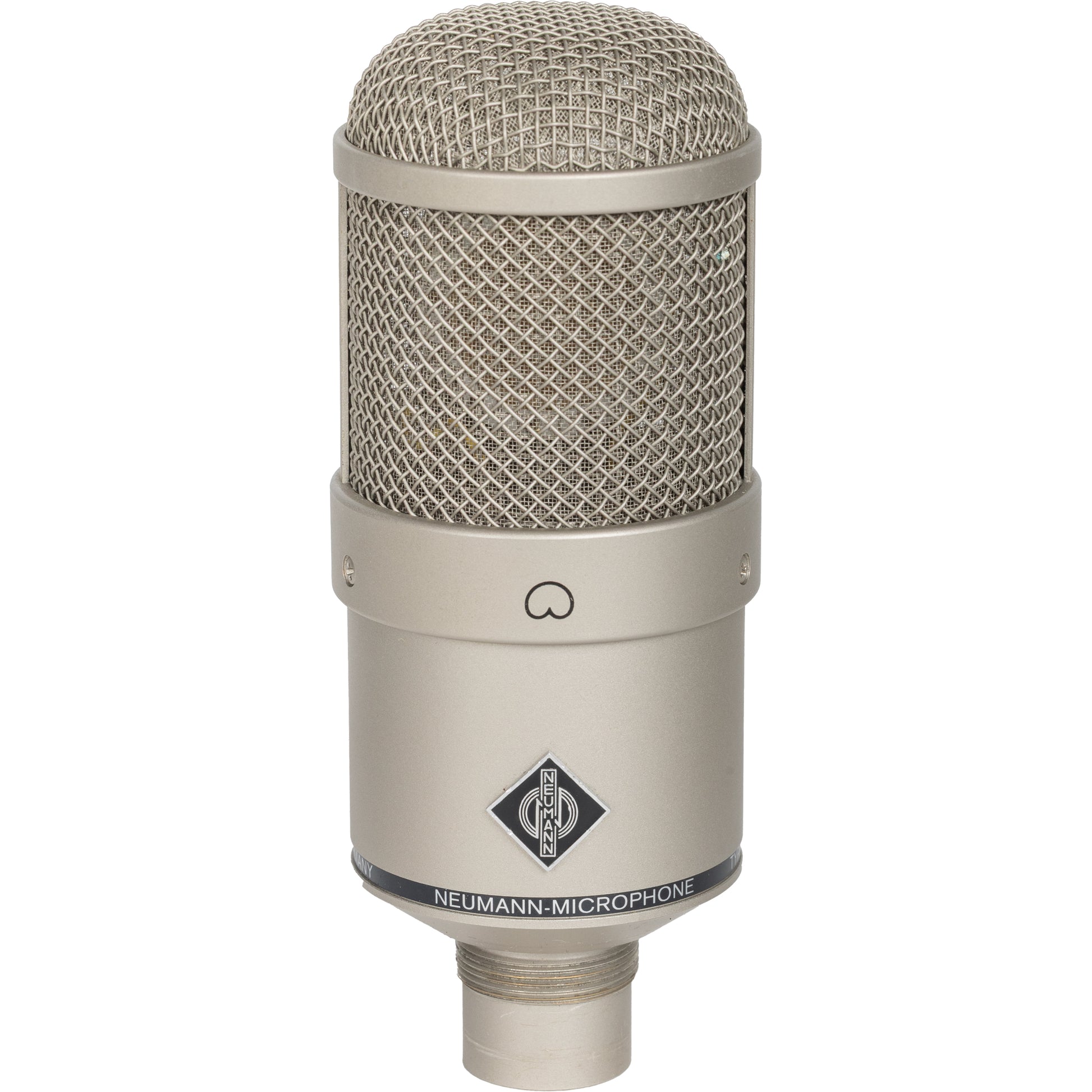

The M 147 Tube is a vacuum tube condenser microphone with cardioid characteristic. At the heart of this microphone is the K 47 dual diaphragm capsule, inherited from this model's now legendary predecessors, the U 47 and the M 49. Following the capsule is a tube that functions as an impedance converter. The next stage is an efficient, transformerless output circuit, that guarantees an extremely low self-noise level. Note: This innovative combination of current tube technology with the most advanced solid-state circuitry was decisive in awarding the 1997 TEC Award to the related M 149 Tube mic. The M 147 Tube can feed extremely long microphone cables without affecting the quality of the audio signal. Like all Neumann tube microphones, the M 147 Tube comes with an elegant satin nickel finish. The microphone is delivered as a complete set in a high-quality aluminum case. Included with the microphone are a microphone cable, a metal swivel mount for a mic stand, and a compact universal power supply for standard mains sockets. Our modern manufacturing methods makes it possible to offer this complete set at a very attractive price.
| Product Name | Neumann M 147 Tube Condenser Microphone |
|---|---|
| Brand | Neumann |
| Condition | Pre-owned |
| MPN | M147 |
| UPC | 615104084346 |

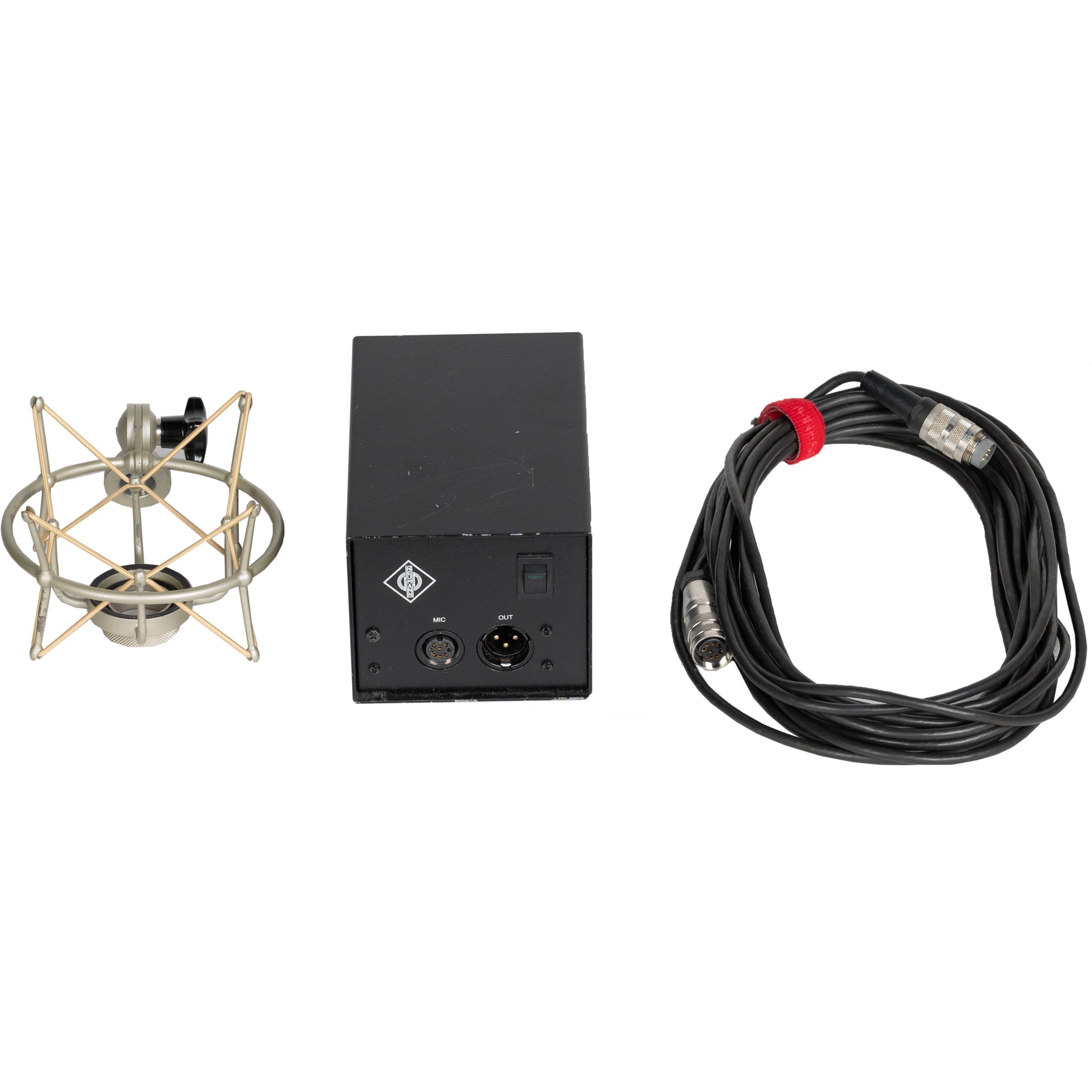

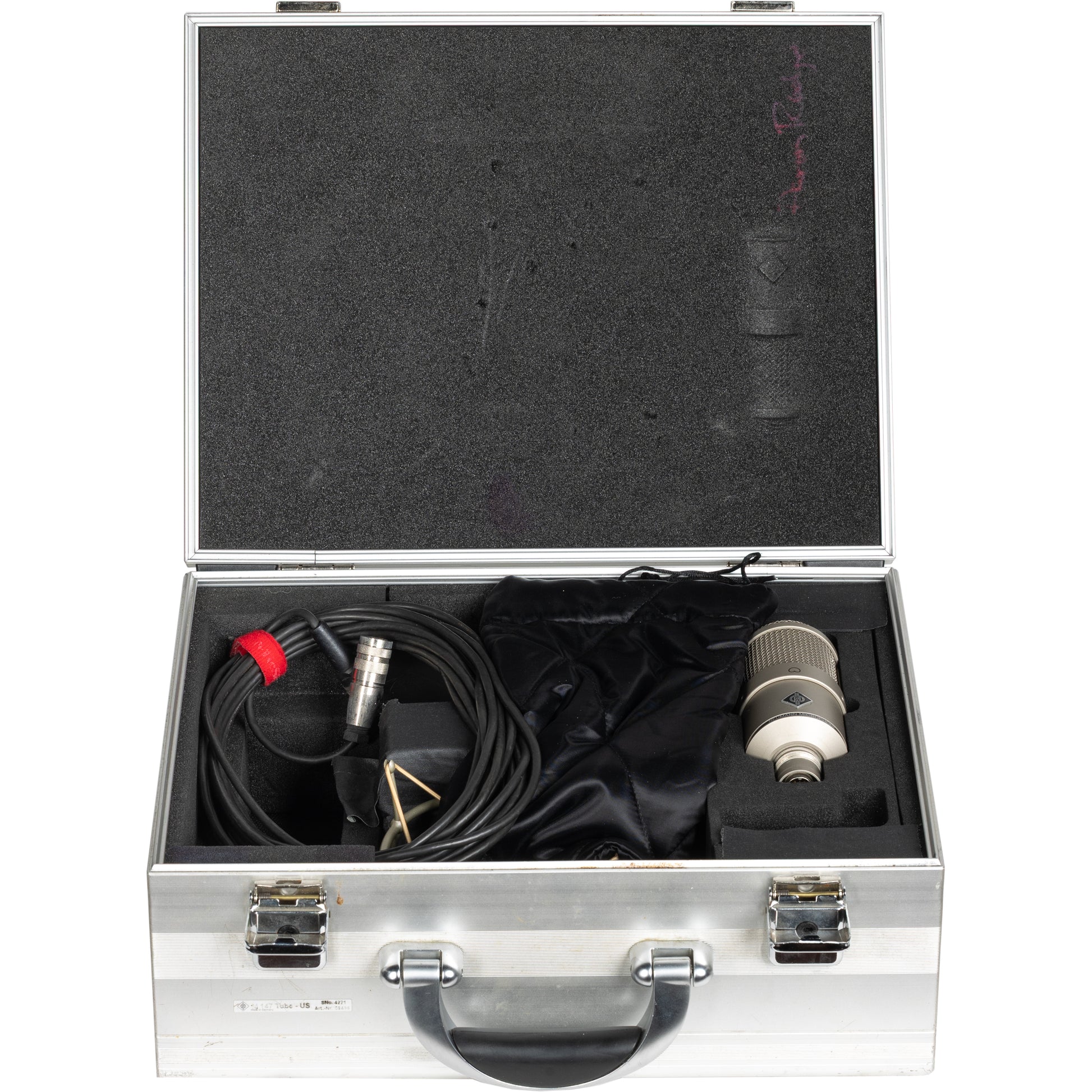

What's in the Box?
- Neumann M 147 Tube Condenser Microphone

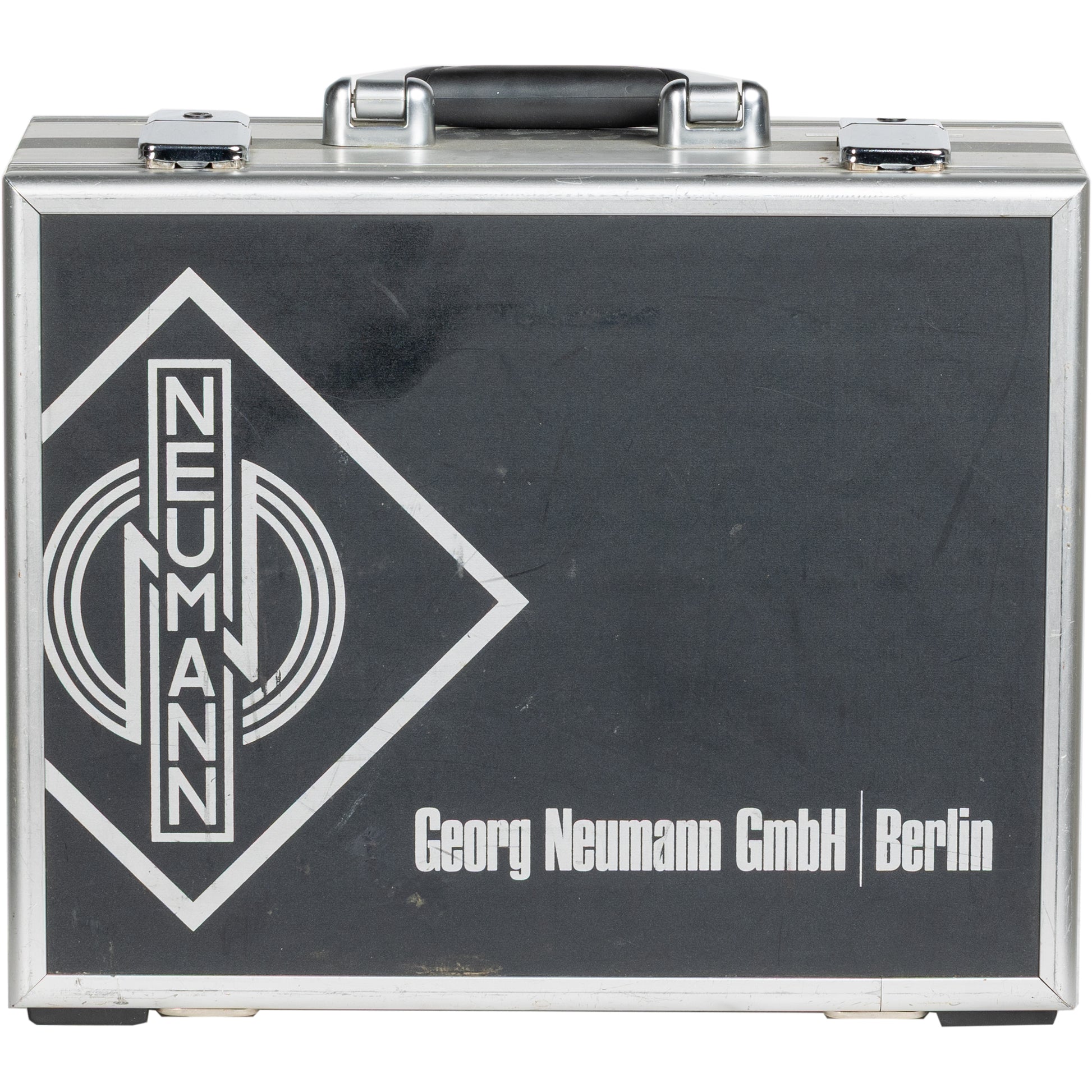

- Flight case
- Shockmount
- Power supply
- Power cable
- Same K47 capsule design as the legendary Neumann U 47
- Cardioid pattern
- Classic sound with unmatched presence
- Tube circuit with extremely low self-noise
- Transformerless output stage
- Comes with power supply
| Acoustical Operating Principle | Pressure gradient transducer |
| Directional Pattern | Cardioid |
| Frequency Range | 20 Hz - 20 kHz |
| Sensitivity at 1 kHz into 1 kohm | 20 mV/Pa |
| Rated Impedance | 50 ohms |
| Rated Load Impedance | 1 kohms |
| Equivalent Noise Level, CCIR | 24 dB |
| Equivalent Noise Level, A-weighted | 12 dB-A |
| Typical SPL (tube characteristic) for K<0.5% | 114 dB |
| Typical SPL (tube characteristic) for K<5% | 134 dB |
| Signal-to-Noise Ratio, CCIR (re. 94 dB SPL) | 70 dB |
| Signal-to-Noise Ratio, A-weighted (re. 94 dB SPL) | 82 dB |
| Maximum Output Voltage | 8 dBu |
| Dynamic Range of the Amplifier, DIN/IEC 651, for THD < 0.5% | 102 dB |
| Dynamic Range of the Amplifier, DIN/IEC 651, for THD < 5% | 122 dB |
| Power Supply | N 149 A |
| Matching Connector | Microphone: DIN 8 F, Power Supply: XLR 3 F |
| Weight | 460 g |
| Diameter | 57 mm |
| Length | 142 mm |
