Neumann TLM 102 Studio Set Large Diaphragm Condenser Microphone, Nickel

Neumann TLM 102 Studio Set Large Diaphragm Condenser Microphone, Nickel

On order with the manufacturer!

View full details
  • Details
  • Tech Specs
  • Reviews

The TLM 102 defines a new generation of Neumann studio microphones. This applies not only to the design of the microphone but also to the price.

The reduced overall size contributes to an exceptionally compact appearance, which unites all of the typical design components of a Neumann microphone. The harmonious proportions and gleaming grille ring ensure that even at first glance, the TLM 102* attracts attention.

The TLM 102 is impressive in terms of sound: In the interior is a newly developed large-diaphragm capsule (cardioid) with a maximum sound pressure level of 144 dB, which permits the recording of percussion, drums, amps and other very loud sound sources, for example. Instruments that are not especially loud also benefit from the very fast transient response of the TLM 102. However its most important applications are in the realm of vocals and speech; a slight boost above 6 kHz provides for excellent presence of the voice in the overall mix. Up to 6 kHz the frequency response is extremely linear, ensuring minimal coloration and a clearly defined bass range. The capsule has an elastic suspension for the suppression of structure-borne noise. A pop screen integrated into the grille serves to suppress plosives in vocal and speech recording.

Due to its price and flexible field of application, the TLM 102 is ideal for the home recording and project studio sector, as well as for the broadcasting area, especially when clear lines of sight to the speakers are a priority.

More Information
Product Name Neumann TLM 102 Studio Set Large Diaphragm Condenser Microphone, Nickel
Brand Neumann
Condition New
MPN TLM102StudioSet
UPC 639476315983
Shipping Option Free Shipping to the Continental U.S.

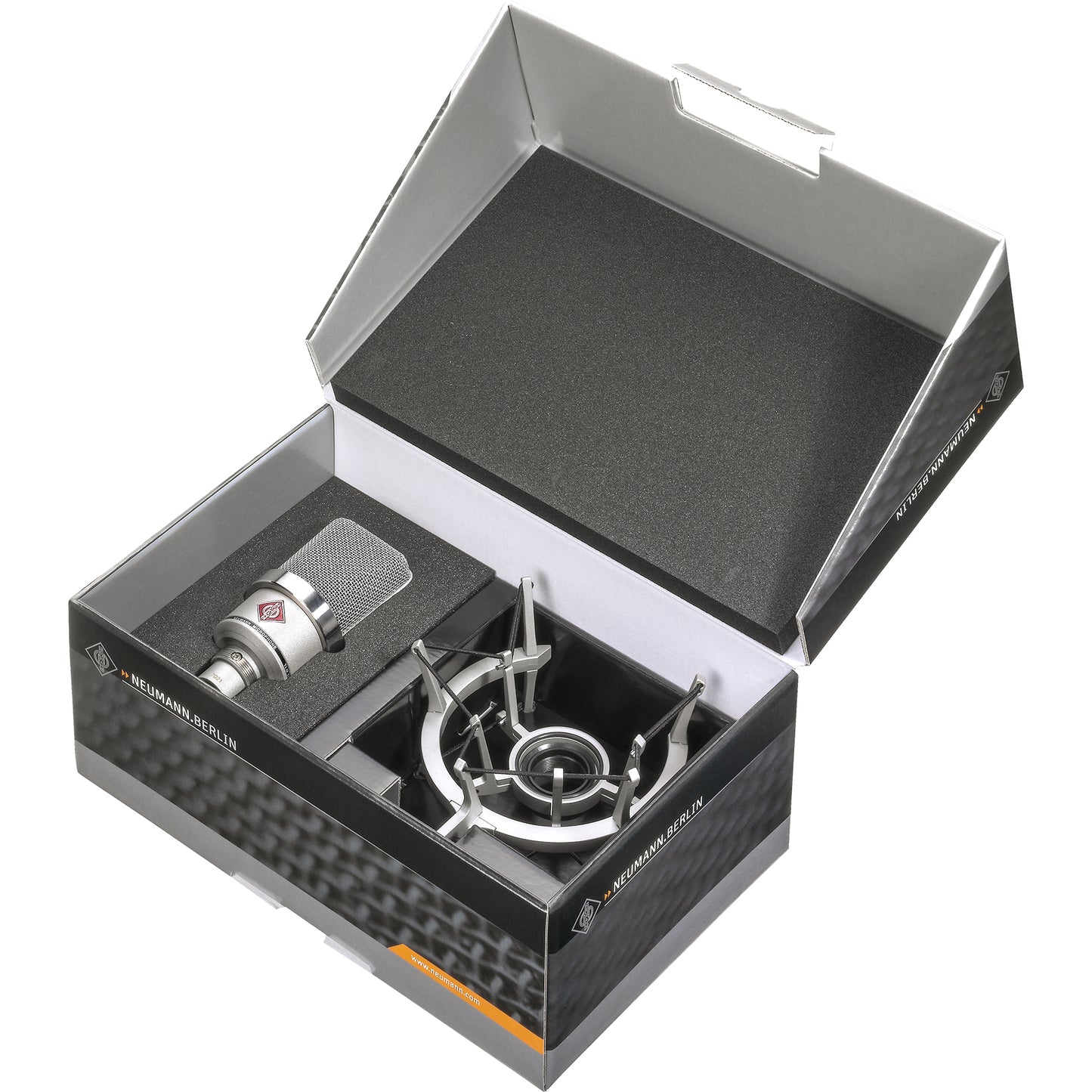

What's in the Box?

  • TLM 102 Microphone
  • 4 Elastic Suspension Shockmount
Acoustical Operating Principle Pressure gradient transducer
Directional Pattern Cardioid
Frequency Range 20 Hz ... 20 kHz
Sensitivity at 1 kHz into 1 kΩ 11 mV/Pa
Rated Impedance 50 ohms
Rated Load Impedance 1 kΩ
Equivalent Noise Level, CCIR¹⁾ 21 dB
Equivalent Noise Level, A-weighted¹⁾ 12 dB-A
Maximum SPL for THD 0.5%²⁾ 144 dB
Signal-to-noise Ratio, CCIR (re. 94 dB SPL)¹⁾ 73 dB
Signal-to-noise Ratio, A-weighted (re. 94 dB SPL)¹⁾ 82 dB
Maximum Output Voltage 13 dBu
Supply Voltage (P48, IEC 61938) 48 V ± 4 V
Current Consumption (P48, IEC 61938) 3.5 mA
Matching Connector XLR 3 F
Weight Approx. 210 g
Diameter 52 mm
Length 116 mm

Neumann TLM 102 Studio Set Large Diaphragm Condenser Microphone, Nickel

Details

The TLM 102 defines a new generation of Neumann studio microphones. This applies not only to the design of the microphone but also to the price.

The reduced overall size contributes to an exceptionally compact appearance, which unites all of the typical design components of a Neumann microphone. The harmonious proportions and gleaming grille ring ensure that even at first glance, the TLM 102* attracts attention.

The TLM 102 is impressive in terms of sound: In the interior is a newly developed large-diaphragm capsule (cardioid) with a maximum sound pressure level of 144 dB, which permits the recording of percussion, drums, amps and other very loud sound sources, for example. Instruments that are not especially loud also benefit from the very fast transient response of the TLM 102. However its most important applications are in the realm of vocals and speech; a slight boost above 6 kHz provides for excellent presence of the voice in the overall mix. Up to 6 kHz the frequency response is extremely linear, ensuring minimal coloration and a clearly defined bass range. The capsule has an elastic suspension for the suppression of structure-borne noise. A pop screen integrated into the grille serves to suppress plosives in vocal and speech recording.

Due to its price and flexible field of application, the TLM 102 is ideal for the home recording and project studio sector, as well as for the broadcasting area, especially when clear lines of sight to the speakers are a priority.

More Information
Product Name Neumann TLM 102 Studio Set Large Diaphragm Condenser Microphone, Nickel
Brand Neumann
Condition New
MPN TLM102StudioSet
UPC 639476315983
Shipping Option Free Shipping to the Continental U.S.

What's in the Box?

  • TLM 102 Microphone
  • 4 Elastic Suspension Shockmount
Tech Specs
Acoustical Operating Principle Pressure gradient transducer
Directional Pattern Cardioid
Frequency Range 20 Hz ... 20 kHz
Sensitivity at 1 kHz into 1 kΩ 11 mV/Pa
Rated Impedance 50 ohms
Rated Load Impedance 1 kΩ
Equivalent Noise Level, CCIR¹⁾ 21 dB
Equivalent Noise Level, A-weighted¹⁾ 12 dB-A
Maximum SPL for THD 0.5%²⁾ 144 dB
Signal-to-noise Ratio, CCIR (re. 94 dB SPL)¹⁾ 73 dB
Signal-to-noise Ratio, A-weighted (re. 94 dB SPL)¹⁾ 82 dB
Maximum Output Voltage 13 dBu
Supply Voltage (P48, IEC 61938) 48 V ± 4 V
Current Consumption (P48, IEC 61938) 3.5 mA
Matching Connector XLR 3 F
Weight Approx. 210 g
Diameter 52 mm
Length 116 mm
