Applications

Due to the universal cardioid pattern, straightforward handling, extremely low self-noise level, and finally, the price, the TLM 103 is predestined for all demanding applications from home recording to professional broadcasting and commercial recording studios.

Polar pattern

The TLM 103 is equipped with a large diaphragm capsule with cardioid pattern. By focusing on this pattern – used in most recording situations – the attenuation of unwanted rear sound has been optimized. Off-axis sounds are rendered naturally while isolation is increased. This also leads to a high feedback suppression when the microphone is used in live situations or where loudspeaker playback is a factor.

Acoustic features

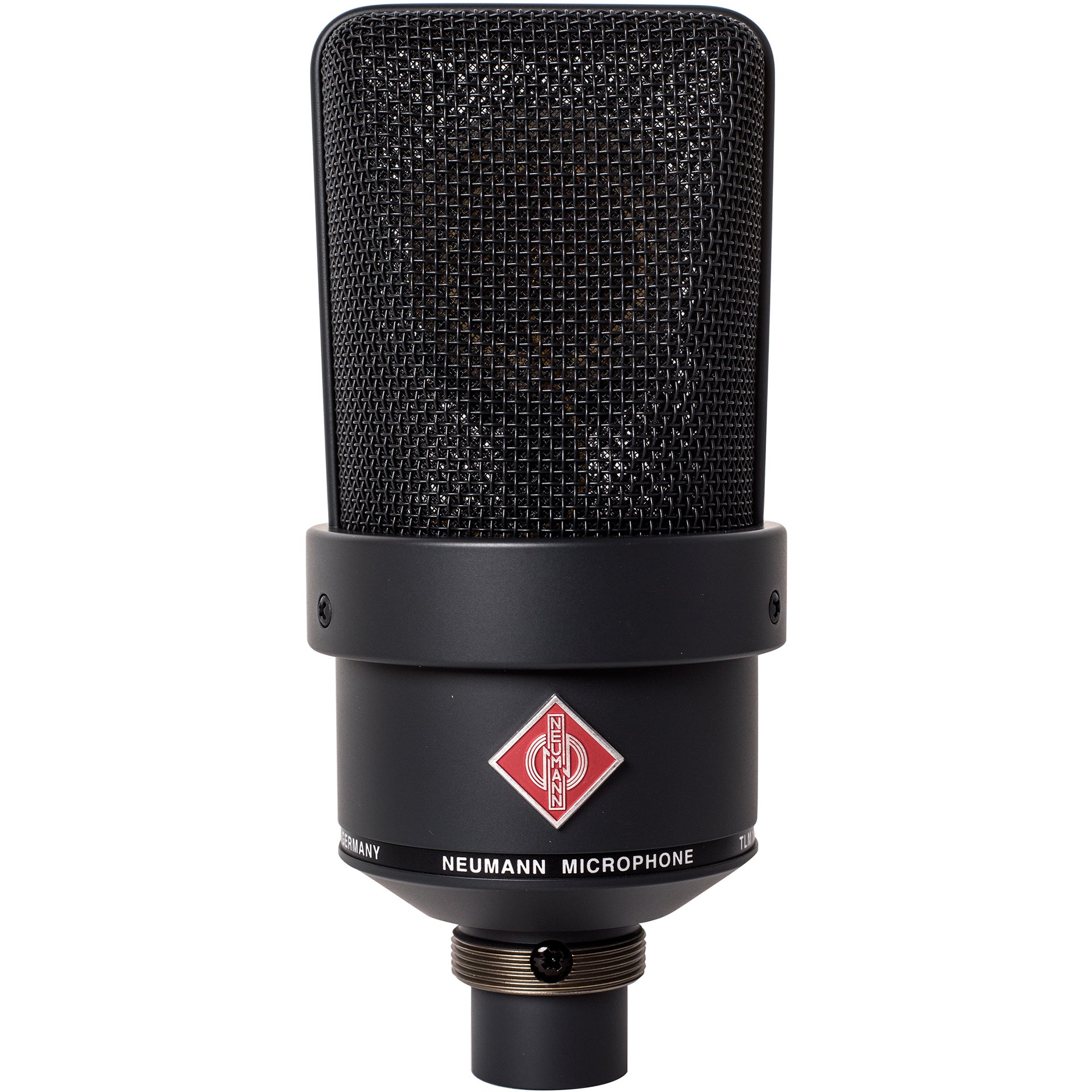

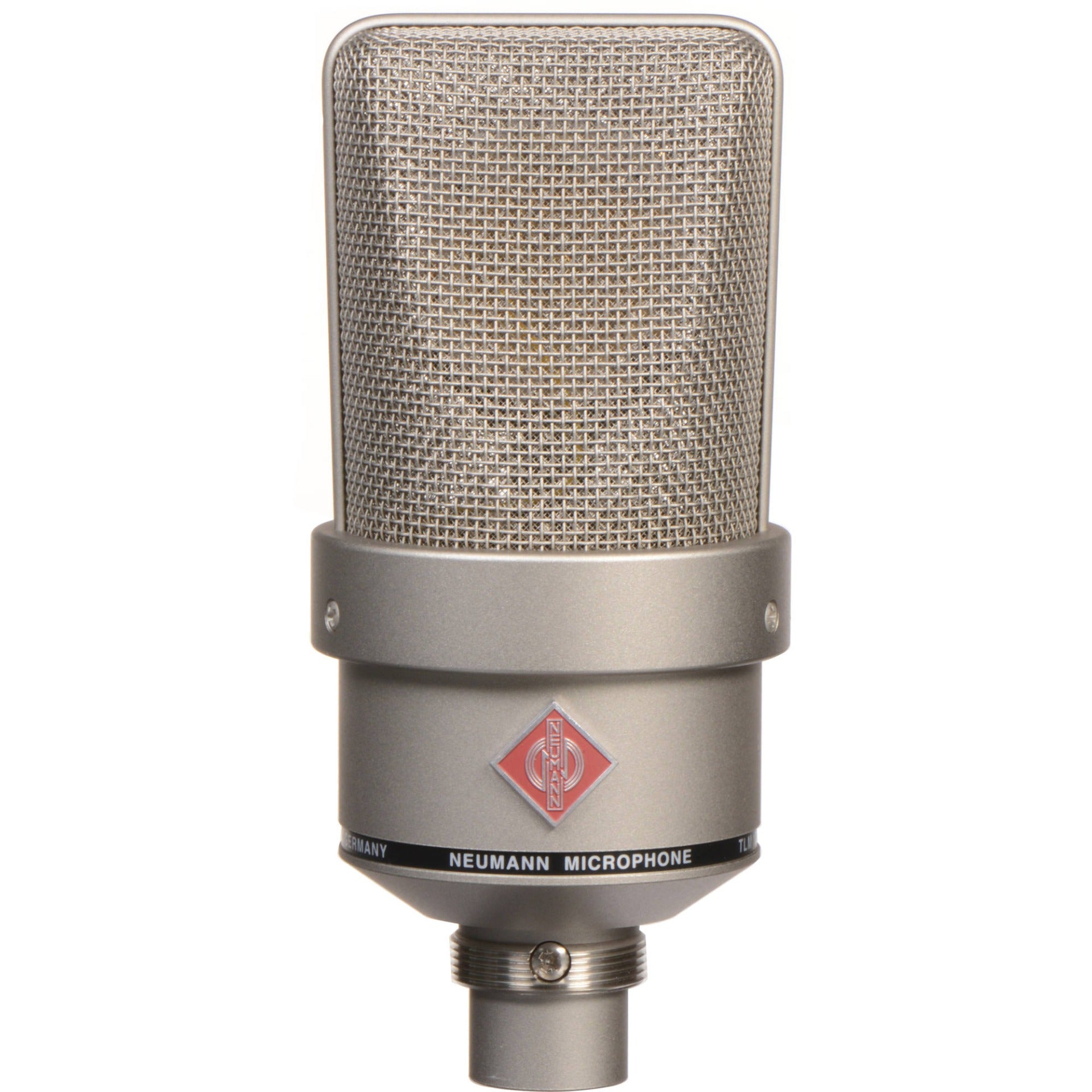

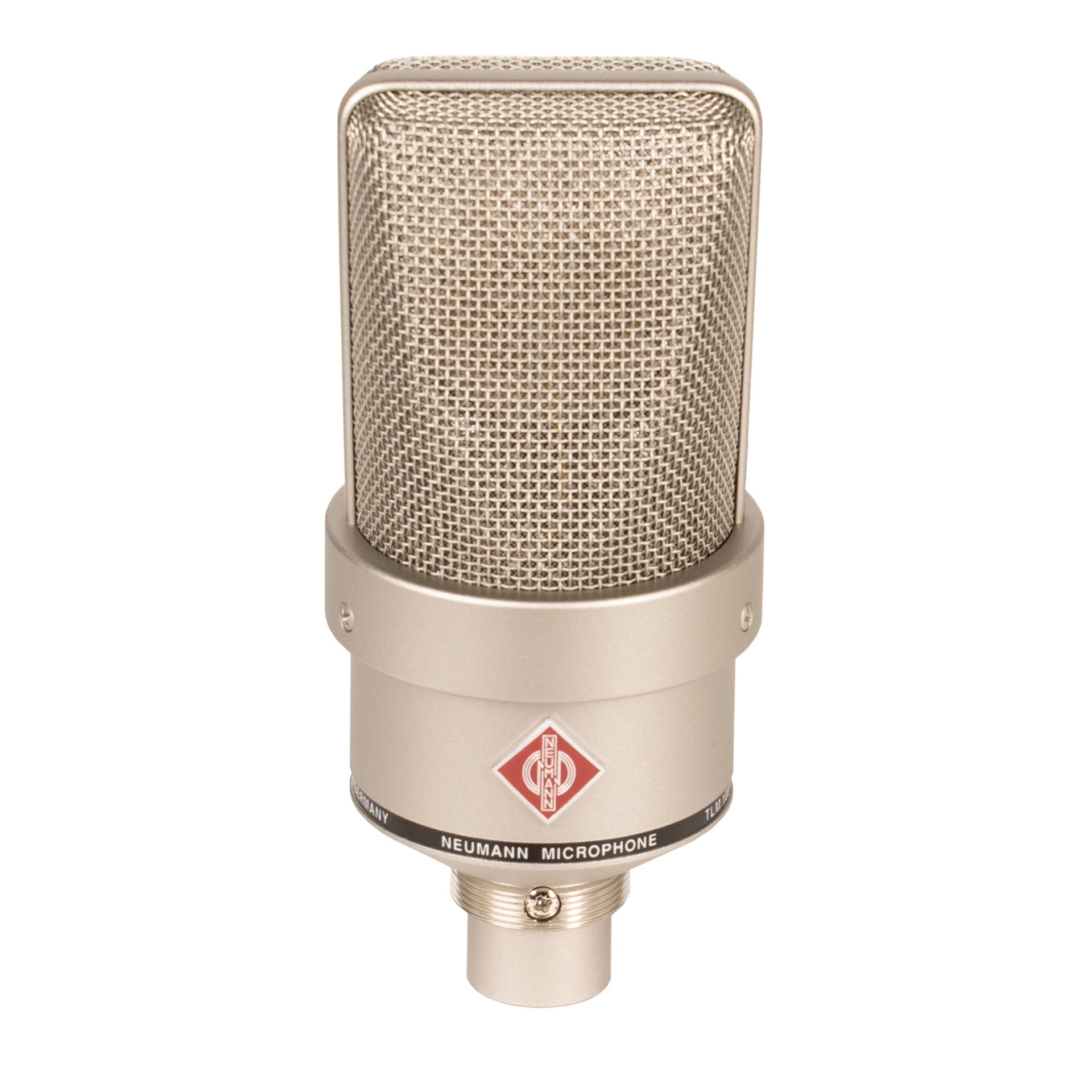

The TLM 103 is addressed from the front, marked with the red Neumann logo on the microphone body. The K 103 large diaphragm capsule is based on the K 87, well known from the U 67 / U 87 microphones.The capsule has a flat frequency response up to about 5 kHz, and above that, a wide flat 4 dB presence boost. The large wire mesh headgrille protects the capsule from plosive sounds and effectively prevents pop noises. These characteristics are achieved without resorting to corrective resonance effects. Therefore, the microphone maintains an excellent impulse response and reproduces the finest details of music and speech without coloration.

Electrical features

With just 7 dB-A / 17.5 dB CCIR the self-noise level of the TLM 103 is so reduced that even the smallest signals are reproduced basically noise-free. It is capable of handling sound pressure levels up to 138 dB without distortion. The letters TLM stand for "transformerless microphone". With TLM technology the usual output transformer is replaced by an electronic circuit. As with traditional transformers, it ensures good common mode rejection, and prevents RF interference that may influence the balanced audio signal.

Operational safety

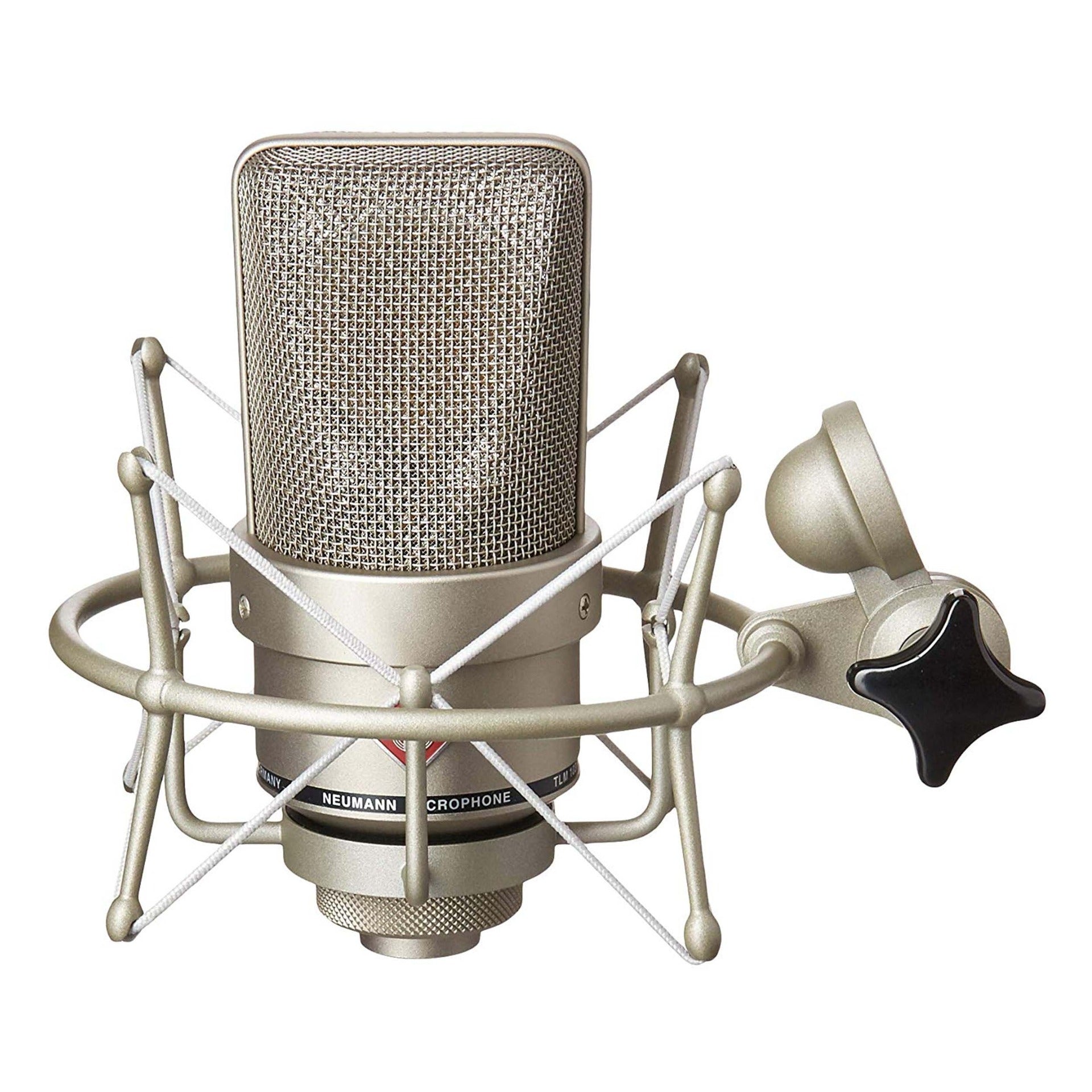

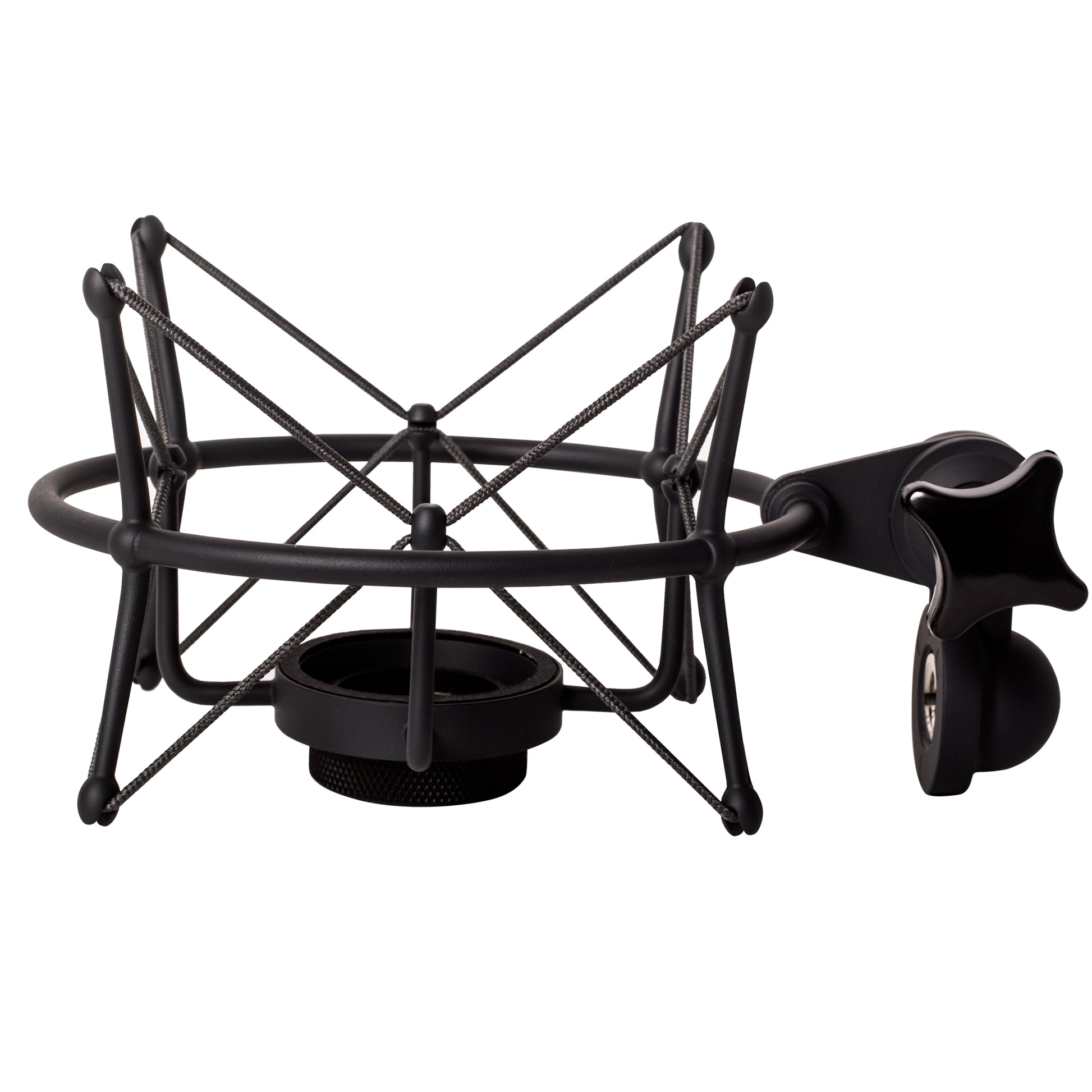

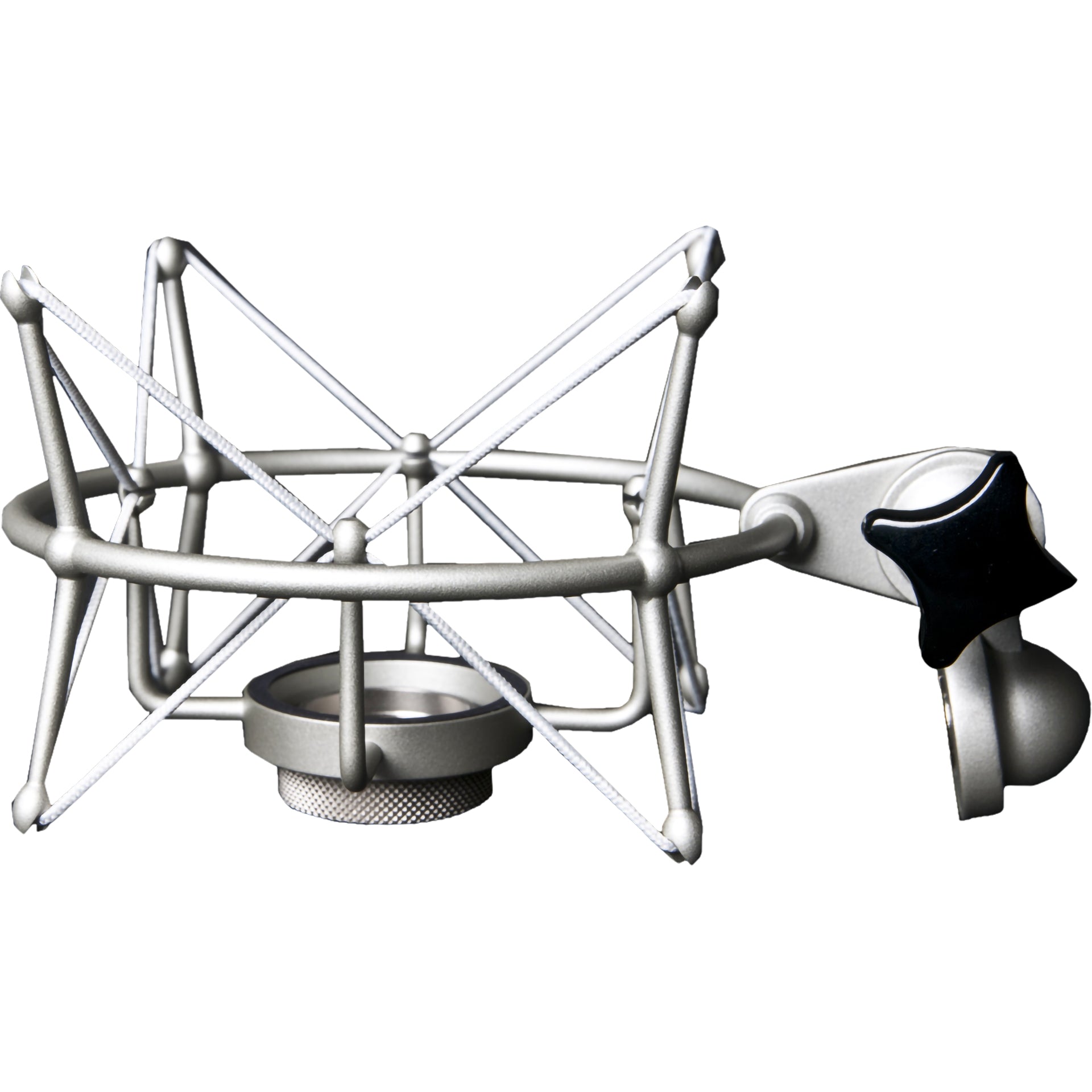

The entire internal construction is elastically mounted to attenuate any structure borne noise that could interfere with the TLM 103's operation. Furthermore the capsule is set on an elastic mount. The frequency range reaches below 20 Hz and thus even very low bass signals are reproduced without coloration. Due to this low frequency extension, the TLM 103 is more sensitive to structure borne interference and wind noise. For such cases, the elastic suspension EA 1 and the windscreen WS 87 are available as accessories. For close vocal use, the PS 15 or PS 20 a pop screens are recommended.
