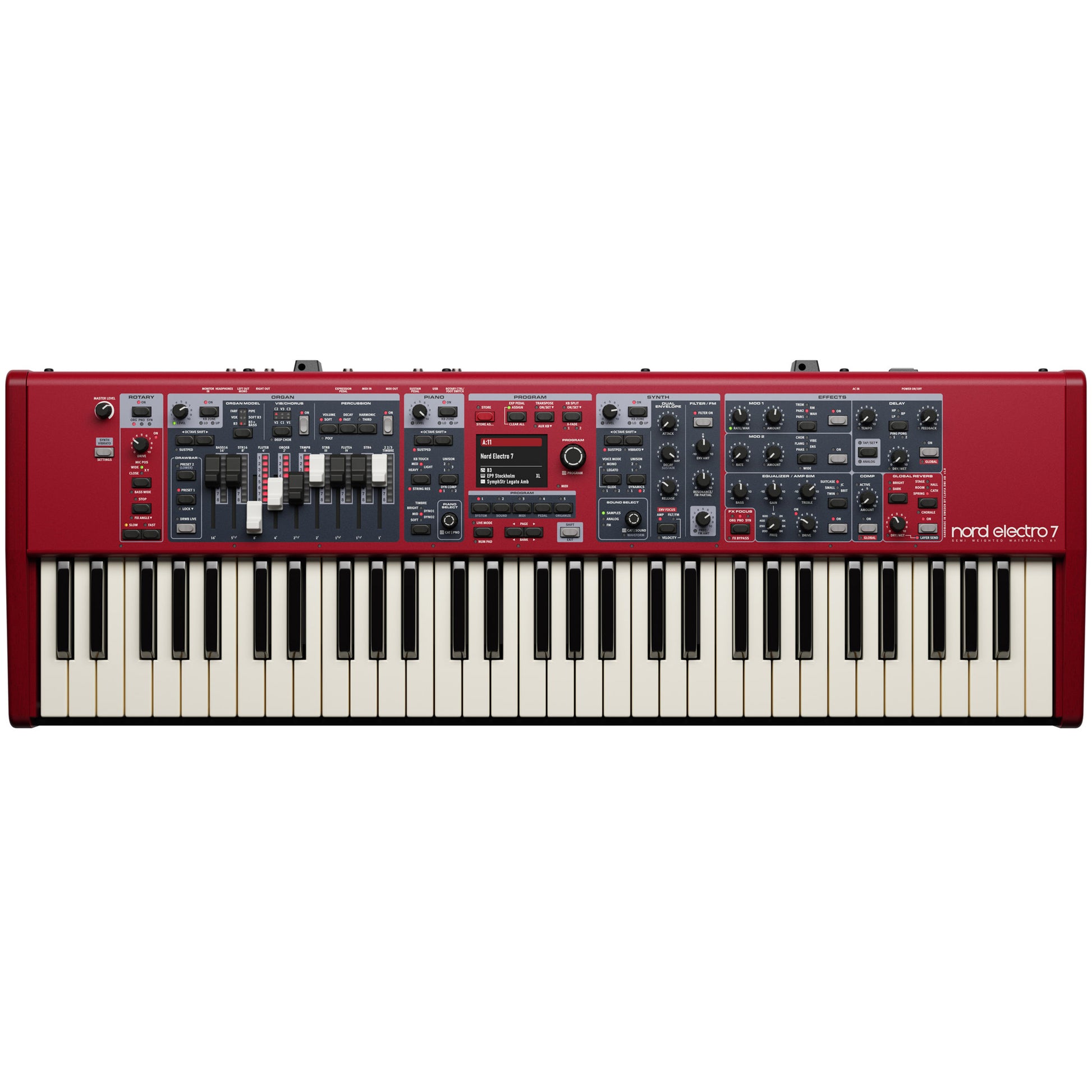

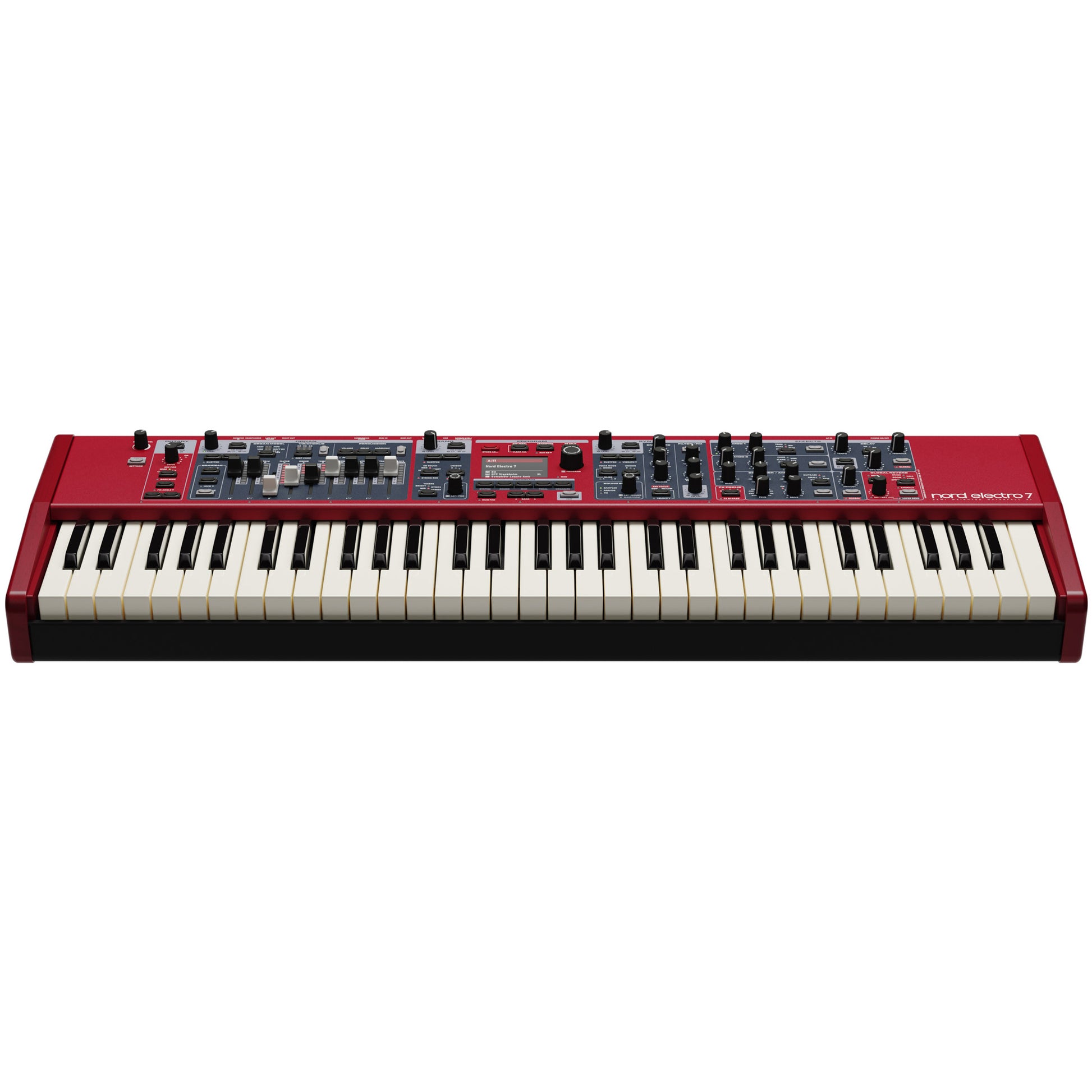

The Nord Electro 7 elevates the Electro series with a powerful new Synth Section, dedicated per-section effects and a refined panel design with a high-resolution color display. Combining our latest piano features with the Organ and Rotary Speaker from the acclaimed Nord Organ 3, the Nord Electro 7 offers exceptional versatility in a lightweight, stage-ready instrument.
| Product Name | Nord Electro 7 - 61 Key Semi Weighted Keyboard |
|---|---|
| Brand | Nord |
| Condition | New |
| MPN | AMS-NELECTRO7-61 |
| UPC | 834035001783 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Nord Electro 7
- User Manual
- Power cord
- Keyboard: 61 Semi Weighted Waterfall Keys
- Organ Section: Based on the engine from the Nord Organ 3 including the new Rotary Speaker with selectable Mic Positions, Slow/Fast and Stop, updated transistor organ models
- Drawbar Live Mode and Presets for Upper and Lower Manual
- Physical Drawbars with LEDs
- Piano Section: Updated Piano section with Dynamic Compression and Unison
- Push Encoder for selecting Sounds, Categories etc
- Program Section: Updated Program Section with New Color Display, Live Mode, Push Encoder for selecting Programs etc
- Synth Section: New Synth Section with Sample Playback, Analog and FM synthesis, Mono/Legato Mode, Glide and Unison. Push Encoder for selecting Sounds/Categories etc, ADR envelope for Amp and Filter, Filter with Resonance and FM Partials. Synth Vibrato.
- Effect Section: Updated Effect Section with Rate and Amount, Ring Modulator, Vibe. Amp Section includes new Suitcase Model and New Brit Amp, Compressor selectable per Section or Global, Global Reverb with optional Send per Layer
General |
|
|---|---|
| Display | Color display |
| Sound Sections | Organ, Piano and Synth sound sections |
| Seamless Transitions | Yes |
| Split Point Crossfades | Yes |
| Program Memory | 20 banks with 25 programs (500 locations) |
| Live Mode | 5 Live programs |
| Split Point | Selectable with LED indication (9 locations) |
| Program Organization | Organize for programs |
| Global Transpose | ±6 semitones |
| Global Fine Tune | ±50 cents |
| Program Transpose | ±6 semitones |
| MIDI | MIDI over USB |
| External Keyboard | Aux KB support |
| Expression Pedal | Assignable to Synth Filter and multiple effect parameters |
Keybed |
|
| Nord Electro 7 61 | 61-key (5 octaves, C–C) Semi-Weighted Waterfall keyboard |
| Nord Electro 7 73 | 73-key (6 octaves, E–E) Semi-Weighted Waterfall keyboard |
| Nord Electro 7 HP | 73-key (6 octaves, E–E) Triple Sensor Kawai Hammer Action Portable keyboard |
Organ Section |
|
| Models | B3, B3+Bass, Soft B3, Vox, Farfisa and Pipe (full polyphony) |
| Percussion | B3 percussion with Poly option, adjustable level and decay |
| Vibrato / Chorus | With B3 Deep mode |
| Tonewheel Modes | 3 selectable vintage modes |
| Presets & Drawbars | 2 Organ manual presets, Live Drawbars, physical drawbars with LED indicators |
| Half-Moon Switch Mount | Available on Electro 7 61 / 73 |
Piano Section |
|
| Categories | Grand, Upright, Electric, Digital/Layer, Clav/Harpsichord, Misc/Mallet |
| Sound Management | Sounds added, replaced and organized via Nord Sound Manager |
| Features |
String Resonance Timbre settings for acoustic, electric and clavinet sounds 3 KB Touch settings Dynamic Compression Unison (3 amount options) |
| Polyphony | 120 voices (Piano Library sounds) |
Synth Section |
|
| Synthesis Types | Sample, Analog and FM synthesis |
| Sample Management | Samples added, replaced and organized via Nord Sound Manager |
| Presets | Preset libraries for Analog and FM sounds |
| Envelopes | Amp and Filter/FM ADR/ASR envelopes with velocity and amount controls |
| Filters |
Low Pass Filter with Cutoff and Resonance (Analog & Sample) FM Amount and Partial controls |
| Performance Options |
Mono, Legato and Glide modes Unison (3 amount options) 3 dynamics / amp velocity options |
| Vibrato | Adjustable rate, amount and delay, dedicated Synth Vibrato button |
| Polyphony | 30+ voices |
Rotary Speaker |
|
| Emulation | Nord Organ 3 Rotary Speaker emulation |
| Mic Positions | Close, Wide and XY |
| Options | Bass Wide (stereo), Tube Drive, Fix Angle (user adjustable stop position) |
Effects Section |
|
| Architecture | Dedicated effects for Organ, Piano and Synth, FX Focus with Bypass |
| Mod 1 | Pan 1 (Soft), Pan 2 (Hard), Tremolo, Wah, Ring Modulator (Rate & Amount controls) |
| Mod 2 | Phaser, Flanger, Chorus, Vibe, Ensemble, Wide stereo option (Rate & Amount controls) |
| EQ / Amp Sims | Twin, Small, Suitcase, JC and Brit models, Drive, 3-band EQ with sweepable mid (±15 dB) |
| Delay |
Tap Tempo, Feedback and Dry/Wet controls Low Pass, High Pass and Band Pass feedback filters Ping Pong (3 amount options), Analog mode, Global mode |
| Compressor | Amount control with Global option |
| Reverb |
Spring, Room, Stage, Hall, Cathedral Spring before Rotary Speaker Chorale option, Bright/Dark modes Dry/Wet control with Layer Send mode |

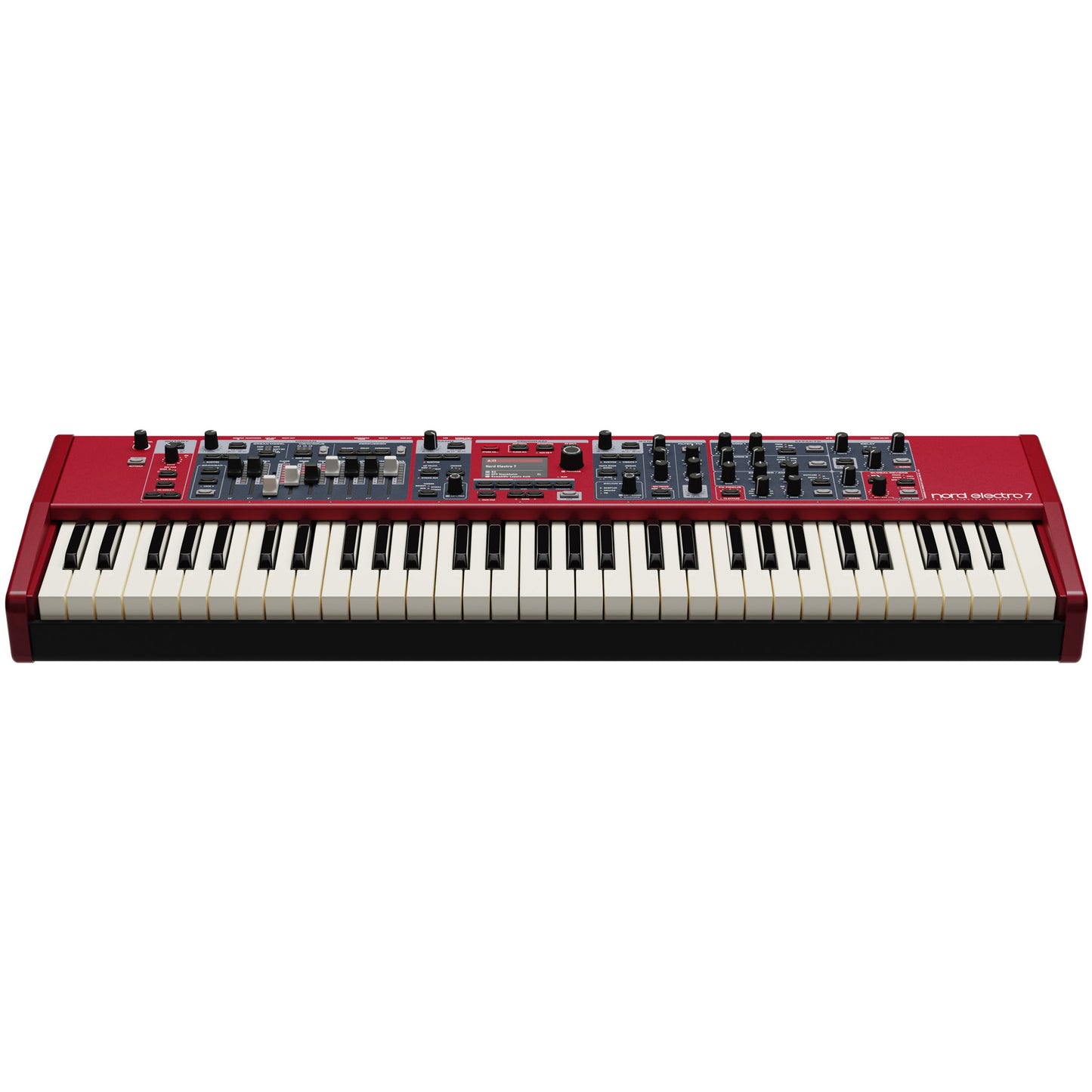

Nord Electro 7 - 61 Key Semi Weighted Keyboard
Details
The Nord Electro 7 elevates the Electro series with a powerful new Synth Section, dedicated per-section effects and a refined panel design with a high-resolution color display. Combining our latest piano features with the Organ and Rotary Speaker from the acclaimed Nord Organ 3, the Nord Electro 7 offers exceptional versatility in a lightweight, stage-ready instrument.
| Product Name | Nord Electro 7 - 61 Key Semi Weighted Keyboard |
|---|---|
| Condition | New |
| MPN | AMS-NELECTRO7-61 |
| UPC | 834035001783 |
What's in the Box?
- Nord Electro 7
- User Manual
- Power cord
Features
- Keyboard: 61 Semi Weighted Waterfall Keys
- Organ Section: Based on the engine from the Nord Organ 3 including the new Rotary Speaker with selectable Mic Positions, Slow/Fast and Stop, updated transistor organ models
- Drawbar Live Mode and Presets for Upper and Lower Manual
- Physical Drawbars with LEDs
- Piano Section: Updated Piano section with Dynamic Compression and Unison
- Push Encoder for selecting Sounds, Categories etc
- Program Section: Updated Program Section with New Color Display, Live Mode, Push Encoder for selecting Programs etc
- Synth Section: New Synth Section with Sample Playback, Analog and FM synthesis, Mono/Legato Mode, Glide and Unison. Push Encoder for selecting Sounds/Categories etc, ADR envelope for Amp and Filter, Filter with Resonance and FM Partials. Synth Vibrato.
- Effect Section: Updated Effect Section with Rate and Amount, Ring Modulator, Vibe. Amp Section includes new Suitcase Model and New Brit Amp, Compressor selectable per Section or Global, Global Reverb with optional Send per Layer
Tech Specs
General |
|
|---|---|
| Display | Color display |
| Sound Sections | Organ, Piano and Synth sound sections |
| Seamless Transitions | Yes |
| Split Point Crossfades | Yes |
| Program Memory | 20 banks with 25 programs (500 locations) |
| Live Mode | 5 Live programs |
| Split Point | Selectable with LED indication (9 locations) |
| Program Organization | Organize for programs |
| Global Transpose | ±6 semitones |
| Global Fine Tune | ±50 cents |
| Program Transpose | ±6 semitones |
| MIDI | MIDI over USB |
| External Keyboard | Aux KB support |
| Expression Pedal | Assignable to Synth Filter and multiple effect parameters |
Keybed |
|
| Nord Electro 7 61 | 61-key (5 octaves, C–C) Semi-Weighted Waterfall keyboard |
| Nord Electro 7 73 | 73-key (6 octaves, E–E) Semi-Weighted Waterfall keyboard |
| Nord Electro 7 HP | 73-key (6 octaves, E–E) Triple Sensor Kawai Hammer Action Portable keyboard |
Organ Section |
|
| Models | B3, B3+Bass, Soft B3, Vox, Farfisa and Pipe (full polyphony) |
| Percussion | B3 percussion with Poly option, adjustable level and decay |
| Vibrato / Chorus | With B3 Deep mode |
| Tonewheel Modes | 3 selectable vintage modes |
| Presets & Drawbars | 2 Organ manual presets, Live Drawbars, physical drawbars with LED indicators |
| Half-Moon Switch Mount | Available on Electro 7 61 / 73 |
Piano Section |
|
| Categories | Grand, Upright, Electric, Digital/Layer, Clav/Harpsichord, Misc/Mallet |
| Sound Management | Sounds added, replaced and organized via Nord Sound Manager |
| Features |
String Resonance Timbre settings for acoustic, electric and clavinet sounds 3 KB Touch settings Dynamic Compression Unison (3 amount options) |
| Polyphony | 120 voices (Piano Library sounds) |
Synth Section |
|
| Synthesis Types | Sample, Analog and FM synthesis |
| Sample Management | Samples added, replaced and organized via Nord Sound Manager |
| Presets | Preset libraries for Analog and FM sounds |
| Envelopes | Amp and Filter/FM ADR/ASR envelopes with velocity and amount controls |
| Filters |
Low Pass Filter with Cutoff and Resonance (Analog & Sample) FM Amount and Partial controls |
| Performance Options |
Mono, Legato and Glide modes Unison (3 amount options) 3 dynamics / amp velocity options |
| Vibrato | Adjustable rate, amount and delay, dedicated Synth Vibrato button |
| Polyphony | 30+ voices |
Rotary Speaker |
|
| Emulation | Nord Organ 3 Rotary Speaker emulation |
| Mic Positions | Close, Wide and XY |
| Options | Bass Wide (stereo), Tube Drive, Fix Angle (user adjustable stop position) |
Effects Section |
|
| Architecture | Dedicated effects for Organ, Piano and Synth, FX Focus with Bypass |
| Mod 1 | Pan 1 (Soft), Pan 2 (Hard), Tremolo, Wah, Ring Modulator (Rate & Amount controls) |
| Mod 2 | Phaser, Flanger, Chorus, Vibe, Ensemble, Wide stereo option (Rate & Amount controls) |
| EQ / Amp Sims | Twin, Small, Suitcase, JC and Brit models, Drive, 3-band EQ with sweepable mid (±15 dB) |
| Delay |
Tap Tempo, Feedback and Dry/Wet controls Low Pass, High Pass and Band Pass feedback filters Ping Pong (3 amount options), Analog mode, Global mode |
| Compressor | Amount control with Global option |
| Reverb |
Spring, Room, Stage, Hall, Cathedral Spring before Rotary Speaker Chorale option, Bright/Dark modes Dry/Wet control with Layer Send mode |
