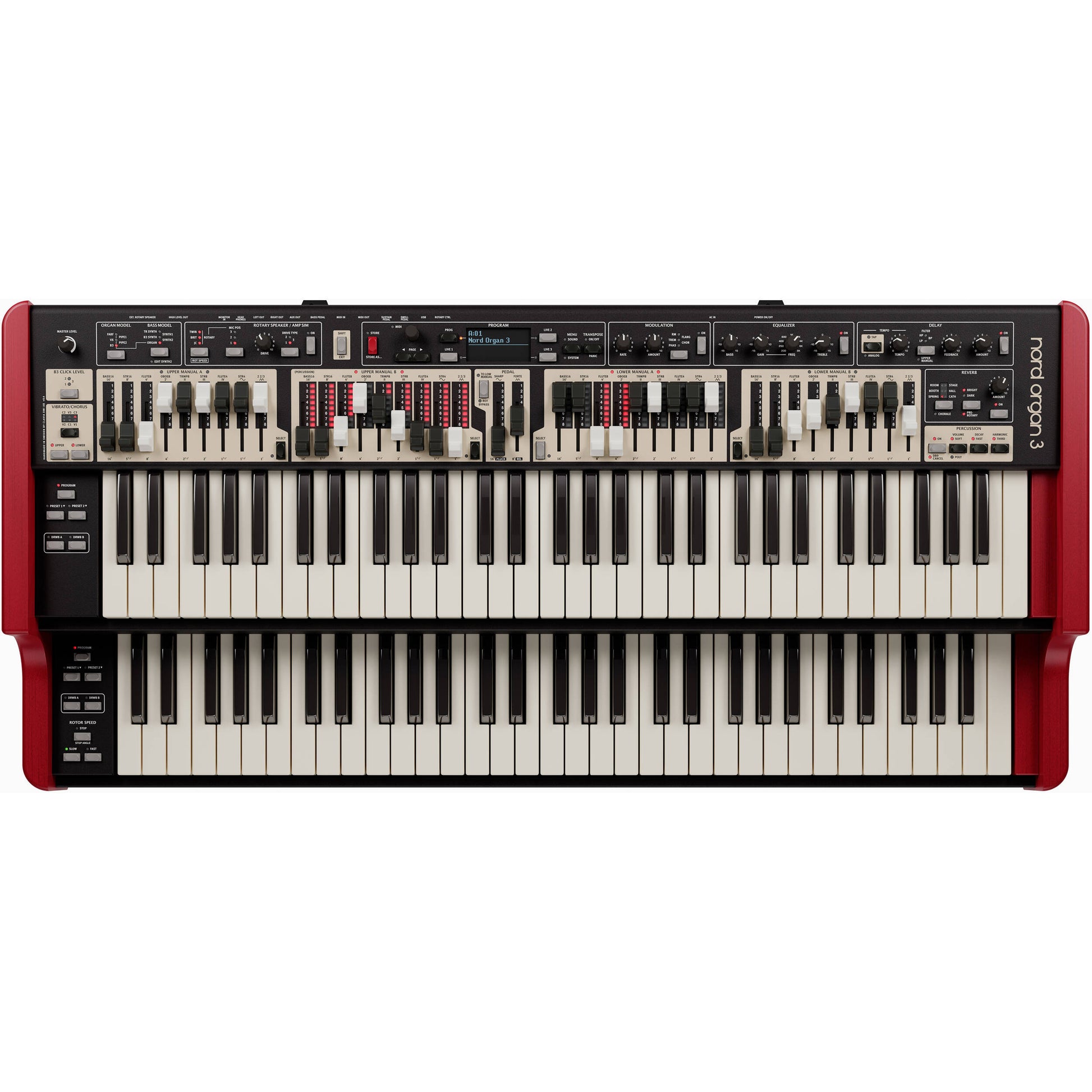

The acclaimed Nord Organ is back - reborn and reimagined as the all-new Nord Organ 3. The latest generation of our Organ series featuring massive improvements to sound, design and performance. With a greatly enhanced organ engine, added modulation effects and a new exceptional-sounding rotary speaker emulation, the Nord Organ 3 offers an unsurpassed level of detail and realism.
Vibrato and Chorus Scanner
Reworked from the ground up, the new vibrato and chorus captures the unique qualities of the original instruments, offering either the gentle character of a '50s B3 chorus scanner or the deep modulation of a '70s instrument.
Bass Models
The Bass Model section of the Nord Organ 3 provides matching bass models for all the organ types and includes a range of classic synth bass sounds, greatly expanding the sonic possibilities of the instrument. The bass can optionally be routed to a dedicated audio output, for separate treatment of organ and bass manuals on stage or in the studio.
Rotary Speaker emulation
With a brand new approach to recreating not only the classic rotary sound, but also the characteristics of both the amp and speakers, the Nord Organ 3 features an exceptional Rotary Speaker emulation with multiple microphone perspectives.
Microphone perspectives
The Nord Organ 3 offers several microphone positioning options corresponding to popular ways of reproducing the classic rotary speaker sound, both on stage and in the studio. These variations in microphone placement affect both the perceived movement as well as the tonal character of the rotary speaker, ranging from punchy and present to smooth and open.
Reverb and Delay
The Reverb section features 6 different types including a brand new Spring Reverb as well as Booth, Room, Stage, Hall and Cathedral options.
The Pre-Rotary setting allows the reverb to be placed before the Rotary Speaker, like a reverb equipped organ connected to a Rotary Speaker. With Pre-Rotary turned off, the reverb is placed after the Rotary Speaker emulating a room or other ambient environment.
Modulation effects
The Modulation effects include classics such as Chorus, Phaser and Flanger - all modeled on legendary hardware units - as well as Ring Modulation for a variety of creative and experimental sounds and a versatile Tremolo effect. The Modulation effect can be assigned to the upper manual only, keeping the lower and pedal manuals clean.
Product Name | Nord Organ 3 Dual 61-Key Organ |
---|---|
Brand | Nord |
Condition | New |
MPN | AMS-NORGAN3 |
UPC | 834035001707 |
Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Nord Organ 3 Dual 61-Key Organ
- User Manual
- Power cord
General
- New panel design with OLED display
- Triple sensor keybeds
- LED indicators for preset drawbar settings
- Per program Transpose function
- Bass to lower manual option
- Aux output with routing options for Bass/Pedal drawbars and more
- 11-pin Leslie connector
- High level output
B3 Organ
- Enhanced B3 organ model
- New and improved Chorus/Vibrato
Transistor and Pipe Organs
- Improved Farfisa and Vox organ models
- Pipe Organ emulation
- Soft B3
Bass Models
- Authentic B3, Vox and Farfisa Bass
- Synth Bass options based on classic pedal synthesizers
Rotary and Amp modeling
- Brand new Rotary Speaker emulation
- Multiple options for microphone placement
- Fixed Stop Angle feature
- 3 Drive Type options
New British amp and speaker emulation
Effects
- Brand new Spring reverb
- Expanded Reverb section with Pre-Rotary option
- Delay with new Analog mode and Feedback filters
- New Modulation effects including Phaser, Tremolo, Ring Mod, Flanger and Chorus.
- Equalizer with sweepable middle band
General |
|
---|---|
Master Level Control | Yes |
OLED Display | Yes |
Transpose Button | Yes |
Drawbar Sets | 2 per manual |
LED Indicator Sets | 1 per manual |
Pedal Drawbars | Yes |
Aux Output | For optional Bass/Pedal routing |
Program Locations | 400 |
Live Programs | 3 |
Program and Preset Buttons | 1 Program and 2 Preset buttons per manual |
Drawbar A/B Selector Buttons | Per manual |
Organ Section |
|
Models | B3, Vox, Farfisa (full polyphony) |
Pipe Organ Models | 2 (full polyphony) |
Organ Bass Models | B3, Vox, Farfisa, Pipe |
Synth Bass Models | B3 synth, Trek, Taurus |
Percussion Controls | With Poly and DB9 Cancel options |
Vibrato/Chorus | With B3 Deep mode |
Rotary Speaker / Amp Section |
|
Rotary Speaker | New emulation with multiple microphone placement options |
Drive Types | 3 types with Drive amount control |
Amp & Speaker Emulations | JC, Brit, Twin |
Effects |
|
Modulation | Phaser, Tremolo, Ring Mod, Flanger, Chorus with Rate and Amount controls |
Equalizer | 3-band with sweepable mid |
Delay | Analog mode, LP/HP/BP feedback filters, Feedback Amount, Dry/Wet, Tempo with Tap, Upper Manual only mode |
Reverb | Spring, Booth, Room, Stage, Hall, Cathedral, with Chorale, Bright/Dark, Pre-Rotary option, Amount control |
Keyboard |
|
Type | 2 × 61-key Triple Sensor Semi-Weighted Waterfall Keyboards |

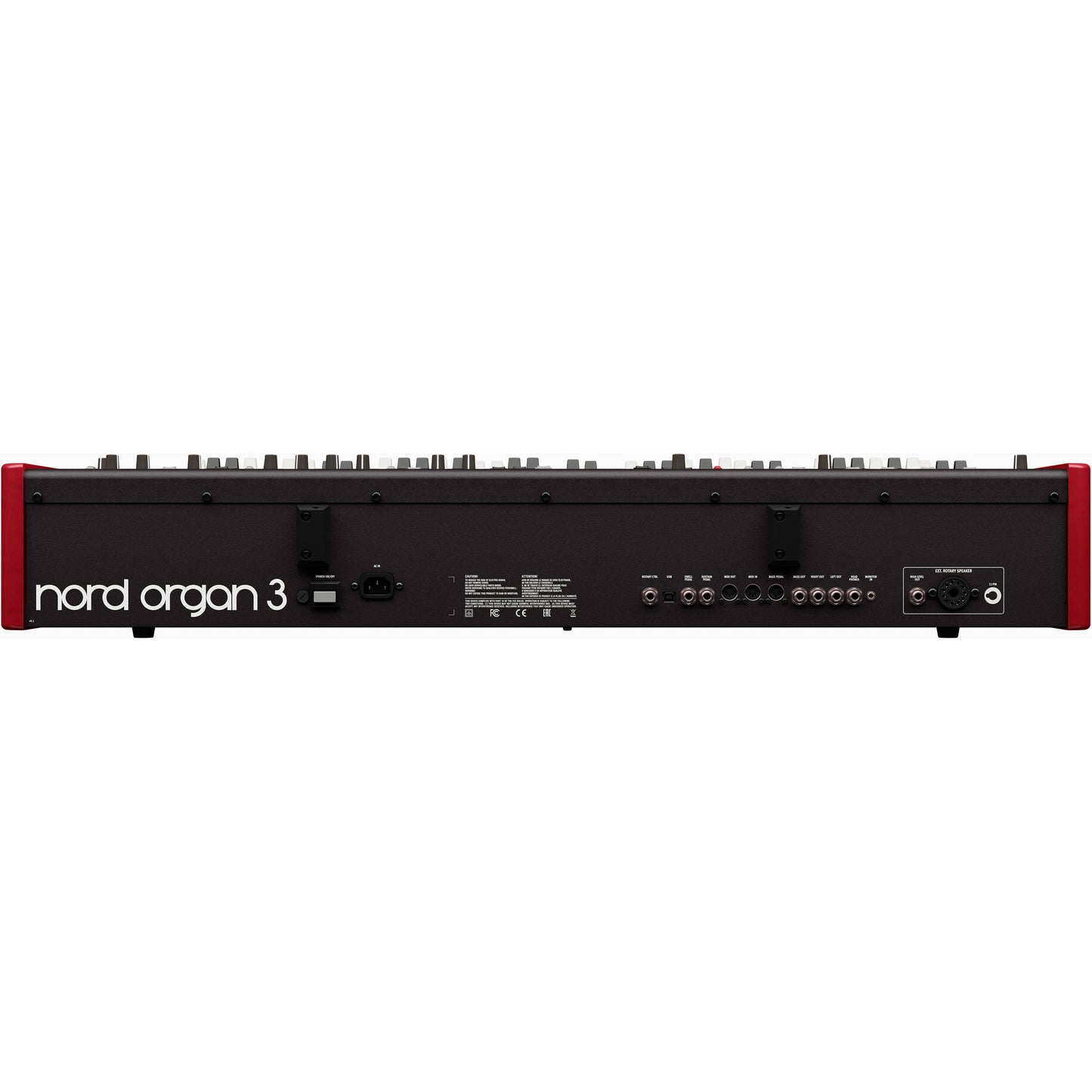

Connections |
|
Stereo Headphone Output | ¼" (6.35 mm) stereo jack |
Line Outputs | 2 × ¼" (6.35 mm) unbalanced (L & R) |
Leslie Connector | 11-pin standard |
High Level Out | ¼" (6.35 mm) jack |
Aux Out | ¼" (6.35 mm) jack |
Monitor Input | ⅛" (3.5 mm) stereo jack |
Sustain Pedal Input | ¼" (6.35 mm) jack |
Rotor Control Input | ¼" (6.35 mm) jack, Half-Moon Switch or momentary pedal |
Swell Pedal Input | ¼" (6.35 mm) TRS stereo jack |
MIDI In/Out | MIDI In, Out (5-pin DIN connectors) |
Bass Pedal MIDI In | 5-pin DIN connector |
USB | Type-B connector |
Power Connector | IEC C14 |
Dimensions |
|
Size (W × H × D) | 985 × 165 × 446 mm (38.8 × 6.5 × 17.6 in) |
Weight |
|
Weight | 17 kg (37.5 lb) |
Included Accessories |
|
Accessories | User Manual, Power Cord |
