High quality stereo audio monitor
B-7 PRO personal wireless in-ear monitor system delivers stereo audio signal on 2.4 GHz frequency range. That's a global interference-free broadcasting range you can use everywhere without a signal break. With the 24-bit 48 kHz audio quality you will never experience unwanted sound degradation.
Automatic setup and friendly matching
The user-friendly matching system makes it easier to use, just turn on the TX & RX and they will be paired with each other within a couple of seconds. Each wireless set has a unique pairing algorithm, it automatically detects each other and configures their own IDs.

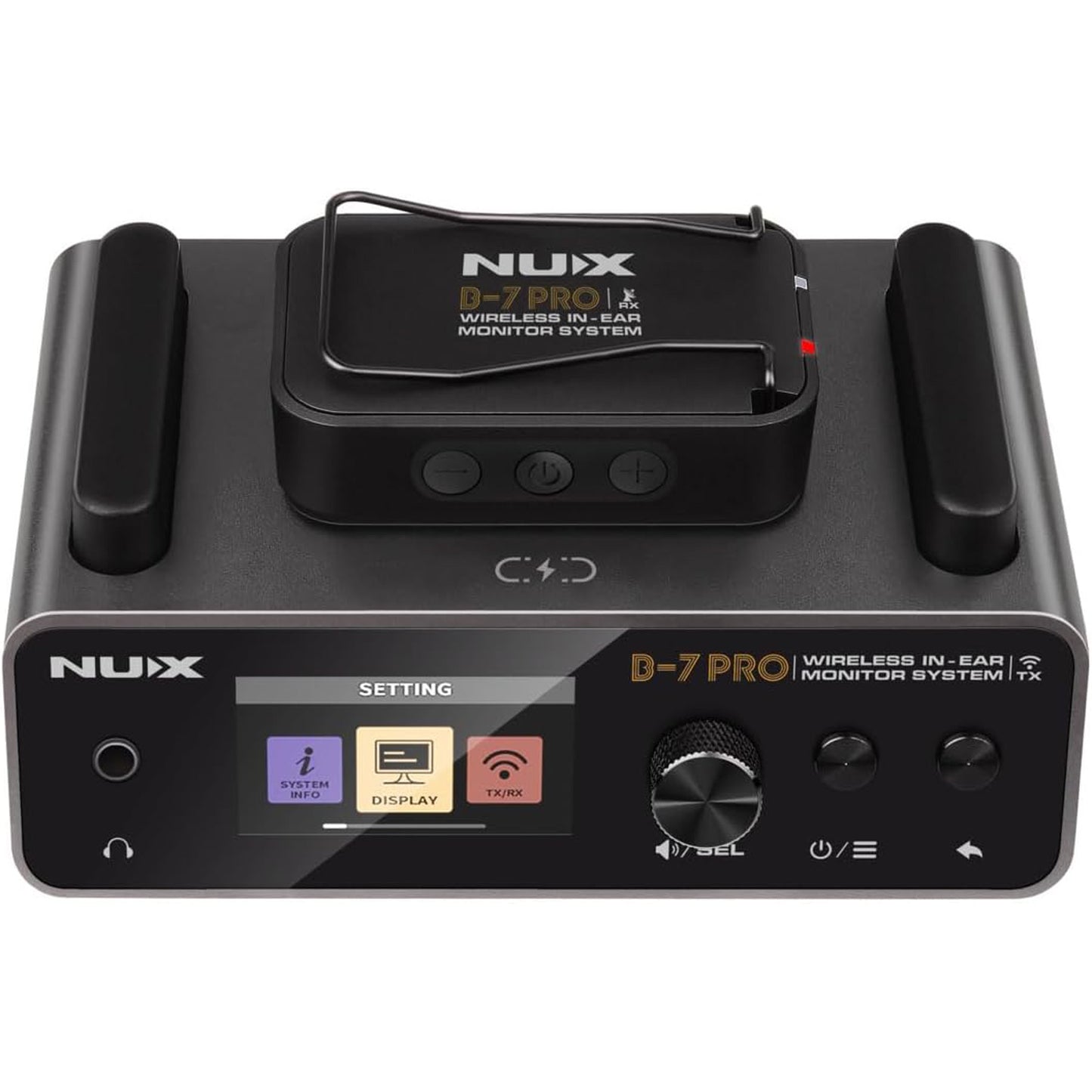

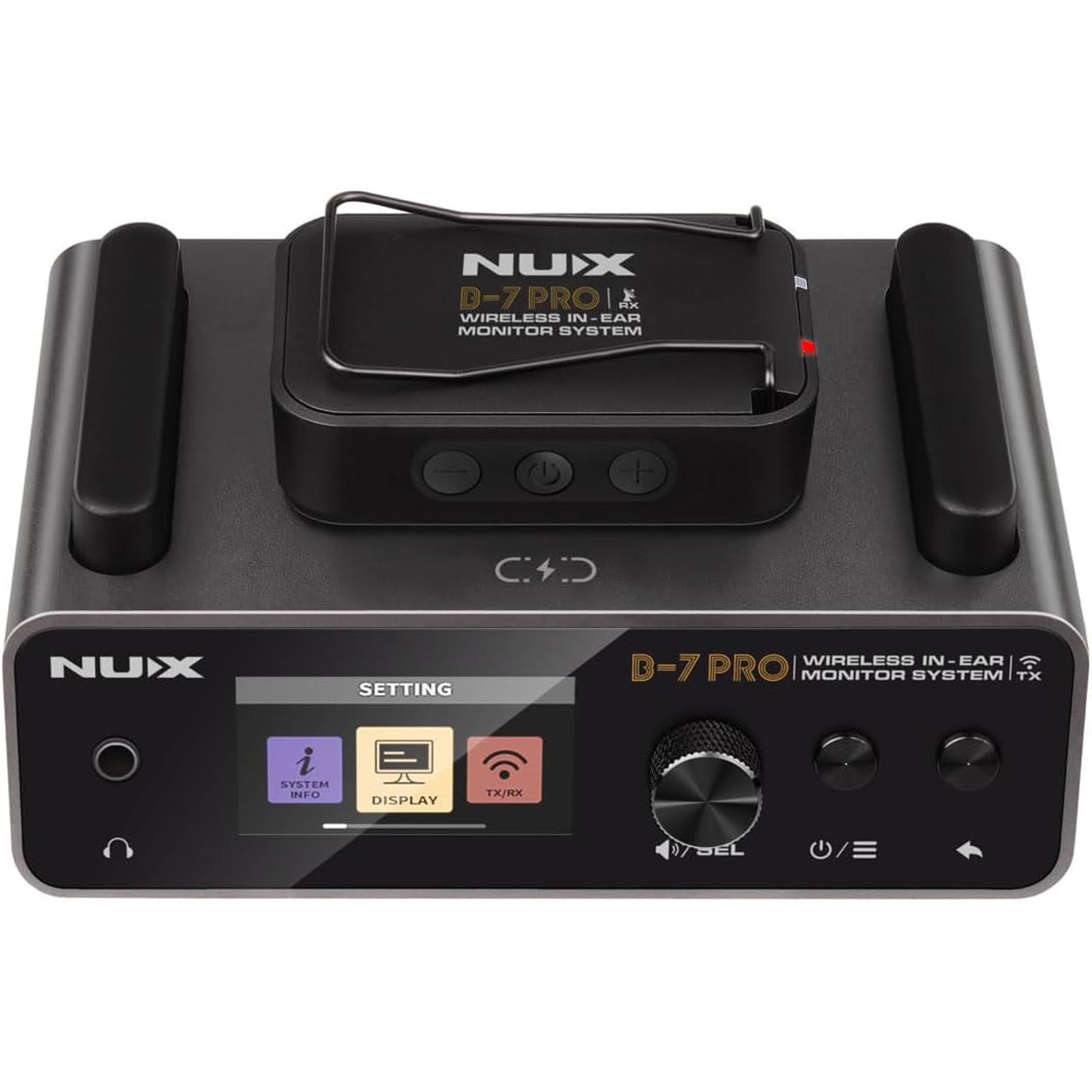

High definition color-LCD display
B-7 PRO features a high definition color-LCD display. You can check the information very easily while performing on stage.
| Product Name | NUX B-7Pro Wireless In-ear Monitoring System - 2.4GHz |
|---|---|
| Brand | NUX |
| Condition | New |
| MPN | B7PRO |
| UPC | 885947106103 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- NUX B-7Pro Wireless In-ear Monitoring System - 2.4GHz
- Stereo Audio Monitor: 20Hz-20kHz clear audio for pro monitoring
- Long distance, Low latency: <4ms for real-time, synced performance. Up to 30m (98 ft) for stage freedom.
- Stable Mode for Anti-Interference: To achieve the best performance, you can adjust the transmitting parameter between LOW LATENCY and STABLE. To avoid interference, please check if there is any Wi-Fi device around the TX&RX. It will be better for TX&RX to stay 0.8~1.0 meter away from any other 2.4GHz device to acheive the best performance.
- Long Battery Life: up to 6 hours on a single charge.
- Easily Recharging: you can easily put the RX on the top of the TX to recharge it. Super convenient for you to fully recharge it
- Customize your own Boot-up picture: B-7 PRO wireless system allows users to customize their own boot-up picture with a GIF
- Quick Pairing: Smart Sync tech for fast, stable connection.
Technical Specifications |
|
|---|---|
| Operating Frequency Band | 2400-2483.5MHz |
| Transmit Mode | Frequency Hopping |
| RF Output Power | 10mW E.l.R.P. max |
| Audio Quality | 24bit/48kHz |
| Frequency Response | 20Hz-20kHz |
| Latency | 7.33ms (low latency setting) - 10.85ms (default) - 14.33ms (safe setting) |
| Unbalanced Input Impedance | 10kΩ |
| Balanced Input Impedance | 20kΩ |
| AUX Input Level | 2.1 Vrms (8.7dBu) max |
| Balanced Input Level | 9.8 Vrms (22dBu) max |
| Headphone Output Impedance | Minimum 13Ω |
| Headphone Maximum Output Power per Channel | 57mW (THD<0.1% RLOAD=16Ω, 1kHz) |
| Channel Separation | -105dB |
| THD+N | <0.01% typical |
| Dynamic Range | 110dB A-weighted |
| Output Level Adjustment Range | Mute -86dB ~ +12dB |
| Auto-Off | Automatically turns off after 10 minutes of no connection or if the connection is lost |
| Built-in Battery Capacity | Rechargeable Li-polymer (Transmitter 3.7V/3000mAh, Receiver 3.7V/400mAh) |
| Battery Lifetime | TX: Up to 6 hours / RX: Up to 6 hours |
| Power Requirements | DC 9V, 1A min, negative tip power supplies (Transmitter) |
| Operation Range | Up to 50m (165 feet) maximum |
| TX Dimensions | 140mm × 97mm × 53mm (L × W × H) |
| TX Weight | 525g |
| RX Dimensions | 47mm × 71mm × 22mm (L × W × H) |
| RX Weight | 51g |
NUX B-7Pro Wireless In-ear Monitoring System - 2.4GHz
High quality stereo audio monitor
B-7 PRO personal wireless in-ear monitor system delivers stereo audio signal on 2.4 GHz frequency range. That's a global interference-free broadcasting range you can use everywhere without a signal break. With the 24-bit 48 kHz audio quality you will never experience unwanted sound degradation.
Automatic setup and friendly matching
The user-friendly matching system makes it easier to use, just turn on the TX & RX and they will be paired with each other within a couple of seconds. Each wireless set has a unique pairing algorithm, it automatically detects each other and configures their own IDs.
High definition color-LCD display
B-7 PRO features a high definition color-LCD display. You can check the information very easily while performing on stage.
| Product Name | NUX B-7Pro Wireless In-ear Monitoring System - 2.4GHz |
|---|---|
| Brand | NUX |
| Condition | New |
| MPN | B7PRO |
| UPC | 885947106103 |
What's in the Box?
NUX B-7Pro Wireless In-ear Monitoring System - 2.4GHz- Stereo Audio Monitor: 20Hz-20kHz clear audio for pro monitoring
- Long distance, Low latency: <4ms for real-time, synced performance. Up to 30m (98 ft) for stage freedom.
- Stable Mode for Anti-Interference: To achieve the best performance, you can adjust the transmitting parameter between LOW LATENCY and STABLE. To avoid interference, please check if there is any Wi-Fi device around the TX&RX. It will be better for TX&RX to stay 0.8~1.0 meter away from any other 2.4GHz device to acheive the best performance.
- Long Battery Life: up to 6 hours on a single charge.
- Easily Recharging: you can easily put the RX on the top of the TX to recharge it. Super convenient for you to fully recharge it
- Customize your own Boot-up picture: B-7 PRO wireless system allows users to customize their own boot-up picture with a GIF
- Quick Pairing: Smart Sync tech for fast, stable connection.
Technical Specifications |
|
|---|---|
| Operating Frequency Band | 2400-2483.5MHz |
| Transmit Mode | Frequency Hopping |
| RF Output Power | 10mW E.l.R.P. max |
| Audio Quality | 24bit/48kHz |
| Frequency Response | 20Hz-20kHz |
| Latency | 7.33ms (low latency setting) - 10.85ms (default) - 14.33ms (safe setting) |
| Unbalanced Input Impedance | 10kΩ |
| Balanced Input Impedance | 20kΩ |
| AUX Input Level | 2.1 Vrms (8.7dBu) max |
| Balanced Input Level | 9.8 Vrms (22dBu) max |
| Headphone Output Impedance | Minimum 13Ω |
| Headphone Maximum Output Power per Channel | 57mW (THD<0.1% RLOAD=16Ω, 1kHz) |
| Channel Separation | -105dB |
| THD+N | <0.01% typical |
| Dynamic Range | 110dB A-weighted |
| Output Level Adjustment Range | Mute -86dB ~ +12dB |
| Auto-Off | Automatically turns off after 10 minutes of no connection or if the connection is lost |
| Built-in Battery Capacity | Rechargeable Li-polymer (Transmitter 3.7V/3000mAh, Receiver 3.7V/400mAh) |
| Battery Lifetime | TX: Up to 6 hours / RX: Up to 6 hours |
| Power Requirements | DC 9V, 1A min, negative tip power supplies (Transmitter) |
| Operation Range | Up to 50m (165 feet) maximum |
| TX Dimensions | 140mm × 97mm × 53mm (L × W × H) |
| TX Weight | 525g |
| RX Dimensions | 47mm × 71mm × 22mm (L × W × H) |
| RX Weight | 51g |
