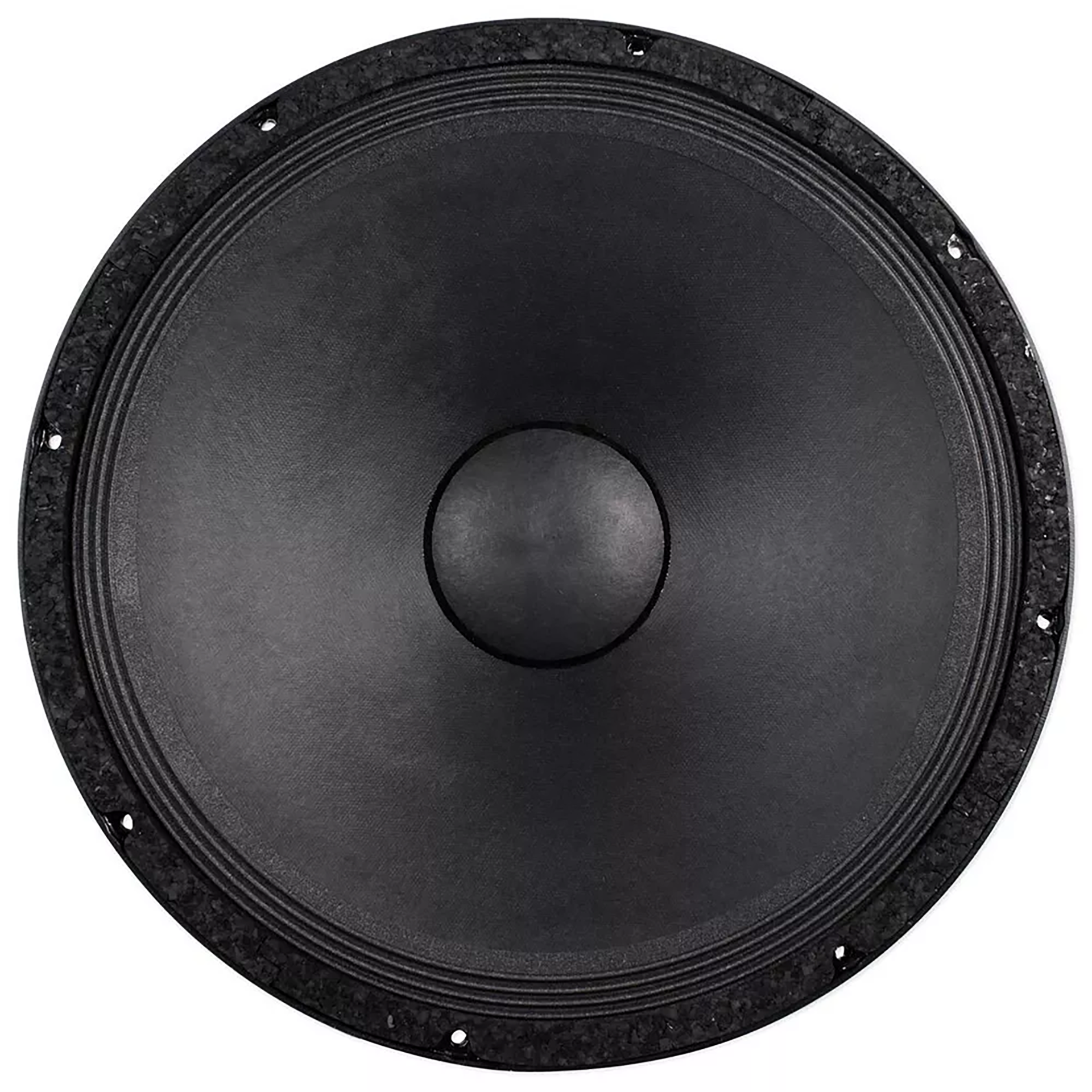

Peavey 1808-8SPS BWX 18" Low Frequency Driver 2000-Watt Peak Capacity

Peavey 1808-8SPS BWX 18" Low Frequency Driver 2000-Watt Peak Capacity

On order with the manufacturer!

View full details
  • Details
  • Tech Specs
  • Reviews

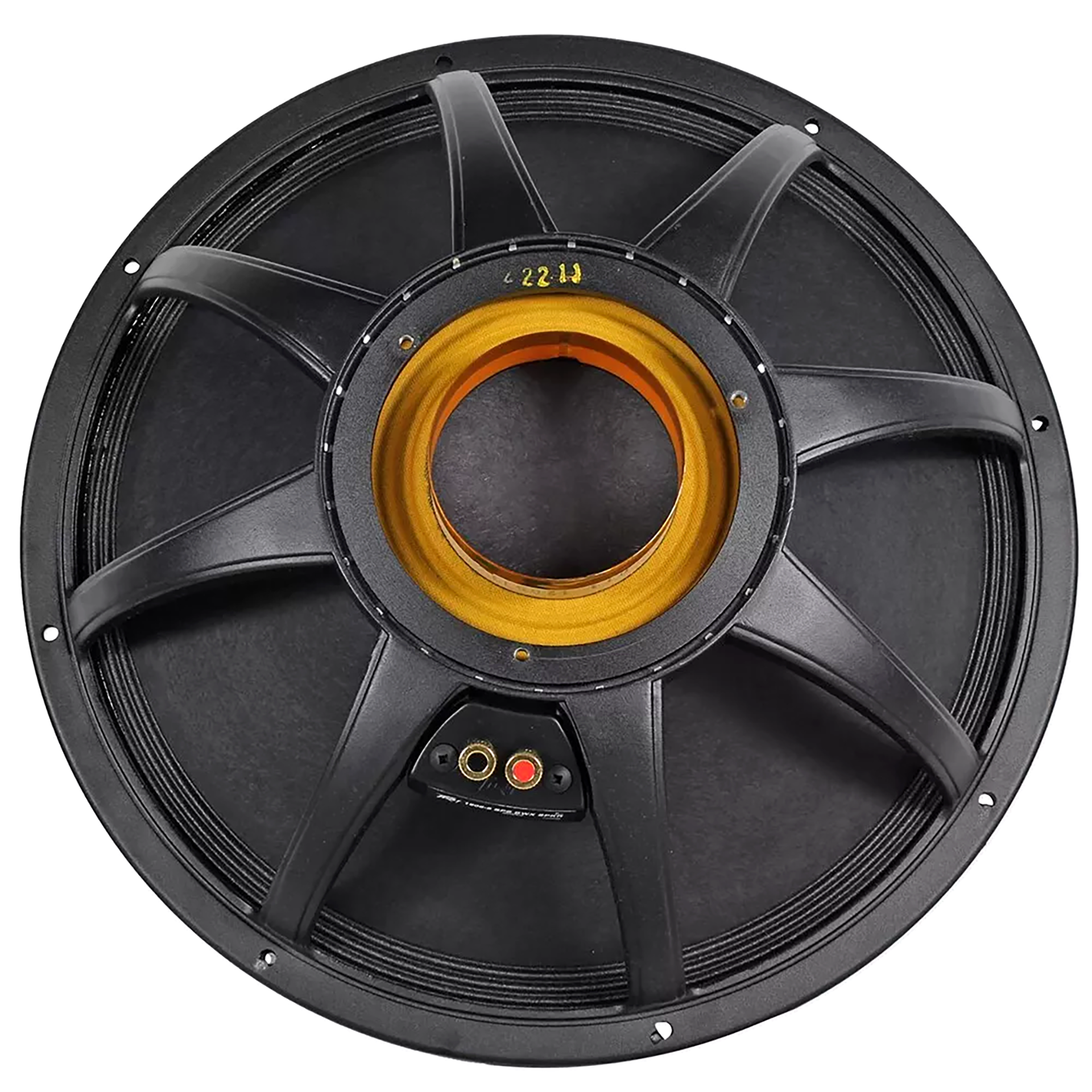

Re-coning a speaker can be very frustrating, as most replacements come in several parts that have to be assembled in the field. This is very time consuming, and you almost never get the same sound from your speaker since it is virtually impossible to assemble the components exactly the same as it is done originally. With Peavey's 1808-8 SPS BWX replacment baskets, we have already done all of the assembly for you, so all you have to do is remove the magnet from the old speaker and install it on the new basket assembly! We even provide helpful videos on our website with step-by-step instructions to ensure your speaker will perform as it did when you first got it.

More Information
Product Name Peavey 1808-8SPS BWX 18" Low Frequency Driver 2000-Watt Peak Capacity
Brand Peavey
Condition New
MPN 1808-8SPSBWX
UPC 014367124460
Shipping Option Free Shipping to the Continental U.S.

Speaker Specifications

Impedance 8 Ohms
Power Capacity 2000 W Peak / 1000 W Program / 500 W Continuous
Sensitivity 97.5 dB / 1 W / 1 m
Usable Frequency Range 35 Hz ~ 1 kHz
Cone Kevlar® impregnated cellulose
Voice Coil Diameter 4.0" / 100 mm
Voice Coil Material Aluminum ribbon wire, Polyimide-impregnated fiberglass former, Nomex® stiffener, Solderless diffusion welded OFHC copper leads
Net Weight 18 lbs. / 8.2 kg
Znom (Ohms) 8 Ohms
Revc (Ohms) 6.71 Ohms
Sd (Square Meters) 0.124
BL (T/M) 16.26
Fo (Hz) 37.4
Vas (Liters) 368.0
Cms (μM/N) 169.4
Mms (g) 106.70
Qms 7.55
Qes 0.637
Qts 0.587
Xmax (mm) 4.6
Le (mH) 0.38
SPL (1W 1m) 96.7

Physical Dimensions

Weight Unpacked 17.50 lb / 7.938 kg
Weight Packed 21.37 lb / 9.695 kg
Width Packed 21" (53.34 cm)
Height Packed 22" (55.88 cm)
Depth Packed 7" (17.78 cm)

Peavey 1808-8SPS BWX 18" Low Frequency Driver 2000-Watt Peak Capacity

Details

Re-coning a speaker can be very frustrating, as most replacements come in several parts that have to be assembled in the field. This is very time consuming, and you almost never get the same sound from your speaker since it is virtually impossible to assemble the components exactly the same as it is done originally. With Peavey's 1808-8 SPS BWX replacment baskets, we have already done all of the assembly for you, so all you have to do is remove the magnet from the old speaker and install it on the new basket assembly! We even provide helpful videos on our website with step-by-step instructions to ensure your speaker will perform as it did when you first got it.

More Information
Product Name Peavey 1808-8SPS BWX 18" Low Frequency Driver 2000-Watt Peak Capacity
Brand Peavey
Condition New
MPN 1808-8SPSBWX
UPC 014367124460
Shipping Option Free Shipping to the Continental U.S.
Tech Specs

Speaker Specifications

Impedance 8 Ohms
Power Capacity 2000 W Peak / 1000 W Program / 500 W Continuous
Sensitivity 97.5 dB / 1 W / 1 m
Usable Frequency Range 35 Hz ~ 1 kHz
Cone Kevlar® impregnated cellulose
Voice Coil Diameter 4.0" / 100 mm
Voice Coil Material Aluminum ribbon wire, Polyimide-impregnated fiberglass former, Nomex® stiffener, Solderless diffusion welded OFHC copper leads
Net Weight 18 lbs. / 8.2 kg
Znom (Ohms) 8 Ohms
Revc (Ohms) 6.71 Ohms
Sd (Square Meters) 0.124
BL (T/M) 16.26
Fo (Hz) 37.4
Vas (Liters) 368.0
Cms (μM/N) 169.4
Mms (g) 106.70
Qms 7.55
Qes 0.637
Qts 0.587
Xmax (mm) 4.6
Le (mH) 0.38
SPL (1W 1m) 96.7

Physical Dimensions

Weight Unpacked 17.50 lb / 7.938 kg
Weight Packed 21.37 lb / 9.695 kg
Width Packed 21" (53.34 cm)
Height Packed 22" (55.88 cm)
Depth Packed 7" (17.78 cm)
