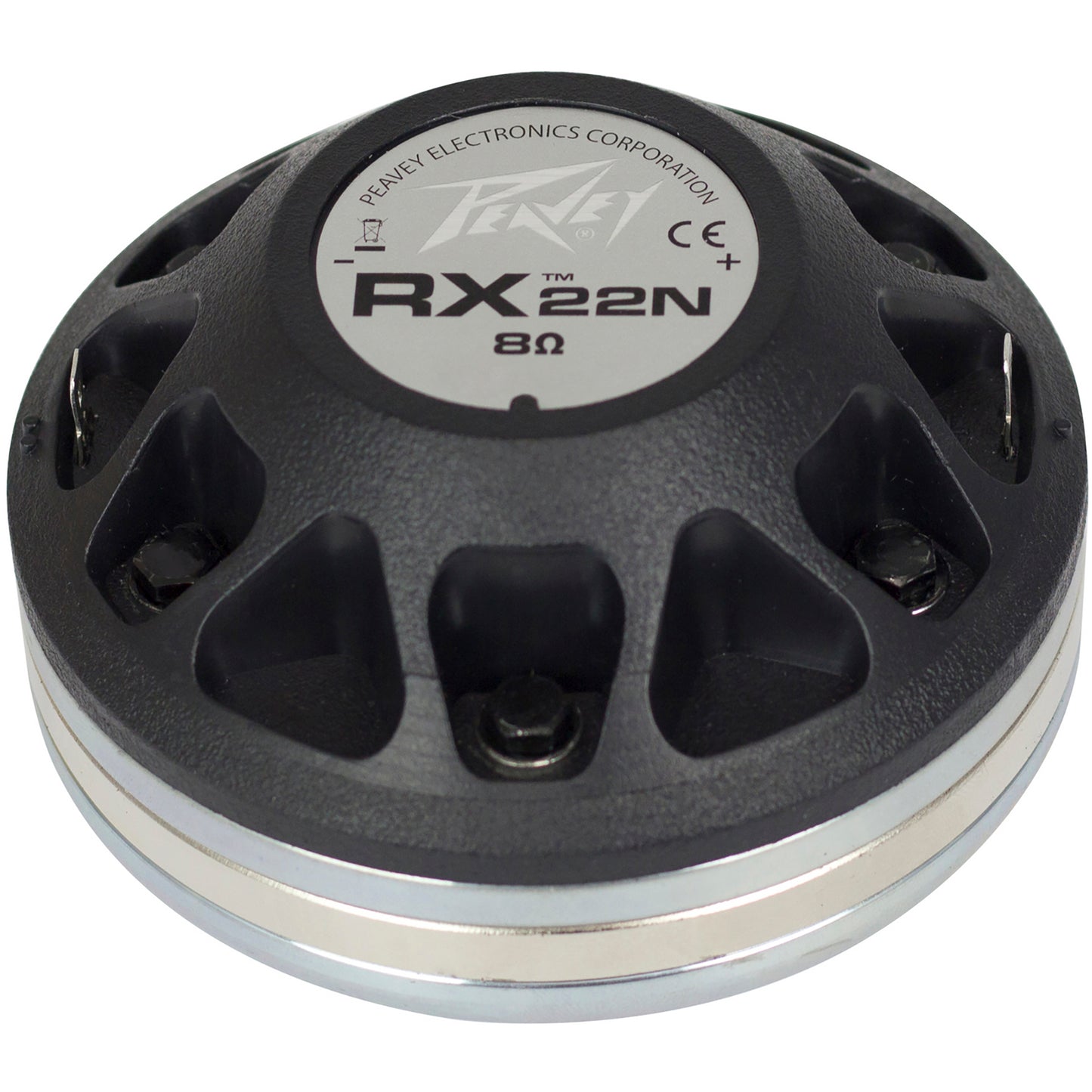

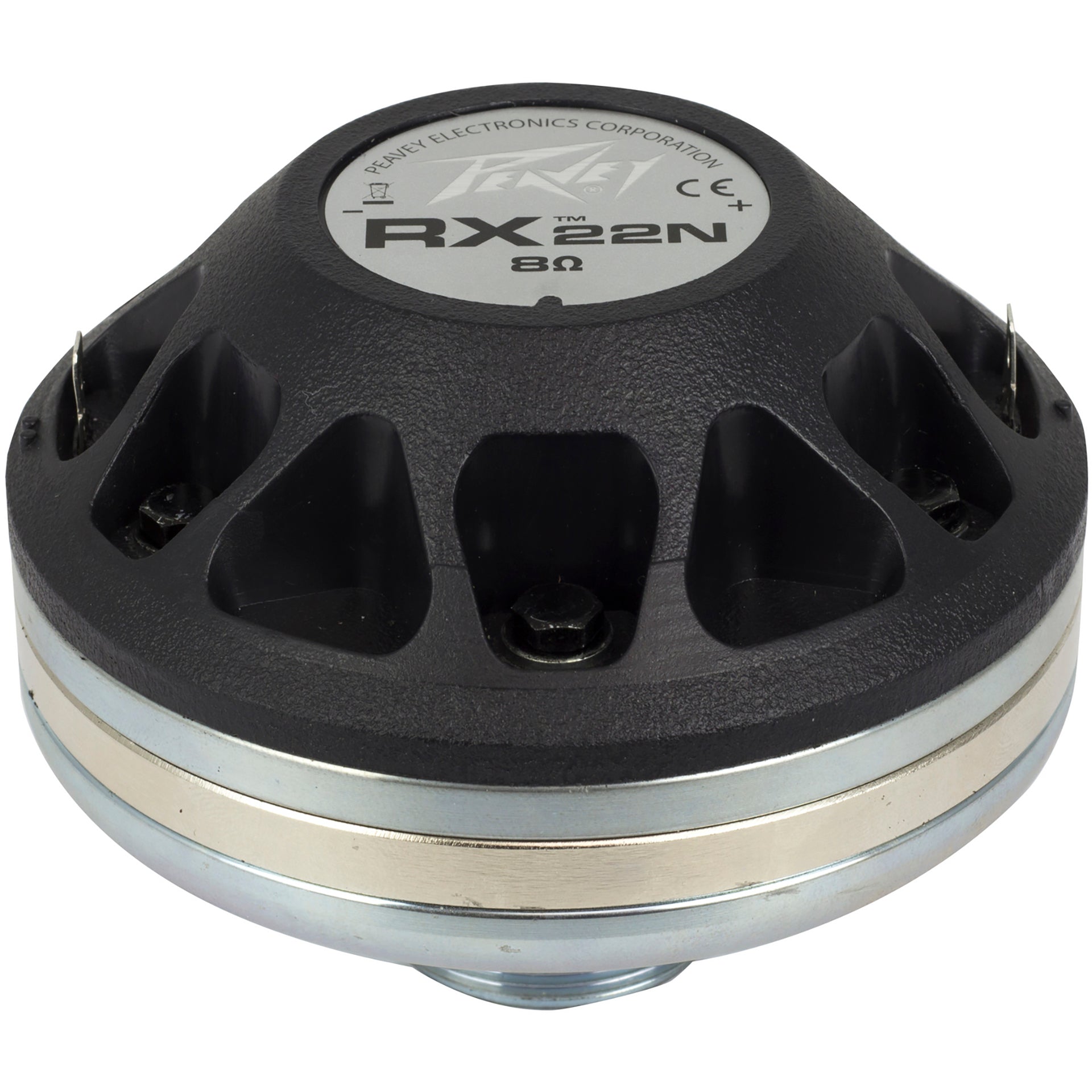

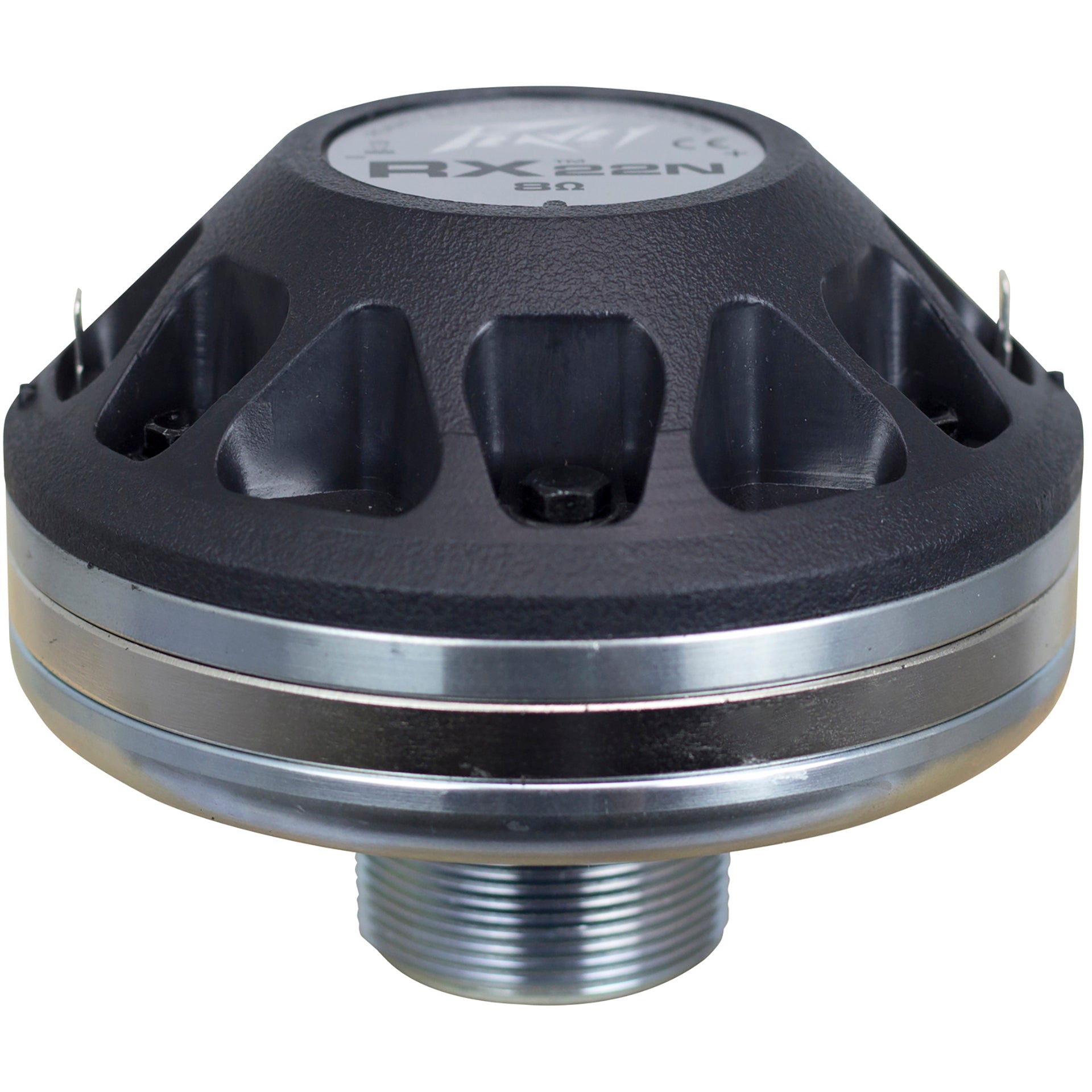

Peavey RX 22 Neo HF Driver

Name: Peavey RX 22 Neo HF Driver
Brand: Peavey
SKU: 03617290
Price: 199.99 USD
Availability: InStock

$199.99

Sale Sold out

+ Free Shipping

New: $199.99

Product variants

Limited quantities available!

2"
Throat Parameter: 0.875" / 22 mm
Nominal Impedance: 8 Ohms
Minimum Impedance: 5.2 Ohms
DC Resistance: 5.1 Ohms
Power Capacity 1000 Hz to 20,000 Hz: 280 W peak, 140 W program, 70 W continuous, using pink noise band limited from 1000 Hz to 20 kHz (AES 2-1984)
Sensitivity: 111 dB / 1W 1m On-axis on 90º H x 45º V horn
Nominal Efficiency: 30%
Frequency Response: 500 Hz to 20,000 Hz
Recommended Crossover: 1,200 Hz at 12 dB / Octave
Lowest Recommended Crossover: 500 Hz at 12 dB / Octave
Diaphragm: Commercially pure titanium
Voice Coil Diameter: 2.0" / 50.8 mm
Voice Coil Material: Edge-wound copper-clad aluminum ribbon with a high temp composite bobbin
Voice Coil Cooling: Ferrofluid
Flux Density: 20,500 gauss (2T)
Dimensions: 3.858" (98 mm) diameter x 3.01" (76.4 mm) depth
Horn Coupling Diameter: 7/8" (22.2 mm)
Horn Coupling Threads: Standard 1 3/8" - 18"
Net Weight: 2 lbs. 12 oz.
Shipping Weight: 3 lbs. 11.5 oz.
Diaphragm Kit: 03617300
Weight Packed: 2.98 lb(1.35 kg)
Width Packed: 4.5"(11.43 cm)
Height Packed: 4.725"(12.0015 cm)
Depth Packed: 3.55"(9.017 cm)

More Information
Product Name	Peavey RX 22 Neo HF Driver
Shipping Option	Free Shipping to the Continental U.S.

2"
Throat Parameter: 0.875" / 22 mm
Nominal Impedance: 8 Ohms
Minimum Impedance: 5.2 Ohms
DC Resistance: 5.1 Ohms
Power Capacity 1000 Hz to 20,000 Hz: 280 W peak, 140 W program, 70 W continuous, using pink noise band limited from 1000 Hz to 20 kHz (AES 2-1984)
Sensitivity: 111 dB / 1W 1m On-axis on 90º H x 45º V horn
Nominal Efficiency: 30%
Frequency Response: 500 Hz to 20,000 Hz
Recommended Crossover: 1,200 Hz at 12 dB / Octave
Lowest Recommended Crossover: 500 Hz at 12 dB / Octave
Diaphragm: Commercially pure titanium
Voice Coil Diameter: 2.0" / 50.8 mm
Voice Coil Material: Edge-wound copper-clad aluminum ribbon with a high temp composite bobbin
Voice Coil Cooling: Ferrofluid
Flux Density: 20,500 gauss (2T)
Dimensions: 3.858" (98 mm) diameter x 3.01" (76.4 mm) depth
Horn Coupling Diameter: 7/8" (22.2 mm)
Horn Coupling Threads: Standard 1 3/8" - 18"
Net Weight: 2 lbs. 12 oz.
Shipping Weight: 3 lbs. 11.5 oz.
Diaphragm Kit: 03617300
Weight Packed: 2.98 lb(1.35 kg)
Width Packed: 4.5"(11.43 cm)
Height Packed: 4.725"(12.0015 cm)
Depth Packed: 3.55"(9.017 cm)

Details

2"
Throat Parameter: 0.875" / 22 mm
Nominal Impedance: 8 Ohms
Minimum Impedance: 5.2 Ohms
DC Resistance: 5.1 Ohms
Power Capacity 1000 Hz to 20,000 Hz: 280 W peak, 140 W program, 70 W continuous, using pink noise band limited from 1000 Hz to 20 kHz (AES 2-1984)
Sensitivity: 111 dB / 1W 1m On-axis on 90º H x 45º V horn
Nominal Efficiency: 30%
Frequency Response: 500 Hz to 20,000 Hz
Recommended Crossover: 1,200 Hz at 12 dB / Octave
Lowest Recommended Crossover: 500 Hz at 12 dB / Octave
Diaphragm: Commercially pure titanium
Voice Coil Diameter: 2.0" / 50.8 mm
Voice Coil Material: Edge-wound copper-clad aluminum ribbon with a high temp composite bobbin
Voice Coil Cooling: Ferrofluid
Flux Density: 20,500 gauss (2T)
Dimensions: 3.858" (98 mm) diameter x 3.01" (76.4 mm) depth
Horn Coupling Diameter: 7/8" (22.2 mm)
Horn Coupling Threads: Standard 1 3/8" - 18"
Net Weight: 2 lbs. 12 oz.
Shipping Weight: 3 lbs. 11.5 oz.
Diaphragm Kit: 03617300
Weight Packed: 2.98 lb(1.35 kg)
Width Packed: 4.5"(11.43 cm)
Height Packed: 4.725"(12.0015 cm)
Depth Packed: 3.55"(9.017 cm)

More Information
Product Name	Peavey RX 22 Neo HF Driver
Shipping Option	Free Shipping to the Continental U.S.

Features

2"
Throat Parameter: 0.875" / 22 mm
Nominal Impedance: 8 Ohms
Minimum Impedance: 5.2 Ohms
DC Resistance: 5.1 Ohms
Power Capacity 1000 Hz to 20,000 Hz: 280 W peak, 140 W program, 70 W continuous, using pink noise band limited from 1000 Hz to 20 kHz (AES 2-1984)
Sensitivity: 111 dB / 1W 1m On-axis on 90º H x 45º V horn
Nominal Efficiency: 30%
Frequency Response: 500 Hz to 20,000 Hz
Recommended Crossover: 1,200 Hz at 12 dB / Octave
Lowest Recommended Crossover: 500 Hz at 12 dB / Octave
Diaphragm: Commercially pure titanium
Voice Coil Diameter: 2.0" / 50.8 mm
Voice Coil Material: Edge-wound copper-clad aluminum ribbon with a high temp composite bobbin
Voice Coil Cooling: Ferrofluid
Flux Density: 20,500 gauss (2T)
Dimensions: 3.858" (98 mm) diameter x 3.01" (76.4 mm) depth
Horn Coupling Diameter: 7/8" (22.2 mm)
Horn Coupling Threads: Standard 1 3/8" - 18"
Net Weight: 2 lbs. 12 oz.
Shipping Weight: 3 lbs. 11.5 oz.
Diaphragm Kit: 03617300
Weight Packed: 2.98 lb(1.35 kg)
Width Packed: 4.5"(11.43 cm)
Height Packed: 4.725"(12.0015 cm)
Depth Packed: 3.55"(9.017 cm)
