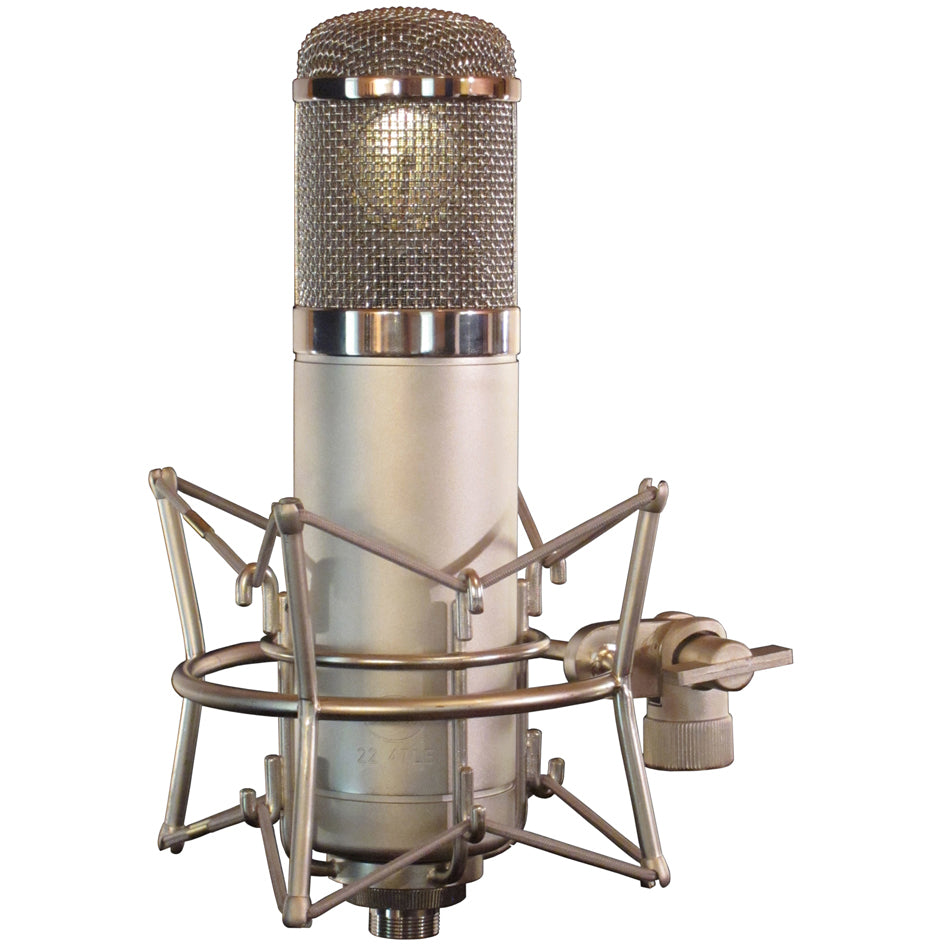

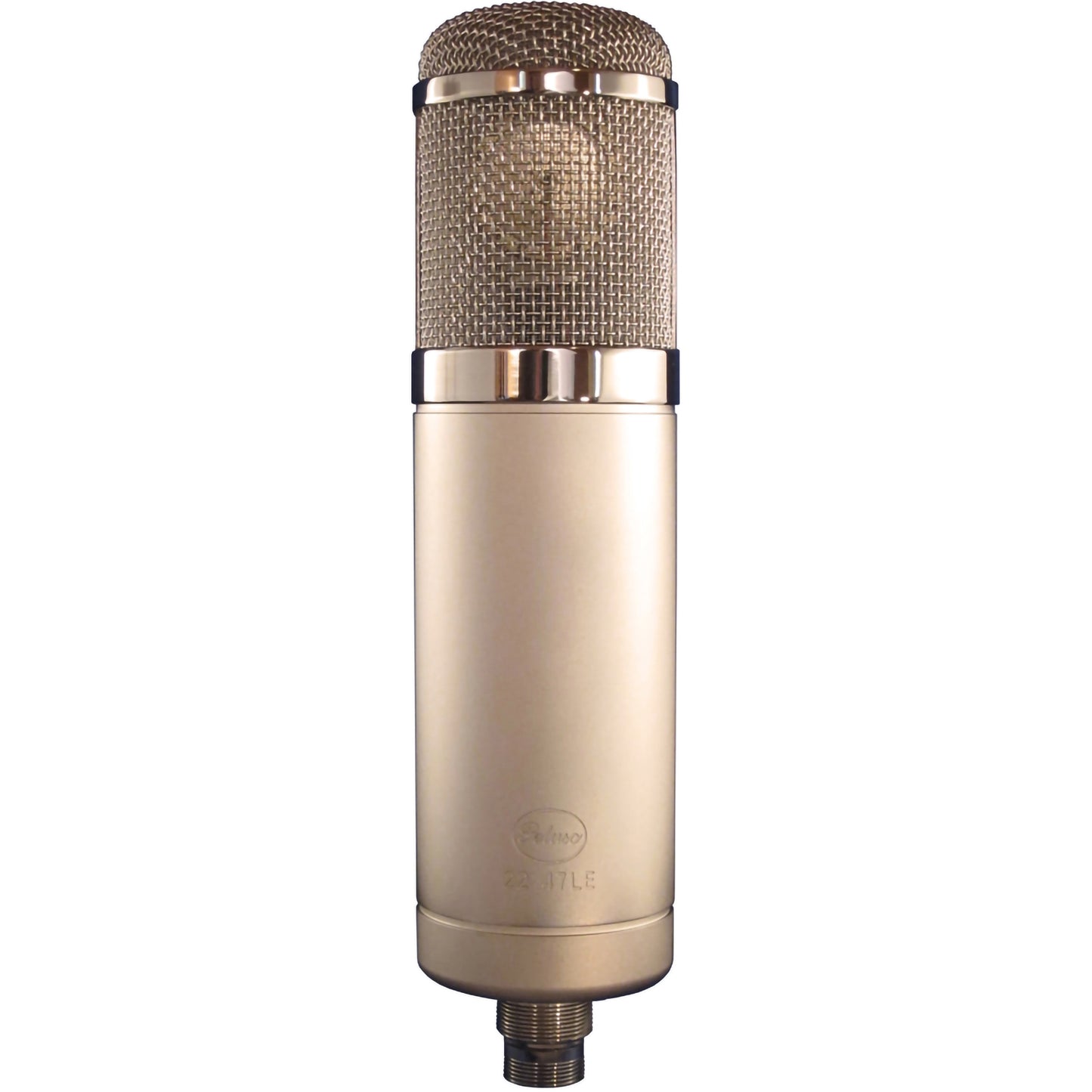

The Peluso 22 47 Limited Edition is styled after the legendary Neumann U 47. Manufactured in the 1950s and 60s, the revolutionary sensitivity of the U 47 brought extraordinary detail to recorded sound.
Remembered for its use by artists from Frank Sinatra to the Beatles, it is perhaps the most well known microphone of all time. This mic is an excellent choice for wide range of applications, from rock drums and guitar amps, to brass instruments and vocals. The Peluso 22 47 LE is built with the highest quality modern components and designed to perform as the U 47 did when it was new. The U 47 was designed around its Telefunken steel-covered tube, and the LE employs a true vintage German 'EF' style steel tube manufactured between the 1940s and the 1960s. The LE brings all the subtlety of tone, detail, and character of a vintage U 47, combined with the reliability and quiet noise floor required in the modern recording environment.
- Large Diaphragm Condenser
- Center Terminated Capsule
- Vintage EF12 Stahlröhren (Steel Vacuum Tube) Amplifier Stage
- Custom Wound Output Transformer
- 9-Polar Patterns
| Product Name | Peluso 22 47 Limited Edition Vacuum Tube Large Diaphragm Microphone |
|---|---|
| Brand | Peluso |
| Condition | New |
| MPN | 2247LE |
| UPC | 610370944158 |
| Shipping Option | Free Shipping to the Continental U.S. |

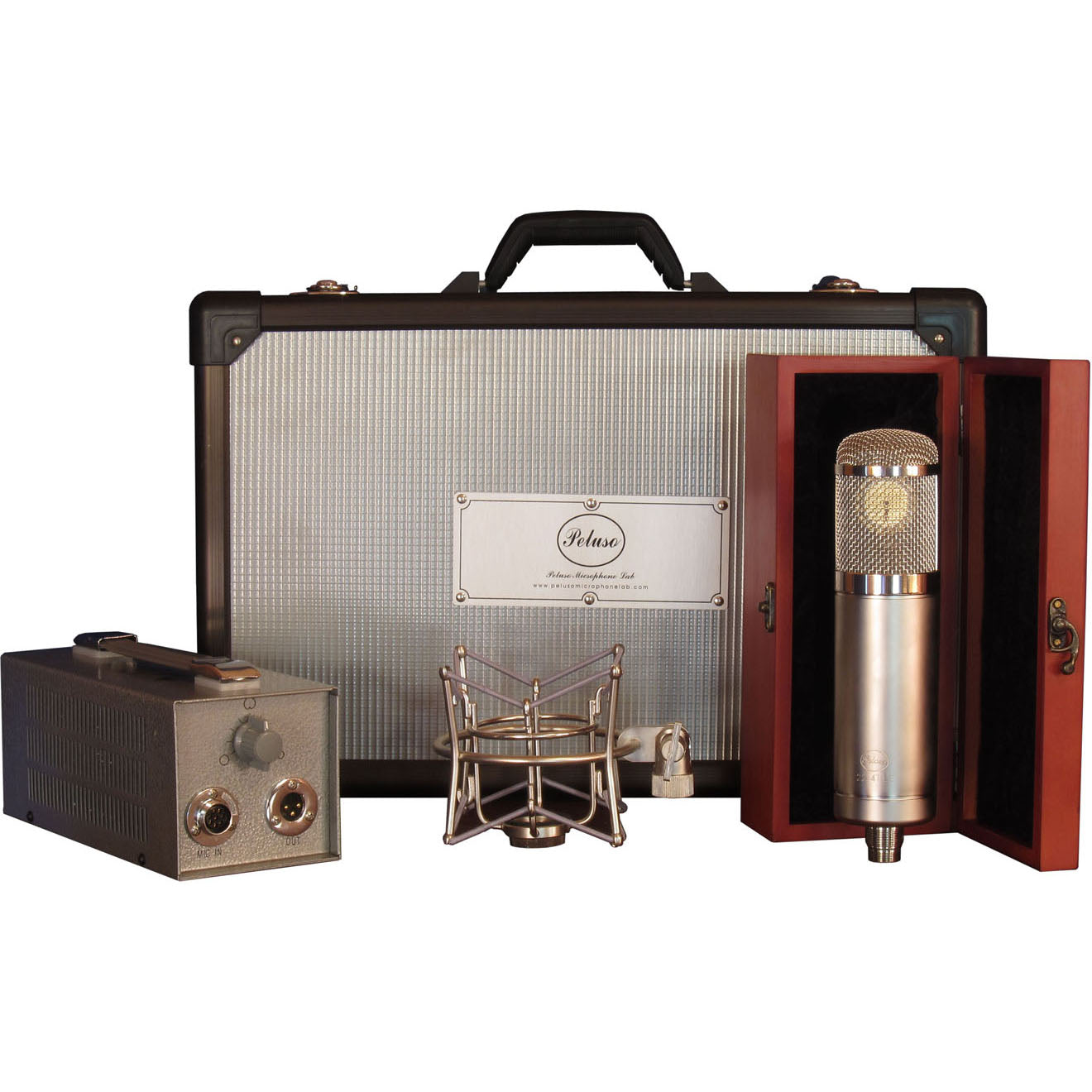

What's in the Box?
- 22 47 LE Microphone
- Wood Microphone Box
- Power Supply
- 8-Pin Screw-on Cable Assembly
- Shock Mount
- Locking Padded Flight Case
- Heavy-duty medical grade 8-pin screw-on connector and cable system
- Vintage EF12 Stahlröhren steel jacketed vacuum tube
- 33mm Center-terminated condenser capsule
- Hand-soldered through-hole component circuit board
- Custom wound output transformer
- Power supply unit controls 9 indexed polar patterns
- 20' heavy duty 8-pin connector cable comes with microphone purchase
- The Peluso Hard Mount is a popular accessory with this microphone. A hard mount is easy to use and firmly secures your 22 47 LE microphone to the mic stand
- The 47/49 Pop Filter is a popular accessory with this microphone. A good pop filter will keep the capsule clean and reduce plosives
- Capsule Type: Condenser Pressure Gradient, 34mm, center terminated
- Frequency Range: 20Hz/22Khz
- Polar Pattern: 9 - Switchable from omni- to bi-directional
- Sensitivity: 12 mv/pa
- Impedance: 200 ohms
- SPL: 140 dB
- Equivalent Noise: 16 dB(A)
- Tube Type: EF12 Stahlröhren (Steel Tube)
- Power Requirements: Dedicated Power Supply, 115V or 230V AC
- Size: 59.5mm x 235mm
- Weight: 855g
