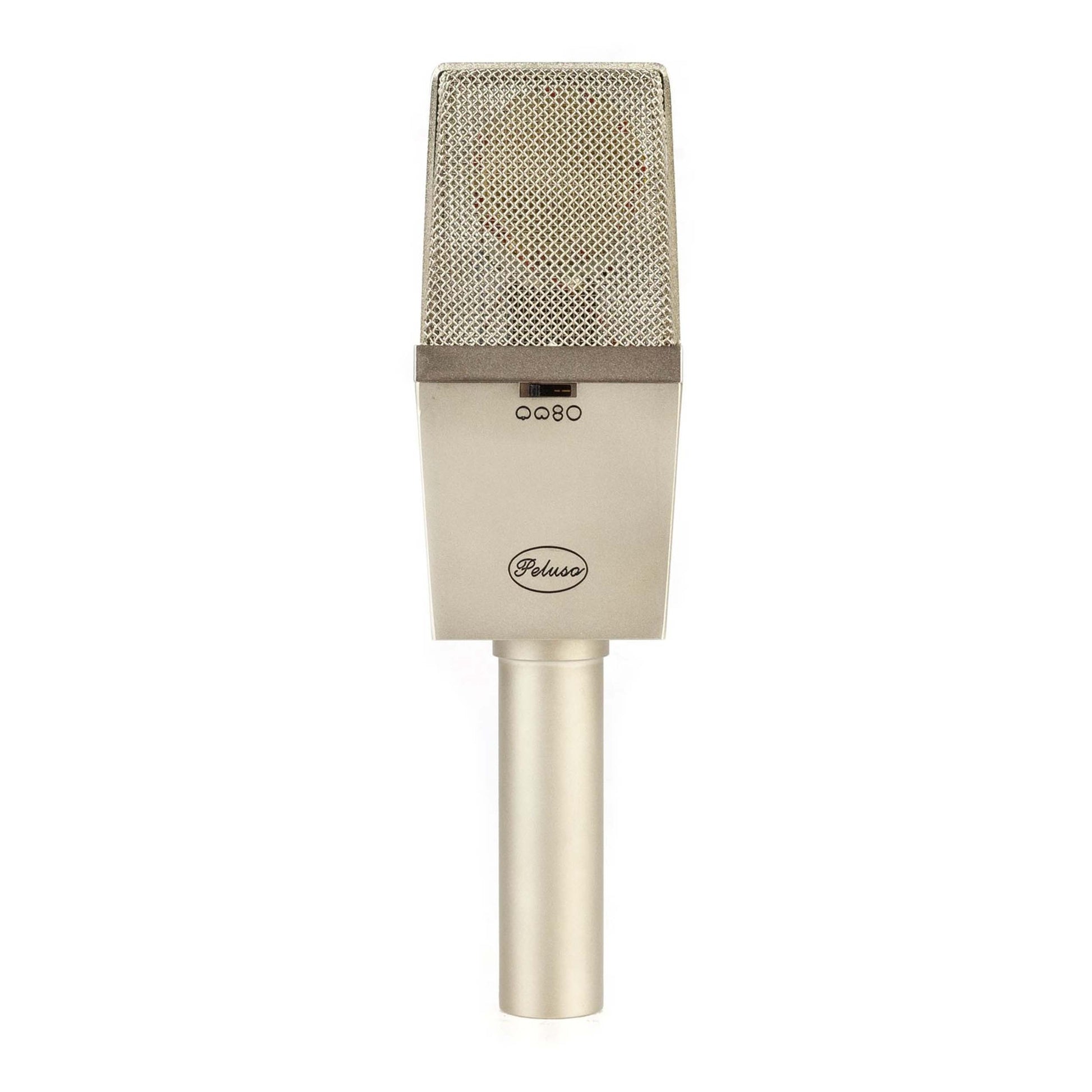

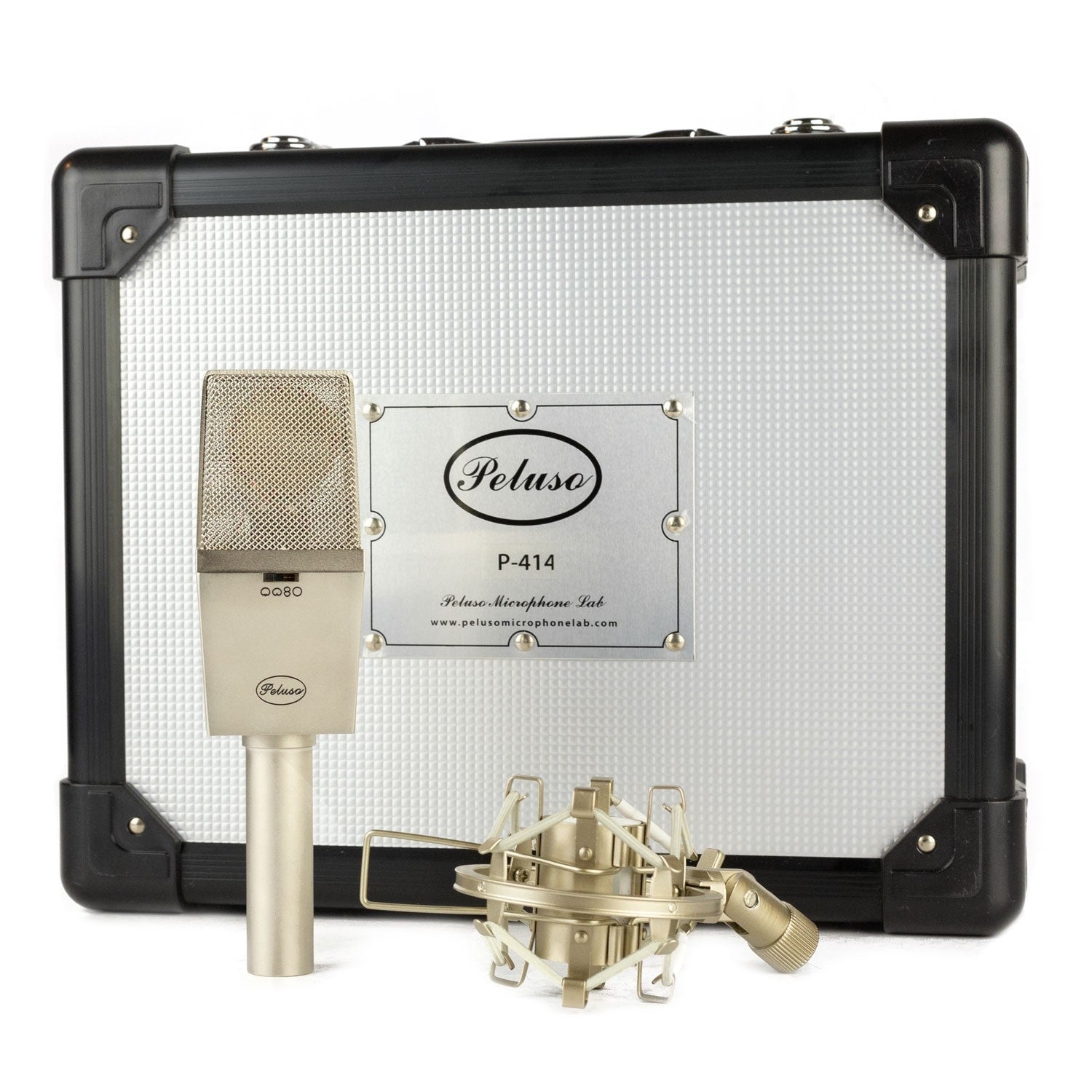

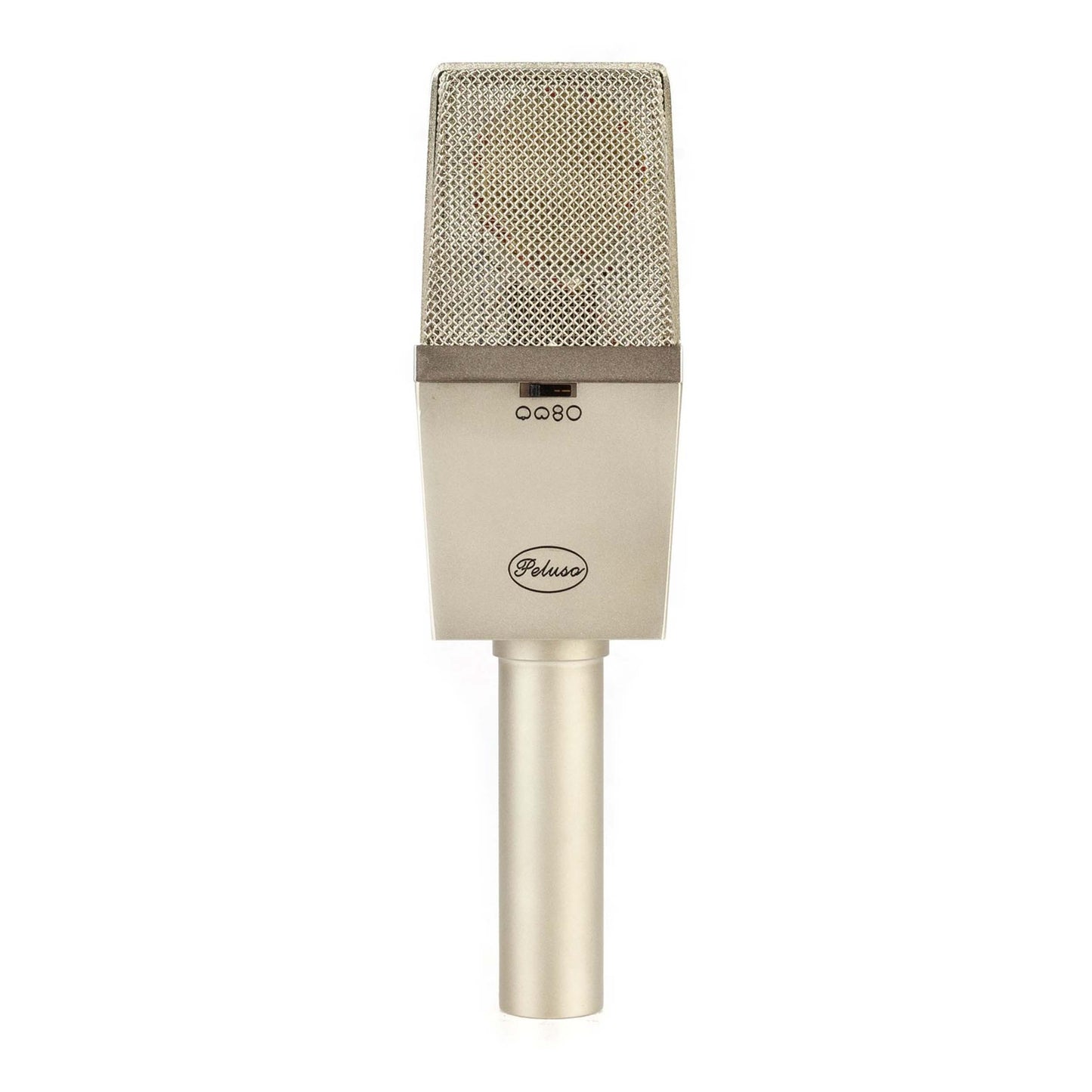

Peluso Microphone Labs P-414 Large Diaphragm Solid State Microphone

Peluso Microphone Labs P-414 Large Diaphragm Solid State Microphone

Limited quantities available!

View full details
  • Details
  • Features
  • Tech Specs
  • Reviews

Peluso has a deep respect for AKG and the microphone innovations they have pioneered. As tubes were widely replaced by transistors in the 1970's the 414 replaced the C 12. Looking over the long and complicated lineage of the 414, we wanted to reproduce what has been most loved about this fabled classic. They drew heavily from the 1976 EB version with the original CK12-style brass capsule. This brass dual-backplate edge-terminated 34mm capsule gave AKG microphones the detailed mid-range and shimmering high-end air they are most loved for. Four polar patterns gave it additional versatility. The highest quality modern components ensure a very low self-noise, essential in a modern microphone. They achieve their balanced output with a generously sized transformer, eliminating interference and distortion. When it came to the design of the body and head grille Peluso knew durability was of paramount importance. They crafted the head grille, body and stem all of heavy brass and steel for maximum durability. This microphone is just as much at home in front of a passionate vocalist as it is a heavy metal drum kit. The Peluso P-414 is truly bringing the very best aspects of vintage sound to new life.

More Information
Product Name Peluso Microphone Labs P-414 Large Diaphragm Solid State Microphone
Brand Peluso
Condition New
MPN p-414
UPC 610370944974
Shipping Option Free Shipping to the Continental U.S.
  • Edge-terminated large diaphragm brass capsule
  • Standard 3-pin XLR Connector
  • Designed, engineered, and hand built in Virginia
  • Custom transformer output
  • Four polar patterns switched on mid body

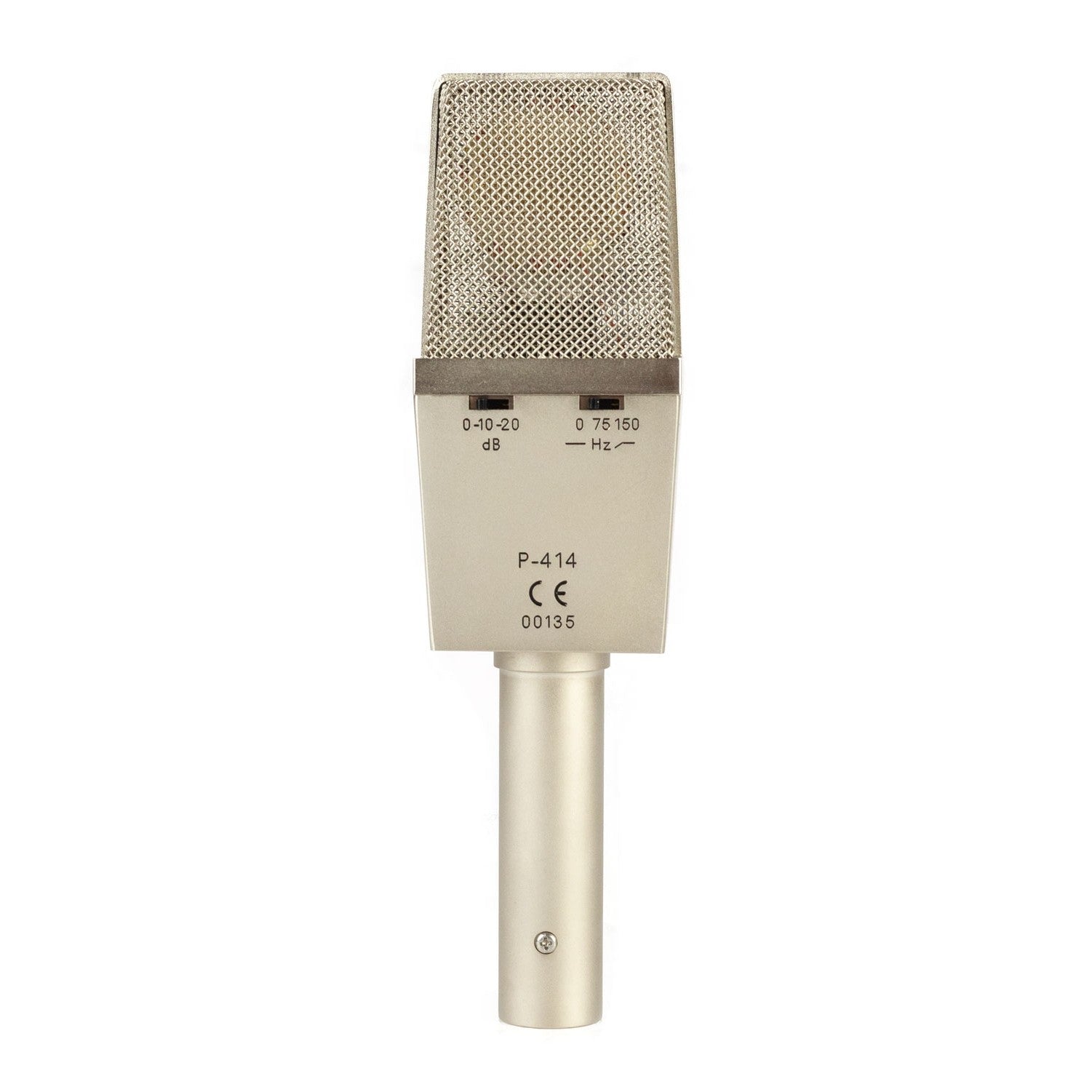

  • High pass filter switch and -10dB pad switched on the mic body
  • All metal double-mesh head grille
  • Heavy-duty brass body
  • Capsule Type: Condenser Pressure Gradient w/ 34mm capsule
  • Frequency Range: 20Hz/20Khz
  • Polar Pattern: Hyper-cardioid, Cardioid, Omni, Figure of 8
  • Sensitivity: 12 mv/pa
  • Impedance: 200 ohms
  • SPL: 162 dB w/ 20 dB pad
  • Equivalent Noise: 12 dB(A)
  • Power Requirements: Phandom - 48v +/- 4v
  • Current Consumption: < 4.0 MA
  • Size: 114/188mm H x 51mm W x 38mm D
  • Weight: 490g

Peluso Microphone Labs P-414 Large Diaphragm Solid State Microphone

Details

Peluso has a deep respect for AKG and the microphone innovations they have pioneered. As tubes were widely replaced by transistors in the 1970's the 414 replaced the C 12. Looking over the long and complicated lineage of the 414, we wanted to reproduce what has been most loved about this fabled classic. They drew heavily from the 1976 EB version with the original CK12-style brass capsule. This brass dual-backplate edge-terminated 34mm capsule gave AKG microphones the detailed mid-range and shimmering high-end air they are most loved for. Four polar patterns gave it additional versatility. The highest quality modern components ensure a very low self-noise, essential in a modern microphone. They achieve their balanced output with a generously sized transformer, eliminating interference and distortion. When it came to the design of the body and head grille Peluso knew durability was of paramount importance. They crafted the head grille, body and stem all of heavy brass and steel for maximum durability. This microphone is just as much at home in front of a passionate vocalist as it is a heavy metal drum kit. The Peluso P-414 is truly bringing the very best aspects of vintage sound to new life.

More Information
Product Name Peluso Microphone Labs P-414 Large Diaphragm Solid State Microphone
Brand Peluso
Condition New
MPN p-414
UPC 610370944974
Shipping Option Free Shipping to the Continental U.S.
Features
  • Edge-terminated large diaphragm brass capsule
  • Standard 3-pin XLR Connector
  • Designed, engineered, and hand built in Virginia
  • Custom transformer output
  • Four polar patterns switched on mid body
  • High pass filter switch and -10dB pad switched on the mic body
  • All metal double-mesh head grille
  • Heavy-duty brass body
Tech Specs
  • Capsule Type: Condenser Pressure Gradient w/ 34mm capsule
  • Frequency Range: 20Hz/20Khz
  • Polar Pattern: Hyper-cardioid, Cardioid, Omni, Figure of 8
  • Sensitivity: 12 mv/pa
  • Impedance: 200 ohms
  • SPL: 162 dB w/ 20 dB pad
  • Equivalent Noise: 12 dB(A)
  • Power Requirements: Phandom - 48v +/- 4v
  • Current Consumption: < 4.0 MA
  • Size: 114/188mm H x 51mm W x 38mm D
  • Weight: 490g
