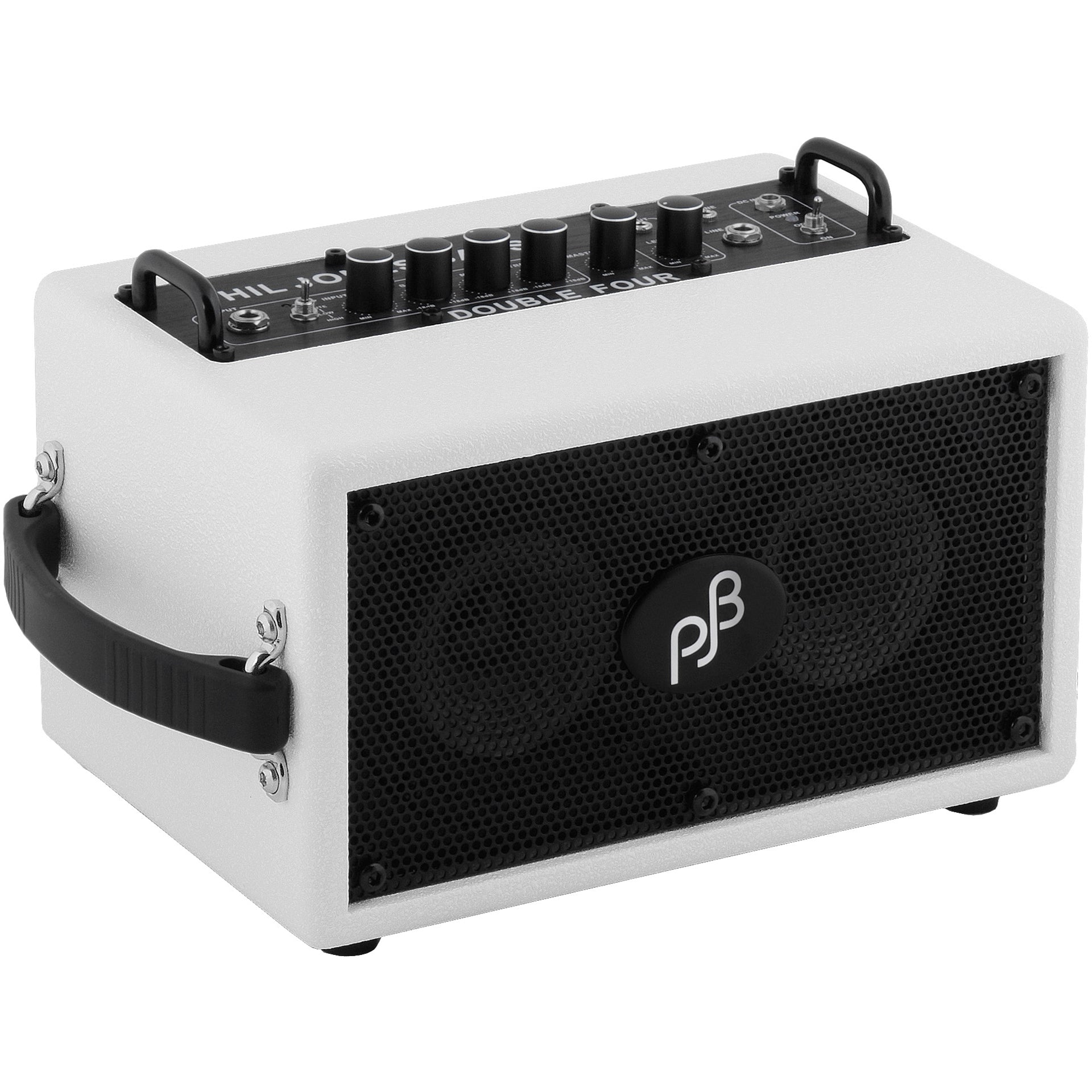

Phil Jones BG80 Double Four Plus Bass Combo Amplifier - White

Phil Jones BG80 Double Four Plus Bass Combo Amplifier - White

Limited quantities available!

View full details
  • Details
  • Features
  • Tech Specs
  • Reviews

With increased power and newly added features, the Double Four Plus BG-80 is a worthy successor to PJB’s legendary BG-75 Double Four model. The BG-80 is a 90Watt single channel bass combo with two four-inch speakers and a 3 band EQ that is perfectly tailored for bass guitar. Other features include an auxiliary input for iPad/iPod, smart phone or drum machine, stereo headphone–out jack and a line out for recording.

Recorded music sounds great through the Bluetooth function (V5.1 with aptX HD). In addition, the Double Four Plus is equipped with a DC input (USB Type-C port) connection which supports a mobile power bank of USB PD (Power Delivery) Protocol. This provides the ultimate in “Tone To Go” and busking possibilities, even where AC power isn’t available. The BG-80 is ideal for all kinds of basses, and can handle the open B string on a 5- string bass with ease.

So how do you get the ultimate bass sound from a small speaker cabinet? PJB has applied its cutting-edge experience in designing small speakers to achieve a 4 inch driver with Swiss watch precision. Using the extensive Phil Jones R&D facility which includes the largest an-echoic chamber in the bass guitar amplifier industry and the transducer Klippel measurement system with laser technology, PJB was able to develop the proprietary PJB “long-thro” 4-inch speakers that have full frequency range up to the highest audio frequencies. Not only does this give greater clarity and transparency to your instrument, but also a high-fidelity sound to any backing track fed into the auxiliary input.

The cabinet is small and portable and built to the same high-quality standards of all PJB cabinets. What you hear from the Double Four Plus is the closest you can get to how your instrument actually sounds, and, is remarkably loud for its size. This latest model in the Double Four series is a remarkable achievement in design, features, and tone.

More Information
Product Name Phil Jones BG80 Double Four Plus Bass Combo Amplifier - White
Brand Phil Jones
MPN BG80R
UPC 812417031528
Shipping Option Free Shipping to the Continental U.S.
  • Digital Amplifier with 90Watts (2x45W) 1% THD
  • Switchable high gain input OR low gain stage with mute function
  • Independent level control and mute function to both Aux and Bluetooth input
  • One stereo input for Drum machines or iPod/Smartphone players
  • 3-Band EQ
  • Line Output for recording or driving another amplifier
  • Bluetooth 5.1 with Qualcomm® aptXTM HD codec
  • Use under any AC voltage worldwide. (90~240V)
  • DC input (USB Type-C port) connection supports Portable charger of USB PD (Power Delivery) Protocol.

Amplifier

Amplifier Type Full Digital with DSP
Power Output 90 Watts (2x45W) 1% THD
Signal to Noise Ratio ≥85dB (A) (EQ off, Volume on Full)

Impedance

Input ≥270KΩ / 22pF

Speaker

Configuration 2×PJB 4-inch Full Range Speaker, 1× Rectangular Auxiliary Low Frequency Radiator
Usable Frequency Response 40Hz to 17KHz

Levels

High Input 120mV-2 V
Low Input 400mV-3V
Aux Input 200mV (MAX)
Bluetooth Input 300mFFS

EQ Center Frequencies

Bass Shelf 100Hz, +/- 15dB
Mid 1KHz Bandwidth 120Hz-10KHz, +/- 15dB
Treble Shelf 10KHz, +/- 15dB

Included Parts

AC Power Cord 6ft
Audio Cord 5.5ft
Dimensions 13×8×8.5 inch (329×203×215 mm)
Weight 11.3 lbs / 5.1kg

Phil Jones BG80 Double Four Plus Bass Combo Amplifier - White

Details

With increased power and newly added features, the Double Four Plus BG-80 is a worthy successor to PJB’s legendary BG-75 Double Four model. The BG-80 is a 90Watt single channel bass combo with two four-inch speakers and a 3 band EQ that is perfectly tailored for bass guitar. Other features include an auxiliary input for iPad/iPod, smart phone or drum machine, stereo headphone–out jack and a line out for recording.

Recorded music sounds great through the Bluetooth function (V5.1 with aptX HD). In addition, the Double Four Plus is equipped with a DC input (USB Type-C port) connection which supports a mobile power bank of USB PD (Power Delivery) Protocol. This provides the ultimate in “Tone To Go” and busking possibilities, even where AC power isn’t available. The BG-80 is ideal for all kinds of basses, and can handle the open B string on a 5- string bass with ease.

So how do you get the ultimate bass sound from a small speaker cabinet? PJB has applied its cutting-edge experience in designing small speakers to achieve a 4 inch driver with Swiss watch precision. Using the extensive Phil Jones R&D facility which includes the largest an-echoic chamber in the bass guitar amplifier industry and the transducer Klippel measurement system with laser technology, PJB was able to develop the proprietary PJB “long-thro” 4-inch speakers that have full frequency range up to the highest audio frequencies. Not only does this give greater clarity and transparency to your instrument, but also a high-fidelity sound to any backing track fed into the auxiliary input.

The cabinet is small and portable and built to the same high-quality standards of all PJB cabinets. What you hear from the Double Four Plus is the closest you can get to how your instrument actually sounds, and, is remarkably loud for its size. This latest model in the Double Four series is a remarkable achievement in design, features, and tone.

More Information
Product Name Phil Jones BG80 Double Four Plus Bass Combo Amplifier - White
Brand Phil Jones
MPN BG80R
UPC 812417031528
Shipping Option Free Shipping to the Continental U.S.
Features
  • Digital Amplifier with 90Watts (2x45W) 1% THD
  • Switchable high gain input OR low gain stage with mute function
  • Independent level control and mute function to both Aux and Bluetooth input
  • One stereo input for Drum machines or iPod/Smartphone players
  • 3-Band EQ
  • Line Output for recording or driving another amplifier
  • Bluetooth 5.1 with Qualcomm® aptXTM HD codec
  • Use under any AC voltage worldwide. (90~240V)
  • DC input (USB Type-C port) connection supports Portable charger of USB PD (Power Delivery) Protocol.
Tech Specs

Amplifier

Amplifier Type Full Digital with DSP
Power Output 90 Watts (2x45W) 1% THD
Signal to Noise Ratio ≥85dB (A) (EQ off, Volume on Full)

Impedance

Input ≥270KΩ / 22pF

Speaker

Configuration 2×PJB 4-inch Full Range Speaker, 1× Rectangular Auxiliary Low Frequency Radiator
Usable Frequency Response 40Hz to 17KHz

Levels

High Input 120mV-2 V
Low Input 400mV-3V
Aux Input 200mV (MAX)
Bluetooth Input 300mFFS

EQ Center Frequencies

Bass Shelf 100Hz, +/- 15dB
Mid 1KHz Bandwidth 120Hz-10KHz, +/- 15dB
Treble Shelf 10KHz, +/- 15dB

Included Parts

AC Power Cord 6ft
Audio Cord 5.5ft
Dimensions 13×8×8.5 inch (329×203×215 mm)
Weight 11.3 lbs / 5.1kg
