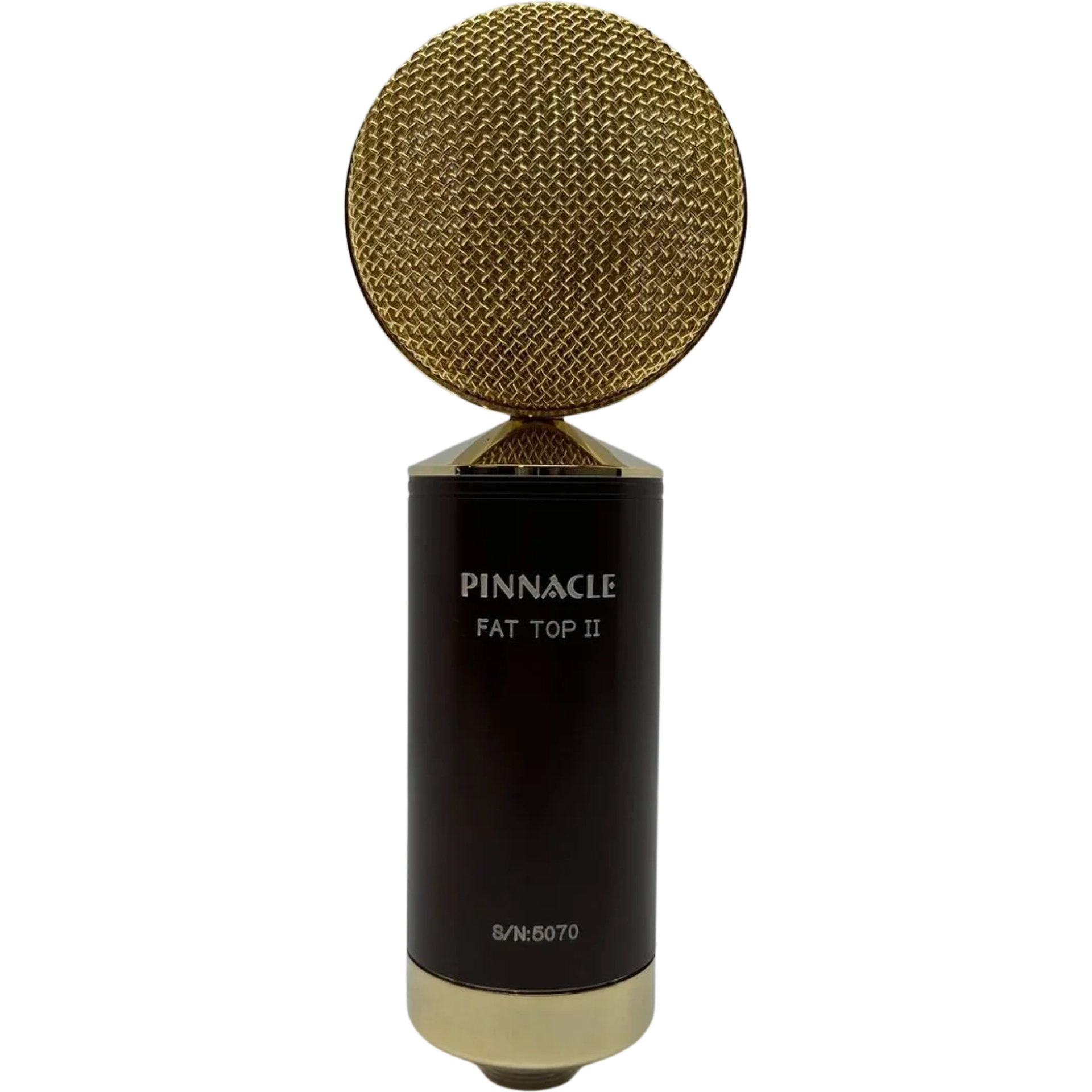

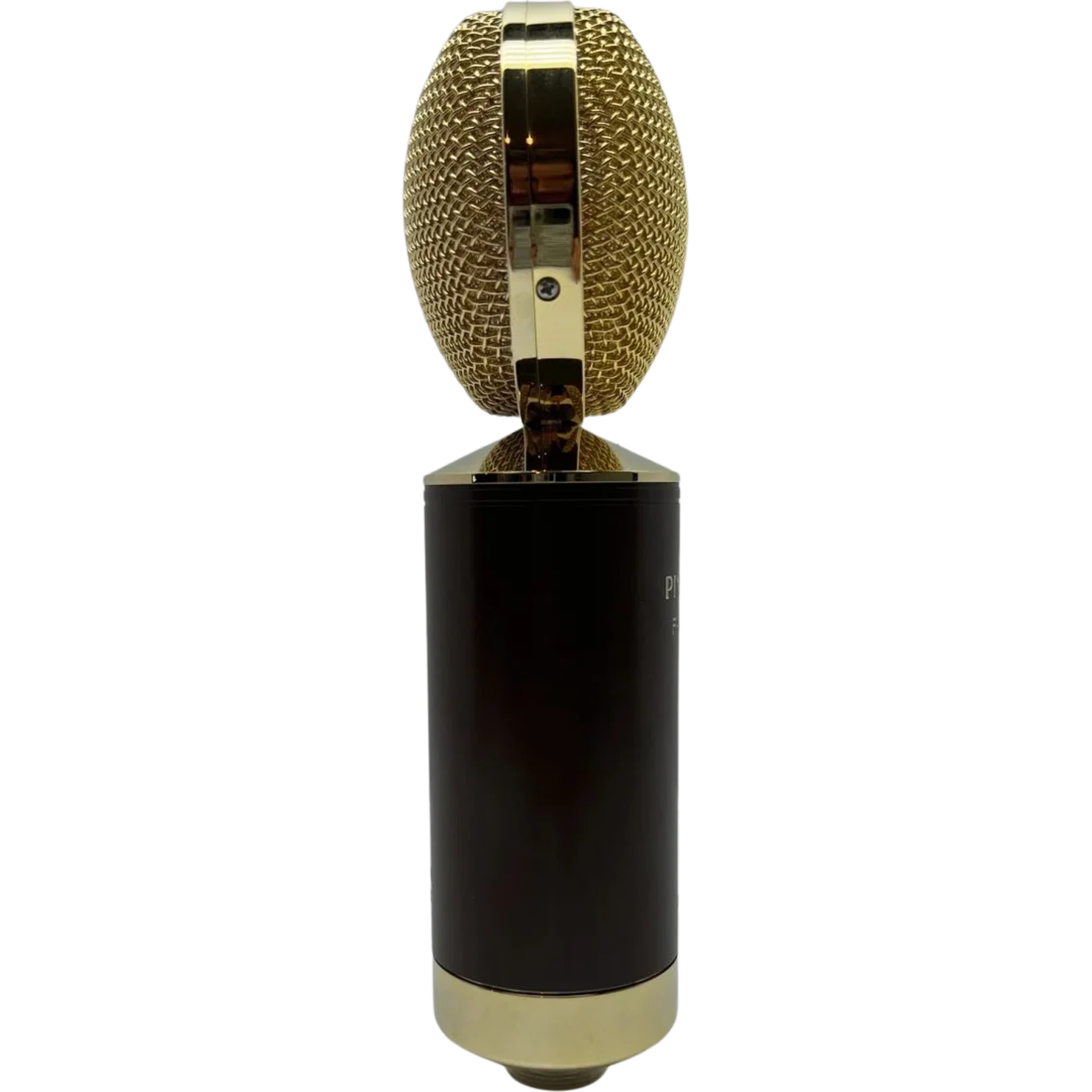

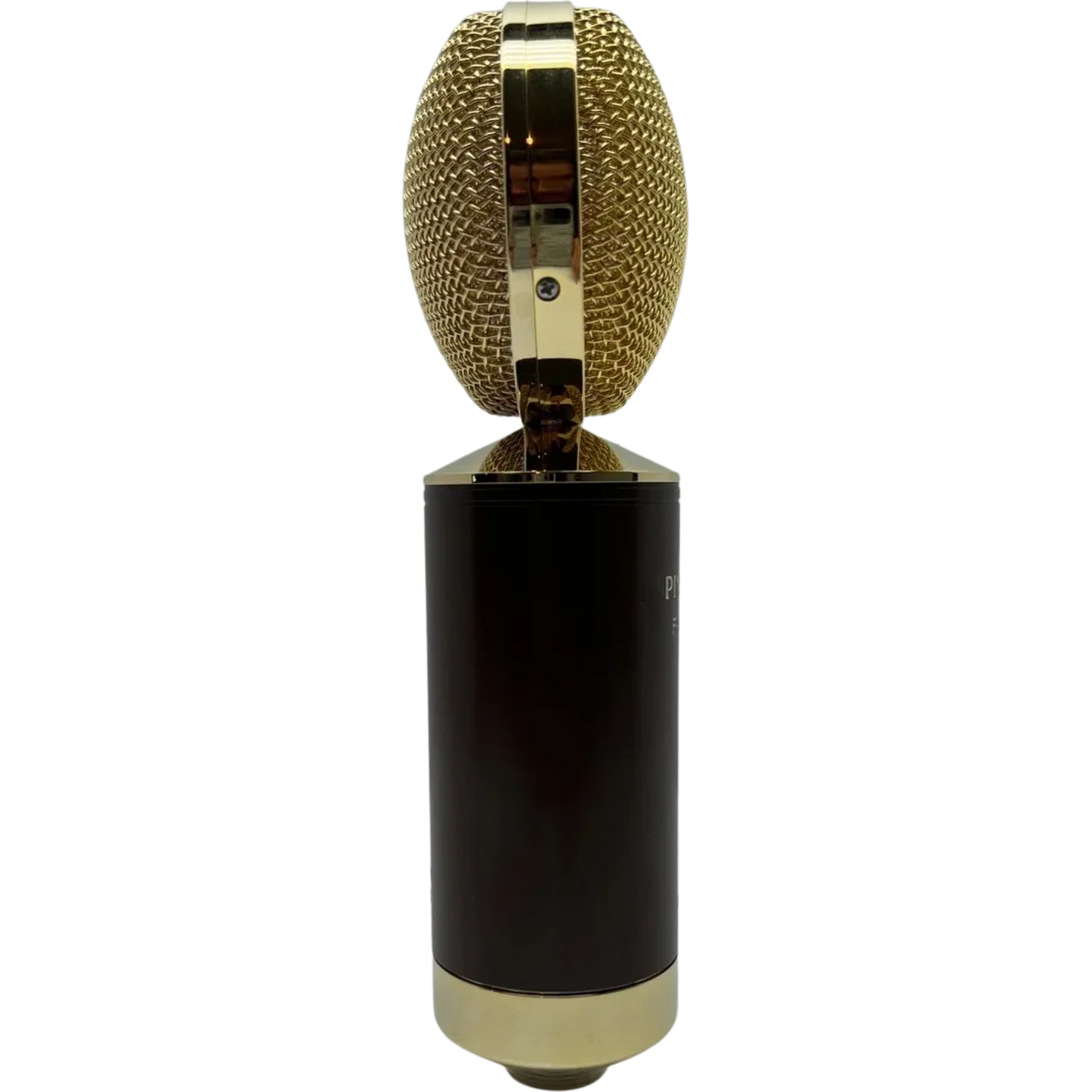

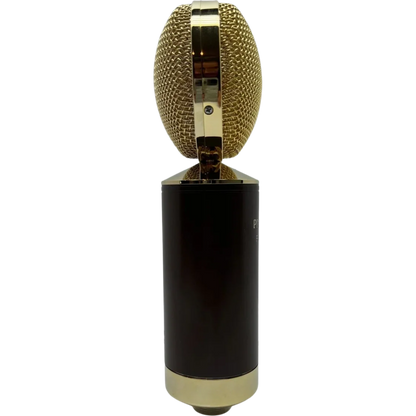

Pinnacle Microphones D-FTII-DEL-G Fat Top II Brown Ribbon Microphone w/ Lundahl Deluxe

Pinnacle Microphones D-FTII-DEL-G Fat Top II Brown Ribbon Microphone w/ Lundahl Deluxe

Limited quantities available!

View full details
  • Details
  • Tech Specs
  • Reviews

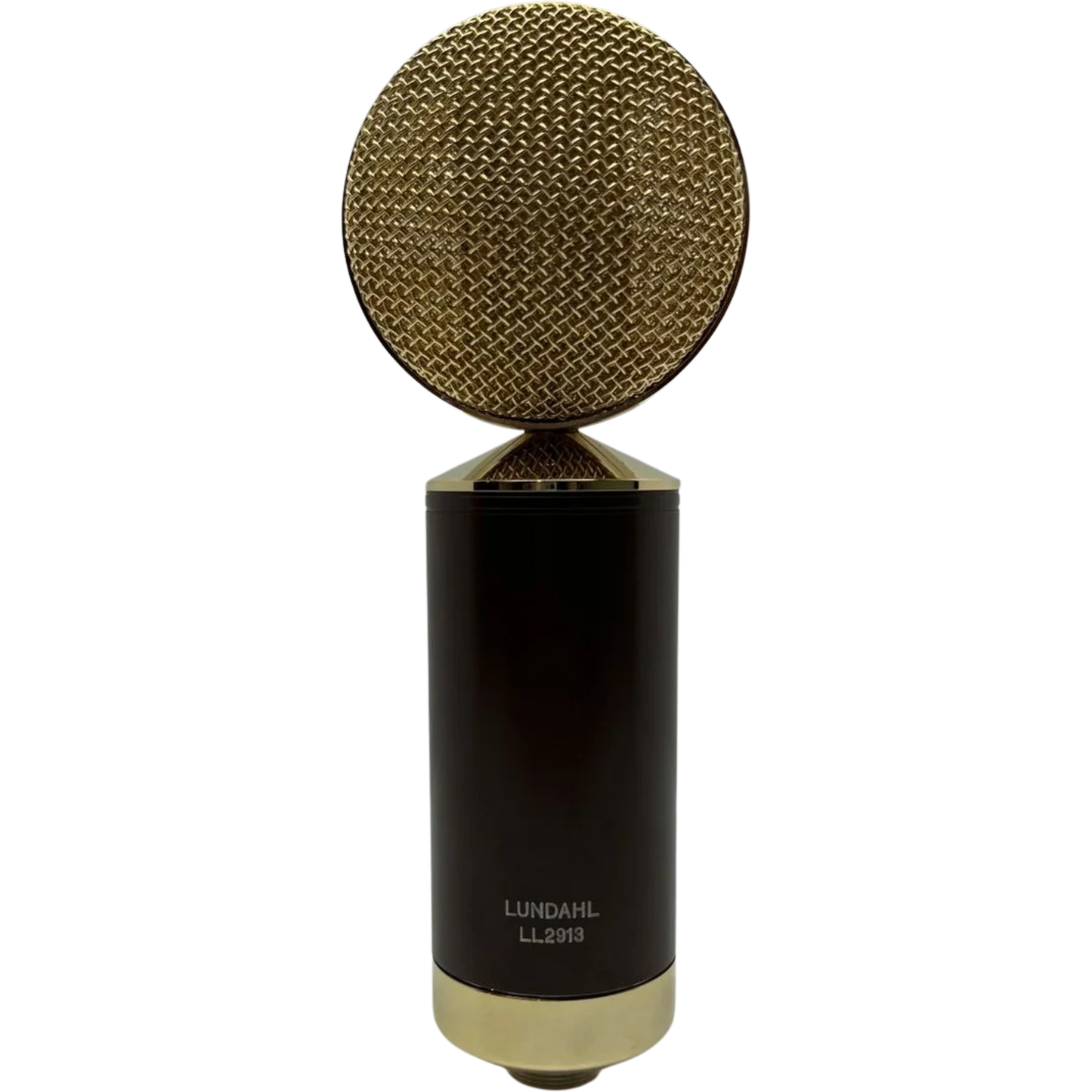

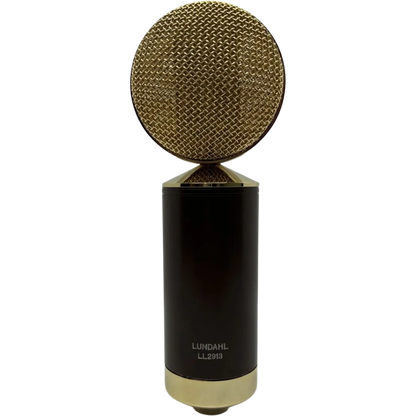

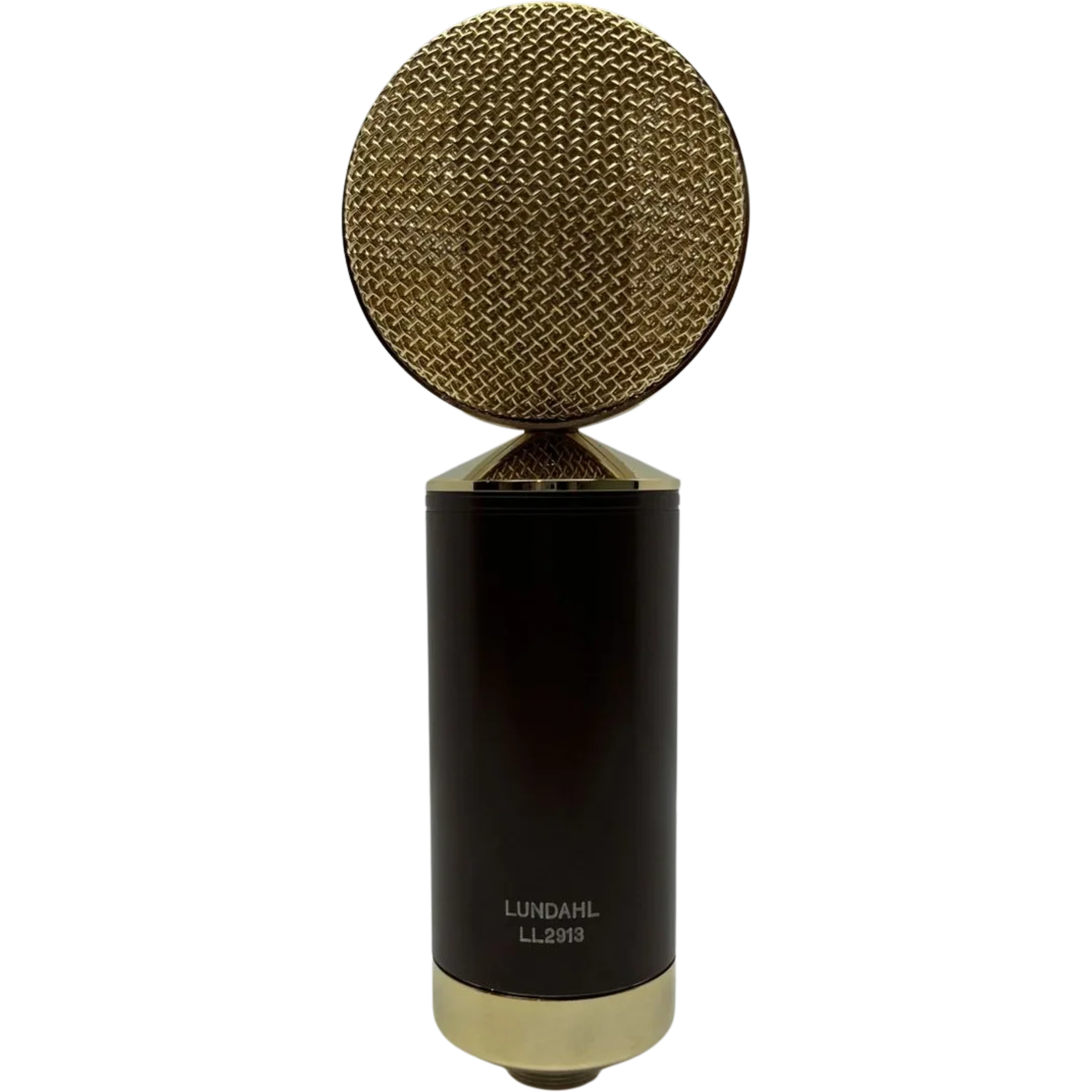

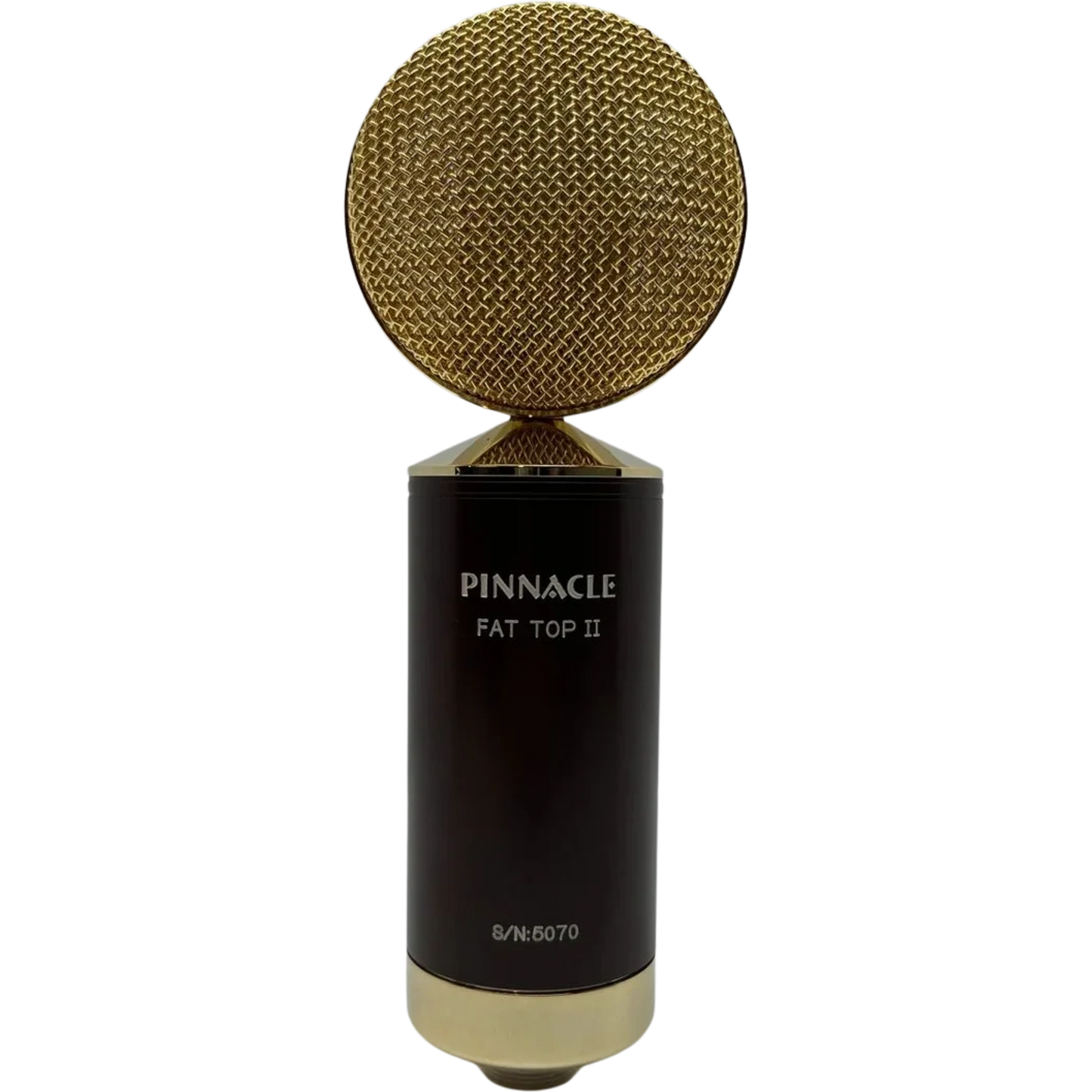

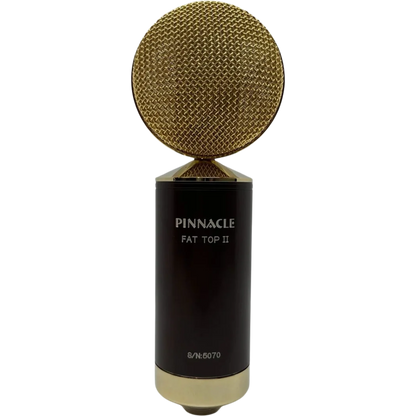

The Fat Top II is a short ribbon passive microphone that delivers a warm, rich, fat, rounded tone. The bi-directional polar pattern picks up sound essentially equally from both faces with a large null between faces ideal for isolating sound sources. Best suited for guitar cabinets, piano, brass and percussion instruments. Can be used in pairs in a Blumlein set up to pick up the entire room. Fat Top II comes standardly fitted with the upgraded Lundahl LL2913 transformer. Introducing the upgraded Lundahl to the already quality hardware makes for an extended frequency range. This gives the mic improved definition, lower floor and higher ceiling.

More Information
Product Name Pinnacle Microphones D-FTII-DEL-G Fat Top II Brown Ribbon Microphone w/ Lundahl Deluxe
Brand Pinnacle Microphones
Condition New
MPN D-FTII-DEL-G
UPC 850046454097
Shipping Option Free Shipping to the Continental U.S.

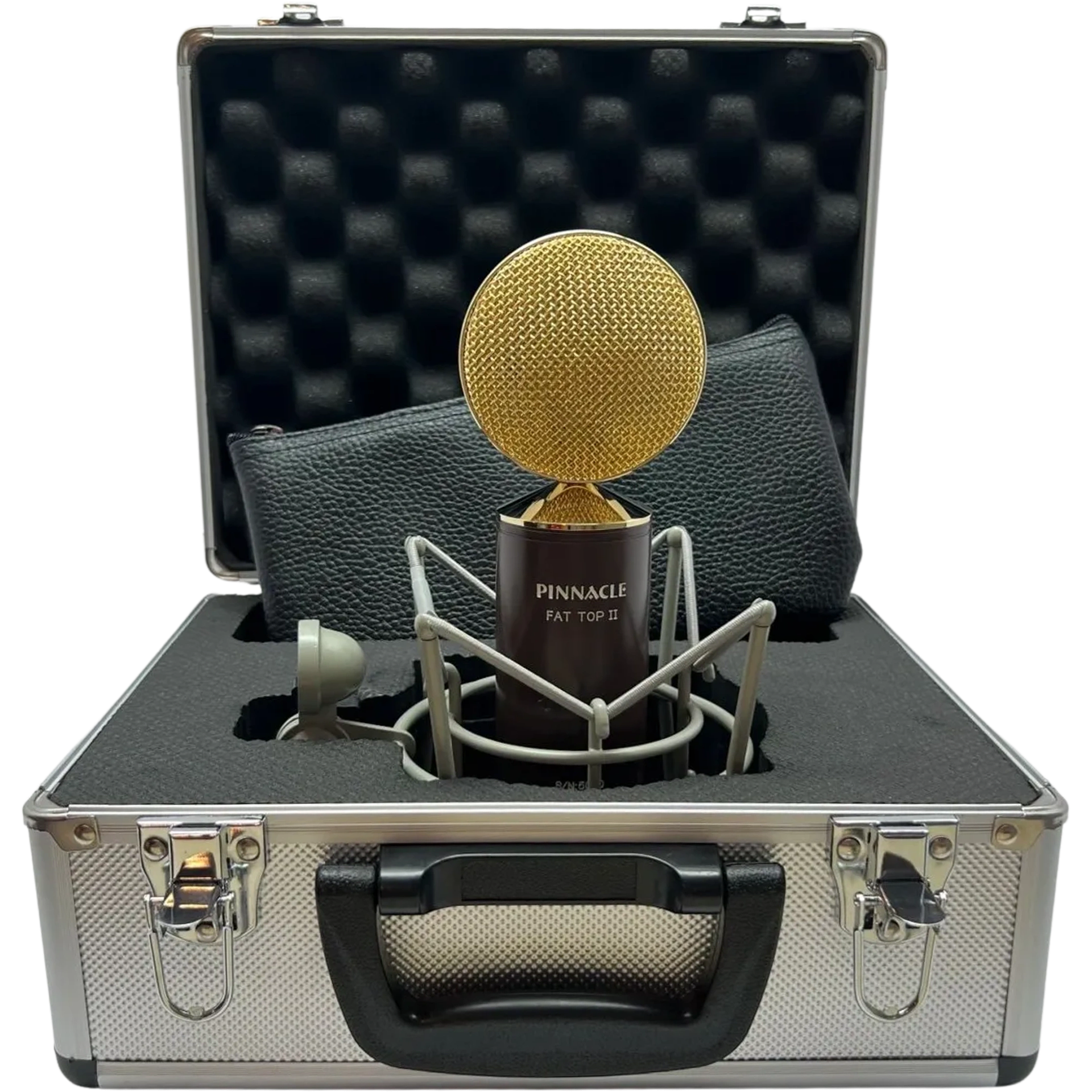

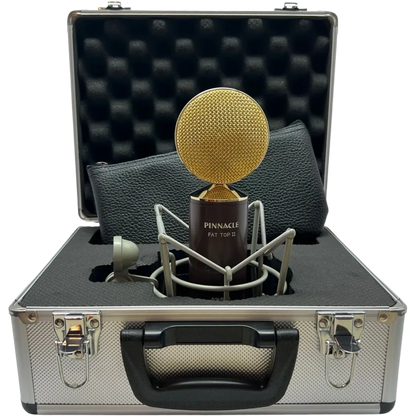

What's in the Box?

  • Fat Top II Brown Ribbon Microphone with Lundahl

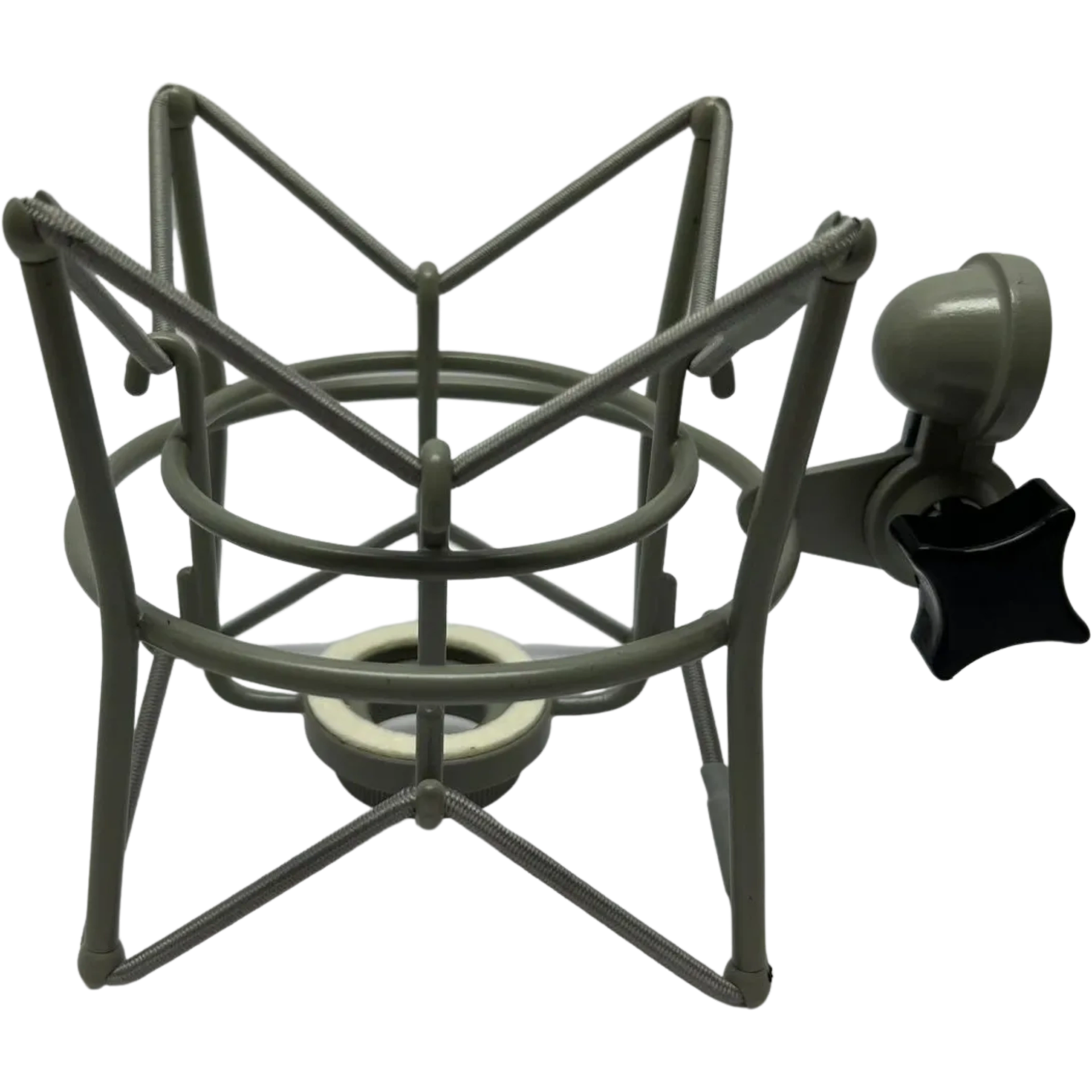

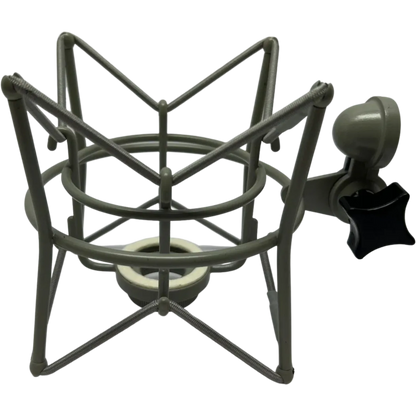

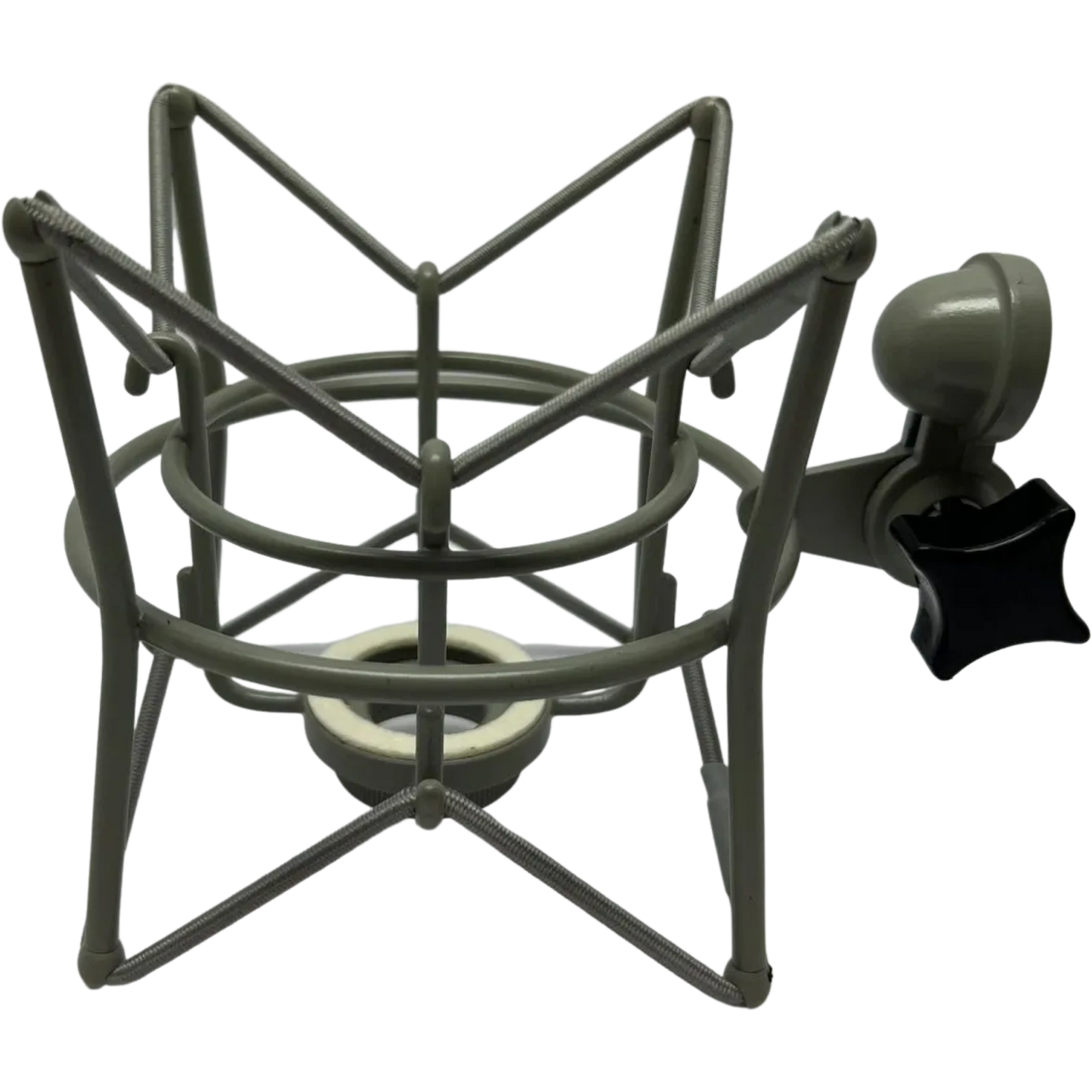

  • Deluxe Shockmount
  • Carrying Pouch

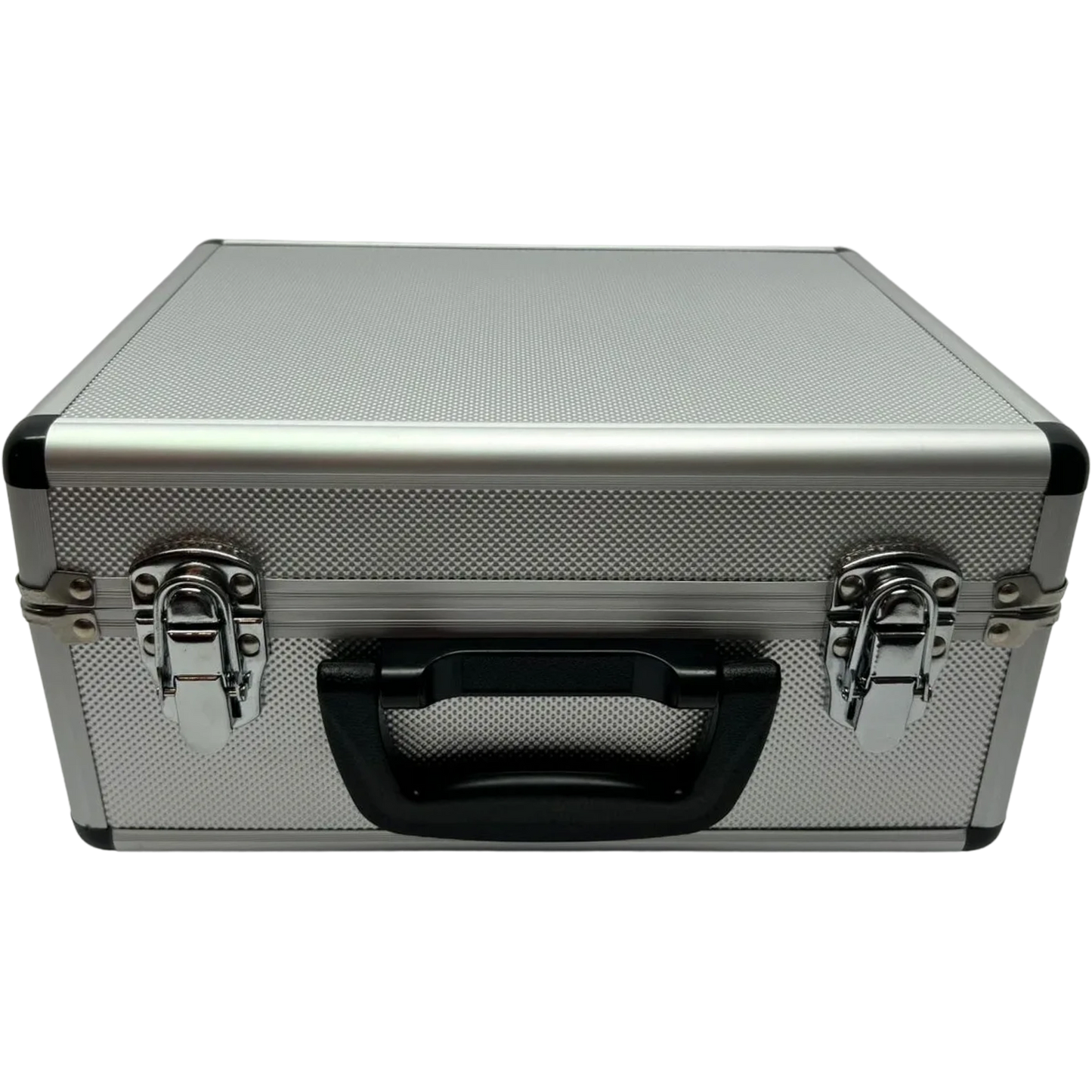

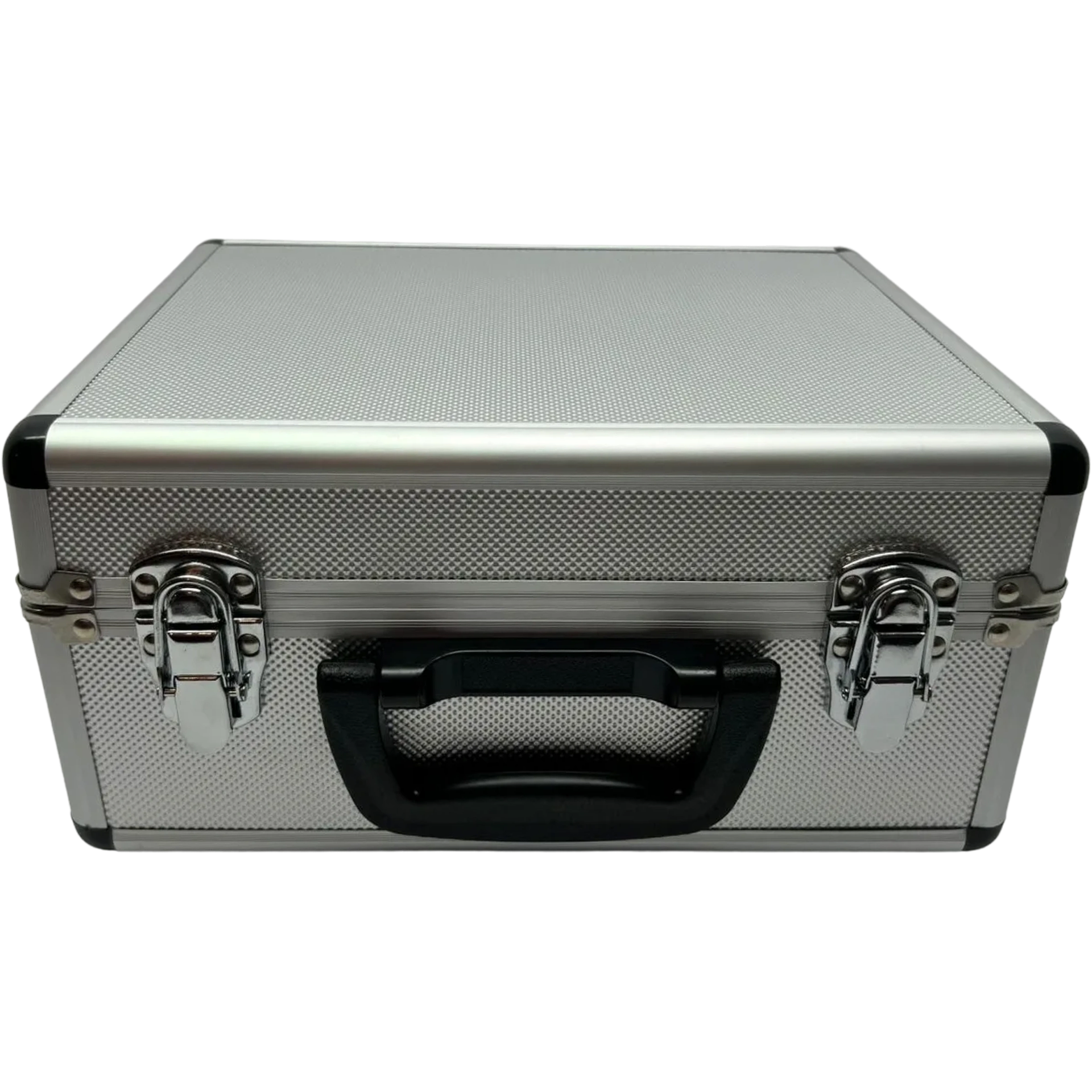

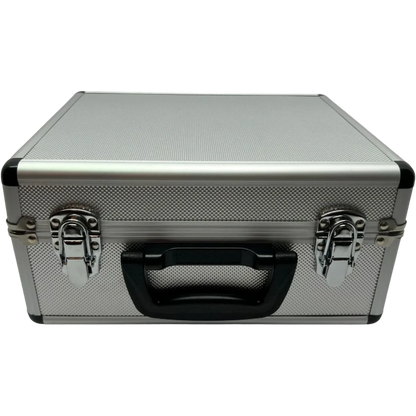

  • Aluminum Case

General

Type Ribbon (velocity) Microphone
Polar Pattern Symmetrical Figure 8

Ribbon Specifications

Ribbon Type & Dimensions 99.99% Pure Aluminum, 2.5 microns, 1 3/4" (L) X 3/16" (W)

Performance

Sensitivity -54.4 dB (1.5 (mV/Pa)
Frequency Response 30 to 15 KHz (+/- 3dB)
Max. SPL (1% THD @1000 Hz) 135 dB
Equivalent Noise Level to IEC 268-4 (A weighted) 17dB
S/N ratio re 1Pa: 70 dB

Electrical

Impedance <=200 Ohms
Recommended Load Impedance 1000 Ohms
Connector 3-Pin Male XLR
Transformer Standardly fitted with LL2913 Lundahl Transformer

Physical

Size Diameter: 3" (O.D. grill), overall length 8 1/2", 1 7/8" (O.D. body)

Pinnacle Microphones D-FTII-DEL-G Fat Top II Brown Ribbon Microphone w/ Lundahl Deluxe

Details

The Fat Top II is a short ribbon passive microphone that delivers a warm, rich, fat, rounded tone. The bi-directional polar pattern picks up sound essentially equally from both faces with a large null between faces ideal for isolating sound sources. Best suited for guitar cabinets, piano, brass and percussion instruments. Can be used in pairs in a Blumlein set up to pick up the entire room. Fat Top II comes standardly fitted with the upgraded Lundahl LL2913 transformer. Introducing the upgraded Lundahl to the already quality hardware makes for an extended frequency range. This gives the mic improved definition, lower floor and higher ceiling.

More Information
Product Name Pinnacle Microphones D-FTII-DEL-G Fat Top II Brown Ribbon Microphone w/ Lundahl Deluxe
Brand Pinnacle Microphones
Condition New
MPN D-FTII-DEL-G
UPC 850046454097
Shipping Option Free Shipping to the Continental U.S.

What's in the Box?

  • Fat Top II Brown Ribbon Microphone with Lundahl
  • Deluxe Shockmount
  • Carrying Pouch
  • Aluminum Case
Tech Specs

General

Type Ribbon (velocity) Microphone
Polar Pattern Symmetrical Figure 8

Ribbon Specifications

Ribbon Type & Dimensions 99.99% Pure Aluminum, 2.5 microns, 1 3/4" (L) X 3/16" (W)

Performance

Sensitivity -54.4 dB (1.5 (mV/Pa)
Frequency Response 30 to 15 KHz (+/- 3dB)
Max. SPL (1% THD @1000 Hz) 135 dB
Equivalent Noise Level to IEC 268-4 (A weighted) 17dB
S/N ratio re 1Pa: 70 dB

Electrical

Impedance <=200 Ohms
Recommended Load Impedance 1000 Ohms
Connector 3-Pin Male XLR
Transformer Standardly fitted with LL2913 Lundahl Transformer

Physical

Size Diameter: 3" (O.D. grill), overall length 8 1/2", 1 7/8" (O.D. body)
