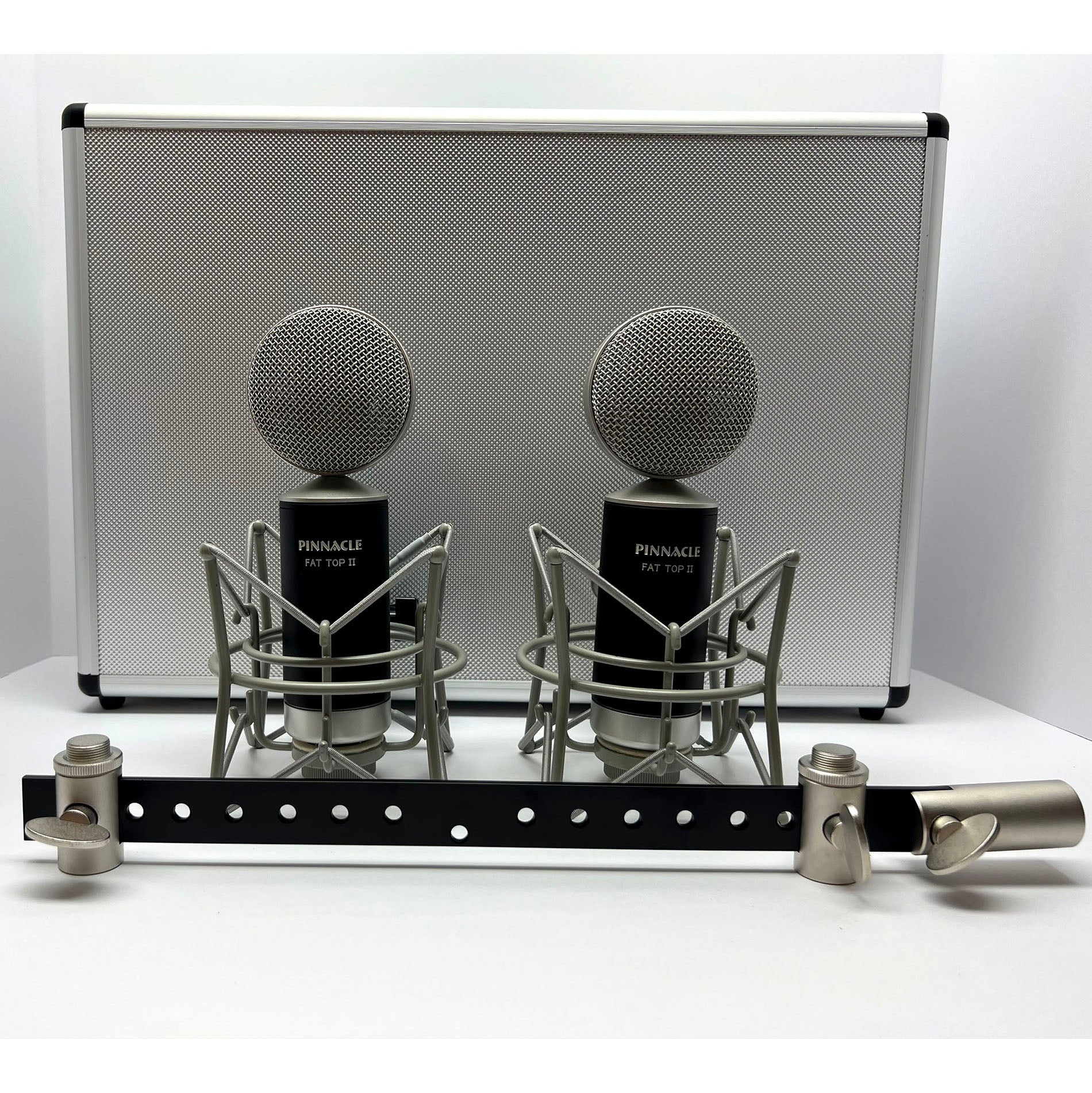

Pinnacle Microphones D-FTII-ST-S Fat Top II Black w/ Lundahl Stereo Pair

Pinnacle Microphones D-FTII-ST-S Fat Top II Black w/ Lundahl Stereo Pair

Limited quantities available!

View full details
  • Details
  • Tech Specs
  • Reviews

The Fat Top II is a short ribbon passive microphone that delivers a warm, rich, fat, rounded tone. The bi-directional polar pattern picks up sound essentially equally from both faces with a large null between faces ideal for isolating sound sources. Best suited for guitar cabinets, piano, brass and percussion instruments. Can be used in pairs in a Blumlein set up to pick up the entire room. Fat Top II comes standardly fitted with the upgraded Lundahl LL2913 transformer. Introducing the upgraded Lundahl to the already quality hardware makes for an extended frequency range. This gives the mic improved definition, lower floor and higher ceiling.

More Information
Product Name Pinnacle Microphones D-FTII-ST-S Fat Top II Black w/ Lundahl Stereo Pair
Shipping Option Free Shipping to the Continental U.S.
Type Ribbon (velocity) Microphone
Ribbon Type & Dimensions 99.99% Pure Aluminum, 2.5 microns, 1 3/4” (L) X 3/16” (W)
Polar Pattern Symmetrical Figure 8
Sensitivity -54.4 dB (1.5 (mV/Pa)
Frequency Response 30 to 15 KHz (+/- 3dB)
Impedance <=200 Ohms
Recommended Load Impedance 1000 Ohms
Max.SPL (1% THD @1000 Hz) 135 dB
Equivalent Noise Level to IEC 268-4 (A weighted) 17dB
S/N ratio re 1Pa: 70 dB
Connector 3-Pin Male XLR
Size Diameter: 3” (O.D. grill), overall length 8 1/2”, 1 7/8” (O.D. body)
Transformer Standardly fitted with LL2913 Lundahl Transformer

Pinnacle Microphones D-FTII-ST-S Fat Top II Black w/ Lundahl Stereo Pair

Details

The Fat Top II is a short ribbon passive microphone that delivers a warm, rich, fat, rounded tone. The bi-directional polar pattern picks up sound essentially equally from both faces with a large null between faces ideal for isolating sound sources. Best suited for guitar cabinets, piano, brass and percussion instruments. Can be used in pairs in a Blumlein set up to pick up the entire room. Fat Top II comes standardly fitted with the upgraded Lundahl LL2913 transformer. Introducing the upgraded Lundahl to the already quality hardware makes for an extended frequency range. This gives the mic improved definition, lower floor and higher ceiling.

More Information
Product Name Pinnacle Microphones D-FTII-ST-S Fat Top II Black w/ Lundahl Stereo Pair
Shipping Option Free Shipping to the Continental U.S.
Tech Specs
Type Ribbon (velocity) Microphone
Ribbon Type & Dimensions 99.99% Pure Aluminum, 2.5 microns, 1 3/4” (L) X 3/16” (W)
Polar Pattern Symmetrical Figure 8
Sensitivity -54.4 dB (1.5 (mV/Pa)
Frequency Response 30 to 15 KHz (+/- 3dB)
Impedance <=200 Ohms
Recommended Load Impedance 1000 Ohms
Max.SPL (1% THD @1000 Hz) 135 dB
Equivalent Noise Level to IEC 268-4 (A weighted) 17dB
S/N ratio re 1Pa: 70 dB
Connector 3-Pin Male XLR
Size Diameter: 3” (O.D. grill), overall length 8 1/2”, 1 7/8” (O.D. body)
Transformer Standardly fitted with LL2913 Lundahl Transformer
