Presonus Eris Studio 5 2nd Gen 5” Active Single Studio Monitor EBM Waveguide

Presonus Eris Studio 5 2nd Gen 5” Active Single Studio Monitor EBM Waveguide

Ready to ship immediately!

View full details
  • Details
  • Features
  • Tech Specs
  • Reviews

Building on the reputation of its award-winning predecessors, the Eris® Studio 5 is a substantial update that delivers richer low-end and more controlled high-frequency response, reproducing every detail in your recordings with a natural sound unparalleled in its class.

The custom-designed EBM (Elliptical Boundary Modeled) waveguide provides superior high-frequency response and wide 120-degree horizontal dispersion to create a broad sweet spot. Narrow vertical dispersion reduces reflections from your desk, and a silk-dome tweeter ensures snappy, accurate transient reproduction. An elegant new enclosure design improves the waveguide performance so you'll hear the finest details in your mix.

The woven-composite low-frequency driver offers Eris' signature tight, clear bass, with plenty of punch. The ported enclosure and 80W of biamped power maximizes bass response and allows the Eris Studio 5 to reach down to an astonishing 48 Hz - without a subwoofer. Designed for superior performance in both home studios and professional mix rooms, the Eris Studio 5 combines flexible connectivity with sonic accuracy that puts it a class all its own.

More Information
Product Name Presonus Eris Studio 5 2nd Gen 5” Active Single Studio Monitor EBM Waveguide
Brand Presonus
Condition New
MPN 2777500127
UPC 673454011641
Shipping Option Free Shipping to the Continental U.S.

What's in the Box?

  • Presonus Eris Studio 5 2nd Gen 5” Active Single Studio Monitor EBM Waveguide
  • Power Cord
  • Limited 1-Year Manufacturer Warranty
  • 5.25-inch woven composite low-frequency driver
  • 1-inch, ultra-low mass, silk-dome, high frequency driver
  • Crossover Frequency, 3.5 kHz
  • 120˚ x 60˚ EBM waveguide provides a sweet spot
  • Front-firing acoustic port for superior bass-frequency reproduction and optimized, resonance-suppressing internal bracing
  • 80W, Class AB dual amplification
  • 48 Hz to 20 kHz frequency response
  • 102 dB Peak SPL (@ 1 meter)
  • Acoustic Tuning Controls:
    • Acoustic Space (Flat, -2 dB, -4 dB)
    • High Frequency (±6 dB, center 10 kHz, continuously variable)
    • Mid Frequency (±6 dB, center 1 kHz, continuously variable)
    • Low Cut (Flat, 80 Hz, 100 Hz @ -12 dB / octave)

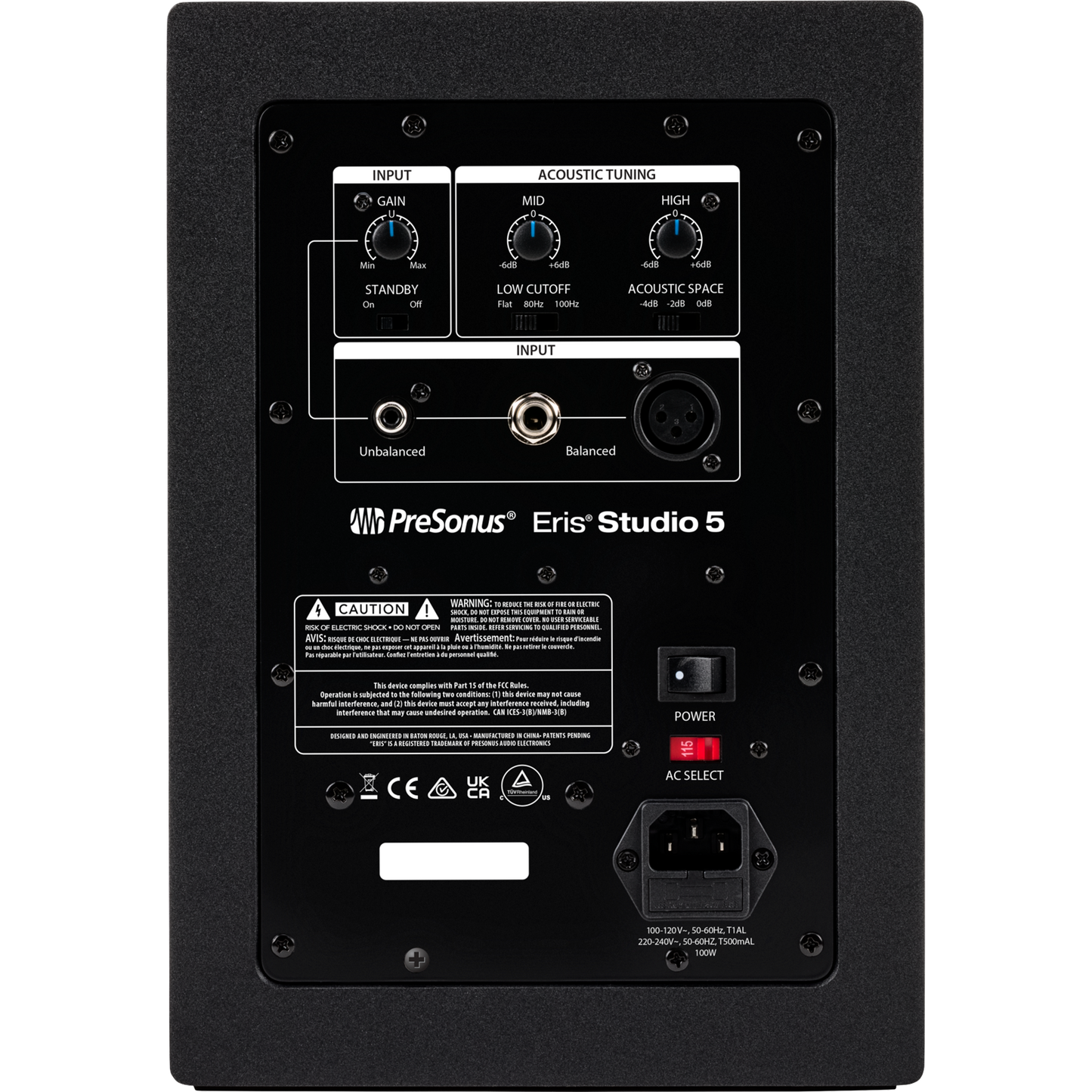

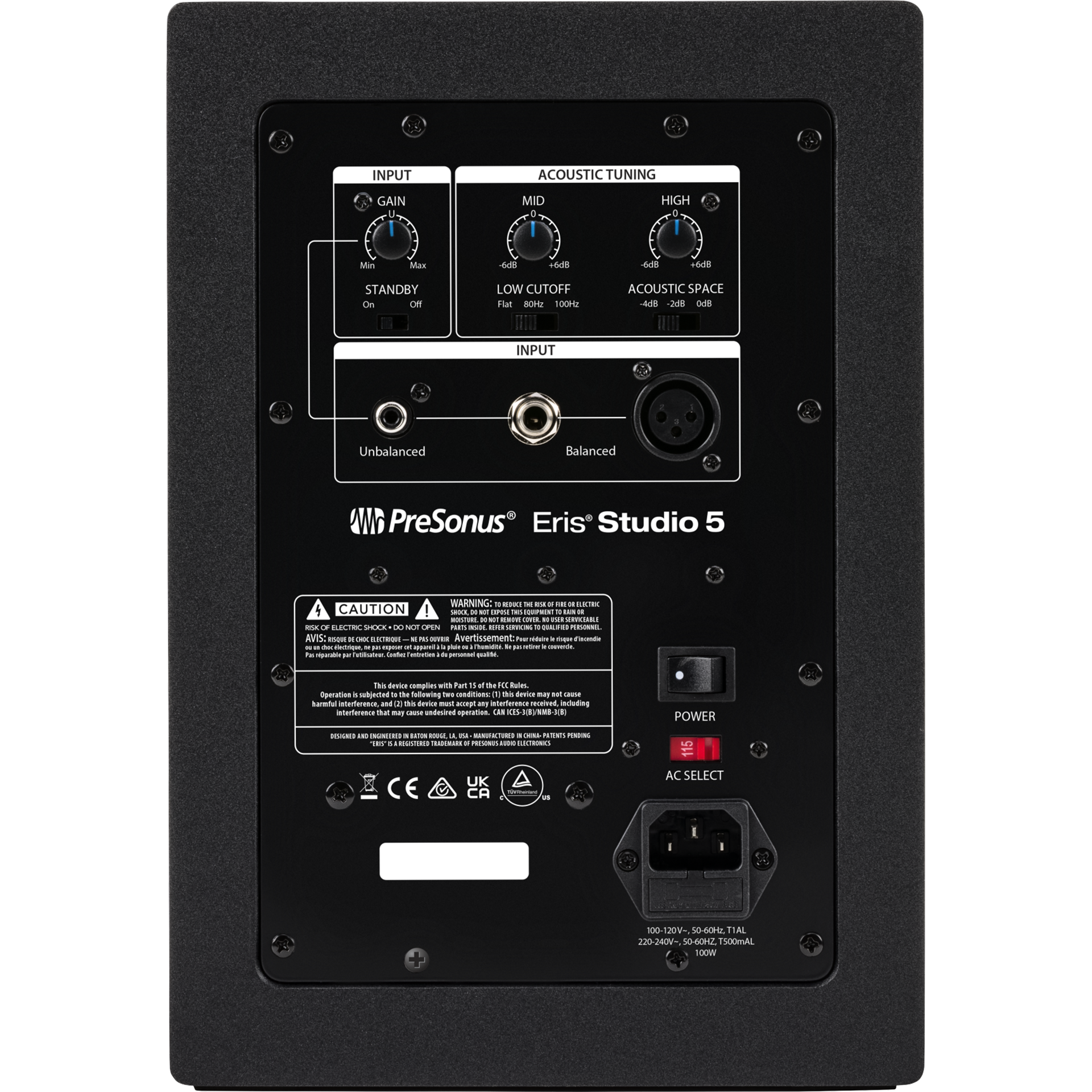

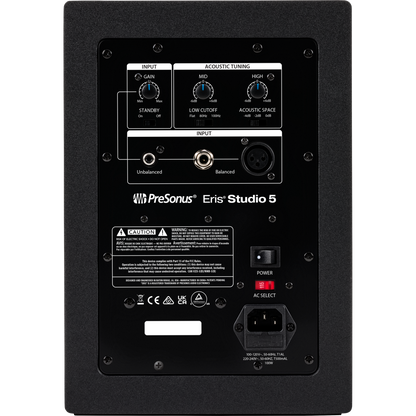

  • Inputs:
    • XLR and 1/4-inch TRS balanced rear-panel inputs
    • RCA unbalanced rear-panel inputs
  • Protection:
    • RF interference
    • Output-current limiting
    • Over-temperature
    • Turn-on/off transient
    • Subsonic filter
  • Power Saver mode (engages after 40 minutes)

Electronics

Voltage 100-120V
Wattage 80 Watts

Hardware

Cabinet Material Vinyl-Laminated, Medium-Density Fiberboard

Miscellaneous

Connection Type IEC

Monitors

Protections RF interference
Output-current limiting
Over-temperature
Turn-on/off transient
Subsonic filter
Audio Switches Acoustic Space (Flat, -2 dB, -4 dB)
Low Cut (Flat, 80 Hz, 100 Hz @ -12 dB / octave)
Audio Controls VolumeHigh Frequency (±6 dB, center 10 kHz, continuously variable)
Mid Frequency (±6 dB, center 1 kHz, continuously variable)
Peak SPL 102 dB (@ 1 meter)
Crossover Frequency 3.5 kHz
Monitor Inputs 1- Balanced XLR, 1- Balanced ¼” TRS, 1- Unbalanced RCA
HF Transducers 1” Ultra Low Mass, Silk Dome Tweeter
LF Transducers 5.25" Woven Glass Fiber Composite
Frequency Response 48 Hz - 20 kHz
Input Impedance 10 kΩ
Coverage Pattern 100 degree (H) x 60 degree (V)
Monitor Amplifier Power LF Amplifier - 45W, HF Amplifier - 35W

Specifications

Input Impedance 10 kΩ

Presonus Eris Studio 5 2nd Gen 5” Active Single Studio Monitor EBM Waveguide

Details

Building on the reputation of its award-winning predecessors, the Eris® Studio 5 is a substantial update that delivers richer low-end and more controlled high-frequency response, reproducing every detail in your recordings with a natural sound unparalleled in its class.

The custom-designed EBM (Elliptical Boundary Modeled) waveguide provides superior high-frequency response and wide 120-degree horizontal dispersion to create a broad sweet spot. Narrow vertical dispersion reduces reflections from your desk, and a silk-dome tweeter ensures snappy, accurate transient reproduction. An elegant new enclosure design improves the waveguide performance so you'll hear the finest details in your mix.

The woven-composite low-frequency driver offers Eris' signature tight, clear bass, with plenty of punch. The ported enclosure and 80W of biamped power maximizes bass response and allows the Eris Studio 5 to reach down to an astonishing 48 Hz - without a subwoofer. Designed for superior performance in both home studios and professional mix rooms, the Eris Studio 5 combines flexible connectivity with sonic accuracy that puts it a class all its own.

More Information
Product Name Presonus Eris Studio 5 2nd Gen 5” Active Single Studio Monitor EBM Waveguide
Brand Presonus
Condition New
MPN 2777500127
UPC 673454011641
Shipping Option Free Shipping to the Continental U.S.

What's in the Box?

  • Presonus Eris Studio 5 2nd Gen 5” Active Single Studio Monitor EBM Waveguide
  • Power Cord
  • Limited 1-Year Manufacturer Warranty
Features
  • 5.25-inch woven composite low-frequency driver
  • 1-inch, ultra-low mass, silk-dome, high frequency driver
  • Crossover Frequency, 3.5 kHz
  • 120˚ x 60˚ EBM waveguide provides a sweet spot
  • Front-firing acoustic port for superior bass-frequency reproduction and optimized, resonance-suppressing internal bracing
  • 80W, Class AB dual amplification
  • 48 Hz to 20 kHz frequency response
  • 102 dB Peak SPL (@ 1 meter)
  • Acoustic Tuning Controls:
    • Acoustic Space (Flat, -2 dB, -4 dB)
    • High Frequency (±6 dB, center 10 kHz, continuously variable)
    • Mid Frequency (±6 dB, center 1 kHz, continuously variable)
    • Low Cut (Flat, 80 Hz, 100 Hz @ -12 dB / octave)
  • Inputs:
    • XLR and 1/4-inch TRS balanced rear-panel inputs
    • RCA unbalanced rear-panel inputs
  • Protection:
    • RF interference
    • Output-current limiting
    • Over-temperature
    • Turn-on/off transient
    • Subsonic filter
  • Power Saver mode (engages after 40 minutes)
Tech Specs

Electronics

Voltage 100-120V
Wattage 80 Watts

Hardware

Cabinet Material Vinyl-Laminated, Medium-Density Fiberboard

Miscellaneous

Connection Type IEC

Monitors

Protections RF interference
Output-current limiting
Over-temperature
Turn-on/off transient
Subsonic filter
Audio Switches Acoustic Space (Flat, -2 dB, -4 dB)
Low Cut (Flat, 80 Hz, 100 Hz @ -12 dB / octave)
Audio Controls VolumeHigh Frequency (±6 dB, center 10 kHz, continuously variable)
Mid Frequency (±6 dB, center 1 kHz, continuously variable)
Peak SPL 102 dB (@ 1 meter)
Crossover Frequency 3.5 kHz
Monitor Inputs 1- Balanced XLR, 1- Balanced ¼” TRS, 1- Unbalanced RCA
HF Transducers 1” Ultra Low Mass, Silk Dome Tweeter
LF Transducers 5.25" Woven Glass Fiber Composite
Frequency Response 48 Hz - 20 kHz
Input Impedance 10 kΩ
Coverage Pattern 100 degree (H) x 60 degree (V)
Monitor Amplifier Power LF Amplifier - 45W, HF Amplifier - 35W

Specifications

Input Impedance 10 kΩ
