Building on the reputation of its award-winning predecessors, the Eris® Studio 8 is a substantial update that delivers richer low-end and more controlled high-frequency response, reproducing every detail in your recordings with a natural sound unparalleled in its class.
The custom-designed EBM (Elliptical Boundary Modeled) waveguide provides superior high-frequency response and wide 120-degree horizontal dispersion to create a broad sweet spot. Narrow vertical dispersion reduces reflections from your desk, and a silk-dome tweeter ensures snappy, accurate transient reproduction. An elegant new enclosure design improves the waveguide performance so you'll hear the finest details in your mix.
The woven-composite low-frequency driver offers Eris' signature tight, clear bass, with plenty of punch. The ported enclosure and 140W of biamped power maximizes bass response and allows the Eris Studio 8 to reach down to an astonishing 35 Hz - without a subwoofer. Designed for superior performance in both home studios and professional mix rooms, the Eris Studio 8 combines flexible connectivity with sonic accuracy that puts it a class all its own.
Product Name | Presonus Eris Studio 8 2nd Gen 8” Active Single Studio Monitor EBM Waveguide |
---|---|
Shipping Option | Free Shipping to the Continental U.S. |
- 8-inch woven composite, low-frequency transducer
- 1.25-inch (31.75 mm), ultra-low-mass, silk-dome, high-frequency transducer
- 120˚(H) x 60˚(V) EBM waveguide for a wide sweet spot
- Front-firing acoustic port for superior bass-frequency reproduction and optimized, resonance-suppressing internal bracing
- 140W, Class AB biamplification
- 35 Hz to 20 kHz frequency response
- 106 dB SPL (Peak, @ 1 meter)

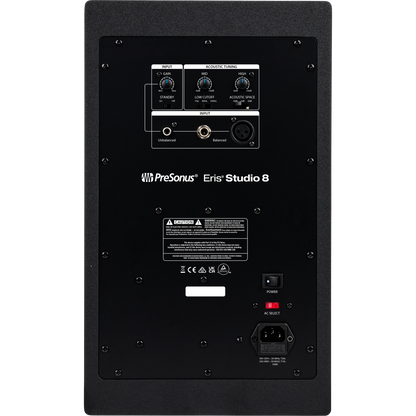

- Acoustic Tuning controls: HF (±6 dB, continuously variable); Midrange (±6 dB, continuously variable), and Acoustic Space (flat, -2, -4 dB), plus highpass filter (Off, 80 Hz, 100 Hz)
- RF interference, output-current limiting, over-temperature, transient, subsonic protection, and amplifier "soft start" feature (eliminates popping on power-up)
- Internal power supply with IEC connector and power switch with on/off LED

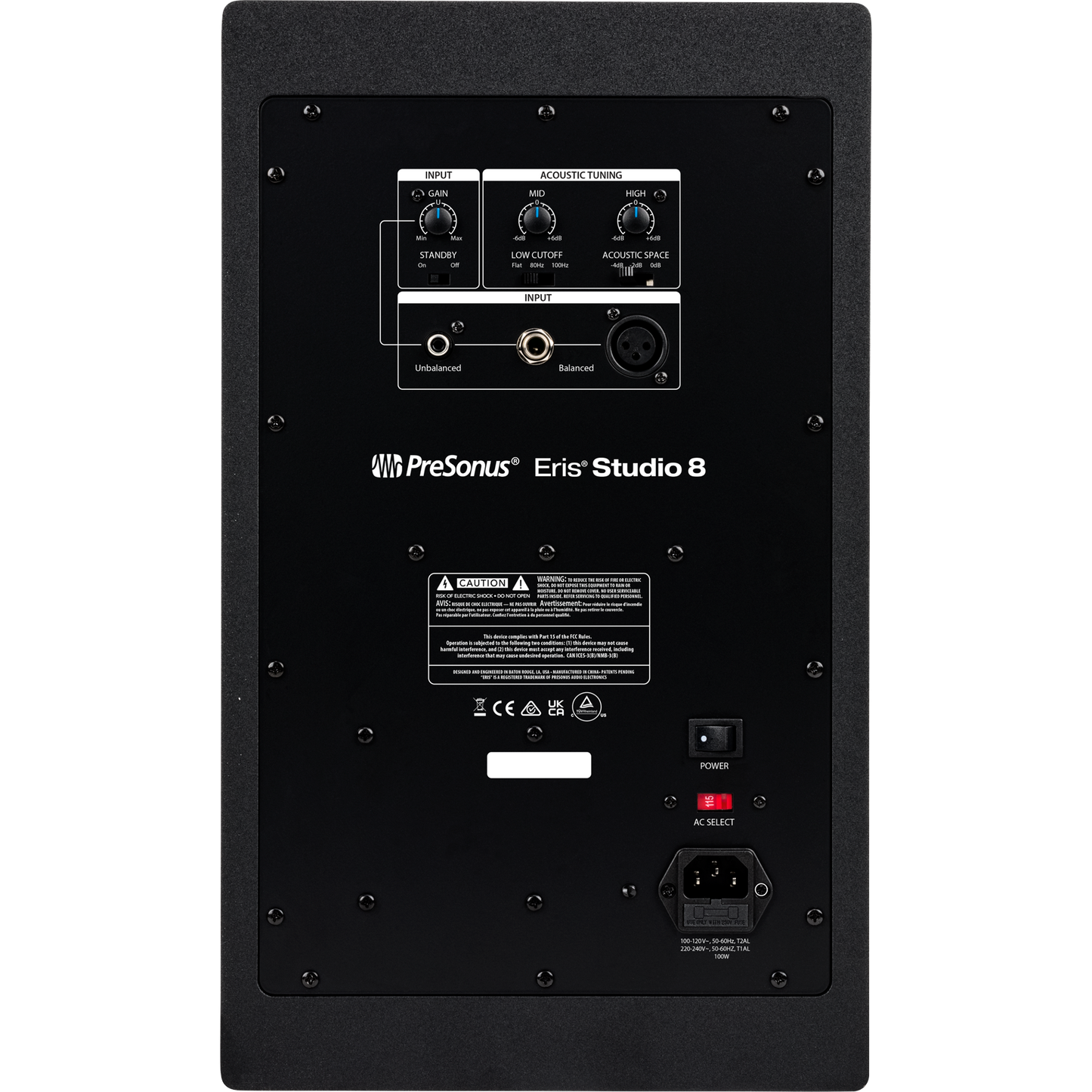

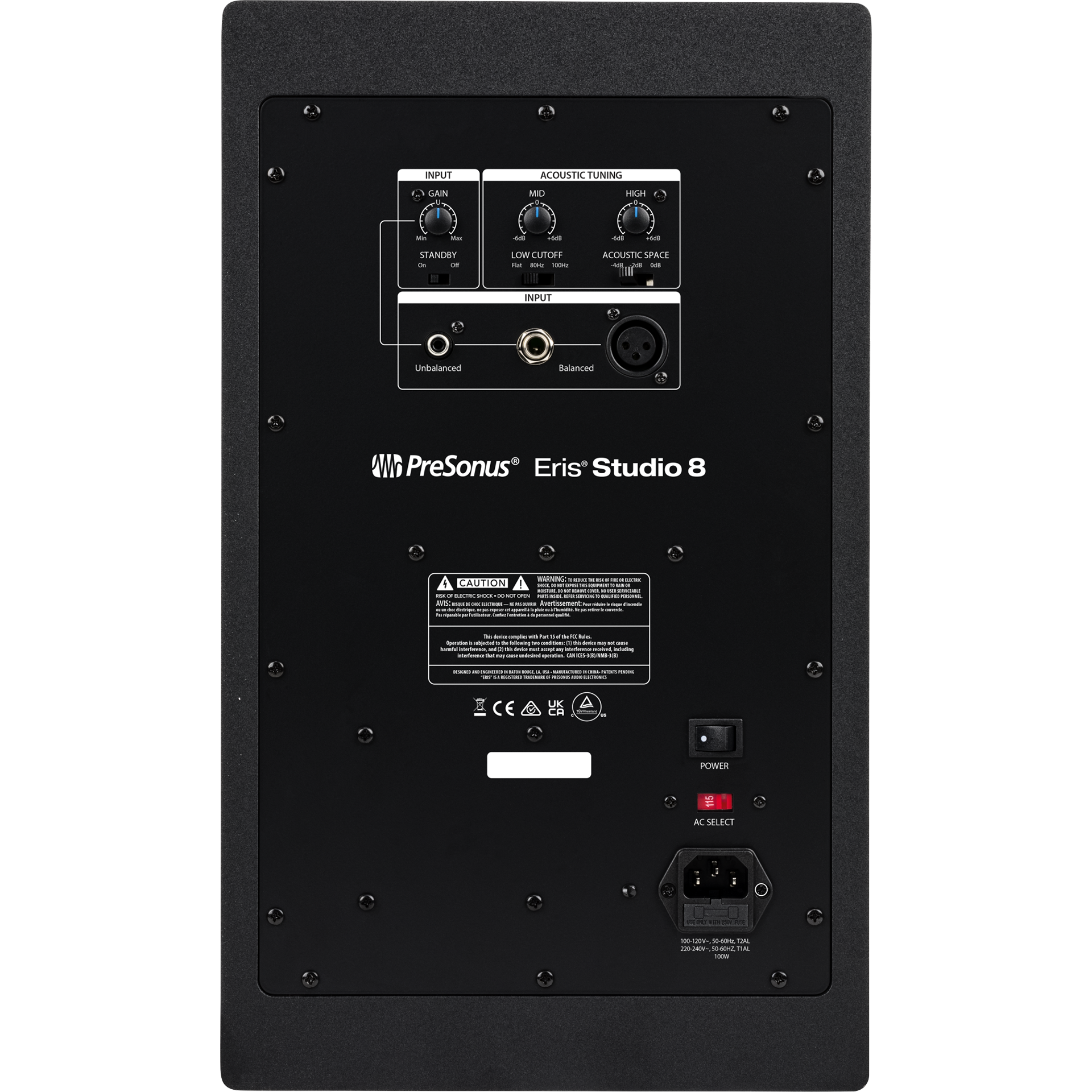

- Balanced XLR and ¼-inch inputs and unbalanced RCA inputs
Electronics |
|
---|---|
Voltage | 100-120V |
Wattage | 140 Watts |
Hardware |
|
Cabinet Material | Vinyl-Laminated, Medium-Density Fiberboard |
Miscellaneous |
|
Connection Type | IEC |
Monitors |
|
Protections | RF interference Output-current limiting Over-temperature Turn-on/off transient Subsonic filter |
Audio Switches | Acoustic Space (Flat, -2 dB, -4 dB) Low Cut (Flat, 80 Hz, 100 Hz @ -12 dB / octave) |
Audio Controls | VolumeHigh Frequency (±6 dB, center 10 kHz, continuously variable) Mid Frequency (±6 dB, center 1 kHz, continuously variable) |
Peak SPL | 106 dB (@ 1 meter) |
Crossover Frequency | 3.5 kHz |
Monitor Inputs | 1- Balanced XLR, 1- Balanced ¼” TRS, 1- Unbalanced RCA |
HF Transducers | 1.25” Ultra Low Mass, Silk Dome Tweeter |
LF Transducers | 8" Woven Glass Fiber Composite |
Frequency Response | 35 Hz - 20 kHz |
Input Impedance | 10 kΩ |
Coverage Pattern | 100 degree (H) x 60 degree (V) |
Monitor Amplifier Power | LF Amplifier - 75W, HF Amplifier - 65W |
Specifications |
|
Input Impedance | 10 kΩ |

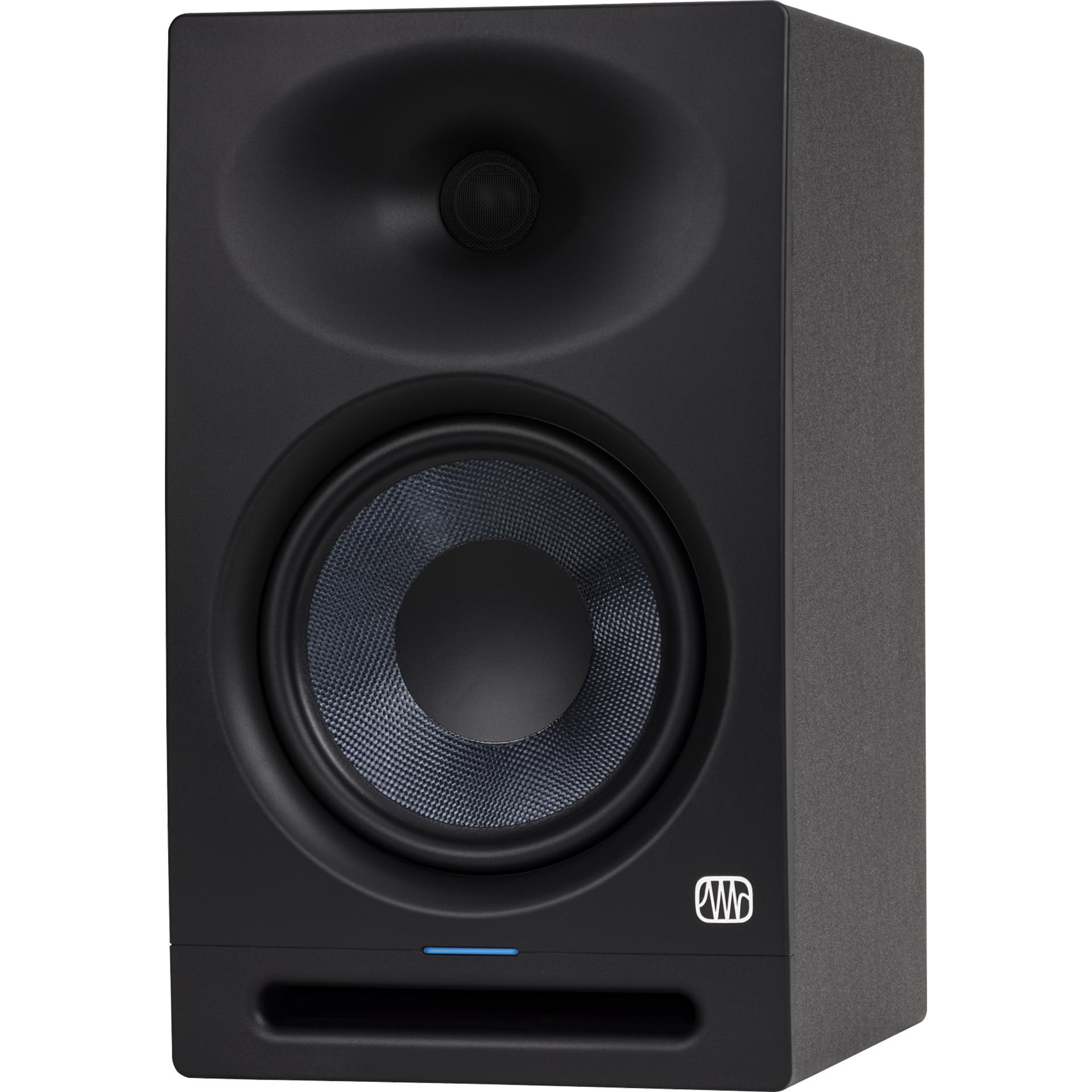

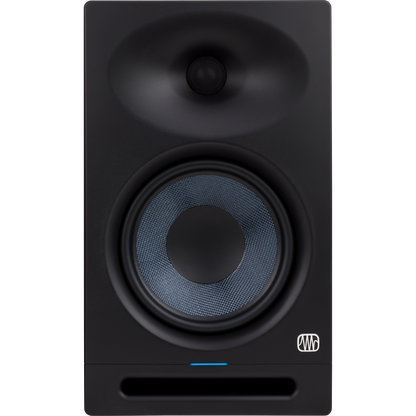

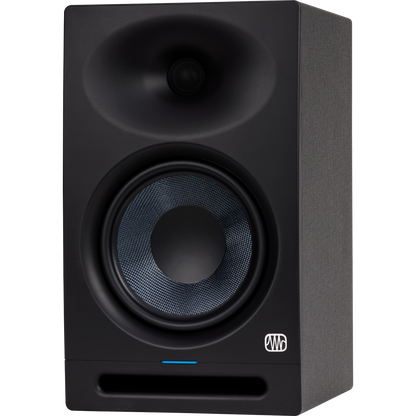

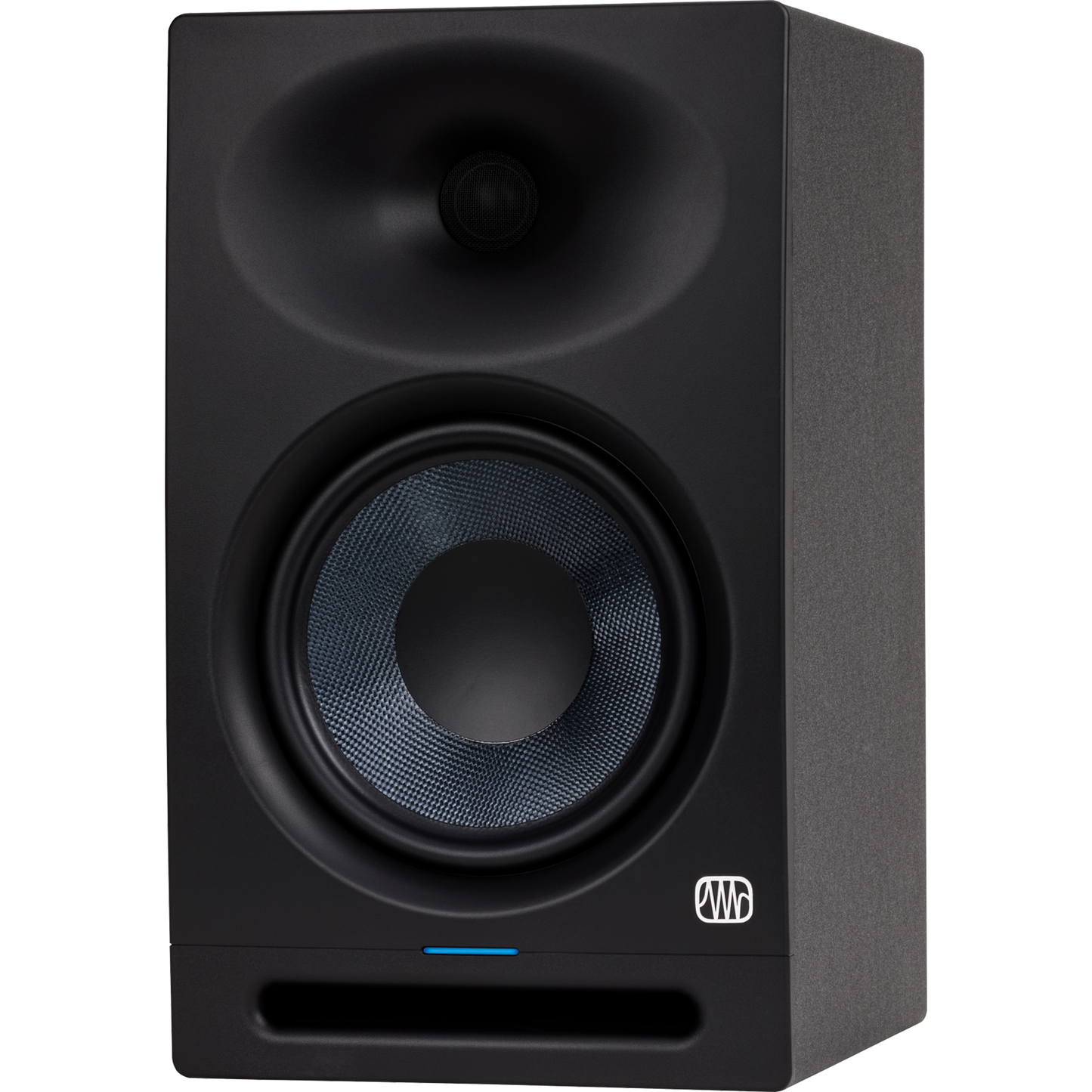

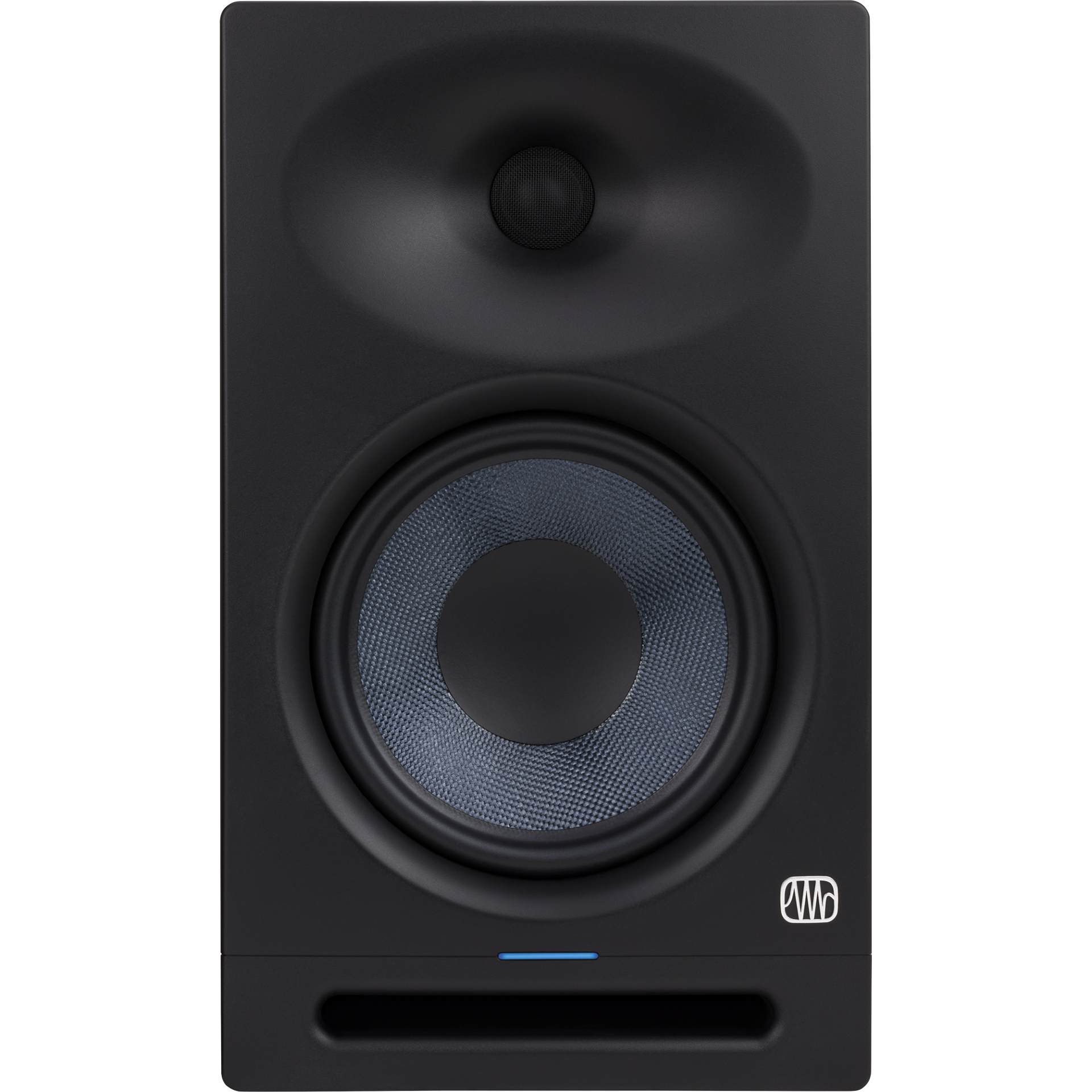

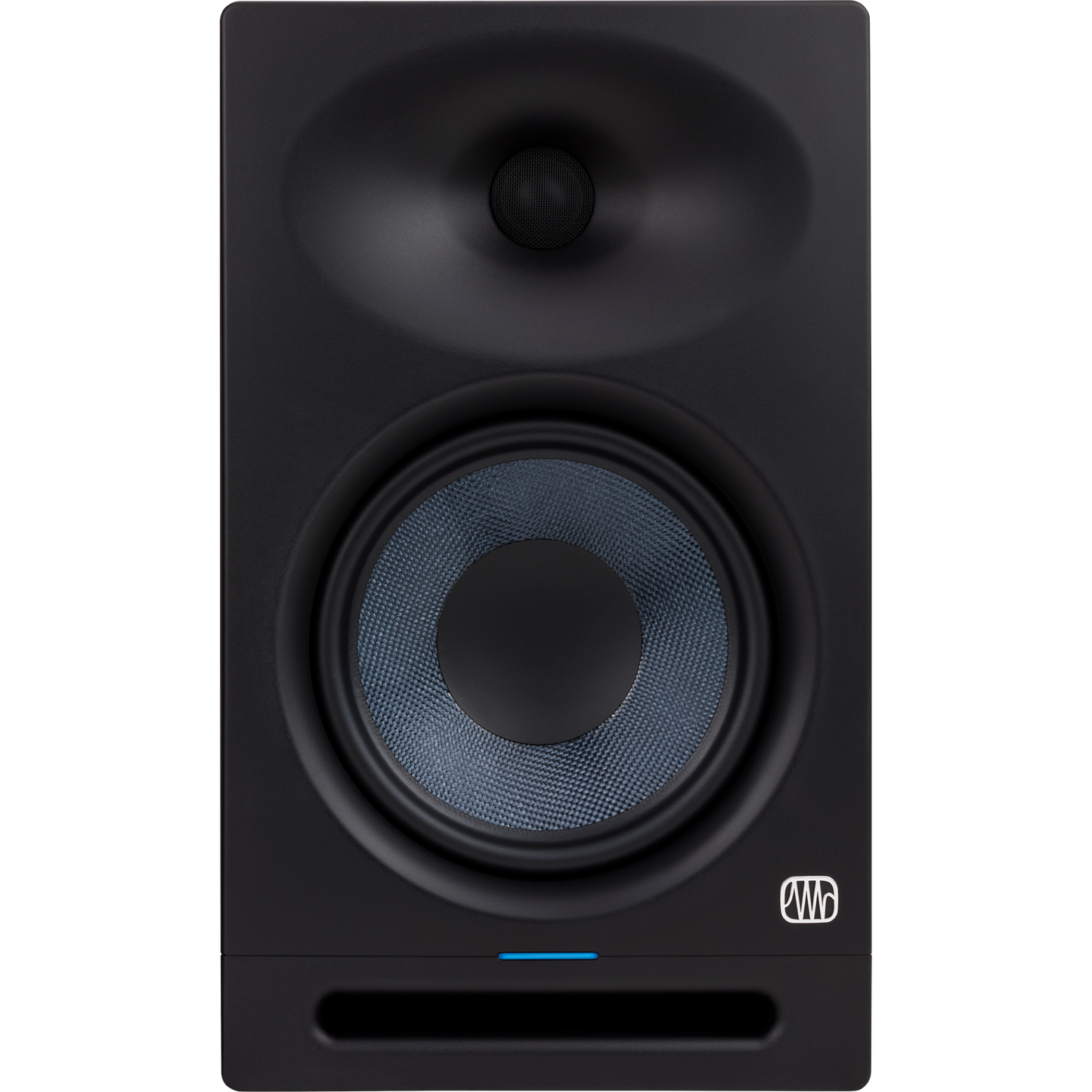

Presonus Eris Studio 8 2nd Gen 8” Active Single Studio Monitor EBM Waveguide
