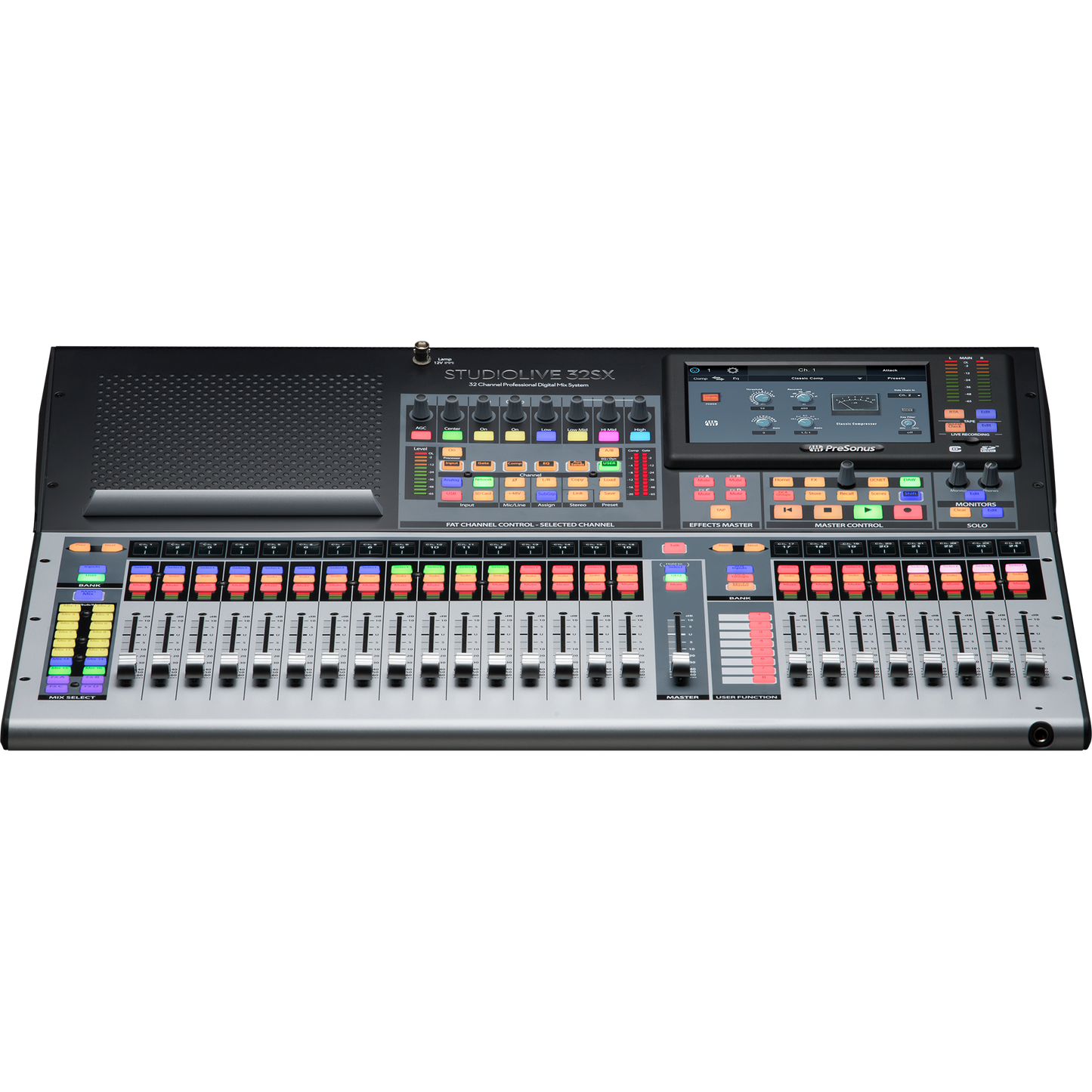

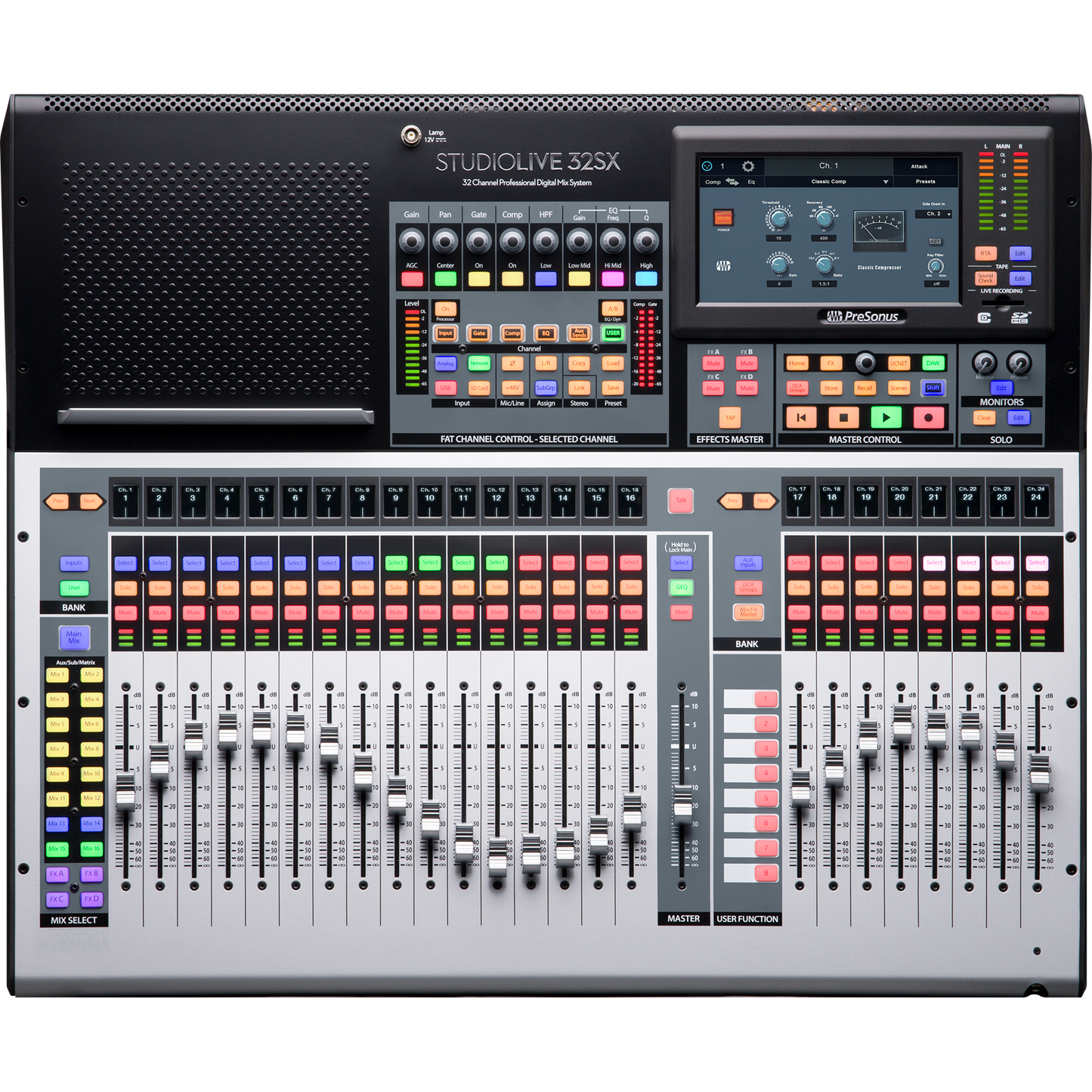

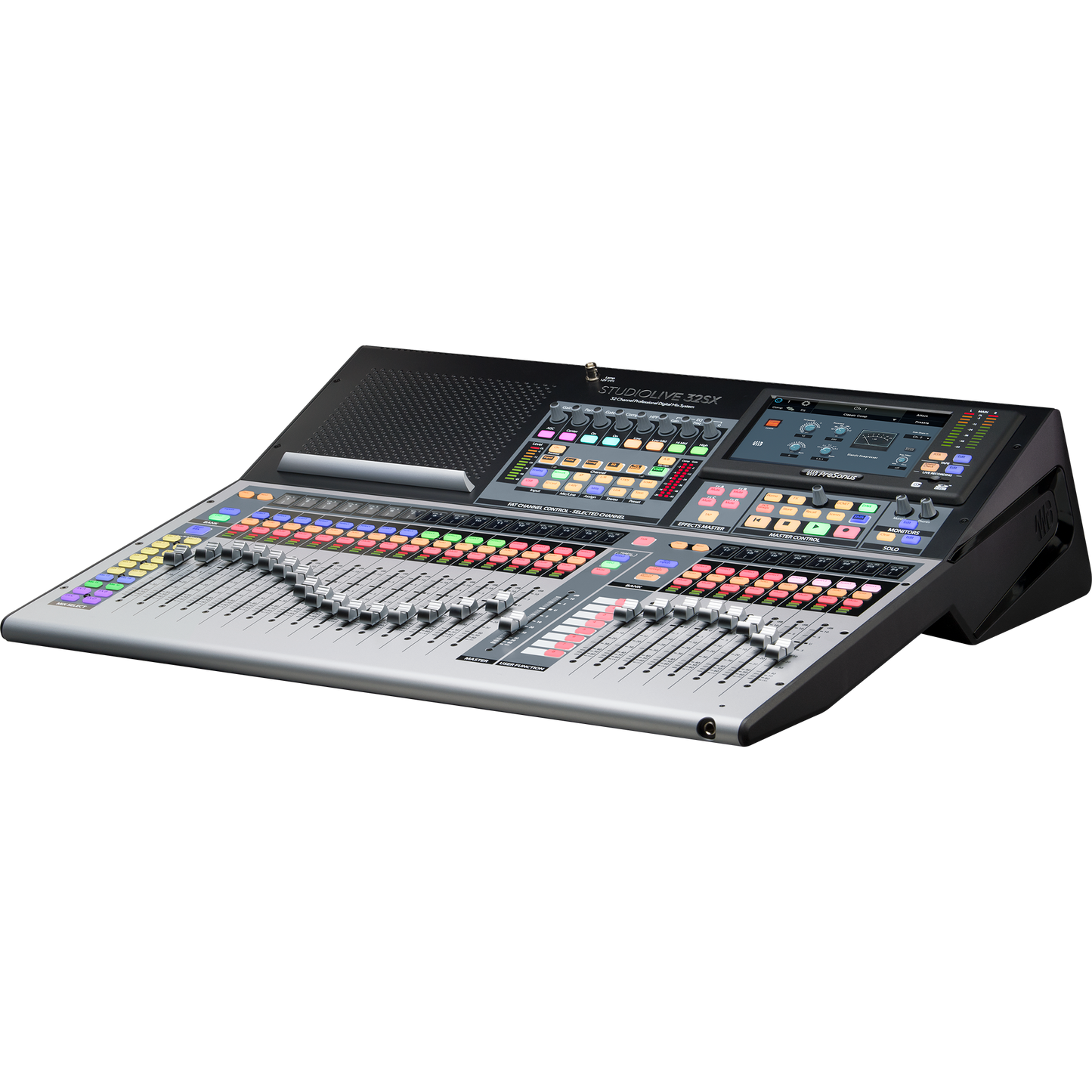

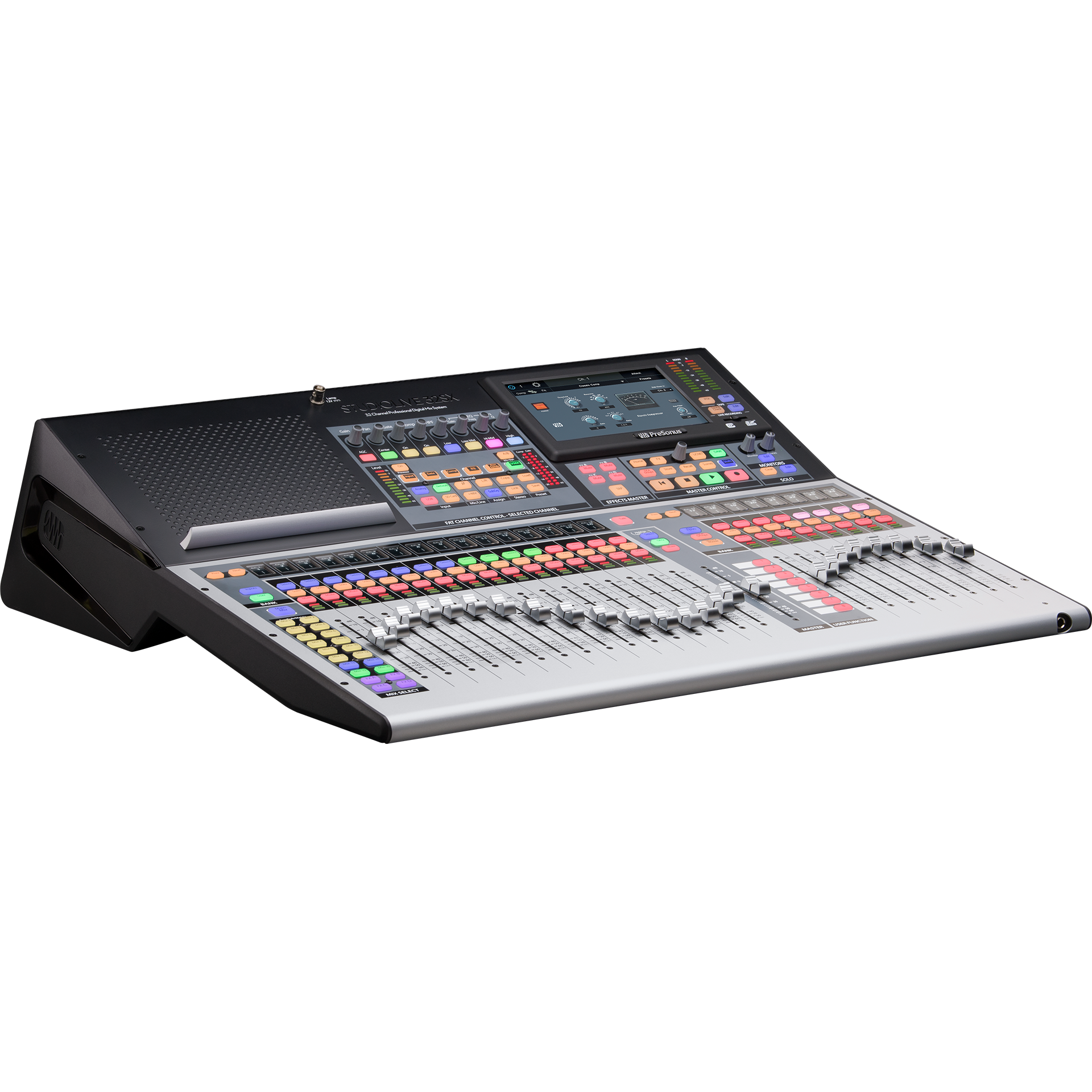

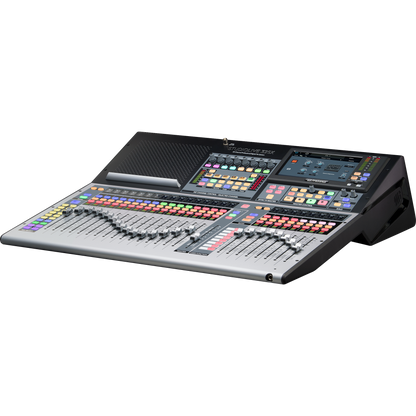

Loaded with the processing power, studio-grade audio quality, and flexible routing options that made StudioLive mixers famous, the StudioLive 32SX is the perfect compact 32-channel digital mixing solution.

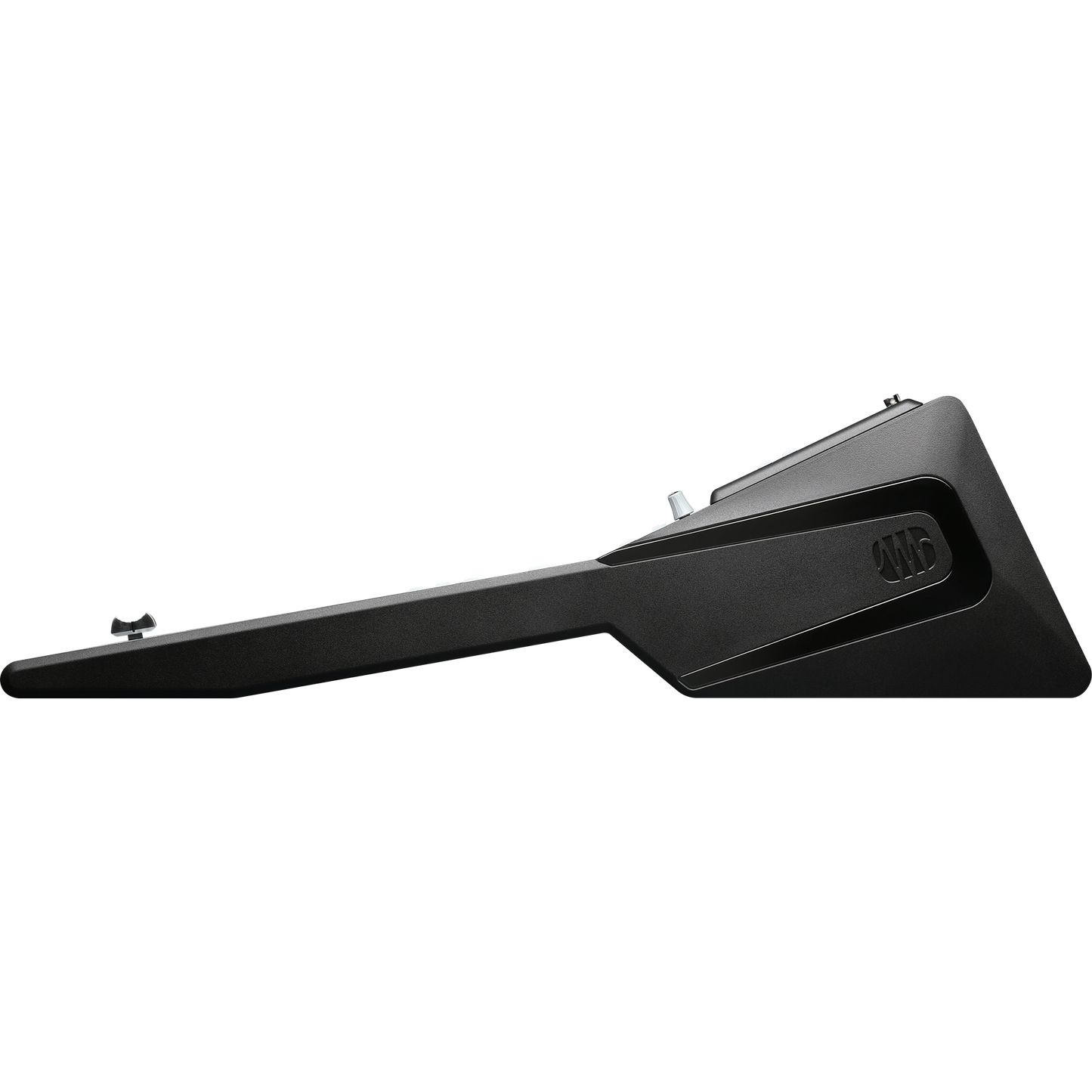

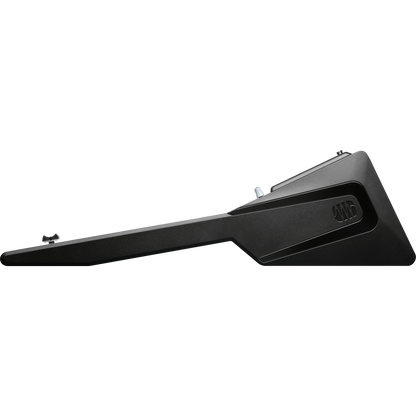

Powered by the dual-core PreSonus FLEX DSP Engine, the StudioLive 32SX digital mixer is equipped with 40 mixing channels, 26 mix buses, and 286 simultaneous processors—including 4 stereo reverberation systems, and Fat Channel plug-in models on every input and mix. The low profile of the StudioLive 32SX makes it an ideal solution for any mixing environment where desk real estate is at a premium.

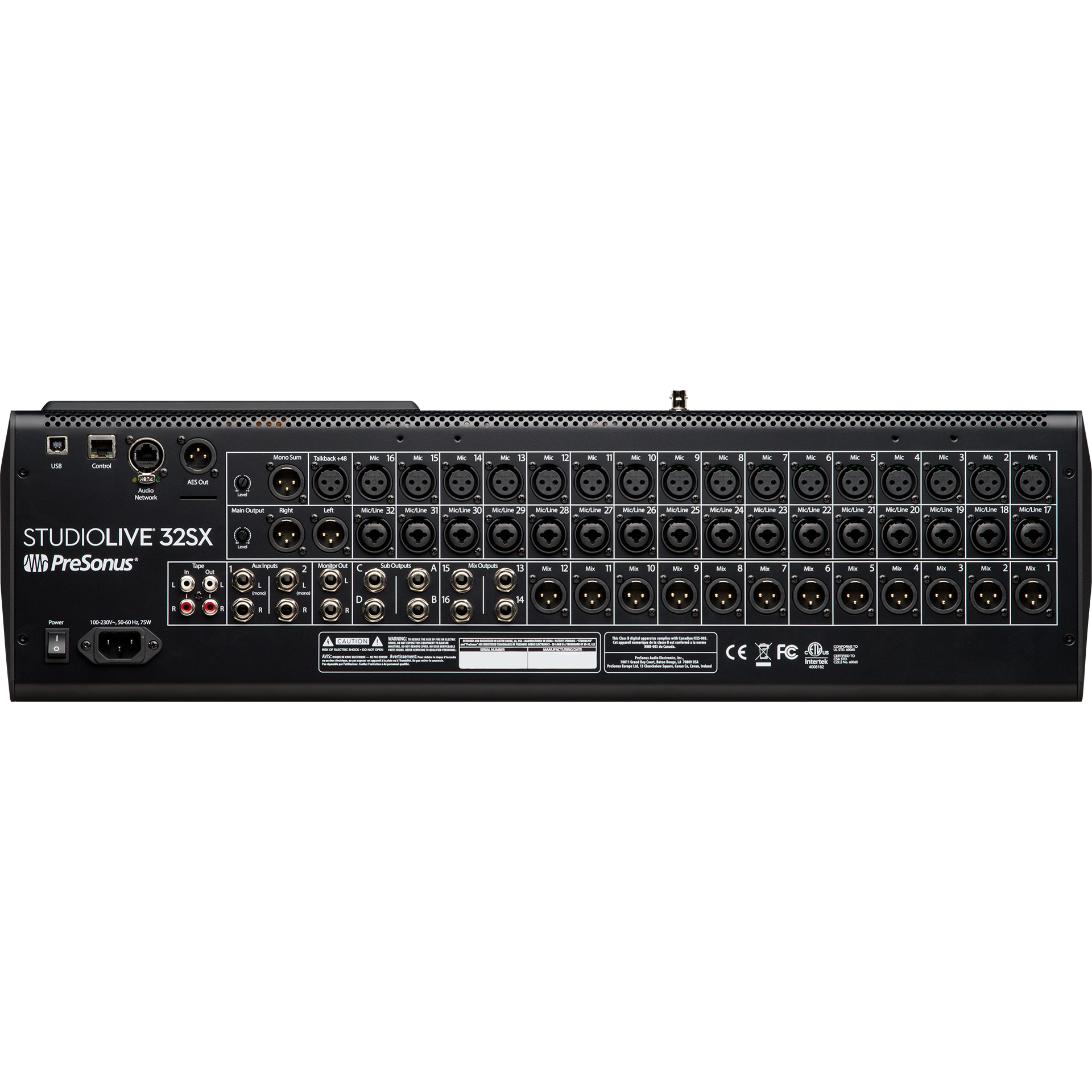

The split-fader workflow lets you manage 32 input channels in two fader layers, while still providing access to your mix outputs on eight additional faders. With 32 XMAX mic preamps and 16 balanced mix outputs, the StudioLive 32SX packs connectivity and power into an efficient use of space.
| Product Name | Presonus Studiolive 32SX 32-channel Digital Mixer Console & USB Audio Interface |
|---|---|
| Brand | Presonus |
| Condition | New |
| MPN | STUDIOLIVE32SX |
| UPC | 673454008146 |
| Shipping Option | Free Shipping to the Continental U.S. |
- Powered by the new dual-core PreSonus FLEX DSP Engine to provide the most processing of any digital mixer in its class
- 40 input-channel digital mixer with 25 touch-sensitive motorized faders
- 32 local digitally controlled XMAX mic/line inputs
- 2 balanced stereo aux inputs
- 1 stereo tape input (RCA, Bluetooth, USB, AVB or SD)
- 4 FLEX FX returns
- 1 Talkback
- 26 mix buses
- 16 FlexMixes (Aux, Subgroup, Matrix)
- 4 dedicated FLEX FX buses
- 4 dedicated subgroups
- Stereo Main bus
- 286 simultaneous processors
- HPF
- Gate / Expander
- Compressor with Fat Channel plug-in models
- 4-band/6-band parametric EQ with Fat Channel plug-in models
- Limiter
- 31-band Graphic EQ
- 4 FLEX FX slots featuring legendary classic reverb emulations and delays
- State Space-Modeled Fat Channel compressor and EQ plug-ins available on every input channel and output bus
- FLEX FX multi-effects processor with 4 slots to load legendary reverb emulations and delays with 4 dedicated effects buses
- 24 DCAs to control groups of channels
- 128-channel (64x64) recording over USB
- Onboard multi-channel SD recorder (34x34) with true Virtual Soundcheck mode
- AVB Networking onboard (64x64) to connect with other mixers, NSB-series stage boxes, EarMix 16M personal monitor mixers and more
- User Profiles for managing multiple operators with custom permissions
- Per channel digital patching from any analog, AVB, USB, or SD Card source
- DAW Control
- Advanced Studio One control integration
- MCU emulation mode optimized for Logic
- HUI emulation mode optimized for ProTools
- Remote control every mix function from your computer, iPad, or Android tablet with UC Surface (included)
- Put your musicians’ monitor mix under their fingers with QMix-UC (included) for iOS or Android
- Capture 3.0 multitrack software included
- Automated Virtual Soundcheck
- Store StudioLive mix scenes with your audio
- Advanced Studio One integration (Studio One Artist Included)
- XMAX mic preamp control from Studio One
- Control Fat Channel parameters from Studio One mixing console
Electronics |
|
|---|---|
| Voltage | 100-120V |
| Headphone Jack | 1/4" TRS Active Stereo |
Miscellaneous |
|
| Connection Type | IEC |
Microphone Preamp |
|
| Total Harmonic Distortion | <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted |
| Signal To Noise Ratio | 94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted) |
| Common Mode Rejection Ratio | 65 dB (1 kHz at Unity Gain) |
| Gain Control Range | 0 dB to 60 dB (±1 dB) |
| Microphone Preamp Maximum Input Level | =+12 dBu (Unity Gain) |
| Phantom Power | +48 VDC (±2 VDC) |
| Frequency Response | 20-20 kHz (±0.5 dBu at Unity Gain) |
| Microphone Preamp Input Impedance | 1 kΩ |
Line Inputs |
|
| Line Inputs Maximum Level | =+18 dBu |
| Line Inputs Frequency Response | 20-20 kHz (±0.5 dBu at Unity Gain) |
| Line Inputs Total Harmonic Distortion | <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted |
| Line Inputs Impedance | 10 kΩ |
Headphone Outputs |
|
| Headphone Outputs Maximum Output | 100 mW/ch. @ 60Ω load |
| Frequency Response | 20 Hz to 20 kHz, +/-0.5 dB |
| Total Harmonic Distortion | 0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted |
Digital Audio |
|
| Digital Audio Dynamic Range | ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz), DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz) |
| Digital Audio Bit Depth | 24 |
| Supported Sample Rates | 48 kHz, 44.1 kHz |
Presonus Studiolive 32SX 32-channel Digital Mixer Console & USB Audio Interface
Loaded with the processing power, studio-grade audio quality, and flexible routing options that made StudioLive mixers famous, the StudioLive 32SX is the perfect compact 32-channel digital mixing solution.
Powered by the dual-core PreSonus FLEX DSP Engine, the StudioLive 32SX digital mixer is equipped with 40 mixing channels, 26 mix buses, and 286 simultaneous processors—including 4 stereo reverberation systems, and Fat Channel plug-in models on every input and mix. The low profile of the StudioLive 32SX makes it an ideal solution for any mixing environment where desk real estate is at a premium.
The split-fader workflow lets you manage 32 input channels in two fader layers, while still providing access to your mix outputs on eight additional faders. With 32 XMAX mic preamps and 16 balanced mix outputs, the StudioLive 32SX packs connectivity and power into an efficient use of space.
| Product Name | Presonus Studiolive 32SX 32-channel Digital Mixer Console & USB Audio Interface |
|---|---|
| Brand | Presonus |
| Condition | New |
| MPN | STUDIOLIVE32SX |
| UPC | 673454008146 |
| Shipping Option | Free Shipping to the Continental U.S. |
- Powered by the new dual-core PreSonus FLEX DSP Engine to provide the most processing of any digital mixer in its class
- 40 input-channel digital mixer with 25 touch-sensitive motorized faders
- 32 local digitally controlled XMAX mic/line inputs
- 2 balanced stereo aux inputs
- 1 stereo tape input (RCA, Bluetooth, USB, AVB or SD)
- 4 FLEX FX returns
- 1 Talkback
- 26 mix buses
- 16 FlexMixes (Aux, Subgroup, Matrix)
- 4 dedicated FLEX FX buses
- 4 dedicated subgroups
- Stereo Main bus
- 286 simultaneous processors
- HPF
- Gate / Expander
- Compressor with Fat Channel plug-in models
- 4-band/6-band parametric EQ with Fat Channel plug-in models
- Limiter
- 31-band Graphic EQ
- 4 FLEX FX slots featuring legendary classic reverb emulations and delays
- State Space-Modeled Fat Channel compressor and EQ plug-ins available on every input channel and output bus
- FLEX FX multi-effects processor with 4 slots to load legendary reverb emulations and delays with 4 dedicated effects buses
- 24 DCAs to control groups of channels
- 128-channel (64x64) recording over USB
- Onboard multi-channel SD recorder (34x34) with true Virtual Soundcheck mode
- AVB Networking onboard (64x64) to connect with other mixers, NSB-series stage boxes, EarMix 16M personal monitor mixers and more
- User Profiles for managing multiple operators with custom permissions
- Per channel digital patching from any analog, AVB, USB, or SD Card source
- DAW Control
- Advanced Studio One control integration
- MCU emulation mode optimized for Logic
- HUI emulation mode optimized for ProTools
- Remote control every mix function from your computer, iPad, or Android tablet with UC Surface (included)
- Put your musicians’ monitor mix under their fingers with QMix-UC (included) for iOS or Android
- Capture 3.0 multitrack software included
- Automated Virtual Soundcheck
- Store StudioLive mix scenes with your audio
- Advanced Studio One integration (Studio One Artist Included)
- XMAX mic preamp control from Studio One
- Control Fat Channel parameters from Studio One mixing console
Electronics |
|
|---|---|
| Voltage | 100-120V |
| Headphone Jack | 1/4" TRS Active Stereo |
Miscellaneous |
|
| Connection Type | IEC |
Microphone Preamp |
|
| Total Harmonic Distortion | <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted |
| Signal To Noise Ratio | 94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted) |
| Common Mode Rejection Ratio | 65 dB (1 kHz at Unity Gain) |
| Gain Control Range | 0 dB to 60 dB (±1 dB) |
| Microphone Preamp Maximum Input Level | =+12 dBu (Unity Gain) |
| Phantom Power | +48 VDC (±2 VDC) |
| Frequency Response | 20-20 kHz (±0.5 dBu at Unity Gain) |
| Microphone Preamp Input Impedance | 1 kΩ |
Line Inputs |
|
| Line Inputs Maximum Level | =+18 dBu |
| Line Inputs Frequency Response | 20-20 kHz (±0.5 dBu at Unity Gain) |
| Line Inputs Total Harmonic Distortion | <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted |
| Line Inputs Impedance | 10 kΩ |
Headphone Outputs |
|
| Headphone Outputs Maximum Output | 100 mW/ch. @ 60Ω load |
| Frequency Response | 20 Hz to 20 kHz, +/-0.5 dB |
| Total Harmonic Distortion | 0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted |
Digital Audio |
|
| Digital Audio Dynamic Range | ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz), DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz) |
| Digital Audio Bit Depth | 24 |
| Supported Sample Rates | 48 kHz, 44.1 kHz |
