Designed to inspire and built to perform, StudioLive SE delivers pristine, ultra-low noise studio-quality sound to the stage in a full-sized one-to-one 32-channel frame. Dial in your mix with an arsenal of audio processors and effects, including meticulous digital models of coveted EQs, compressors, limiters, and reverb.
But live sound for touring, installations, and houses of worship demands more than pristine audio and powerful effects. With the StudioLive SE 32, you get access to capabilities beyond any solution in its class—like seamless multitrack recording, playback and streaming with integrated Studio One Pro and Capture software, remote access mix, console management, and one-click virtual soundcheck.
Expand your system and stay industry-ready—StudioLive SE connects effortlessly to networked StudioLive Stage Boxes and any Milan-compatible I/O, while its sleek design, intuitive layout, ergonomic feel, and high-contrast UI maximize comfort and streamline workflow during long sessions.
| Product Name | Presonus StudioLive Series III SE 32 Digital Console |
|---|---|
| Brand | Presonus |
| Condition | New |
| MPN | 2779200310 |
| UPC | 673454013126 |
| Shipping Option | Free Shipping on orders over $94.72 |
What's in the Box?
- Presonus StudioLive Series III SE 32 Digital Console
- IEC Power Cable
- Record every channel and mix with the onboard SD recorder or 64x64 USB audio interface
- One-click Virtual Soundcheck with Capture
- Seamless compatibility with Studio One Pro and leading DAWs
- Bluetooth input for easy break music playback or quick reference mixes
- 33 XMAX-Remote preamps for transparent analog tone and digital recall
- 32-bit floating-point DSP processing
- 115 dB A/D–D/A converters with ultra-low jitter clocking
- 16 FlexMixes configurable as auxes, subgroups, or matrix mixes
- AVB networking with StudioLive Stage Boxes and Milan-compatible gear
- Four dedicated effects buses, four subgroups, and 24 DCAs
- Dynamic Fat Channel design with 8 scribble strip displays for fast visual access and customization
- All 7 EQs and 8 Compressors from the Fat Channel Collection included
- Modeled after iconic hardware: Brit Comp, FC-670, Tube EQ, and more
- Extended reverb parameters: Diffusion, Predelay, Room Size, and advanced damping
- Control every aspect of your mix remotely—from routing to effects
- Provide technical support and reconfiguration remotely
- Use QMix®-UC for personal monitor mixing from mobile devices
- 33 touch-sensitive motorized faders deliver smooth automation and tactile mixing
- Ergonomic flat screen and redesigned fader caps for maximum visibility and comfort
Electronics |
|
|---|---|
| Headphone Jack | 1/4" TRS Active Stereo |
| Phantom Power | +48 VDC (±2 VDC) |
| Power Consumption | 85W (Continuous) |
| Voltage Requirements | 100–230 VAC, 50–60 Hz |
General |
|
| Color | Black |
| Product Name | StudioLive® Series III SE 32 Digital Console Mixer |
| Series | StudioLive® |
Hardware |
|
| Digital Audio AES EBU Output | XLR Male |
| Digital Audio AVB Audio Network Ports | Neutrik® etherCONN® |
| Digital Audio Bluetooth Input | 4.1, Stereo |
| Digital Audio Network Control Port | RJ-45 |
| Digital Audio USB Recording Port | USB 2.0, Type-B |
| Tape Connection Type | RCA Female, Unbalanced (Stereo Pair) |
Inputs |
|
| Line Input Connection Type | 1/4" TRS Female, Balanced |
| Line Inputs Frequency Response | 20–20 kHz (±0.5 dBu at Unity Gain) |
| Line Inputs Impedance | 10 kΩ |
| Line Inputs Maximum Level | =+18 dBu |
| Line Inputs Signal To Noise Ratio | 94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted) |
| Line Inputs Total Harmonic Distortion | <0.005%, +4 dBu, 20–20 kHz, Unity Gain, Unweighted |
| Microphone Input Connection Type | XLR Female, Balanced |
| Microphone Preamp Common Mode Rejection Ratio | 65 dB (1 kHz at Unity Gain) |
| Microphone Preamp Frequency Response | 20–20 kHz (±0.5 dBu at Unity Gain) |
| Microphone Preamp Gain Control Range | 0 dB to 60 dB (±1 dB) |
| Microphone Preamp Input Impedance | 1 kΩ |
| Microphone Preamp Maximum Input Level | =+12 dBu (Unity Gain) |
| Microphone Preamp Signal To Noise Ratio | 94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted) |
| Microphone Preamp Total Harmonic Distortion | <0.005%, +4 dBu, 20–20 kHz, Unity Gain, Unweighted |
| Tape Maximum Input Level | =+12 dBu, ±0.5 dBu |
Measurements |
|
| Media Storage Capacity | SD Card: 2 GB; SDHC Card: 32 GB |
| Product Depth | 22.97" (583.84 mm) |
| Product Height | 6.51" (165.36 mm) |
| Product Height/Length | 6.51" (165.36 mm) |
| Product Width | 32.37" (822.21 mm) |
| Refinement Weight | 26–50 |
Miscellaneous |
|
| Digital Audio Internal Processing | 32-Bit, Floating Point |
| Power Cable | IEC |
| Recommended Ambient Operating Temperature | 0˚ to 40˚C / 32˚ to 104˚F |
| Recording File Format | WAV |
| Supported Media Format | FAT16 Formatted SD™ Card, FAT32 Formatted SDHC™ Card |
| Supported Sample Rates | 48 kHz, 44.1 kHz |
Output |
|
| Headphone Outputs Frequency Response | 20 Hz to 20 kHz, ±0.5 dB |
| Headphone Outputs Maximum Output | 100 mW/ch @ 60Ω load |
| Headphone Outputs Signal To Noise Ratio | 96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted |
| Headphone Outputs Total Harmonic Distortion | 0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted |
| Line Outputs Connection Type | 1/4" TRS Female, Balanced |
| Line Outputs Maximum Output Level | +18 dBu, ±0.5 dBu |
| Line Outputs Output Impedance | 100 Ohms |
| Tape Maximum Output Level | =+18 dBu, ±0.5 dBu |
| Tape Output Impedance | 100 Ohms |
| XLR Outputs Maximum Output Level | +24 dBu, ±0.5 dBu |
| XLR Outputs Output Impedance | 100 Ohms |
Performance |
|
| Crosstalk (Adjacent Channels) | -87 dB (Ref = +4 dBu, 20 Hz–20 kHz, Unweighted) |
| Digital Audio Bit Depth | 24 |
| Digital Audio Dynamic Range | ADC: 115 dB (A-Weighted, 48 kHz), DAC: 115 dB (A-Weighted, 48 kHz) |
| Digital Audio Reference Level for 0 dBFS | +18 dBu |
| Digital Audio Total System Latency | 1.9 ms (local routing, analog in–analog out, all processing active) |
| SD Recorder Bit Depth | Recording: 24-Bit, Playback: 16 or 24-Bit |
| SD Recorder Sampling Rate | 44.1 or 48 kHz |

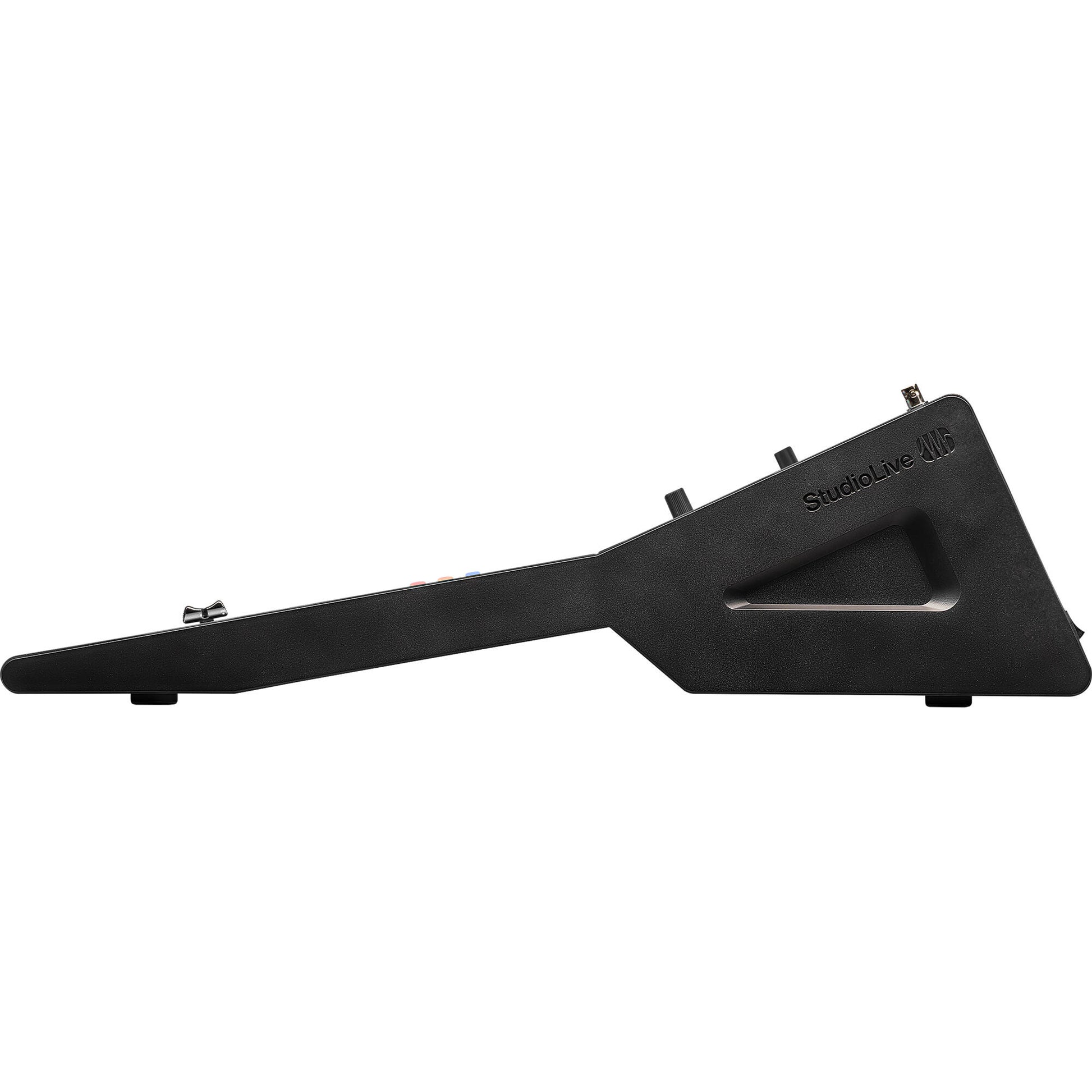

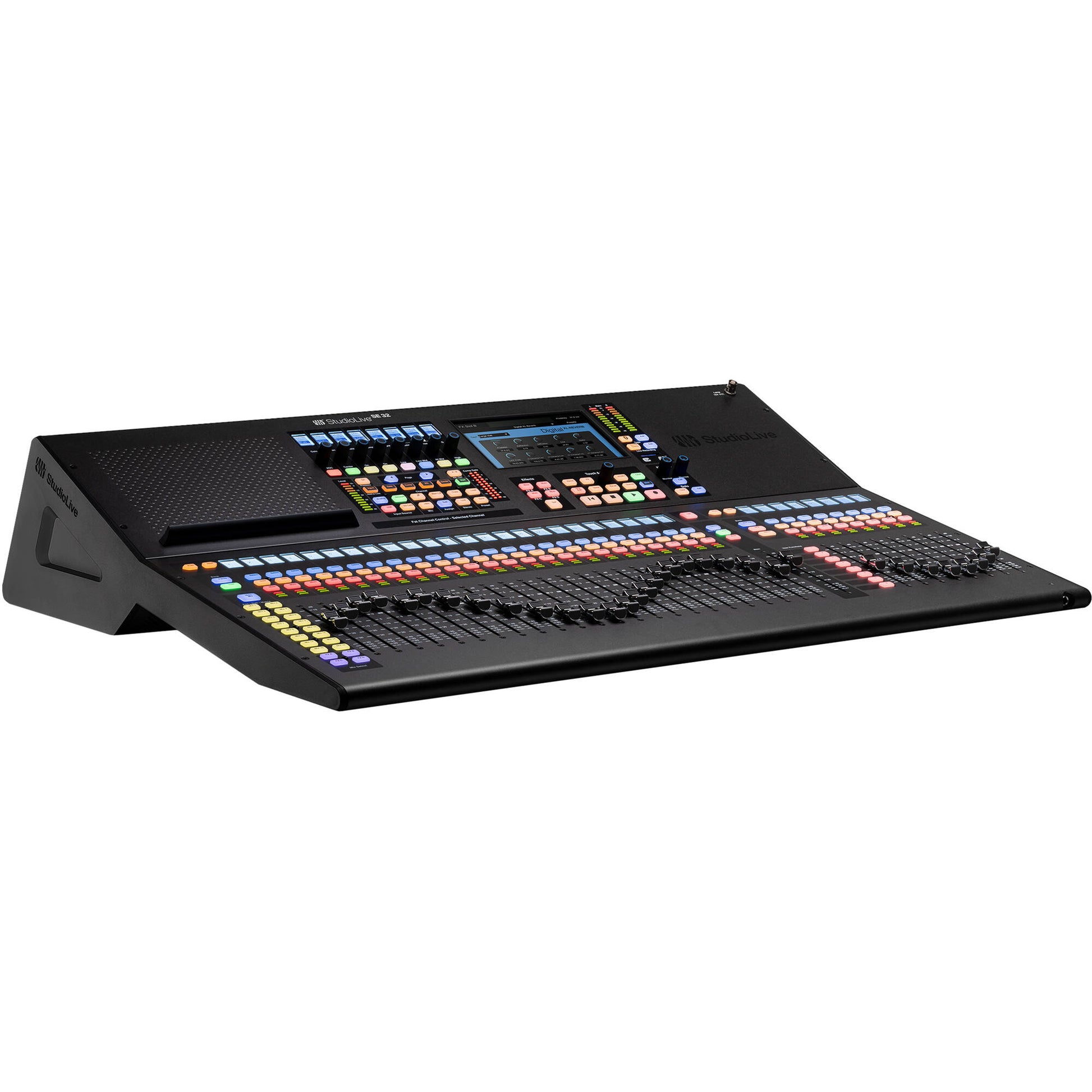

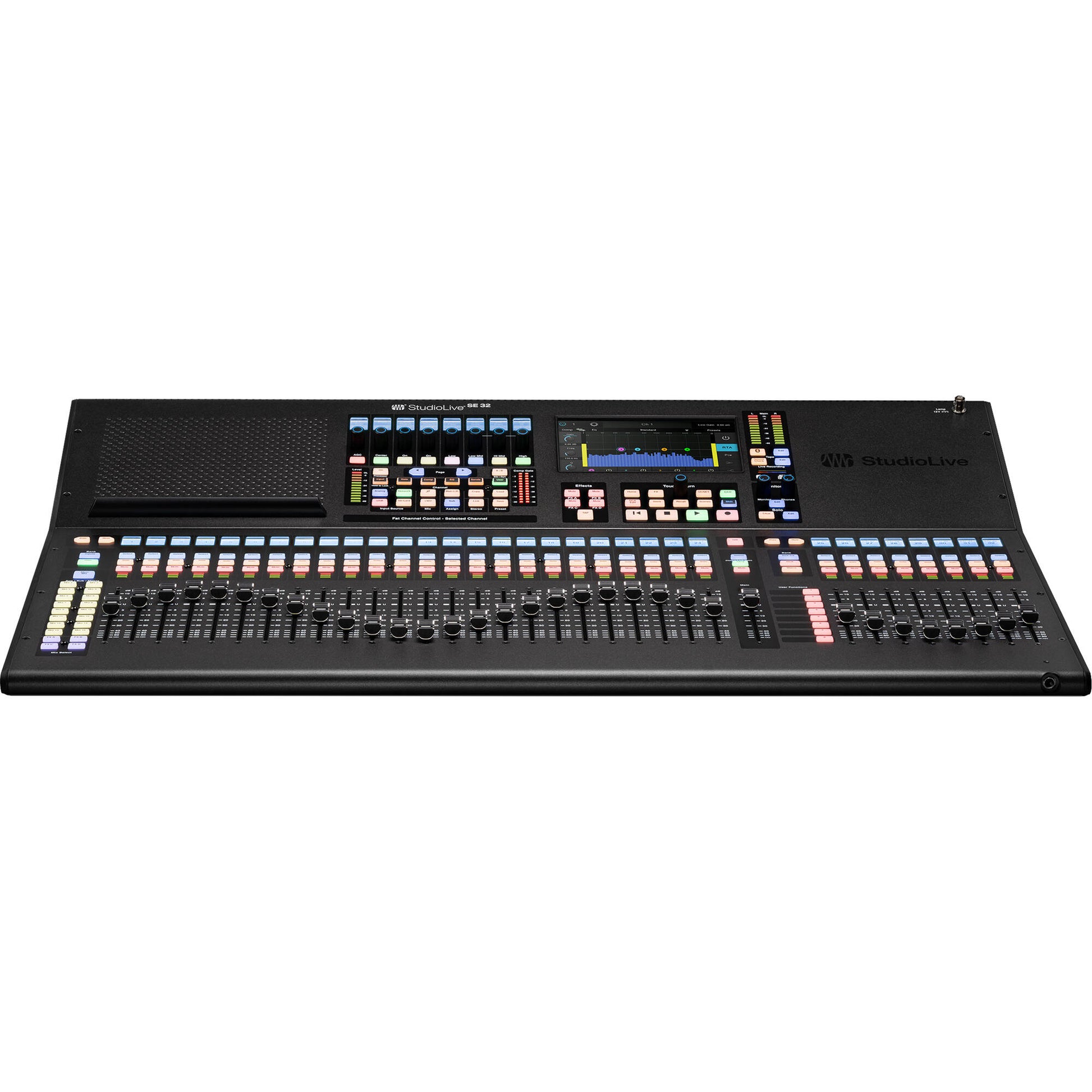

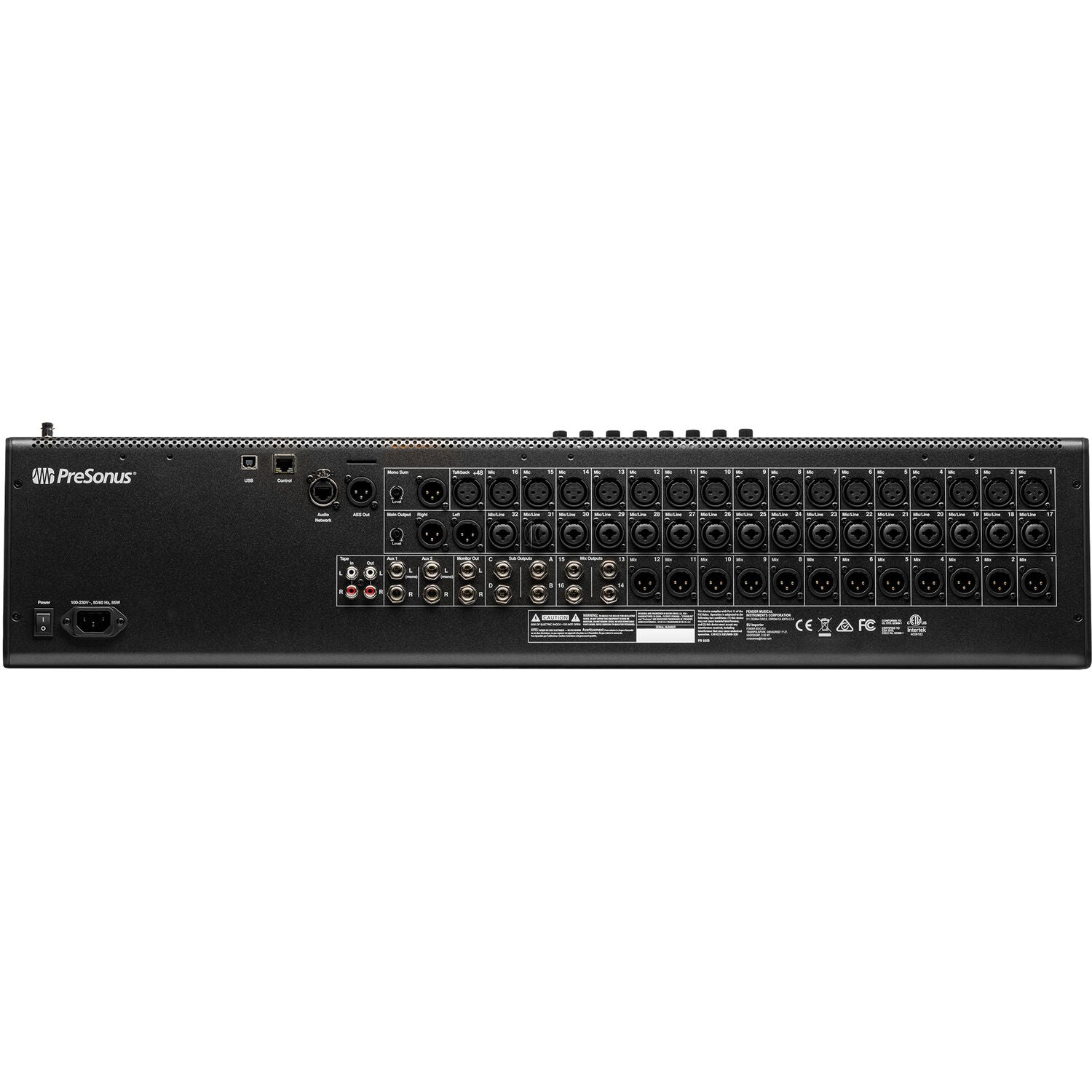

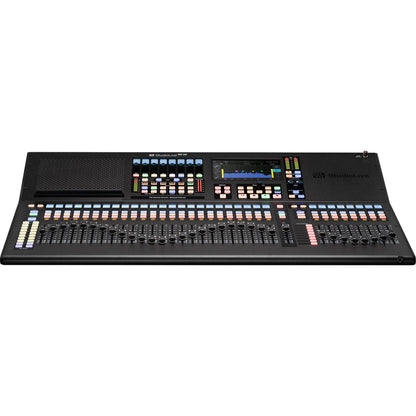

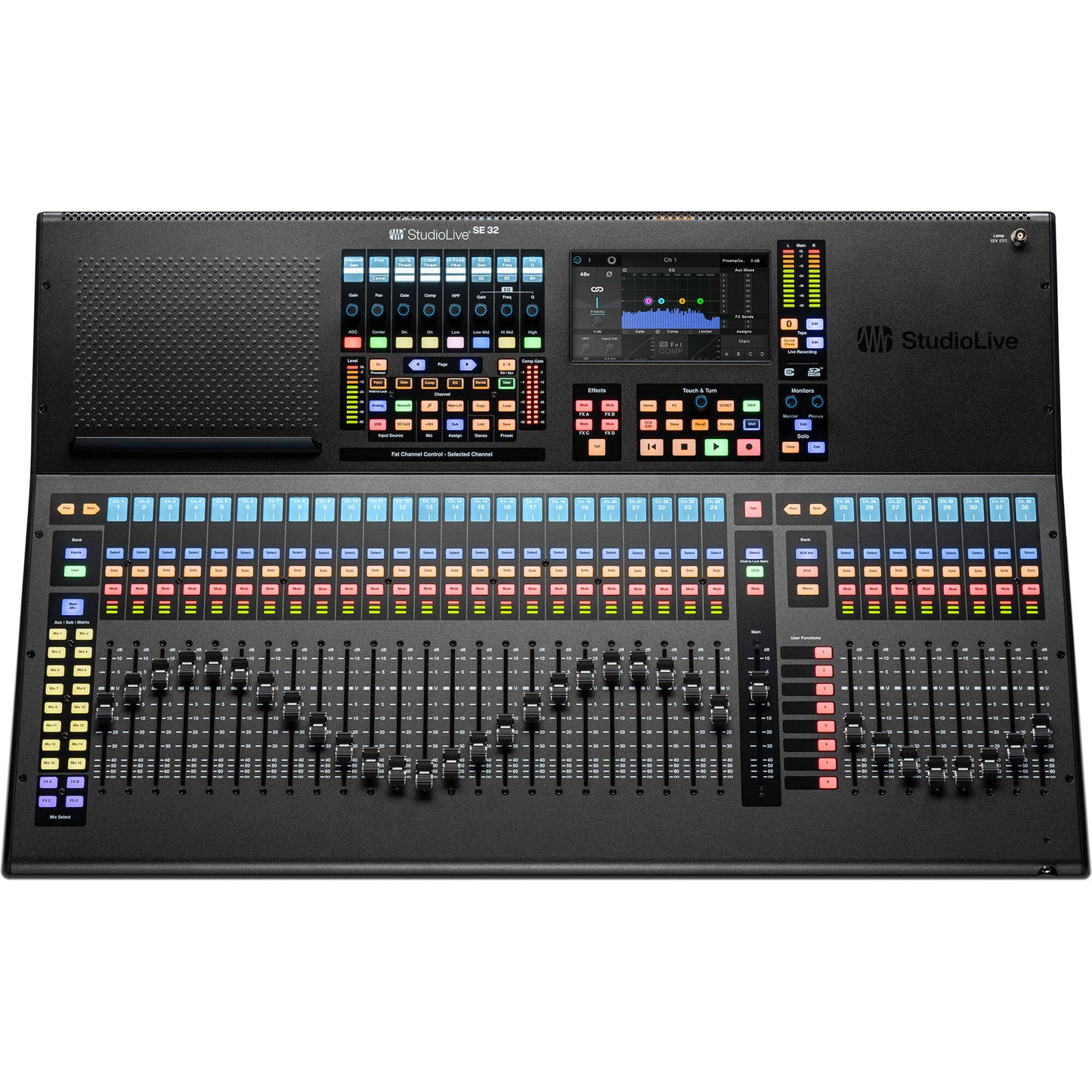

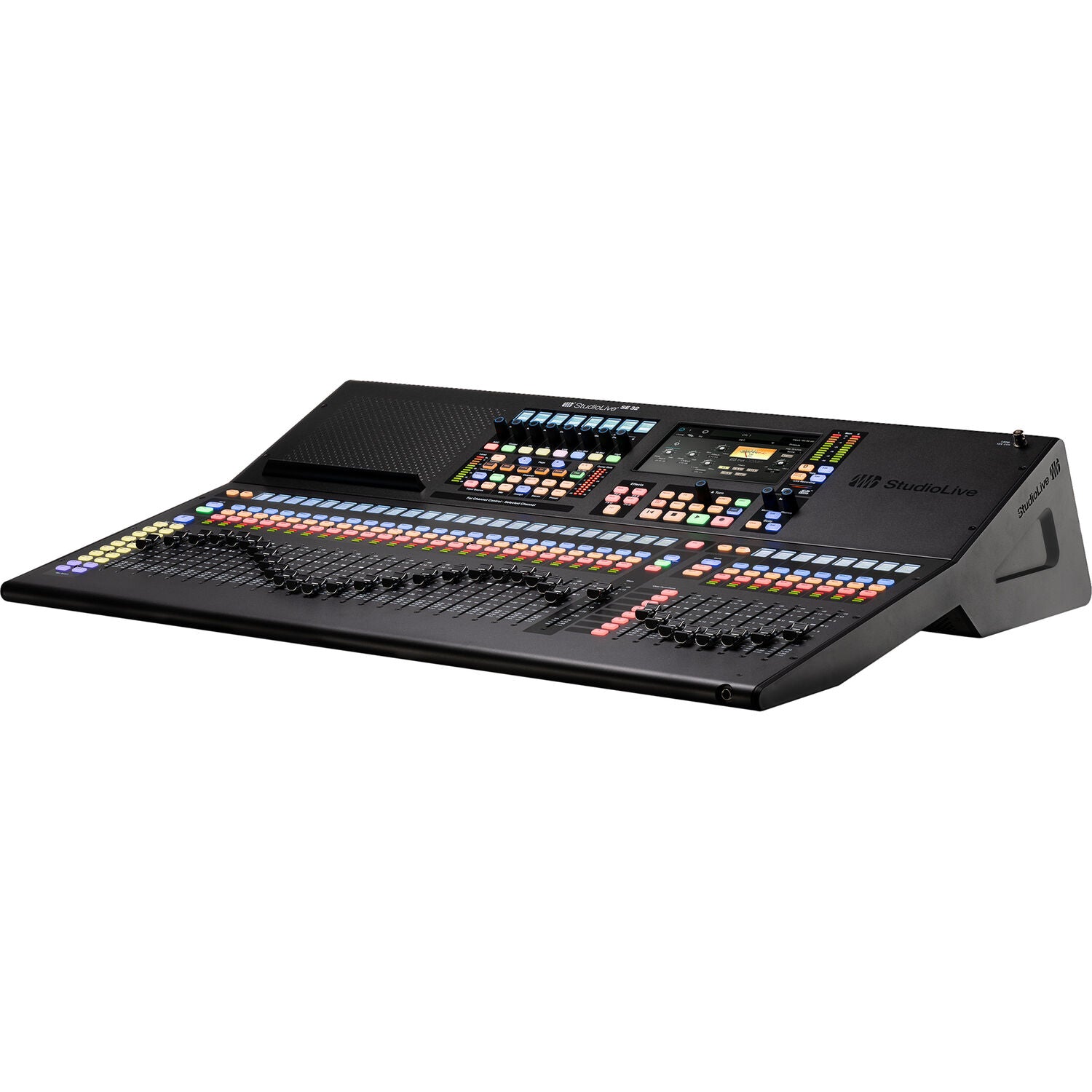

Presonus StudioLive Series III SE 32 Digital Console
Details
Designed to inspire and built to perform, StudioLive SE delivers pristine, ultra-low noise studio-quality sound to the stage in a full-sized one-to-one 32-channel frame. Dial in your mix with an arsenal of audio processors and effects, including meticulous digital models of coveted EQs, compressors, limiters, and reverb.
But live sound for touring, installations, and houses of worship demands more than pristine audio and powerful effects. With the StudioLive SE 32, you get access to capabilities beyond any solution in its class—like seamless multitrack recording, playback and streaming with integrated Studio One Pro and Capture software, remote access mix, console management, and one-click virtual soundcheck.
Expand your system and stay industry-ready—StudioLive SE connects effortlessly to networked StudioLive Stage Boxes and any Milan-compatible I/O, while its sleek design, intuitive layout, ergonomic feel, and high-contrast UI maximize comfort and streamline workflow during long sessions.
| Product Name | Presonus StudioLive Series III SE 32 Digital Console |
|---|---|
| Brand | Presonus |
| Condition | New |
| MPN | 2779200310 |
| UPC | 673454013126 |
| Shipping Option | Free Shipping on orders over $94.72 |
What's in the Box?
- Presonus StudioLive Series III SE 32 Digital Console
- IEC Power Cable
Features
- Record every channel and mix with the onboard SD recorder or 64x64 USB audio interface
- One-click Virtual Soundcheck with Capture
- Seamless compatibility with Studio One Pro and leading DAWs
- Bluetooth input for easy break music playback or quick reference mixes
- 33 XMAX-Remote preamps for transparent analog tone and digital recall
- 32-bit floating-point DSP processing
- 115 dB A/D–D/A converters with ultra-low jitter clocking
- 16 FlexMixes configurable as auxes, subgroups, or matrix mixes
- AVB networking with StudioLive Stage Boxes and Milan-compatible gear
- Four dedicated effects buses, four subgroups, and 24 DCAs
- Dynamic Fat Channel design with 8 scribble strip displays for fast visual access and customization
- All 7 EQs and 8 Compressors from the Fat Channel Collection included
- Modeled after iconic hardware: Brit Comp, FC-670, Tube EQ, and more
- Extended reverb parameters: Diffusion, Predelay, Room Size, and advanced damping
- Control every aspect of your mix remotely—from routing to effects
- Provide technical support and reconfiguration remotely
- Use QMix®-UC for personal monitor mixing from mobile devices
- 33 touch-sensitive motorized faders deliver smooth automation and tactile mixing
- Ergonomic flat screen and redesigned fader caps for maximum visibility and comfort
Tech Specs
Electronics |
|
|---|---|
| Headphone Jack | 1/4" TRS Active Stereo |
| Phantom Power | +48 VDC (±2 VDC) |
| Power Consumption | 85W (Continuous) |
| Voltage Requirements | 100–230 VAC, 50–60 Hz |
General |
|
| Color | Black |
| Product Name | StudioLive® Series III SE 32 Digital Console Mixer |
| Series | StudioLive® |
Hardware |
|
| Digital Audio AES EBU Output | XLR Male |
| Digital Audio AVB Audio Network Ports | Neutrik® etherCONN® |
| Digital Audio Bluetooth Input | 4.1, Stereo |
| Digital Audio Network Control Port | RJ-45 |
| Digital Audio USB Recording Port | USB 2.0, Type-B |
| Tape Connection Type | RCA Female, Unbalanced (Stereo Pair) |
Inputs |
|
| Line Input Connection Type | 1/4" TRS Female, Balanced |
| Line Inputs Frequency Response | 20–20 kHz (±0.5 dBu at Unity Gain) |
| Line Inputs Impedance | 10 kΩ |
| Line Inputs Maximum Level | =+18 dBu |
| Line Inputs Signal To Noise Ratio | 94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted) |
| Line Inputs Total Harmonic Distortion | <0.005%, +4 dBu, 20–20 kHz, Unity Gain, Unweighted |
| Microphone Input Connection Type | XLR Female, Balanced |
| Microphone Preamp Common Mode Rejection Ratio | 65 dB (1 kHz at Unity Gain) |
| Microphone Preamp Frequency Response | 20–20 kHz (±0.5 dBu at Unity Gain) |
| Microphone Preamp Gain Control Range | 0 dB to 60 dB (±1 dB) |
| Microphone Preamp Input Impedance | 1 kΩ |
| Microphone Preamp Maximum Input Level | =+12 dBu (Unity Gain) |
| Microphone Preamp Signal To Noise Ratio | 94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted) |
| Microphone Preamp Total Harmonic Distortion | <0.005%, +4 dBu, 20–20 kHz, Unity Gain, Unweighted |
| Tape Maximum Input Level | =+12 dBu, ±0.5 dBu |
Measurements |
|
| Media Storage Capacity | SD Card: 2 GB; SDHC Card: 32 GB |
| Product Depth | 22.97" (583.84 mm) |
| Product Height | 6.51" (165.36 mm) |
| Product Height/Length | 6.51" (165.36 mm) |
| Product Width | 32.37" (822.21 mm) |
| Refinement Weight | 26–50 |
Miscellaneous |
|
| Digital Audio Internal Processing | 32-Bit, Floating Point |
| Power Cable | IEC |
| Recommended Ambient Operating Temperature | 0˚ to 40˚C / 32˚ to 104˚F |
| Recording File Format | WAV |
| Supported Media Format | FAT16 Formatted SD™ Card, FAT32 Formatted SDHC™ Card |
| Supported Sample Rates | 48 kHz, 44.1 kHz |
Output |
|
| Headphone Outputs Frequency Response | 20 Hz to 20 kHz, ±0.5 dB |
| Headphone Outputs Maximum Output | 100 mW/ch @ 60Ω load |
| Headphone Outputs Signal To Noise Ratio | 96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted |
| Headphone Outputs Total Harmonic Distortion | 0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted |
| Line Outputs Connection Type | 1/4" TRS Female, Balanced |
| Line Outputs Maximum Output Level | +18 dBu, ±0.5 dBu |
| Line Outputs Output Impedance | 100 Ohms |
| Tape Maximum Output Level | =+18 dBu, ±0.5 dBu |
| Tape Output Impedance | 100 Ohms |
| XLR Outputs Maximum Output Level | +24 dBu, ±0.5 dBu |
| XLR Outputs Output Impedance | 100 Ohms |
Performance |
|
| Crosstalk (Adjacent Channels) | -87 dB (Ref = +4 dBu, 20 Hz–20 kHz, Unweighted) |
| Digital Audio Bit Depth | 24 |
| Digital Audio Dynamic Range | ADC: 115 dB (A-Weighted, 48 kHz), DAC: 115 dB (A-Weighted, 48 kHz) |
| Digital Audio Reference Level for 0 dBFS | +18 dBu |
| Digital Audio Total System Latency | 1.9 ms (local routing, analog in–analog out, all processing active) |
| SD Recorder Bit Depth | Recording: 24-Bit, Playback: 16 or 24-Bit |
| SD Recorder Sampling Rate | 44.1 or 48 kHz |
