The Primacoustic ThunderTile™ is a unique acoustic T-bar ceiling tile that combines the remarkable absorption characteristics of high density glass wool with the sound-blocking attributes of gypsum board. Once installed, ThunderTiles provide effective control of the reverberant field while eliminating bothersome primary reflections that make communication difficult.

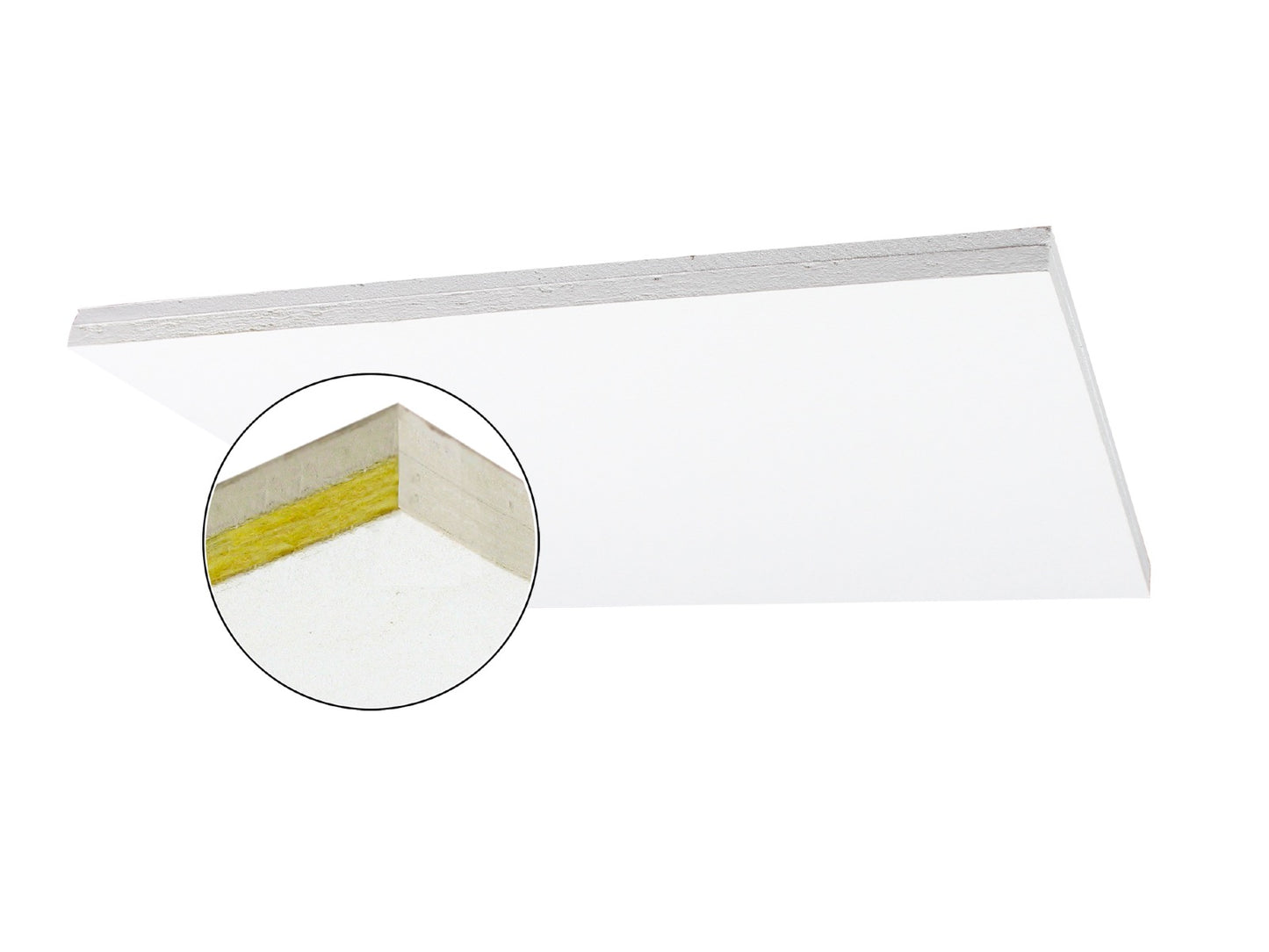

The design begins with a pure white finish on top of an acoustically transparent micromesh tissue that fully encapsulates the panel. This is bonded to a ¾” (20mm) layer of 6lb per cubic foot (96 kg/m³) high-density glass wool. Sound waves pass through the tissue into the wool causing the minute glass fibers to vibrate, absorbing sound energy. The acoustic panel is then laminated to a ½” (13mm) layer of heavy gypsum board. This adds the extra ‘sound-blocking’ mass that stops from sound traveling between adjacent rooms through the air space ‘plenum’ above the panels.

Designed to retrofit into existing T-Bar systems, ThunderTiles are available in both square 24″ x 24″ (60cm x 60cm) and rectangular 24″ x 48″ (60cm x 120cm) panel sizes. Choose between a space saving ‘trim’ edge treatment (in the 24 x 24 and 24 x 48 size panel) for flush-mounting, or the ‘reveal’ edge (in the 24 x 24 size panel) that drops down below the T-Bar to produce an architecturally sculpted appearance. Panels are finished in Absolute White™ for optimum reflectance and may also be painted to suit. Cutting out panels for light fixtures, ventilation and ceiling speakers follows the same cut and position process used with regular ceiling tiles. But unlike low-cost mineral wool tiles, ThunderTiles will not sag due to moisture. This makes them particularly well suited for use in regions with fluctuating temperatures and humidity levels.
