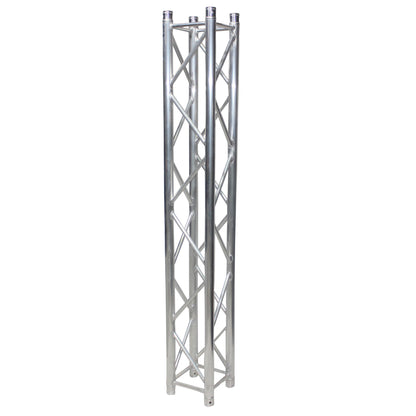

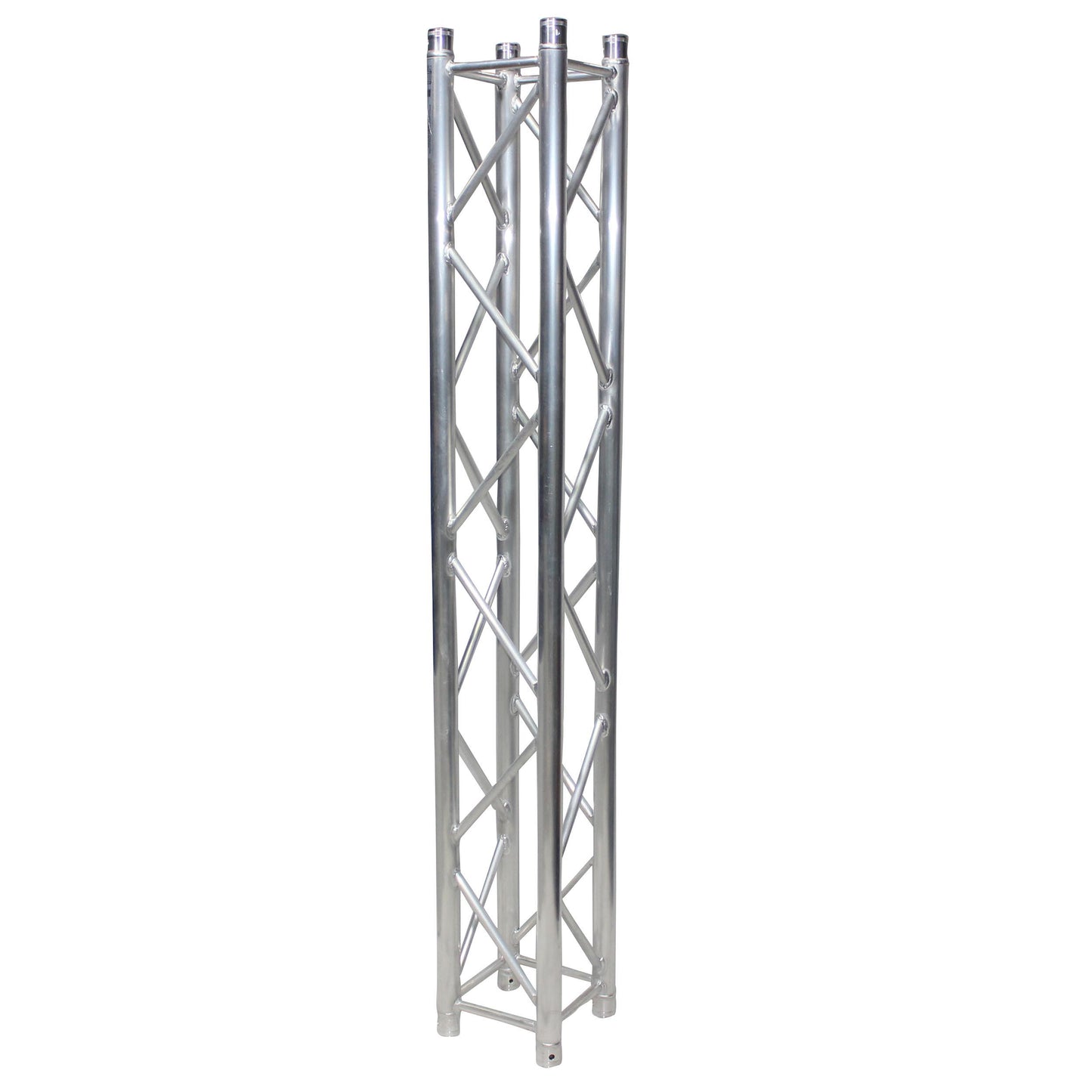

ProX XT-SQ656 6.56ft (2.00m) Square Truss Segment

ProX XT-SQ656 6.56ft (2.00m) Square Truss Segment

Limited quantities available!

View full details
  • Details
  • Tech Specs
  • Reviews

ProX Truss has the most trusted staging support systems in the industry, and is built to the highest standards of safety and performance. It's a rugged yet lightweight trussing solution perfect formobile DJs, bands, outdoor performances, nightclubs, live mobile productions, or permanent installations.

At the heart of the system is square truss that utilize a standard conical connector system, which easily mates with other brands of truss of the same size and connector style, and is available in a variety of lengths to suit your designs. It also works with different types of corners, base plates, connectors and accessories that add stability while expanding on limitless configurations.

  • Tolerance Free Standard Conical connector
  • Main tube wall thickness of .08in / 2mm
  • Constructed to the highest safety ratings by certified welders
More Information
Product Name ProX XT-SQ656 6.56ft (2.00m) Square Truss Segment
Brand ProX
Condition New
MPN XT-SQ656
UPC 741459147327
Shipping Option Free Shipping to the Continental U.S.

XT-SQ SERIES DIMENSIONS
Height: 11.42in / 290mm
Width: 11.42in / 290mm
Weight: ~5.0 lbs/ft / ~7.0/m
Main Tube: 2in / 50mm
Braces: .75in / 20mm
Material: EN-AWT6 6082 Aluminum

Actual Height:  6.56 ft (2 Meter) Square Truss Segment
Actual Weight: 31 lbs.
Outside: 290mm - 11 7/16"
Tubing: 2"
Bracing: 3/4"
Includes connecting hardware set.

ProX XT-SQ656 6.56ft (2.00m) Square Truss Segment

Details

ProX Truss has the most trusted staging support systems in the industry, and is built to the highest standards of safety and performance. It's a rugged yet lightweight trussing solution perfect formobile DJs, bands, outdoor performances, nightclubs, live mobile productions, or permanent installations.

At the heart of the system is square truss that utilize a standard conical connector system, which easily mates with other brands of truss of the same size and connector style, and is available in a variety of lengths to suit your designs. It also works with different types of corners, base plates, connectors and accessories that add stability while expanding on limitless configurations.

  • Tolerance Free Standard Conical connector
  • Main tube wall thickness of .08in / 2mm
  • Constructed to the highest safety ratings by certified welders
More Information
Product Name ProX XT-SQ656 6.56ft (2.00m) Square Truss Segment
Brand ProX
Condition New
MPN XT-SQ656
UPC 741459147327
Shipping Option Free Shipping to the Continental U.S.
Tech Specs

XT-SQ SERIES DIMENSIONS
Height: 11.42in / 290mm
Width: 11.42in / 290mm
Weight: ~5.0 lbs/ft / ~7.0/m
Main Tube: 2in / 50mm
Braces: .75in / 20mm
Material: EN-AWT6 6082 Aluminum

Actual Height:  6.56 ft (2 Meter) Square Truss Segment
Actual Weight: 31 lbs.
Outside: 290mm - 11 7/16"
Tubing: 2"
Bracing: 3/4"
Includes connecting hardware set.
