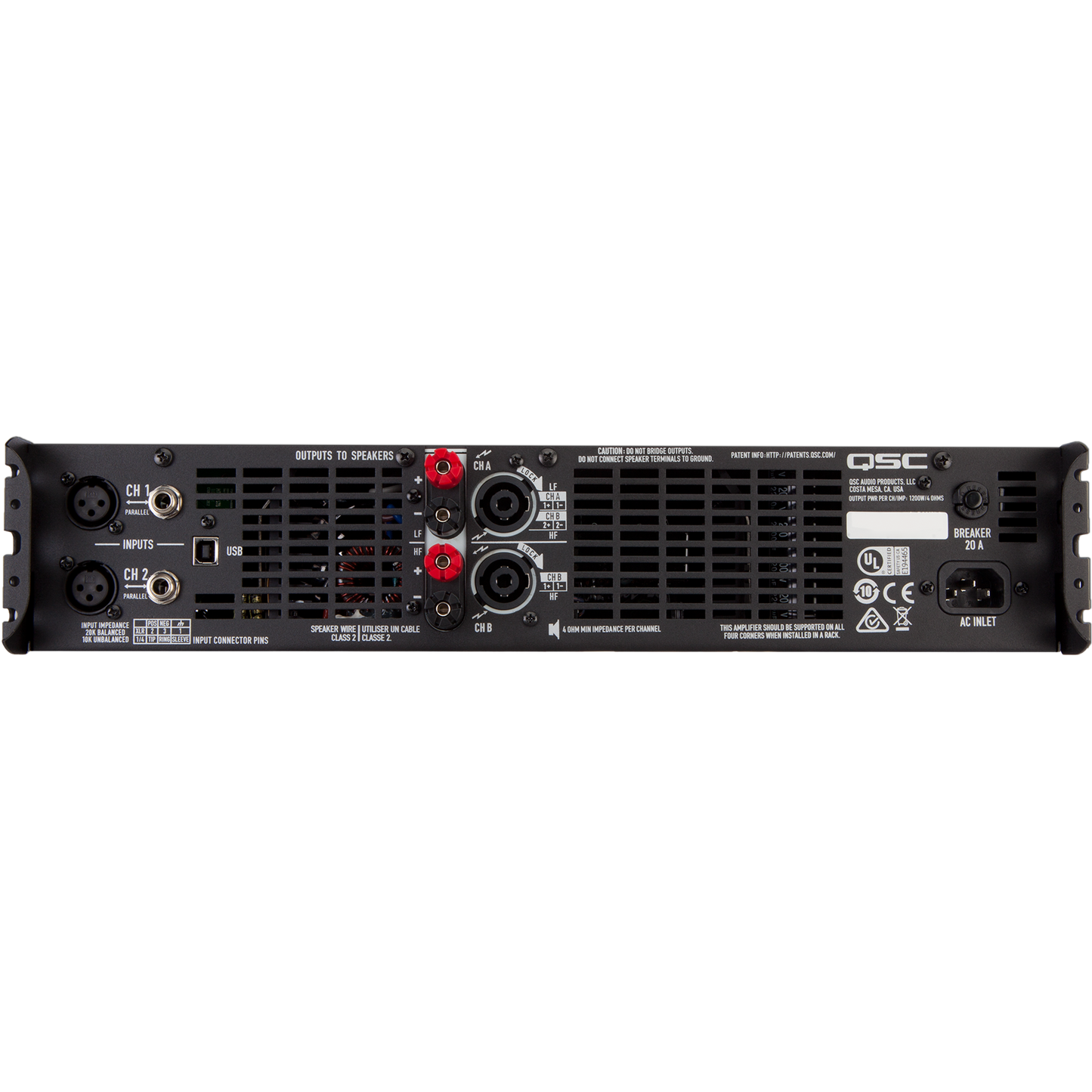

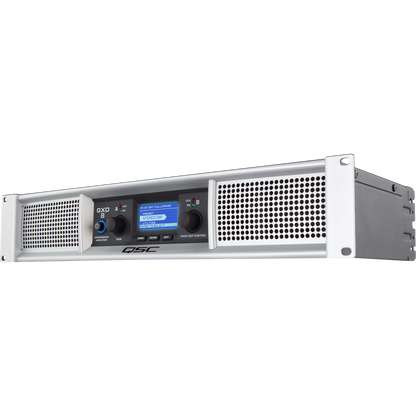

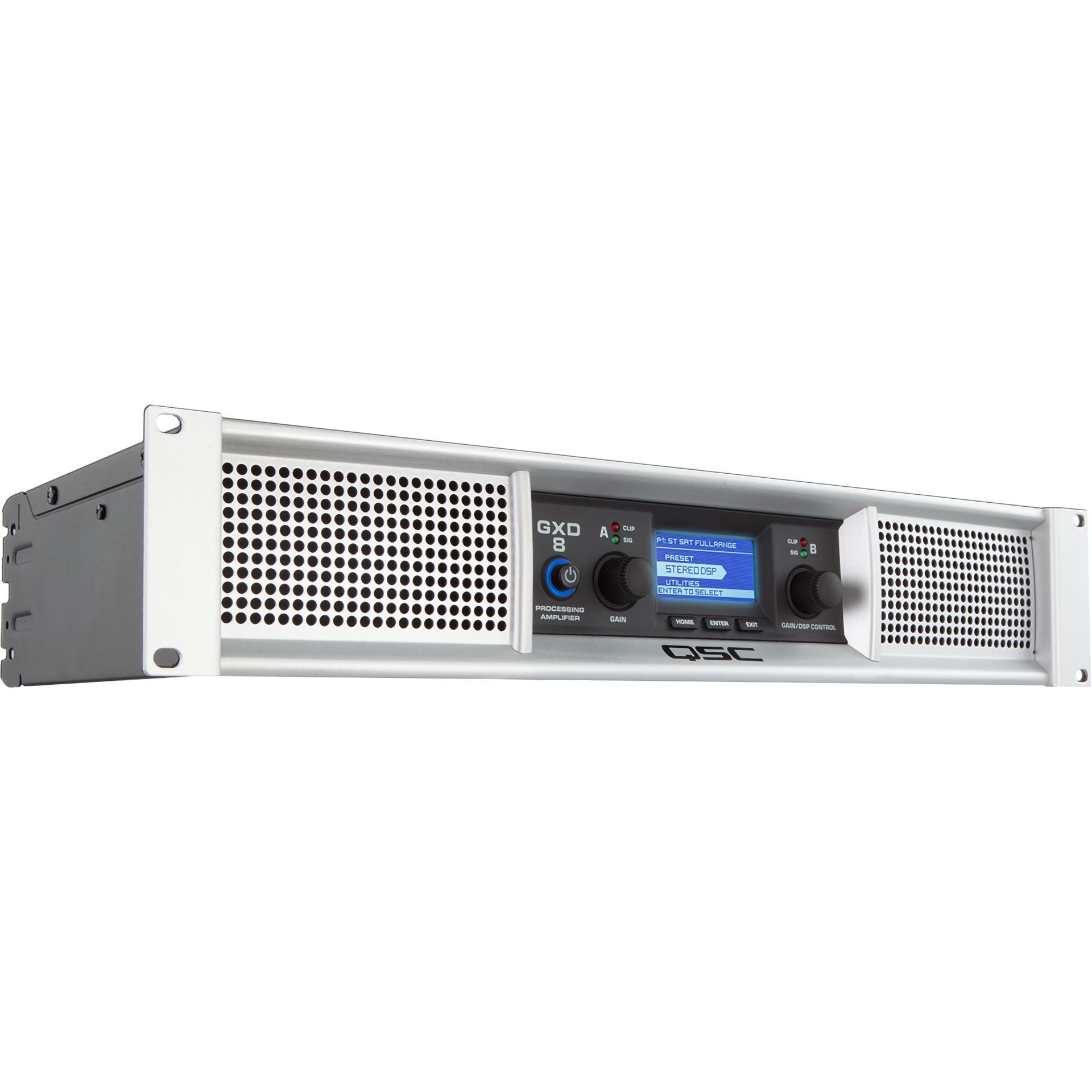

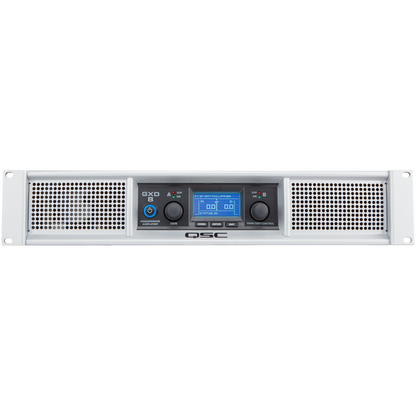

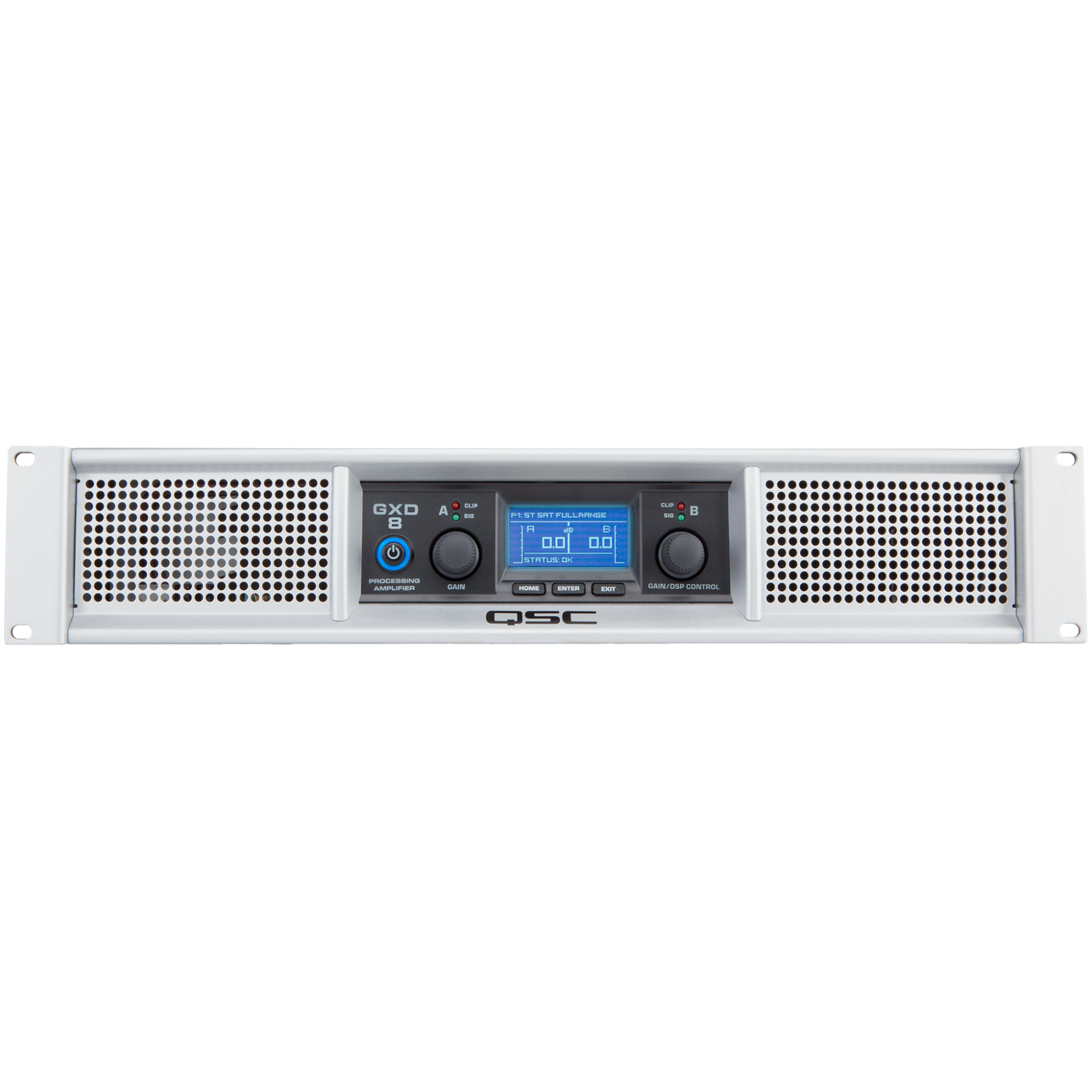

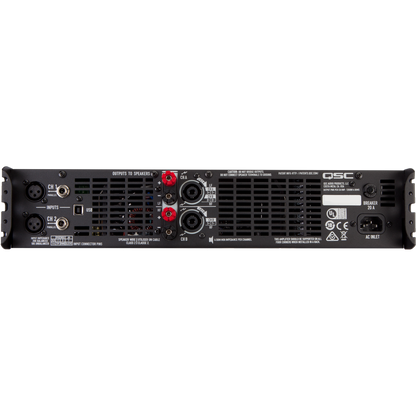

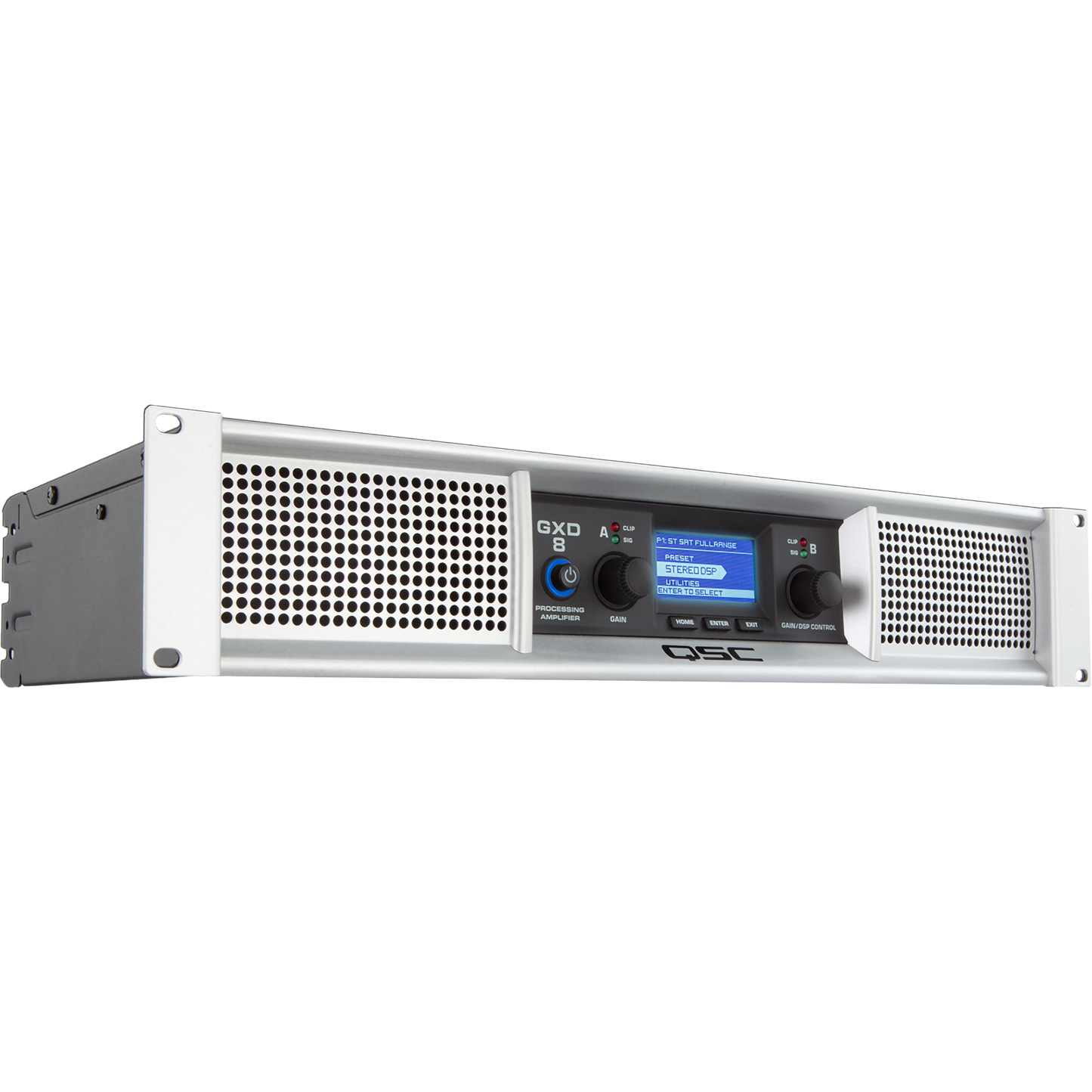

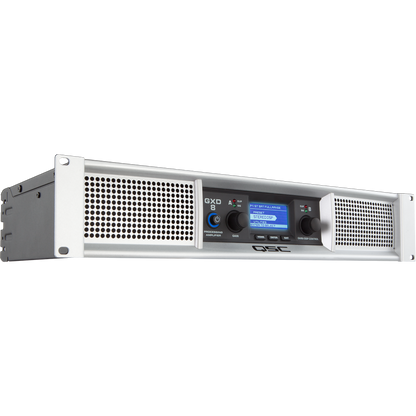

The GXD Series amplifiers are engineered to meet any demanding application and provide excellent power and legendary QSC reliability, in an efficient, lightweight, and flexible package; bottom line, the GXD amplifiers provide outstanding value
Features:
- Power levels matched to the most popular loudspeakers and optimized for the maximum real-world headroom into 4Ohm and 8Ohm loudspeakers
- Class-D output power with a universal switch mode power supply for high performance and efficiency, as well as light weight
- Extensive and powerful loudspeaker processing to maximize loudspeaker performance that includes, Crossover and Parametric EQ filters, Delay, and Power Limiting
- Parallel XLR and 1/4" TRS input connectors for compatibility with any source while providing convenient loop-thru capability
- Professional NL4 and Binding Post output connectors provide mono and bi-amp speaker connectivity

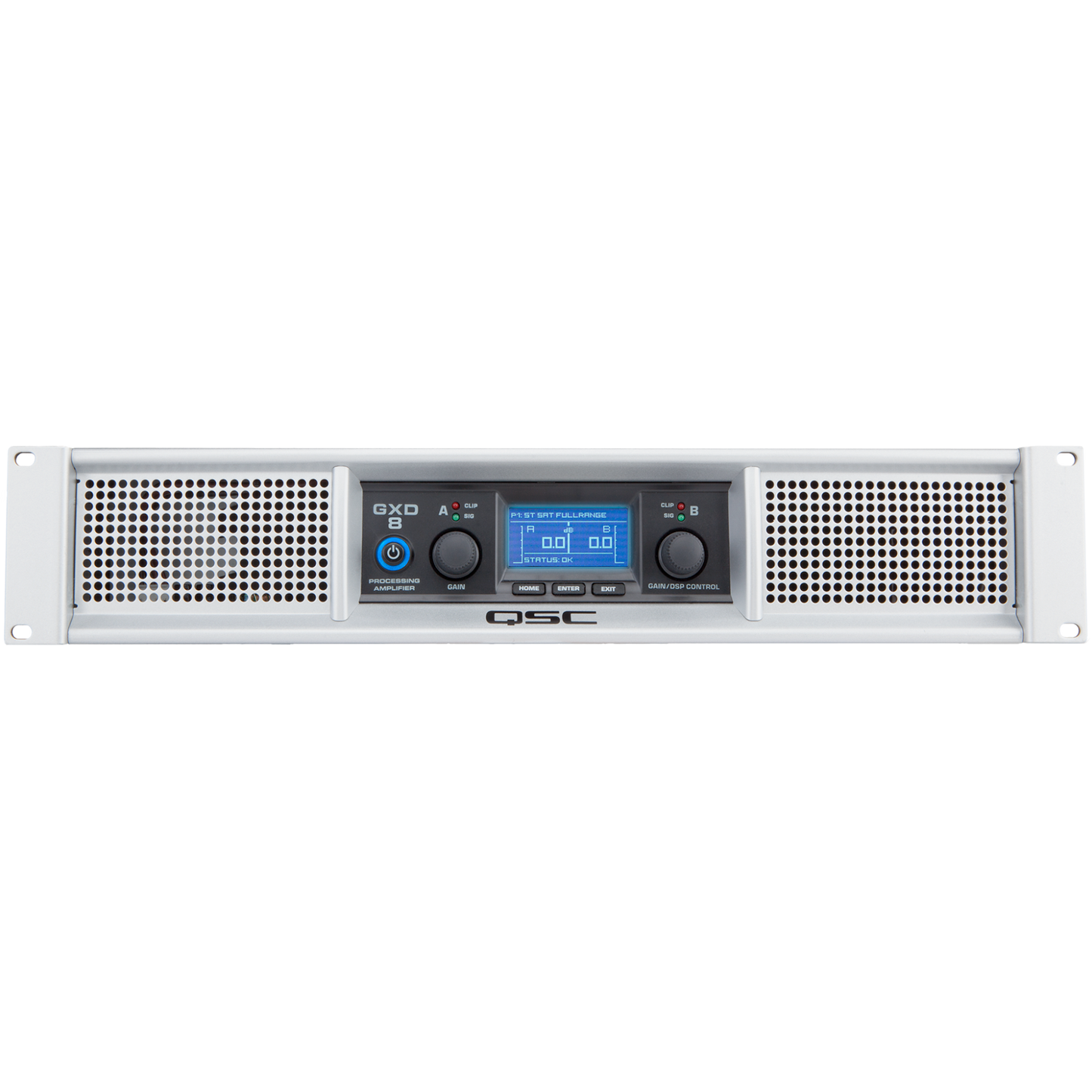

- Detented encoders for precise gain and DSP parameter control
- Front panel LEDs monitor, Power, Signal and Clipping
- Large 256 x 128 LCD display with dual rotary encoders for fast simple set-up and on-screen monitoring of the amplifiers' output levels
- Flexibility to create, store and recall up to 20 user presets for any application
| Product Name | QSC GXD8 Class D Power Amplifier with DSP |
|---|---|
| Brand | QSC |
| Condition | New |
| MPN | GXD8 |
| UPC | 684284064967 |
| Shipping Option | Free Shipping to the Continental U.S. |
| Power Rating |
Stereo mode (both channels driven): 8 Ω FTC 20 to 20,000 Hz at 0.1% THD: 185 W 8 Ω EIA 1,000 Hz at 0.1% THD: 200 W 4 Ω FTC 20 to 20,000 Hz at 0.1% THD: 280 W 4 Ω EIA 1,000 Hz at 0.1% THD: 300 W 2 Ω EIA 1,000 Hz at 0.1% THD: 430 W Bridge-mono mode 8 Ω FTC 20 to 20,000 Hz at 0.1% THD: 530 W Bridge-mono mode 8 Ω EIA 1,000 Hz at 0.1% THD: 600 W Bridge-mono mode 4 Ω EIA 1,000 Hz at 0.1% THD: 830 W |
| Signal-to-Noise Ratio | > -100 dB |
| Distortion |
SMPTE-IM: < 0.01% For 8 and 4 Ω load THD for 20 to 20,000 Hz at 10 dB below rated power: less than 0.03% THD for 1,000 Hz at full rated power: less than 0.03% |
| Input Sensitivity | 1.15 V (+3.4 dBU) at 8 Ω |
| Voltage Gain | 31.6x (30 dB) |
| Circuit Type | Class AB |
| Power Consumption | 4.5 A |
| 1/8 Power Pink Noise at 4 Ω | 6.6 A |
| Damping Factor | > 300 at 8Ω |
| Input Impedance |
10 kΩ balanced 20 kΩ unbalanced |
| Frequency Response |
20 to 20,000 Hz +0/-1 dB -3 dB points 5 Hz to 50,000 Hz (LF filter bypassed/8 Ω) |

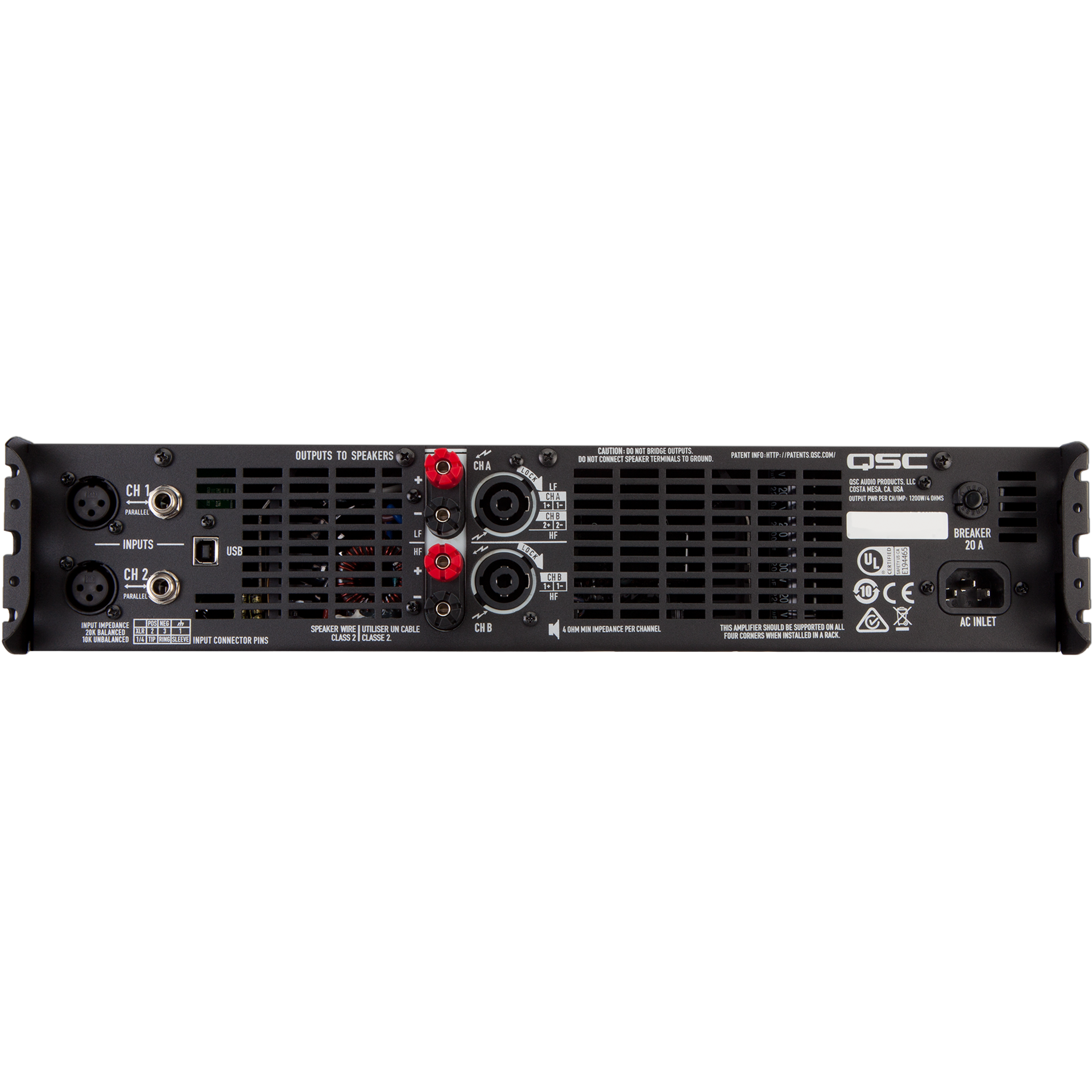

| Input Connections |
Active balanced 3-pin Euro-style detachable terminal block 2 x 3-pin XLR 2 x 1/4" TRS |
| Cooling | Continuously variable speed fan, back-to-front airflow |
| Output Connectors |
Touch-proof binding posts 2 x Neutrik Speakon |
| Controls Front Panel |
C switch Channel 1 gain knob Channel 2 gain knob |
| Controls Rear Panel | 10-position DIP switch |
| Indicators |
Power-on: green LED Signal: yellow LED (1 per channel) Clip: red LED (1 per channel) Protect: red LED (1 per channel) |
| Power Requirements | 100, 120, 230 VAC at 50 to 60 Hz (factory configured) |
| Amplifier |
Full short circuit, open circuit, thermal, ultrasonic, RF protection. Stable into reactive or mismatched loads |
| Load | Turn-on/off muting/AC coupling (850, 1450)/ Triac Crowbar (1050HD, 2450, 4050HD, 5050) on each channel |
| Rack Spaces | 2 |
| Plug Type |
100/120V: NEMA 5-15 230V: CEE7/7 |
| Dimensions (H x W x D) | 3.5 x 19.0 x 15.9" (89.0 x 482 x 404 mm) |
| Weight | 35.0 lb (15.9 kg) |

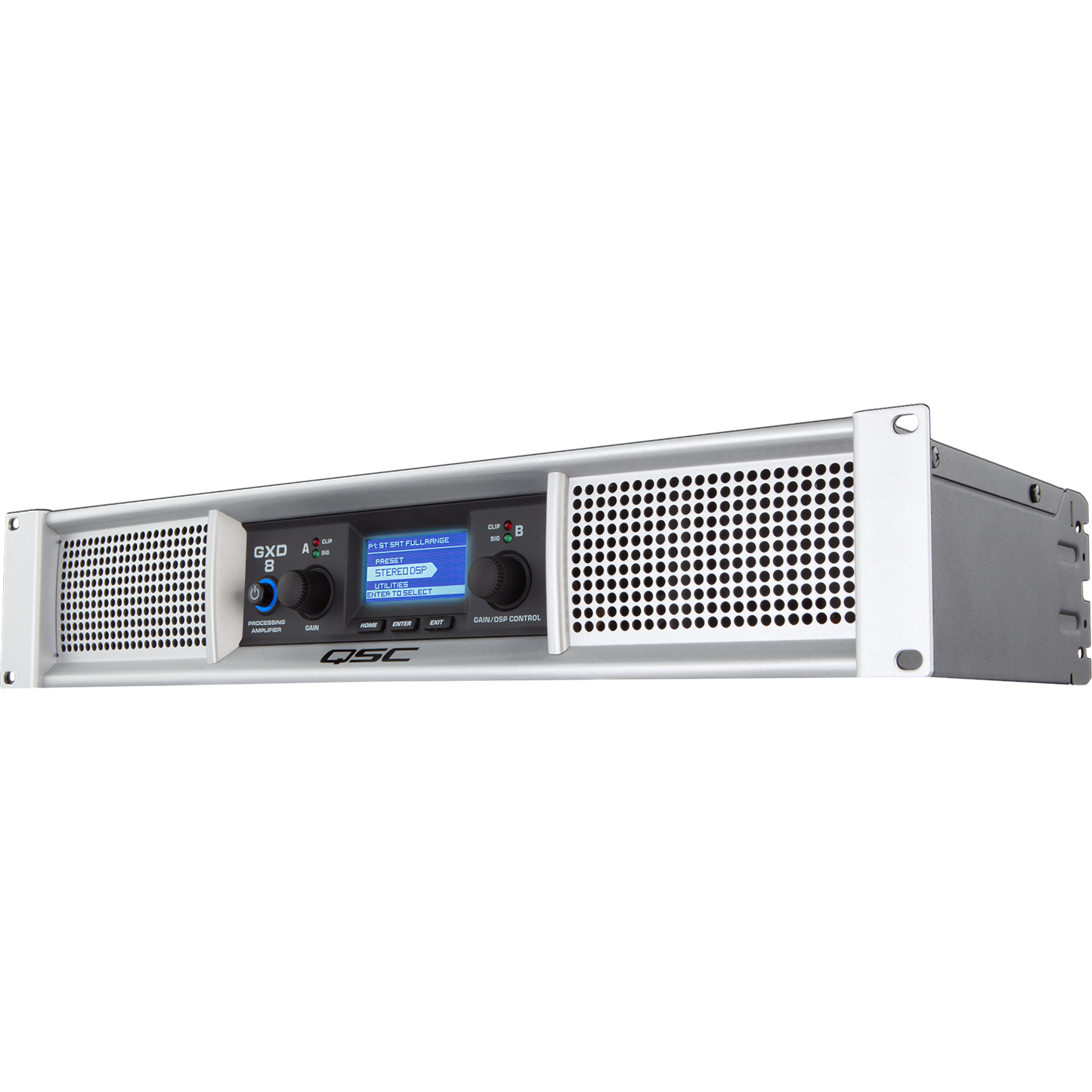

QSC GXD8 Class D Power Amplifier with DSP
Details
The GXD Series amplifiers are engineered to meet any demanding application and provide excellent power and legendary QSC reliability, in an efficient, lightweight, and flexible package; bottom line, the GXD amplifiers provide outstanding value
Features:
- Power levels matched to the most popular loudspeakers and optimized for the maximum real-world headroom into 4Ohm and 8Ohm loudspeakers
- Class-D output power with a universal switch mode power supply for high performance and efficiency, as well as light weight
- Extensive and powerful loudspeaker processing to maximize loudspeaker performance that includes, Crossover and Parametric EQ filters, Delay, and Power Limiting
- Parallel XLR and 1/4" TRS input connectors for compatibility with any source while providing convenient loop-thru capability
- Professional NL4 and Binding Post output connectors provide mono and bi-amp speaker connectivity
- Detented encoders for precise gain and DSP parameter control
- Front panel LEDs monitor, Power, Signal and Clipping
- Large 256 x 128 LCD display with dual rotary encoders for fast simple set-up and on-screen monitoring of the amplifiers' output levels
- Flexibility to create, store and recall up to 20 user presets for any application
| Product Name | QSC GXD8 Class D Power Amplifier with DSP |
|---|---|
| Brand | QSC |
| Condition | New |
| MPN | GXD8 |
| UPC | 684284064967 |
| Shipping Option | Free Shipping to the Continental U.S. |
Tech Specs
| Power Rating |
Stereo mode (both channels driven): 8 Ω FTC 20 to 20,000 Hz at 0.1% THD: 185 W 8 Ω EIA 1,000 Hz at 0.1% THD: 200 W 4 Ω FTC 20 to 20,000 Hz at 0.1% THD: 280 W 4 Ω EIA 1,000 Hz at 0.1% THD: 300 W 2 Ω EIA 1,000 Hz at 0.1% THD: 430 W Bridge-mono mode 8 Ω FTC 20 to 20,000 Hz at 0.1% THD: 530 W Bridge-mono mode 8 Ω EIA 1,000 Hz at 0.1% THD: 600 W Bridge-mono mode 4 Ω EIA 1,000 Hz at 0.1% THD: 830 W |
| Signal-to-Noise Ratio | > -100 dB |
| Distortion |
SMPTE-IM: < 0.01% For 8 and 4 Ω load THD for 20 to 20,000 Hz at 10 dB below rated power: less than 0.03% THD for 1,000 Hz at full rated power: less than 0.03% |
| Input Sensitivity | 1.15 V (+3.4 dBU) at 8 Ω |
| Voltage Gain | 31.6x (30 dB) |
| Circuit Type | Class AB |
| Power Consumption | 4.5 A |
| 1/8 Power Pink Noise at 4 Ω | 6.6 A |
| Damping Factor | > 300 at 8Ω |
| Input Impedance |
10 kΩ balanced 20 kΩ unbalanced |
| Frequency Response |
20 to 20,000 Hz +0/-1 dB -3 dB points 5 Hz to 50,000 Hz (LF filter bypassed/8 Ω) |
| Input Connections |
Active balanced 3-pin Euro-style detachable terminal block 2 x 3-pin XLR 2 x 1/4" TRS |
| Cooling | Continuously variable speed fan, back-to-front airflow |
| Output Connectors |
Touch-proof binding posts 2 x Neutrik Speakon |
| Controls Front Panel |
C switch Channel 1 gain knob Channel 2 gain knob |
| Controls Rear Panel | 10-position DIP switch |
| Indicators |
Power-on: green LED Signal: yellow LED (1 per channel) Clip: red LED (1 per channel) Protect: red LED (1 per channel) |
| Power Requirements | 100, 120, 230 VAC at 50 to 60 Hz (factory configured) |
| Amplifier |
Full short circuit, open circuit, thermal, ultrasonic, RF protection. Stable into reactive or mismatched loads |
| Load | Turn-on/off muting/AC coupling (850, 1450)/ Triac Crowbar (1050HD, 2450, 4050HD, 5050) on each channel |
| Rack Spaces | 2 |
| Plug Type |
100/120V: NEMA 5-15 230V: CEE7/7 |
| Dimensions (H x W x D) | 3.5 x 19.0 x 15.9" (89.0 x 482 x 404 mm) |
| Weight | 35.0 lb (15.9 kg) |
