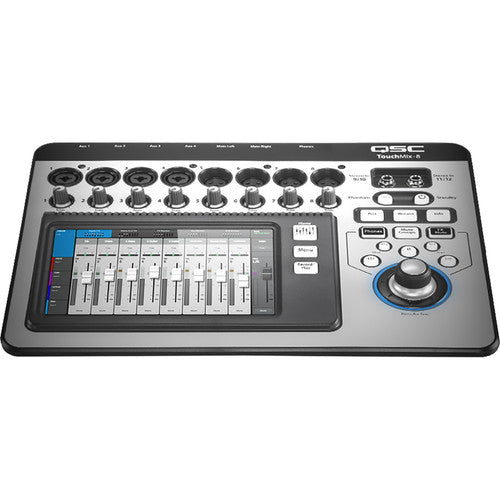

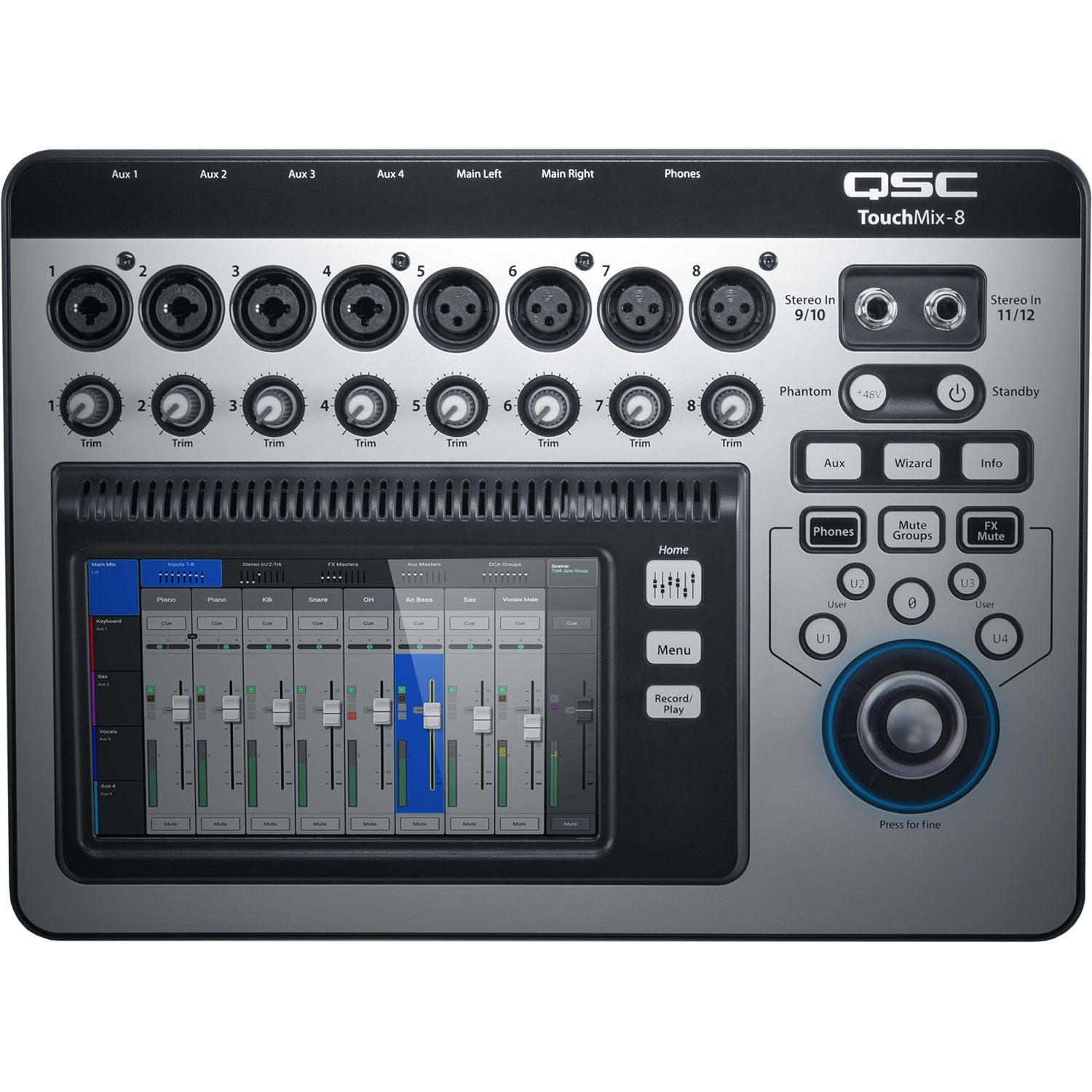

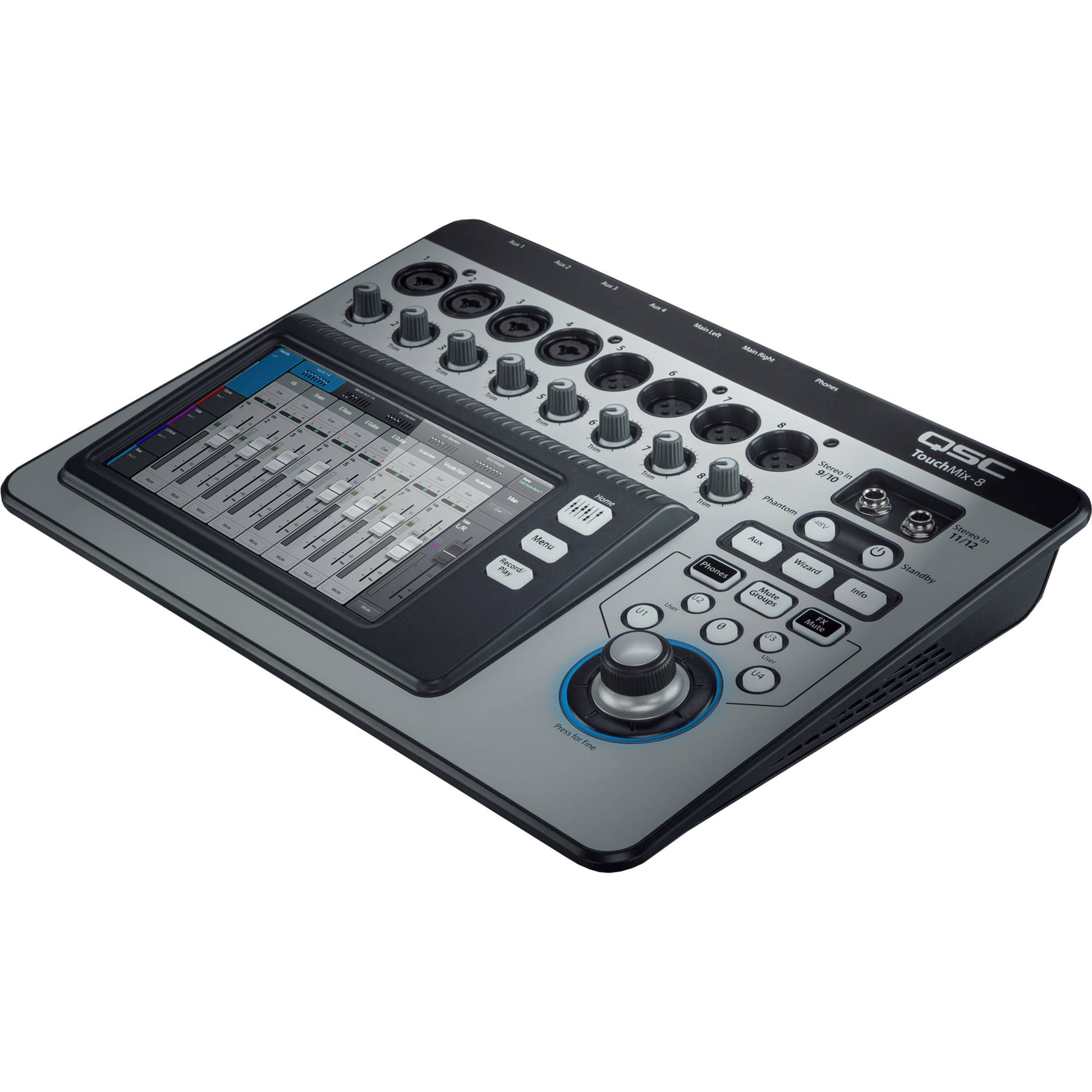

QSC TouchMix 8 12-channel Compact Digital Mixer

QSC TouchMix 8 12-channel Compact Digital Mixer

$1,149.99
$1,149.99
Sale Sold out

+ Free Shipping

Blink Image Blink Image

Limited quantities available!

The QSC TouchMix-8 is a revolutionary mixer perfect for musicians, production specialists and even live performances that offers all the capabilities of a large mixing console in a compact and easy to use package. The TouchMix line offers an amazing range of functionality, enough to satisfy even the most demanding professionals, but also an assortment of features that allow less experienced users to achieve superior results. Get yours today at Alto Music!
View full details
  • Details
  • Features
  • Tech Specs
  • Reviews

The QSC TouchMix-8 is a revolutionary mixer perfect for musicians, production specialists and even liver performance that offers all the capabilities of a large mixing console in a compact and easy to use package. TouchMix have an amazing range of functionality, enough to satisfy even the most demanding professionals, but also an assortment of features that allow less experienced users to achieve superior results.

  • 12x Mic Inputs, 4x Mic/Line Combo Inputs, 2x Stereo Line Inputs, Built-in FX, & iPad Remote Control via Wi-Fi
  • With multiple modes, accessible to both novices and professionals, the TouchMix gives you professional results made easy
  • Simple mode offers exactly what it says- simplicity. Similar to the “Auto” function on a camera, this mode will have you mixing like a pro with minimal effort and expertise
  • Want a bit more control? The TouchMix advanced mode gives you total control over all mixing functions to fine tune every nuance the way you please
  • Built in color touch screen makes the TouchMix-8 stand out from the competition
  • Compact and portable, the TouchMix is roughly the size of a small laptop computer- who needs more weighty gear to lug around in their setup?
  • TouchMix 8 gives you all the power and features of a professional mixer at a fraction of the cost and is sure to please even the pickiest sound engineer
  • Multitrack direct to disk recording/playback via external USB hard drive (not included.) No computer required
  • Multiple monitor mixes including ability to drive in-ears directly
  • 1/3 octave graphic EQ, notch filters, limiters and delay on main and aux. outputs, DCA’s and mute groups High Quality microphone preamps Channel-selectable phantom power
  • USB WI-Fi adapter included, control remotely with your mobile device!
  • Includes padded carrying case
More Information
Product Name QSC TouchMix 8 12-channel Compact Digital Mixer
Brand QSC
Condition New
MPN TOUCHMIX8
UPC 684284061539
Shipping Option Free Shipping to the Continental U.S.
  • 12 total inputs: 8 mic, (four with XLR/TRS combo connector) and two stereo line
  • Stereo Main L/R outputs (XLR)
  • Four mono auxiliary mixes (XLR).
    • Mono auxiliaries may be linked for stereo use.
    • Auxes 3/4 can also drive wired in-ear monitors (IEM) directly.
  • Superb sound quality
    • Class-A microphone pre-amps
    • 32-bit floating point processing
    • 24-bit AD & DA convertors
  • Input channels are fully-featured:
    • Four-band full parametric EQ
    • Variable high-cut and low-cut filters
    • Gate
    • Compressor (with de-esser)
  • Main and auxiliary outputs feature:
    • 1/3-octave graphic EQ
    • Limiter
    • Delay
    • Notch filters
  • Four professional quality stereo DSP effects. Choose from:
    • Two types of reverb
    • Mono delay
    • Stereo delay
    • Chorus
    • Pitch-change
  • A pitch correct processor is assignable to any input channel.
  • Eight DCA and eight mute groups.
  • Color, capacitive touch screen graphical user interface combined with hardware controls for fast and intuitive operation.
  • Great results and easy to use
    • Input channel preset library features over 100 presets developed by experienced concert engineers specifically for live sound applications.
    • Wizards assist with input gain adjustment and effects selection and routing.
    • On board Info system gives you instant access to the user manual.
  • Save your own channel presets and complete mixer scenes to internal memory or USB device.
  • Capturing live performance to multi-track has never been easier. Record 14 tracks (all inputs plus a stereo mix) directly to USB hard-drive. Mix down on TouchMix or import into your favorite DAW.
  • Complete mixer remote control via free iPad® App.
  • Monitor control via iPhone/iPod Touch App.
  • Multiple Wi-Fi Connectivity options
  • Security Lockout Modes
  • USB Wi-Fi interface and carrying case are included.
Display 6.1 x 3.5 inches (156x90mm) color TFT, touch sensing
Inputs 12 Total
4, XLR/TRS combination
4, XLR
2 Stereo, 1/4 inch TRS
Input (Talkback): N/A
Outputs 2 Main, XLR, Line
4 Aux, XLR, Line
1 Stereo TRS (Line or In Ear Monitor)
1 Stereo Cue TRS (Line or headphones)
Mic/Line Input Channel Processing 4-band, parametric EQ with Hi/Low shelving option, variable 24db/octave HPF and LPF, Gate, Compressor
2-Track (USB) and FX Return Processing: 2-band shelving EQ, variable 24db/octave HPF, Gate, Compressor
Output Channel Processing: 1/3 octave GEQ, Variable HPF and LPF, 4-band variable notch filters, Limiter
Recording 14 tracks, requires USB 3.0 HD, minimum 7800 RPM
Groups 8 DCA groups (with mutes), 8 Mute groups
Cue Input cue priority, AFL, PFL, Solo In Place
Effects 4 professional effects engines including reverb, echo, delay, chorus. 50 factory, 50 user presets
1 Pitch Correct (assignable to any mono input channel)
Preset Memory Mixer Preset: Factory and User mixer presets including all mixer parameters may be stored internally or loaded to / from USB
Channel Preset: User channel presets may be stored internally or loaded to / from USB
External Control iOS mixer app for iPad, control via Wi-Fi provides access to all mixer functions
Wi-Fi USB Wi-Fi adapter included
Line Voltage Requirements 100 VAC - 240 VAC, 50 - 60 Hz
Sampling Frequency Selectable 44.1kHz or 48kHz
Internal Processing 32-bit floating point
Frequency Response 20 Hz - 20 kHz +/-0.5 dB, any input to any output
Dynamic Range 105dB
Equivalent Input Noise -128dBu
Residual Output Noise -86dBu
Crosstalk -80dB
Signal to Noise Ratio -94dB
Maximum Input Level +16dB (Mic inputs), +22dB (Line inputs)
Phantom Power 48V, individually switchable per channel
Dimensions (HxWxD) 3.1 x 13.1 x 9.8 inches (79x333x250mm)
Weight: 4.3 lb (1.95 kg)
Included Accessories USB WiFI adapter, Soft Carrying Case, Power Supply

QSC TouchMix 8 12-channel Compact Digital Mixer
Details

The QSC TouchMix-8 is a revolutionary mixer perfect for musicians, production specialists and even liver performance that offers all the capabilities of a large mixing console in a compact and easy to use package. TouchMix have an amazing range of functionality, enough to satisfy even the most demanding professionals, but also an assortment of features that allow less experienced users to achieve superior results.

  • 12x Mic Inputs, 4x Mic/Line Combo Inputs, 2x Stereo Line Inputs, Built-in FX, & iPad Remote Control via Wi-Fi
  • With multiple modes, accessible to both novices and professionals, the TouchMix gives you professional results made easy
  • Simple mode offers exactly what it says- simplicity. Similar to the “Auto” function on a camera, this mode will have you mixing like a pro with minimal effort and expertise
  • Want a bit more control? The TouchMix advanced mode gives you total control over all mixing functions to fine tune every nuance the way you please
  • Built in color touch screen makes the TouchMix-8 stand out from the competition
  • Compact and portable, the TouchMix is roughly the size of a small laptop computer- who needs more weighty gear to lug around in their setup?
  • TouchMix 8 gives you all the power and features of a professional mixer at a fraction of the cost and is sure to please even the pickiest sound engineer
  • Multitrack direct to disk recording/playback via external USB hard drive (not included.) No computer required
  • Multiple monitor mixes including ability to drive in-ears directly
  • 1/3 octave graphic EQ, notch filters, limiters and delay on main and aux. outputs, DCA’s and mute groups High Quality microphone preamps Channel-selectable phantom power
  • USB WI-Fi adapter included, control remotely with your mobile device!
  • Includes padded carrying case
More Information
Product Name QSC TouchMix 8 12-channel Compact Digital Mixer
Brand QSC
Condition New
MPN TOUCHMIX8
UPC 684284061539
Shipping Option Free Shipping to the Continental U.S.
Features
  • 12 total inputs: 8 mic, (four with XLR/TRS combo connector) and two stereo line
  • Stereo Main L/R outputs (XLR)
  • Four mono auxiliary mixes (XLR).
    • Mono auxiliaries may be linked for stereo use.
    • Auxes 3/4 can also drive wired in-ear monitors (IEM) directly.
  • Superb sound quality
    • Class-A microphone pre-amps
    • 32-bit floating point processing
    • 24-bit AD & DA convertors
  • Input channels are fully-featured:
    • Four-band full parametric EQ
    • Variable high-cut and low-cut filters
    • Gate
    • Compressor (with de-esser)
  • Main and auxiliary outputs feature:
    • 1/3-octave graphic EQ
    • Limiter
    • Delay
    • Notch filters
  • Four professional quality stereo DSP effects. Choose from:
    • Two types of reverb
    • Mono delay
    • Stereo delay
    • Chorus
    • Pitch-change
  • A pitch correct processor is assignable to any input channel.
  • Eight DCA and eight mute groups.
  • Color, capacitive touch screen graphical user interface combined with hardware controls for fast and intuitive operation.
  • Great results and easy to use
    • Input channel preset library features over 100 presets developed by experienced concert engineers specifically for live sound applications.
    • Wizards assist with input gain adjustment and effects selection and routing.
    • On board Info system gives you instant access to the user manual.
  • Save your own channel presets and complete mixer scenes to internal memory or USB device.
  • Capturing live performance to multi-track has never been easier. Record 14 tracks (all inputs plus a stereo mix) directly to USB hard-drive. Mix down on TouchMix or import into your favorite DAW.
  • Complete mixer remote control via free iPad® App.
  • Monitor control via iPhone/iPod Touch App.
  • Multiple Wi-Fi Connectivity options
  • Security Lockout Modes
  • USB Wi-Fi interface and carrying case are included.
Tech Specs
Display 6.1 x 3.5 inches (156x90mm) color TFT, touch sensing
Inputs 12 Total
4, XLR/TRS combination
4, XLR
2 Stereo, 1/4 inch TRS
Input (Talkback): N/A
Outputs 2 Main, XLR, Line
4 Aux, XLR, Line
1 Stereo TRS (Line or In Ear Monitor)
1 Stereo Cue TRS (Line or headphones)
Mic/Line Input Channel Processing 4-band, parametric EQ with Hi/Low shelving option, variable 24db/octave HPF and LPF, Gate, Compressor
2-Track (USB) and FX Return Processing: 2-band shelving EQ, variable 24db/octave HPF, Gate, Compressor
Output Channel Processing: 1/3 octave GEQ, Variable HPF and LPF, 4-band variable notch filters, Limiter
Recording 14 tracks, requires USB 3.0 HD, minimum 7800 RPM
Groups 8 DCA groups (with mutes), 8 Mute groups
Cue Input cue priority, AFL, PFL, Solo In Place
Effects 4 professional effects engines including reverb, echo, delay, chorus. 50 factory, 50 user presets
1 Pitch Correct (assignable to any mono input channel)
Preset Memory Mixer Preset: Factory and User mixer presets including all mixer parameters may be stored internally or loaded to / from USB
Channel Preset: User channel presets may be stored internally or loaded to / from USB
External Control iOS mixer app for iPad, control via Wi-Fi provides access to all mixer functions
Wi-Fi USB Wi-Fi adapter included
Line Voltage Requirements 100 VAC - 240 VAC, 50 - 60 Hz
Sampling Frequency Selectable 44.1kHz or 48kHz
Internal Processing 32-bit floating point
Frequency Response 20 Hz - 20 kHz +/-0.5 dB, any input to any output
Dynamic Range 105dB
Equivalent Input Noise -128dBu
Residual Output Noise -86dBu
Crosstalk -80dB
Signal to Noise Ratio -94dB
Maximum Input Level +16dB (Mic inputs), +22dB (Line inputs)
Phantom Power 48V, individually switchable per channel
Dimensions (HxWxD) 3.1 x 13.1 x 9.8 inches (79x333x250mm)
Weight: 4.3 lb (1.95 kg)
Included Accessories USB WiFI adapter, Soft Carrying Case, Power Supply
