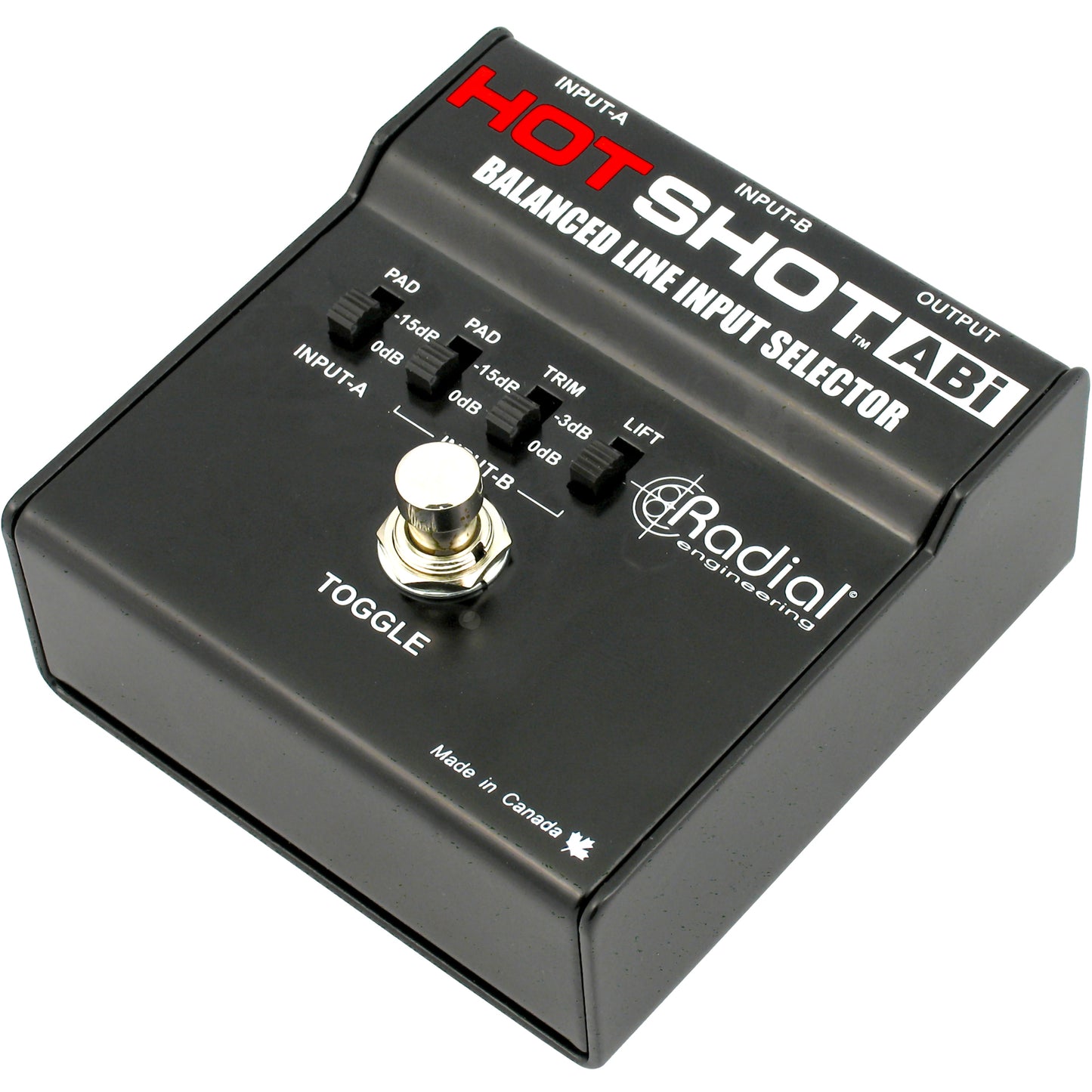

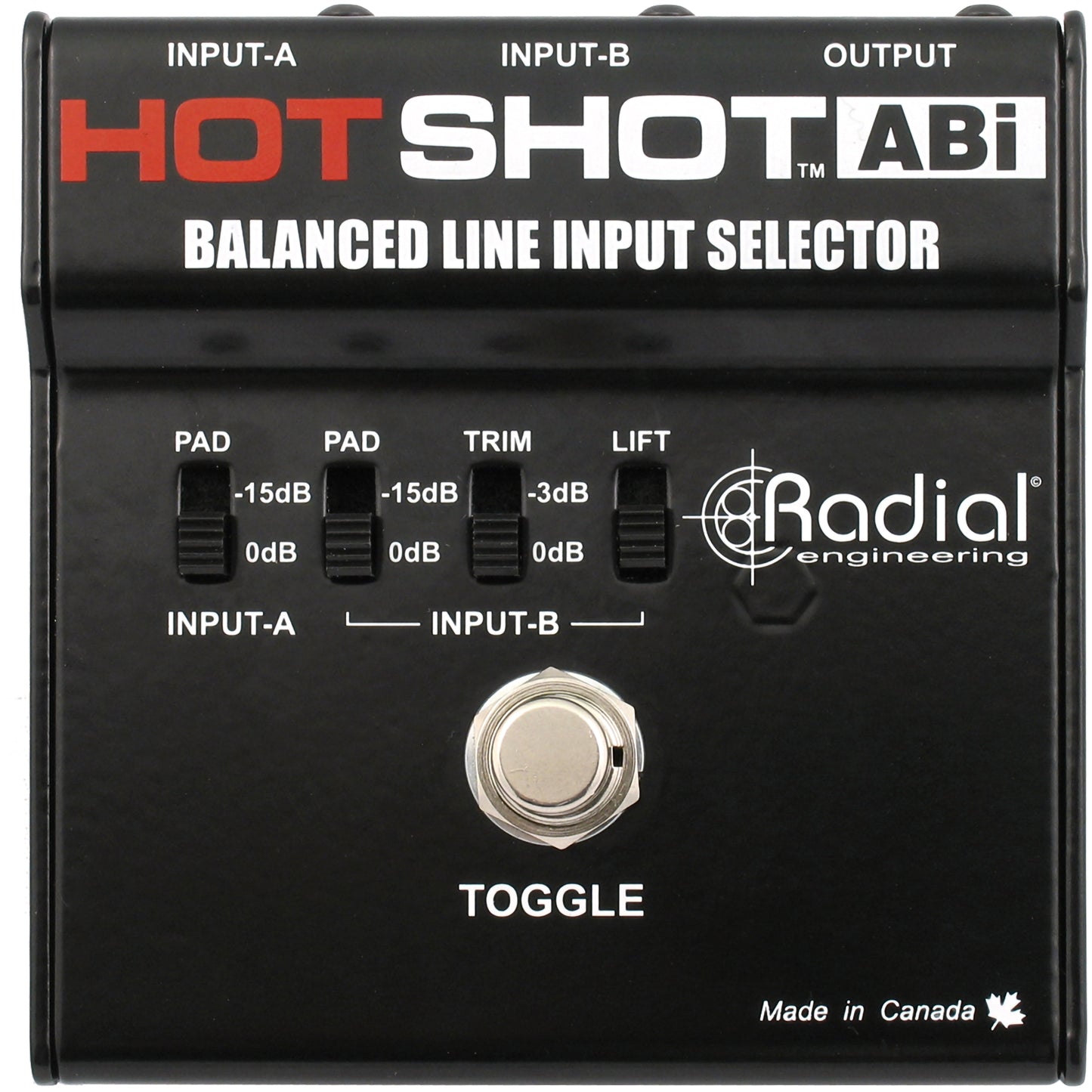

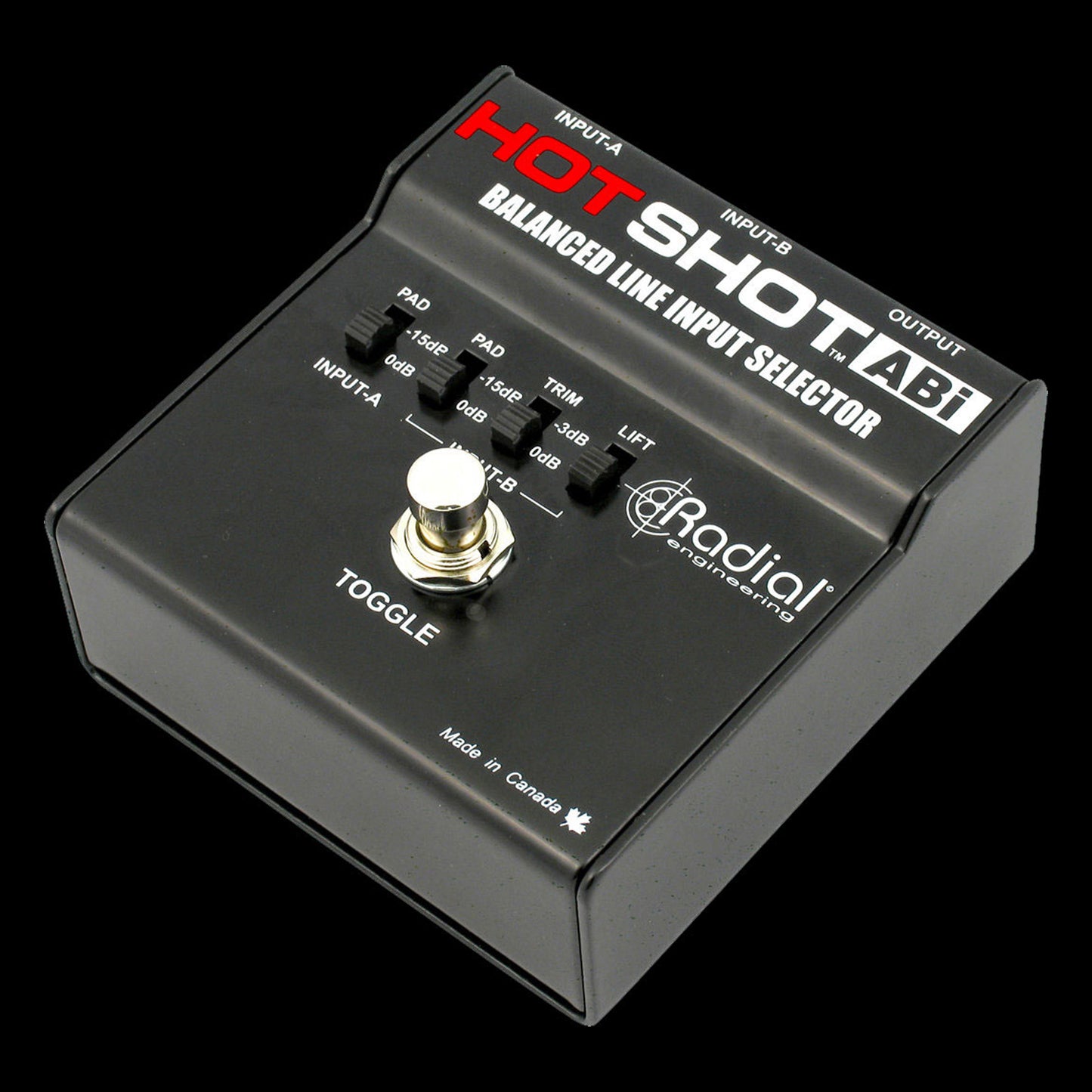

Radial Engineering HotShot ABI Line Input Selector
Radial Engineering HotShot ABI Line Input Selector
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
+ Free Shipping
![Blink Image](https://cdn.shopify.com/s/files/1/0750/9049/3723/files/blink-2020-sq-scaled.png?v=1695807695")
On order with the manufacturer!
Couldn't load pickup availability
The Radial HotShot ABi Line Input Selector is perfect for switching between two Microphones. Radial Hot Shot ABi is a balanced signal source selector that allows the user to instantly select between two signal sources by depressing a latching footswitch. As it is completely passive, powering is not required to make it work
View full details
- Details
- Features
- Reviews
Radial HotShot ABi Line Input Selector
The Radial HotShot ABi Line Input Selector is perfect for switching between two Microphones.
Radial Hot Shot ABi is a balanced signal source selector that allows the user to instantly select between two signal sources by depressing a latching footswitch. As it is completely passive, powering is not required to make it work.
The HotShot ABi is ideal for applications such as switching between two dynamic microphones on a stage or selecting between two audio sources. The latching switch also opens the door for other useful operations: These include using the HotShot ABi as a mute to turn off a microphone; to select between two wireless receivers for live sound system backup; for stereo guitars it can be used to select between two instruments; and for community hall assemblies, it provides the moderator with remote control over two audience microphones.
Radial HotShot ABi Line Input Selector Features
On-stage line input signal AB redirector
Toggle switch for one-push operation
Pads allow using devices with different signal levels
Ground lift to eliminate buzz caused by ground loops
Heavy-duty construction, switches and components
Specifications and additional product information
Radial Hot Shot ABi Line Selector Specifications
Circuit type: Passive true-bypass
Inputs: XLR-F (x 2)
Outputs: XLR-M
Input pads:
Input-A: -15dB switch
Input-B: -15dB switch, -6dB trim switch
Ground lift: LIFT switch - Input-B pin-1
Footswitch: Heavy-duty high-cycle
Construction: 14 gauge steel, baked enamel finish
Size (WxDxH): 3.6 x 3.75 x 2 inches (92 x 99 x 51mm)
Weight: 1.1 lb (0.5 kg)
Warranty: Radial 3-year limited warranty
| Product Name | Radial Engineering HotShot ABI Line Input Selector |
|---|---|
| Brand | Radial Engineering |
| Condition | New |
| MPN | R8001508 |
| UPC | 676101036356 |
| Shipping Option | Free Shipping to the Continental U.S. |
- On-stage line input signal AB redirector
- Toggle switch for one-push operation
- Pads allow using devices with different signal levels
- Ground lift to eliminate buzz caused by ground loops
- Heavy-duty construction, switches and components
- Specifications and additional product information
- Radial Hot Shot ABi Line Selector Specifications
- Circuit type: Passive true-bypass
- Inputs: XLR-F (x 2)
- Outputs: XLR-M
- Input pads:
- Input-A: -15dB switch
- Input-B: -15dB switch, -6dB trim switch
- Ground lift: LIFT switch - Input-B pin-1
- Footswitch: Heavy-duty high-cycle
- Construction: 14 gauge steel, baked enamel finish
- Size (WxDxH): 3.6 x 3.75 x 2 inches (92 x 99 x 51mm)
- Weight: 1.1 lb (0.5 kg)
- Warranty: Radial 3-year limited warranty
Radial Engineering HotShot ABI Line Input Selector
Details
Radial HotShot ABi Line Input Selector
The Radial HotShot ABi Line Input Selector is perfect for switching between two Microphones.
Radial Hot Shot ABi is a balanced signal source selector that allows the user to instantly select between two signal sources by depressing a latching footswitch. As it is completely passive, powering is not required to make it work.
The HotShot ABi is ideal for applications such as switching between two dynamic microphones on a stage or selecting between two audio sources. The latching switch also opens the door for other useful operations: These include using the HotShot ABi as a mute to turn off a microphone; to select between two wireless receivers for live sound system backup; for stereo guitars it can be used to select between two instruments; and for community hall assemblies, it provides the moderator with remote control over two audience microphones.
Radial HotShot ABi Line Input Selector Features
On-stage line input signal AB redirector
Toggle switch for one-push operation
Pads allow using devices with different signal levels
Ground lift to eliminate buzz caused by ground loops
Heavy-duty construction, switches and components
Specifications and additional product information
Radial Hot Shot ABi Line Selector Specifications
Circuit type: Passive true-bypass
Inputs: XLR-F (x 2)
Outputs: XLR-M
Input pads:
Input-A: -15dB switch
Input-B: -15dB switch, -6dB trim switch
Ground lift: LIFT switch - Input-B pin-1
Footswitch: Heavy-duty high-cycle
Construction: 14 gauge steel, baked enamel finish
Size (WxDxH): 3.6 x 3.75 x 2 inches (92 x 99 x 51mm)
Weight: 1.1 lb (0.5 kg)
Warranty: Radial 3-year limited warranty
| Product Name | Radial Engineering HotShot ABI Line Input Selector |
|---|---|
| Brand | Radial Engineering |
| Condition | New |
| MPN | R8001508 |
| UPC | 676101036356 |
| Shipping Option | Free Shipping to the Continental U.S. |
