Radial OX8R Channel Mic Splitter and with Radial Transformers.

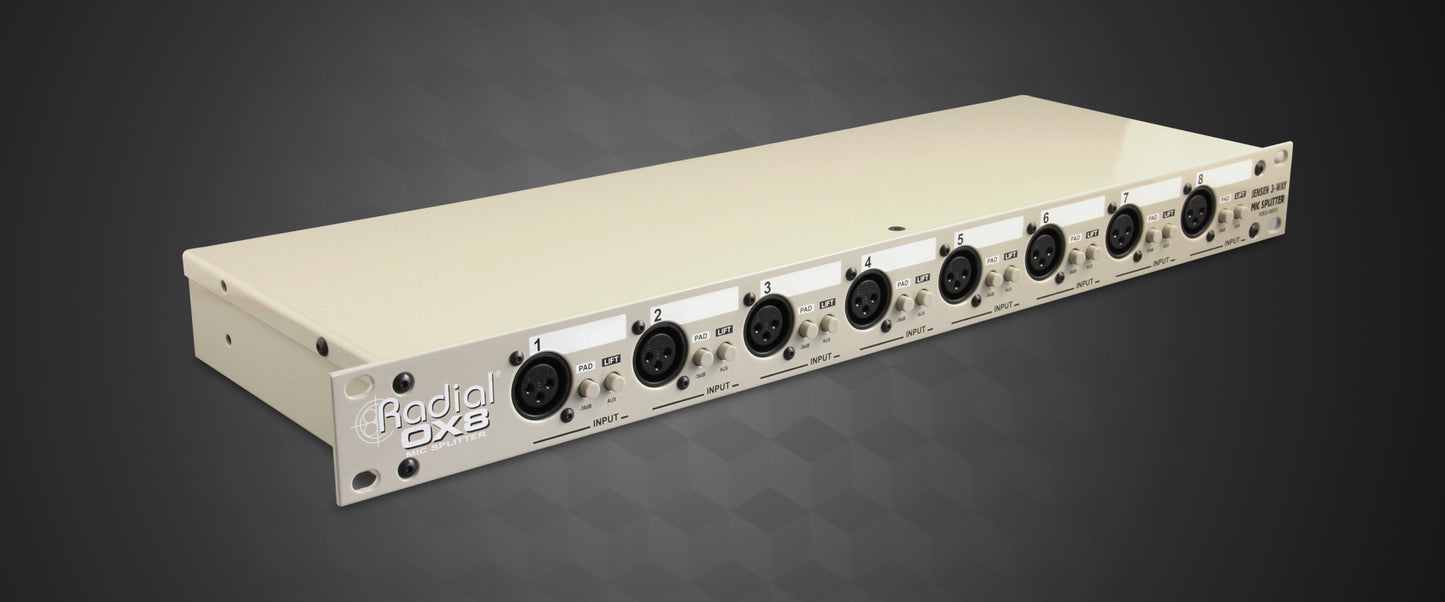

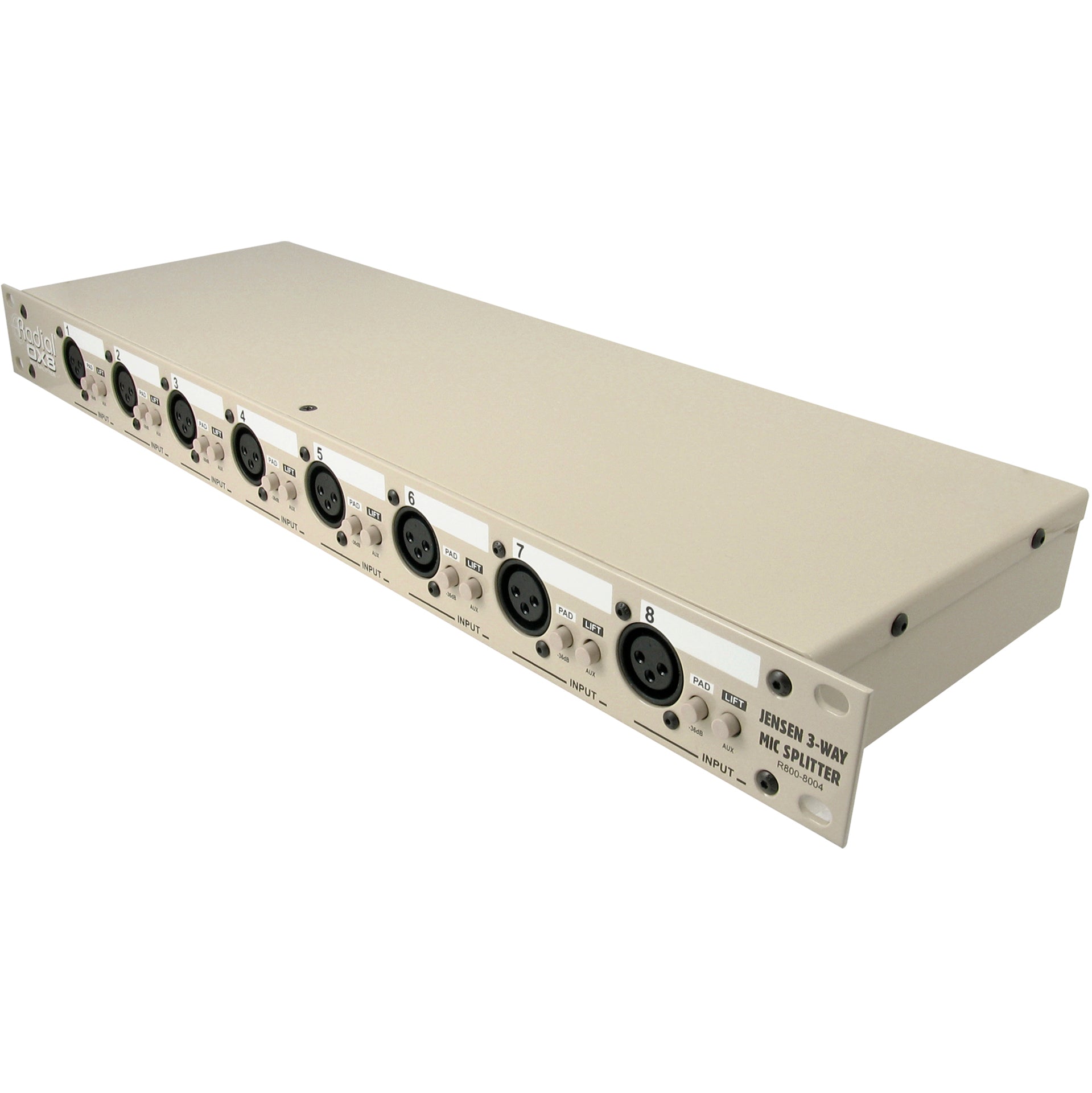

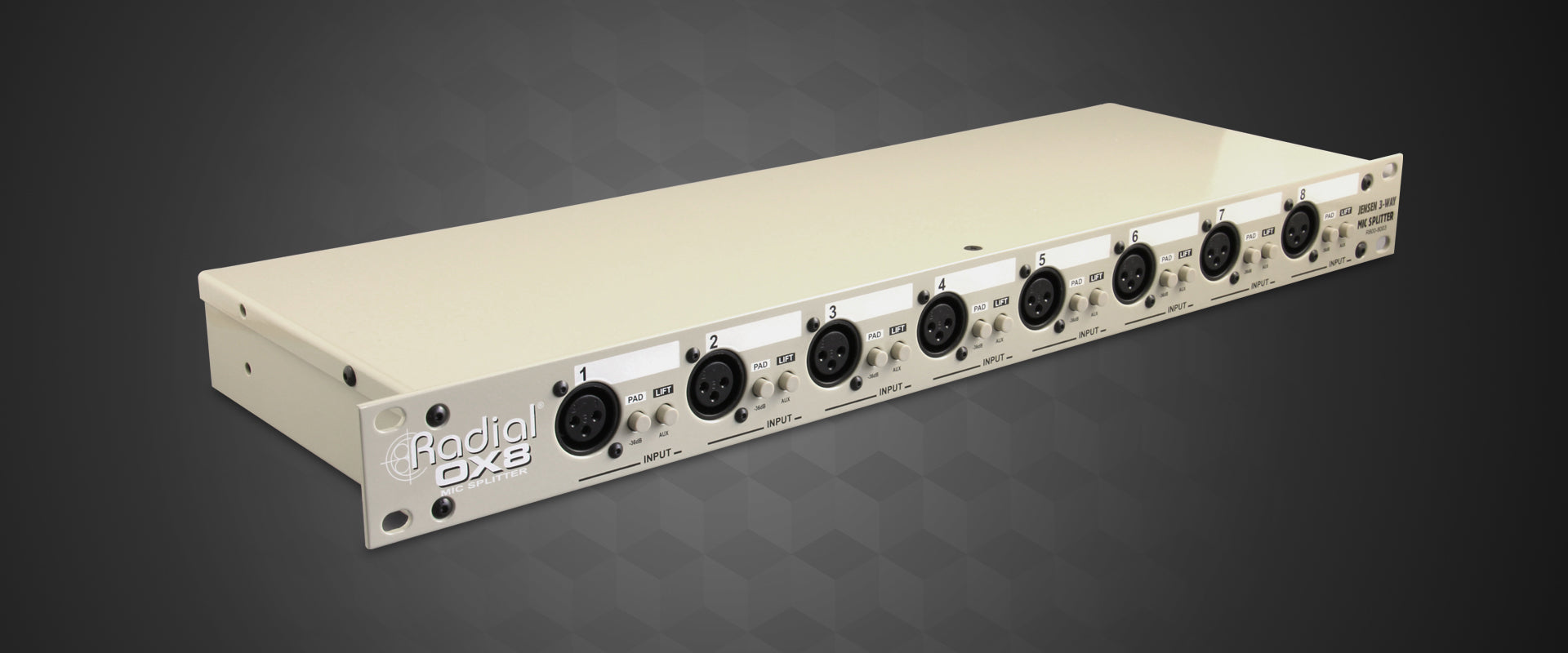

The Radial OX8 is a high-performance 8-Channel 3-way Mic splitter that is equipped with an input and three outputs.
View full details
- Details
- Features
- Reviews
Radial OX8R Channel Mic Splitter and with Radial Transformers
The Radial OX8 is a high-performance 8-Channel 3-way Mic splitter that is equipped with an input and three outputs: a direct feed for 48V phantom Return, an auxiliary feed with Ground Lift switch and a transformer isolated output.

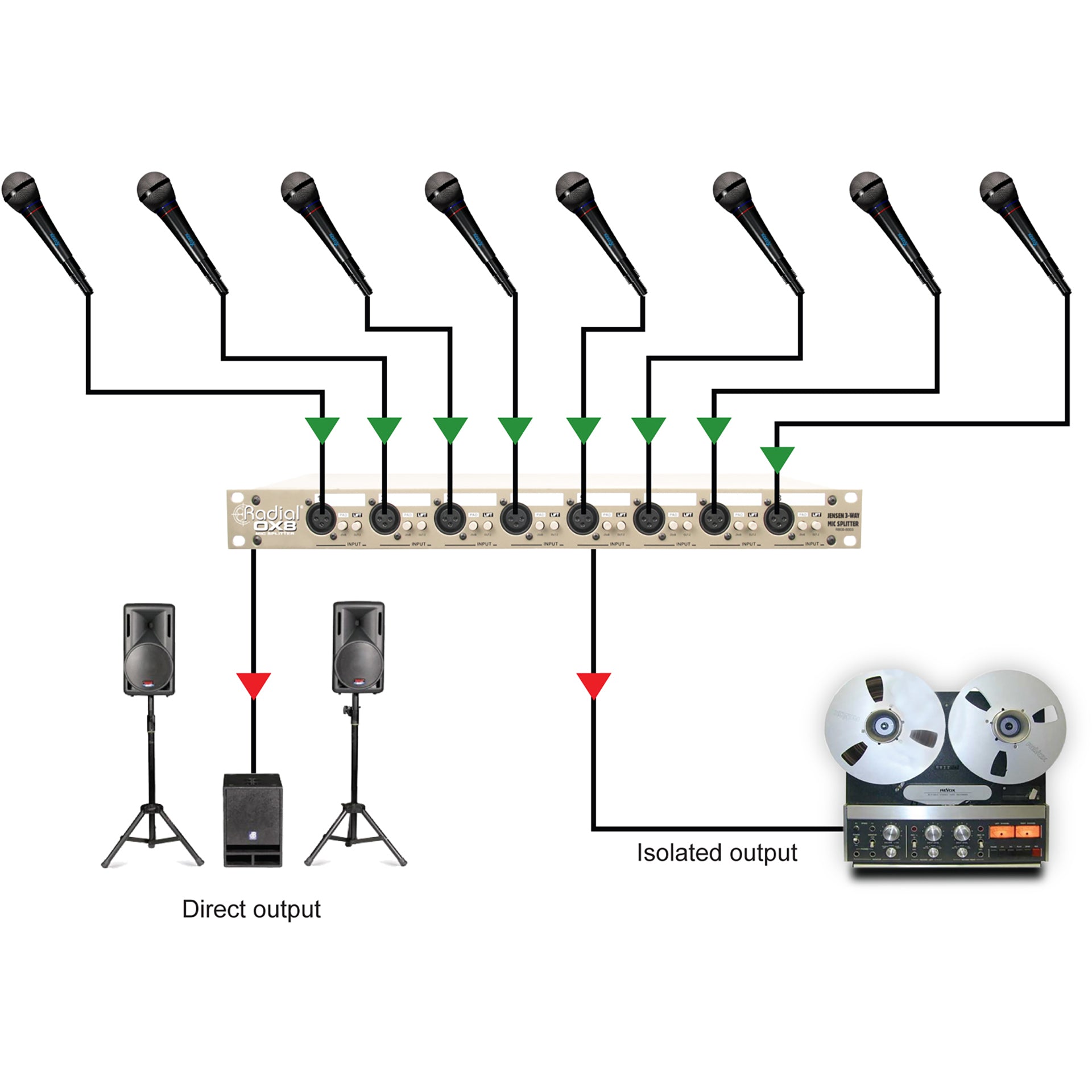

Although primarily designed for Mic signals, the OX8 is equipped with a -36dB Pad for Line Level sources, making the OX8 highly adaptable for all types of signal splitting. The OX8 is particularly well suited to accommodate live recording by delivering a transformer isolated Audio signal path for the recording engineer while providing a direct feed to the front of House and monitor consoles.

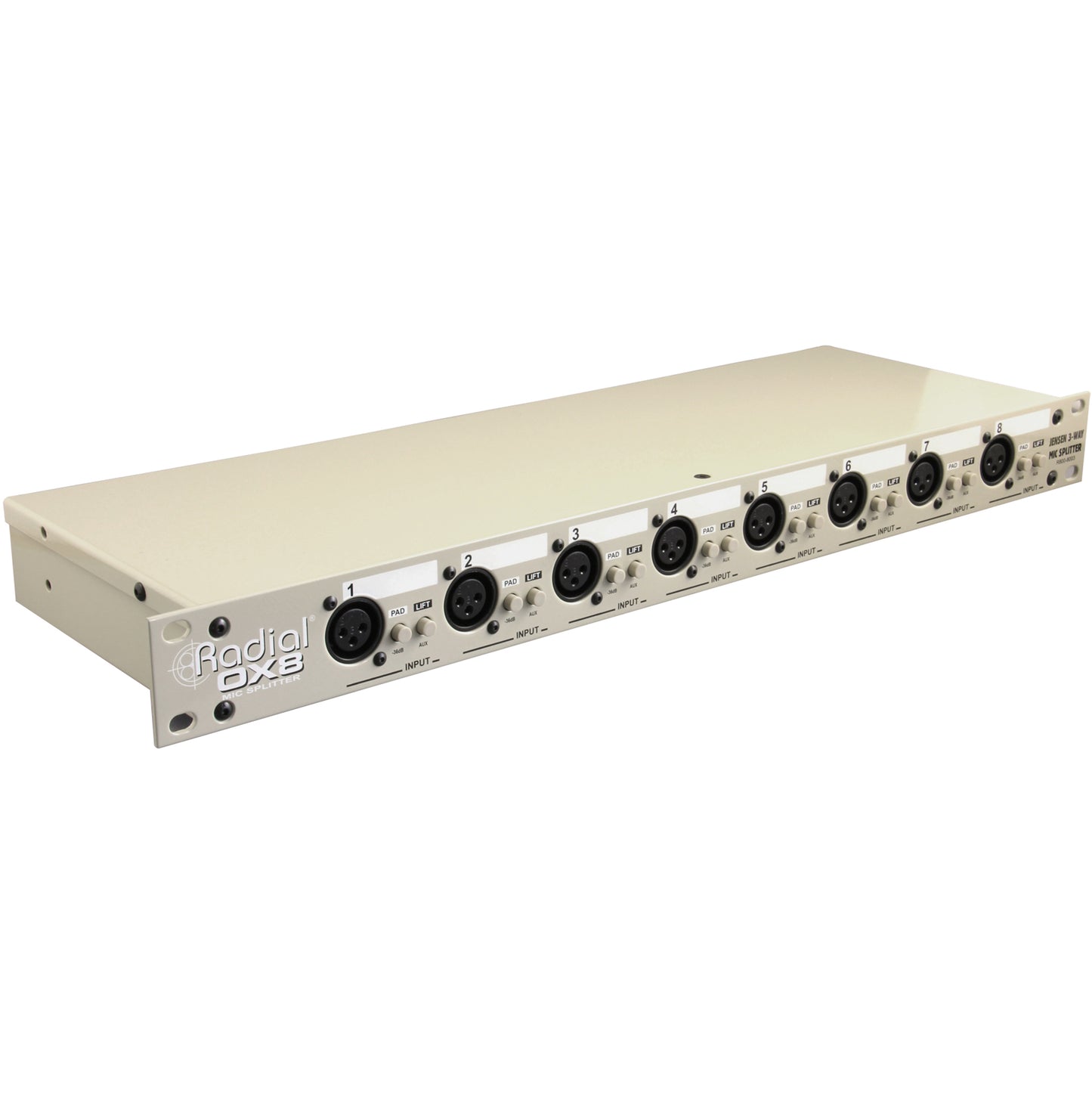

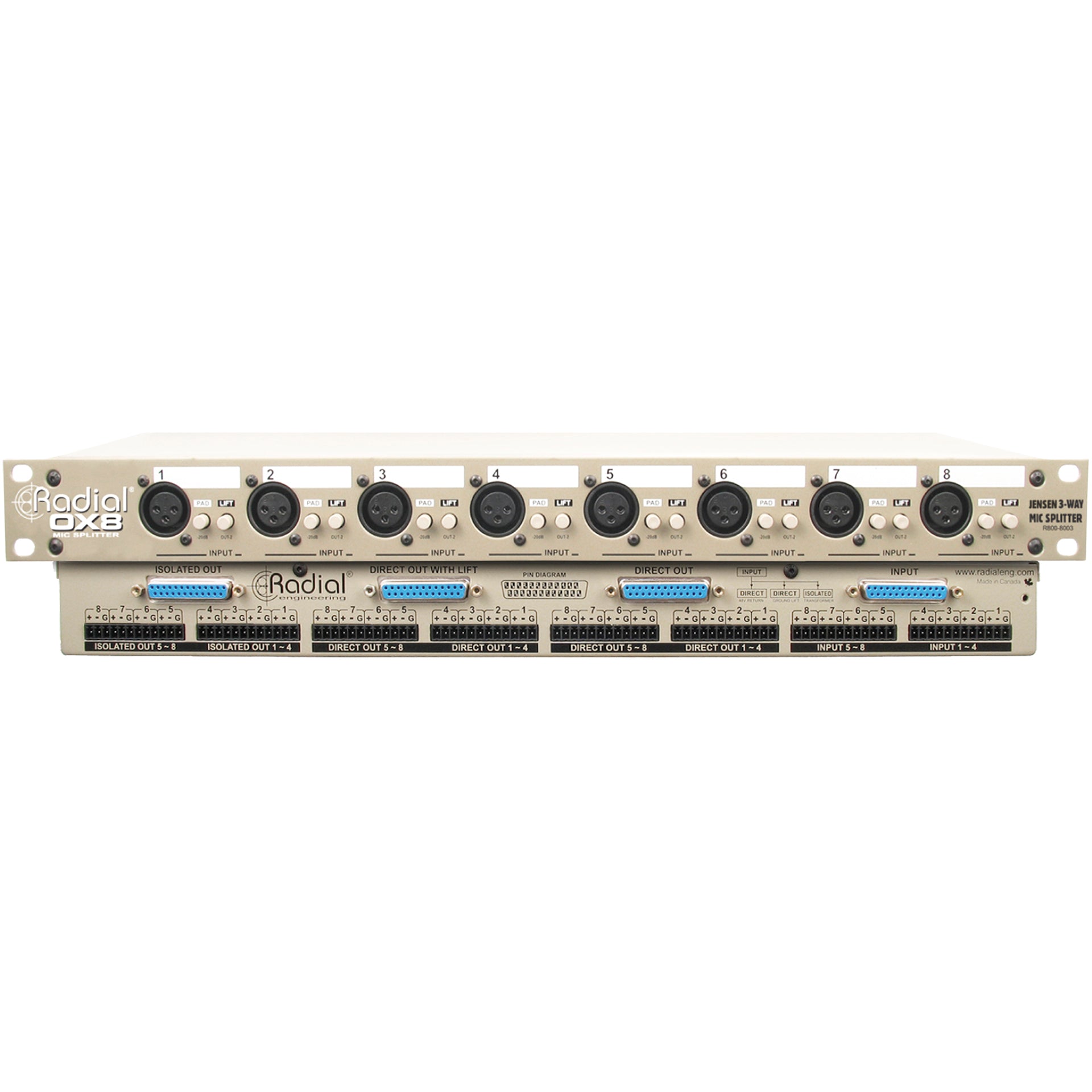

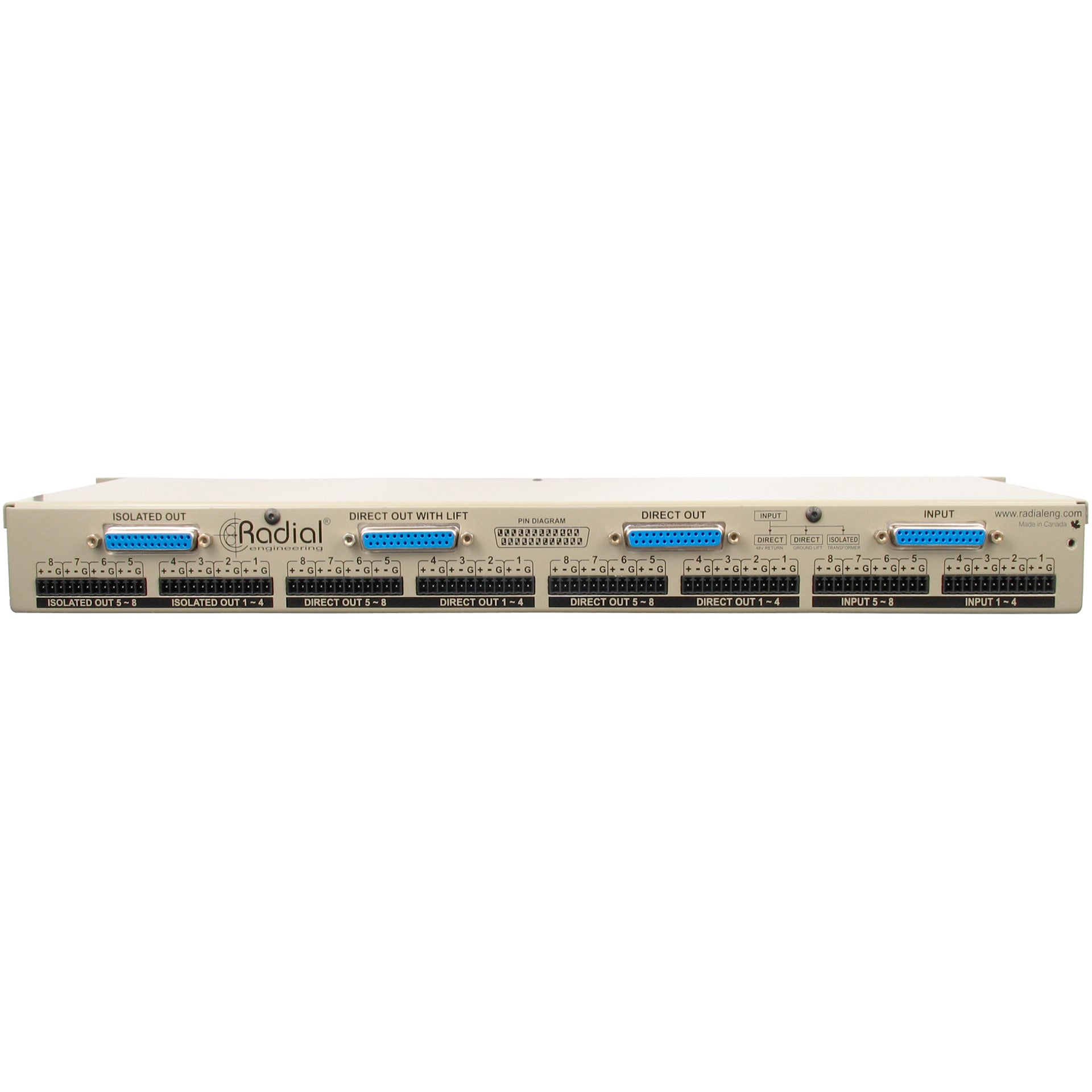

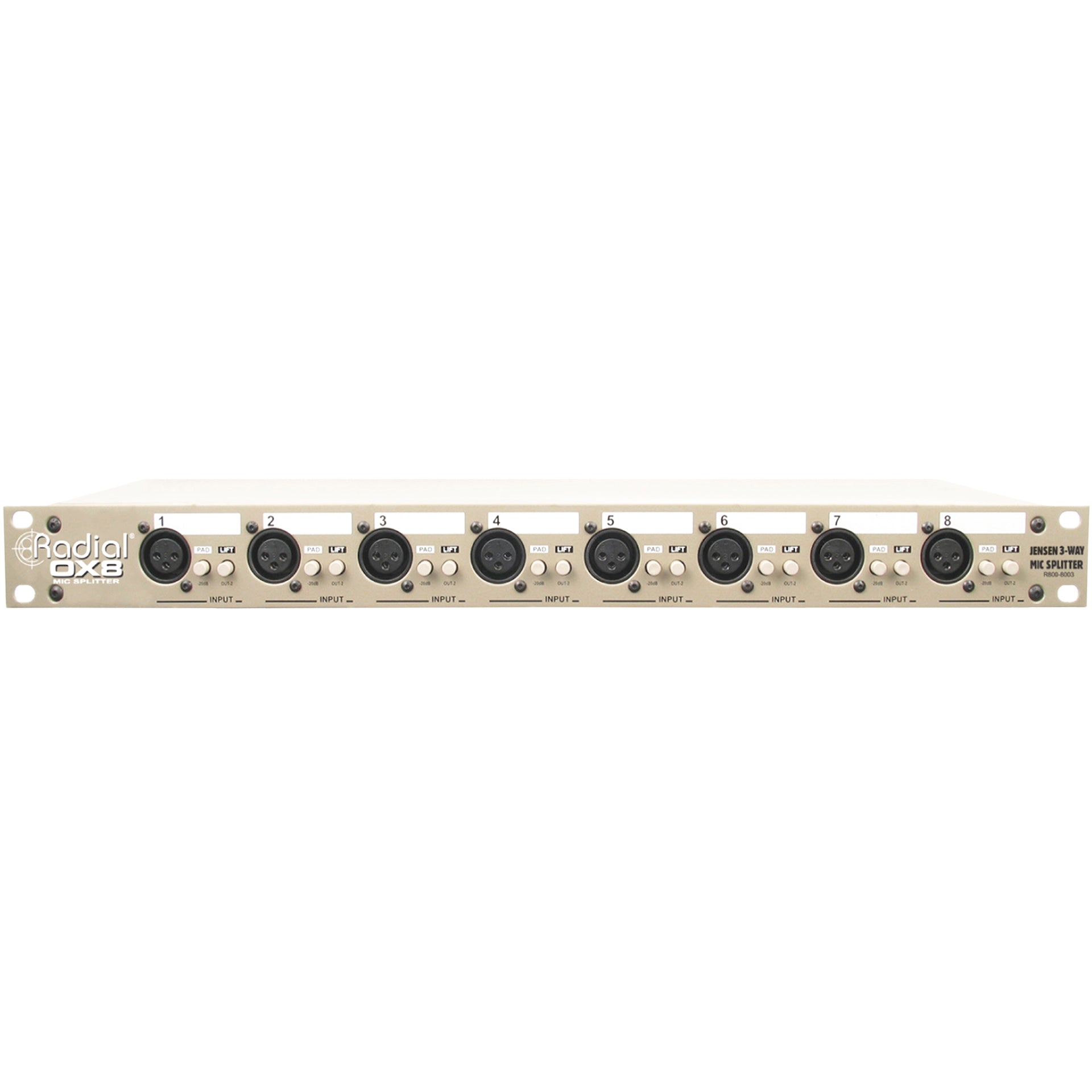

For maximum flexibility, several connector options are available. Inputs may be accessed via the front panel, using standard XLRs, or the rear panel, with a choice of either 25 pin D-subs (wired to the Tascam standard) or Euro screw-down terminal connectors (Note: Wire-end terminal blocks are sold separately). Outputs include D-subs and Euro connectors, which are also located on the rear panel. These make it easy to connect to popular multi-Track recording systems while providing easy termination for permanent installations.
Because it is 100% passive, the OX8 does not require any power to make it work. Maximum durability is ensured with heavy duty 14 gauge steel construction throughout. The OX8 can be ordered with our own custom wound Radial transformers or may be ordered with Jensen Transformers.
Also available is the LX8, a +4dB Balanced Line Level version of the OX8. The LX8 comes with Jensen Audio transformers only.
The Radial OX8 and LX8 – great sounding splitters that that are easy to use, compact and convenient.
Radial Engineering OX8-r Applications:

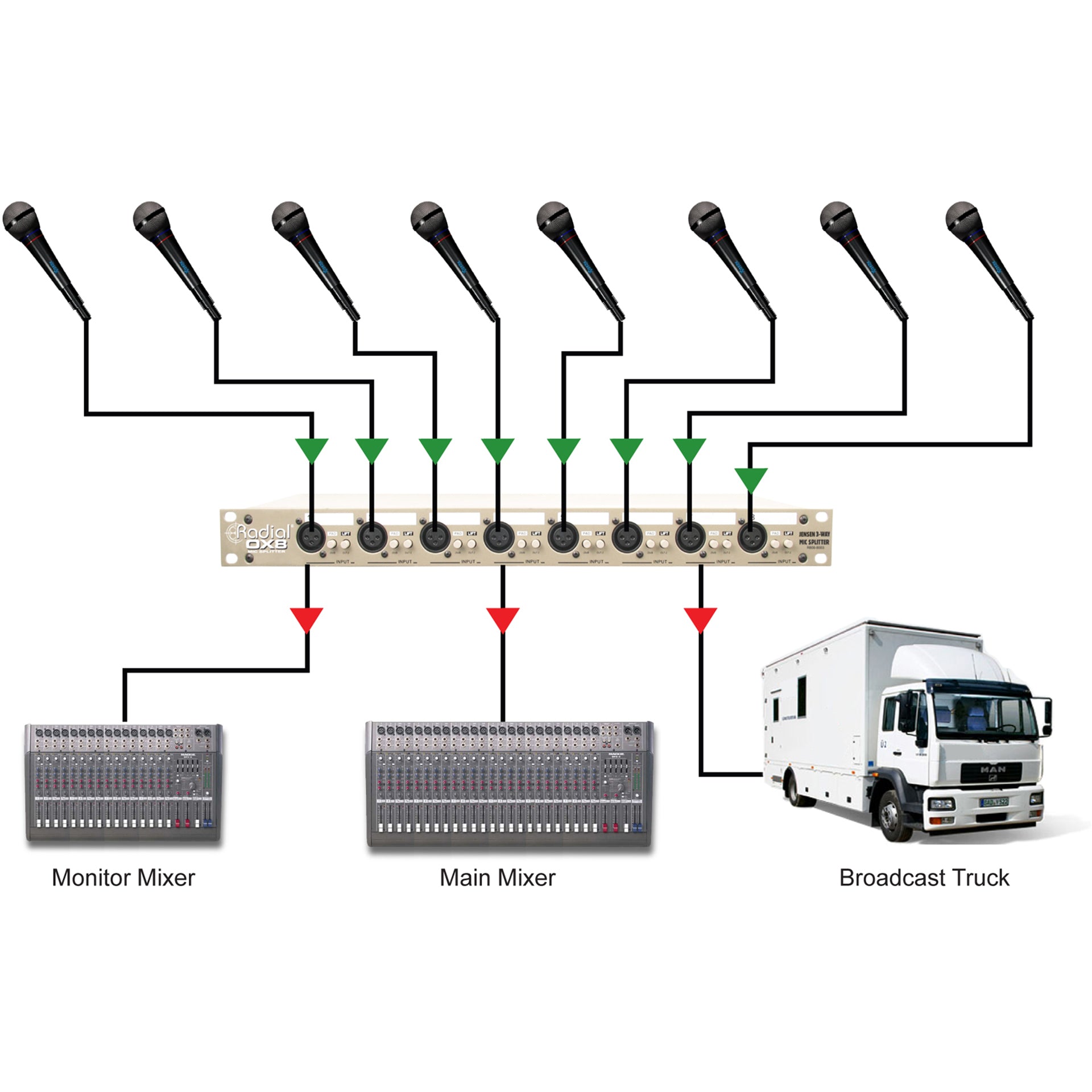

Mic splitter for recording a live show
Provide broadcast or podcast feed

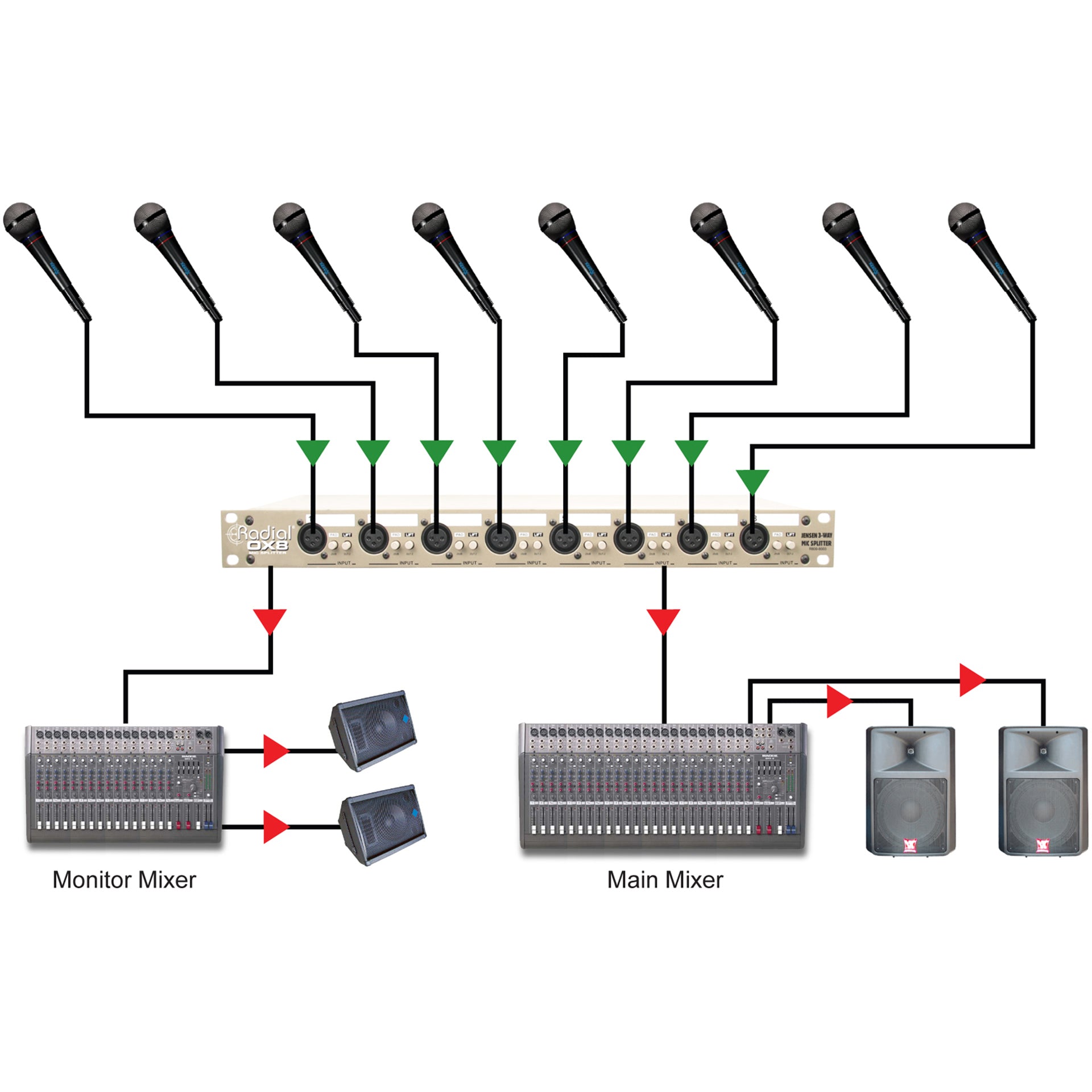

Facilitate in-ear monitoring system
Radial Engineering OX8-r Features:
Compact 8-Channel multi-purpose splitter
Rear panel D-Sub and Euro (Phoenix) screw terminals
Ideal for live recording and signal distribution
Choice of custom Radial or Jensen transformers
Choice of Mic splitter (OX8) or line splitter (LX8) designs
| Product Name | Radial OX8R-Channel Mic Splitter and with Radial Transformers |
|---|---|
| Brand | Radial Engineering |
| Condition | New |
| MPN | R8008003 |
| UPC | 676101036943 |
| Shipping Option | Free Shipping to the Continental U.S. |
Radial Engineering OX8-r Applications:
- Mic splitter for recording a live show
- Provide broadcast or podcast feed
- Facilitate in-ear monitoring system
Radial Engineering OX8-r Features:
- Compact 8-Channel multi-purpose splitter
- Rear panel D-Sub and Euro (Phoenix) screw terminals
- Ideal for live recording and signal distribution
- Choice of custom Radial or Jensen transformers
- Choice of Mic splitter (OX8) or line splitter (LX8) designs
Radial OX8R-Channel Mic Splitter and with Radial Transformers
Details
Radial OX8R Channel Mic Splitter and with Radial Transformers
The Radial OX8 is a high-performance 8-Channel 3-way Mic splitter that is equipped with an input and three outputs: a direct feed for 48V phantom Return, an auxiliary feed with Ground Lift switch and a transformer isolated output.
Although primarily designed for Mic signals, the OX8 is equipped with a -36dB Pad for Line Level sources, making the OX8 highly adaptable for all types of signal splitting. The OX8 is particularly well suited to accommodate live recording by delivering a transformer isolated Audio signal path for the recording engineer while providing a direct feed to the front of House and monitor consoles.
For maximum flexibility, several connector options are available. Inputs may be accessed via the front panel, using standard XLRs, or the rear panel, with a choice of either 25 pin D-subs (wired to the Tascam standard) or Euro screw-down terminal connectors (Note: Wire-end terminal blocks are sold separately). Outputs include D-subs and Euro connectors, which are also located on the rear panel. These make it easy to connect to popular multi-Track recording systems while providing easy termination for permanent installations.
Because it is 100% passive, the OX8 does not require any power to make it work. Maximum durability is ensured with heavy duty 14 gauge steel construction throughout. The OX8 can be ordered with our own custom wound Radial transformers or may be ordered with Jensen Transformers.
Also available is the LX8, a +4dB Balanced Line Level version of the OX8. The LX8 comes with Jensen Audio transformers only.
The Radial OX8 and LX8 – great sounding splitters that that are easy to use, compact and convenient.
