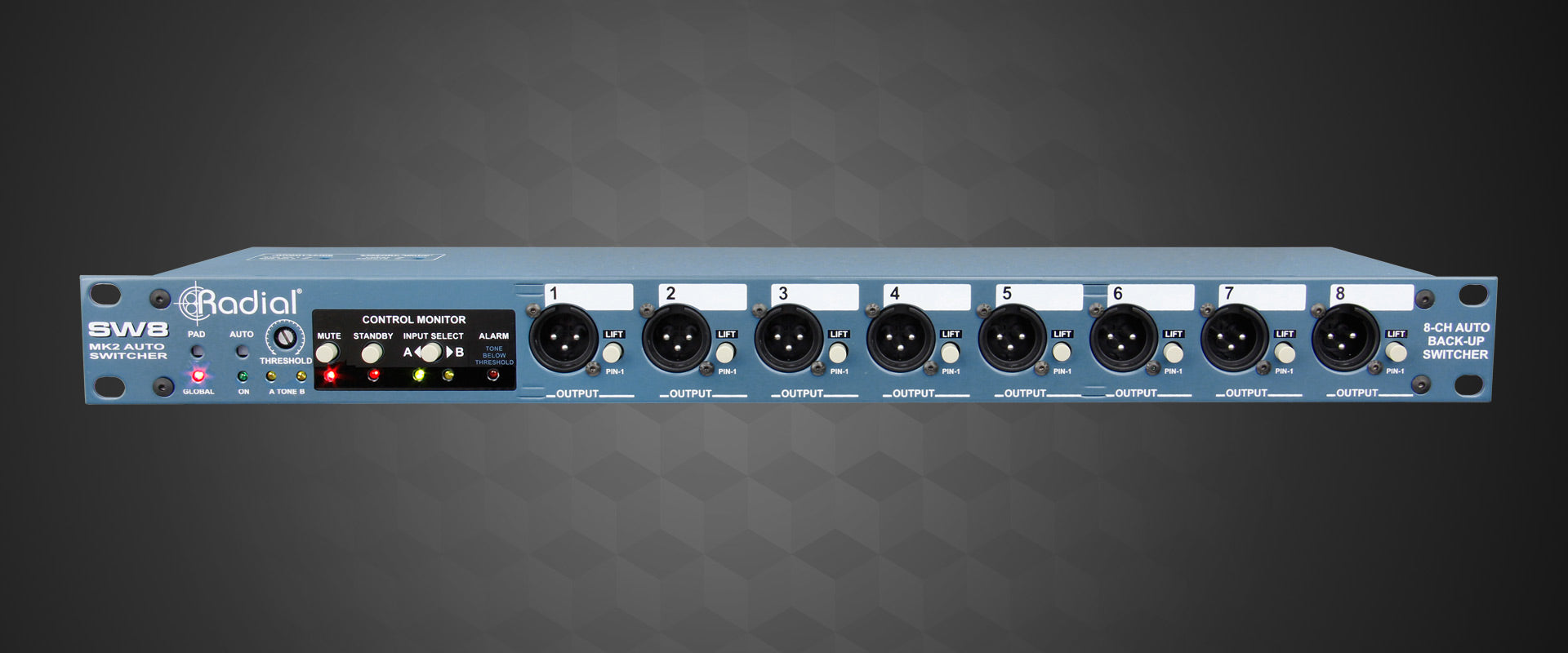

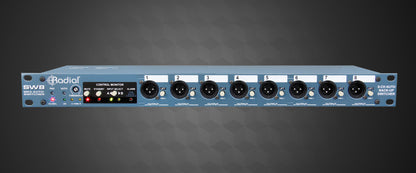

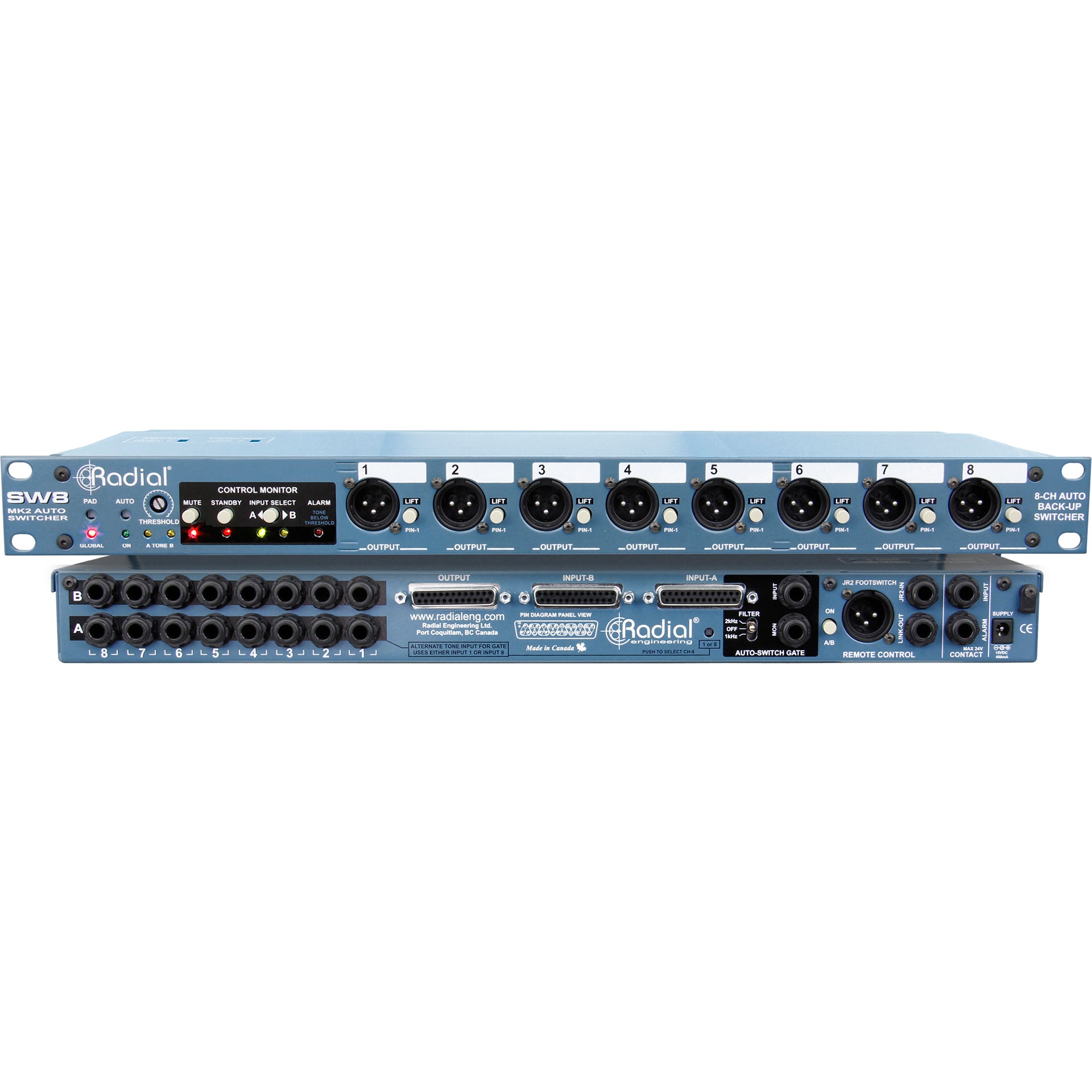

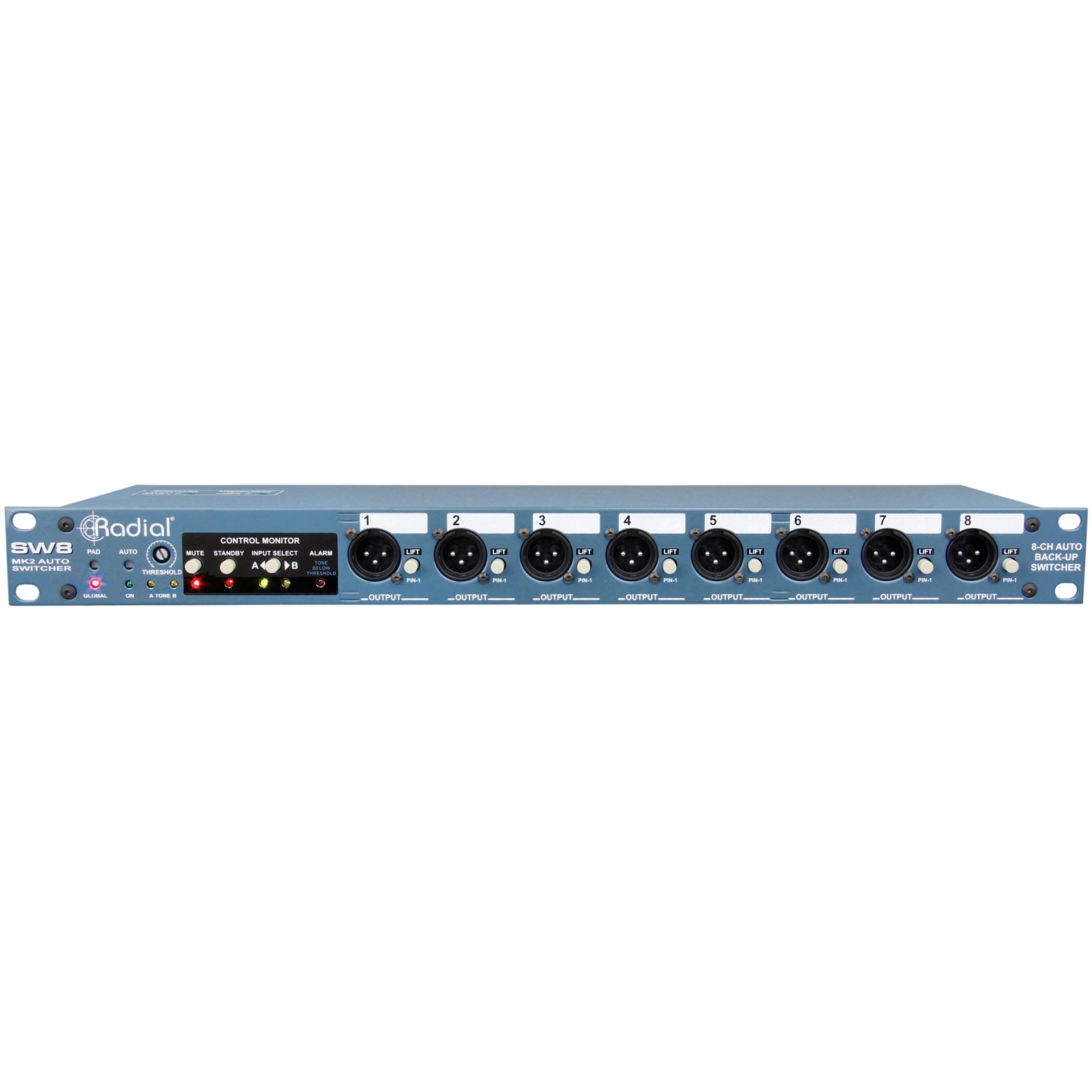

Radial SW8-Channel Line Level Auto Switcher
Radial SW8-Channel Line Level Auto Switcher
+ Free Shipping
![Blink Image](https://cdn.shopify.com/s/files/1/0750/9049/3723/files/blink-2020-sq-scaled.png?v=1695807695")
Limited quantities available!
Couldn't load pickup availability
- Details
- Tech Specs
- Reviews

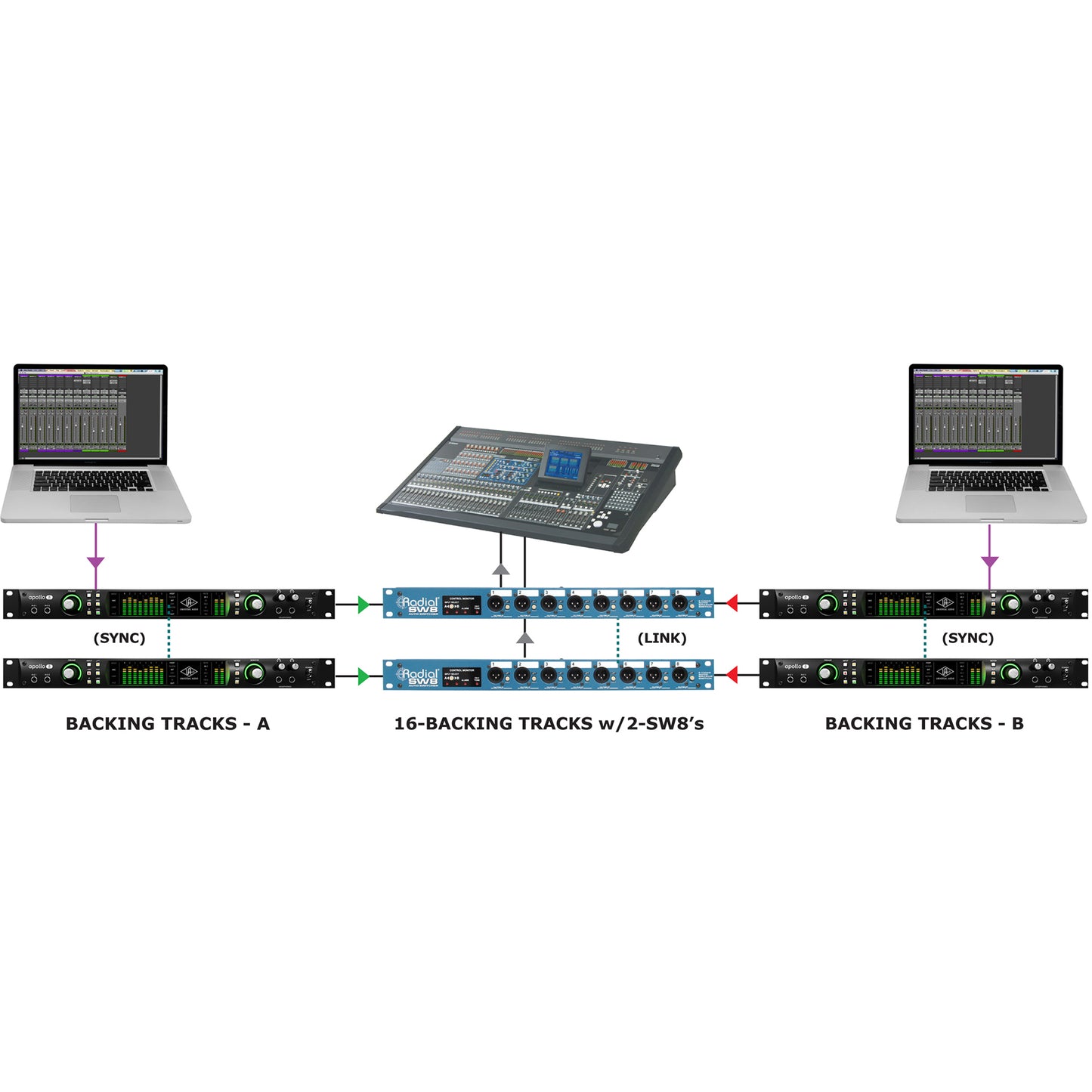

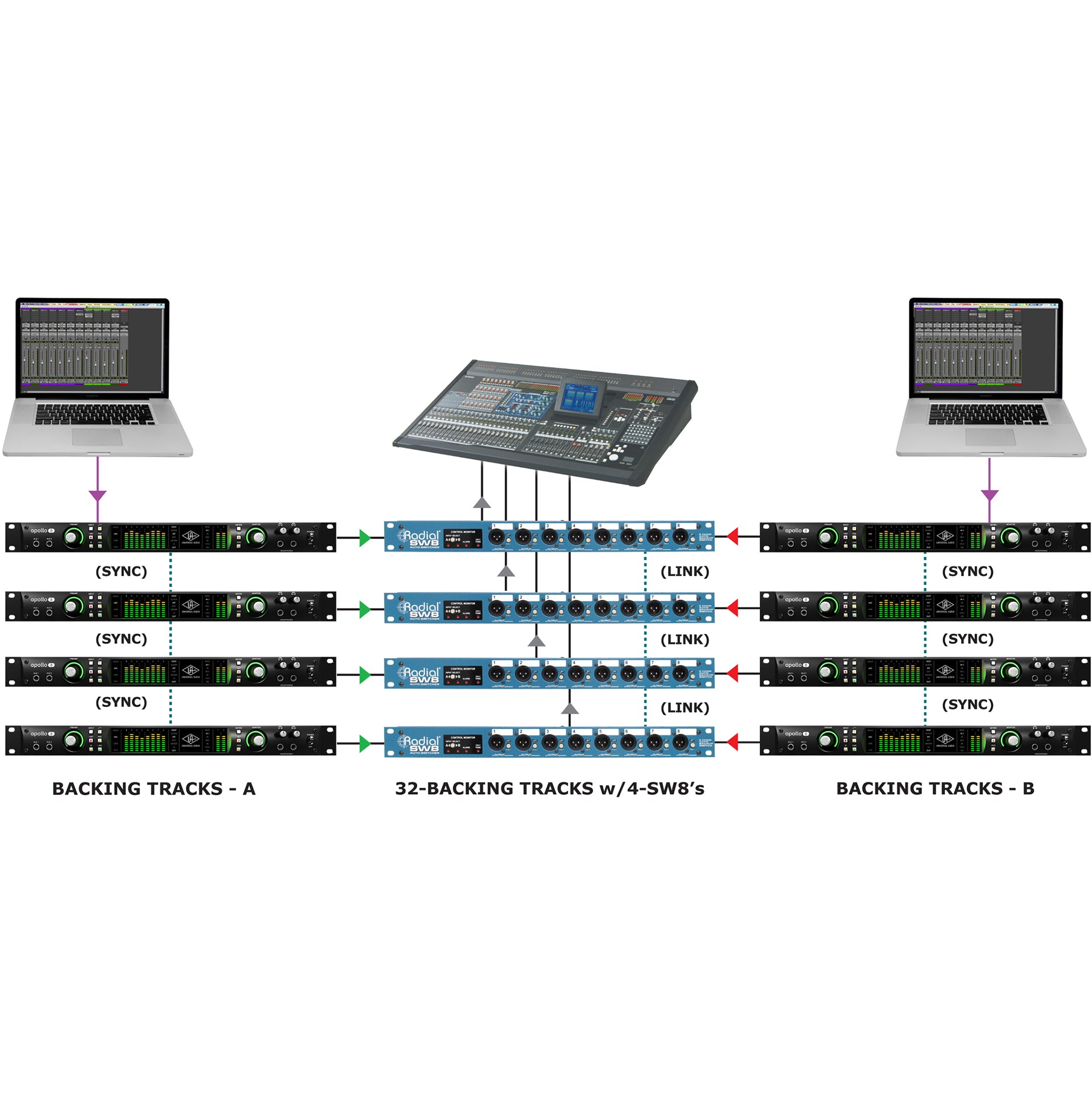

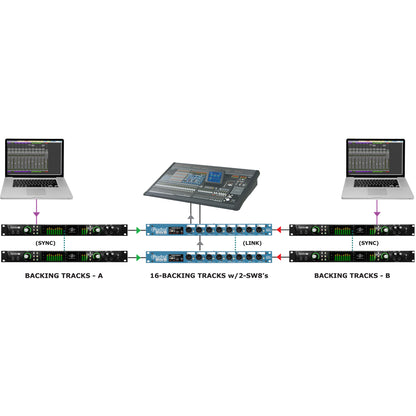

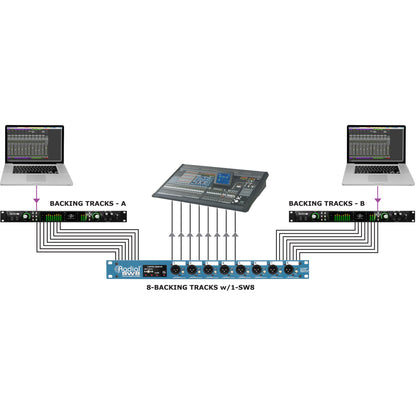

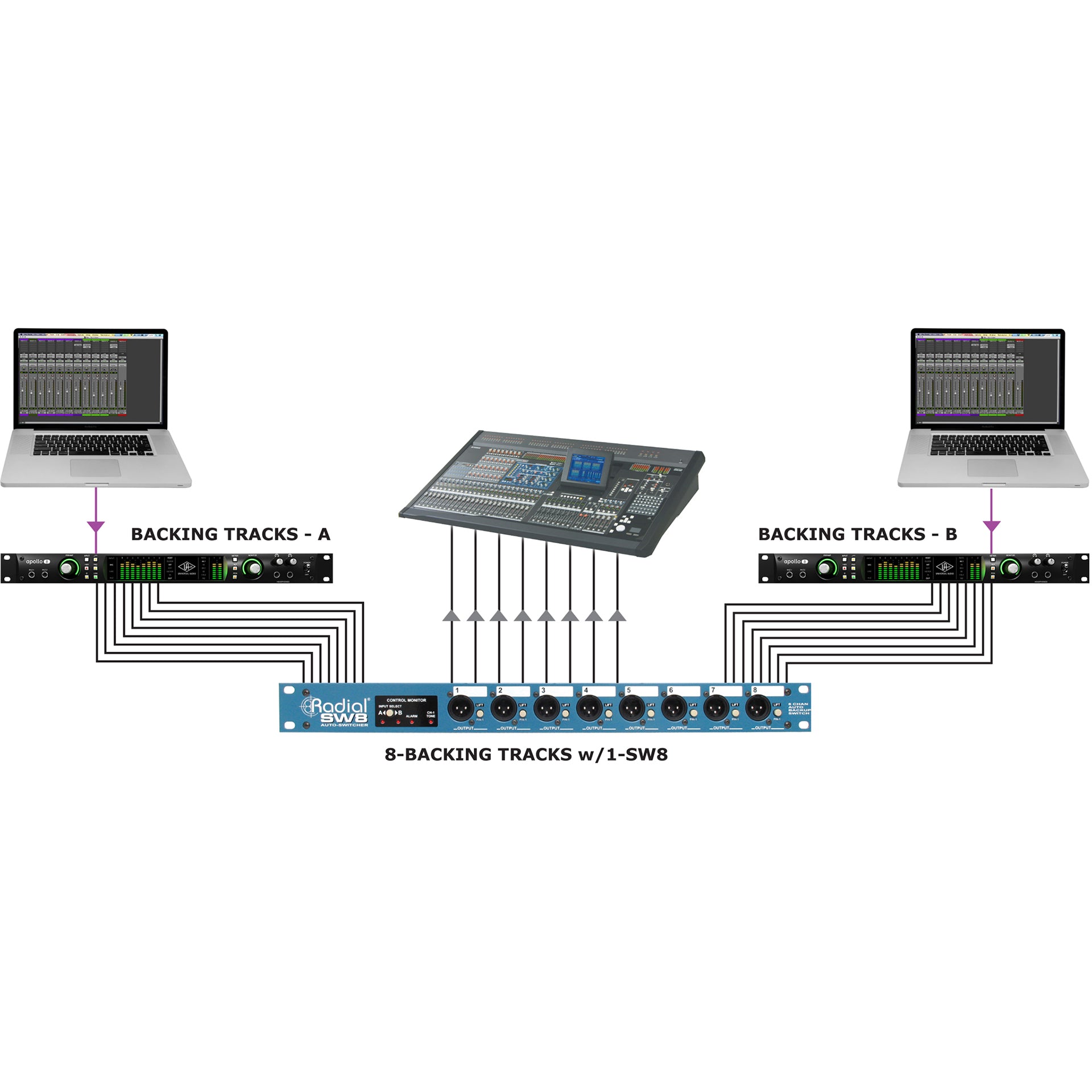

The Radial SW8 auto-switcher provides redundant backup by automatically switching between two 8-channel sources such as a pair of digital recorders. Designed primarily for live concerts and stage shows where backing tracks are used for orchestration, backing chorals and sound effects, the SW8 can detect a machine malfunction and automatically switch to a second backup machine to ensure a seamless performance.
| Product Name | Radial SW8-Channel Line Level Auto Switcher |
|---|---|
| Brand | Radial Engineering |
| Condition | New |
| MPN | SW8 |
| UPC | 676101037803 |
| Shipping Option | Free Shipping to the Continental U.S. |
| Audio Circuit Type | Passive signal path with active relay switching |
| Transformer | Eclipse ET-DB2 |
| Channels | 8 |
| Frequency Response | 20 Hz – 20 kHz |
| Dynamic Range | >120 dB |
| Gain | -20 dB |
| Total Harmonic Distortion | 0.002% |
| Intermodulation Distortion | >0.002% |
| Phase Deviation | -2° @ 20 Hz |
| Input Impedance | 140k Ohms, balanced |
| Output Impedance | 150 Ohms, balanced |
| CMRR | -112 dB at 50/60 Hz |
| Equivalent Input Noise | -95 dBu |
| Noise Floor | -115 dBu |
| Maximum Input | 26 dBu |
| Features | Input pad, Ground lift, Remote Footswitch |

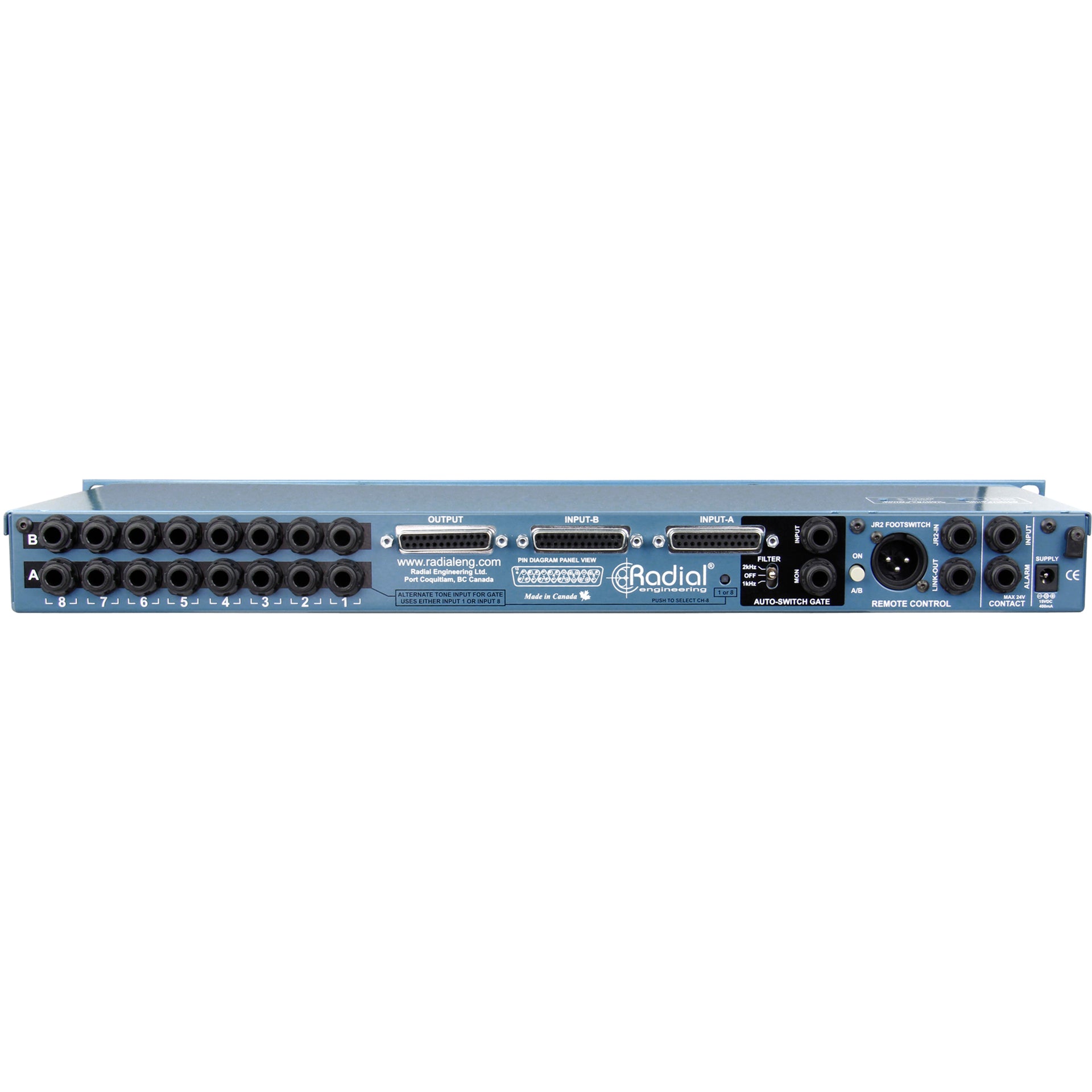

| Input Connectors | 1/4" TRS, D-sub |
| Output Connectors | XLR, D-sub |
| Extras | Contact Alarm Input, JR-2 XLR |
| Construction | 14-gauge steel chassis & outer shell |
| Dimensions (L × W × H) | 17.5" x 6" x 1.75" (44.5 cm x 15.25 cm x 4.5 cm) |
| Weight | 9.2 lb (4.2 kg) |
| Shipping Dimensions | 22" x 10.375" x 4.5" (55.9 cm x 26.4 cm x 11.4 cm) |
| Shipping Weight | 9.7 lb (4.4 kg) |
| Power | Two +15VDC / 400mA power supplies included |
| Operating Conditions | Dry location use, 5°C to 40°C (41°F to 104°F) |
