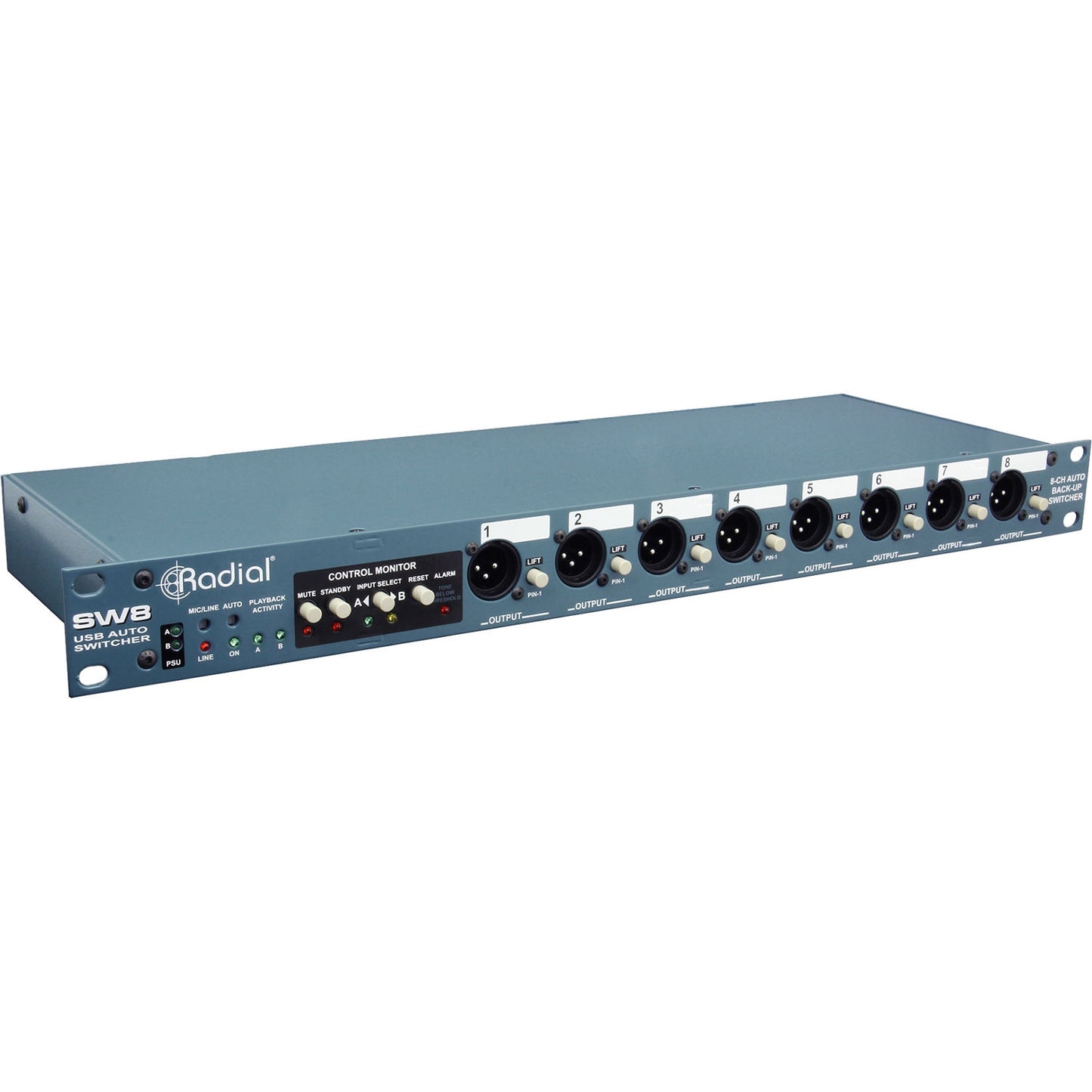

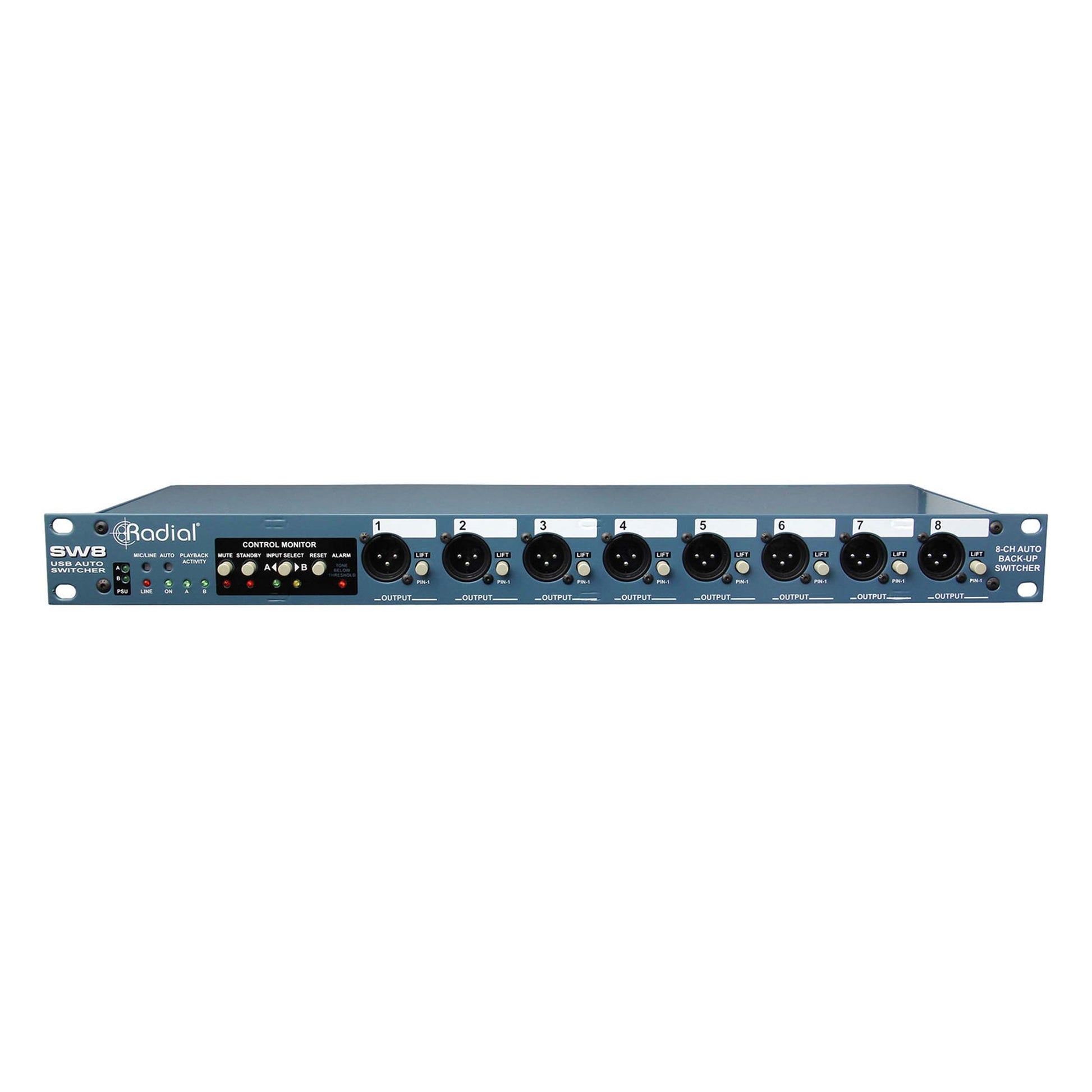

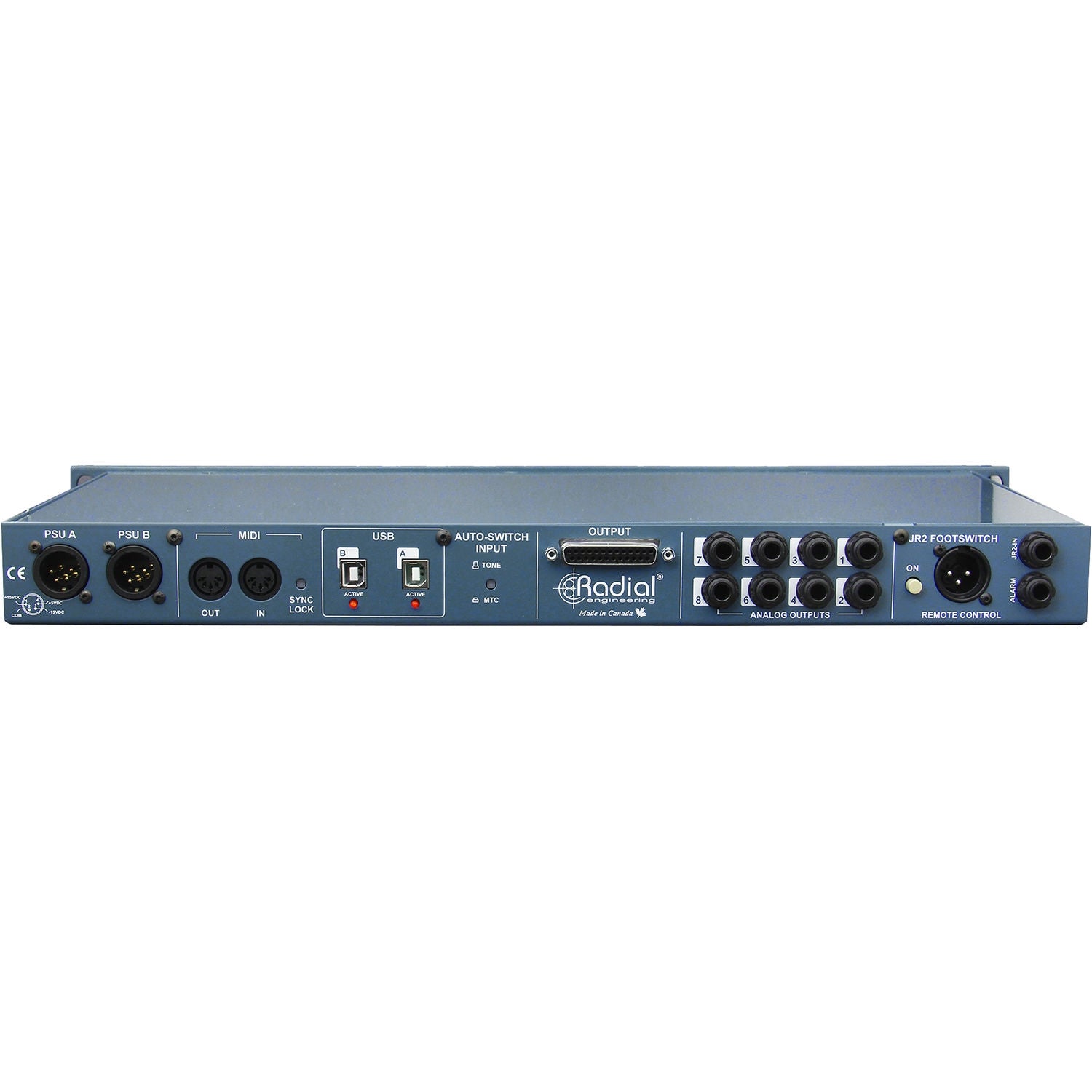

Auto-Switcher and USB interface
The Radial SW8-USB is a streamlined solution for employing redundant playback systems on stage, with dual USB inputs that allow you to connect directly to your primary and backup computers, providing eight channels of high quality audio and peace of mind during a live performance.
The all-in-one backing track solution
The SW8-USB is the complete solution for performances that utilize redundant playback systems for backing tracks, combining two built-in high performance USB interfaces with an auto-switching feature that detects dropouts and effortlessly switches to the backup computer in an instant. Dual USB inputs with separate 24bit/192kHz converters allow two computers to be connected in tandem, so digital workstations on both machines can connect to the SW8-USB as an audio and MIDI interface. Start/stop synchronization is also possible between both computers through MTC, ensuring flawless switching between playback rigs with less equipment than ever.
| Product Name | Radial SW8-USB Dual-USB Auto-Switcher and Interface |
|---|---|
| Brand | Radial Engineering |
| Condition | New |
| MPN | R8008101 |
| UPC | 676101044788 |
| Shipping Option | Free Shipping to the Continental U.S. |
- Switch between redundant playback systems
- Two USB inputs eliminates the need for additional audio interfaces
- Manual or seamless automatic switching
- Line level or transformer-isolated mic level outputs
- Synchronize both playback systems using MTC
| Transformer: | Eclipse ET-DB2 |
| Frequency response: | 20hz-20Khz (+0.0dB/-0.5dB) |
| Dynamic range: | (XLR Outputs) 120dB (Monitor Outputs) 120dB |
| Total harmonic distortion: | (XLR Line Level Outputs) 0.006% @ 1Khz +18dBu (XLR Mic Level Outputs) 0.009% @ 1Khz +18dBu (Monitor Outputs) 0.006% @ +18dBu |
| Intermodulation Distortion: | (XLR Outputs) 0.0002% @ +18dBu (Monitor Outputs) 0.0002% @ +18dBu |
| Output Impedance: | (XLR Outputs) 150 Ohms (Monitor Outputs) 150 Ohms |
| Common Mode Rejection Ratio: | (XLR Line Level Outputs) -98dB (XLR Mic Level Outputs) -90dB (Monitor Outputs) -98dB |
| Noise: | (XLR Outputs) -120dB (Monitor Outputs) -120dB |
| Noise: | (Monitor Outputs) -120dB |
| Noise: | 44.1, 48, 88.2, 96, 176.4, 192 |
| Maximum Output: | (XLR Outputs) +18dBu @ 0DBFS (Monitor Outputs) +18dBu @ 0DBFS |
Radial SW8-USB Dual-USB Auto-Switcher and Interface
Auto-Switcher and USB interface
The Radial SW8-USB is a streamlined solution for employing redundant playback systems on stage, with dual USB inputs that allow you to connect directly to your primary and backup computers, providing eight channels of high quality audio and peace of mind during a live performance.
The all-in-one backing track solution
The SW8-USB is the complete solution for performances that utilize redundant playback systems for backing tracks, combining two built-in high performance USB interfaces with an auto-switching feature that detects dropouts and effortlessly switches to the backup computer in an instant. Dual USB inputs with separate 24bit/192kHz converters allow two computers to be connected in tandem, so digital workstations on both machines can connect to the SW8-USB as an audio and MIDI interface. Start/stop synchronization is also possible between both computers through MTC, ensuring flawless switching between playback rigs with less equipment than ever.
| Product Name | Radial SW8-USB Dual-USB Auto-Switcher and Interface |
|---|---|
| Brand | Radial Engineering |
| Condition | New |
| MPN | R8008101 |
| UPC | 676101044788 |
| Shipping Option | Free Shipping to the Continental U.S. |
- Switch between redundant playback systems
- Two USB inputs eliminates the need for additional audio interfaces
- Manual or seamless automatic switching
- Line level or transformer-isolated mic level outputs
- Synchronize both playback systems using MTC
| Transformer: | Eclipse ET-DB2 |
| Frequency response: | 20hz-20Khz (+0.0dB/-0.5dB) |
| Dynamic range: | (XLR Outputs) 120dB (Monitor Outputs) 120dB |
| Total harmonic distortion: | (XLR Line Level Outputs) 0.006% @ 1Khz +18dBu (XLR Mic Level Outputs) 0.009% @ 1Khz +18dBu (Monitor Outputs) 0.006% @ +18dBu |
| Intermodulation Distortion: | (XLR Outputs) 0.0002% @ +18dBu (Monitor Outputs) 0.0002% @ +18dBu |
| Output Impedance: | (XLR Outputs) 150 Ohms (Monitor Outputs) 150 Ohms |
| Common Mode Rejection Ratio: | (XLR Line Level Outputs) -98dB (XLR Mic Level Outputs) -90dB (Monitor Outputs) -98dB |
| Noise: | (XLR Outputs) -120dB (Monitor Outputs) -120dB |
| Noise: | (Monitor Outputs) -120dB |
| Noise: | 44.1, 48, 88.2, 96, 176.4, 192 |
| Maximum Output: | (XLR Outputs) +18dBu @ 0DBFS (Monitor Outputs) +18dBu @ 0DBFS |
