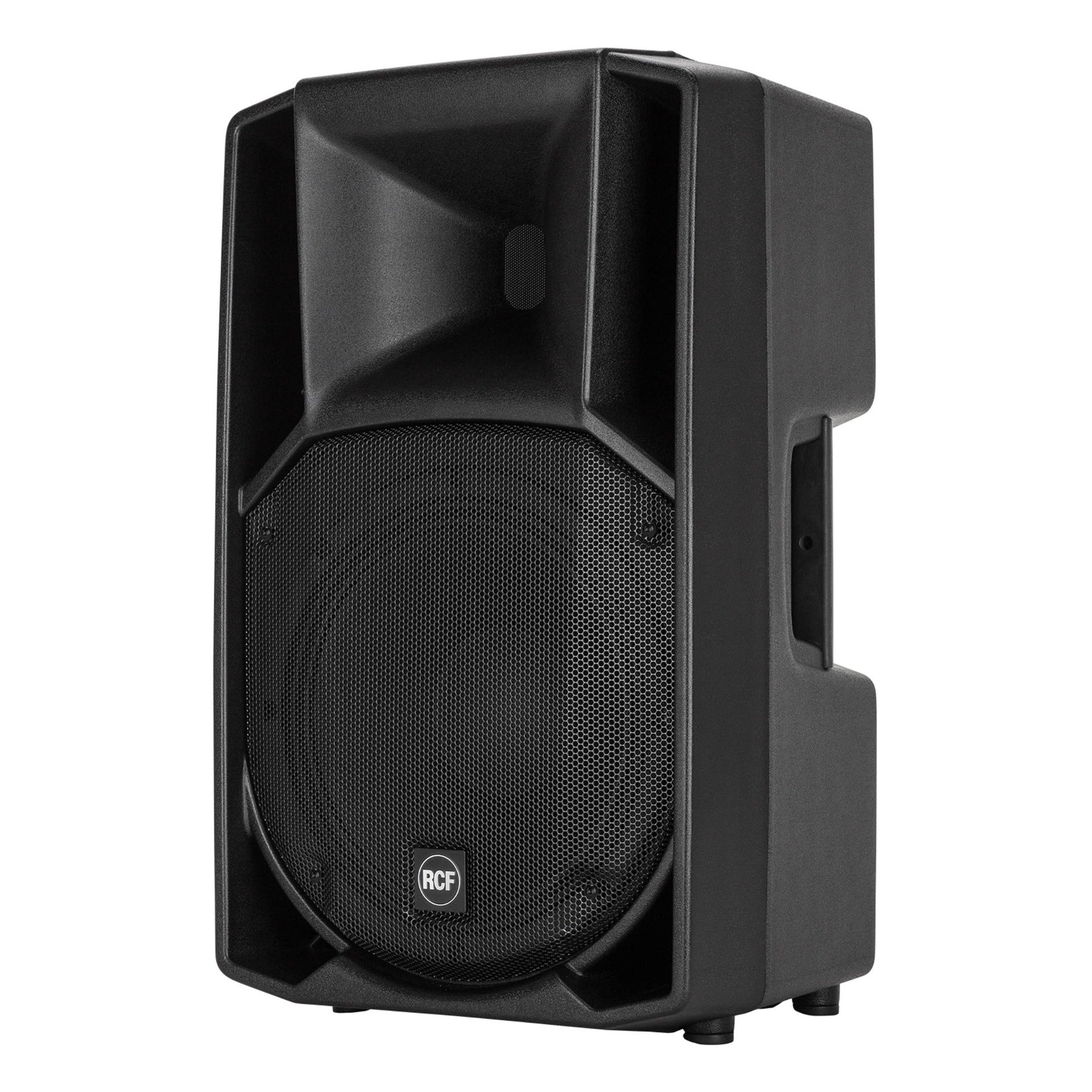

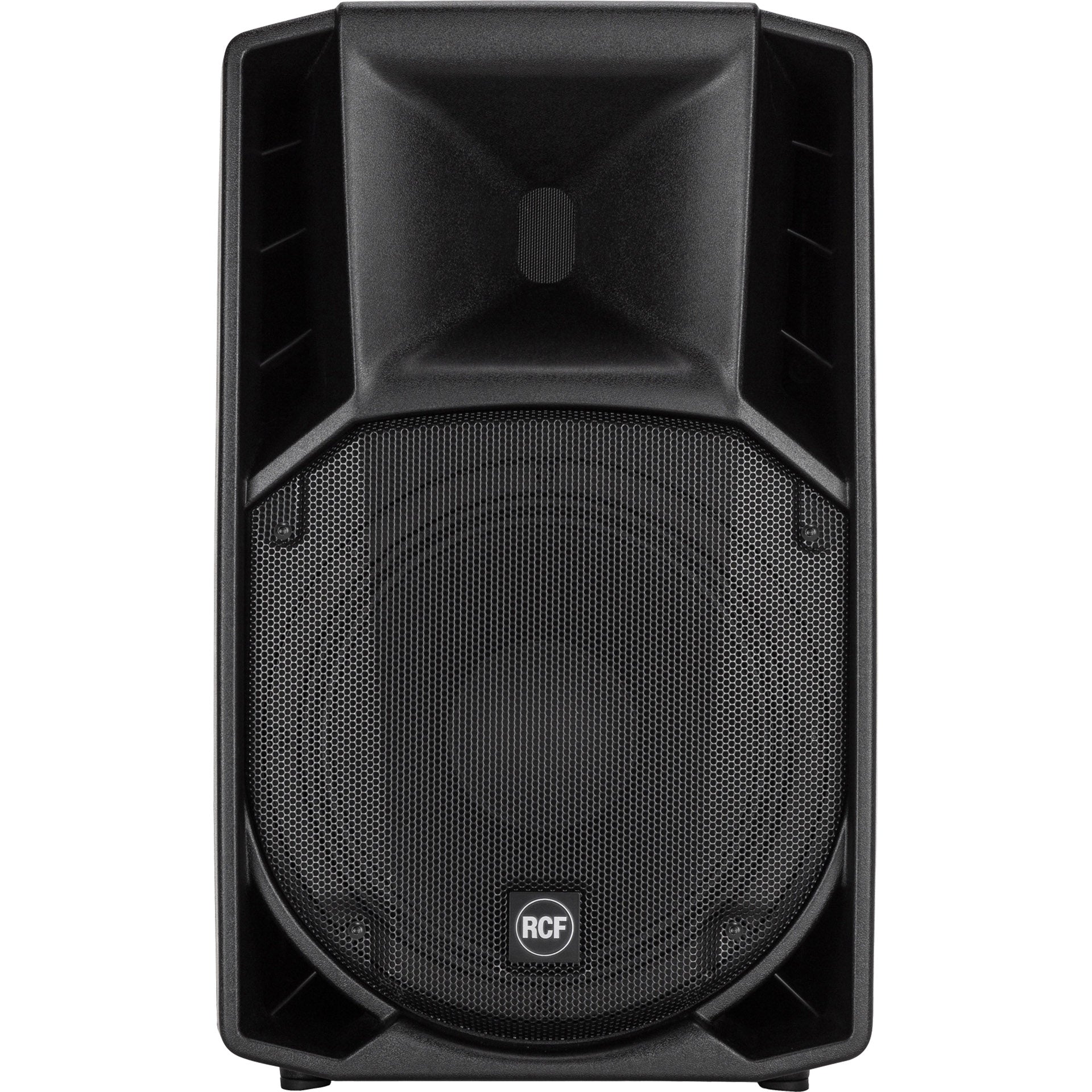

ART 712-A MK4 is a unique product in its category. The professional compression driver with custom designed dome and high power voice coil offers unique vocal clarity and sound projection. The 12” woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.
The ART Series is the beating heart of RCF. These multiple purpose active speakers represent the finest examples of audio design in a rugged composite cabinet, now in black. The MK4 Series is equipped with a new generation of 2-way Class-D fan-less amplifiers, high-powered woofers and the latest compression driver technology, plus a redesigned front grille. The ART concept offers the best audio choice for a multitude of live sound applications in a plug‘n’go device. Just connect your microphone, your mixer or your audio device to the speaker and turn up the volume: there are no complex menus, no knobs to understand.
Product Name | RCF ART-712A-MK4 Active 1400W 2-Way 12" w/1" HF Comp. Loudspeaker |
---|---|
Brand | RCF |
Condition | New |
MPN | ART-712A-MK4 |
Shipping Option | Free Shipping to the Continental U.S. |
- 129 dB Max SPL
- 1400 WATT 2-way peak power
- Innovative DSP Processing
- 1" Compression Driver, 1.75" v.c.
- 12" Woofer
- 90°x60°, wide dispersion constant directivity horn
- FiRPHASE Technology
ACOUSTICAL SPECIFICATIONS
- Frequency Response -3 dB:50Hz ÷20000Hz
- Max SPL:129dB
- Horizontal coverage angle:90°
- Vertical coverage angle:60°
- Compression Driver:1", 1.75" v.c.
- Woofer:12", 2.5" v.c.
INPUT/OUTPUT SECTION
- Input signal:bal / unbal
- Input connectors:XLR, Jack
- Output connectors:XLR
- Input sensitivity:-2 dBu / +4 dBu
PROCESSOR SECTION
- Crossover frequencies:1600Hz
- Protections:Thermal, rms
- Limiter:Soft limiter
- Controls:Volume, Boost, Mic/Line
AMPLIFIER SPECIFICATIONS
- Total power:1400W PEAK
- High frequencies:400W PEAK
- Low frequencies:1000W PEAK
- Total power:700W RMS
- High frequencies:200W RMS
- Low frequencies:500W RMS
- Cooling:Convection / forced
- Connections:VDE connector in
CABINET
- Cabinet Material:Composite PP
- Hardware:2xM10 flying p .
- Handles:2 side, 1 top
- Pole Mount/Cap:Yes
- Colour:Black
PHYSICAL SPECIFICATIONS
- Height:637 / 25.0mm/inch
- Width:387 / 15.2mm/inch
- Depth:363 / 14.2mm/inch
- Net Weight:18 / 39.6kg/lbs
RCF ART-712A-MK4 Active 1400W 2-Way 12" w/1" HF Comp. Loudspeaker
ART 712-A MK4 is a unique product in its category. The professional compression driver with custom designed dome and high power voice coil offers unique vocal clarity and sound projection. The 12” woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.
The ART Series is the beating heart of RCF. These multiple purpose active speakers represent the finest examples of audio design in a rugged composite cabinet, now in black. The MK4 Series is equipped with a new generation of 2-way Class-D fan-less amplifiers, high-powered woofers and the latest compression driver technology, plus a redesigned front grille. The ART concept offers the best audio choice for a multitude of live sound applications in a plug‘n’go device. Just connect your microphone, your mixer or your audio device to the speaker and turn up the volume: there are no complex menus, no knobs to understand.
Product Name | RCF ART-712A-MK4 Active 1400W 2-Way 12" w/1" HF Comp. Loudspeaker |
---|---|
Brand | RCF |
Condition | New |
MPN | ART-712A-MK4 |
Shipping Option | Free Shipping to the Continental U.S. |
- 129 dB Max SPL
- 1400 WATT 2-way peak power
- Innovative DSP Processing
- 1" Compression Driver, 1.75" v.c.
- 12" Woofer
- 90°x60°, wide dispersion constant directivity horn
- FiRPHASE Technology
ACOUSTICAL SPECIFICATIONS
- Frequency Response -3 dB:50Hz ÷20000Hz
- Max SPL:129dB
- Horizontal coverage angle:90°
- Vertical coverage angle:60°
- Compression Driver:1", 1.75" v.c.
- Woofer:12", 2.5" v.c.
INPUT/OUTPUT SECTION
- Input signal:bal / unbal
- Input connectors:XLR, Jack
- Output connectors:XLR
- Input sensitivity:-2 dBu / +4 dBu
PROCESSOR SECTION
- Crossover frequencies:1600Hz
- Protections:Thermal, rms
- Limiter:Soft limiter
- Controls:Volume, Boost, Mic/Line
AMPLIFIER SPECIFICATIONS
- Total power:1400W PEAK
- High frequencies:400W PEAK
- Low frequencies:1000W PEAK
- Total power:700W RMS
- High frequencies:200W RMS
- Low frequencies:500W RMS
- Cooling:Convection / forced
- Connections:VDE connector in
CABINET
- Cabinet Material:Composite PP
- Hardware:2xM10 flying p .
- Handles:2 side, 1 top
- Pole Mount/Cap:Yes
- Colour:Black
PHYSICAL SPECIFICATIONS
- Height:637 / 25.0mm/inch
- Width:387 / 15.2mm/inch
- Depth:363 / 14.2mm/inch
- Net Weight:18 / 39.6kg/lbs
