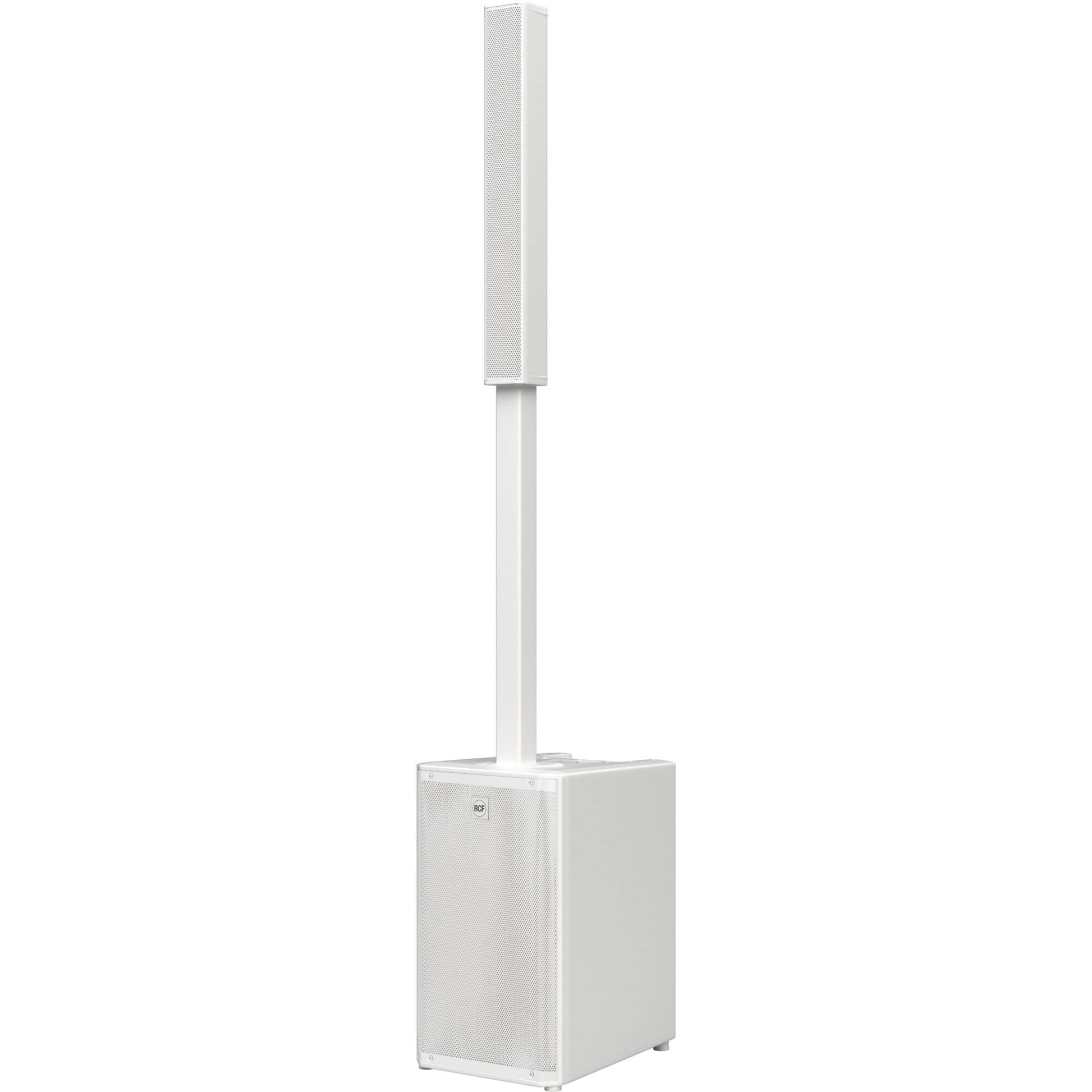

RCF EVOX JMIX9 Active 3-Way Column Array with 8-channel Mixer - White

RCF EVOX JMIX9 Active 3-Way Column Array with 8-channel Mixer - White

$1,999.00
$1,999.00
Sale Sold out

On order with the manufacturer!
View full details Liquid error (sections/main-product line 888): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Tech Specs
  • Reviews

EVOX JMIX9 is a three-way active portable system with an integrated 8-channel stereo digital mixer featuring a color touch display, encoders, Bluetooth® streaming, and full remote control. Combining the clarity and power of the J9 with digital mixing, flexible routing, and wireless management, EVOX JMIX9 delivers professional performance across the entire signal chain. A 1.75” compression driver on a 120° × 40° True Resistive Waveguide delivers wide, uniform coverage, while six 3” transducers and a high-power 12” bass-reflex woofer provide articulate mids and deep, controlled lows. Powered by a 2100 W Class-D amplifier for up to 130 dB Max SPL, the system includes combo inputs, stereo/aux out, EQ, reverb, phantom power, and Bluetooth audio. All functions are accessible from the touch interface or the JMixRemote app.

More Information
Product Name RCF EVOX JMIX9 Active 3-Way Column Array with 8-channel Mixer - White
Brand RCF
Condition New
MPN EVOX-JMIX-9-W
Shipping Option Free Shipping to the Continental U.S.

What's in the Box?

  • RCF EVOX JMIX9 Active 3-Way Column Array with 8-channel Mixer - White
  • NL2 speakON Cable
  • Power Cable
  • Pole Clips
  • Top Speaker Padded Carrying Bag Included
  • 8-Ch True-Stereo Digital Mixer w/ Bluetooth®
  • 130 dB Max SPL
  • 2100 W Class-D Amplifier - Built-In DSP
  • 1.75” Neo Compression Driver - 120° X 40° True Resistive Waveguide
  • 6 × 3” Full-Range Neo Transducers
  • 12” High-Power Woofer
  • Enhanced Coverage And Clarity
  • Sleek Composite Cabinet With Aluminum Stand Mount
  • Top Speaker Padded Carrying Bag Included

Acoustical Specifications
Frequency Response 40 Hz – 20,000 Hz
Max SPL @ 1m 130 dB
Horizontal Coverage Angle 120°
Vertical Coverage Angle 40°

Transducers
Compression Driver 1 × 0.75" (19.05 mm) neo, 1.75" (44.45 mm) v.c
Fullrange 6 × 3.0" (76.2 mm) neo, 1.0" (25.4 mm) v.c
Woofer 1 × 12" (304.8 mm), 2.5" (63.5 mm) v.c

Input / Output Section
Input Signal Balanced / Unbalanced
Input Connectors Combo XLR / Jack
Output Connectors XLR
Input Sensitivity -2 dBu / +4 dBu

Processor Section
Crossover Frequencies 200 Hz / 1800 Hz
Protections Thermal, RMS
Limiter Soft Limiter
Controls Digital mixer controlled by touch screen and encoders

Power Section
Total Power 2100 W Peak
High Frequencies 700 W Peak
Low Frequencies 1400 W Peak
Cooling Convection
Connections VDE

Electronic Specifications
Frequency Response 20 Hz – 20 Hz
THD+N (20 dB Gain, 0 dBu Out) 0.003% A-Weighted
Processing Channels 8
Signal Processing 32 Bit
A/D – D/A Conversion 24 Bit @ 48.0 kHz
Dynamic Range 114 dB

Inputs
Mic Inputs 4
Remote Controlled Storable Gain Yes
Mic Gain Range 0 dB – 36 dB
Input Noise Level -114 dBu A-Weighted
Mic Input Impedance 3 kΩ
Low Cut 20 Hz – 400 Hz
Phantom Power +48 V
Mono Line Inputs 4
Mono Line Gain Selection 0 dB – 36 dB
Line Input Impedance 10 kΩ
A/D Dynamic Range 120 dB
Stereo Line Inputs 2
Stereo Line Gain Selection 0 dB – 0 dB
Stereo Line Input Impedance 24 kΩ

Outputs
Main MIX 1
FX Send 1
AUX Send 1
AUX Output 1
Phones 1

Output Specifications
Main Out Impedance 150 Ω
Main Out Level 20 dBu
Aux Out Impedance 150 Ω
Aux Out Level 20 dBu
Phones Out Impedance 100 Ω
Phones Out Level 20 dBm
D/A Dynamic Range 118 dB

EQ & Processing
Compressors RCF Compressors (MIC/LINE CH1–CH4)
Input Channels EQ 1 Semi-Parametric / 2 Shelving
EQ Description 3-Band EQ (High/Low Shelving, Mid Peak); 8-Band EQ (6 Full Parametric, 1 High Shelving, HPF 12 dB/Oct on amp and Main Out)

Auxiliary Sends & Effects
AUX 1 PRE / POST
FX POST 1
Internal Effects Send Effects: 1

Mastering Processors
Main OUT Processors 1
Main OUT Type MIX OUT, Stereo/Mono Output, AUX Out, Headphones Output

Electrical Specifications
Power Supply Internal
Standard Compliance CE Compliant

Physical Specifications
Cabinet / Case Material PP Composite
Handles 1 Top
Pole Mount / Cap Quick-fit socket
Grille Steel
Color Black, White (RAL 9003)

Size / Weight
Height 2080 mm (81.89")
Width 350 mm (13.78")
Depth 460 mm (18.11")
Weight 28.8 kg (63.49 lbs)

Shipping Information
Package Height 676 mm (26.61")
Package Width 451 mm (17.76")
Package Depth 581 mm (22.87")
Package Weight 32.5 kg (71.65 lbs)

RCF EVOX JMIX9 Active 3-Way Column Array with 8-channel Mixer - White
Details

EVOX JMIX9 is a three-way active portable system with an integrated 8-channel stereo digital mixer featuring a color touch display, encoders, Bluetooth® streaming, and full remote control. Combining the clarity and power of the J9 with digital mixing, flexible routing, and wireless management, EVOX JMIX9 delivers professional performance across the entire signal chain. A 1.75” compression driver on a 120° × 40° True Resistive Waveguide delivers wide, uniform coverage, while six 3” transducers and a high-power 12” bass-reflex woofer provide articulate mids and deep, controlled lows. Powered by a 2100 W Class-D amplifier for up to 130 dB Max SPL, the system includes combo inputs, stereo/aux out, EQ, reverb, phantom power, and Bluetooth audio. All functions are accessible from the touch interface or the JMixRemote app.

More Information
Product Name RCF EVOX JMIX9 Active 3-Way Column Array with 8-channel Mixer - White
Condition New
MPN EVOX-JMIX-9-W

What's in the Box?

  • RCF EVOX JMIX9 Active 3-Way Column Array with 8-channel Mixer - White
  • NL2 speakON Cable
  • Power Cable
  • Pole Clips
  • Top Speaker Padded Carrying Bag Included
Features
  • 8-Ch True-Stereo Digital Mixer w/ Bluetooth®
  • 130 dB Max SPL
  • 2100 W Class-D Amplifier - Built-In DSP
  • 1.75” Neo Compression Driver - 120° X 40° True Resistive Waveguide
  • 6 × 3” Full-Range Neo Transducers
  • 12” High-Power Woofer
  • Enhanced Coverage And Clarity
  • Sleek Composite Cabinet With Aluminum Stand Mount
  • Top Speaker Padded Carrying Bag Included
Tech Specs

Acoustical Specifications
Frequency Response 40 Hz – 20,000 Hz
Max SPL @ 1m 130 dB
Horizontal Coverage Angle 120°
Vertical Coverage Angle 40°

Transducers
Compression Driver 1 × 0.75" (19.05 mm) neo, 1.75" (44.45 mm) v.c
Fullrange 6 × 3.0" (76.2 mm) neo, 1.0" (25.4 mm) v.c
Woofer 1 × 12" (304.8 mm), 2.5" (63.5 mm) v.c

Input / Output Section
Input Signal Balanced / Unbalanced
Input Connectors Combo XLR / Jack
Output Connectors XLR
Input Sensitivity -2 dBu / +4 dBu

Processor Section
Crossover Frequencies 200 Hz / 1800 Hz
Protections Thermal, RMS
Limiter Soft Limiter
Controls Digital mixer controlled by touch screen and encoders

Power Section
Total Power 2100 W Peak
High Frequencies 700 W Peak
Low Frequencies 1400 W Peak
Cooling Convection
Connections VDE

Electronic Specifications
Frequency Response 20 Hz – 20 Hz
THD+N (20 dB Gain, 0 dBu Out) 0.003% A-Weighted
Processing Channels 8
Signal Processing 32 Bit
A/D – D/A Conversion 24 Bit @ 48.0 kHz
Dynamic Range 114 dB

Inputs
Mic Inputs 4
Remote Controlled Storable Gain Yes
Mic Gain Range 0 dB – 36 dB
Input Noise Level -114 dBu A-Weighted
Mic Input Impedance 3 kΩ
Low Cut 20 Hz – 400 Hz
Phantom Power +48 V
Mono Line Inputs 4
Mono Line Gain Selection 0 dB – 36 dB
Line Input Impedance 10 kΩ
A/D Dynamic Range 120 dB
Stereo Line Inputs 2
Stereo Line Gain Selection 0 dB – 0 dB
Stereo Line Input Impedance 24 kΩ

Outputs
Main MIX 1
FX Send 1
AUX Send 1
AUX Output 1
Phones 1

Output Specifications
Main Out Impedance 150 Ω
Main Out Level 20 dBu
Aux Out Impedance 150 Ω
Aux Out Level 20 dBu
Phones Out Impedance 100 Ω
Phones Out Level 20 dBm
D/A Dynamic Range 118 dB

EQ & Processing
Compressors RCF Compressors (MIC/LINE CH1–CH4)
Input Channels EQ 1 Semi-Parametric / 2 Shelving
EQ Description 3-Band EQ (High/Low Shelving, Mid Peak); 8-Band EQ (6 Full Parametric, 1 High Shelving, HPF 12 dB/Oct on amp and Main Out)

Auxiliary Sends & Effects
AUX 1 PRE / POST
FX POST 1
Internal Effects Send Effects: 1

Mastering Processors
Main OUT Processors 1
Main OUT Type MIX OUT, Stereo/Mono Output, AUX Out, Headphones Output

Electrical Specifications
Power Supply Internal
Standard Compliance CE Compliant

Physical Specifications
Cabinet / Case Material PP Composite
Handles 1 Top
Pole Mount / Cap Quick-fit socket
Grille Steel
Color Black, White (RAL 9003)

Size / Weight
Height 2080 mm (81.89")
Width 350 mm (13.78")
Depth 460 mm (18.11")
Weight 28.8 kg (63.49 lbs)

Shipping Information
Package Height 676 mm (26.61")
Package Width 451 mm (17.76")
Package Depth 581 mm (22.87")
Package Weight 32.5 kg (71.65 lbs)
