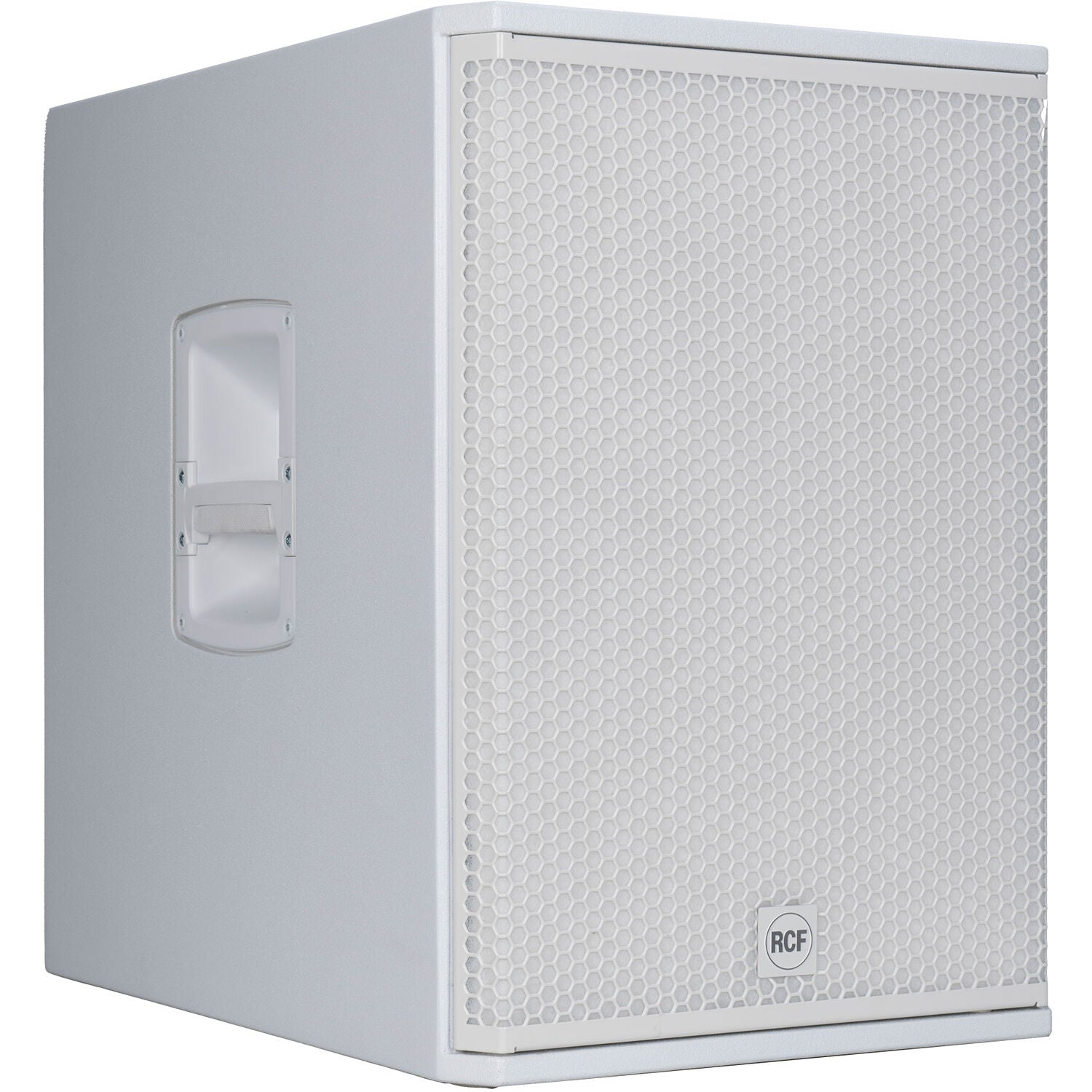

The SUB 15-AX is a portable 15" high-power active subwoofer for live sound applications with fully featured processing, a color touch panel, and remote control via Bluetooth®. The combination of a latest-generation transducer with a powerful Class-D amplifier delivers sound pressure levels up to 133 dB with exceptional clarity and headroom. SUB AX subwoofers are designed specifically for small to mid-sized venues and ideal for portable applications. SUB 15-AX is the ideal complement for 10" or 12" woofer-size loudspeakers; it centralizes speaker management inside the subwoofer, providing dual crossovers, 8-band EQs, routing, delays, cardioid configurations, and recallable crossover presets. The polyurea-coated all-wood cabinet features a sealed Powercon True1 Top connector.
| Product Name | RCF SUB 15-AX Professional 2200W Powered 15" Subwoofer - White |
|---|---|
| Brand | RCF |
| Condition | New |
| MPN | SUB15-AXW |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- RCF SUB 15-AX Professional 2200W Powered 15" Subwoofer
- Power Cable
- 2200 Watt Class-D Amplifier
- 133 dB MAX SPL
- 15” Woofer, bass reflex housing
- Digital Crossover w/ Presets
- Multi-ply hardwood polyurea-coated
- LiveRemote App

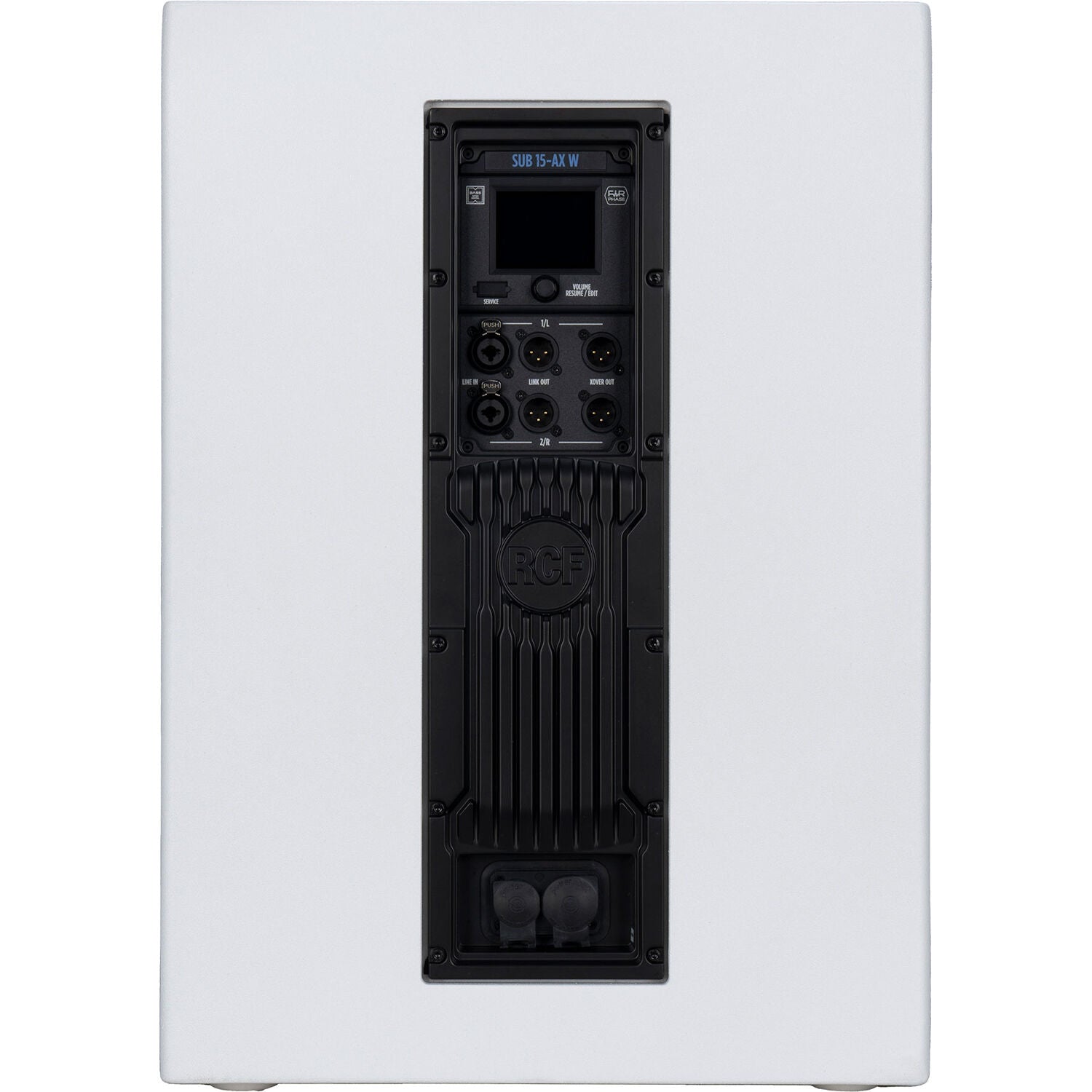

- Dual XLR/TRS combo Input + Link, Dual XLR Xover Out
- Bass Motion Control excursion management
- Powercon True1 Top Sealed AC Connector
Specifications
| Acoustical Specifications | |
| Frequency Response | 35 Hz – 120 Hz |
| Max SPL @ 1m | 133 dB |
| Woofer | 1 x 15", 3.0" v.c. |
| Input / Output Section | |
| Input Signal | Balanced / Unbalanced |
| Input Connectors | Combo XLR / Jack |
| Output Connectors | XLR |
| Input Sensitivity | -2 dBu / +4 dBu |
| Processor Section | |
| Protections | Thermal |
| Limiter | Soft Limiter |

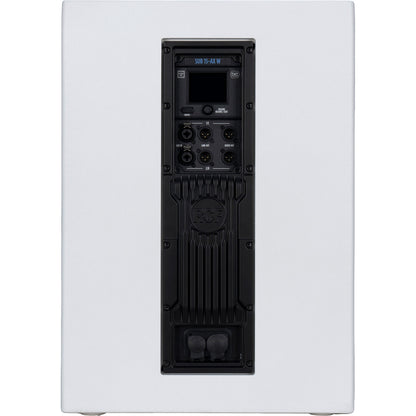

| Controls | Encoder for volume & data entry; Touch screen for parameter management and monitoring |
| Power Section | |
| Total Power | 2200 W Peak, 1100 W RMS |
| Cooling | Convection |
| Connections | Powercon TRUE1 TOP In/Out |
| Standard Compliance | |
| Safety Agency | CE Compliant |
| Physical Specifications | |
| Cabinet Material | Plywood |

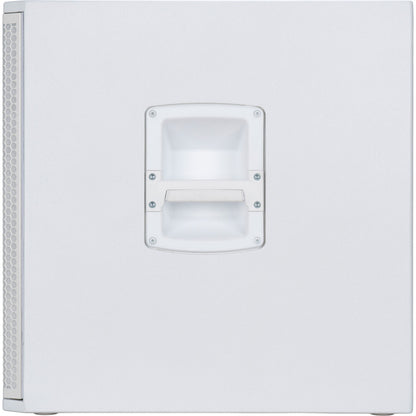

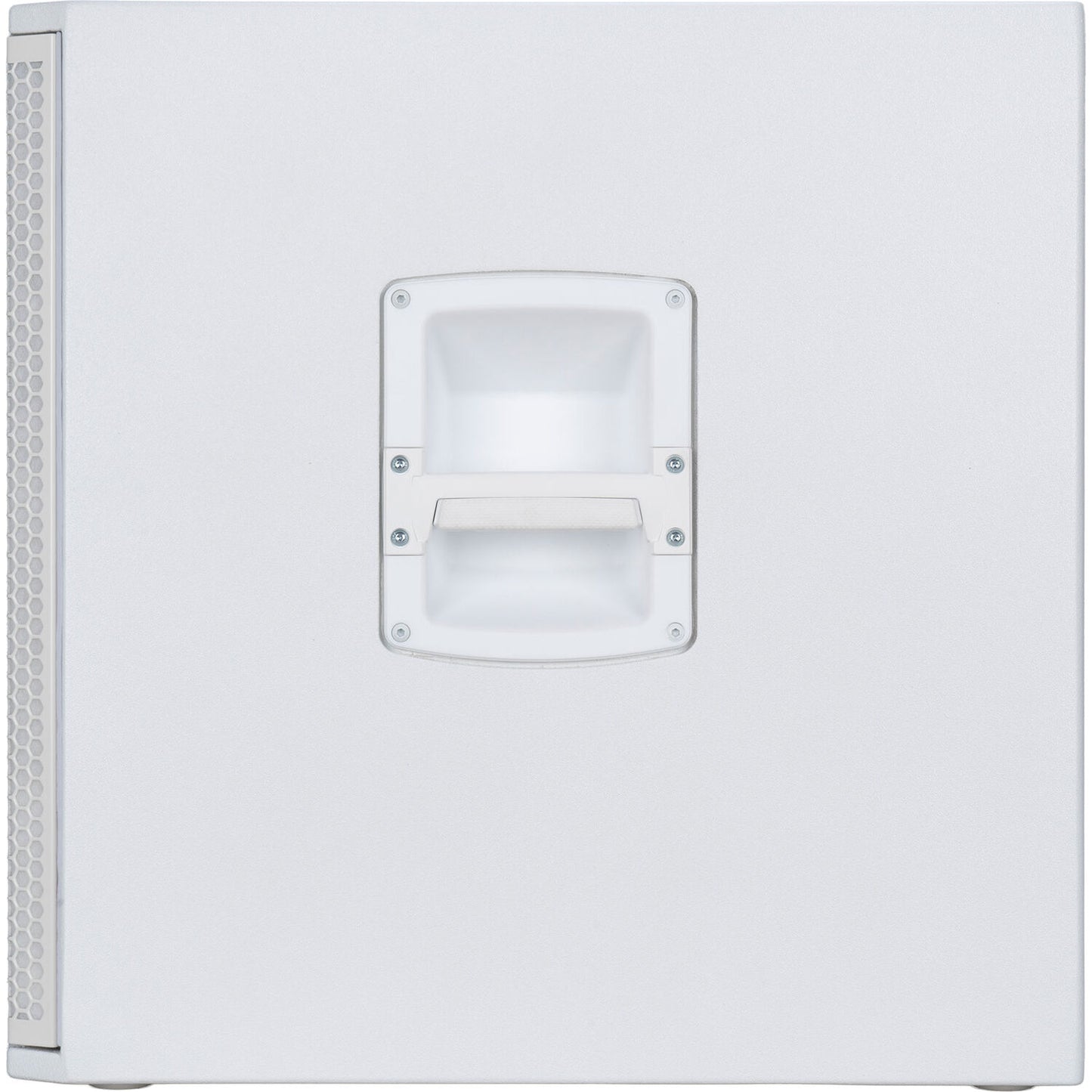

| Handles | 1 per side |

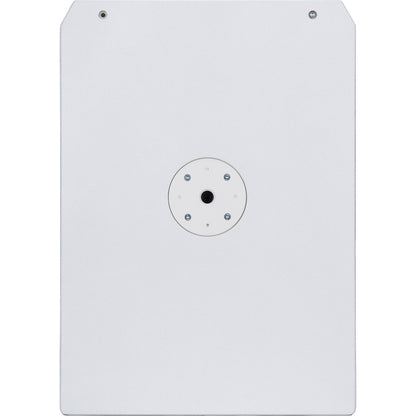

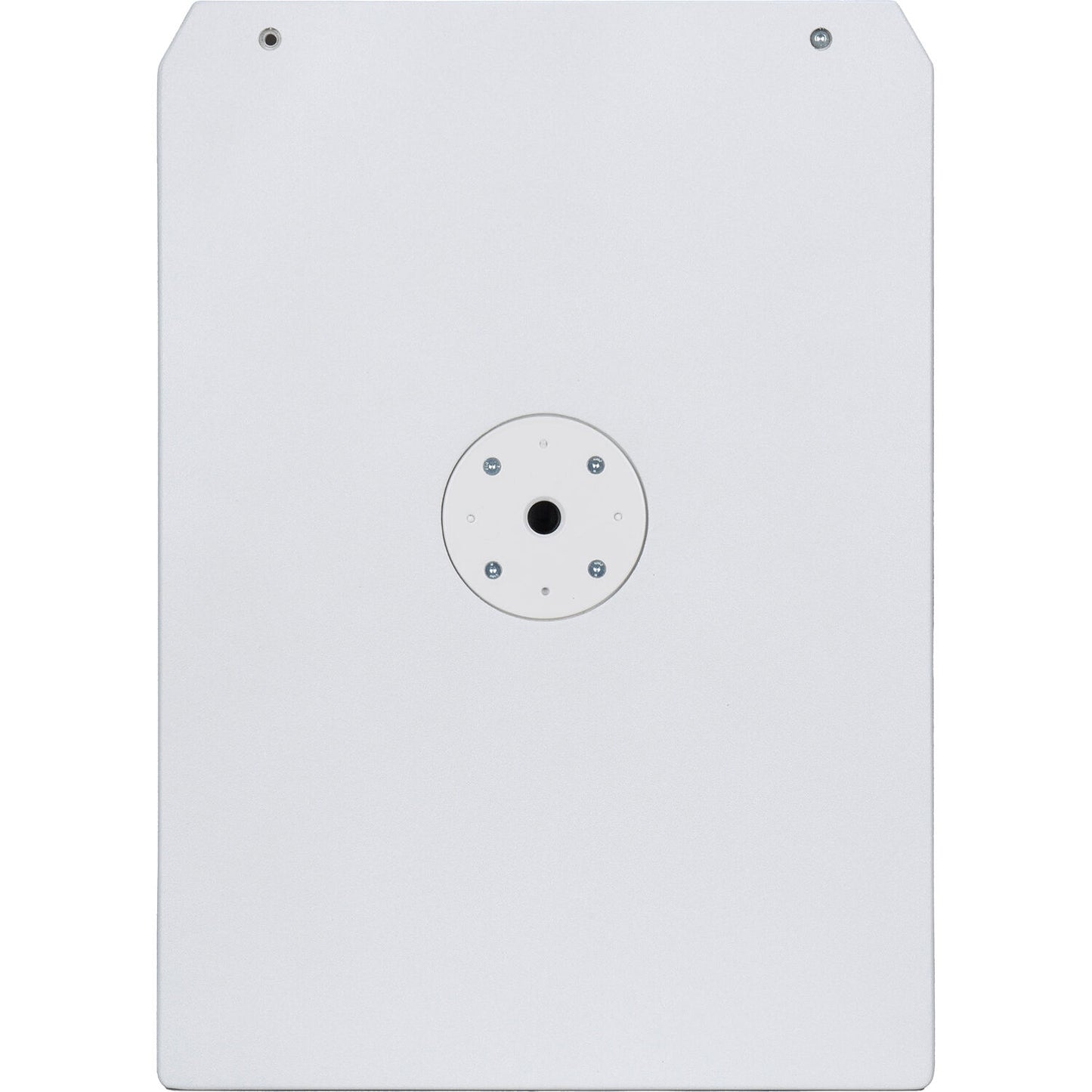

| Pole Mount | M20 Thread |
| Grille | Steel |
| Color | Black, White |
| Height | 590 mm / 23.23" |
| Width | 420 mm / 16.54" |
| Depth | 590 mm / 23.23" |
| Weight | 31.4 kg / 69.23 lbs |
| Shipping Information | |
| Package Height | 640 mm / 25.2" |
| Package Width | 650 mm / 25.59" |
| Package Depth | 480 mm / 18.9" |
| Package Weight | 36.5 kg / 80.47 lbs |

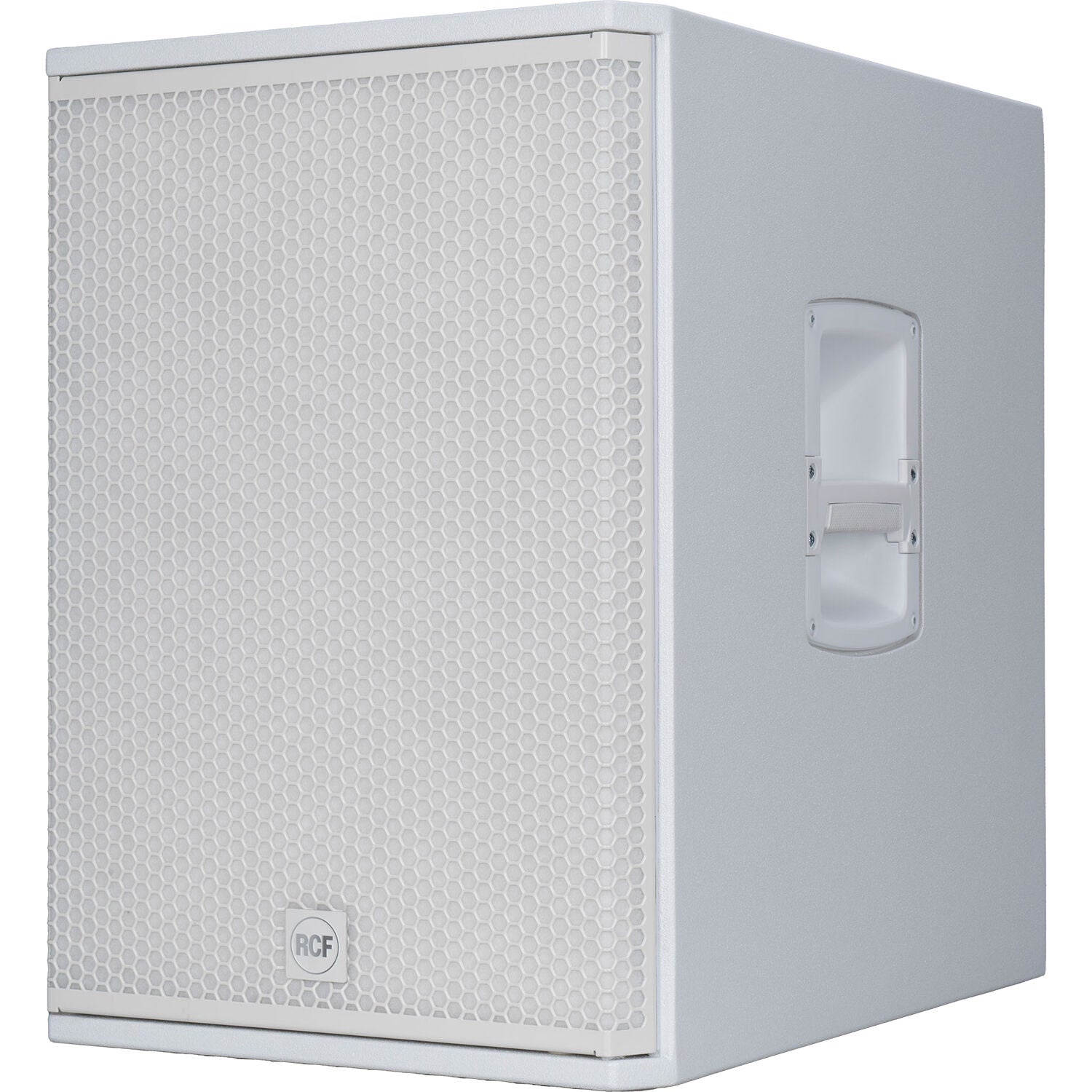

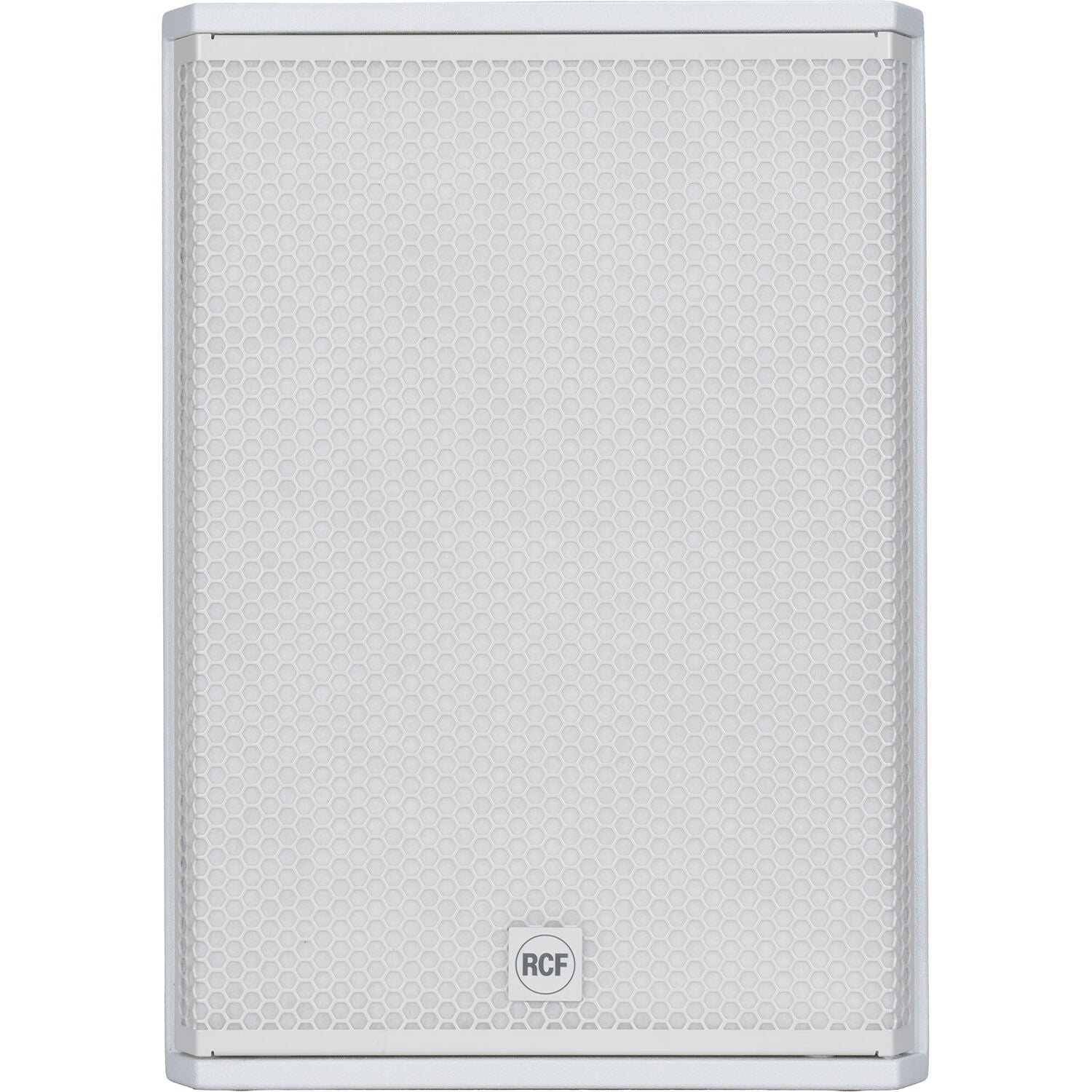

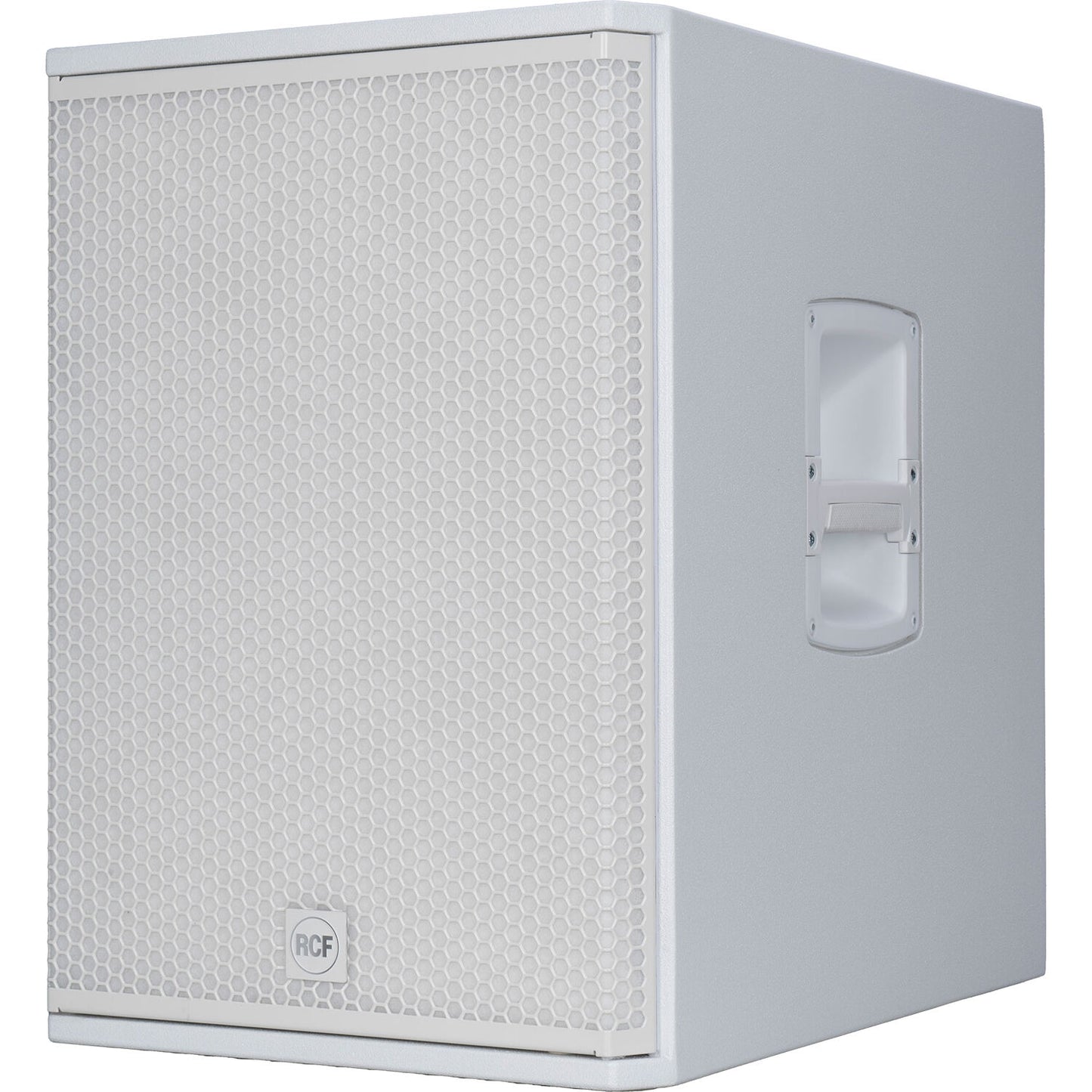

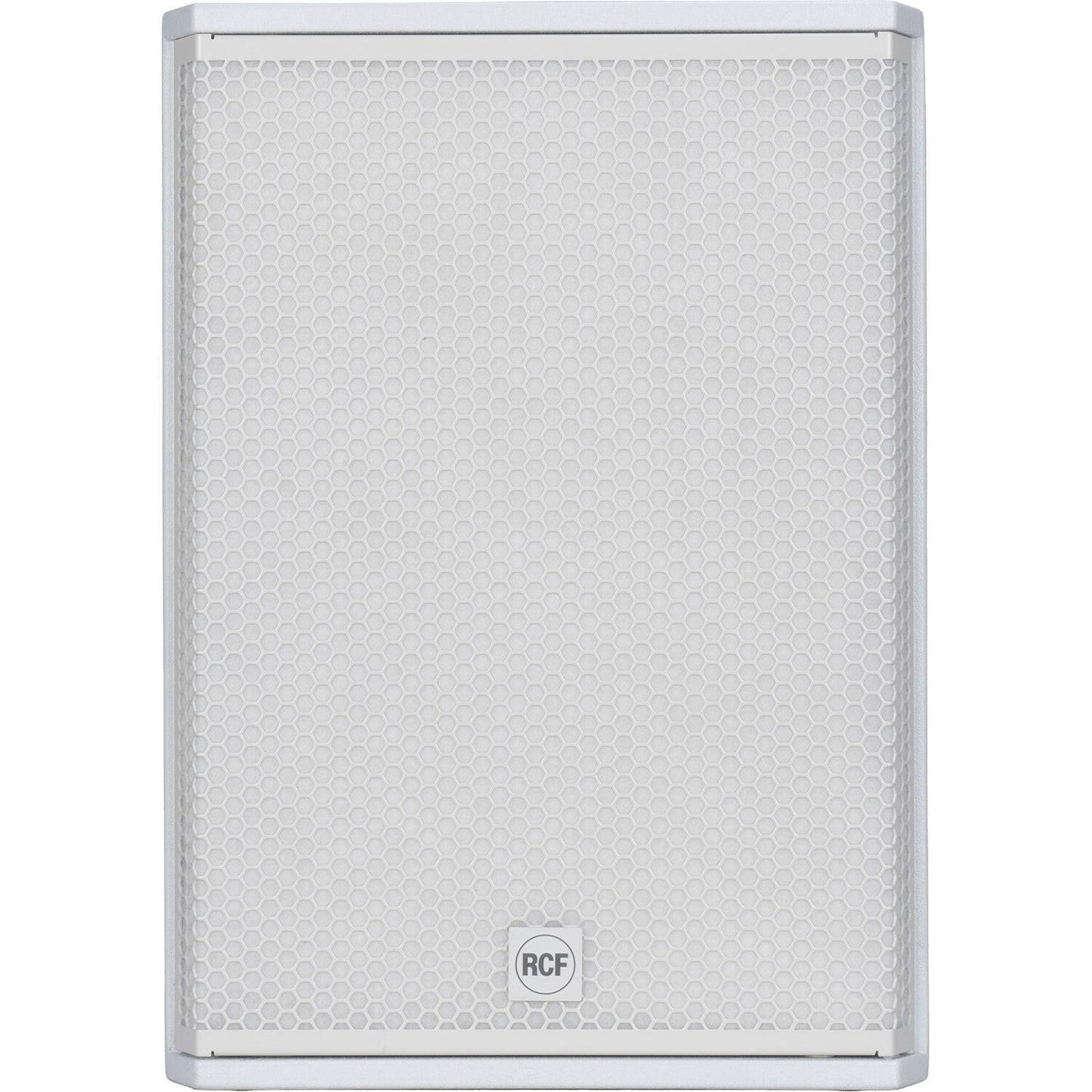

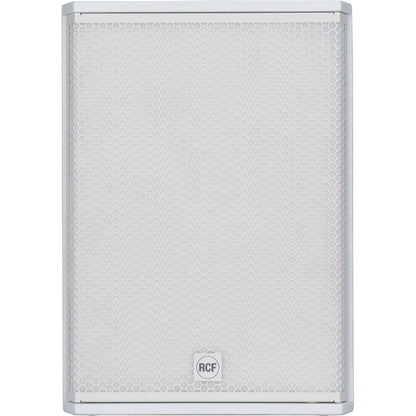

RCF SUB 15-AX Professional 2200W Powered 15" Subwoofer - White
