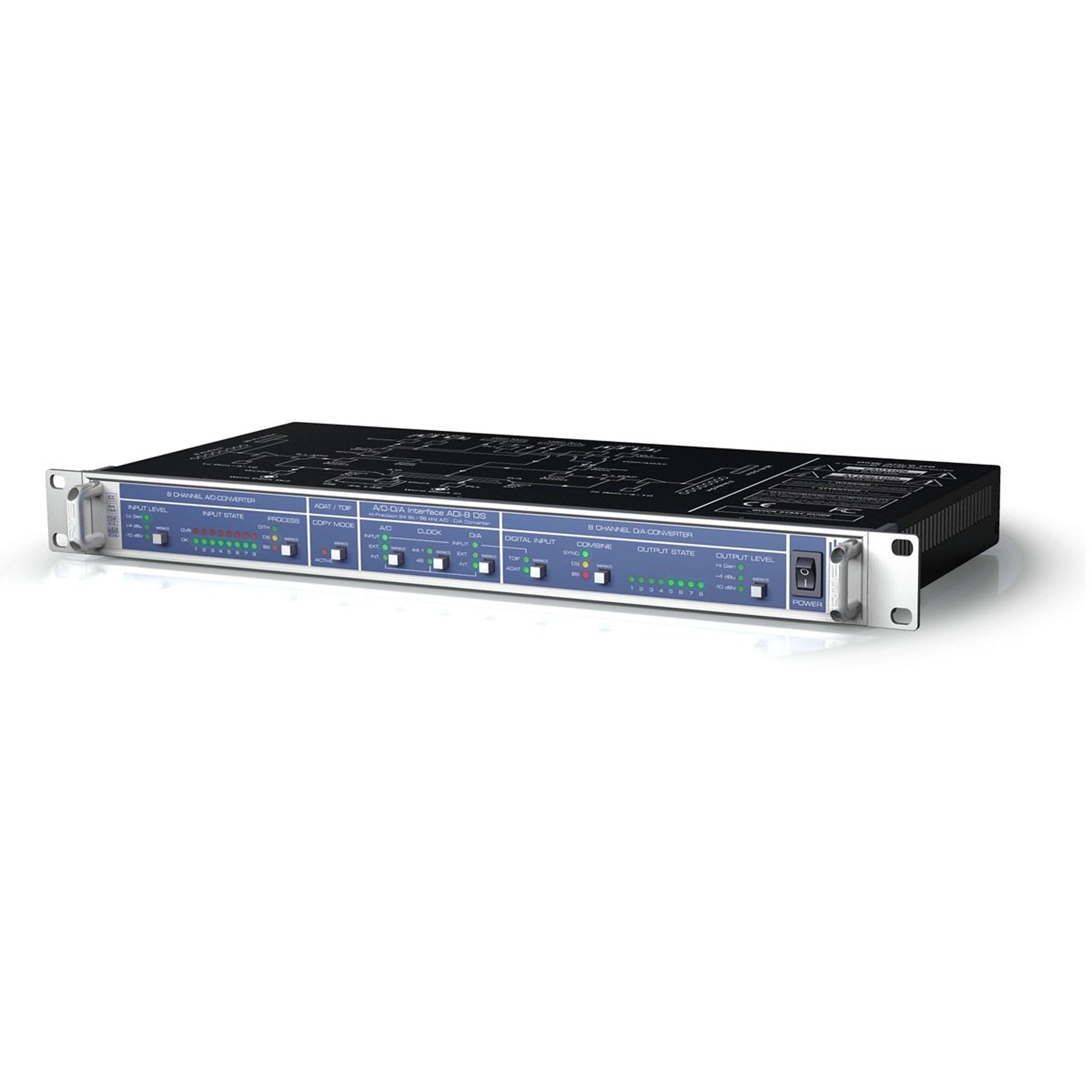

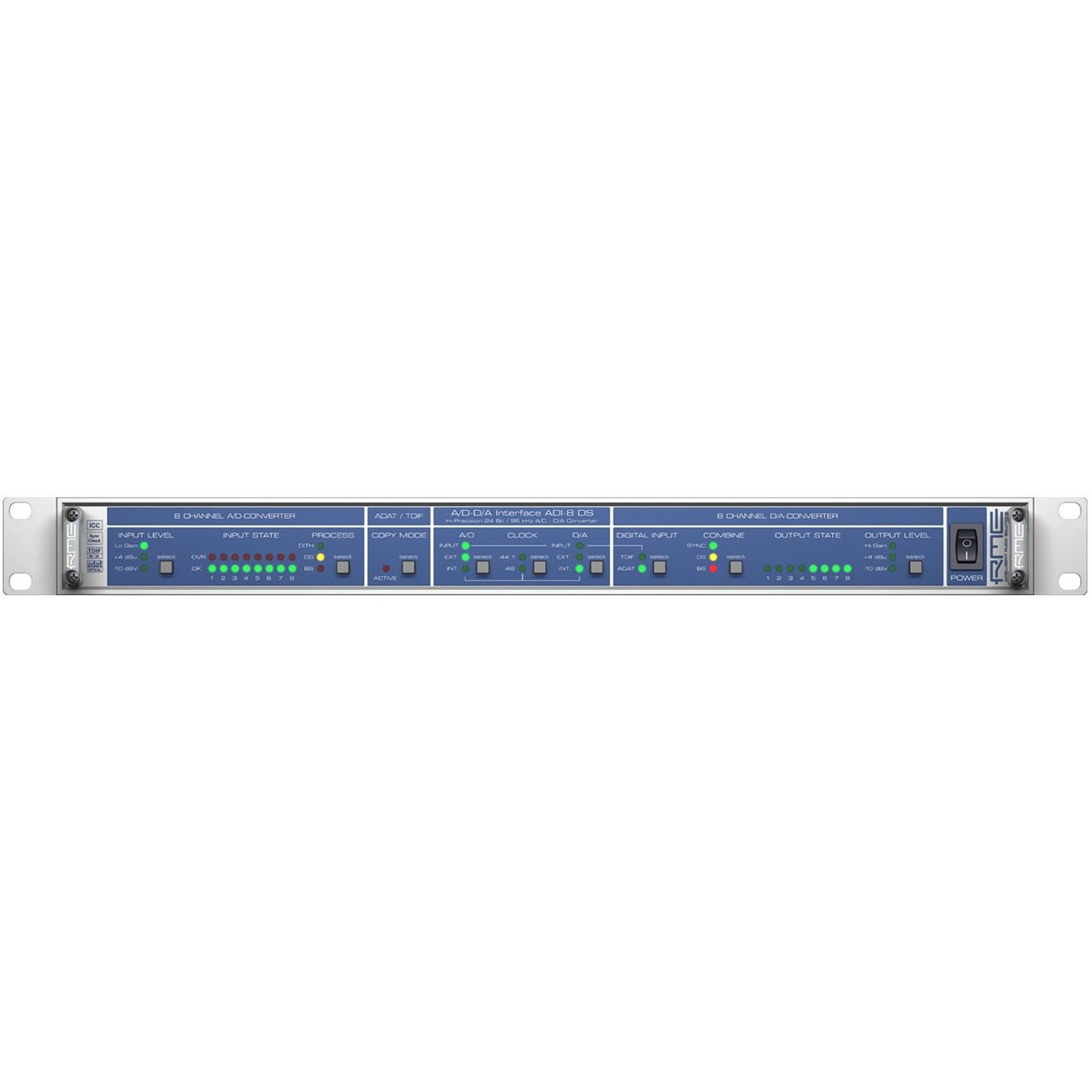

RME's ADI-8 QS is an 8-Channel hi-end AD/DA converter with an unrivalled bunch of features. The device combines excellent analog circuit design with outstanding low latency AD/DA converter chips of the latest generation. Along with the integrated SteadyClock, the QS offers an AD- and DA-conversion of the highest quality.
Analog and digital limiters, 4 hardware reference levels up to +24 dBu, AES/EBU and ADAT I/O (optional MADI I/O) at up to 192 kHz, remote control via MIDI, digital input and output trimming for full level calibration, volume control for all 8 analog outputs, either separately or globally, digital thru-mode, operation over a wide voltage range and many more features make the QS truely unique.
The ADI-8 QS is RME's reference - highest performance in every detail, at an unbeaten price/performance ratio!
| Product Name | RME ADI-8 QS 8-Channel AD/DA Converter |
|---|---|
| Brand | RME |
| MPN | adi8qs |
What's in the Box?
- RME ADI-8 QS 8-Channel AD/DA Converter
- 8-Channel AD converter, fully symmetrical design, 117 dBA
- 8-Channel DA converter, DC-coupled signal path, double balanced output, 120 dBA
- Low latency conversion: only 8 samples of delay!
- 4 x AES/EBU I/O via D-Sub, 8 channels @ 192 kHz
- 2 x ADAT I/O, 8 channels @ 96 kHz
- Digital input/output trim, range 6 dB per I/O
- Analog and digital limiter for AD-conversion
- 16 LED level meters with 7 LEDs each
- SyncCheck, unique technology to check clock synchronization
- All settings are stored permanently
- Fully remote controllable
- Input AD: 1/4" TRS jack and 25 pin D-sub, servo balanced, completely symmetrical audio path
- Output AD: 4 x AES/EBU, 2 x ADAT optical, optional MADI
- Input DA: 4 x AES/EBU, 2 x ADAT optical, optional MADI
- Output DA:1/4" TRS jack servo balanced, up to +21 dBu. 25 pin D-sub, balanced, up to +24 dBu. DC-coupled audio path
- Dynamic Range AD: 117 dBA
- THD AD: < -110 dB (< 0.00032 %)
- THD+N AD: < -104 dB (< 0.00063 %)
- Crosstalk AD: > 130 dB
- Dynamic Range DA: 120 dBA unmuted
- THD DA: < -104 dB (< 0.00063 %)
- THD+N DA: < -102 dB (< 0.0008 %)
- Crosstalk DA: > 110 dB
- Input level for 0 dBFS: +24 dBu, +19 dBu, +13 dBu, +4.2 dBu, each adjustable by 6 dB in steps of 0.5 dB via Digital Input Trim
- Output level for 0 dBFS: +24 dBu, +19 dBu, +13 dBu, +4.2 dBu, each adjustable by +/- 6 dB in steps of 0.5 dB
- Output level global: 0 down to -96 dB in 48 steps
- Sample rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, variable (sync/word)
- Frequency response AD/DA, -0.1 dB: 10 Hz - 23.2 kHz (sf 48 kHz)
- Frequency response AD/DA, -0.5 dB: < 5 Hz - 44.6 kHz (sf 96 kHz)
- Frequency response AD/DA, -1 dB: < 5 Hz - 63.4 kHz (sf 192 kHz)
- Power supply: Internal switching mode ps, 100 V-240 V AC
- Dimensions (WxHxD) 483 x 44 x 200 mm
- Warranty: 2 years
RME ADI-8 QS 8-Channel AD/DA Converter
RME's ADI-8 QS is an 8-Channel hi-end AD/DA converter with an unrivalled bunch of features. The device combines excellent analog circuit design with outstanding low latency AD/DA converter chips of the latest generation. Along with the integrated SteadyClock, the QS offers an AD- and DA-conversion of the highest quality.
Analog and digital limiters, 4 hardware reference levels up to +24 dBu, AES/EBU and ADAT I/O (optional MADI I/O) at up to 192 kHz, remote control via MIDI, digital input and output trimming for full level calibration, volume control for all 8 analog outputs, either separately or globally, digital thru-mode, operation over a wide voltage range and many more features make the QS truely unique.
The ADI-8 QS is RME's reference - highest performance in every detail, at an unbeaten price/performance ratio!
| Product Name | RME ADI-8 QS 8-Channel AD/DA Converter |
|---|---|
| Brand | RME |
| MPN | adi8qs |
What's in the Box?
RME ADI-8 QS 8-Channel AD/DA Converter- 8-Channel AD converter, fully symmetrical design, 117 dBA
- 8-Channel DA converter, DC-coupled signal path, double balanced output, 120 dBA
- Low latency conversion: only 8 samples of delay!
- 4 x AES/EBU I/O via D-Sub, 8 channels @ 192 kHz
- 2 x ADAT I/O, 8 channels @ 96 kHz
- Digital input/output trim, range 6 dB per I/O
- Analog and digital limiter for AD-conversion
- 16 LED level meters with 7 LEDs each
- SyncCheck, unique technology to check clock synchronization
- All settings are stored permanently
- Fully remote controllable
- Input AD: 1/4" TRS jack and 25 pin D-sub, servo balanced, completely symmetrical audio path
- Output AD: 4 x AES/EBU, 2 x ADAT optical, optional MADI
- Input DA: 4 x AES/EBU, 2 x ADAT optical, optional MADI
- Output DA:1/4" TRS jack servo balanced, up to +21 dBu. 25 pin D-sub, balanced, up to +24 dBu. DC-coupled audio path
- Dynamic Range AD: 117 dBA
- THD AD: < -110 dB (< 0.00032 %)
- THD+N AD: < -104 dB (< 0.00063 %)
- Crosstalk AD: > 130 dB
- Dynamic Range DA: 120 dBA unmuted
- THD DA: < -104 dB (< 0.00063 %)
- THD+N DA: < -102 dB (< 0.0008 %)
- Crosstalk DA: > 110 dB
- Input level for 0 dBFS: +24 dBu, +19 dBu, +13 dBu, +4.2 dBu, each adjustable by 6 dB in steps of 0.5 dB via Digital Input Trim
- Output level for 0 dBFS: +24 dBu, +19 dBu, +13 dBu, +4.2 dBu, each adjustable by +/- 6 dB in steps of 0.5 dB
- Output level global: 0 down to -96 dB in 48 steps
- Sample rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, variable (sync/word)
- Frequency response AD/DA, -0.1 dB: 10 Hz - 23.2 kHz (sf 48 kHz)
- Frequency response AD/DA, -0.5 dB: < 5 Hz - 44.6 kHz (sf 96 kHz)
- Frequency response AD/DA, -1 dB: < 5 Hz - 63.4 kHz (sf 192 kHz)
- Power supply: Internal switching mode ps, 100 V-240 V AC
- Dimensions (WxHxD) 483 x 44 x 200 mm
- Warranty: 2 years
