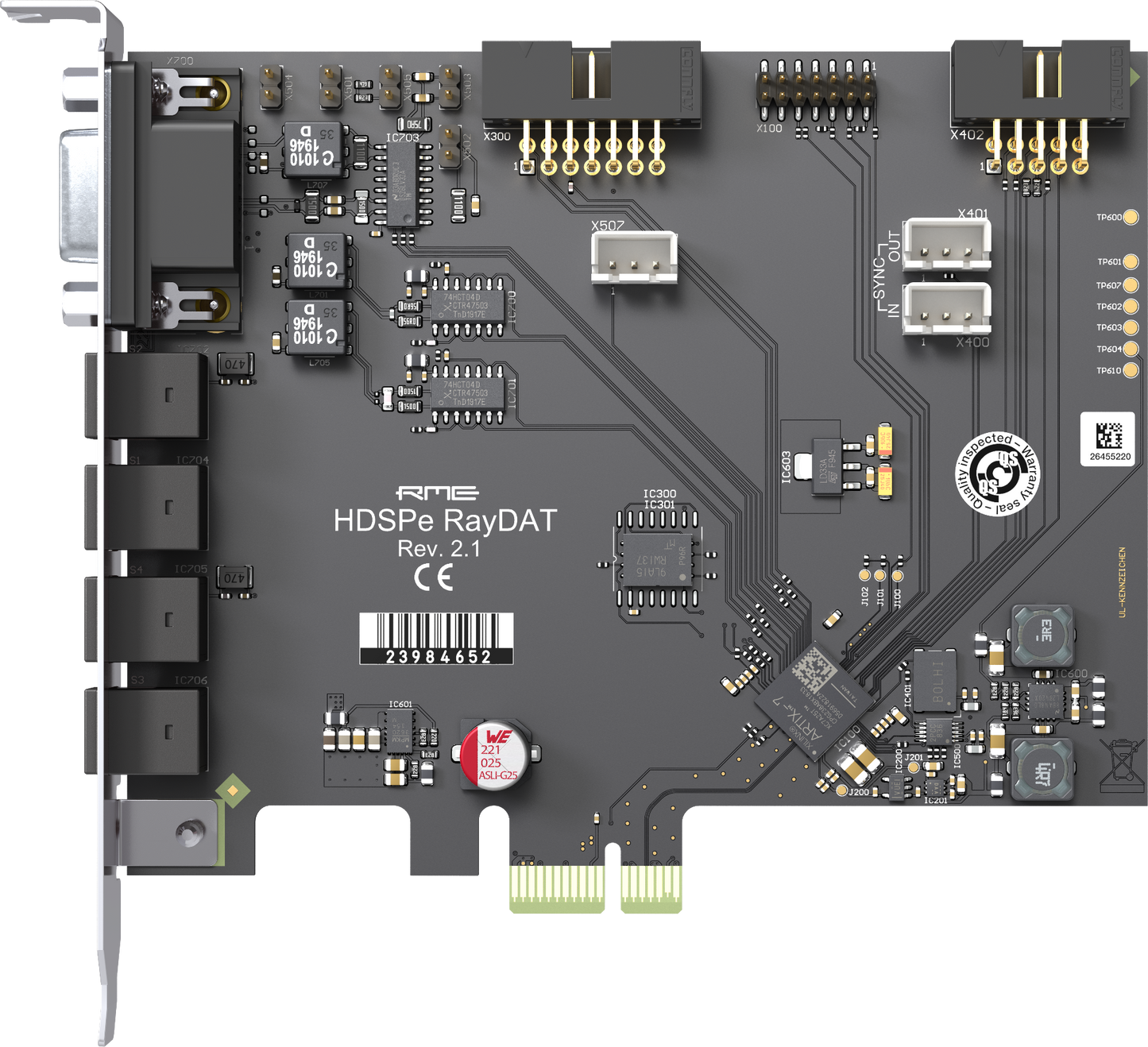

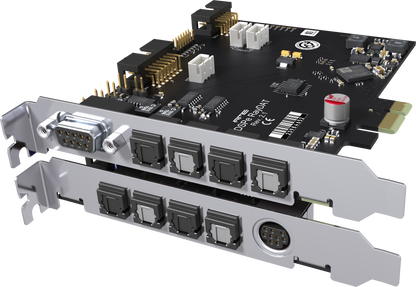

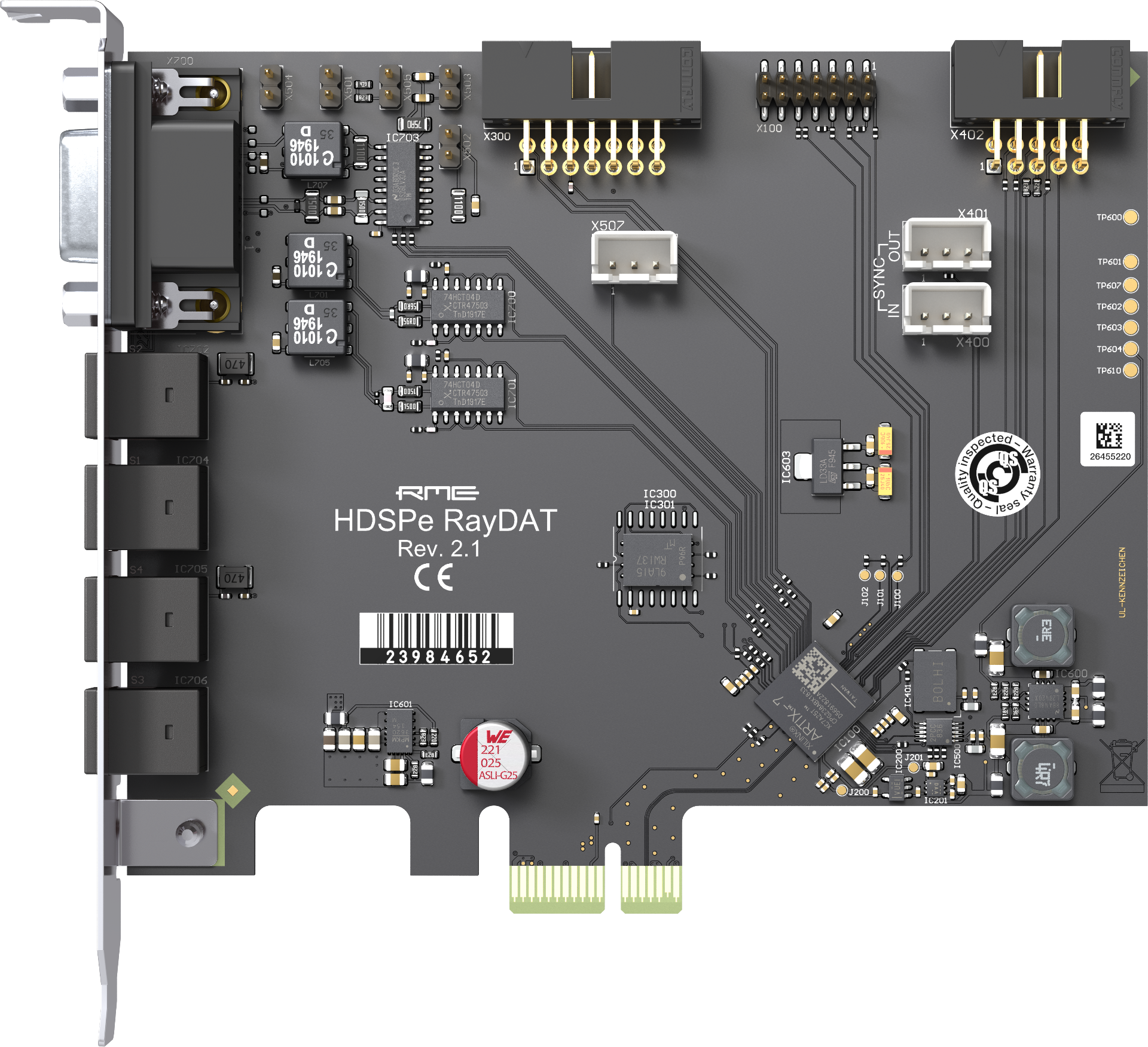

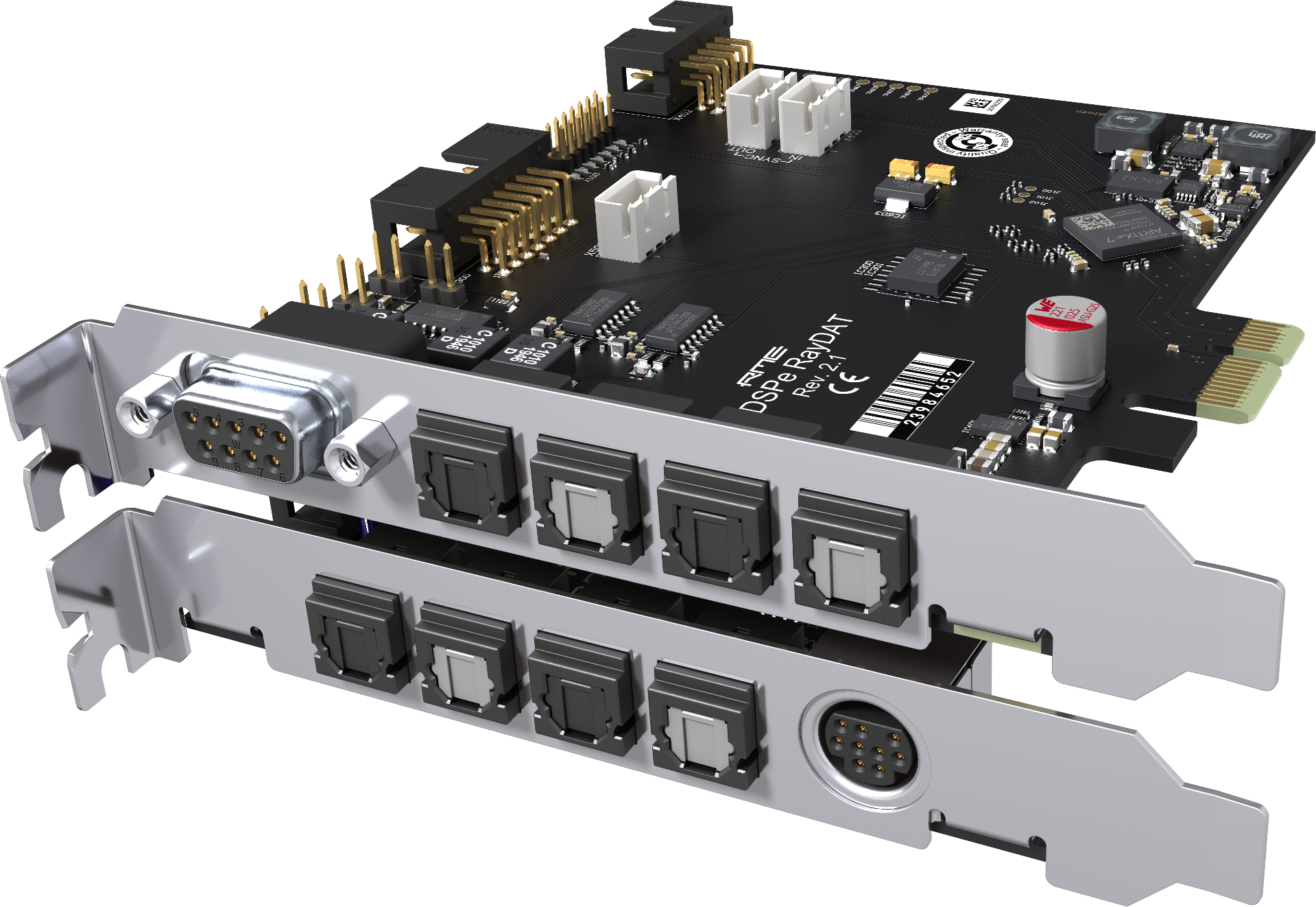

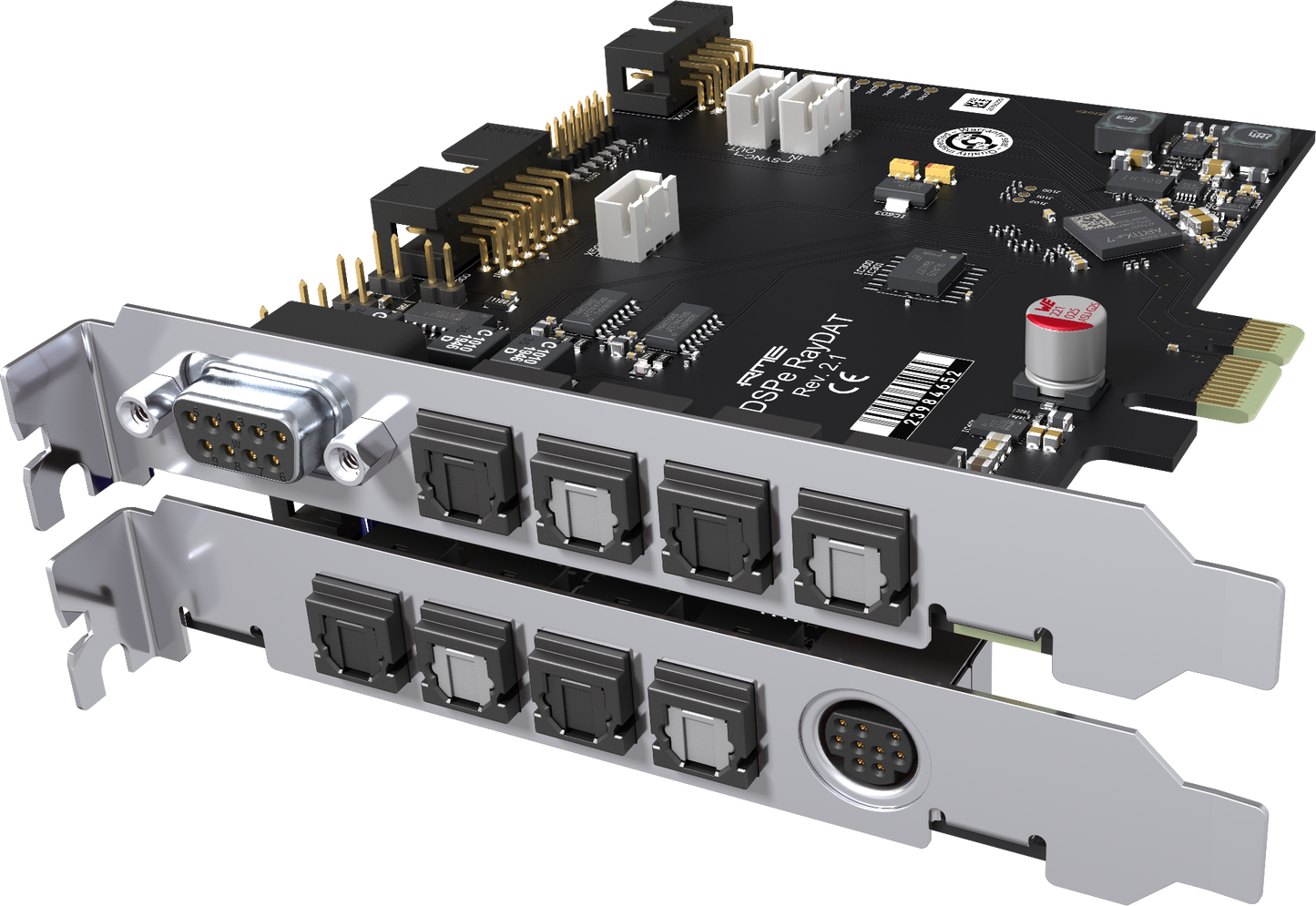

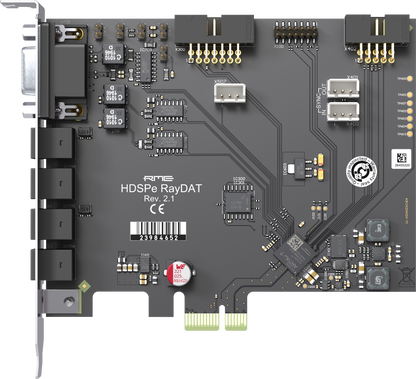

RME HDSPE RayDat PCI Express Card 24 Bit / 96 kHz, 66 Channel ADAT.
72-Channel ADAT/AES PCI Express Card
24 Bit/192 kHz.
Performance without compromises New features.
Lowest latency.
Lowest CPU load.
The Hammer falls again.
HDSPe RayDAT is the newly developed PCI Express successor of the Hammerfall DSP 9652 which can be regarded as the studio standard for ADAT I/O cards. Some ten thousands of installations worldwide are proof that RME Ìs ADAT solutions are the perfect partners for all software-based DAWs. Still based on the award-winning Hammerfall DSP technology, combining superb handling and stability with extremely low latency, the addition of PCI Express and several new features make RayDAT the ideal solution from recording up to the final mastering.
RayDAT offers no less than 4 x ADAT optical I/O, SPDIF I/O and AES/EBU I/O. All 36 inputs and 36 playback channels can be routed and mixed independently, including S/PDIF (phono) and AES/EBU (XLR), which are simultaneously operational due to separated hardware and record/playback devices. On top, there are 2 MIDI I/Os and TotalMix, RME’s unsurpassed DSP- based real-time mixer/router, with hardware- calculated level metering and complete MIDI remote capability. RayDAT also supports the optional TCO Module for timecode support and word clock / video synchronization.
The card is equipped with SteadyClockTM, RME’s own clock technology, combining professional features like maximum jitter suppression at full varipitch capabilities and software controlled sample rates.
RME’s unique SyncCheck and AutoSync technology has evolved into the new Intelligent Clock Control of the HDSPe system. HDSPe RayDAT measures and displays the frequency of all clock sources - even word clock! Based on validity and current sample rate the system then decides which clock source should be used, fully automated and performed in hardware. With this the HDSPe system offers the most easiest handling of the present clocks, although having a lot digital inputs, plus the most advanced support when configuring the clock setup.
The included DIGICheck for Windows turns the HDSPe RayDAT into a Spectral Analyzer, provides professional level meters for 2, 8, or 36 channels, offers Vector Audio Scope, Global Record Function and various other audio analysis tools.
RME’s secure flash update technology makes sure that firmware improvements, adjustments, and bugfixes can be installed easily at any time.
Some of the card’s unique features are:
All settings changeable in real time
Automatic, intelligent master/slave clock control
Enhanced Mixed mode: All inputs and outputs are simultaneously operational
Unsurpassed Bitclock PLL (audio synchronization) in ADAT mode
ZLM® (Zero Latency Monitoring) for latency-free submixes and perfect
ASIO Direct Monitoring
S/MUX in hardware: 16 channels @ 24- bit/96 kHz or 8 channels @ 24 bit/192 kHz record/playback via ADAT optical
DIGICheck® software for testing, measuring and analyzing digital audio streams
TotalMix: 2592 channel mixer with 42- bit internal resolution
Extensive status windows showing mode and clock rates
Super low jitter design: < 1 ns in all clock modes

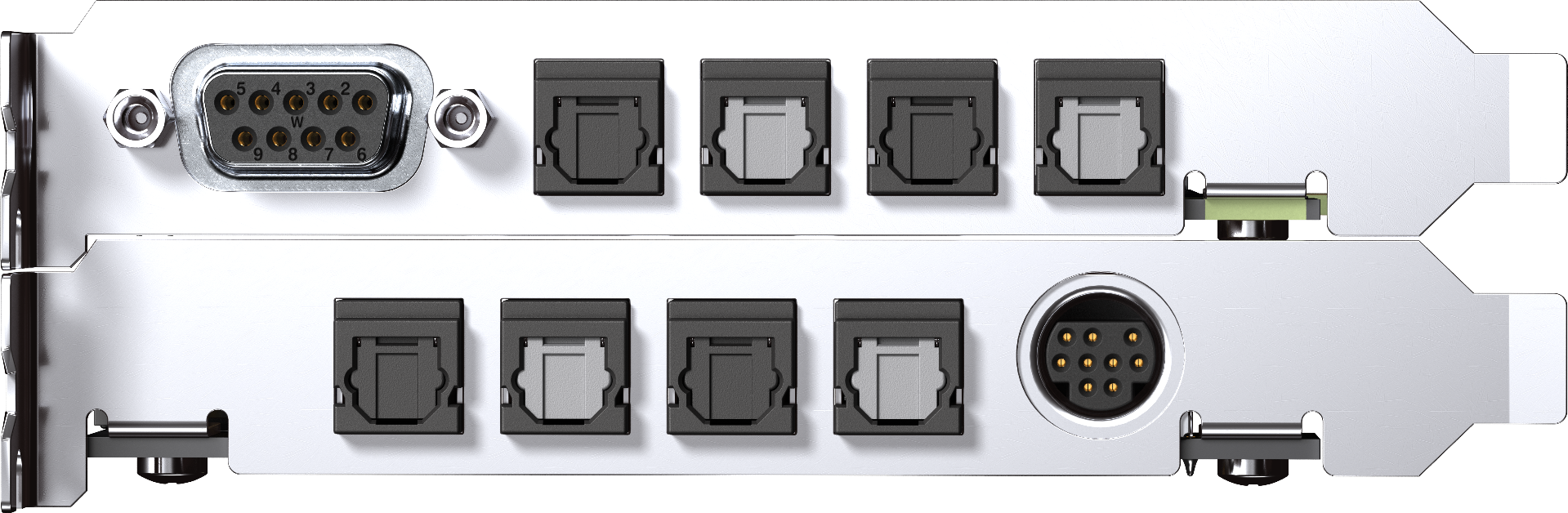

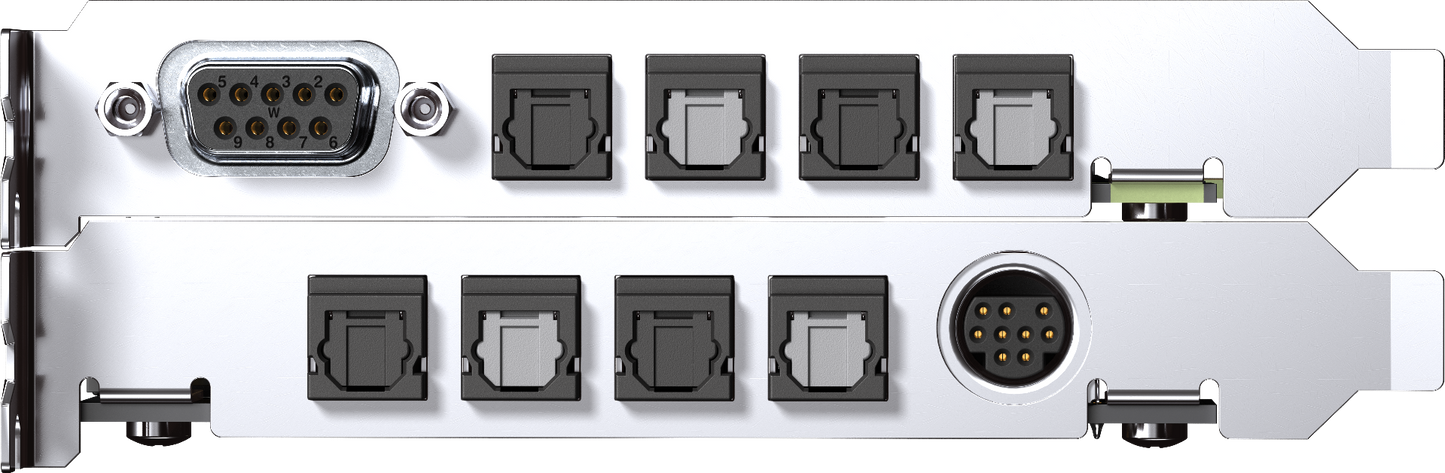

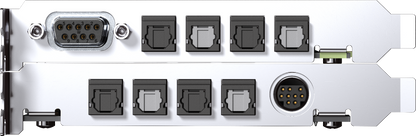

I/O Connectivity
36 Input / 36 Output channels 4 x ADAT I/O (optical) 1 x SPDIF I/O (coaxial) 1 x AES/EBU I/O (XLR)
2 x MIDI I/O optional: HDSP TCO
Word Clock I/O, LTC I/O, Video In Sync In
optional: TEB - TDIF Module optional: WCM - Word Clock Module
Specifications
1-Lane PCI Express Endpoint device (no PCI Express to PCI Bridge), revision 1.1.
2.5 Gbps line speed - Packet-based full- duplex communication (up to 500 MB/s transfer rate)
Supported sample frequencies: Internally 32, 44.1, 48, 64, 88.2, 96, 176.4, 192 kHz. Externally 28 kHz - 200 kHz
8 buffer sizes/latencies available: 0.7, 1.5, 3,6,12,23,46,93ms
ADAT inputs based on RME’s reliable Bitclock PLL
High-speed MIDI ⪠Breakout cable for coaxial SPDIF operation (included)
Digital formats: SPDIF, AES/EBU, ADAT optical
Perfect Partners
Micstasy
OctaMicII
ADI-8 QSM
ADI-192 DD
| Product Name | RME HDSPE RayDat PCI Express Card |
|---|---|
| Brand | RME |
| Condition | New |
| MPN | HDSPeRayDAT |
| UPC | 874792002289 |
| Shipping Option | Free Shipping to the Continental U.S. |
- 72-Channel ADAT/AES PCI Express Card
- 24 Bit/192 kHz.
- Performance without compromises New features.
- Lowest latency.
- Lowest CPU load.
RME HDSPE RayDat PCI Express Card
Details
RME HDSPE RayDat PCI Express Card 24 Bit / 96 kHz, 66 Channel ADAT.
72-Channel ADAT/AES PCI Express Card
24 Bit/192 kHz.
Performance without compromises New features.
Lowest latency.
Lowest CPU load.
The Hammer falls again.
HDSPe RayDAT is the newly developed PCI Express successor of the Hammerfall DSP 9652 which can be regarded as the studio standard for ADAT I/O cards. Some ten thousands of installations worldwide are proof that RME Ìs ADAT solutions are the perfect partners for all software-based DAWs. Still based on the award-winning Hammerfall DSP technology, combining superb handling and stability with extremely low latency, the addition of PCI Express and several new features make RayDAT the ideal solution from recording up to the final mastering.
RayDAT offers no less than 4 x ADAT optical I/O, SPDIF I/O and AES/EBU I/O. All 36 inputs and 36 playback channels can be routed and mixed independently, including S/PDIF (phono) and AES/EBU (XLR), which are simultaneously operational due to separated hardware and record/playback devices. On top, there are 2 MIDI I/Os and TotalMix, RME’s unsurpassed DSP- based real-time mixer/router, with hardware- calculated level metering and complete MIDI remote capability. RayDAT also supports the optional TCO Module for timecode support and word clock / video synchronization.
The card is equipped with SteadyClockTM, RME’s own clock technology, combining professional features like maximum jitter suppression at full varipitch capabilities and software controlled sample rates.
RME’s unique SyncCheck and AutoSync technology has evolved into the new Intelligent Clock Control of the HDSPe system. HDSPe RayDAT measures and displays the frequency of all clock sources - even word clock! Based on validity and current sample rate the system then decides which clock source should be used, fully automated and performed in hardware. With this the HDSPe system offers the most easiest handling of the present clocks, although having a lot digital inputs, plus the most advanced support when configuring the clock setup.
The included DIGICheck for Windows turns the HDSPe RayDAT into a Spectral Analyzer, provides professional level meters for 2, 8, or 36 channels, offers Vector Audio Scope, Global Record Function and various other audio analysis tools.
RME’s secure flash update technology makes sure that firmware improvements, adjustments, and bugfixes can be installed easily at any time.
Some of the card’s unique features are:
All settings changeable in real time
Automatic, intelligent master/slave clock control
Enhanced Mixed mode: All inputs and outputs are simultaneously operational
Unsurpassed Bitclock PLL (audio synchronization) in ADAT mode
ZLM® (Zero Latency Monitoring) for latency-free submixes and perfect
ASIO Direct Monitoring
S/MUX in hardware: 16 channels @ 24- bit/96 kHz or 8 channels @ 24 bit/192 kHz record/playback via ADAT optical
DIGICheck® software for testing, measuring and analyzing digital audio streams
TotalMix: 2592 channel mixer with 42- bit internal resolution
Extensive status windows showing mode and clock rates
Super low jitter design: < 1 ns in all clock modes
I/O Connectivity
36 Input / 36 Output channels 4 x ADAT I/O (optical) 1 x SPDIF I/O (coaxial) 1 x AES/EBU I/O (XLR)
2 x MIDI I/O optional: HDSP TCO
Word Clock I/O, LTC I/O, Video In Sync In
optional: TEB - TDIF Module optional: WCM - Word Clock Module
Specifications
1-Lane PCI Express Endpoint device (no PCI Express to PCI Bridge), revision 1.1.
2.5 Gbps line speed - Packet-based full- duplex communication (up to 500 MB/s transfer rate)
Supported sample frequencies: Internally 32, 44.1, 48, 64, 88.2, 96, 176.4, 192 kHz. Externally 28 kHz - 200 kHz
8 buffer sizes/latencies available: 0.7, 1.5, 3,6,12,23,46,93ms
ADAT inputs based on RME’s reliable Bitclock PLL
High-speed MIDI ⪠Breakout cable for coaxial SPDIF operation (included)
Digital formats: SPDIF, AES/EBU, ADAT optical
Perfect Partners
Micstasy
OctaMicII
ADI-8 QSM
ADI-192 DD
| Product Name | RME HDSPE RayDat PCI Express Card |
|---|---|
| Brand | RME |
| Condition | New |
| MPN | HDSPeRayDAT |
| UPC | 874792002289 |
| Shipping Option | Free Shipping to the Continental U.S. |
