Features

• PC: 32 & 64 bits VST and AAX for Windows / Vista / Windows 7 / Windows 8 / Windows 10
• Mac: 32 & 64 bits AU, VST and AAX OSX 10.6 or higher
• Compatible with NI NKS
• Serial/license system, 2nd serial for 2nd computer/laptop are available after you have registering the product’s original serial/license.

Rhythm Guitar models

• Electric guitar type Fender Stratocaster ®
  Offering in the RG sequencer: Down Stroke, Up Stroke, Ghost Stroke and Glide stroke.
  Available chords are: Major and Minor7 in "classic" Rhythm guitar setting.
• Steel 8TH type for Streelstrings 8th note grooves
  Offering in the RG sequencer: Down Stroke, Up Stroke and Extra Stroke (hand mute on strings)
  Available chords are: Major and Minor.
• Steel 16TH type for Steelstrings 16th note grooves.
  Offering in the RG sequencer: Down Stroke, Up Stroke and Ghost Stroke.
  Available chords are: Major and Minor.
• Distorted type for distorted Powerchord grooves.
  Offering in the RG sequencer: Down Stroke, Up Stroke, Ghost Stroke and Extra Stroke
  Available chords are: 5th Chord for both Major and Minor keyboard range.
• Muted Low" and "Muted High" are single guitar notes used to generate muted guitar grooves. So unlike the other types, no chords are involved. The classic muted grooves is a down stroke of the string followed by a ghost note and then upstroke of the string, followed by upstroke ghost

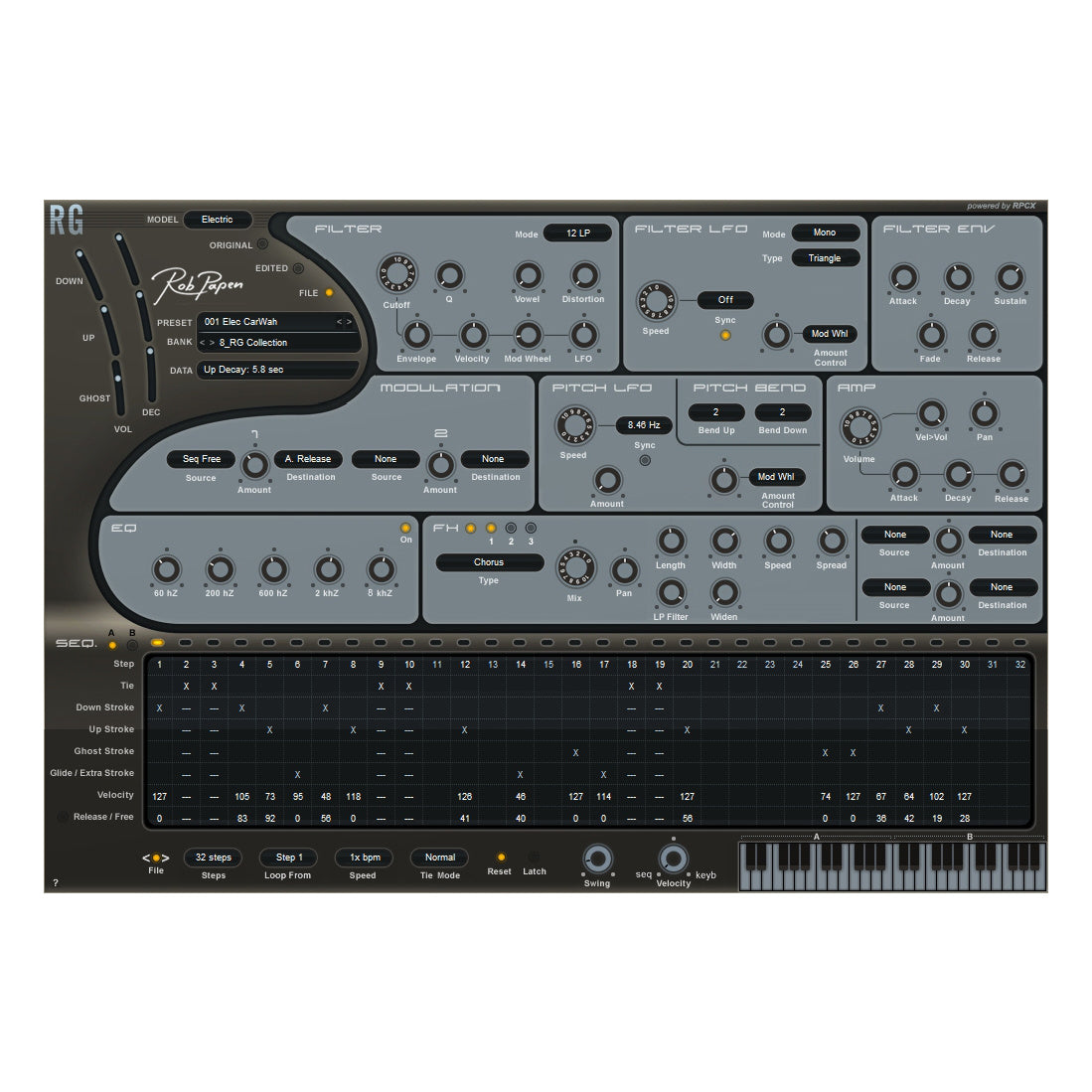

Sequencer section:

• Controls the guitar strokes and RG synthesizer parts.
• 32 steps
• Each step has on/off, Tie, Stroke (Down, Up, Ghost or Glide/Extra), Velocity and Free/Release row.
• Release row on/off option to control the 'Release" times of the Filter and Amp Envelope
• Sequencer A and B each with fully independant settings
• Sequence A is played by using keyboard range C1 - B3
• Sequence B is played by using keyboard range C3 - B4
• Each sequence keyboard range is divided into Major chords and Minor chords
• Start Loop setting, Sequencer can loop from any step of the sequence
• Speed setting of 1/4, 1/3, 1/2, 2/3, 1, 3/2, 2, 3 and 4x BPM. Independant for each sequence
• Swing amount
• Velocity control knob which mixes between keyboard (midi) velocity input and the steps velocity settings
• Tie modes normal or special which allows 'velocity' and 'free' settings inside a step if that step is set to Tie
• Sequencer Latch which can be controlled by the midi sustain pedal as well
• Reset Mode on/off. When it is set to 'on' the sequencer resets each time you press a new key
• File button function with: load, save, copy, paste, swap and clear for sequener A or B
• File to scroll through sequences stored on harddisk

Keyboard layout RG:

• Sequence A is played by playing notes in the keyboard range C1 - B3
• Sequence B is played by playing notes in the keyboard range C3 - B4
• Sequence A keyboard range is divided into Major chords and Minor chords (except for PowerChord and Muted Guitar Models)
• Major chords are from C1- B1 range and Minor are from C2 - B2 range
• Sequence B keyboard range is divided into Major chords and Minor chords (except for PowerChord and Muted Guitar Models)
• Major chords are from C3- B3 range and Minor are from C3 - B4 range (except for PowerChord and Muted Guitar Models)
• Build in keyboard to demo grooves

Overall Pitch modulation section:

• Tempo sync-able global Pitch LFO
• Amount control option
• Pitch bend with separate settings for up and down pitch-bends

Filter section:

• Main filter is an analogue modelled stereo Multimode Filter, offering 6dB LowPass and HighPass, 12dB, 18dB and 24dB LowPass and HighPass, 12dB and 24dB BandPass, 12dB and 24dB Notch, Comb and Vowel Filter
• Pre-filtering distortion
• Easy Filter control by pre-defined Cutoff Frequency modulation controllers: Envelope, Velocity, Modulation Wheel and LFO
• Built-in Filter Envelope with Attack, Decay, Sustain, Fade and Release
• Build in Filter LFO with various waveforms, modulation amount control and tempo sync option with speed settings between 16/1 and 1/32t
• LFO free or mono mode options.

Amp section:

• Built-in Amp/Volume Envelope with Attack, Decay and Release.
• Volume control.
• Velocity> Volume amount.
• Panning control.

Modulation section:

• 2 free modulation routings
• 33 modulation sources, included the stroke types of the RG sequencer
• 22 modulation destinations.

FX section:

• 3 HQ effects blocks in serial mode
• Available effects: Mono Delay, Stereo Delay, Comb Filter, Reverb, Chorus, Chorus/Delay, Flanger, Phaser, Ensemble, FX Filter, WahWah/Delay, AutoWah, Amp Simulator (5 models), Cabinet Simulator (5 models), Distortion, Low Fi, Waveshaper, Multi-distort (11 types), Stereo Widener, Autopan, Gator and Compressor
• Midi tempo based settings in most effects
• Overall bypass for FX or bypass per FX
• Right mouse menu options with: FX copy, paste, swap, clear, undo, save, load and option to un-sync the effects
• 2 FX modulation matrix for connecting RG sequencer, midi or synth controls to FX parameters.

EQ section:

• Equalizer with 5 bands at 60Hz, 200Hz, 600Hz, 2000Hz and 8000Hz frequencies.

Overall:

• Parameter read-out field above the preset box.
• Back panel with extra global function:
  External controller settings can be saved to disk
  Computer keyboard up/down for scrolling presets can be turned on/off.
  Syncing on/off. Depending on host it can be turned on/off

Preset section:

• Uses sound banks composed of 128 presets
• Preset handling with copy, paste, clear and compare function
  'Quick Browse', 'Recently Browsed' and 'Favorite' functions.
• Banks with Electric RG grooves, Steelstring RG grooves, Disto RG grooves, Muted RG grooves, Electric, SteelString, Disto basic grooves.

System Requirements

• PC: 32 & 64 bits VST and AAX for Vista / Windows 7/ Windows 8/ Windows 10
• Mac: 32 & 64 bits AU, VST and AAX  for OSX 10.6 or higher
• Compatible with NI NKS
• Serial/license system
  2nd serial for 2nd computer/laptop is available after you have registering the product’s original serial/license.
