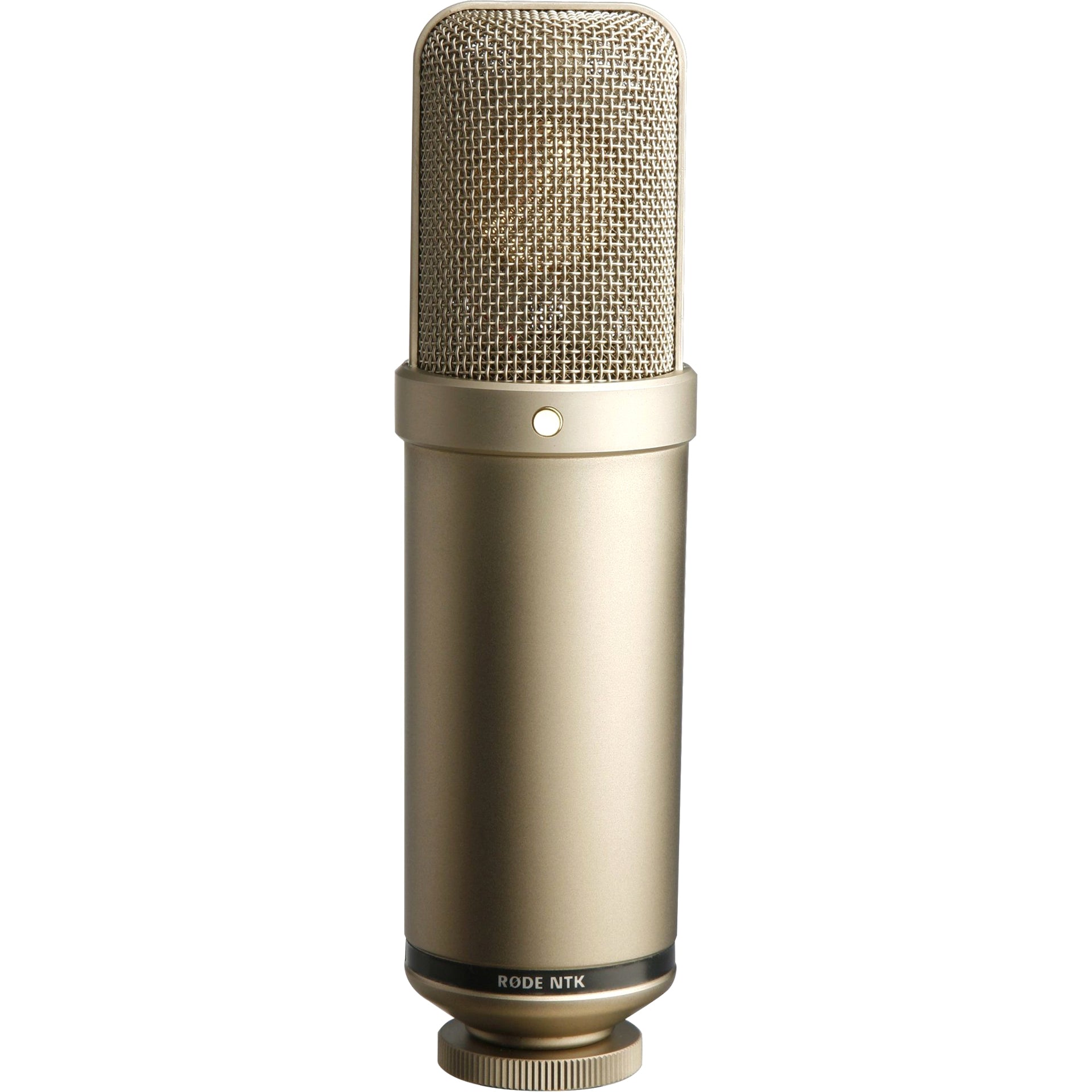

Rode NTK Class A Large Diaphragm Tube Microphone (Open Box)
The RODE NTK is the multi award-winning Class-A tube microphone that has found a home with tens of thousands of professionals around the world. The heart of the NTK is the Australian designed and manufactured HF-2 capsule. The electronic circuitry complementing this very sensitive transducer includes a hand-selected twin-triode 6922 valve and audiophile grade components and lay-out. The result is an ultra-wide dynamic range, very low noise, and stunning tube warmth. The NTK's rich valve sound is ideal for vocals, acoustic instruments, drum overheads, guitar amps and pianos.
Large 1" (25mm) capsule with gold plated diaphragm
Class "A" valve circuitry
Hand selected and graded 6922 twin-triode valve
Dedicated power supply
Ultra low noise
Wide dynamic range
High strength heat treated steel mesh head
Internal capsule shock mounting
High level of RF rejection
Power Dedicated Power Supply (100 ~ 120V/200 ~ 240V, 50/60 Hz)
Acoustic Principle Pressure gradient
Directional Pattern Cardioid
Frequency range 20 Hz - 20 kHz
Output impedance 200Ω
Signal noise ratio >82 dB (A - weighted per IEC651)
Equivalent noise 12 dBA SPL (A - weighted per IEC651)
Maximum SPL > 158dB SPL (@ 1kHz, 5% THD into 1KΩ load)
Maximum output voltage +29dBu (@ 1kHz, 5% THD into 1KΩ load)
Sensitivity -38dB re 1V/Pa (12mV @ 94dB SPL) +/-1dB @ 1kHz
Weight 760gm
Dimensions 208mmH x 55mmW x 55mmD
| Product Name | Rode NTK Class A Large Diaphragm Tube Microphone |
|---|---|
| Shipping Option | Free Shipping to the Continental U.S. |
Rode NTK Class A Large Diaphragm Tube Microphone
Details
Rode NTK Class A Large Diaphragm Tube Microphone (Open Box)
The RODE NTK is the multi award-winning Class-A tube microphone that has found a home with tens of thousands of professionals around the world. The heart of the NTK is the Australian designed and manufactured HF-2 capsule. The electronic circuitry complementing this very sensitive transducer includes a hand-selected twin-triode 6922 valve and audiophile grade components and lay-out. The result is an ultra-wide dynamic range, very low noise, and stunning tube warmth. The NTK's rich valve sound is ideal for vocals, acoustic instruments, drum overheads, guitar amps and pianos.
Large 1" (25mm) capsule with gold plated diaphragm
Class "A" valve circuitry
Hand selected and graded 6922 twin-triode valve
Dedicated power supply
Ultra low noise
Wide dynamic range
High strength heat treated steel mesh head
Internal capsule shock mounting
High level of RF rejection
Power Dedicated Power Supply (100 ~ 120V/200 ~ 240V, 50/60 Hz)
Acoustic Principle Pressure gradient
Directional Pattern Cardioid
Frequency range 20 Hz - 20 kHz
Output impedance 200Ω
Signal noise ratio >82 dB (A - weighted per IEC651)
Equivalent noise 12 dBA SPL (A - weighted per IEC651)
Maximum SPL > 158dB SPL (@ 1kHz, 5% THD into 1KΩ load)
Maximum output voltage +29dBu (@ 1kHz, 5% THD into 1KΩ load)
Sensitivity -38dB re 1V/Pa (12mV @ 94dB SPL) +/-1dB @ 1kHz
Weight 760gm
Dimensions 208mmH x 55mmW x 55mmD
| Product Name | Rode NTK Class A Large Diaphragm Tube Microphone |
|---|---|
| Shipping Option | Free Shipping to the Continental U.S. |
