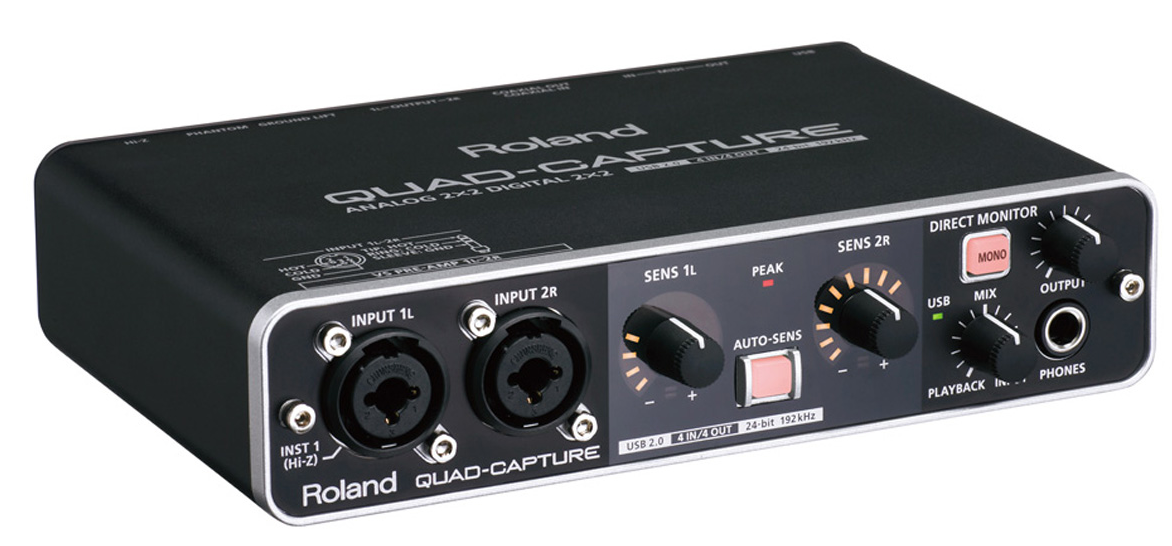

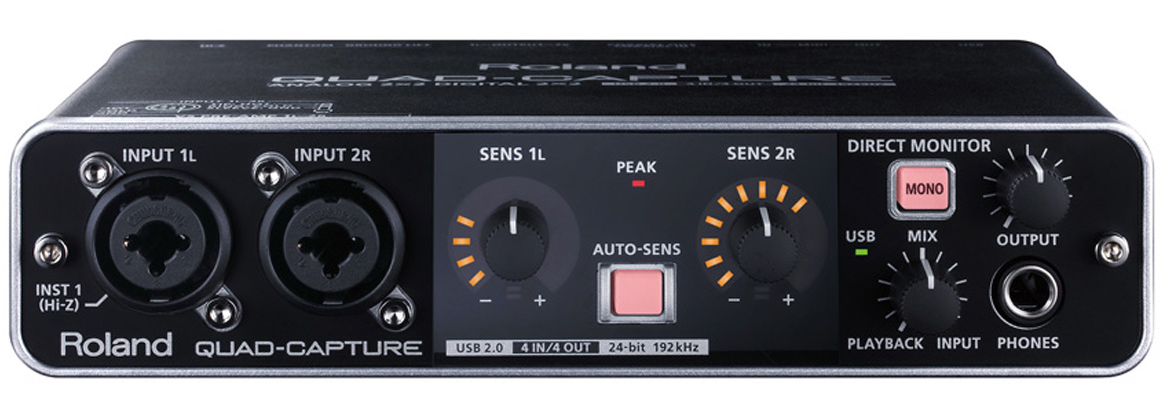

Pro Performance for Portable Production
With a pair of premium VS Preamps onboard, plus superb 24-bit/192 kHz audio quality, ultra-low latency performance, and convenient USB bus power, QUAD-CAPTURE sets a new standard for portable USB 2.0 audio interfaces. Its compact, durable design and pristine sound makes it the perfect foundation for portable, multichannel computer-based productions on the go. With quality and performance that far exceeds its size and price, QUAD-CAPTURE stands at the head of its class.
- Two combo XLR/TRS inputs with premium mic preamps (VS Preamps), two TRS outputs, coaxial I/O, headphone out, and MIDI I/O
- Graphical Control Panel software provides fast, intuitive control of the VS Preamps
- Phantom power, ground lift, and Hi-Z switches
- One-click AUTO-SENS function intelligently sets optimal input levels for the preamps
- Extreme low-latency VS Streaming driver
- Low-noise, wide-range power supply
- Compact with durable aluminum body and Direct Box functionality
- Bundled with Cakewalk SONAR X1 LE
VS Preamps
QUAD-CAPTURE boasts two premium-grade, digitally controlled mic preamps (VS Preamps) made from the same high-grade components as the preamps found in Roland’s V-Studio 700 and M-400 digital mixer. Two XLR/TRS combo inputs are provided for the preamps, plus independent phantom power, low-cut filter, phase invert, and digital compression for each channel. The VS preamps can be controlled easily and intuitively with the included graphical Control Panel software (Mac/PC).
One-Click AUTO-SENS
Never before has it been faster or easier to set perfect input levels—simply activate the AUTO-SENS feature with the push of a button, play your connected instruments, and QUAD-CAPTURE automatically sets the ideal recording level for each input. Whether you’re a beginner or a professional, AUTO-SENS is great for quick, fail-safe recordings, saving you setup time and letting you focus on where it starts... the performance.
VS Streaming
QUAD-CAPTURE offers incredible stability and industry-leading low-latency USB performance via Roland’s proprietary VS Streaming technology. All current Mac and PC DAW platforms are supported through ASIO 2.0/WDM (Windows) and Core Audio (Mac).
Low-Noise Power Supply
One of QUAD-CAPTURE’s key “behind-the-scenes” features is its low-noise, wide-ranging power supply. Designed to deliver a clean, balanced input and output, it provides a reliable foundation for any professional audio application or environment. When driven by the USB bus power supply, QUAD-CAPTURE’s power is regenerated, providing the analog circuitry ideal voltage for the very best sound quality and efficiency in mobile environments.
Aluminum Build, DI Functionality
QUAD-CAPTURE is small, strong, and housed in a road-tough aluminum body, so you can transport it anywhere with the confidence that its premium internal components are securely protected. For live-concert environments, QUAD-CAPTURE also provides Direct-Box (DI) functionality, essential for noise-free live stage use.
SONAR X1 LE Bundle
Every QUAD-CAPTURE package includes a complimentary copy of SONAR X1 LE software for PC that’s designed to work fluidly and seamlessly with the interface. Derived from Cakewalk’s award-winning SONAR X1 DAW software, the LE version give you a powerful set of software tools for writing, recording, editing, and mixing your music.
SPECIFICATIONS:
Number of Audio Record/Playback Channels
- Sampling Frequency = 96 kHz, 48 kHz, 44.1 kHz Recording: 4 channels
- Playback: 4 channels
- Sampling Frequency = 192 kHz Recording: 2 channels
- Playback: 2 channels
Signal Processing
- PC interface 24 bits
- AD/DA Conversion 24 bits
- Internal 40 bits
Sampling Frequency
- AD/DA Conversion 192 kHz, 96 kHz, 48 kHz, 44.1 kHz
- DIGITAL IN/OUT 96 kHz, 48 kHz, 44.1 kHz
Nominal Input Level
- Input jacks 1, 2 (XLR type) -60 to -6 dBu
- Input jacks 1, 2 (1/4-inch TRS phone type) -50 to +4 dBu
Nominal Output Level
- OUTPUT 1, 2 +0 dBu (balanced)
Headroom
- 14 dB
Input Impedance
- Input jacks 1, 2 (XLR type) 4.8 k ohms (balanced)
- Input jacks 1, 2 (1/4-inch TRS phone type) 15 k ohms (balanced)
Output Impedance
- OUTPUT 1, 2 2 k ohms (balanced)PHONES 47 ohms
Frequency Response
- 192.0 kHz 20 Hz to 90 kHz (+0/-8 dB)
- 20 Hz to 60 kHz (+0/-2 dB)
- 96.0 kHz 20 Hz to 40 kHz (+0/-2 dB)
- 48.0 kHz 20 Hz to 22 kHz (+0/-2 dB)
- 44.1 kHz 20 Hz to 20 kHz (+0/-2 dB)
Residual Noise Level
INPUT 1, 2 to OUTPUT 1, 2 -95 dBu typ. (GAIN: min., 600 ohms terminated, IHF-A)
* Internal Direct Monitor Mixer setting
* Input channel fader: Unity
Dynamic Range
AD block INPUT 1, 2: 104 dB typ. (GAIN: min.)
DA block OUTPUT 1, 2: 109 dB typ.
OTHER:

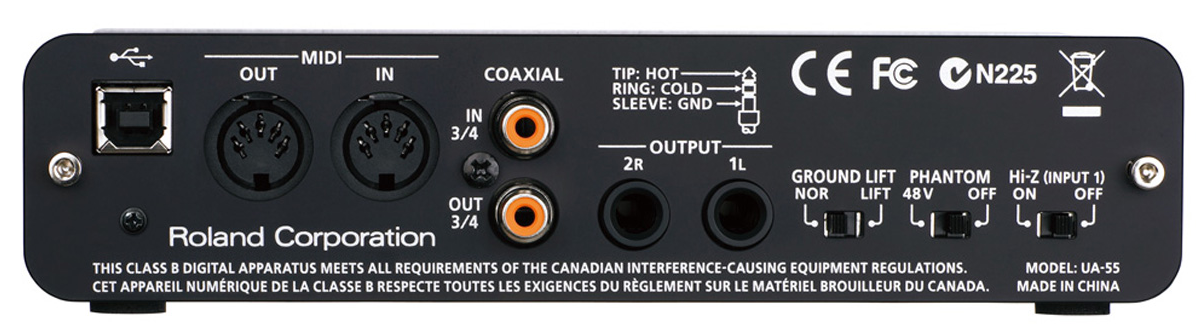

Connectors Input jacks 1, 2 (XLR type / 1/4-inch TRS phone type)
XLR type ... balanced (phantom power: DC 48V, 6mA Max per channel)
1/4-inch TRS phone type ... balanced (INPUT 1 supports high impedance)
COAXIAL IN connector
COAXIAL OUT connector
Headphone jack (Stereo 1/4-inch phone type)
OUTPUT jacks 1, 2 (1/4-inch TRS phone type (balanced))
MIDI connectors (In, Out)
USB connector
Interface Hi-Speed USB
Digital input/output: Coaxial type (Conforms to IEC60958 consumer format)
MIDI input/output
Power Supply USB Bus PowerCurrent Draw 480 mA
Accessories Owner's Manual
Cakewalk SONAR LE DVD-ROM (for Windows)
Driver CD-ROM
USB cable
Size and Weight
- Width (W)185 mm7-5/16 inches
- Depth (D)134 mm5-5/16 inches
- Height (H)44 mm1-3/4 inches
- Weight 570 g1 lbs. 5 oz.
| Product Name | Roland UA55 Quad Capture USB 2.0 Audio Interface (QUADCAPTURE) |
|---|---|
| Brand | Roland |
| Condition | New |
| MPN | QuadCapture |
| UPC | 761294500750 |
| Shipping Option | Free Shipping to the Continental U.S. |
- Two combo XLR/TRS inputs with premium mic preamps (VS Preamps), two TRS outputs, coaxial I/O, headphone out, and MIDI I/O
- Graphical Control Panel software provides fast, intuitive control of the VS Preamps
- Phantom power, ground lift, and Hi-Z switches
- One-click AUTO-SENS function intelligently sets optimal input levels for the preamps
- Extreme low-latency VS Streaming driver
- Low-noise, wide-range power supply
- Compact with durable aluminum body and Direct Box functionality

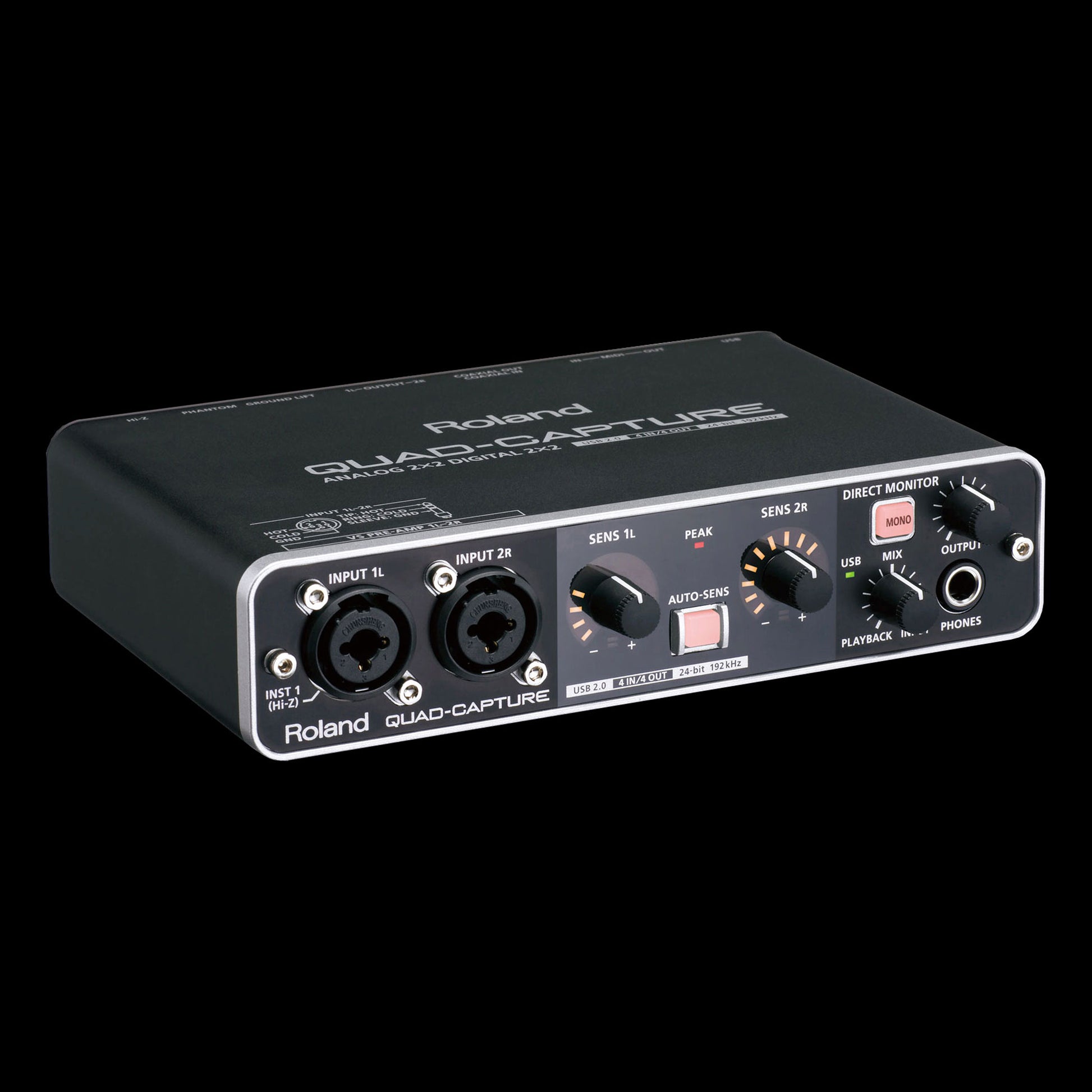

Roland UA55 Quad Capture USB 2.0 Audio Interface (QUADCAPTURE)
Details
Why you need the Roland UA55 Quad Capture 4x Channel 2x Mic Pre Interface:
Mint Condition with 6 Month Alto Music Warranty
With a pair of premium VS Preamps onboard, plus superb 24-bit/192 kHz audio quality, ultra-low latency performance, and convenient USB bus power, QUAD-CAPTURE sets a new standard for portable USB 2.0 audio interfaces. Its compact, durable design and pristine sound makes it the perfect foundation for portable, multichannel computer-based productions on the go. With quality and performance that far exceeds its size and price, QUAD-CAPTURE stands at the head of its class.
| Product Name | Roland UA55 Quad Capture USB 2.0 Audio Interface (QUADCAPTURE) |
|---|---|
| Brand | Roland |
| Condition | New |
| MPN | QuadCapture |
| UPC | 761294500750 |
| Shipping Option | Free Shipping to the Continental U.S. |
Features
- Two combo XLR/TRS inputs with premium mic preamps (VS Preamps), two TRS outputs, coaxial I/O, headphone out, and MIDI I/O
- Graphical Control Panel software provides fast, intuitive control of the VS Preamps
- Phantom power, ground lift, and Hi-Z switches
- One-click AUTO-SENS function intelligently sets optimal input levels for the preamps
- Extreme low-latency VS Streaming driver
- Low-noise, wide-range power supply
- Compact with durable aluminum body and Direct Box functionality
