Rolls MP13 Mic Pre with Phantom Power

Rolls MP13 Mic Pre with Phantom Power

$89.00
$89.00
Sale Sold out

On order with the manufacturer!
The MP13 is a small, simple, and inexpensive microphone pre amplifier for a variety of applications.
View full details
  • Details
  • Reviews

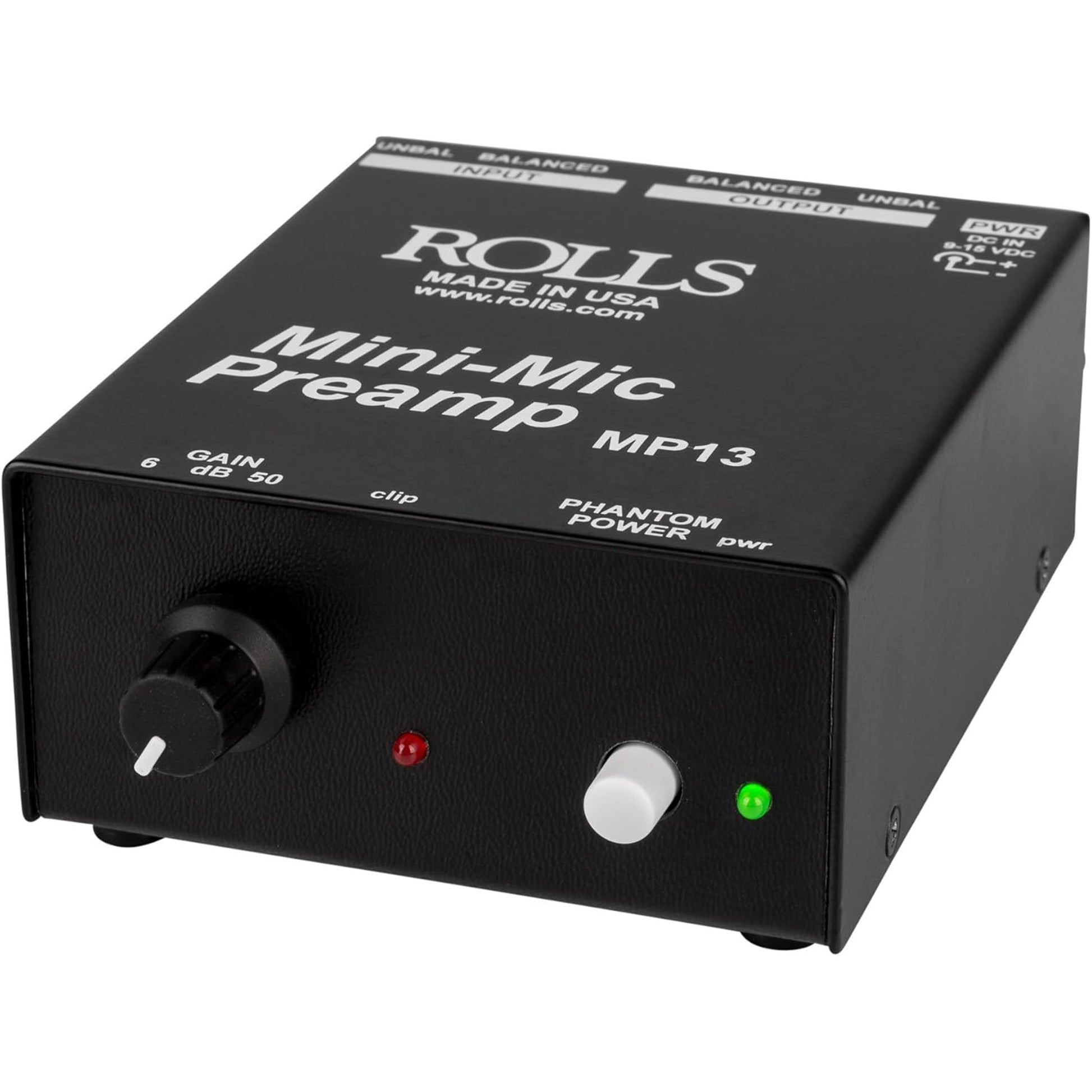

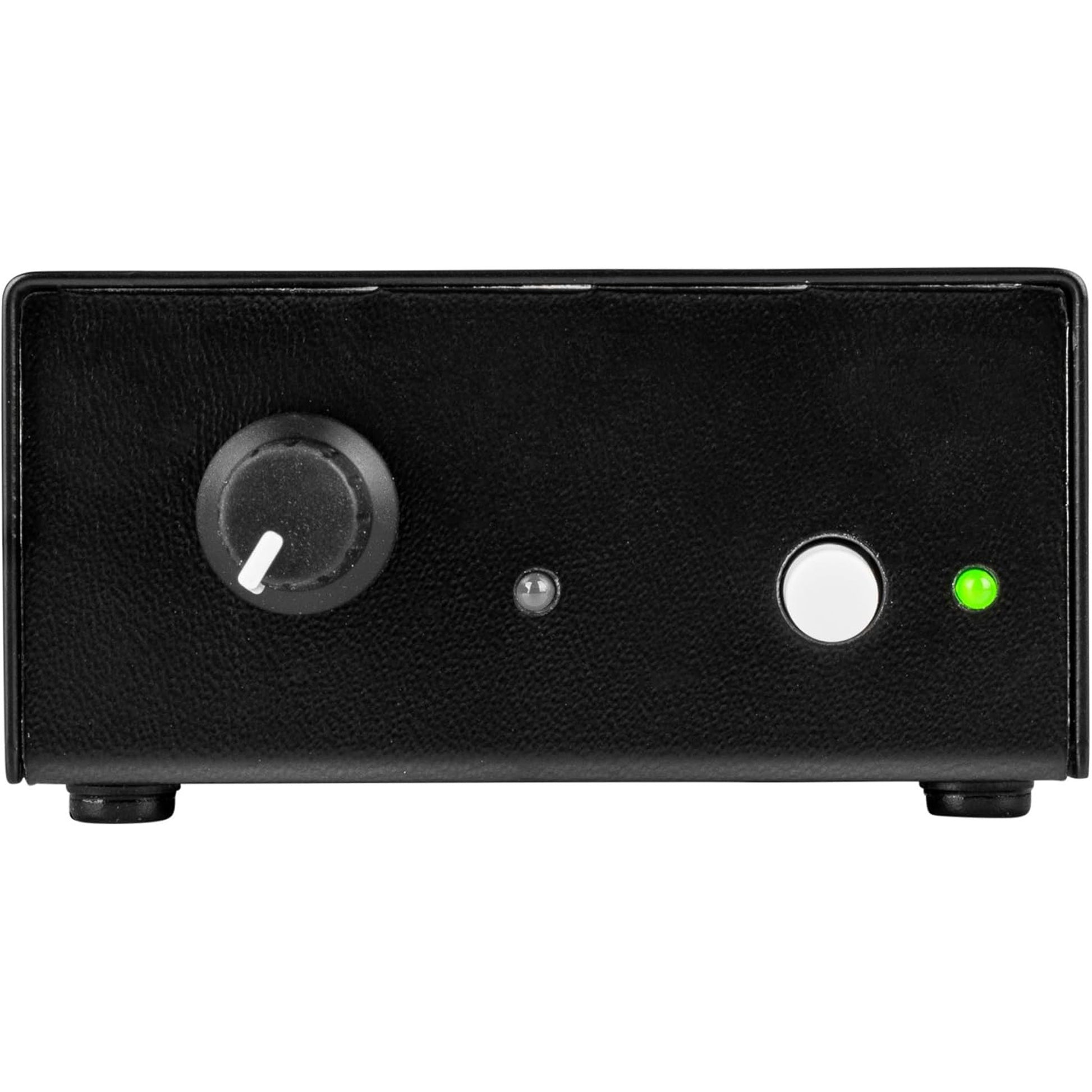

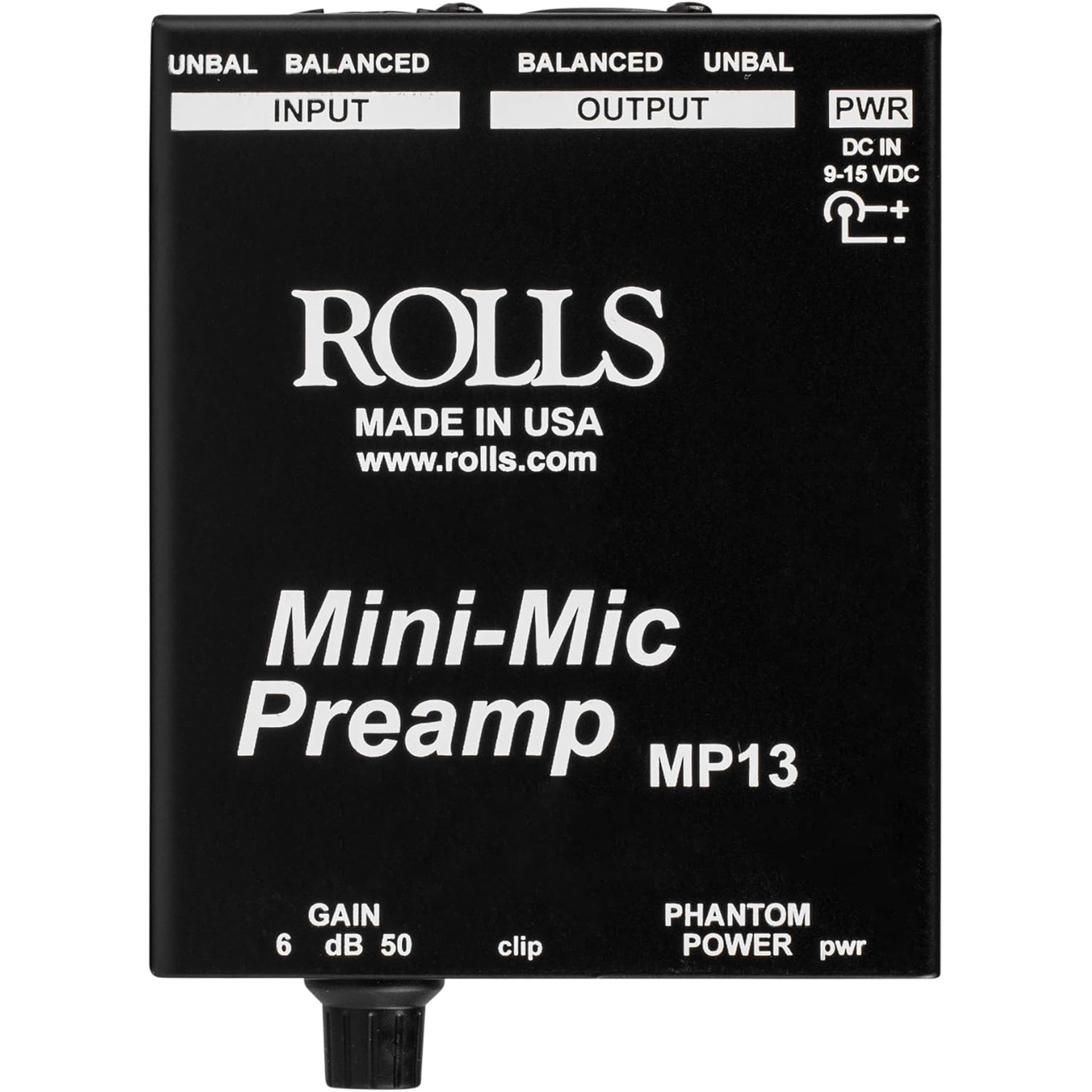

The MP13 is a small, simple, and inexpensive microphone pre amplifier for a variety of applications. The unit has XLR and 1/4" Outputs, XLR and 1/8" Inputs, and a single Gain control with a Clip indicator. Switchable Phantom Power is included for use with a condenser microphone. The unit comes complete with a power adapter.

MP13 Mini-Mic Preamp

  • Small size
  • Works with dynamic, Phantom and Heaset mics
  • XLR and 3.5mm inputs
  • XLR and 1/4" outs
  • Works with 9 to 15 Vdc

Specifications

  • Input Impedance: 10K Ohms balanced/unbalanced
  • Max Input Level: +4dBV XLR balanced, +10dBV unbalanced
  • Max Gain: XLR 60dB, 1/4" 54dB
  • Phase Shift: <10 deg. 20 Hz - 20 kHz
  • EIN: -108dB max.
  • THD: <.01%
  • IMD (SMPTE): < .01%
  • CMRR: >80 dB
  • Phantom Power: +24 Volts, 6 mA
  • Power: 12-15VDC
  • Size: 3.4" X 4.2" X 1.4"
  • Weight: 1 lbs (.45 kg)
More Information
Product Name Rolls MP13 Mic Pre with Phantom Power
Brand Rolls
Condition New
MPN MP13
UPC 675889000139
Shipping Option Free Shipping on orders over $94.72
