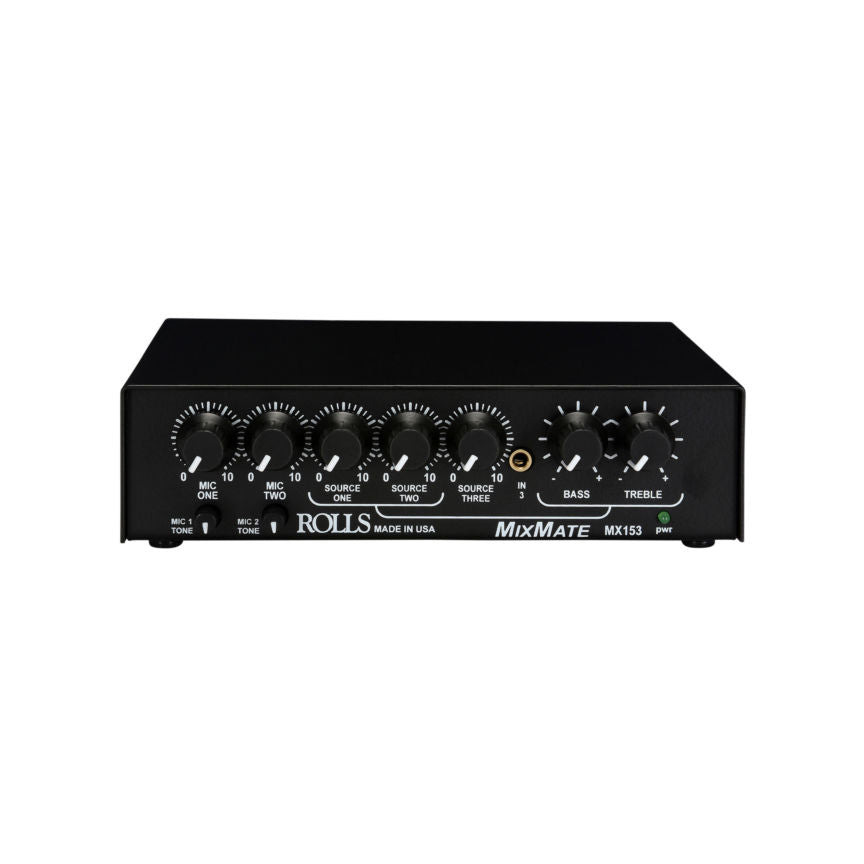

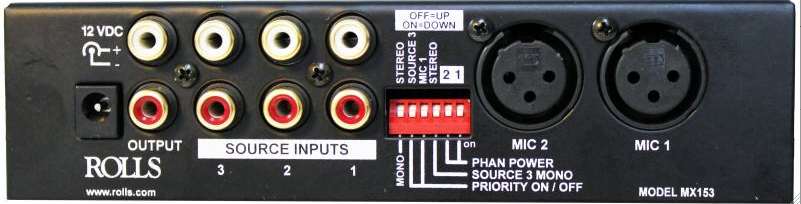

The MX153 is a one-half rack space, two microphone and three stereo source mixer. The unit provides a compact and efficient way to mix sources such as AM/FM tuners, CD players, and video players with dynamic or condenser microphones. Applications include background music and paging for small clubs, churches, schools, restaurants, etc. Each microphone channel has a Level and Tone control. Sources One and Two have Level adjustments and pass through combined Bass and Treble controls. Source Three has a Level adjustment only. The Microphone inputs are balanced XLR jacks, all Source inputs are stereo RCA except for the front 1/8 jack on CH3 for an MP3 player, etc. The main output is stereo RCA. An included 12VDC adapter (Rolls PS27) provides power to the unit. A series of six DIP switches provide important features to the MX153. Two switches apply the 12VDC of phantom power to the individual Microphone Inputs. A second switch sums the program material of Source Three to mono, and a third sums the overall output to mono. Another switch provides priority ducking to Source Three input allowing that channel to mute the other source inputs for use with a jukebox. The final switch configures Microphone Input One as a paging input, ducking the other microphone and Sources One and Two.



MX153 MixMate



The MX153 is a compact two microphone and three stereo source mixer designed mainly for installation purposes. It's ideal for small

restaurants, clubs, churches, schools, or any application where two paging or announcing microphones need to be mixed with stereo

sources such as AM/FM tuners, CD players, juke boxes, and video players. Priority talkover is provided on Microphone One for paging,

and on Source Three for a jukebox, telephone, etc.



FEATURES:



• Two Microphone inputs with phantom power

• Tone controls for each Mic input

• Three stereo Source inputs

• Bass and Treble controls on Sources One and Two

• Priority ducking on Mic One and Source Three

• Switchable Mono/Stereo Unbalanced Output



SPECIFICATIONS:



Input Impedance: Mic:  600 Ohms XLR balanced

Source: 22K Ohms RCA 22k mini.

Max Input Level: Mic:  -14 dBV Mic level Max

Source: 24 dBV

Connectors: 2: XLR, 3: Stereo RCA

Phantom Power: +12 VDC

Max Gain: Mic: 60 dB

Source:26 dB

Tone Controls: +/-12 dB 100 Hz Bass

                             +/-12 dB 11kHz Treble

Nose Floor: - 80 dB

S/N Ratio: 96 dB

Priority Attenuation: 60 dB

Power: 12 VDC (Rolls PS27)

Size: 5.5” x 1.7” x 5”

Weight: 2 lbs
