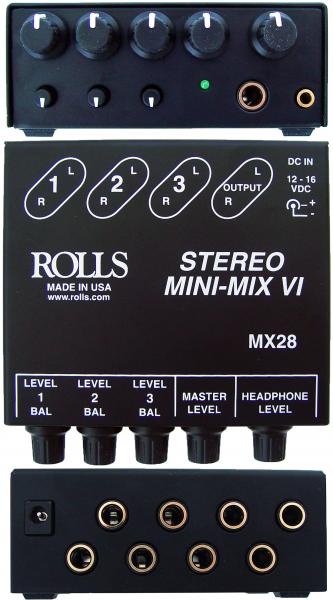

Rolls MX28 Mini-Mix VI Stereo Line Mixer
The MX28 is a three-channel true stereo line mixer. Each channel has an individual 1/4"input for the right and left sides, and the outputs are individual right and left 1/4" jacks. Each channel has a level and pan (balance) control. The master level controls the output volume and the headphone level controls the level to the two headphone outputs.
Features:
Three stereo inputs - 2: 1/4" unbal per channel
Individual 1/4" Right and Left outputs
Pan control for each channel
Two Headphone outputs
Specifications:
Input Impedance: 10K ohm
Output Impedance: 100 ohm
Max Gain: +27 dBV
Max Input Level: +30 dBV
Max Output Level: +13 dB
Frequency Response: 20Hz - 20kHz +/- 1 dBV
THD + Noise: <.005%
Power: 12 VDC 150 mA adapter (center negative)
Dimensions (W x D x H): 4.25" x 1.75" x 4.5"
Weight: 1.2 lbs. (0.49 kg)
| Product Name | Rolls MX28 Mini-Mix VI Stereo Line Mixer |
|---|---|
| Brand | Rolls |
| MPN | MX28 |
| UPC | 675889000283 |
| Shipping Option | Free Shipping to the Continental U.S. |
Rolls MX28 Mini-Mix VI Stereo Line Mixer
Details
Rolls MX28 Mini-Mix VI Stereo Line Mixer
The MX28 is a three-channel true stereo line mixer. Each channel has an individual 1/4"input for the right and left sides, and the outputs are individual right and left 1/4" jacks. Each channel has a level and pan (balance) control. The master level controls the output volume and the headphone level controls the level to the two headphone outputs.
Features:
Three stereo inputs - 2: 1/4" unbal per channel
Individual 1/4" Right and Left outputs
Pan control for each channel
Two Headphone outputs
Specifications:
Input Impedance: 10K ohm
Output Impedance: 100 ohm
Max Gain: +27 dBV
Max Input Level: +30 dBV
Max Output Level: +13 dB
Frequency Response: 20Hz - 20kHz +/- 1 dBV
THD + Noise: <.005%
Power: 12 VDC 150 mA adapter (center negative)
Dimensions (W x D x H): 4.25" x 1.75" x 4.5"
Weight: 1.2 lbs. (0.49 kg)
| Product Name | Rolls MX28 Mini-Mix VI Stereo Line Mixer |
|---|---|
| Brand | Rolls |
| MPN | MX28 |
| UPC | 675889000283 |
| Shipping Option | Free Shipping to the Continental U.S. |
