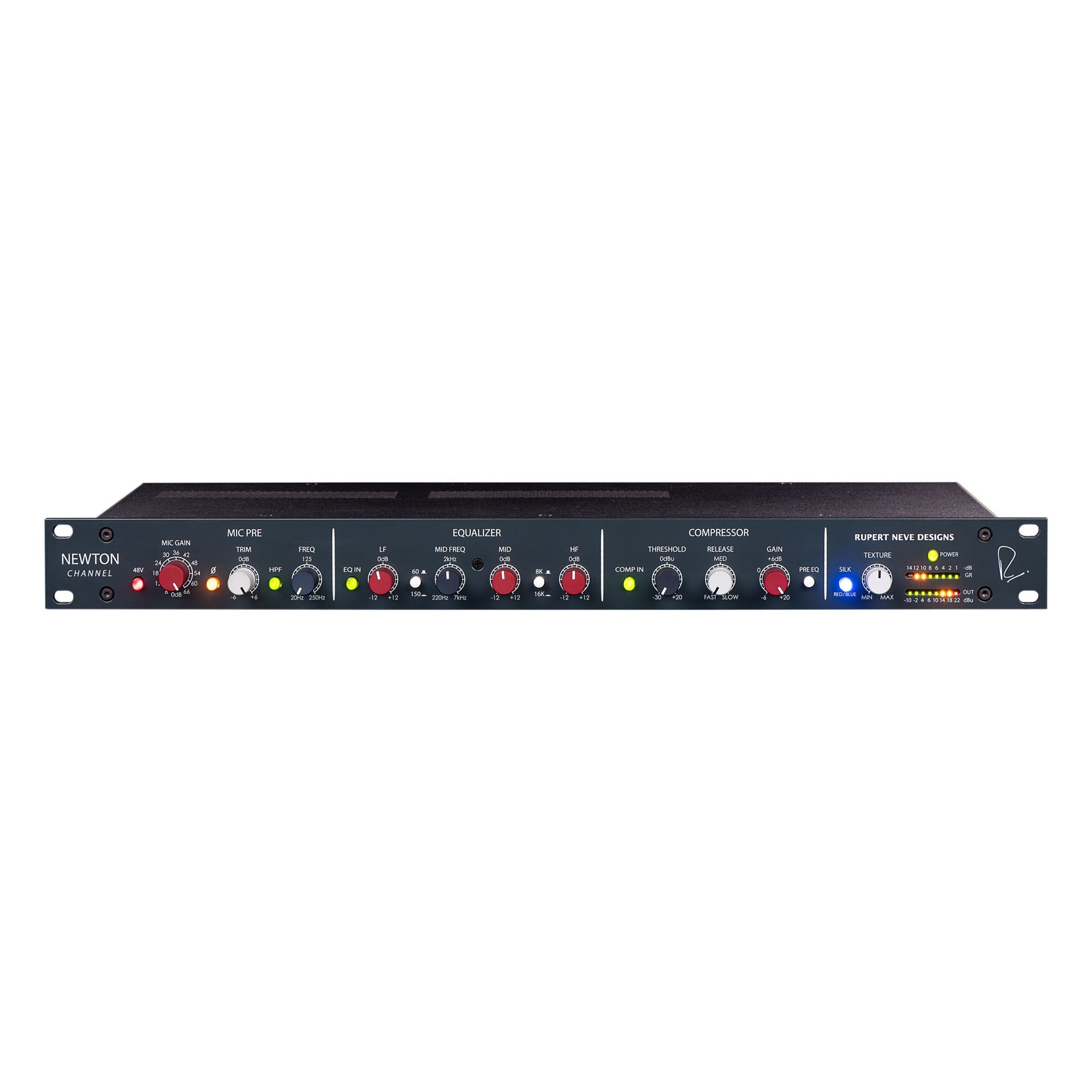

The Equalizer

The EQ section in the Newton is optimized for speed & flexibility with a simplified set of controls. The low and high frequency shelf bands are controllable with accurate 31-detent potentiometers that provide up to 12dB of gain boost/cut, providing the ability to dial in either subtle or extreme settings as desired.

The parametric mid-band of the Newton EQ section includes another 31-detent potentiometer and a wide range of mid frequencies to boost or cut, switchable from 220Hz to 7kHz. This makes the MF band particularly flexible, allowing for taming low-mid muddiness, boosting mid frequency presence, or removing any harshness in the upper midrange. The carefully-chosen fixed Q setting maintains a healthy balance of musicality and precision – just wide enough for brush-stroke equalization without adversely affecting neighboring frequencies.

As with every section of the Newton Channel, the EQ has an independent bypass button for double- checking settings every step of the way.

The Compressor

The Newton Channel also contains the latest iteration of Rupert Neve Designs’ ultra-smooth VCA compressor, with +20dB of make-up gain and ample control for any amount of needed compression while maintaining an effortless sound. Also included is a helpful ‘pre EQ/post EQ’ push button to place the compressor either before or after the EQ section, plus an independent bypass button.

Variable Silk

At the end of the Newton’s signal path is the unique & highly coveted variable Silk circuit, providing the power & control to amplify 2nd and 3rd order harmonics by saturating our custom Rupert Neve Designs output transformers for a vintage tonality.

With the variable Texture knob, the engineer is able to precisely dial in the desired amount of harmonic density – with Silk Red mode highlighting harmonics in the highs and upper mid frequencies, and Blue mode accentuating harmonics in the lows and low mids. From a subtle transformer tonality without Silk, to significantly more color than vintage modules with the Silk / Texture circuit fully pushed, the Newton’s output stage can fill out tracks with enhanced power and sparkle.

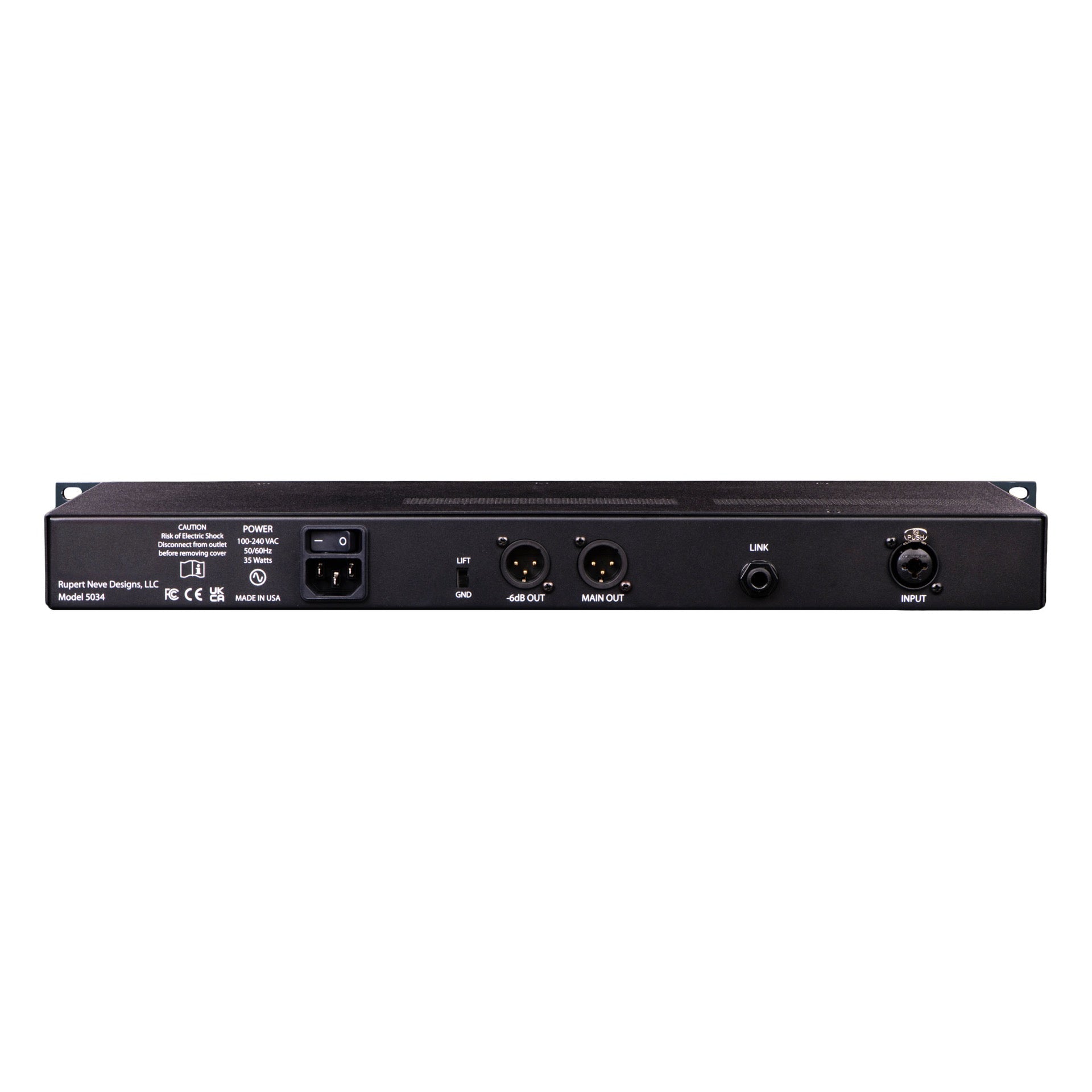

Custom Transformer Outputs

The Newton Channel has a custom transformer output stage with a balanced MAIN standard line level output. Additionally, a separate -6dBu XLR output can compensate for high levels of input and Silk harmonic saturation, enabling engineers to fully drive the Newton to achieve more transformer harmonics without clipping the next device in the chain. Both outputs are active and can be used concurrently.
