*Please note -- This pre-owned item may show signs of use. Please see photos for details of the product.

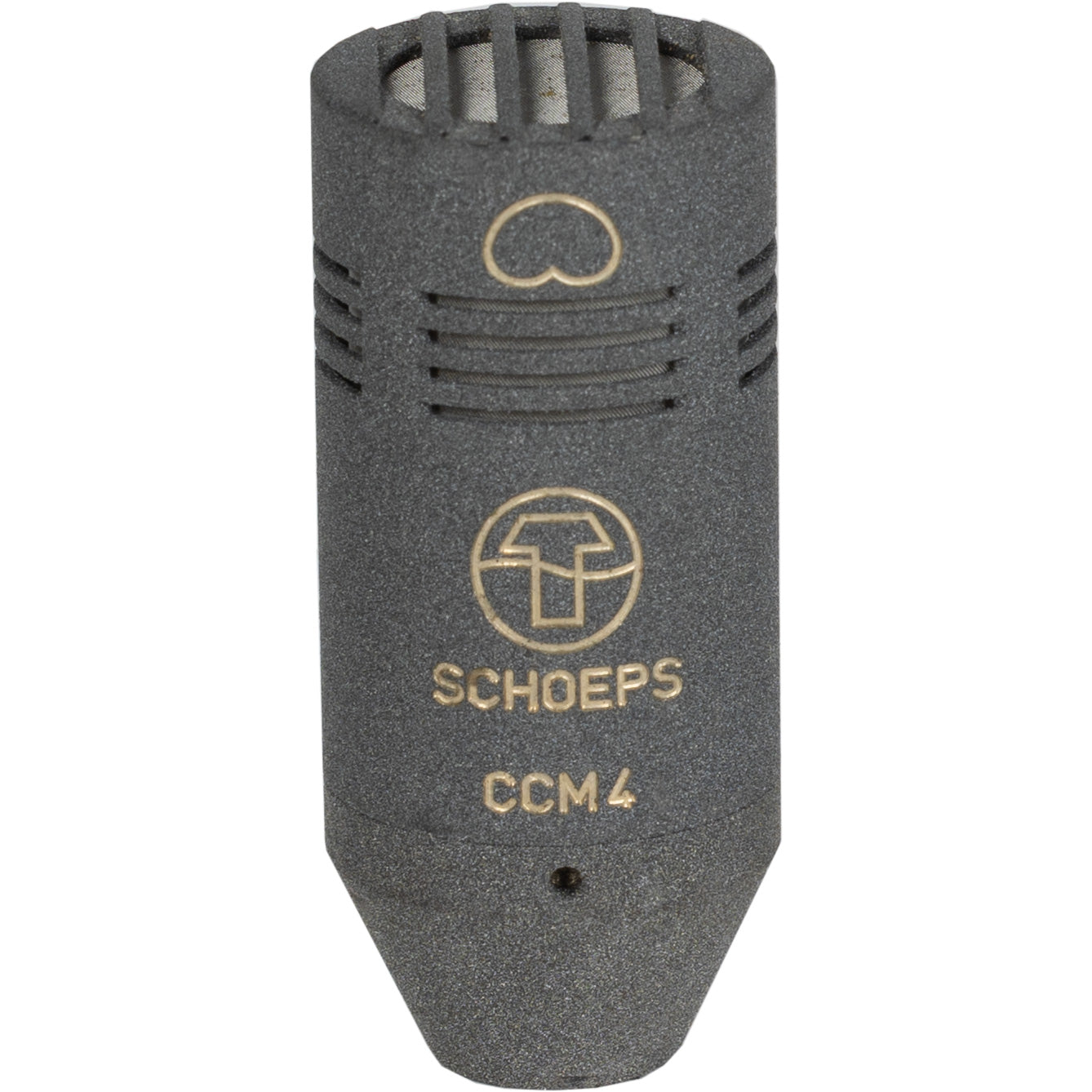

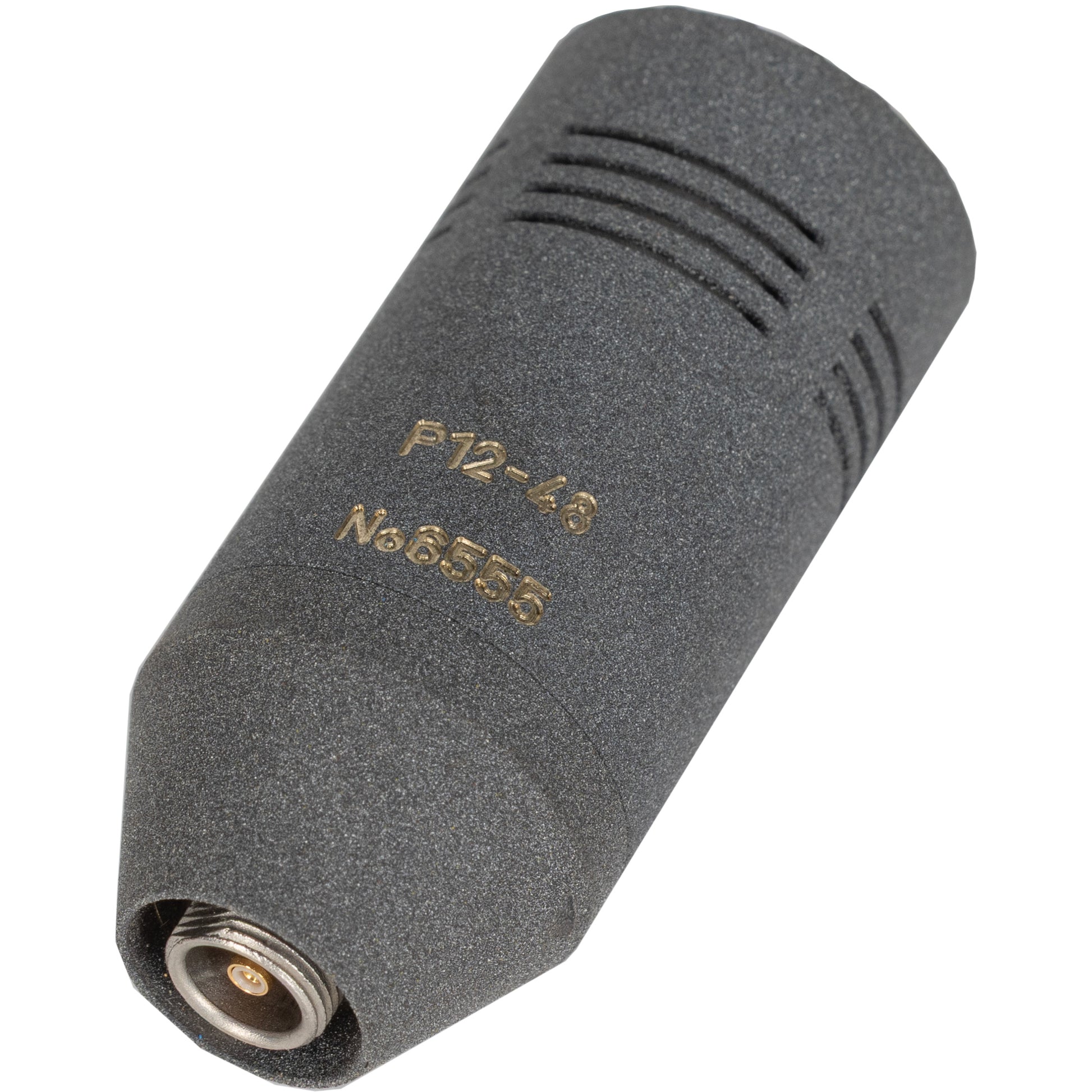

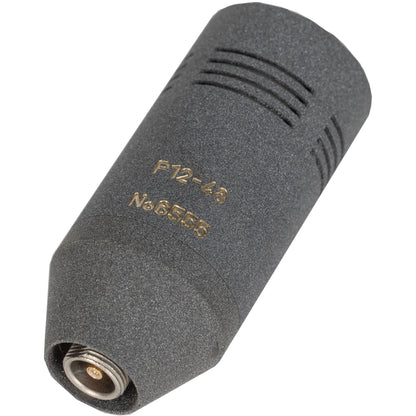

The CCM 4 is a compact small diaphragm cardioid condenser microphone suitable for a very wide range of applications. It can be used as a spot microphone with vocals, spoken voice or acoustic instruments and in coincident, ORTF or M/S stereo setups. It offers consistent directionality throughout its frequency range. Its attenuation at 90° incidence angle is 6 dB and at 180° it reaches 20-30 dB. Diffuse sound is reduced by 4.8 dB compared to frontally incident sound. In the diffuse sound field the CCM 4 shows a gentle rise around 10 kHz. Matched pairs are available although normal production tolerances are very close. Custom colours are available on request. Each CCM microphone is available as a standard version “L” with a Lemo plug and as a version “U” with a permanently attached 5 m cable and XLR-3M connector.
| Product Name | Schoeps CCM 4 LG Cardioid Compact Microphone |
|---|---|
| Brand | Schoeps |
| Condition | Pre-owned |
| MPN | CCM4 |
| Shipping Option | Free Shipping to the Continental U.S. |

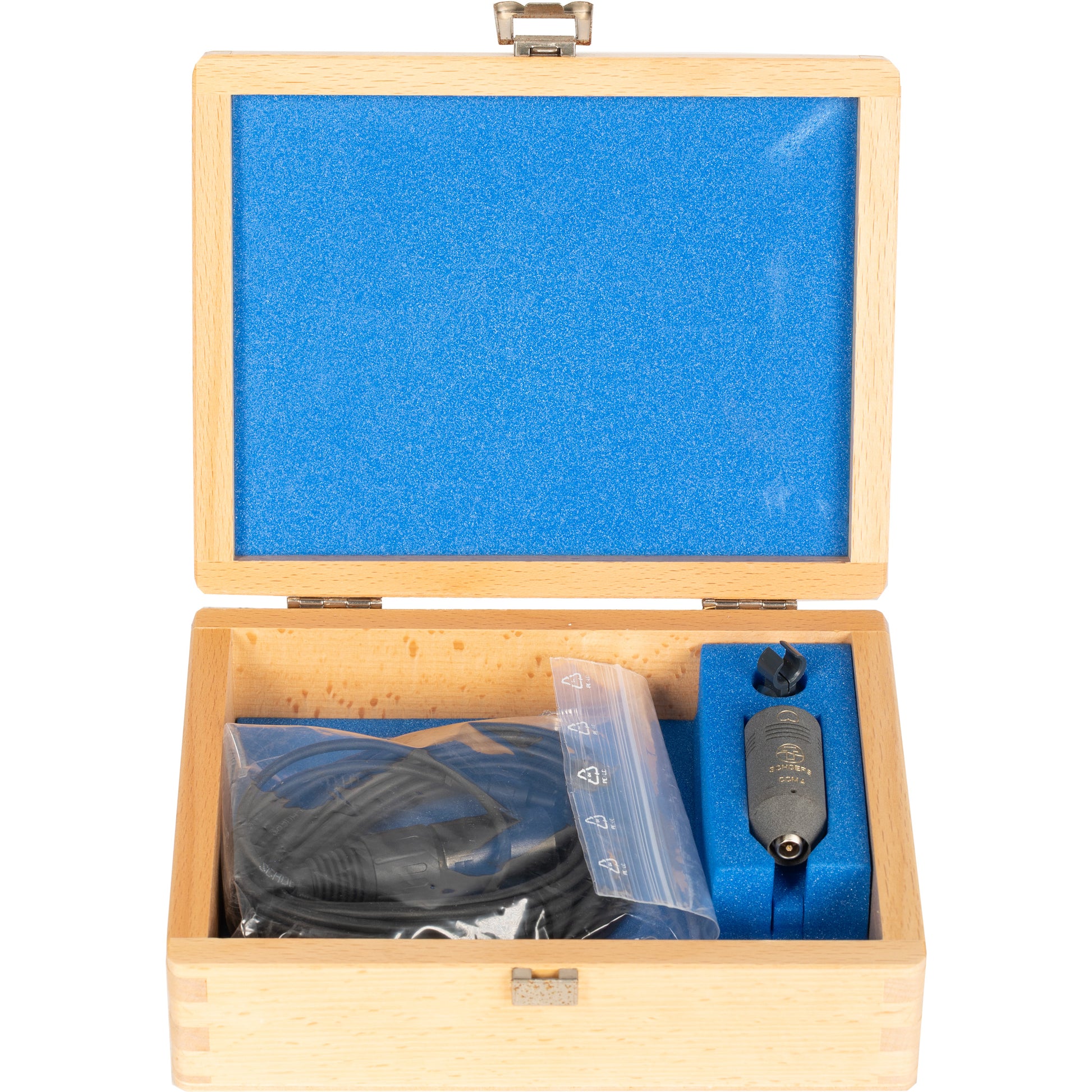

What's in the Box?
- Schoeps CCM 4 LG Cardioid Compact Microphone

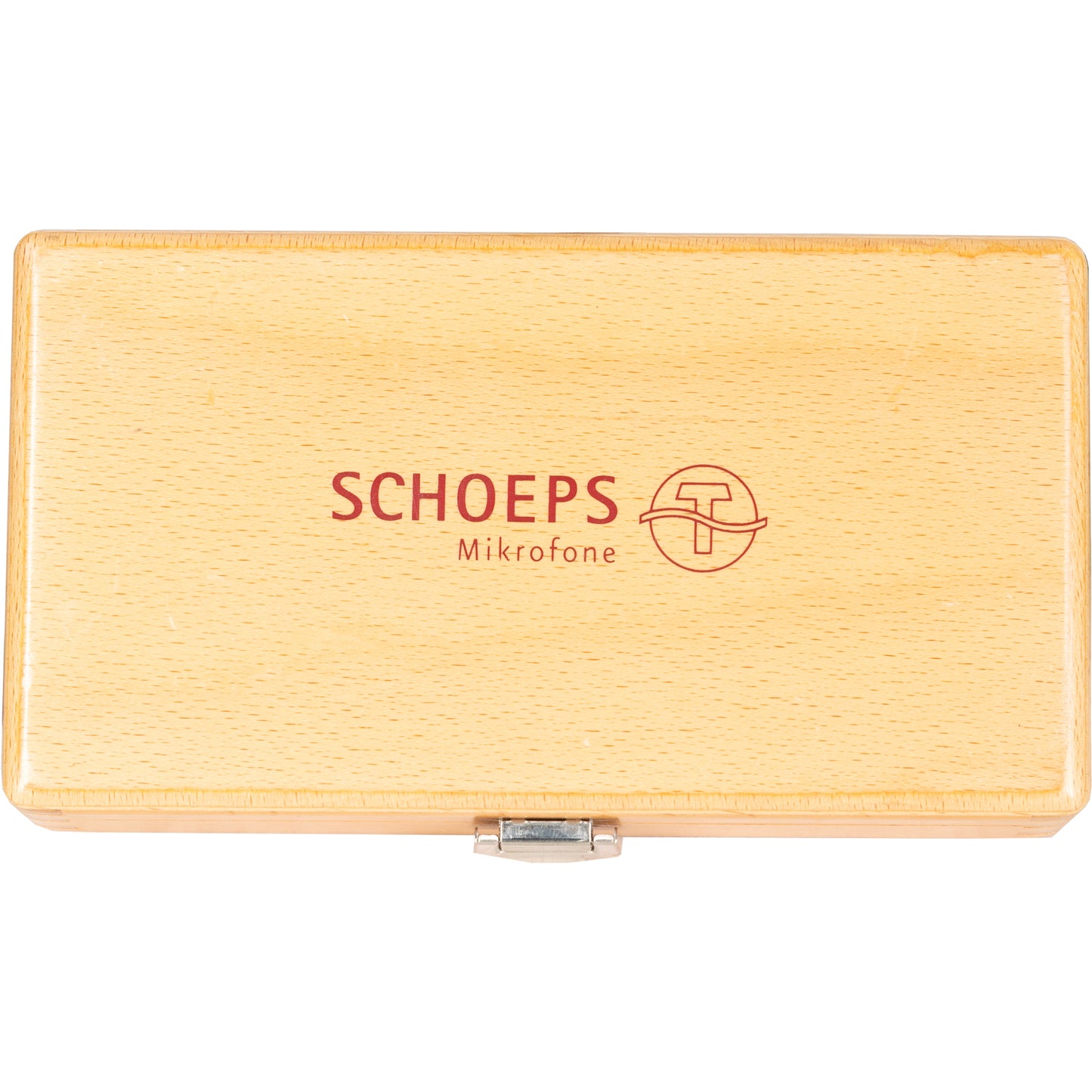

- Case
- Cable
- Compact small diaphragm cardioid condenser microphone for professional recording
- Consistent cardioid pattern with 6 dB attenuation at 90° and 20-30 dB at 180°
- Ideal for vocals, speech, acoustic instruments, and stereo recording setups (ORTF, M/S, coincident pair)
- Gentle high-frequency lift around 10 kHz for added clarity in diffuse sound fields
- Detachable Lemo cable for flexible integration in professional environments
- Low self-noise and high output sensitivity for detailed, clean recordings
- Compact, lightweight design for discreet placement and portability
- Available in matched pairs with close production tolerances
- Optional custom colors available on request
| Frequency Response | 40 Hz - 20 kHz |
| Output Sensitivity | 13 mV/Pa |
| Max SPL | 132 dB |
| Max SPL, THD | 0.5% |
| Self Noise (CCIR) | 24 dB |
| Self Noise (DIN/IEC) | 15 dB-A |
| Output Impedance | 90 Ω |
| Recommended Load | 1 kΩ |
| Powering | Phantom 12-48 V |
| Supply Current | 4 mA |
| Alternative Powering | Switchable Options |
| Pad | Yes |
| Filter/EQ | 20 Hz, 12 dB/oct. |
| Connector | L-version: Lemo, U-version: XLR-3M |
| Connector Notes | Available Colours |
| Colour | Grey |
| Weight | 33 g |
| Length | 46 mm |
| Min Diameter Width | 20 mm |
| Max Diameter | 20 mm |
Schoeps CCM 4 LG Cardioid Compact Microphone
*Please note -- This pre-owned item may show signs of use. Please see photos for details of the product.
The CCM 4 is a compact small diaphragm cardioid condenser microphone suitable for a very wide range of applications. It can be used as a spot microphone with vocals, spoken voice or acoustic instruments and in coincident, ORTF or M/S stereo setups. It offers consistent directionality throughout its frequency range. Its attenuation at 90° incidence angle is 6 dB and at 180° it reaches 20-30 dB. Diffuse sound is reduced by 4.8 dB compared to frontally incident sound. In the diffuse sound field the CCM 4 shows a gentle rise around 10 kHz. Matched pairs are available although normal production tolerances are very close. Custom colours are available on request. Each CCM microphone is available as a standard version “L” with a Lemo plug and as a version “U” with a permanently attached 5 m cable and XLR-3M connector.
| Product Name | Schoeps CCM 4 LG Cardioid Compact Microphone |
|---|---|
| Brand | Schoeps |
| Condition | Pre-owned |
| MPN | CCM4 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Schoeps CCM 4 LG Cardioid Compact Microphone
- Case
- Cable
- Compact small diaphragm cardioid condenser microphone for professional recording
- Consistent cardioid pattern with 6 dB attenuation at 90° and 20-30 dB at 180°
- Ideal for vocals, speech, acoustic instruments, and stereo recording setups (ORTF, M/S, coincident pair)
- Gentle high-frequency lift around 10 kHz for added clarity in diffuse sound fields
- Detachable Lemo cable for flexible integration in professional environments
- Low self-noise and high output sensitivity for detailed, clean recordings
- Compact, lightweight design for discreet placement and portability
- Available in matched pairs with close production tolerances
- Optional custom colors available on request
| Frequency Response | 40 Hz - 20 kHz |
| Output Sensitivity | 13 mV/Pa |
| Max SPL | 132 dB |
| Max SPL, THD | 0.5% |
| Self Noise (CCIR) | 24 dB |
| Self Noise (DIN/IEC) | 15 dB-A |
| Output Impedance | 90 Ω |
| Recommended Load | 1 kΩ |
| Powering | Phantom 12-48 V |
| Supply Current | 4 mA |
| Alternative Powering | Switchable Options |
| Pad | Yes |
| Filter/EQ | 20 Hz, 12 dB/oct. |
| Connector | L-version: Lemo, U-version: XLR-3M |
| Connector Notes | Available Colours |
| Colour | Grey |
| Weight | 33 g |
| Length | 46 mm |
| Min Diameter Width | 20 mm |
| Max Diameter | 20 mm |
