*Please note -- This pre-owned item may show signs of use. Please see photos for details of the product.

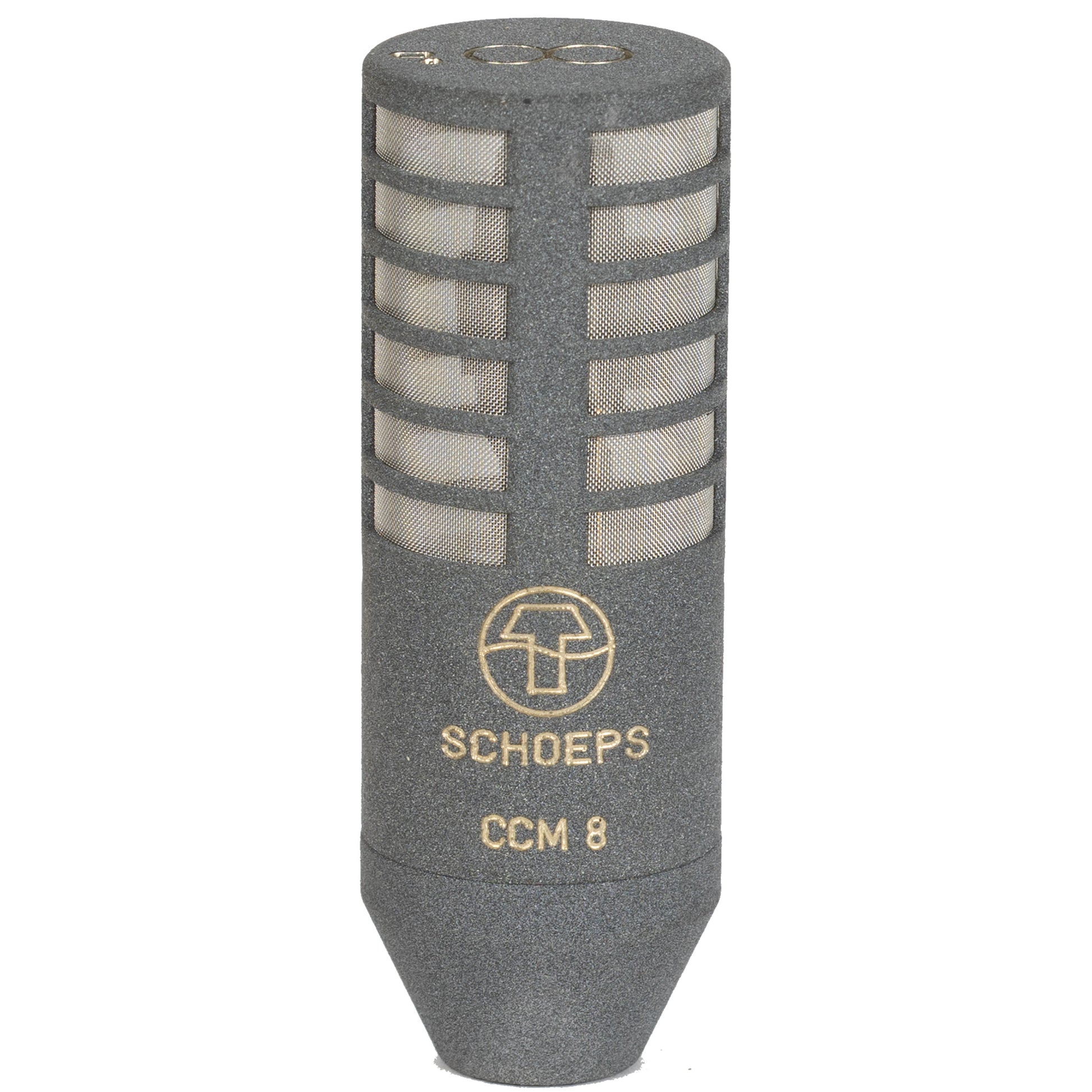

The Schoeps CCM8 LG Compact Figure-Eight Microphone is a precision-crafted, miniature figure-eight microphone designed for professional recording applications requiring exceptional bidirectional capture with minimal coloration. Utilizing a true pressure-gradient transducer, the CCM8 LG delivers a figure-eight polar pattern that remains remarkably consistent across the entire frequency spectrum, making it an ideal tool for M/S stereo techniques and advanced field recording setups.
This version features a detachable K 5 LU cable with a 3-pin LEMO connector, providing flexibility for placement and easier microphone interchanging in complex studio or location recording environments. The microphone’s design ensures superior off-axis high-frequency rejection, capturing clean, detailed audio while minimizing unwanted ambient noise.
With a wide, linear frequency response, the CCM8 LG delivers natural, transparent recordings that faithfully capture source detail, making it a trusted choice for engineers and field recordists requiring premium quality and reliability in a compact form factor.
Product Name | Schoeps CCM8 LG Compact Figure-Eight Microphone |
---|---|
Brand | Schoeps |
Condition | Pre-owned |
MPN | CCM8LG |
Shipping Option | Free Shipping to the Continental U.S. |

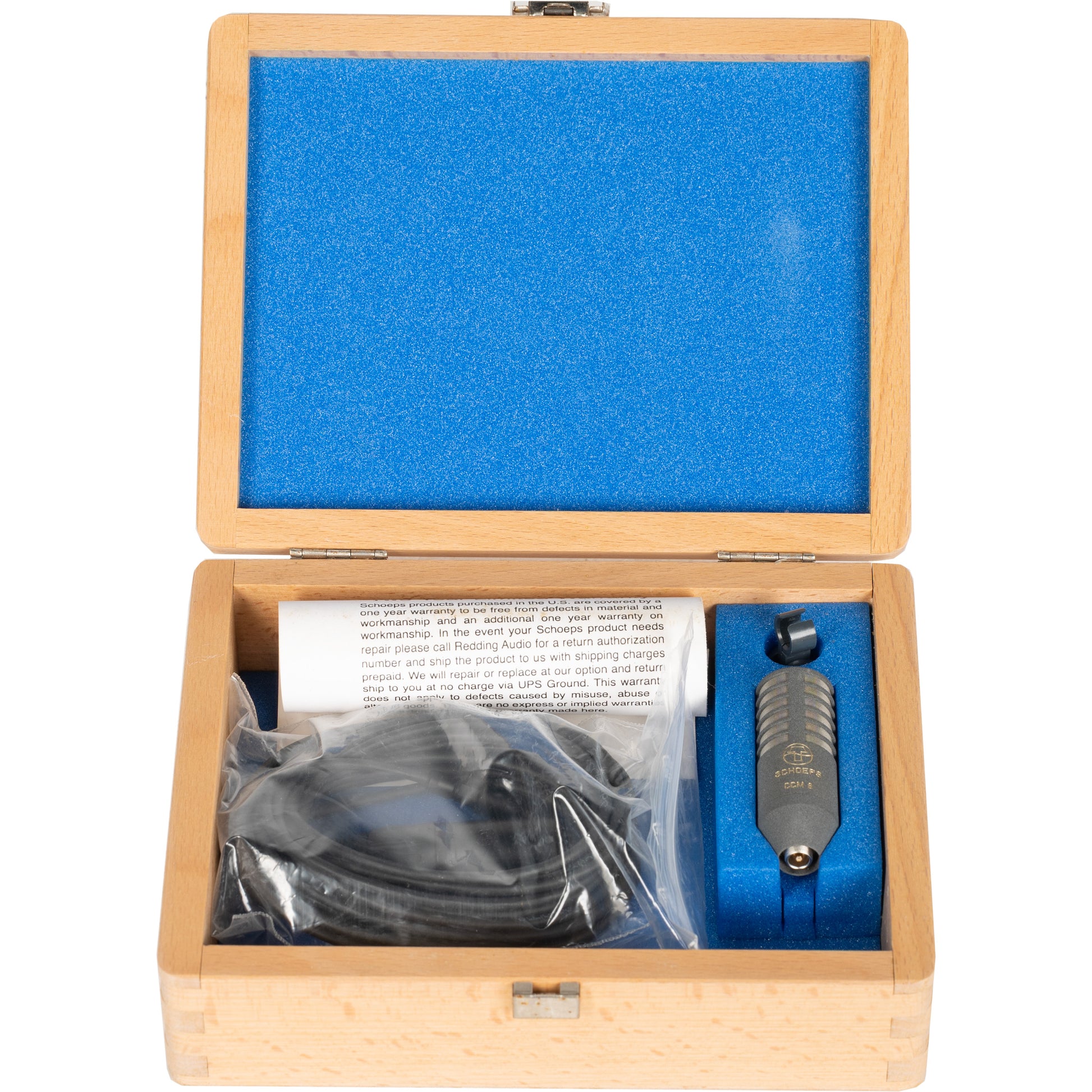

What's in the Box?
- Schoeps CCM8 LG Compact Figure-Eight Microphone
- Cable

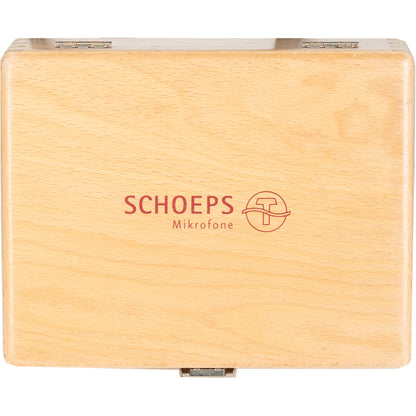

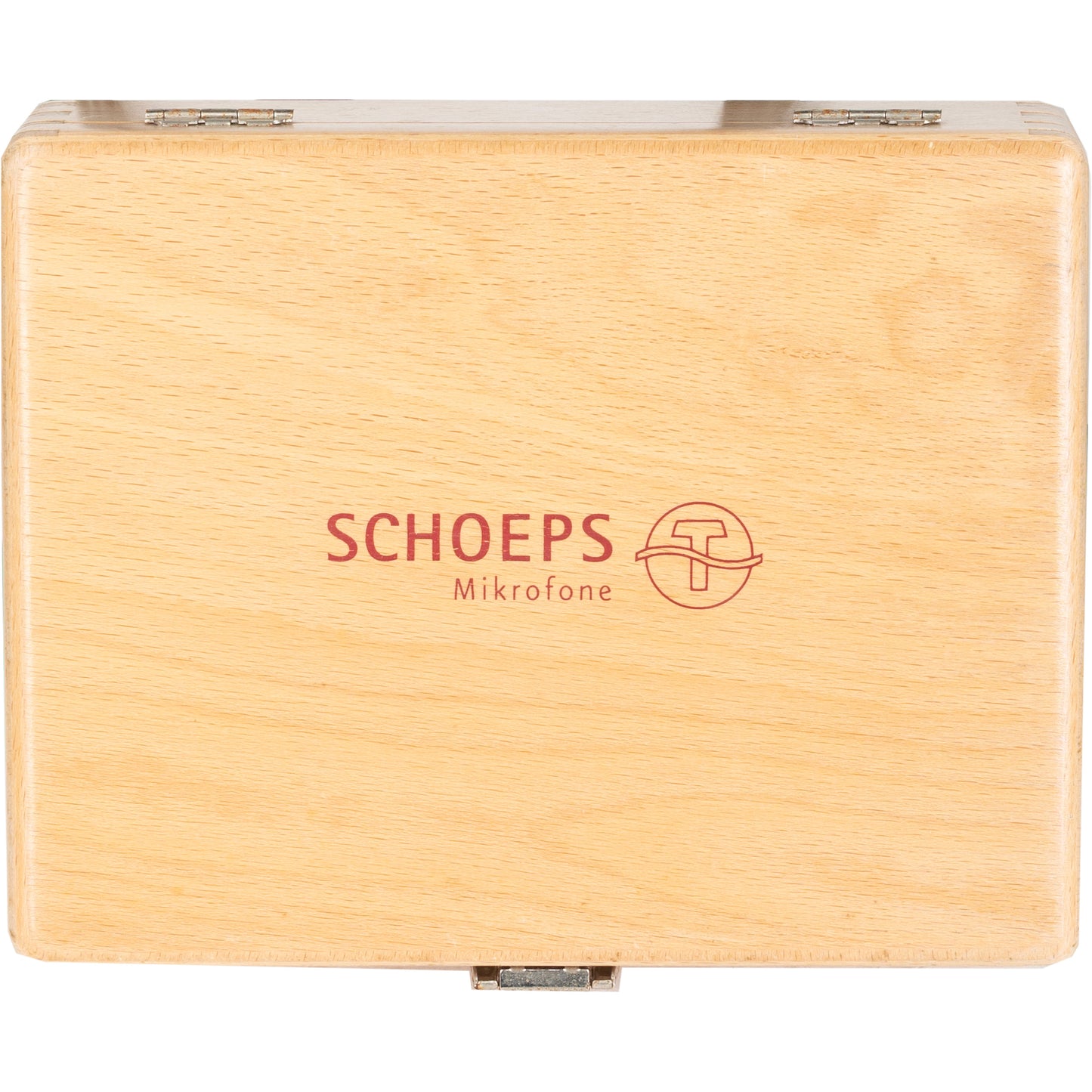

- Case
- Compact figure-eight microphone for professional studio and field recording
- True pressure-gradient transducer with consistent bidirectional polar pattern
- Ideal for M/S stereo capturing and advanced recording configurations
- Detachable K 5 LU cable with 3-pin LEMO connector for flexible placement and easy interchanging
- Exceptional off-axis high-frequency rejection for clean recordings
- Wide, linear frequency response ensures accurate and natural sound reproduction
- Includes SGC miniature stand mount with swivel for precise positioning
- Engineered with Schoeps' renowned precision and reliability
Frequency Range | 40 Hz - 15 kHz |
Sensitivity | -38.5 dB (V/Pa) |
Maximum SPL (THD < 0.5%) | 136 dB-SPL (P48) 128 dB-SPL (P12) |
Maximum Output Voltage | 2.6 V (8.3 dBV) with 2 kΩ load |
Low Cut Filter | 20 Hz, 12 dB/oct |
Output Impedance | 90 Ω @ 1 kHz |
Maximum Cable Length | > 400 m |
SCHOEPS RFI Shield | No |
Powering Standard / Valid Range | P48 / >40 V P12 / >10 V |
Current Consumption | 4 mA (P48) 3.6 mA (P12) |
Common Mode Rejection Ratio (at 1 kHz) | > 55 dB |
Minimum Recommended Load Impedance | 2 kΩ |
Output | Lemo (CCM-L) or XLR-3M (CCM-K), analog, 1 channel |
Length | 58 mm |
Diameter | 20 mm |
Weight | 43 g |
Surface Finish | Matte gray |
