- Details
- Features
- Tech Specs
The Spectera Base Station is a 1RU hardware device that provides up to 64 channels (32 in/32 out) and utilizes up to two wideband RF carriers to accommodate all of the unit’s wireless transmission.
It features redundant Dante and optional redundant Madi, assuring seamless integration into your audio network. Additional antennas can be added for redundancy, extended zone coverage, or additional spectrum capacity. The Spectera Base Station supports sample rates of 48 kHz and 96 kHz and features individual sample rate converters for all audio interfaces and wordclock I/O. Base Station must be activated with license per region.
| Product Name | Sennheiser Spectera Base Station Wireless Transmitter/Receiver |
|---|---|
| Brand | Sennheiser |
| Condition | New |
| MPN | 509162 |
| UPC | 615104356566 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Sennheiser Spectera Base Station Wireless Transmitter/Receiver
- 3 x Mains Cable (EU, UK, and US Plugs)
- 19’’ 1 RU Base Station with redundant power supplies
- Provides up to 64 channels (32 in / 32 out) and allows for up to two independent wideband RF carriers in UHF or 1G4 (6 or 8 MHz) – country specific per region license
- 4 ethernet antenna ports for redundancy, extended zone coverage, and additional spectrum usage
- Redundant Dante® audio interface
- Two optional slots for redundant MADI (OM or BNC)
- Sample rates of 48 kHz and 96 kHz
- Individual sample rate converters for all audio interfaces
- Wordclock I/O BNC
- Synchronized clock for all audio over RF allows 3D recordings and playback
- Adjustable RF power from 10 – 100 mW (country specific)
- RJ45 network interface for full remote control with secured interface
- 11 Audio Link modes with selectable audio codecs (OPUS, SeDAC) or PCM
- Secure transmission of confidential content using AES 256 encryption
- Future expansion via Cascade port
- Selective headphone output with volume control on front panel

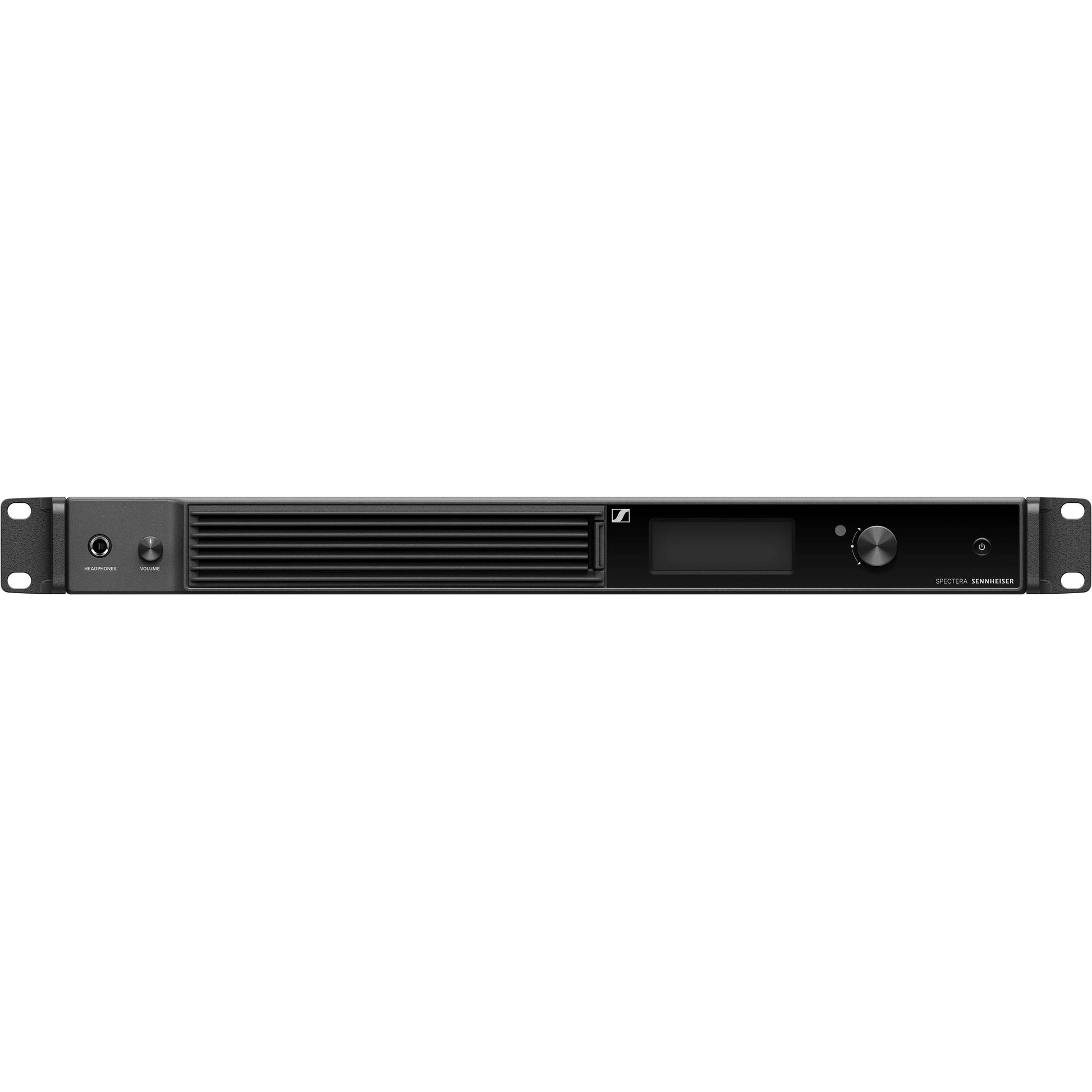

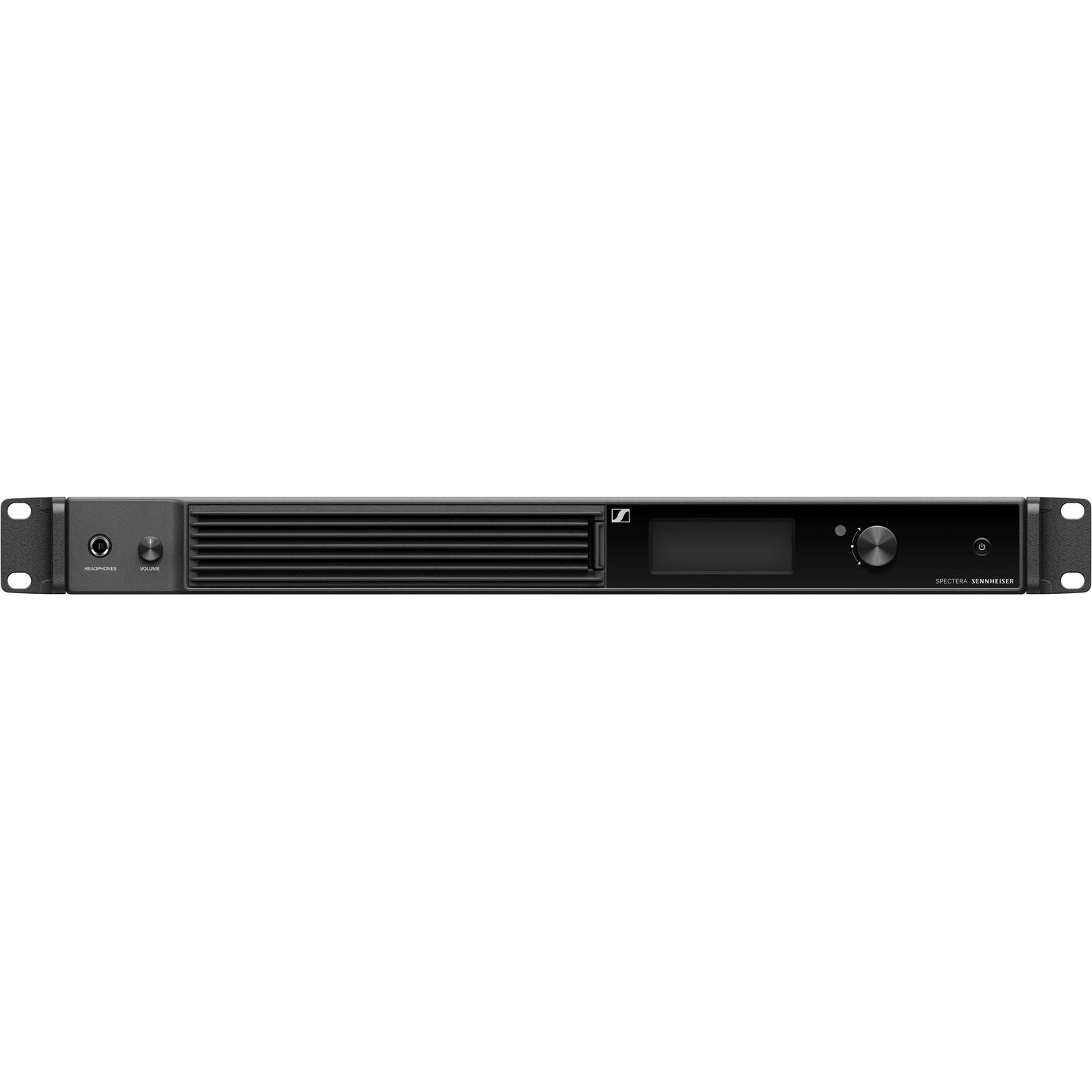

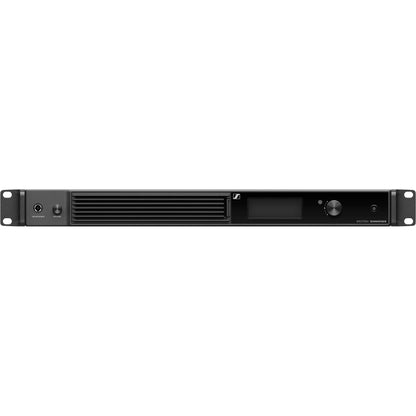

- OLED display, jog wheel navigation, and rugged metal housing
- Base Station activation via LinkDesk: Spectera license defines respective frequency spectrum per region (license sold separately)
General |
|
|---|---|
| Color | Black |
Connectivity |
|
| Connection Ports |
(2) Dante® RJ45 (Primary and Secondary) 32 In / 32 Out 48 kHz, 96 kHz 16 / 24 / 32 bit |
| Dante™ | IEEE 802.3 (1000 Mbit/s), 2 × ruggedized RJ-45 connections |
Performance |
|
| Frequency Range | Depends on connected antennas |
| Latency | tbd per ALM |
| Power Consumption | 70 W × 2 |
Connectors |
|
| Connectors |

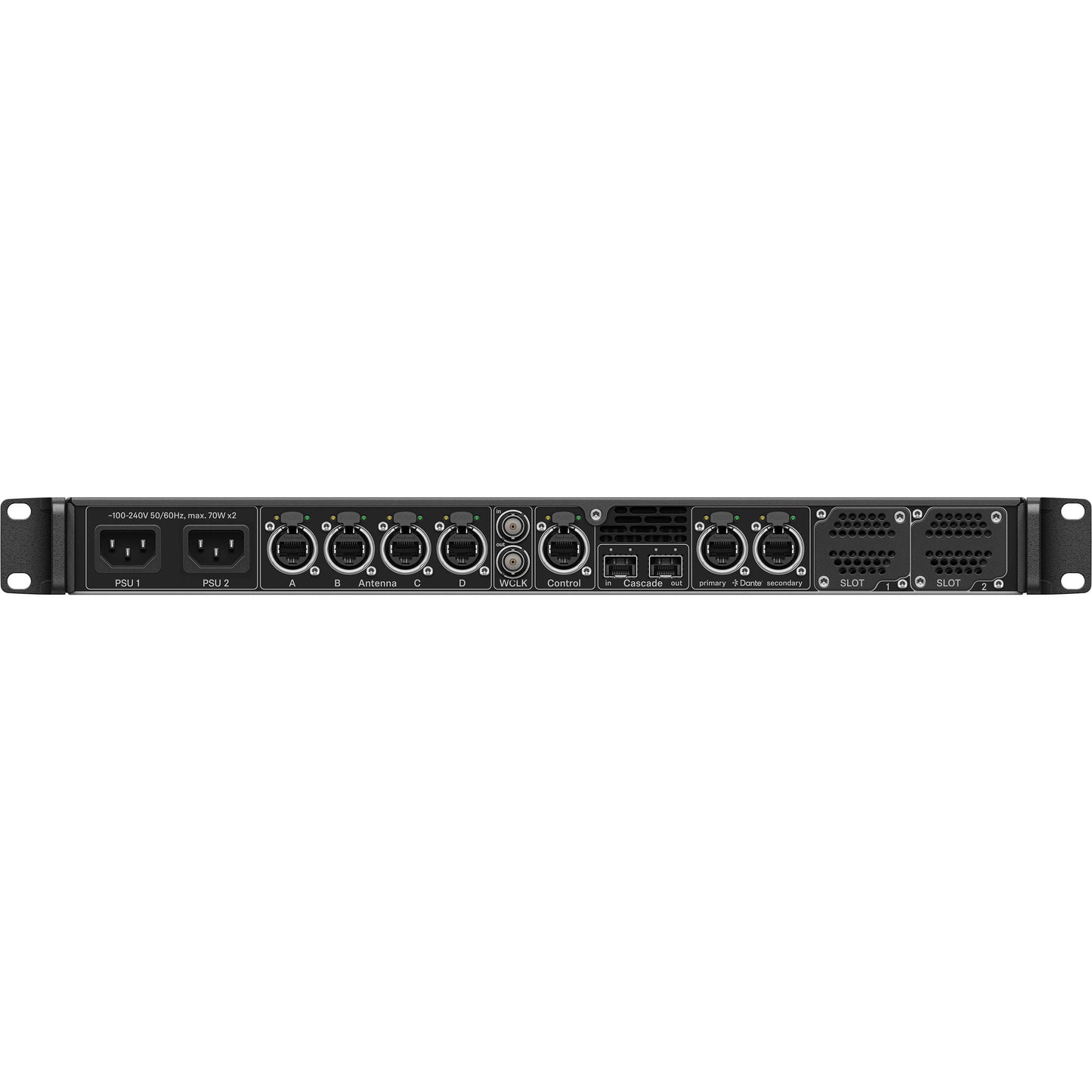

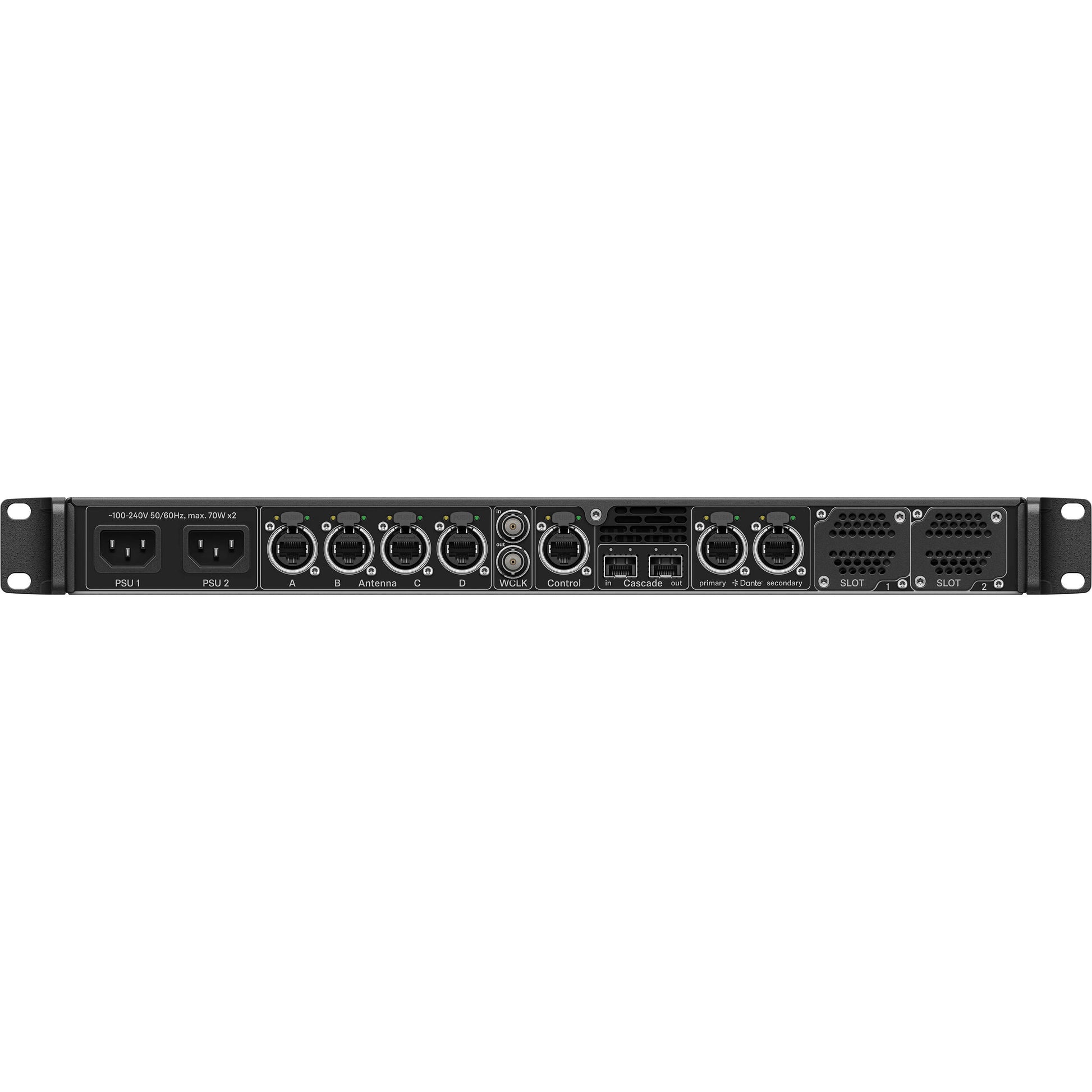

6.3 mm TRS (1/4") BNC 75 Ω RJ45 1 Gbps PoE RJ45 Dante RJ45 (for Ethernet) SFP |
Sennheiser Spectera Base Station Wireless Transmitter/Receiver
Details
The Spectera Base Station is a 1RU hardware device that provides up to 64 channels (32 in/32 out) and utilizes up to two wideband RF carriers to accommodate all of the unit’s wireless transmission.
It features redundant Dante and optional redundant Madi, assuring seamless integration into your audio network. Additional antennas can be added for redundancy, extended zone coverage, or additional spectrum capacity. The Spectera Base Station supports sample rates of 48 kHz and 96 kHz and features individual sample rate converters for all audio interfaces and wordclock I/O. Base Station must be activated with license per region.
| Product Name | Sennheiser Spectera Base Station Wireless Transmitter/Receiver |
|---|---|
| Brand | Sennheiser |
| Condition | New |
| MPN | 509162 |
| UPC | 615104356566 |
What's in the Box?
- Sennheiser Spectera Base Station Wireless Transmitter/Receiver
- 3 x Mains Cable (EU, UK, and US Plugs)
Features
- 19’’ 1 RU Base Station with redundant power supplies
- Provides up to 64 channels (32 in / 32 out) and allows for up to two independent wideband RF carriers in UHF or 1G4 (6 or 8 MHz) – country specific per region license
- 4 ethernet antenna ports for redundancy, extended zone coverage, and additional spectrum usage
- Redundant Dante® audio interface
- Two optional slots for redundant MADI (OM or BNC)
- Sample rates of 48 kHz and 96 kHz
- Individual sample rate converters for all audio interfaces
- Wordclock I/O BNC
- Synchronized clock for all audio over RF allows 3D recordings and playback
- Adjustable RF power from 10 – 100 mW (country specific)
- RJ45 network interface for full remote control with secured interface
- 11 Audio Link modes with selectable audio codecs (OPUS, SeDAC) or PCM
- Secure transmission of confidential content using AES 256 encryption
- Future expansion via Cascade port
- Selective headphone output with volume control on front panel
- OLED display, jog wheel navigation, and rugged metal housing
- Base Station activation via LinkDesk: Spectera license defines respective frequency spectrum per region (license sold separately)
Tech Specs
General |
|
|---|---|
| Color | Black |
Connectivity |
|
| Connection Ports |
(2) Dante® RJ45 (Primary and Secondary) 32 In / 32 Out 48 kHz, 96 kHz 16 / 24 / 32 bit |
| Dante™ | IEEE 802.3 (1000 Mbit/s), 2 × ruggedized RJ-45 connections |
Performance |
|
| Frequency Range | Depends on connected antennas |
| Latency | tbd per ALM |
| Power Consumption | 70 W × 2 |
Connectors |
|
| Connectors |
6.3 mm TRS (1/4") BNC 75 Ω RJ45 1 Gbps PoE RJ45 Dante RJ45 (for Ethernet) SFP |
